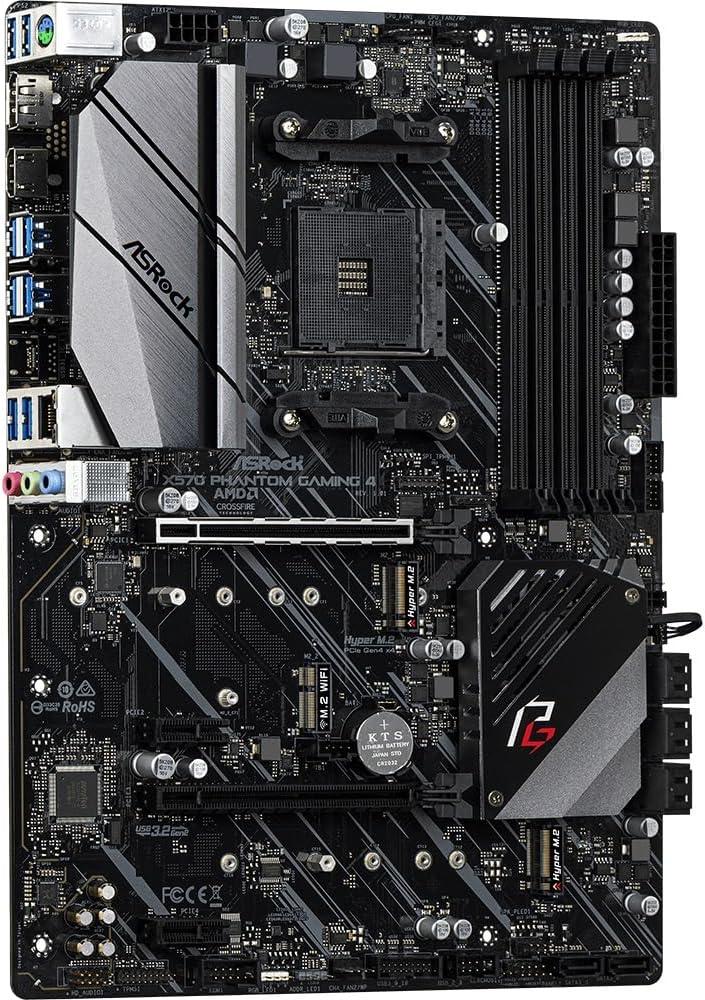

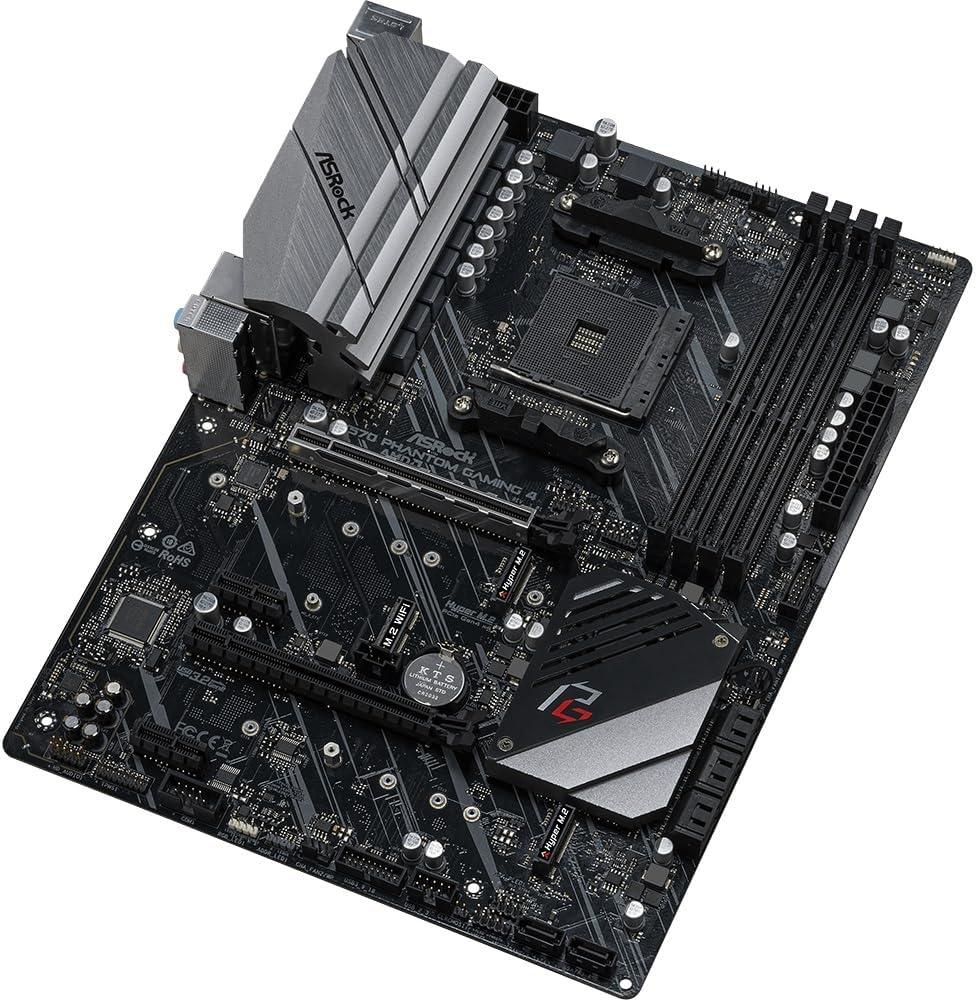

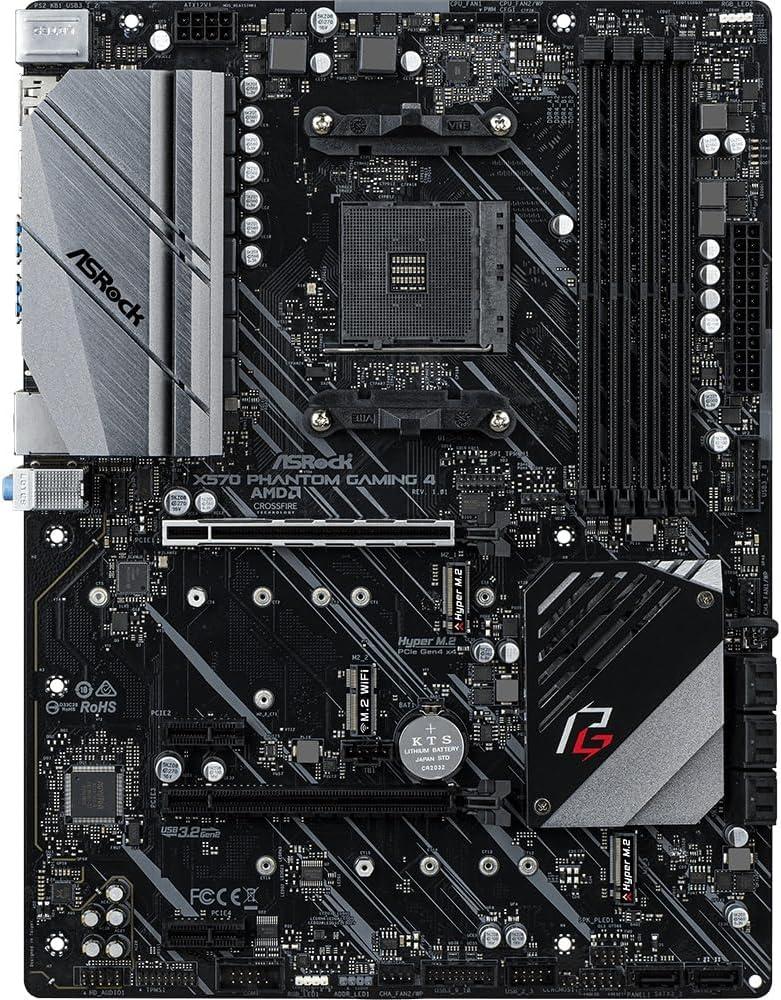

ASRock X570 Phantom Gaming
ASRock X570 Phantom Gaming Specifications Review
ASRock X570 Phantom Gaming by CJWDPDSWEZ is a Standard-ATX form factor motherboard based on the high-end X570 chipset and AM4 socket, offering the most advanced features and connectivity options. It is designed to support DDR4 memory, with 4 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 4666 MHz.
VRM Quality
The ASRock X570 Phantom Gaming has a basic VRM configuration, delivering 50 A across 9 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock X570 Phantom Gaming offers a very extensive expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 2 x16 slots , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (Gen4x4, Gen3x4) and 8 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired Gigabit LAN 10/100/1000 Mb/s Ethernet . USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.0 , DisplayPort version 1.2 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features a quality mid-range audio solution (Realtek ALC1200), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment.
Overall Quality and Value
ASRock X570 Phantom Gaming is a dependable choice with a respectable overall quality score of 61.00. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 68.6% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | CJWDPDSWEZ |
|---|---|
| Motherboard Name | ASRock X570 Phantom Gaming |
| Current Price Amazon | $169âť—N/A |
| Amazon Price Updated | 1Â year ago. |
| Motherboard Available | False |
| Chipset / Socket | X570 / AM4 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 9 (50 A) |
|---|---|
| Power Design | 9+1 |
Memory Information
| Type / Slots | DDR4 / 4 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 4666 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 2 | 2 |
| x1 | 2 | 2 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242, 2230 |
| M.2 PCIe Modes | Gen4x4, Gen3x4 |
| SATA Ports | 8 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.0 (Max: 4K x 2K (4096x2160) @ 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.2 (Max: 4K x 2K (4096x2160) @ 60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 6 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
Networking Information
| Ethernet | Chipset: Gigabit LAN 10/100/1000 Mb/s LAN Ports: 1 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Quality & Features
Additional Information
| RAM | Dual Channel DDR4 Memory Technology. Memory speed and ECC support vary depending on the installed AMD Ryzen CPU series (Vermeer, Matisse, Cezanne, Renoir, Pinnacle Ridge, Picasso). For example, Picasso CPUs only support non-ECC memory. Supports un-buffered memory. Features 15ÎĽ Gold Contact in DIMM Slots. |
|---|---|
| Display | Features Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, but actual support may vary by CPU. Supports DirectX 12 and Pixel Shader 5.0. Shared memory is 2GB by default, with a maximum of 16GB (requires 32GB system memory). Dual graphics output is supported via independent display controllers. HDMI 2.0 supports Auto Lip Sync, Deep Color (12bpc), xvYCC, HBR Audio, and HDR. Both HDMI 2.0 and DisplayPort 1.2 ports support HDCP 2.2, 4K Ultra HD (UHD) playback, and Microsoft PlayReady. |
| Expansion | The primary x16 slot (PCIE1) operates at PCIe 4.0 x16 with Vermeer/Matisse CPUs, but drops to PCIe 3.0 x16 with Cezanne/Renoir/Pinnacle Ridge CPUs, and PCIe 3.0 x8 with Picasso CPUs. The second physical x16 slot (PCIE3) is connected to the chipset and runs at PCIe 4.0 x4 mode. Supports AMD Quad CrossFireX™ and CrossFireX™. Includes one M.2 Socket (Key E) for a type 2230 WiFi/BT module. |
| Storage |
M.2 Slot Details:
SATA connectors support RAID 0, 1, and 10, as well as NCQ, AHCI, and Hot Plug. The board supports NVMe SSDs as boot disks, but this feature is not available with AMD Athlon 3000G Processors. Support for ASRock U.2 Kit is also included. |
| Audio | 7.1 CH HD Audio with Content Protection. Premium Blu-ray Audio support. Supports Surge Protection. Features ELNA Audio Caps, PCB Isolate Shielding, and Individual PCB Layers for R/L Audio Channel. |
| Networking | RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED). |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock X570 Phantom Gaming Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$165
|
0.0%
|
68.8%
|
38.0%
|
84.0%
|
66.0%
|
68.0%
|
88.0%
|
79.2%
|
|
|
$169âť—
|
0.0%
|
61.0%
|
23.0%
|
86.0%
|
90.0%
|
41.0%
|
65.0%
|
68.6%
|
|
|
$243
|
0.0%
|
61.0%
|
25.0%
|
81.0%
|
58.0%
|
60.0%
|
81.0%
|
47.8%
|
|
|
$154
|
↑
3.2%
|
60.6%
|
39.0%
|
81.0%
|
58.0%
|
44.0%
|
81.0%
|
74.6%
|
|
|
$189
|
↓
-0.5%
|
57.2%
|
34.0%
|
80.0%
|
45.0%
|
49.0%
|
78.0%
|
57.5%
|
|
|
$169âť—
|
0.0%
|
53.4%
|
25.0%
|
84.0%
|
60.0%
|
52.0%
|
46.0%
|
60.0%
|
|
|
$170
|
0.0%
|
53.4%
|
31.0%
|
80.0%
|
60.0%
|
50.0%
|
46.0%
|
59.7%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$165
|
0.0%
|
$169âť—
|
0.0%
|
$243
|
0.0%
|
$154
|
↑
3.2%
|
$189
|
↓
-0.5%
|
$169âť—
|
0.0%
|
$170
|
0.0%
|
||||||||||||||||||||||||||||
| Manufacturer | ASUS | CJWDPDSWEZ | MSI | MSI | GIGABYTE | ASUS | GIGABYTE | ||||||||||||||||||||||||||||
| Chip/Socket | B550 / AM4 | X570 / AM4 | B550M / AM4 | B550 / AM4 | B550I / AM4 | B550M / AM4 | B550 / AM4 | ||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Mini-ITX | Micro-ATX | Standard-ATX | ||||||||||||||||||||||||||||
| CPU Phases | 12 (60 A) | 9 (50 A) | 8 (60 A) | 10 (80 A) | 8 (90 A) | 8 (60 A) | 12 (50 A) | ||||||||||||||||||||||||||||
| PWR Design | 12+2 | 9+1 | 8+2+1 | 10+2+1 | 8+1 | 8+2 | 12+2 | ||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | 2 / DDR4 | 4 / DDR4 | 4 / DDR4 | ||||||||||||||||||||||||||||
| Max Mem | 128 GB / 5100 MHz | 128 GB / 4666 MHz | 128 GB / 4400 MHz | 128 GB / 5100 MHz | 64 GB / 5300 MHz | 128 GB / 4866 MHz | 128 GB / 4733 MHz | ||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 1x16 Gen3 | 3x1 Gen3 | 2x16 Gen4 | 2x1 Gen4 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 2x16 Gen3 | 1x1 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x1 Gen3 | ||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||||||||||||||||||||||
| SATA | 6 | 8 | 6 | 6 | 4 | 4 | 4 | ||||||||||||||||||||||||||||
| Audio | ROG SupremeFX S1220A | Realtek ALC1200 | Realtek® ALC1220P Codec | Realtek® ALC1200 / ALC1220P C… | Realtek® ALC1220-VB codec | Realtek ALC S1200A | Realtek® Audio CODEC | ||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||
| HDMI | ✔️ (None) | ✔️ (2.0) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.2) | ✔️ (None) | ✔️ (None) | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.4) | ||||||||||||||||||||||||||||
| LAN | 1 x Intel® 2.5Gb Etherne… (2 ports) | Gigabit LAN 10/100/1000 … (1 ports) | 1x Realtek® RTL8125B 2.5… (2 ports) | 1x Realtek® RTL8125B 2.5… (2 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 1Gb Ethernet… (2 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | ||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6 | ❌ | Wi-Fi 6 | ||||||||||||||||||||||||||||
| BT | v5.2 | ❌ | v5.2 | ❌ | v5 | ❌ | v5.3 | Rear USB |
|
|
|
|
|
|
|
||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| Front USB |
❌ |
❌ |
|
|
❌ |
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$205
|
0.0%
|
35.8%
|
52.8%
|
65 W / 61 W | 8 / 0 / 16 | 512.0 kB / 16.0 MB | 3.80 GHz / 4.60 GHz | Cezanne | Radeon Vega 8 | |
|
$205
|
0.0%
|
34.0%
|
52.0%
|
65 W / 61 W | 8 / 0 / 16 | 512.0 kB / 16.0 MB | 3.70 GHz / 4.60 GHz | Cezanne | None | |
|
$185
|
0.0%
|
29.8%
|
50.9%
|
65 W / 61 W | 6 / 0 / 12 | 512.0 kB / 16.0 MB | 3.90 GHz / 4.40 GHz | Cezanne | Radeon Vega 7 | |
|
$82
|
0.0%
|
27.8%
|
48.5%
|
65 W / 65 W | 6 / 0 / 12 | 512.0 kB / 16.0 MB | 3.60 GHz / 4.20 GHz | Cezanne | None |
Official Manufacturer Data
Memory:
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15ÎĽ Gold Contact in DIMM Slots
Graphics:
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports Microsoft PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Storage:
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
- 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
* If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
Support RAID 0/1/10
Expansion Slots:
- 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1))*
AMD Ryzen series CPUs (Picasso)
- 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
AMD X570 Chipset
- 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3))*
- 2 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15ÎĽ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
USB:
Internal I/O:
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x SPI TPM Header******
*Support in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

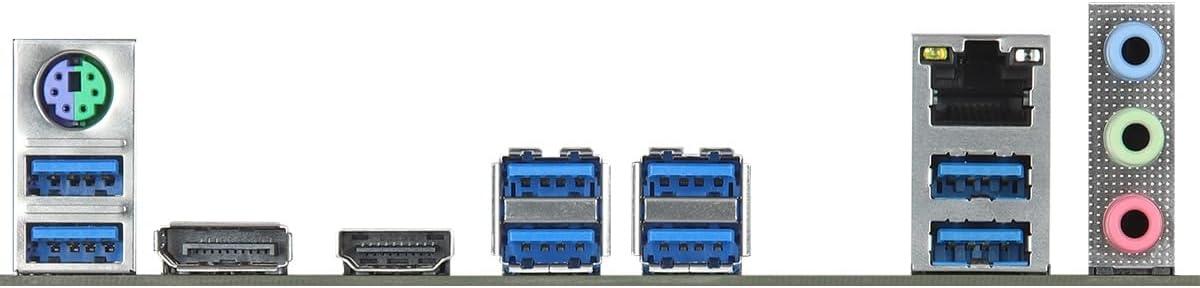

Back Panel I/O:
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Audio:
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio ChannelA33
Special Features:
- ASRock Phantom Gaming Tuning
- ASRock Polychrome SYNC
- ASRock Key Master
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
