GIGABYTE B550I AORUS PRO AX
GIGABYTE B550I AORUS PRO AX Specifications Review

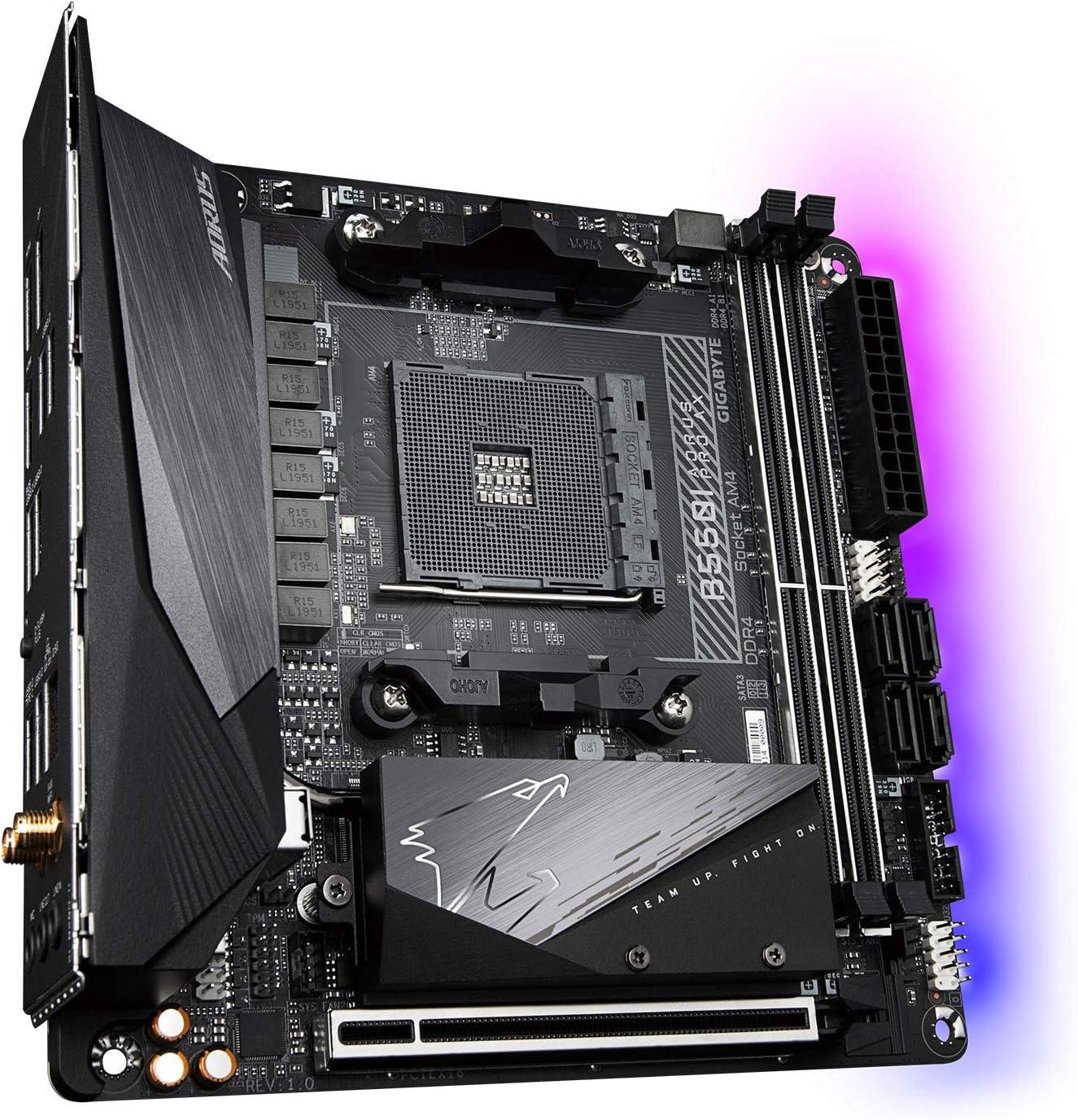

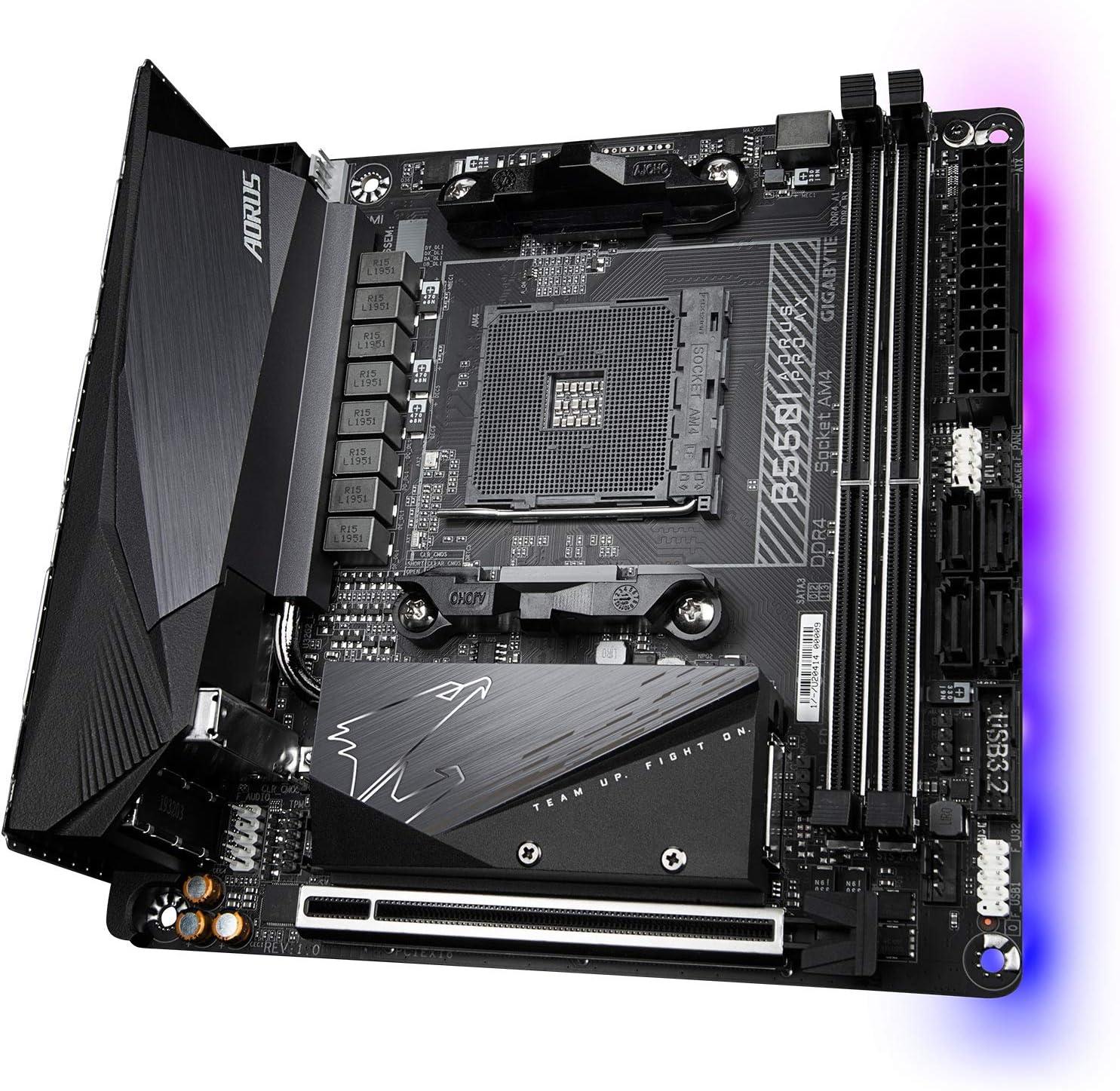

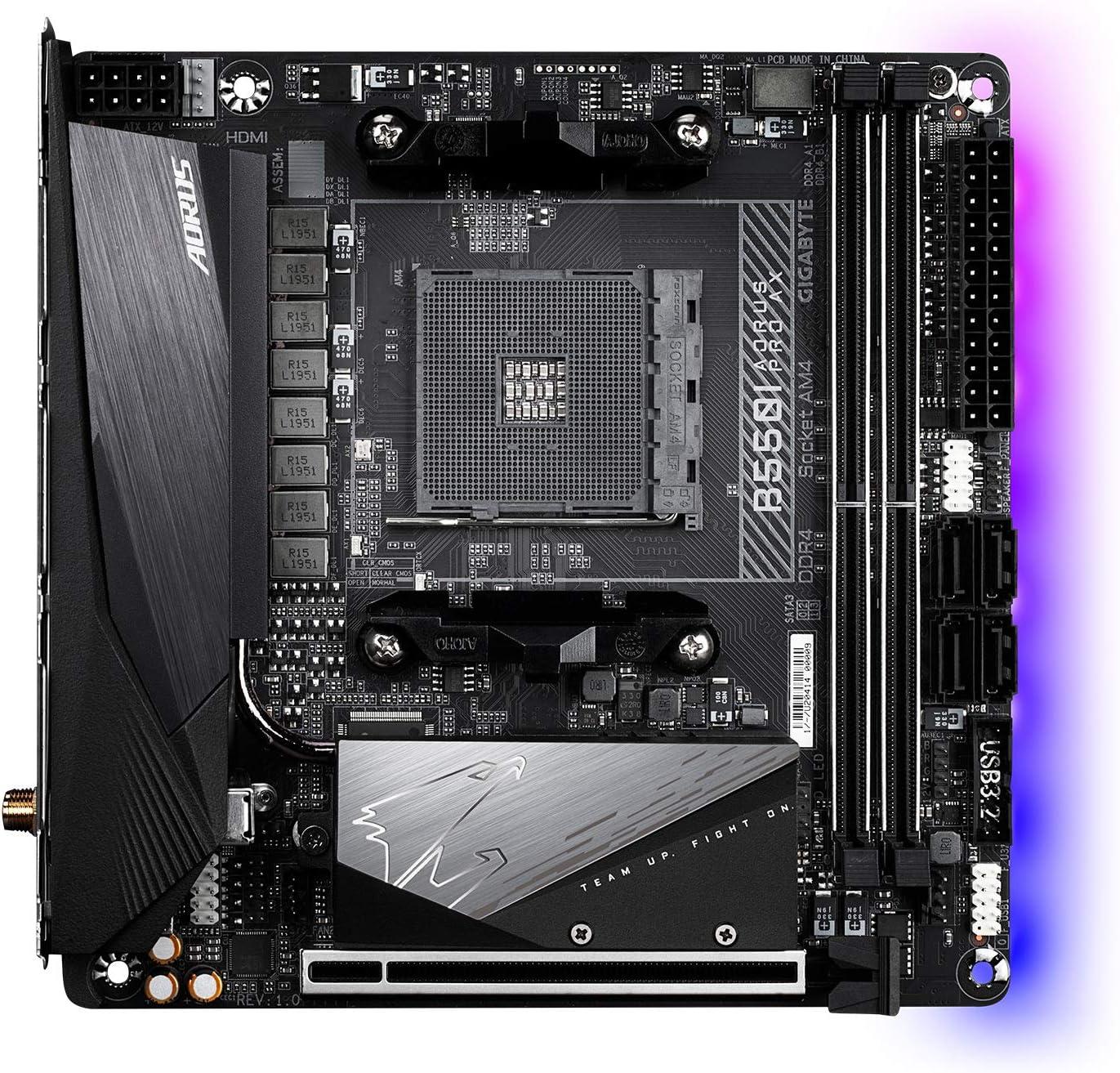

GIGABYTE B550I AORUS PRO AX by GIGABYTE is a Mini-ITX form factor motherboard based on the mid-range B550I chipset and AM4 socket, providing a balanced set of features and connectivity. It is designed to support DDR4 memory, with 2 slots, a maximum capacity of 64 GB, and an overclocking speed of up to 5300 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality
The GIGABYTE B550I AORUS PRO AX comes with an entry-level VRM setup, delivering 90 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B550I AORUS PRO AX offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Ethernet wireless networking with the wireless Wi-Fi 6 Bluetooth 5 is included for wireless peripherals. USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features a quality mid-range audio solution (Realtek® ALC1220-VB codec), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment.
Overall Quality and Value
GIGABYTE B550I AORUS PRO AX is a dependable choice with a respectable overall quality score of 57.20. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 57.2% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B550I AORUS PRO AX |
| Current Price Amazon | $190 |
| Amazon Price Updated | 6 days, 19 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B550I / AM4 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (90 A) |
|---|---|
| Power Design | 8+1 |
Memory Information
| Type / Slots | DDR4 / 2 slots |
|---|---|
| Max Capacity / Max OC | 64 GB / 5300 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2260, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC1220-VB codec |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 5120x2880@60 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6 Bandwidth: 160MHz Frequency Bands: 2.4 GHz, 5 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5 |
Button Features
| Buttons |
Q-Flash Plus |
|---|
Quality & Features
Additional Information
| RAM | Supports DDR4 memory modules with speeds of 5300(O.C.) down to 2133 MHz. ECC memory (ECC mode) support varies by CPU. Supports both ECC and non-ECC Un-buffered DIMMs. It is recommended to refer to the official 'Memory Support List' for more information. |
|---|---|
| Display | Both DisplayPort and HDMI support HDCP 2.3 and HDR. Supports up to 3 displays at the same time. Maximum shared memory of 16 GB. |
| Expansion | The PCIEX16 slot's generation depends on the installed CPU. AMD Ryzen 5000/3000 Series processors support PCIe 4.0 x16 mode, while Ryzen 5000 G-Series/4000 G-Series processors support PCIe 3.0 x16 mode. |
| Storage |
M.2 Slot Details:
The M2B_SB connector is located on the back of the motherboard. |
| Audio | Supports 2/4/5.1/7.1-channel High Definition Audio. The back panel line out jack supports DSD audio. To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Networking | Intel® Wi-Fi 6 AX200 module. Supports Wi-Fi standards a, b, g, n, ac with wave 2 features, ax. Up to 2.4 Gbps data rate. 2T2R antenna configuration. * Actual data rate may vary depending on environment and equipment. |
| Buttons | The board includes a Clear CMOS jumper, not a button. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B550I AORUS PRO AX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$169❗
|
0.0%
|
61.0%
|
23.0%
|
86.0%
|
90.0%
|
41.0%
|
65.0%
|
68.6%
|
|
|
$154❗
|
0.0%
|
61.0%
|
25.0%
|
81.0%
|
58.0%
|
60.0%
|
81.0%
|
75.3%
|
|
|
$160
|
0.0%
|
60.6%
|
39.0%
|
81.0%
|
58.0%
|
44.0%
|
81.0%
|
72.0%
|
|
|
$190
|
0.0%
|
57.2%
|
34.0%
|
80.0%
|
45.0%
|
49.0%
|
78.0%
|
57.2%
|
|
|
$169❗
|
0.0%
|
53.4%
|
25.0%
|
84.0%
|
60.0%
|
52.0%
|
46.0%
|
60.0%
|
|
|
$170
|
0.0%
|
53.4%
|
31.0%
|
80.0%
|
60.0%
|
50.0%
|
46.0%
|
59.7%
|
|
|
$120❗
|
↑
21.2%
|
51.8%
|
39.0%
|
81.0%
|
58.0%
|
33.0%
|
48.0%
|
82.0%
|
|
|
$95
|
0.0%
|
50.8%
|
13.0%
|
81.0%
|
70.0%
|
45.0%
|
45.0%
|
101.6%
|
|
|
$136
|
↓
-7.0%
|
49.4%
|
30.0%
|
81.0%
|
58.0%
|
33.0%
|
45.0%
|
69.1%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$169❗
|
0.0%
|
$154❗
|
0.0%
|
$160
|
0.0%
|
$190
|
0.0%
|
$169❗
|
0.0%
|
$170
|
0.0%
|
$120❗
|
↑
21.2%
|
$95
|
0.0%
|
$136
|
↓
-7.0%
|
||||||||||||||||||||||||||||||||||||
| Manufacturer | CJWDPDSWEZ | MSI | MSI | GIGABYTE | ASUS | GIGABYTE | MSI | MSI | MSI | ||||||||||||||||||||||||||||||||||||

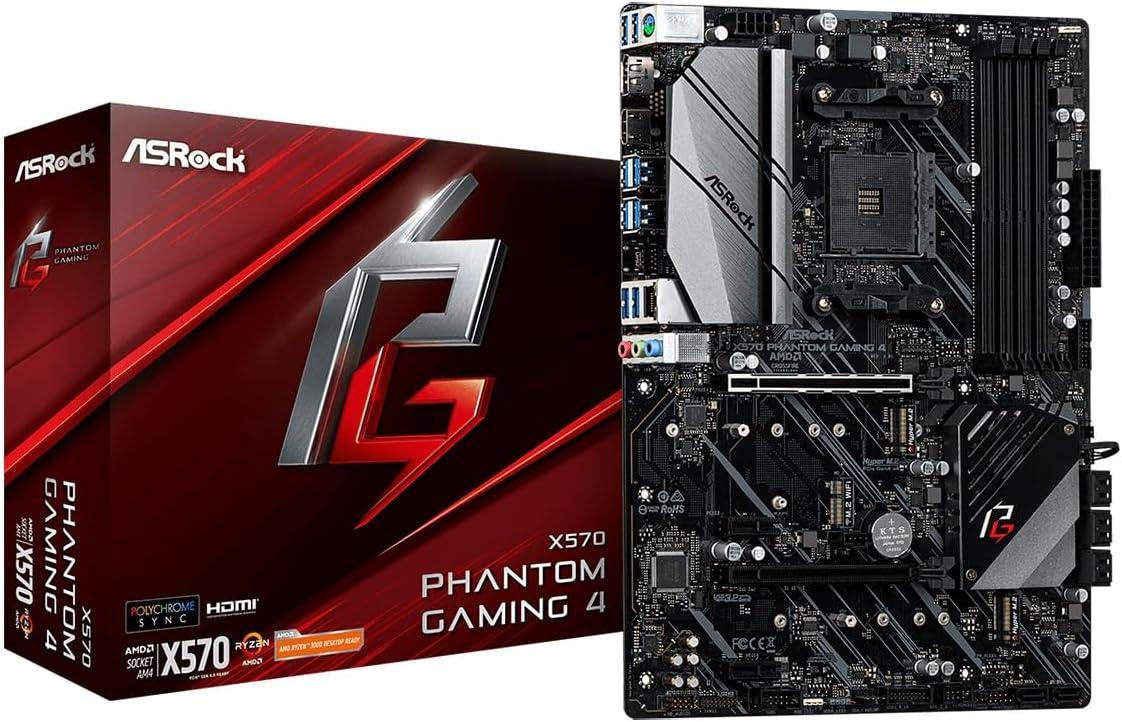

| Chip/Socket | X570 / AM4 | B550M / AM4 | B550 / AM4 | B550I / AM4 | B550M / AM4 | B550 / AM4 | B550 / AM4 | B550M / AM4 | B550-A / AM4 | ||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Standard-ATX | Mini-ITX | Micro-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||
| CPU Phases | 9 (50 A) | 8 (60 A) | 10 (80 A) | 8 (90 A) | 8 (60 A) | 12 (50 A) | 10 (80 A) | 5 (50 A) | 10 (60 A) | ||||||||||||||||||||||||||||||||||||
| PWR Design | 9+1 | 8+2+1 | 10+2+1 | 8+1 | 8+2 | 12+2 | 10+2+1 | 5+1 | 10+2+1 | ||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | 2 / DDR4 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | ||||||||||||||||||||||||||||||||||||
| Max Mem | 128 GB / 4666 MHz | 128 GB / 4400 MHz | 128 GB / 5100 MHz | 64 GB / 5300 MHz | 128 GB / 4866 MHz | 128 GB / 4733 MHz | 128 GB / 4400 MHz | 128 GB / 4400 MHz | 128 GB / 4800 MHz | ||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen4 | 2x1 Gen4 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 2x16 Gen3 | 1x1 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x1 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen4 | 3x16 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | ||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||
| SATA | 8 | 6 | 6 | 4 | 4 | 4 | 6 | 8 | 6 | ||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC1200 | Realtek® ALC1220P Codec | Realtek® ALC1200 / ALC1220P C… | Realtek® ALC1220-VB codec | Realtek ALC S1200A | Realtek® Audio CODEC | Realtek® ALC892/ALC897 Codec | Realtek® ALC892/ALC897 Codec | Realtek® ALC892/ALC897 Codec | ||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.0) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (None) | ✔️ (None) | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.4) | ✔️ (None) | ✔️ (None) | ✔️ (None) | ||||||||||||||||||||||||||||||||||||
| LAN | Gigabit LAN 10/100/1000 … (1 ports) | 1x Realtek® RTL8125B 2.5… (2 ports) | 1x Realtek® RTL8125B 2.5… (2 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 1Gb Ethernet… (2 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1x Realtek® 8111H Gigabi… (1 ports) | 1x Realtek® 8RTL8111GN /… (1 ports) | 1x Realtek® 8111H Gigabi… (1 ports) | ||||||||||||||||||||||||||||||||||||
| Wi-Fi | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6 | ❌ | Wi-Fi 6 | ❌ | Wi-Fi Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||
| BT | ❌ | v5.2 | ❌ | v5 | ❌ | v5.3 | ❌ | v5.2 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
❌ |
❌ |
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$224
|
0.0%
|
36.6%
|
61.4%
|
65 W / 88 W | 8 / 0 / 16 | 512.0 kB / 32.0 MB | 3.40 GHz / 4.60 GHz | Vermeer | None | |
|
$205
|
0.0%
|
35.8%
|
52.8%
|
65 W / 61 W | 8 / 0 / 16 | 512.0 kB / 16.0 MB | 3.80 GHz / 4.60 GHz | Cezanne | Radeon Vega 8 | |
|
$205
|
0.0%
|
34.0%
|
52.0%
|
65 W / 61 W | 8 / 0 / 16 | 512.0 kB / 16.0 MB | 3.70 GHz / 4.60 GHz | Cezanne | None | |
|
$217
|
↓
-0.9%
|
31.1%
|
61.4%
|
65 W / 88 W | 6 / 0 / 12 | 512.0 kB / 32.0 MB | 3.70 GHz / 4.60 GHz | Vermeer | None | |
|
$185
|
0.0%
|
29.8%
|
50.9%
|
65 W / 61 W | 6 / 0 / 12 | 512.0 kB / 16.0 MB | 3.90 GHz / 4.40 GHz | Cezanne | Radeon Vega 7 | |
|
$169
|
↑
2.5%
|
29.3%
|
59.0%
|
65 W / 88 W | 6 / 0 / 12 | 512.0 kB / 32.0 MB | 3.50 GHz / 4.40 GHz | Vermeer | None | |
|
$82
|
0.0%
|
27.8%
|
48.5%
|
65 W / 65 W | 6 / 0 / 12 | 512.0 kB / 16.0 MB | 3.60 GHz / 4.20 GHz | Cezanne | None |
Official Manufacturer Data
Memory:
Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Graphics:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Storage:
- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
Expansion Slots:
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
USB:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header

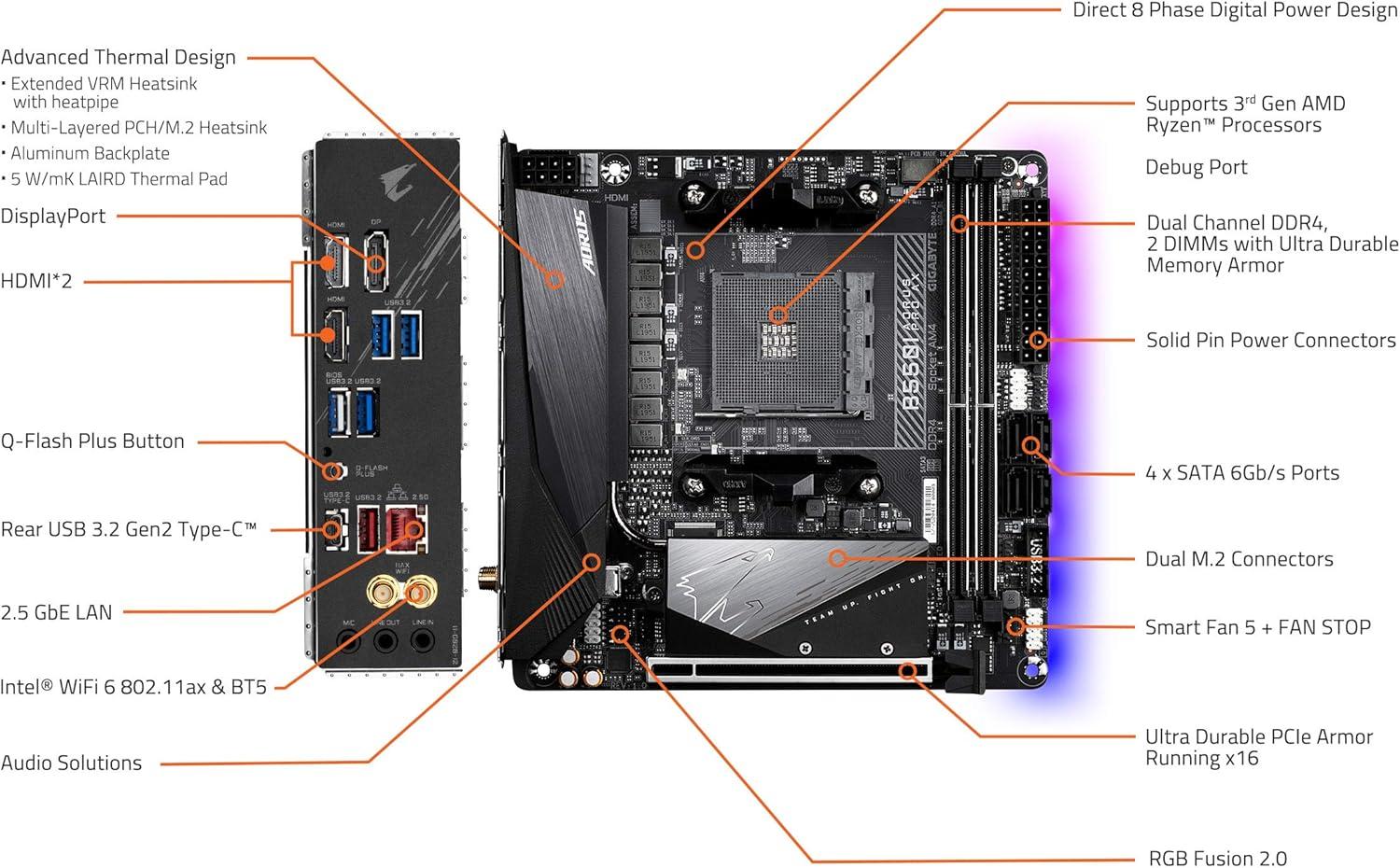

Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

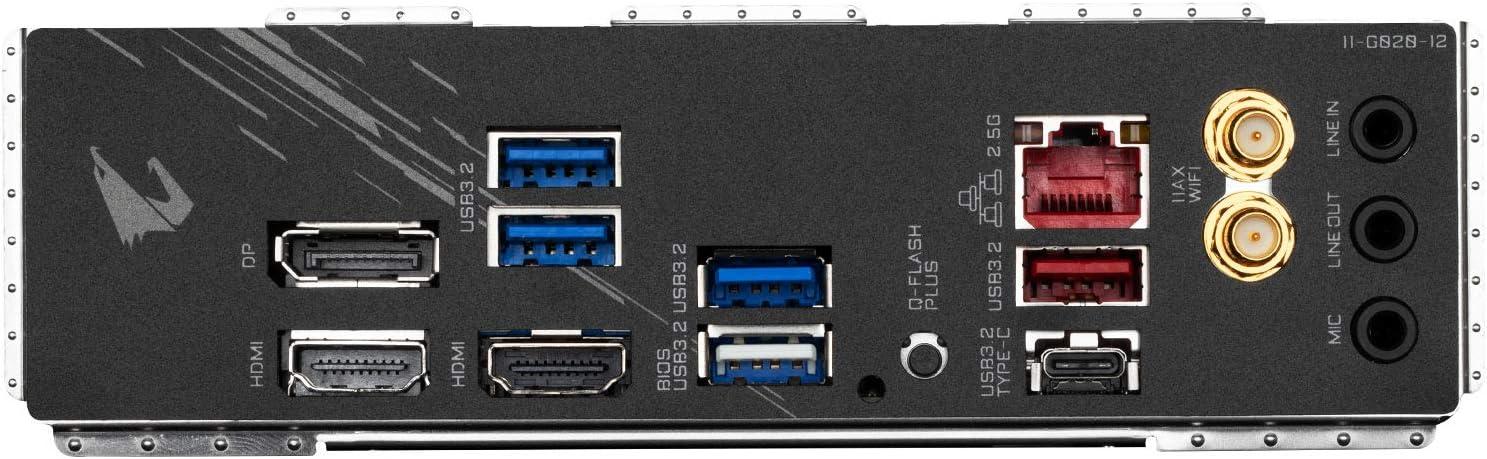

Back Panel I/O:
2 x HDMI ports
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
WiFi:
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Audio:
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Special Features:
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
