JONSBO Z20 Orange/Black Micro-ATX Mini Tower Review & Specifications

The JONSBO Z20 Orange/Black Micro-ATX Mini Tower, manufactured by jonsbo, is a high-quality PC case designed for Micro-Tower builds. It is made from high-quality steel, aluminium and tempered glass and weighs approximately 5.00 kg. Its aesthetic is characterized by a Orange/Black finish and features a tempered glass side panel, which adds both style and functionality.

The JONSBO Z20 Orange/Black Micro-ATX Mini Tower supports a limited range of motherboard sizes, such as Mini-ITX, Micro-ATX. These cases are often favored for compact, high-performance setups that do not exceed Micro-ATX dimensions, making them a popular option for users seeking space efficiency. Power supply compatibility includes ATX, SFX units with a maximum supported length of 180 mm. The overall case dimensions are 382mm * 198mm* 335mm, offering insight into its spatial footprint.

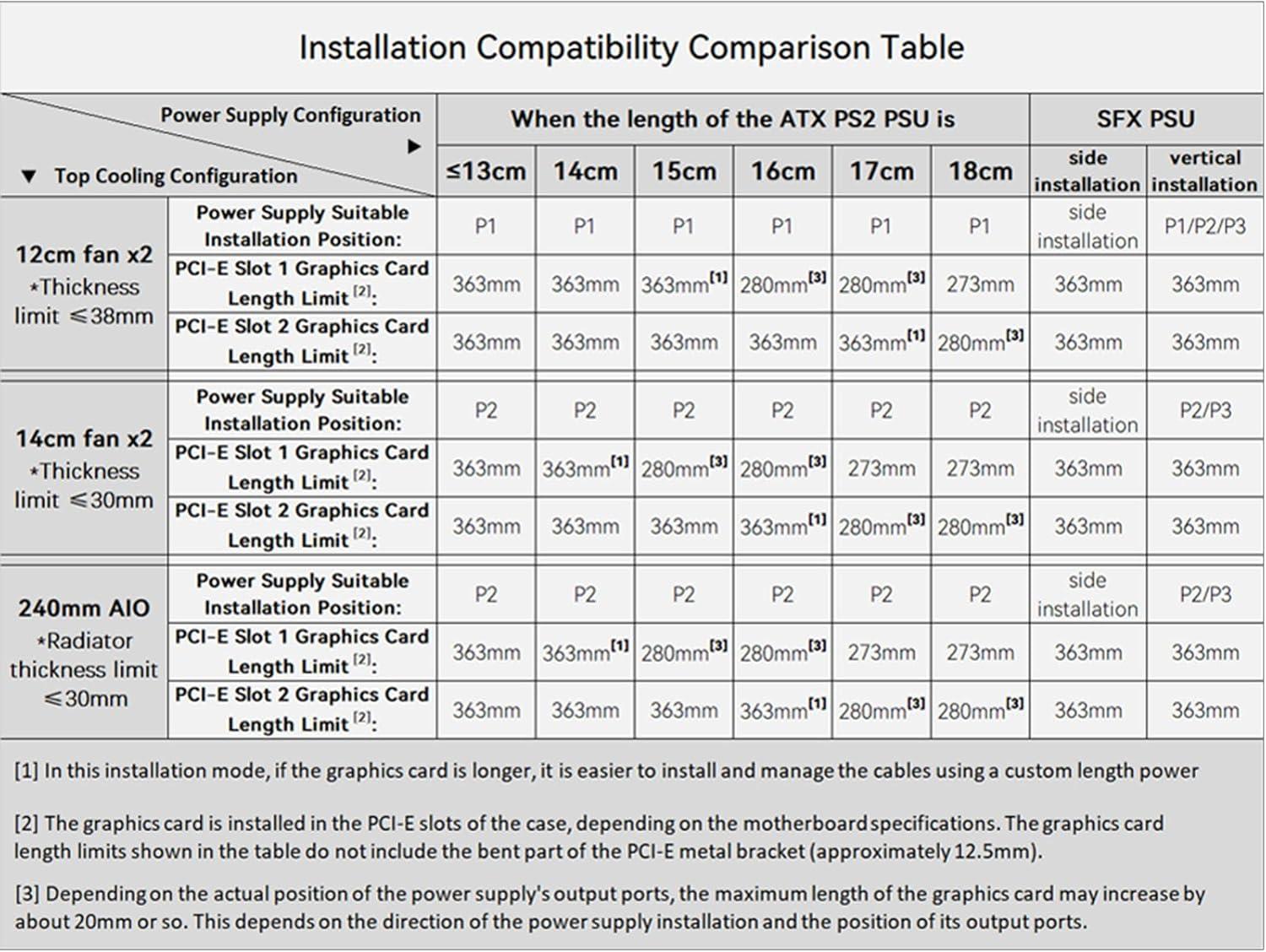

This case supports medium to large graphics cards up to 363 mm in length, along with CPU air coolers up to 164 mm in height.

This case features moderate cooling support, including several fan mounts and radiator support up to 240 mm. It's well-suited for mainstream gaming and productivity builds where cooling is important but not extreme. For additional details and specific specifications, refer to the section below.

General Information

Manufacturer	jonsbo
PC Case Name	JONSBO Z20 Orange/Black Micro-ATX Mini Tower
Current Price Amazon	$105
Amazon Price Updated	1 day, 9 hours ago.
PC Case Available	True

Specification

Form Factor	Micro-Tower
Material / Weight	steel, aluminium and tempered glass / 5.00 kg
Color / Side Panel	Orange/Black / tempered glass

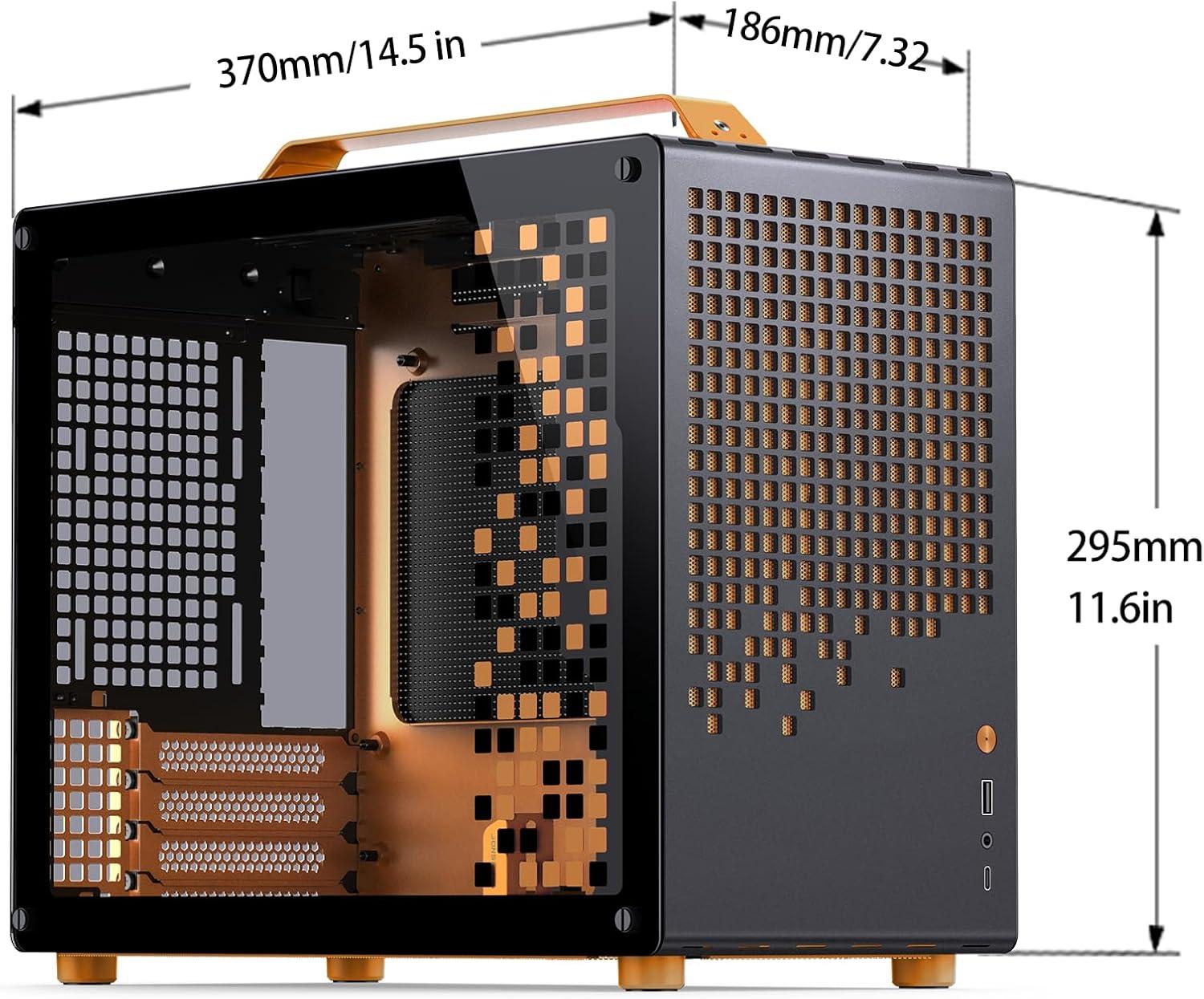

PC Case Dimensions	382mm * 198mm* 335mm

Compatibility

Motherboard Support	Mini-ITX, Micro-ATX
GPU Length / CPU Cooler Height	363 mm / 164 mm
PSU Form Factor / Max Length	ATX, SFX / 180 mm

Performance

JONSBO Z20 Orange/Black Micro-ATX Mini … Compared to PC Cases with the Same Form Factor and Similar Performance and Features

PC Case Quality & Features per Price Table

PC_Case (Desc)	Price (Desc)	Quality/Features (Desc)	Q&F/Price (Desc)
Fractal Design Focus G Fractal Design Focus G View detailed specs, charts, and comparison for this PC case.	$205 Fractal Design Focus G Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| 0.0% Fractal Design Focus G Price Change No significant price change detected.	63.0 pts	27.7%
Cooler Master Q300L V2 White Cooler Master Q300L V2 White View detailed specs, charts, and comparison for this PC case.	$70 Cooler Master Q300L V2 White Current Amazon Price Click to view this PC case on Amazon. \| ↑ 14.7% Cooler Master Q300L V2 White Price Change Price increased from the last update.	62.0 pts	79.7%
Fractal Design Meshify 2 Nano Fractal Design Meshify 2 Nano View detailed specs, charts, and comparison for this PC case.	$102 Fractal Design Meshify 2 Nano Current Amazon Price Click to view this PC case on Amazon. \| ↓ -5.0% Fractal Design Meshify 2 Nano Price Change Price decreased from the last update.	62.0 pts	54.7%
Cooler Master Q300L V2 Cooler Master Q300L V2 View detailed specs, charts, and comparison for this PC case.	$70 Cooler Master Q300L V2 Current Amazon Price Click to view this PC case on Amazon. \| ↑ 30.1% Cooler Master Q300L V2 Price Change Price increased from the last update.	62.0 pts	79.7%
LANCOOL 205M MESH LANCOOL 205M MESH View detailed specs, charts, and comparison for this PC case.	$105 LANCOOL 205M MESH Current Amazon Price Click to view this PC case on Amazon. \| ↑ 5.0% LANCOOL 205M MESH Price Change Price increased from the last update.	61.0 pts	52.3%
JONSBO Z20 Black Micro-ATX Mini Tower JONSBO Z20 Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	$100 JONSBO Z20 Black Micro-ATX Mini Tower Current Amazon Price Click to view this PC case on Amazon. \| 0.0% JONSBO Z20 Black Micro-ATX Mini Tower Price Change No significant price change detected.	61.0 pts	54.9%
JONSBO D32 STD Micro-ATX PC Case JONSBO D32 STD Micro-ATX PC Case View detailed specs, charts, and comparison for this PC case.	$63 JONSBO D32 STD Micro-ATX PC Case Current Amazon Price Click to view this PC case on Amazon. \| 0.0% JONSBO D32 STD Micro-ATX PC Case Price Change No significant price change detected.	61.0 pts	87.2%
JONSBO Z20 Orange/Black Micro-ATX Mini … JONSBO Z20 Orange/Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	$105 JONSBO Z20 Orange/Black Micro-ATX Mini Tower Current Amazon Price Click to view this PC case on Amazon. \| 0.0% JONSBO Z20 Orange/Black Micro-ATX Mini Tower Price Change No significant price change detected.	61.0 pts	52.3%
JONSBO TK-0 Black ITX Mini Tower JONSBO TK-0 Black ITX Mini Tower View detailed specs, charts, and comparison for this PC case.	$130 JONSBO TK-0 Black ITX Mini Tower Current Amazon Price Click to view this PC case on Amazon. \| 0.0% JONSBO TK-0 Black ITX Mini Tower Price Change No significant price change detected.	58.0 pts	40.2%

PC Case Comparison and Detail Specifications Table

Specification	Fractal Design Focus G Fractal Design Focus G View detailed specs, charts, and comparison for this PC case.	Cooler Master Q300L V2 White Cooler Master Q300L V2 White View detailed specs, charts, and comparison for this PC case.	Fractal Design Meshify 2 Nano Fractal Design Meshify 2 Nano View detailed specs, charts, and comparison for this PC case.	Cooler Master Q300L V2 Cooler Master Q300L V2 View detailed specs, charts, and comparison for this PC case.	LANCOOL 205M MESH LANCOOL 205M MESH View detailed specs, charts, and comparison for this PC case.	JONSBO Z20 Black Micro-ATX Mi… JONSBO Z20 Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	JONSBO D32 STD Micro-ATX PC C… JONSBO D32 STD Micro-ATX PC Case View detailed specs, charts, and comparison for this PC case.	JONSBO Z20 Orange/Black Micro… JONSBO Z20 Orange/Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	JONSBO TK-0 Black ITX Mini To… JONSBO TK-0 Black ITX Mini Tower View detailed specs, charts, and comparison for this PC case.
Perf Chart
Price	$205❗ Fractal Design Focus G Price Not Available Last known price from Amazon. Currently unavailable. 0.0% Fractal Design Focus G Price Change No significant price change detected.	$70 Cooler Master Q300L V2 White Current Amazon Price Click to view this PC case on Amazon. ↑ 14.7% Cooler Master Q300L V2 White Price Change Price increased from the last update.	$102 Fractal Design Meshify 2 Nano Current Amazon Price Click to view this PC case on Amazon. ↓ -5.0% Fractal Design Meshify 2 Nano Price Change Price decreased from the last update.	$70 Cooler Master Q300L V2 Current Amazon Price Click to view this PC case on Amazon. ↑ 30.1% Cooler Master Q300L V2 Price Change Price increased from the last update.	$105 LANCOOL 205M MESH Current Amazon Price Click to view this PC case on Amazon. ↑ 5.0% LANCOOL 205M MESH Price Change Price increased from the last update.	$100 JONSBO Z20 Black Micro-ATX Mini Tower Current Amazon Price Click to view this PC case on Amazon. 0.0% JONSBO Z20 Black Micro-ATX Mini Tower Price Change No significant price change detected.	$63 JONSBO D32 STD Micro-ATX PC Case Current Amazon Price Click to view this PC case on Amazon. 0.0% JONSBO D32 STD Micro-ATX PC Case Price Change No significant price change detected.	$105 JONSBO Z20 Orange/Black Micro-ATX Mini Tower Current Amazon Price Click to view this PC case on Amazon. 0.0% JONSBO Z20 Orange/Black Micro-ATX Mini Tower Price Change No significant price change detected.	$130 JONSBO TK-0 Black ITX Mini Tower Current Amazon Price Click to view this PC case on Amazon. 0.0% JONSBO TK-0 Black ITX Mini Tower Price Change No significant price change detected.
Form Factor	Mid-Tower	Micro-Tower	Mini-Tower	Micro-Tower	Micro-Tower	Micro-Tower	Micro-Tower	Micro-Tower	Mini-Tower
Color	Gray	White	Black TG Dark Tint	Black	LANCOOL 205M MESH - microATX - Black	BLACK	Black	Orange/Black	balck
Side Panel	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass
Max GPU L.	380 mm	360 mm	331 mm	360 mm	350 mm	363 mm	365 mm	363 mm	230 mm
Max CPU H.	165 mm	159 mm	167 mm	159 mm	160 mm	164 mm	169 mm	164 mm	135 mm
Max PSU L.	230 mm	160 mm	165 mm	160 mm	180 mm	180 mm	150 mm	180 mm	160 mm
PSU FF	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	SFX

PC Case Specification Table

PC_Case (Desc)	Form Factor	Color / Side Panel	GPU Length	CPU Cooler Height	PSU Length / Form Factor
Fractal Design Focus G Fractal Design Focus G View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Gray / tempered glass	380 mm	165 mm	230 mm / ATX, SFX
Cooler Master Q300L V2 White Cooler Master Q300L V2 White View detailed specs, charts, and comparison for this PC case.	Micro-Tower	White / tempered glass	360 mm	159 mm	160 mm / ATX, SFX
Fractal Design Meshify 2 Nano Fractal Design Meshify 2 Nano View detailed specs, charts, and comparison for this PC case.	Mini-Tower	Black TG Dark Tint / tempered glass	331 mm	167 mm	165 mm / ATX, SFX
Cooler Master Q300L V2 Cooler Master Q300L V2 View detailed specs, charts, and comparison for this PC case.	Micro-Tower	Black / tempered glass	360 mm	159 mm	160 mm / ATX, SFX
LANCOOL 205M MESH LANCOOL 205M MESH View detailed specs, charts, and comparison for this PC case.	Micro-Tower	LANCOOL 205M MESH - microATX - Black / tempered glass	350 mm	160 mm	180 mm / ATX, SFX
JONSBO Z20 Black Micro-ATX Mini Tower JONSBO Z20 Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	Micro-Tower	BLACK / tempered glass	363 mm	164 mm	180 mm / ATX, SFX
JONSBO D32 STD Micro-ATX PC Case JONSBO D32 STD Micro-ATX PC Case View detailed specs, charts, and comparison for this PC case.	Micro-Tower	Black / tempered glass	365 mm	169 mm	150 mm / ATX, SFX
JONSBO Z20 Orange/Black Micro-ATX Mini … JONSBO Z20 Orange/Black Micro-ATX Mini Tower View detailed specs, charts, and comparison for this PC case.	Micro-Tower	Orange/Black / tempered glass	363 mm	164 mm	180 mm / ATX, SFX
JONSBO TK-0 Black ITX Mini Tower JONSBO TK-0 Black ITX Mini Tower View detailed specs, charts, and comparison for this PC case.	Mini-Tower	balck / tempered glass	230 mm	135 mm	160 mm / SFX

Additional PC Case Information

Fan Support:

Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations

Radiator Support:

Top，up to 240mm

HDD / SSD Support:

2.5〞SSD：up to 3,depends on other hardware configurations
3.5〞HDD：up to 1,depends on other hardware configurations

Front Ports:

USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

Dust Filters:

Yes

Additional Information:

None
