NZXT H5 Flow Review & Specifications

The NZXT H5 Flow, manufactured by NZXT, is a high-quality PC case designed for Mid-Tower builds. It is made from high-quality steel, plastic, and tempered glass and weighs approximately 7.28 kg. Its aesthetic is characterized by a Black finish and features a Temperd glass side panel, which adds both style and functionality.

The NZXT H5 Flow supports a very wide range of motherboard sizes, including Mini-ITX, Micro-ATX, Standard-ATX, E-ATX. It can accommodate extremely large, high-end or server-grade E-ATX motherboards, offering unmatched compatibility across nearly all consumer and professional platforms. Power supply compatibility includes ATX, SFX units with a maximum supported length of 200 mm. The overall case dimensions are 465 x 430 x 225 mm, offering insight into its spatial footprint.

This case supports very large graphics cards up to 410 mm in length, along with CPU air coolers up to 170 mm in height.

This case features moderate cooling support, including several fan mounts and radiator support up to 360 mm. It's well-suited for mainstream gaming and productivity builds where cooling is important but not extreme. For additional details and specific specifications, refer to the section below.

General Information

Manufacturer	NZXT
PC Case Name	NZXT H5 Flow
Current Price Amazon	$75
Amazon Price Updated	1 day ago.
PC Case Available	True

Specification

Form Factor	Mid-Tower

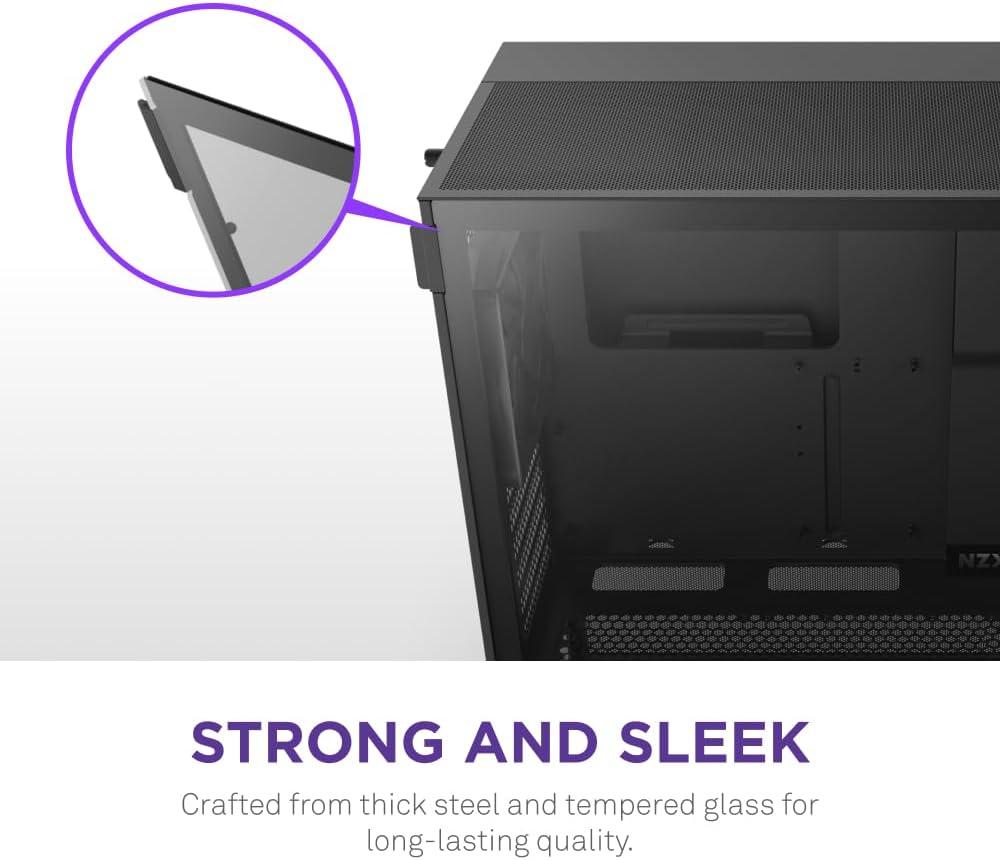

Material / Weight	steel, plastic, and tempered glass / 7.28 kg
Color / Side Panel	Black / Temperd glass

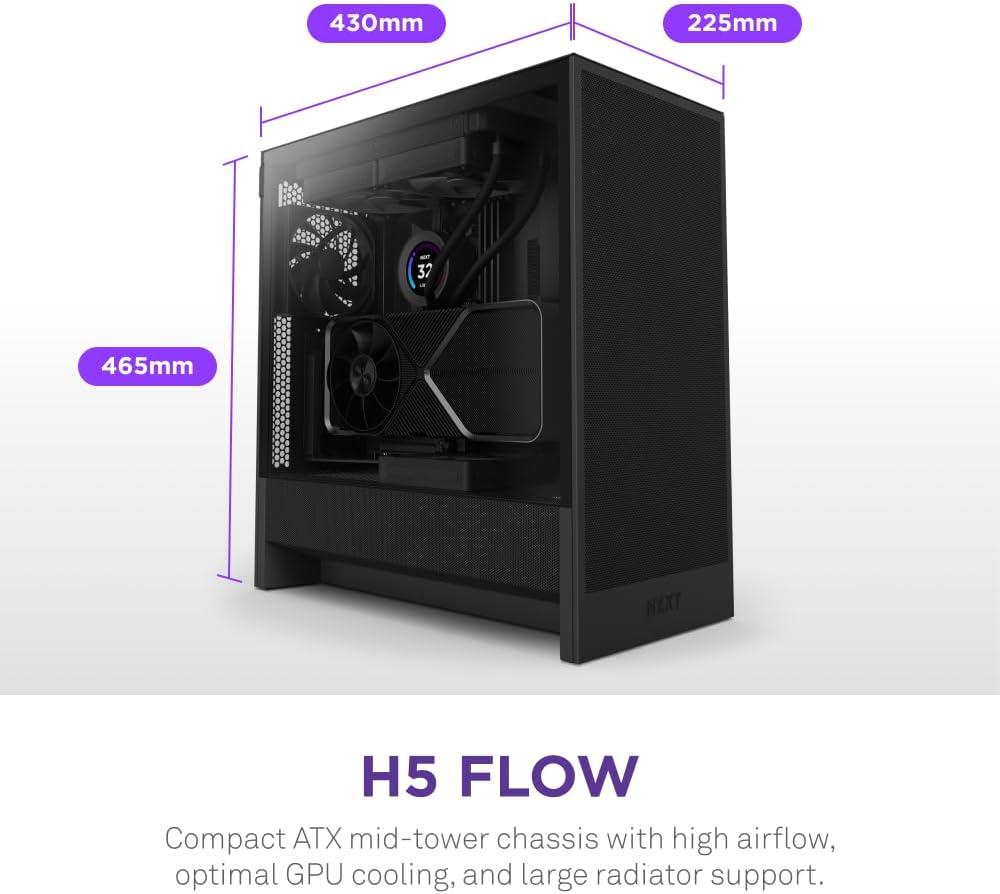

PC Case Dimensions	465 x 430 x 225 mm

Compatibility

Motherboard Support	Mini-ITX, Micro-ATX, Standard-ATX, E-ATX
GPU Length / CPU Cooler Height	410 mm / 170 mm
PSU Form Factor / Max Length	ATX, SFX / 200 mm

Performance

NZXT H5 Flow Compared to PC Cases with the Same Form Factor and Similar Performance and Features

PC Case Quality & Features per Price Table

PC_Case (Desc)	Price (Desc)	Quality/Features (Desc)	Q&F/Price (Desc)
Lian Li A3-26.3L Micro Form Factor Chas… Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & Side Tempered Glass View detailed specs, charts, and comparison for this PC case.	$90 Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & S… Current Amazon Price Click to view this PC case on Amazon. \| 0.0% Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & S… Price Change No significant price change detected.	73.0 pts	73.0%
ASUS A31 Plus Black ASUS A31 Plus Black View detailed specs, charts, and comparison for this PC case.	$98 ASUS A31 Plus Black Current Amazon Price Click to view this PC case on Amazon. \| ↓ -9.7% ASUS A31 Plus Black Price Change Price decreased from the last update.	73.0 pts	67.0%
Montech X3 Mesh 6pcs Montech X3 Mesh 6pcs View detailed specs, charts, and comparison for this PC case.	$70 Montech X3 Mesh 6pcs Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| 0.0% Montech X3 Mesh 6pcs Price Change No significant price change detected.	73.0 pts	93.9%
Montech X3 Mesh Montech X3 Mesh View detailed specs, charts, and comparison for this PC case.	$70 Montech X3 Mesh Current Amazon Price Click to view this PC case on Amazon. \| ↓ -0.1% Montech X3 Mesh Price Change Price decreased from the last update.	73.0 pts	94.0%
CORSAIR 3500X ARGB CORSAIR 3500X ARGB View detailed specs, charts, and comparison for this PC case.	$114 CORSAIR 3500X ARGB Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| ↑ 33.3% CORSAIR 3500X ARGB Price Change Price increased from the last update.	70.0 pts	55.3%
CORSAIR 2500X CORSAIR 2500X View detailed specs, charts, and comparison for this PC case.	$116 CORSAIR 2500X Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| ↑ 1.8% CORSAIR 2500X Price Change Price increased from the last update.	70.0 pts	54.4%
CORSAIR 2500D AIRFLOW CORSAIR 2500D AIRFLOW View detailed specs, charts, and comparison for this PC case.	$159 CORSAIR 2500D AIRFLOW Current Amazon Price Click to view this PC case on Amazon. \| ↓ -0.6% CORSAIR 2500D AIRFLOW Price Change Price decreased from the last update.	70.0 pts	39.6%
NZXT H5 Flow NZXT H5 Flow View detailed specs, charts, and comparison for this PC case.	$75 NZXT H5 Flow Current Amazon Price Click to view this PC case on Amazon. \| ↓ -6.3% NZXT H5 Flow Price Change Price decreased from the last update.	70.0 pts	84.0%
ASUS Prime AP202 ARGB White ASUS Prime AP202 ARGB White View detailed specs, charts, and comparison for this PC case.	$131 ASUS Prime AP202 ARGB White Current Amazon Price Click to view this PC case on Amazon. \| ↓ -12.9% ASUS Prime AP202 ARGB White Price Change Price decreased from the last update.	69.0 pts	47.5%

PC Case Comparison and Detail Specifications Table

Specification	Lian Li A3-26.3L Micro Form F… Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & Side Tempered Glass View detailed specs, charts, and comparison for this PC case.	ASUS A31 Plus Black ASUS A31 Plus Black View detailed specs, charts, and comparison for this PC case.	Montech X3 Mesh 6pcs Montech X3 Mesh 6pcs View detailed specs, charts, and comparison for this PC case.	Montech X3 Mesh Montech X3 Mesh View detailed specs, charts, and comparison for this PC case.	CORSAIR 3500X ARGB CORSAIR 3500X ARGB View detailed specs, charts, and comparison for this PC case.	CORSAIR 2500X CORSAIR 2500X View detailed specs, charts, and comparison for this PC case.	CORSAIR 2500D AIRFLOW CORSAIR 2500D AIRFLOW View detailed specs, charts, and comparison for this PC case.	NZXT H5 Flow NZXT H5 Flow View detailed specs, charts, and comparison for this PC case.	ASUS Prime AP202 ARGB White ASUS Prime AP202 ARGB White View detailed specs, charts, and comparison for this PC case.
Perf Chart
Price	$90 Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & S… Current Amazon Price Click to view this PC case on Amazon. 0.0% Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & S… Price Change No significant price change detected.	$98 ASUS A31 Plus Black Current Amazon Price Click to view this PC case on Amazon. ↓ -9.7% ASUS A31 Plus Black Price Change Price decreased from the last update.	$70❗ Montech X3 Mesh 6pcs Price Not Available Last known price from Amazon. Currently unavailable. 0.0% Montech X3 Mesh 6pcs Price Change No significant price change detected.	$70 Montech X3 Mesh Current Amazon Price Click to view this PC case on Amazon. ↓ -0.1% Montech X3 Mesh Price Change Price decreased from the last update.	$114❗ CORSAIR 3500X ARGB Price Not Available Last known price from Amazon. Currently unavailable. ↑ 33.3% CORSAIR 3500X ARGB Price Change Price increased from the last update.	$116❗ CORSAIR 2500X Price Not Available Last known price from Amazon. Currently unavailable. ↑ 1.8% CORSAIR 2500X Price Change Price increased from the last update.	$159 CORSAIR 2500D AIRFLOW Current Amazon Price Click to view this PC case on Amazon. ↓ -0.6% CORSAIR 2500D AIRFLOW Price Change Price decreased from the last update.	$75 NZXT H5 Flow Current Amazon Price Click to view this PC case on Amazon. ↓ -6.3% NZXT H5 Flow Price Change Price decreased from the last update.	$131 ASUS Prime AP202 ARGB White Current Amazon Price Click to view this PC case on Amazon. ↓ -12.9% ASUS Prime AP202 ARGB White Price Change Price decreased from the last update.
Form Factor	Micro-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Micro-Tower	Micro-Tower	Mid-Tower	Micro-Tower
Color	White	Black	White X3	X3-Black	White	Black	Black	Black	WHITE
Side Panel	tempered glass	tempered glass	Temperd glass	Temperd glass	tempered glass	tempered glass	tempered glass	Temperd glass	tempered glass
Max GPU L.	415 mm	380 mm	305 mm	305 mm	410 mm	400 mm	400 mm	410 mm	420 mm
Max CPU H.	165 mm	165 mm	160 mm	160 mm	170 mm	180 mm	180 mm	170 mm	175 mm
Max PSU L.	220 mm	200 mm	160 mm	160 mm	180 mm	225 mm	225 mm	200 mm	200 mm
PSU FF	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX

PC Case Specification Table

PC_Case (Desc)	Form Factor	Color / Side Panel	GPU Length	CPU Cooler Height	PSU Length / Form Factor
Lian Li A3-26.3L Micro Form Factor Chas… Lian Li A3-26.3L Micro Form Factor Chassis - Wood Front & Side Tempered Glass View detailed specs, charts, and comparison for this PC case.	Micro-Tower	White / tempered glass	415 mm	165 mm	220 mm / ATX, SFX
ASUS A31 Plus Black ASUS A31 Plus Black View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Black / tempered glass	380 mm	165 mm	200 mm / ATX, SFX
Montech X3 Mesh 6pcs Montech X3 Mesh 6pcs View detailed specs, charts, and comparison for this PC case.	Mid-Tower	White X3 / Temperd glass	305 mm	160 mm	160 mm / ATX, SFX
Montech X3 Mesh Montech X3 Mesh View detailed specs, charts, and comparison for this PC case.	Mid-Tower	X3-Black / Temperd glass	305 mm	160 mm	160 mm / ATX, SFX
CORSAIR 3500X ARGB CORSAIR 3500X ARGB View detailed specs, charts, and comparison for this PC case.	Mid-Tower	White / tempered glass	410 mm	170 mm	180 mm / ATX, SFX
CORSAIR 2500X CORSAIR 2500X View detailed specs, charts, and comparison for this PC case.	Micro-Tower	Black / tempered glass	400 mm	180 mm	225 mm / ATX, SFX
CORSAIR 2500D AIRFLOW CORSAIR 2500D AIRFLOW View detailed specs, charts, and comparison for this PC case.	Micro-Tower	Black / tempered glass	400 mm	180 mm	225 mm / ATX, SFX
NZXT H5 Flow NZXT H5 Flow View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Black / Temperd glass	410 mm	170 mm	200 mm / ATX, SFX

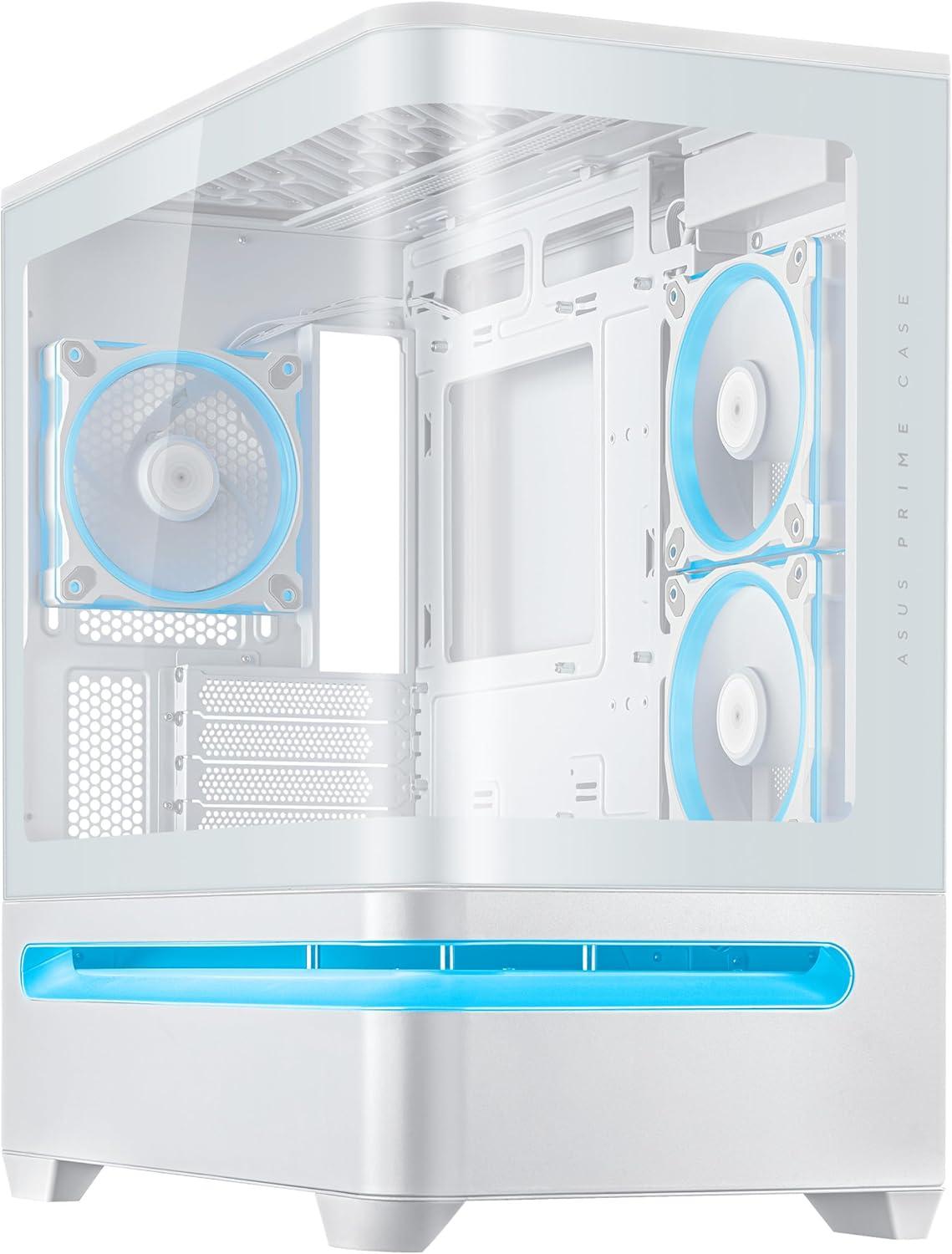

ASUS Prime AP202 ARGB White ASUS Prime AP202 ARGB White View detailed specs, charts, and comparison for this PC case.	Micro-Tower	WHITE / tempered glass	420 mm	175 mm	200 mm / ATX, SFX

Additional PC Case Information

Fan Support:

Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top:2 x 120 mm / 2 x 140 mm

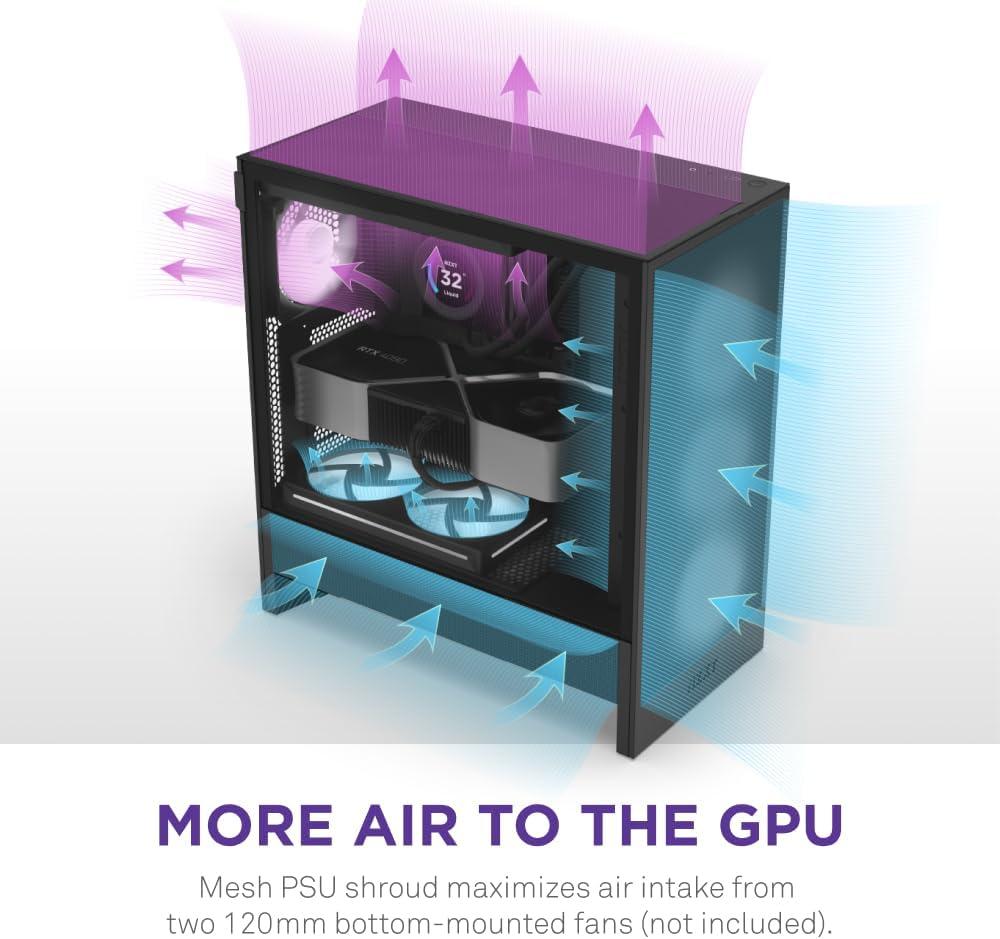

Bottom:2 x 120 mm
Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support:

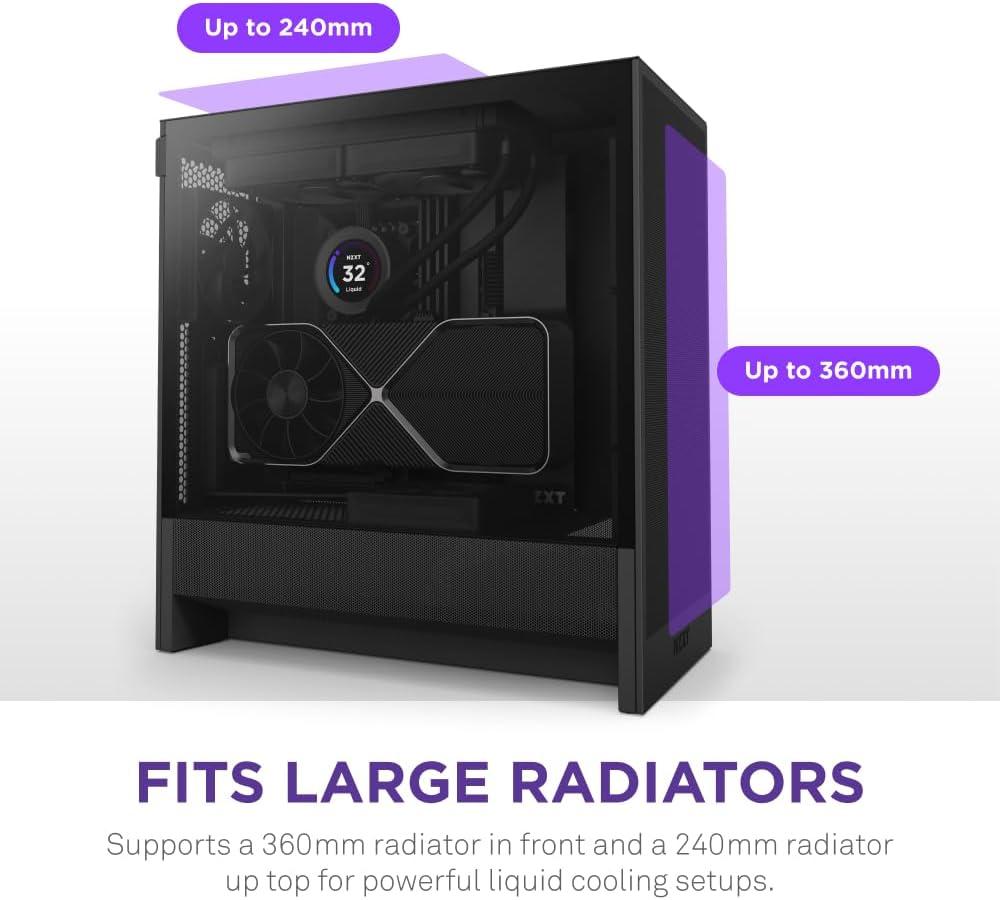

Front:Up to 360 mm
Top:Up to 240 mm (280mm with low-profile memory only)

HDD / SSD Support:

2.5":2
3.5":1

Front Ports:

None

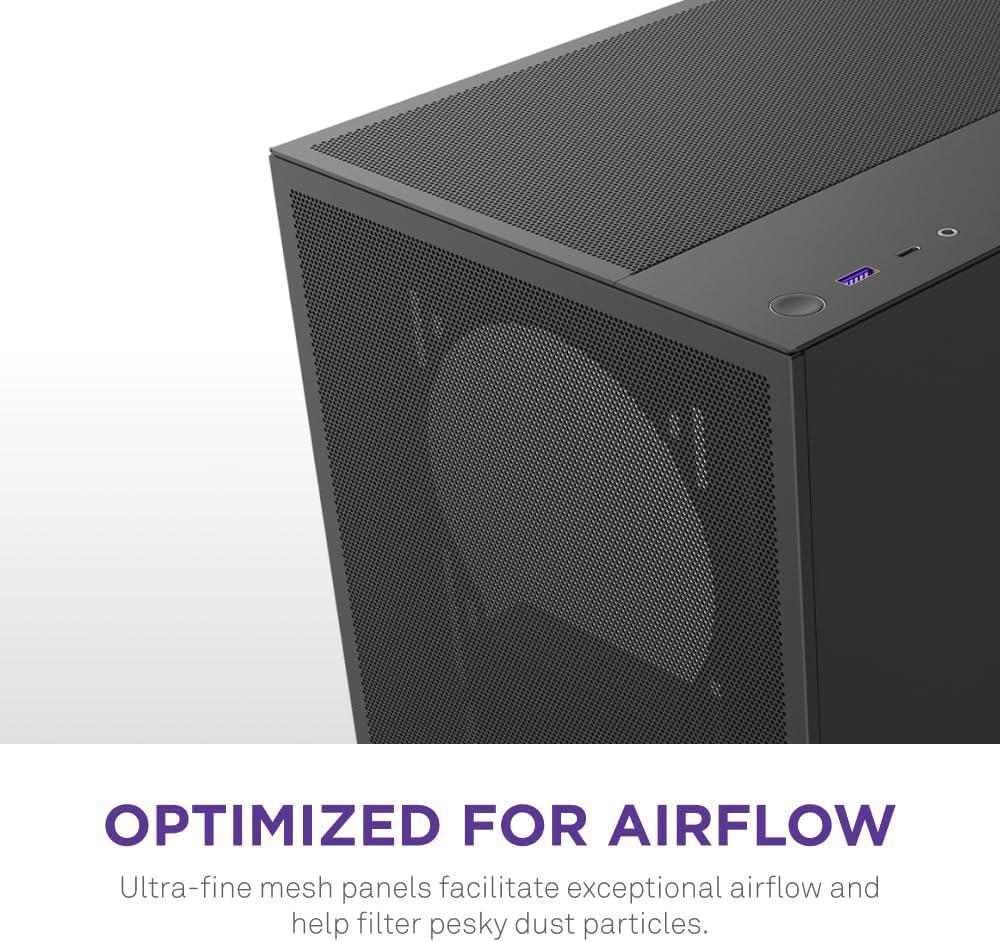

Dust Filters:

Yes

Additional Information:
