NZXT H6 Flow
NZXT H6 Flow Review & Specifications
The NZXT H6 Flow, manufactured by NZXT, is a high-quality PC case designed for Mid-Tower builds. It is made from high-quality steel, plastic, and tempered glass and weighs approximately 9.40 kg. Its aesthetic is characterized by a Black finish and features a Temperd glass side panel, which adds both style and functionality.
The NZXT H6 Flow supports a standard range of motherboard sizes, including Mini-ITX, Micro-ATX, Standard-ATX. This makes it a versatile choice suitable for most gaming and workstation builds—excluding E-ATX compatibility. Power supply compatibility includes ATX, SFX units with a maximum supported length of 200 mm. The overall case dimensions are 435x287x415 mm, offering insight into its spatial footprint.

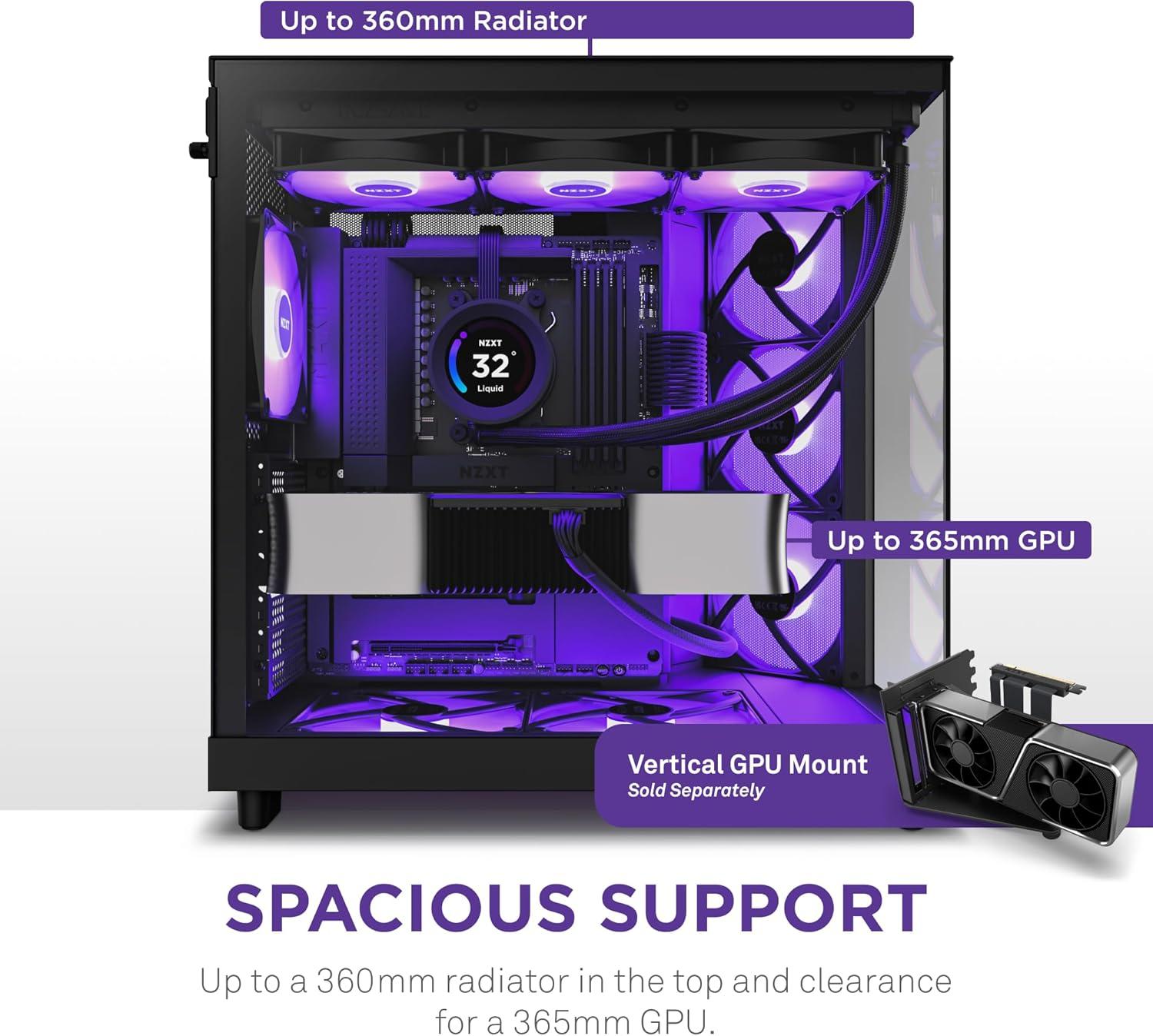

This case supports medium to large graphics cards up to 365 mm in length, along with CPU air coolers up to 163 mm in height.
This case features moderate cooling support, including several fan mounts and radiator support up to 360 mm. It's well-suited for mainstream gaming and productivity builds where cooling is important but not extreme. For additional details and specific specifications, refer to the section below.
General Information
| Manufacturer | NZXT |
|---|---|
| PC Case Name | NZXT H6 Flow |
| Current Price Amazon | $110 |
| Amazon Price Updated | 1 day, 7 hours ago. |
| PC Case Available | True |
Specification
| Form Factor | Mid-Tower |
|---|---|
| Material / Weight | steel, plastic, and tempered glass / 9.40 kg |
| Color / Side Panel | Black / Temperd glass |

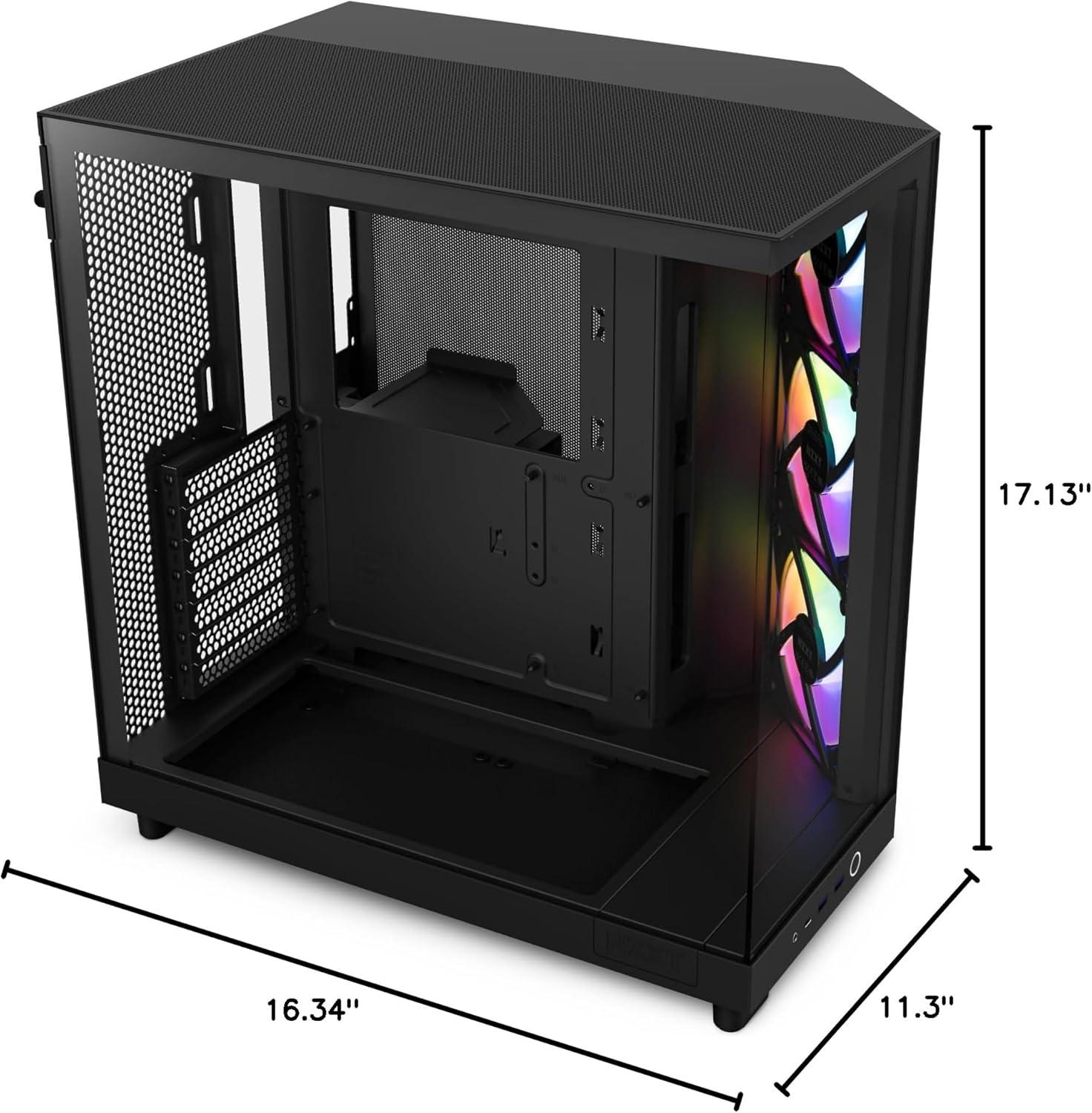

| PC Case Dimensions | 435x287x415 mm |
Compatibility
| Motherboard Support | Mini-ITX, Micro-ATX, Standard-ATX |
|---|---|
| GPU Length / CPU Cooler Height | 365 mm / 163 mm |
| PSU Form Factor / Max Length | ATX, SFX / 200 mm |
| Comment |
Performance
NZXT H6 Flow Compared to PC Cases with the Same Form Factor and Similar Performance and Features
PC Case Quality & Features per Price Table
| PC_Case (Desc) | Price (Desc) | Quality/Features (Desc) | Q&F/Price (Desc) |
|---|---|---|---|
|
$114
|
↑
33.3%
|
70.0 pts
|
55.3%
|
|
|
$116
|
↑
1.8%
|
70.0 pts
|
54.4%
|
|
|
$125
|
0.0%
|
69.0 pts
|
49.7%
|
|
|
$110
|
0.0%
|
69.0 pts
|
56.5%
|
|
|
$165
|
0.0%
|
69.0 pts
|
37.6%
|
|
|
$131
|
↓
-12.9%
|
69.0 pts
|
47.5%
|
|
|
$100
|
↓
-16.7%
|
68.0 pts
|
61.2%
|
|
|
$89
|
↓
-10.8%
|
68.0 pts
|
68.6%
|
|
|
$100
|
↓
-23.1%
|
68.0 pts
|
61.2%
|
PC Case Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$114❗
↑
33.3%
|
$116❗
↑
1.8%
|
$125
0.0%
|
$110
0.0%
|
$165
0.0%
|
$131
↓
-12.9%
|
$100❗
↓
-16.7%
|
$89
↓
-10.8%
|
$100
↓
-23.1%
|
| Form Factor | Mid-Tower | Micro-Tower | Micro-Tower | Mid-Tower | Mini-Tower | Micro-Tower | Mini-Tower | Mini-Tower | Mini-Tower |
| Color | White | Black | BLACK | Black | Black | WHITE | Hydrangea Blue | Black | Butter Caramel |
| Side Panel | tempered glass | tempered glass | tempered glass | Temperd glass | mesh | tempered glass | 3mm Tempered Glass x 3 | 3mm Tempered Glass x 3 | 3mm Tempered Glass x 3 |
| Max GPU L. | 410 mm | 400 mm | 420 mm | 365 mm | 325 mm | 420 mm | 360 mm | 360 mm | 360 mm |
| Max CPU H. | 170 mm | 180 mm | 175 mm | 163 mm | 113 mm | 175 mm | 210 mm | 210 mm | 210 mm |
| Max PSU L. | 180 mm | 225 mm | 200 mm | 200 mm | 130 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| PSU FF | ATX, SFX | ATX, SFX | ATX, SFX | ATX, SFX | SFX | ATX, SFX | ATX, SFX | ATX, SFX | ATX, SFX |
PC Case Specification Table
| PC_Case (Desc) | Form Factor | Color / Side Panel | GPU Length | CPU Cooler Height | PSU Length / Form Factor |
|---|---|---|---|---|---|
| Mid-Tower | White / tempered glass | 410 mm | 170 mm | 180 mm / ATX, SFX | |
| Micro-Tower | Black / tempered glass | 400 mm | 180 mm | 225 mm / ATX, SFX | |
| Micro-Tower | BLACK / tempered glass | 420 mm | 175 mm | 200 mm / ATX, SFX | |
| Mid-Tower | Black / Temperd glass | 365 mm | 163 mm | 200 mm / ATX, SFX | |
| Mini-Tower | Black / mesh | 325 mm | 113 mm | 130 mm / SFX | |
| Micro-Tower | WHITE / tempered glass | 420 mm | 175 mm | 200 mm / ATX, SFX | |
| Mini-Tower | Hydrangea Blue / 3mm Tempered Glass x 3 | 360 mm | 210 mm | 200 mm / ATX, SFX | |
| Mini-Tower | Black / 3mm Tempered Glass x 3 | 360 mm | 210 mm | 200 mm / ATX, SFX | |
| Mini-Tower | Butter Caramel / 3mm Tempered Glass x 3 | 360 mm | 210 mm | 200 mm / ATX, SFX |
Additional PC Case Information
Fan Support:
Top:3 x 120 mm / 2 x 140 mm
Bottom:2 x 140 mm
Rear:1 x 120 mm
Radiator Support:
Rear:Up to 120 mm
HDD / SSD Support:
3.5":1
Front Ports:
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1
Dust Filters:
Additional Information:
Model:F120Q Airflow Fan (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin DC
