Cooler Master · Mini-Tower · Mesh

Cooler Master NCORE 100 MAX

Mini-ITX · Dark Grey · USB-C

Quality: 56
Quality / price: 11
Max GPU: 337 mm
Amazon: $443

View Cooler Master NCORE 100 Gallery in high resolution

Available on Amazon Updated Aug 30, 2026 Prime FBA

Overall quality56.0

Quality / price11.4

Cooling support8

$443 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

Cooler Master NCORE 100 MAX at a glance

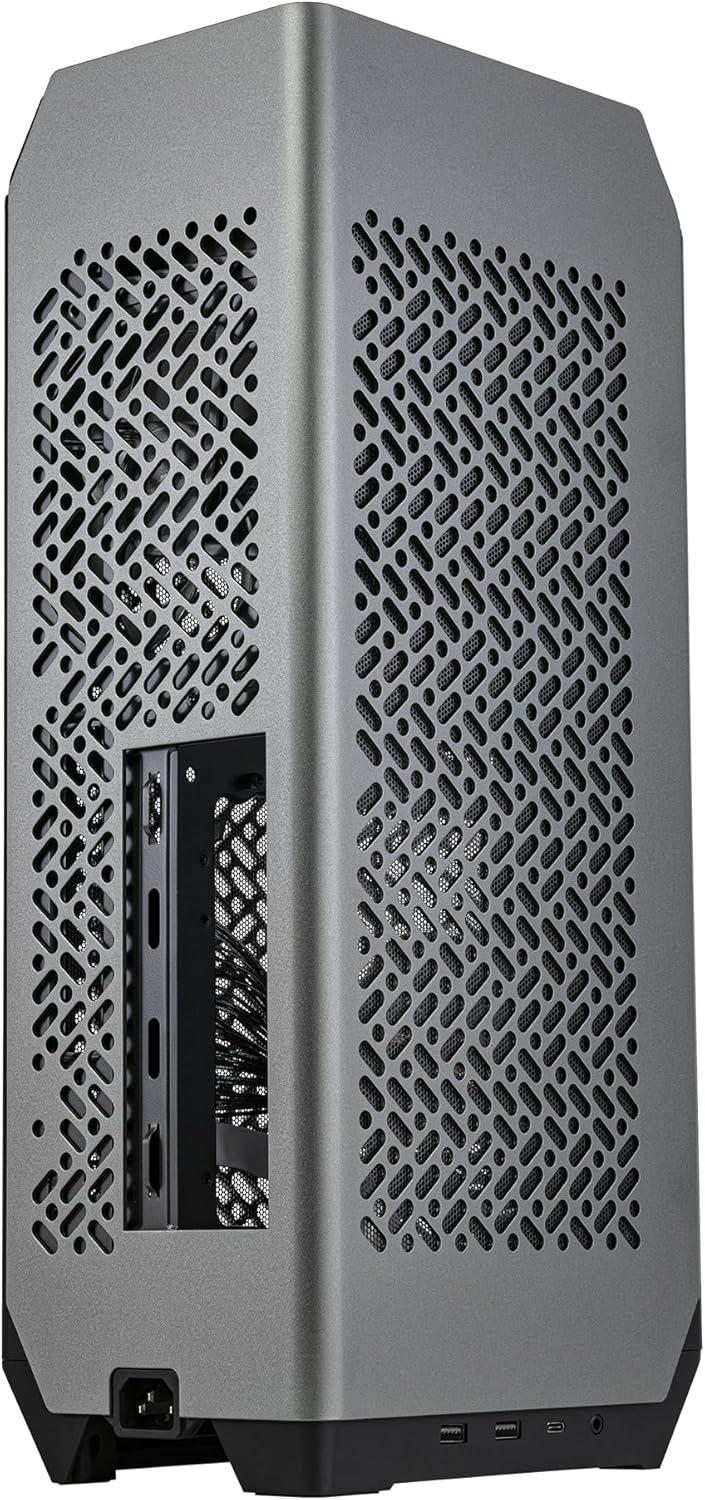

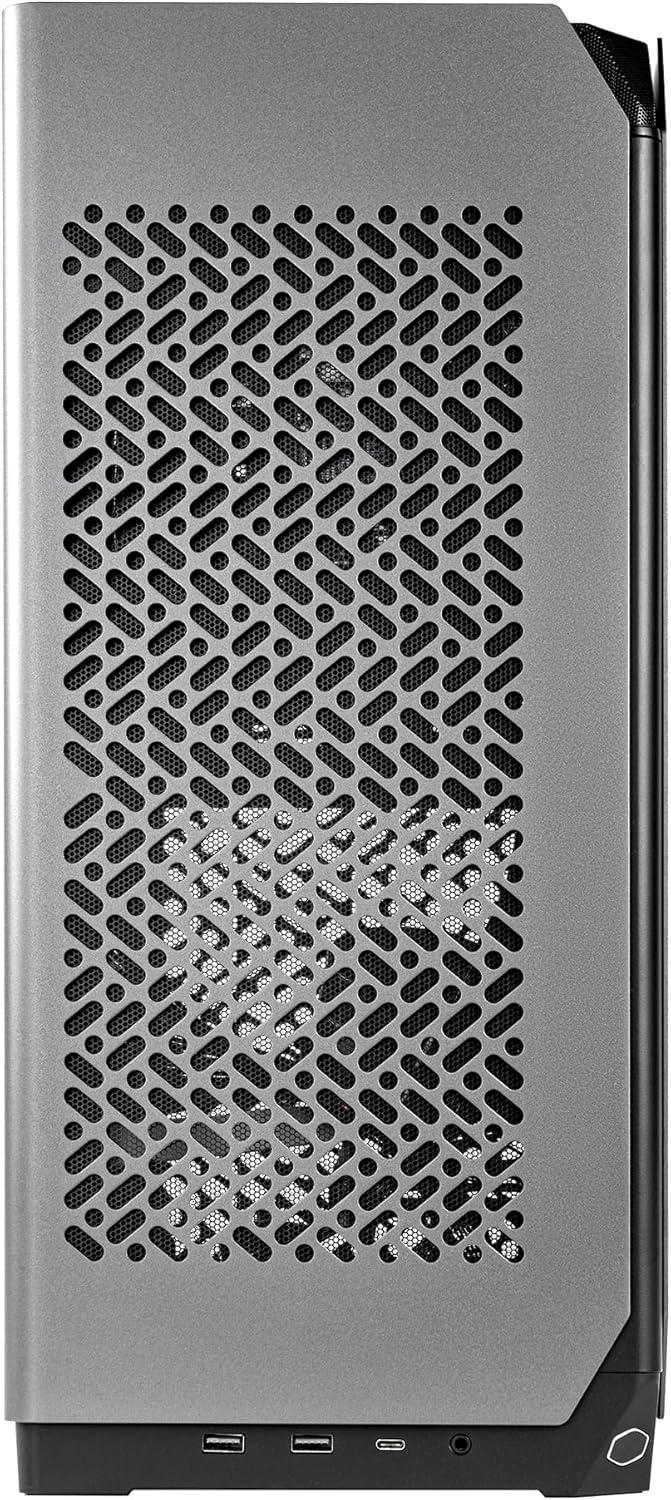

The Cooler Master NCORE 100 MAX is a Mini-Tower chassis with a mesh side panel profile. Supported boards: Mini-ITX. Primary materials are listed as Aluminum, Alloy Steel, Plastic.

Overall quality is 56.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 337 mm. Max CPU cooler height is 48 mm. Largest radiator support is listed at 120 mm.

Best fit: Airflow-focused builds where intake mesh and thermals matter more than a solid or glass aesthetic.

Cooling and front I/O

Front ports: 1x USB 3.2 Gen2 x 2 Type C 2x USB 3.2 Gen1 Type A. USB-C is present on the front I/O. Dust filters: Yes.

Current value

At $443, quality / price is 11.4. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer: Cooler Master
Case: Cooler Master NCORE 100 MAX
Form factor: Mini-Tower
Side panel: Mesh
Launch price: —
Amazon price: $443
Amazon availability: Available
Price updated: Aug 30, 2026

Construction

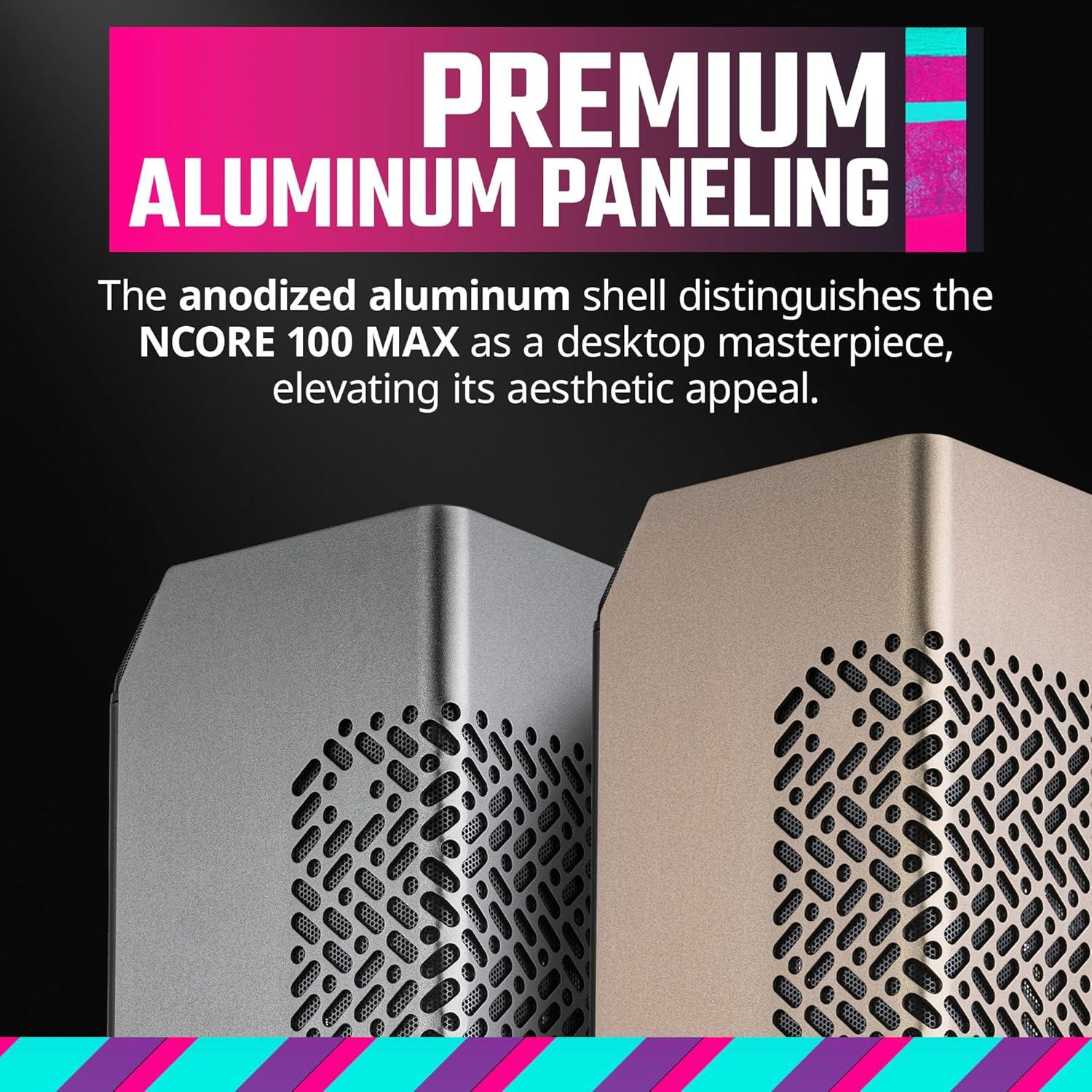

Material: Aluminum, Alloy Steel, Plastic
Color: Dark Grey
Side panel detail: mesh

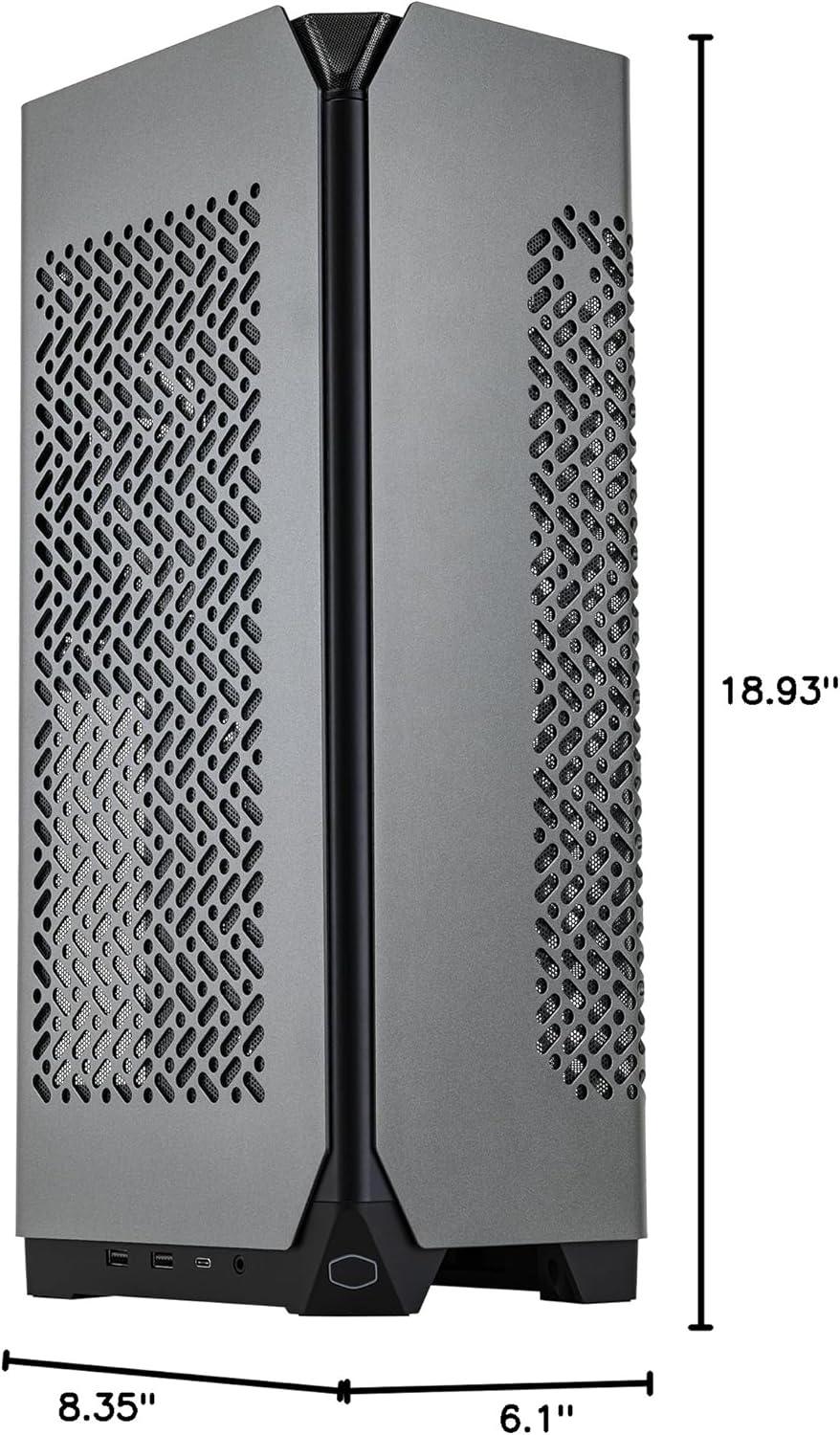

Dimensions: 172mm x 212mm x 481mm
Weight: —
PSU shroud: Yes
RGB lighting: No

Quality & value

Overall quality: 56.0
Compatibility: 10
Cooling support: 8
Storage score: 4
Build quality: 20
Connectivity: 14
Quality / price: 11.4

Compatibility / clearances

Motherboard sizes: Mini-ITX
Max GPU length: 337 mm
Max cooler height: 48 mm
Max PSU length: 100 mm
PSU form factor: SFX
PSU included: Yes

Cooling

Max radiator: 120 mm
Fan support: Pre-installed Fan(s) - Rear120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Radiator support: Pre-Installed CPU Cooling Solution120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Pre-installed fans: Not specified
Dust filters: Yes

Storage & I/O

Drive bays: Drive Bays - 2.5" SSD1
Expansion slots: 3
Front ports: 1x USB 3.2 Gen2 x 2 Type C 2x USB 3.2 Gen1 Type A
USB-C: Listed

Additional information

Also listed as: NCORE 100 MAX
Additional info: Pre-installed Power Supply UnitV SFX Gold 850W ATX 3.0
Note: Clearances - CPU Cooler48mmClearances - Power Supply100mmClearances - RAM48mmClearances - Graphics Card337mm x 62mm x 180mm (Normal, 3.0 Slot thick)Clearances - Graphics Card357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)Clearances - Graphics Card(Maximum space including GPU power connector)Cable Routing - Behind MB Tray11mmDust FiltersSide panels

Amazon

Price history

Nearby quality

Similar cases

Cases close to Cooler Master NCORE 100 MAX on overall quality. Open the case table to sort, filter, and compare side by side.

Cooler Master Cooler Master NR200P MAX Mini-Tower · Tempered glass

49.0

6.5

$678

Fractal Design Fractal Design Terra Jade Mini-Tower · Solid panel

54.0

24.3

$200

Cooler Master Cooler Master NCORE 100 Air Mini-Tower · Mesh

54.0

27.9

$174

Fractal Design Fractal Design Ridge Mini-Tower · Mesh

55.0

30.1

$164

Cooler Master Cooler Master NCORE 100 MAX This case

56.0

11.4

$443

Cooler Master Cooler Master NR200P V3 Mini-Tower · Mesh

57.0

31.3

$164

JONSBO JONSBO TK-0 Black ITX Mini Tower Mini-Tower · Tempered glass

58.0

40.2

$130

Cooler Master Cooler Master NR200P V2 Mini-Tower · Mesh

58.0

34.8

$150

Fractal Design Fractal Design Meshify 2 Nano Mini-Tower · Tempered glass

62.0

56.0

$100

Compare these in the case table

Discussion

Comments on Cooler Master NCORE 100 MAX

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

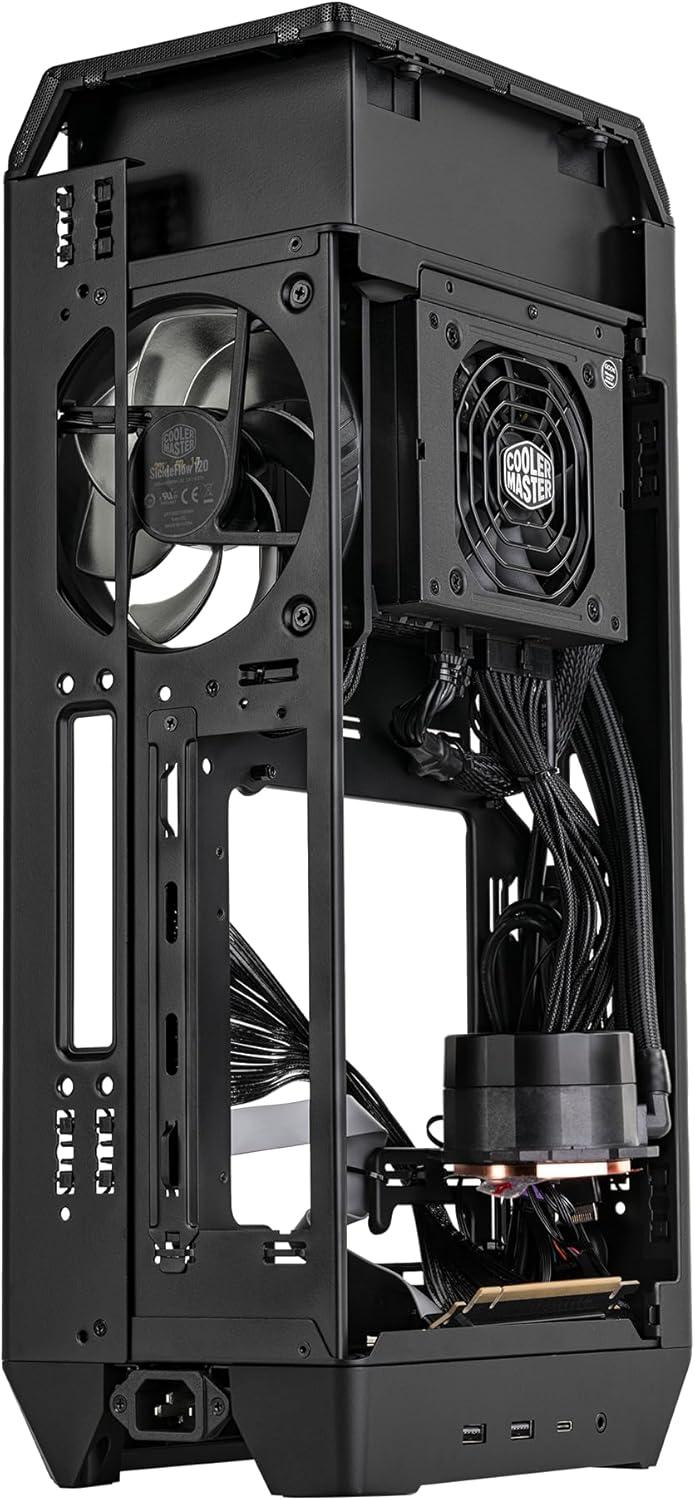

The MAX Revolutionized: Continuing the MAX's heritage, the NCORE 100 MAX boasts effortless installation and distinctive aesthetics through its seamlessly integrated components.

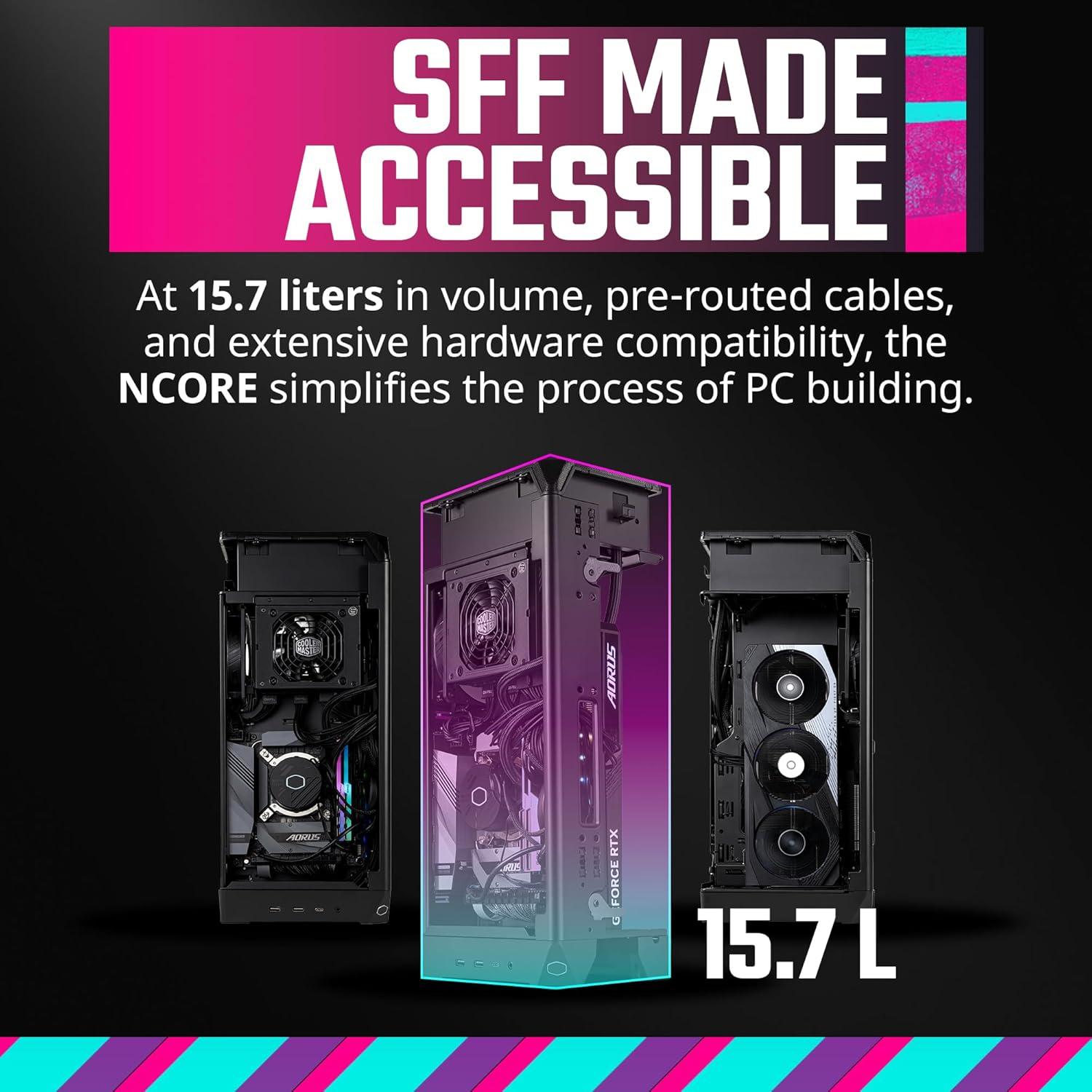

Ultra-Small Footprint: Ultra-compact yet powerful, featuring a sleek 15.7L footprint, exclusively accommodating Mini-ITX motherboards.

Custom Fit 120 MM Radiator: Engineered with a 38 mm radiator and precision tubing for a perfect fit, paired with our 3rd-gen pump for AMD Ryzen 7 and Intel Ultra 7 performance.

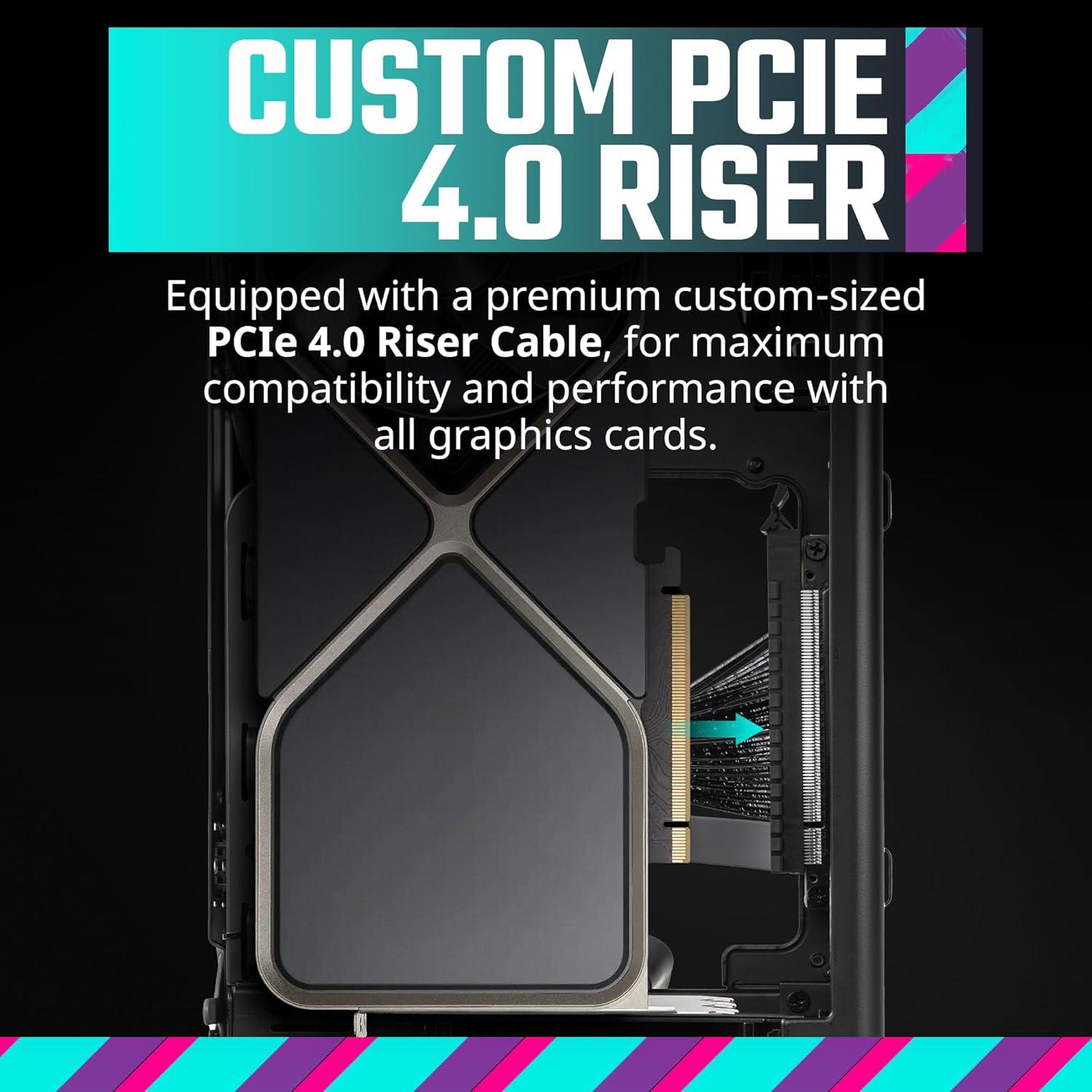

Vertical GPU Mounting: Designed exclusively for Vertical GPU mounting, supports high-end GPUs up to 356mm—including RTX 5080 |RX 9070 XT.

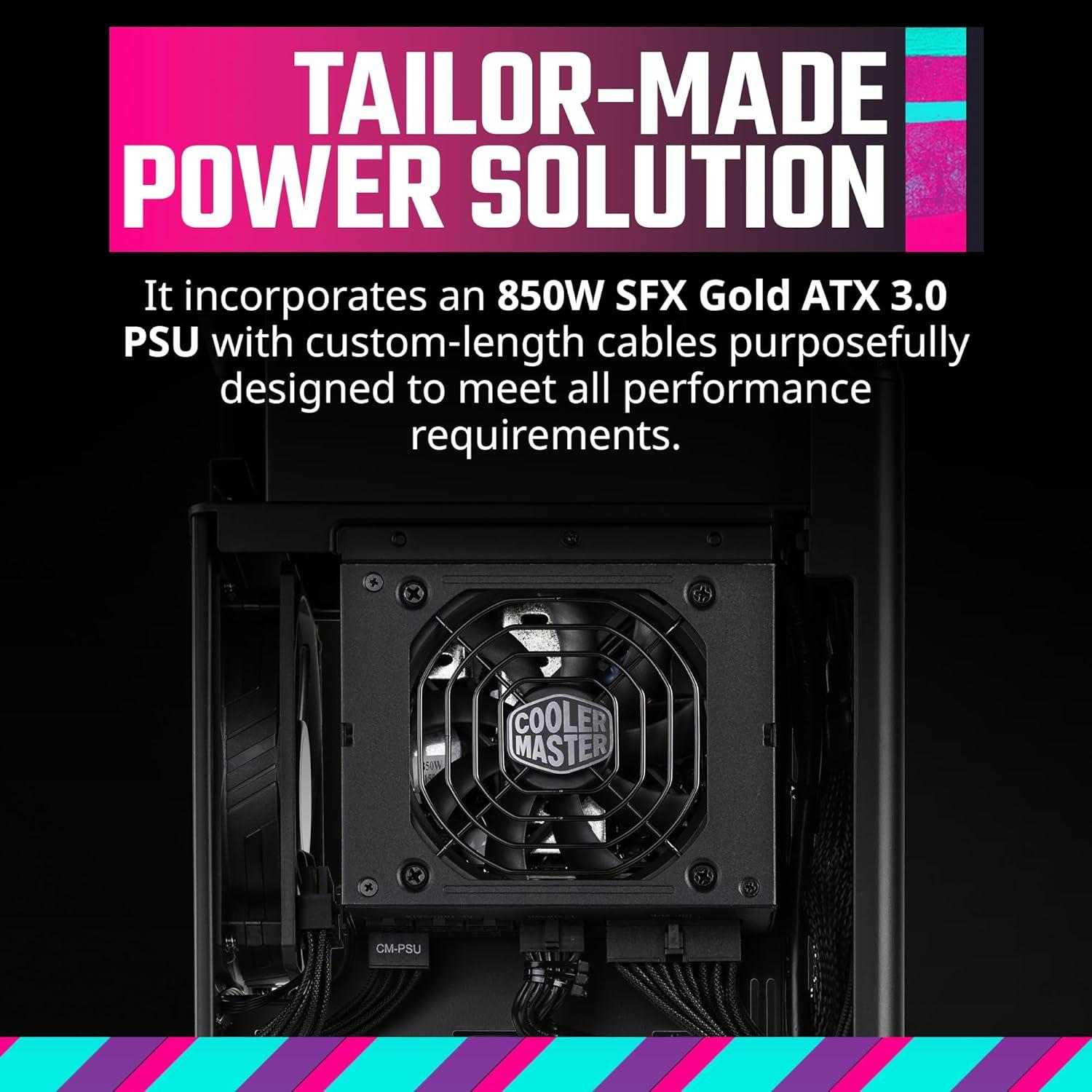

Tailor-Made PSU Solution: Incorporates an 850W SFX Gold ATX 3.0 PSU delivers up to 600W power to your GPU, with custom short-length cables, to minimize cable clutter.

90° Durable Cables: Featuring a 90° 12V-2x6 PCIe 5.0 connector, for improved electrical durability and safety.

Extendable Frame Design: The expandable design extends the overall width from 155mm to 172mm, creating ample room to accommodate even some of the largest GPUs available.

Stay Cool Under Pressure: The layout has been carefully engineered for maximum thermal efficiency, drawing airthrough thes case's largest surfaces sided for optimal cooling
