Cooler Master · Mid-Tower · Tempered glass

Cooler Master MasterFrame 700

Mini-ITX, Micro-ATX, Standard-ATX, E-ATX · Black · USB-C

Quality
91
Quality / price
23
Max GPU
450 mm
Amazon
$349
Cooler Master MasterFrame 700
View Cooler Master MasterFrame 700 Gallery in high resolution
$349
Not currently available Updated Sep 20, 2025
Overall quality91.0
Quality / price23.5
Cooling support20
$349 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

Cooler Master MasterFrame 700 at a glance

The Cooler Master MasterFrame 700 is a Mid-Tower chassis with a tempered glass side panel profile. Supported boards: Mini-ITX, Micro-ATX, Standard-ATX, E-ATX. Primary materials are listed as Perforated Steel, Tempered Glass.

Overall quality is 91.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 450 mm. Max CPU cooler height is 158 mm. Largest radiator support is listed at 360 mm.

Best fit: High-end long-GPU builds that need support for at least one 360 mm radiator; verify the listed radiator positions before planning a multi-radiator loop.

Cooling and front I/O

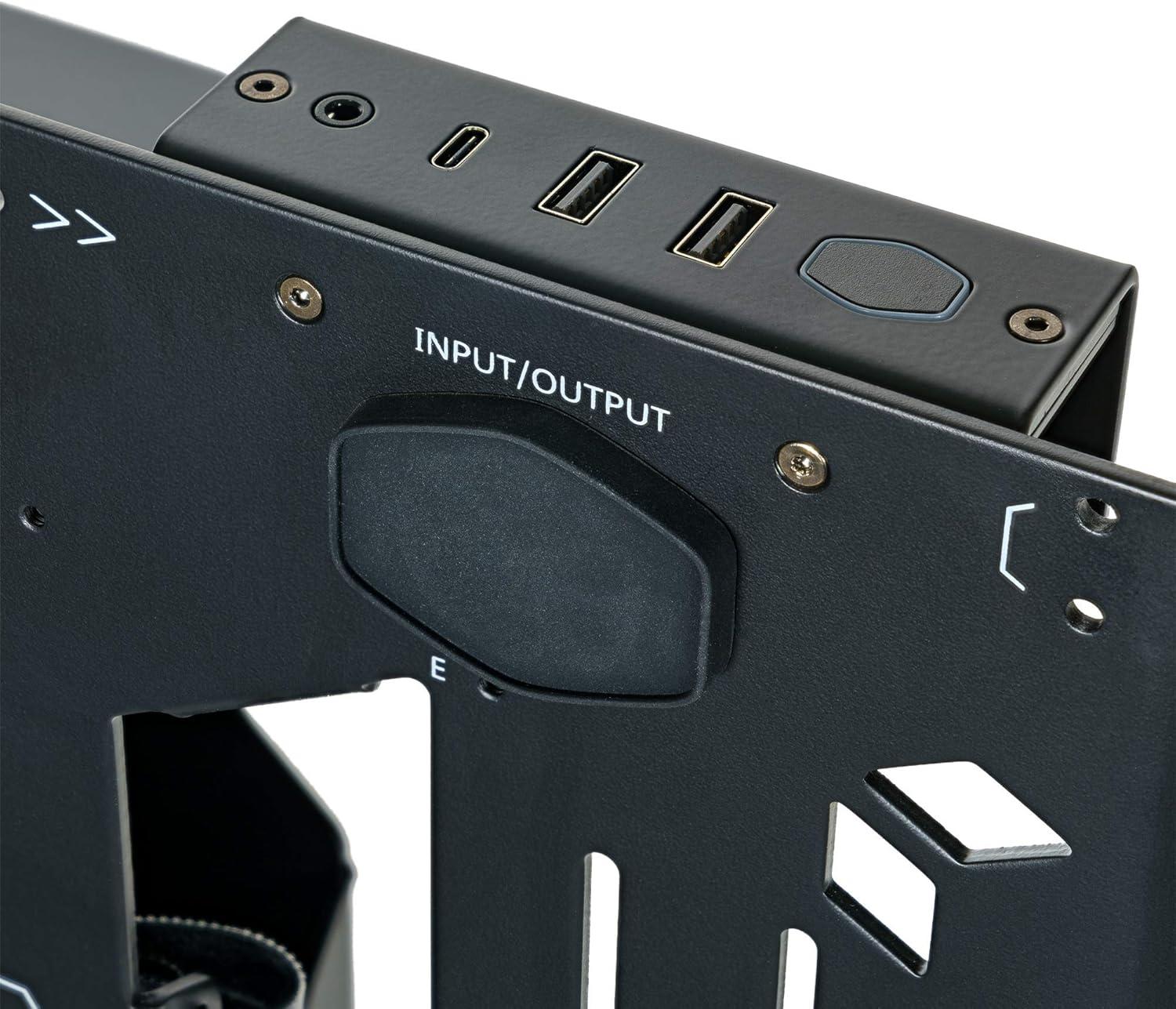

Front ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C. USB-C is present on the front I/O. Dust filters: No.

Current value

At $349, quality / price is 23.5. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer
Cooler Master
Case
Cooler Master MasterFrame 700
Form factor
Mid-Tower
Side panel
Tempered glass
Launch price
—
Amazon price
$349
Amazon availability
Not currently available
Price updated
Sep 20, 2025

Construction

Material
Perforated Steel, Tempered Glass
Color
Black
Side panel detail
Tempered Glass
Dimensions
702 x 306 x 410mm
Weight
—
PSU shroud
Yes
RGB lighting
No

Quality & value

Overall quality
91.0
Compatibility
20
Cooling support
20
Storage score
16
Build quality
20
Connectivity
15
Quality / price
23.5

Compatibility / clearances

Motherboard sizes
Mini-ITX, Micro-ATX, Standard-ATX, E-ATX
Max GPU length
450 mm
Max cooler height
158 mm
Max PSU length
210 mm
PSU form factor
ATX, SFX
PSU included
No

Cooling

Max radiator
360 mm
Fan support
Fan Support - Right side3x 120mm / 2x 140mmFan Support - Left side3x 120mm / 2x 140mm
Radiator support
Radiator Support - TopUp to 360/420mmRadiator Support - FrontN/ARadiator Support - Right sideUp to 280/360mmRadiator Support - Left sideUp to 280/360mm
Pre-installed fans
Not specified
Dust filters
No

Storage & I/O

Drive bays
2.5" / 3.5" Drive Bays (Combo)Up to 4 (PSU cover)2.5" Drive Bays7 (3 SSD brackets + 4 PSU cover)
Expansion slots
8
Front ports
2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
USB-C
Listed

Additional information

Also listed as
MasterFrame 700

Amazon

Price history

Nearby quality

Similar cases

Cases close to Cooler Master MasterFrame 700 on overall quality. Open the case table to sort, filter, and compare side by side.

Compare these in the case table

Discussion

Comments on Cooler Master MasterFrame 700

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

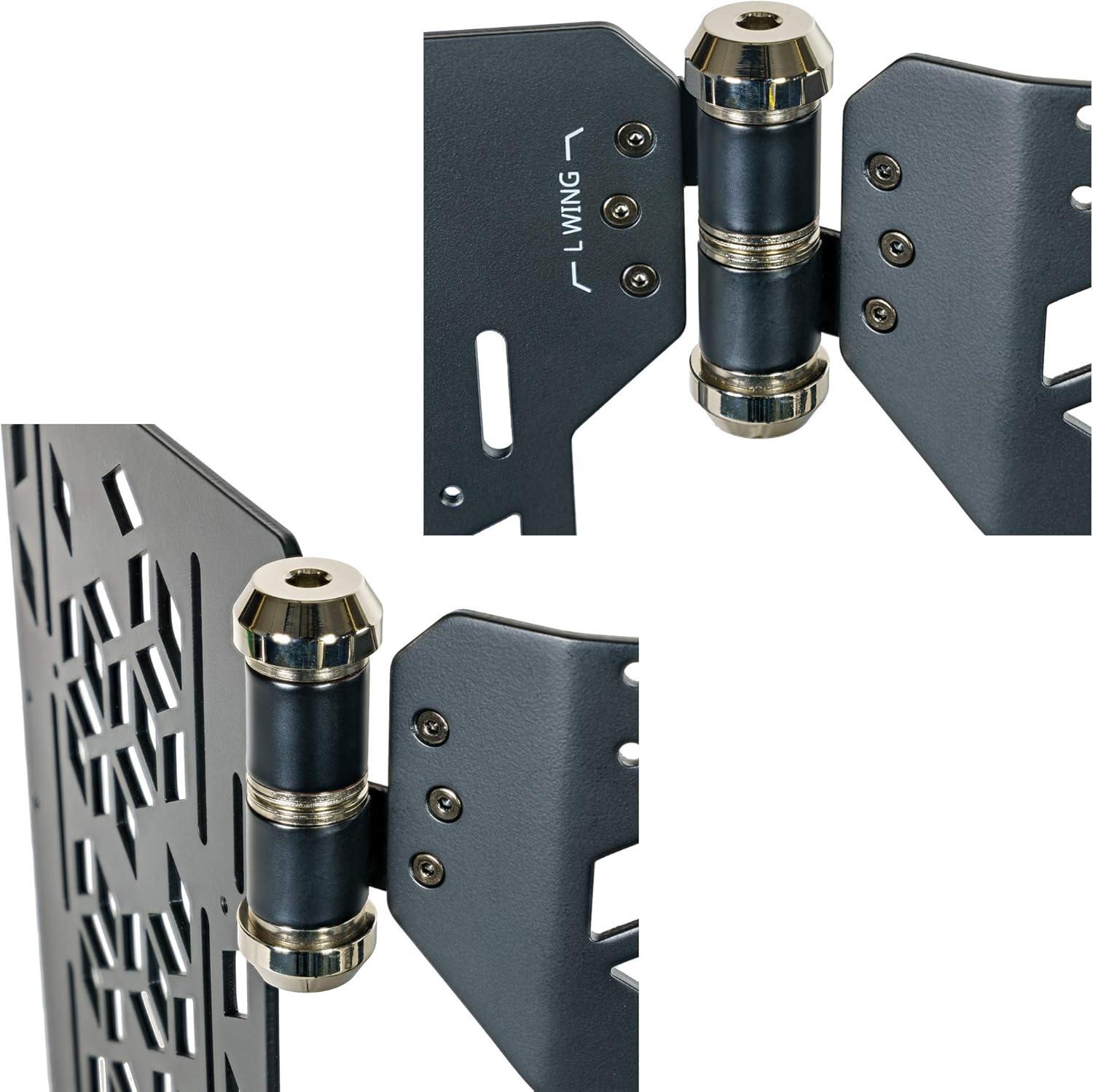

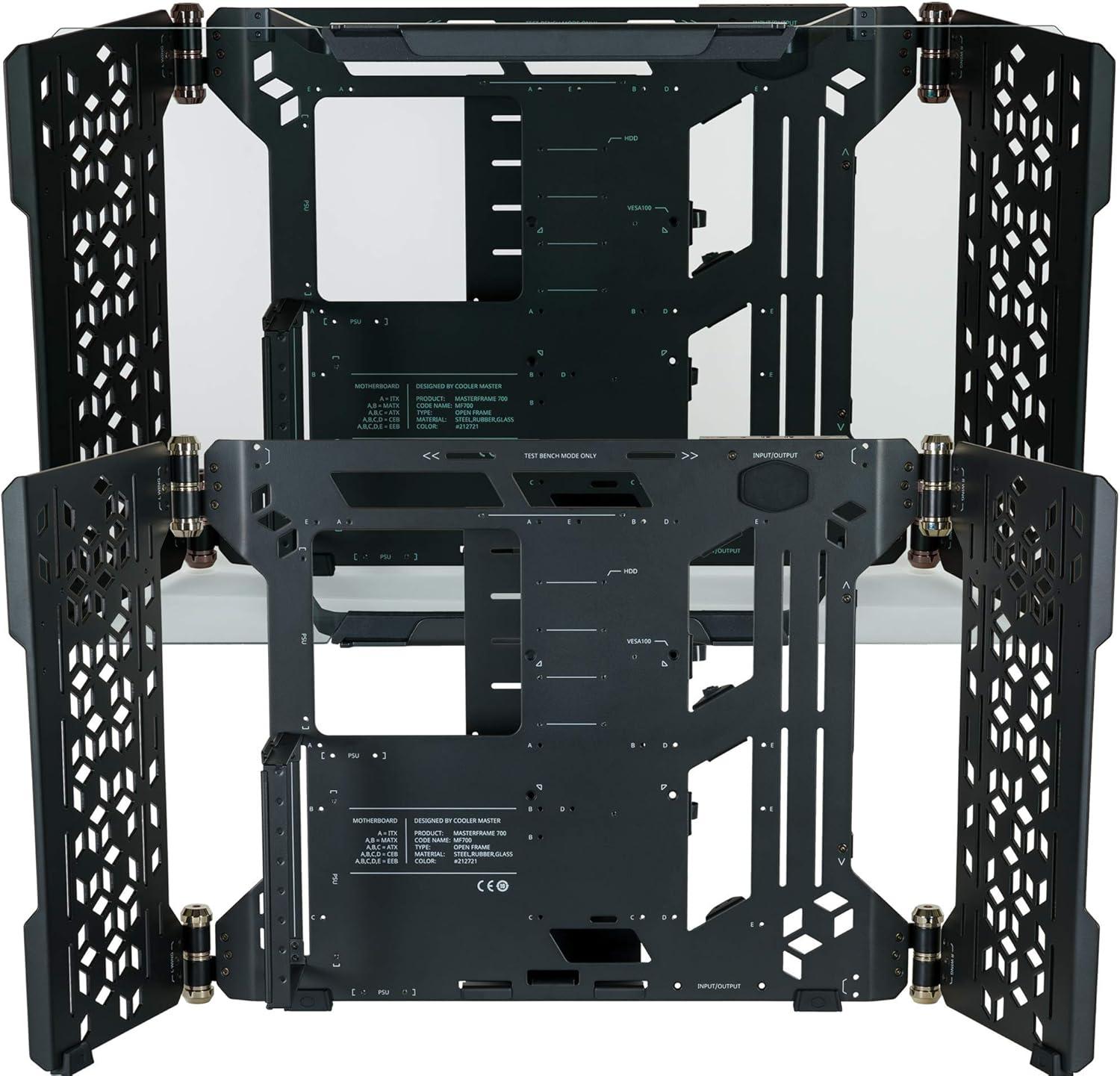

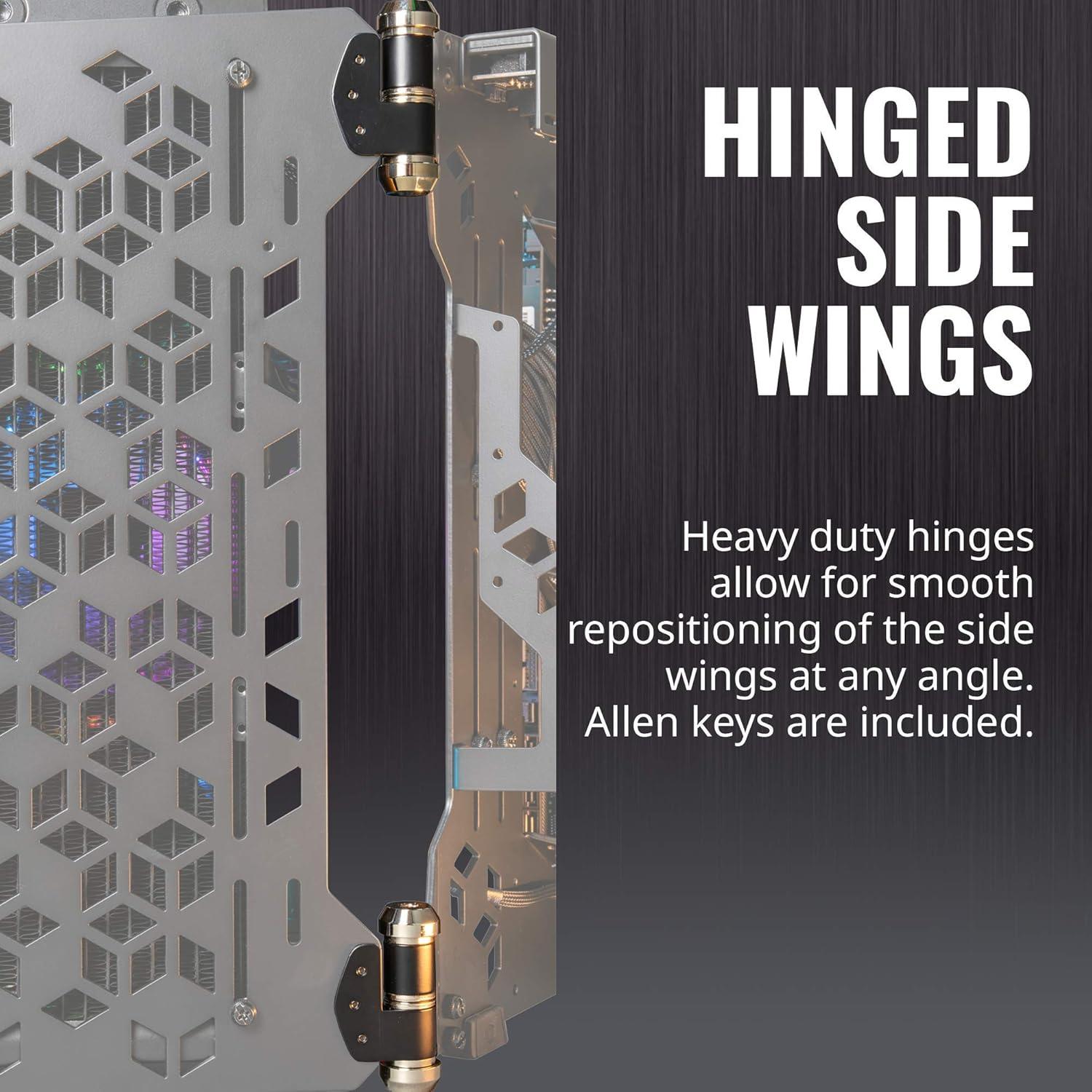

Premium Variable Friction Hinges: Heavy duty hinges hold the side wings to the mid-frame and allow for smooth repositioning at any angle depending on the user’s needs. Allen keys are included to adjust the tension of the hinges to make it easier to move or allow the side wings to hold heavier parts. This level of flexibility is a key factor for users creating extremely unique water-cooling loops and setups.

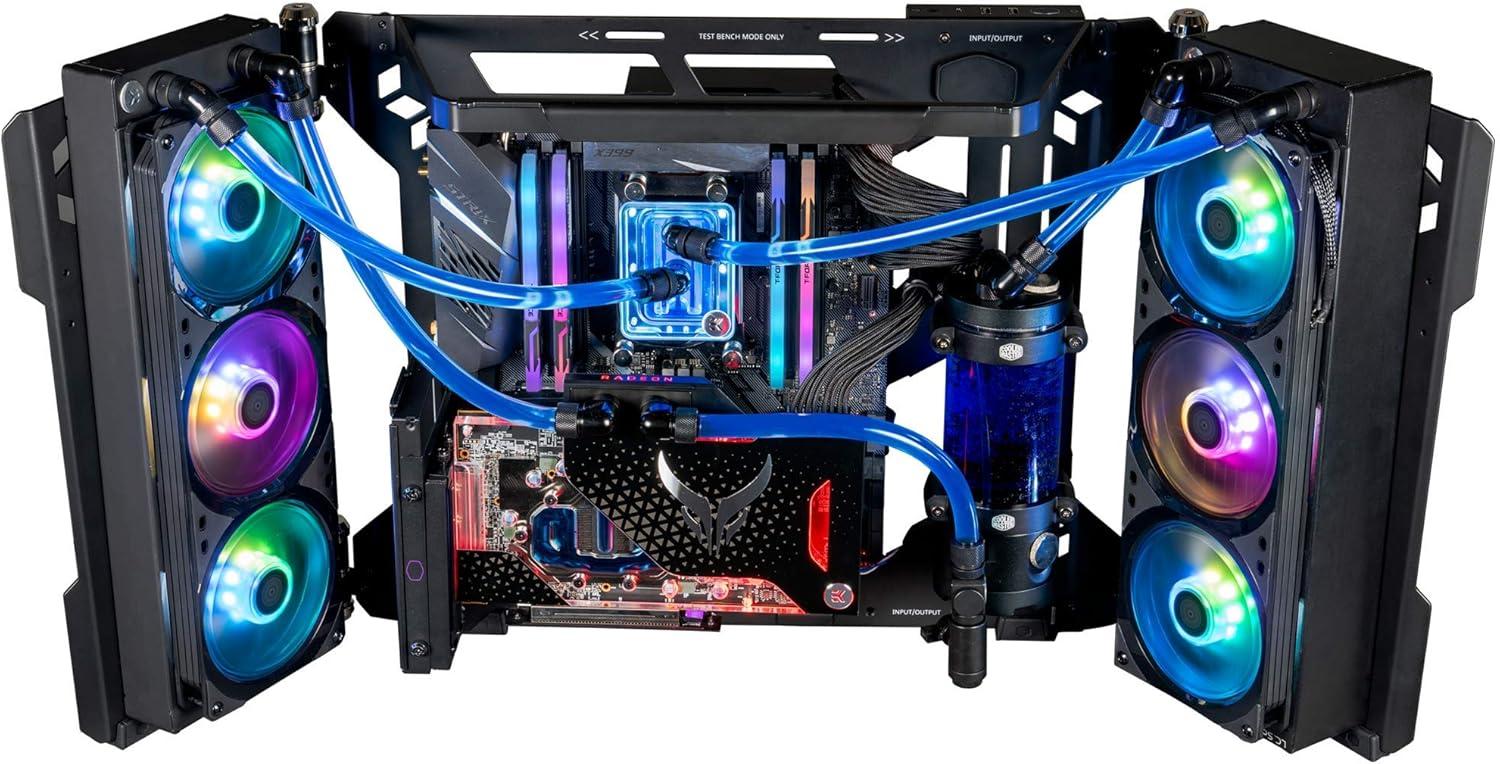

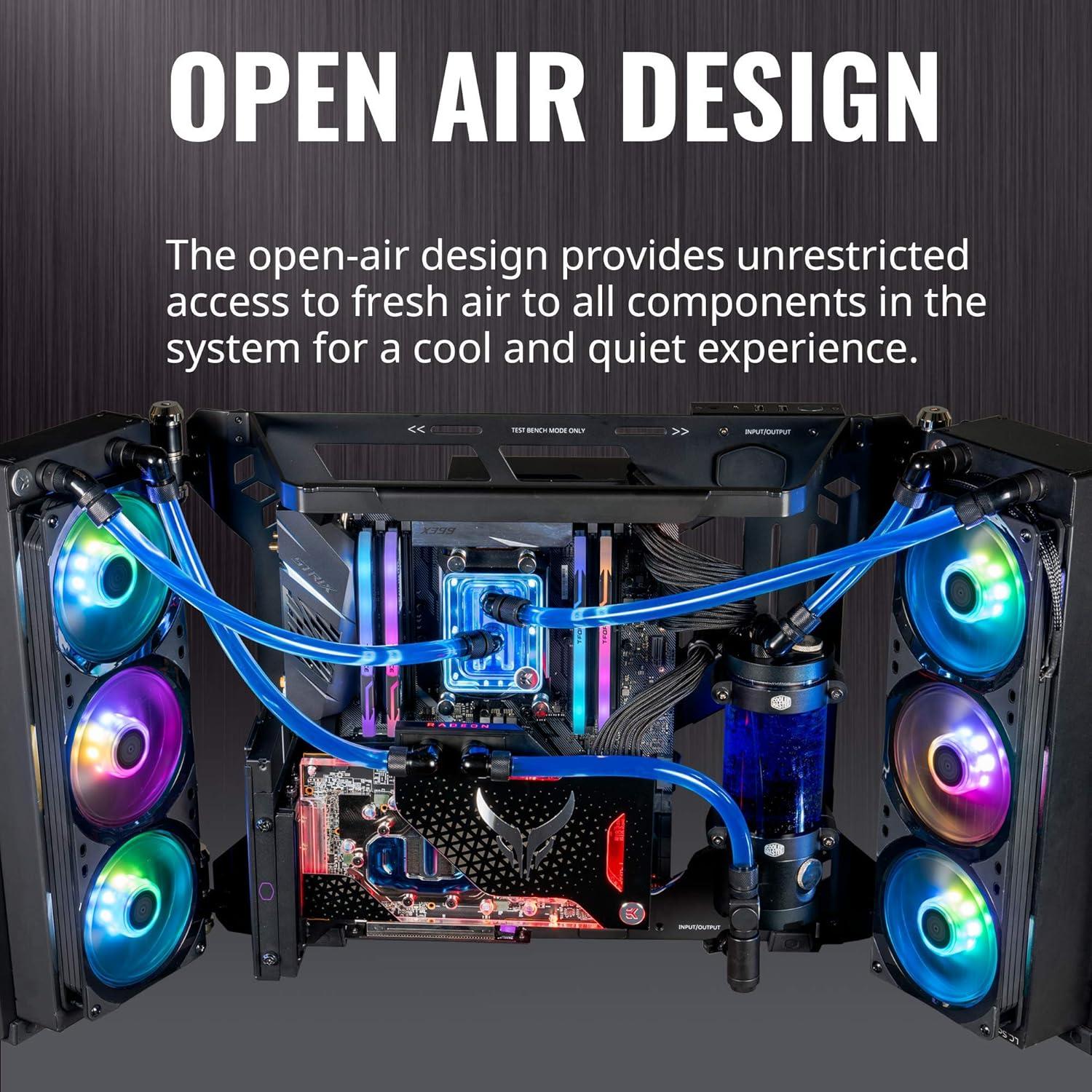

Open Air Design: The open-air nature of the design provides unrestricted access to fresh air to all components in the system. The optional fan mounts allow to further guide the airflow path to a specific intake/exhaust direction, thus preventing performance-robbing heat recirculation.

Un-matched Hardware Support: For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.

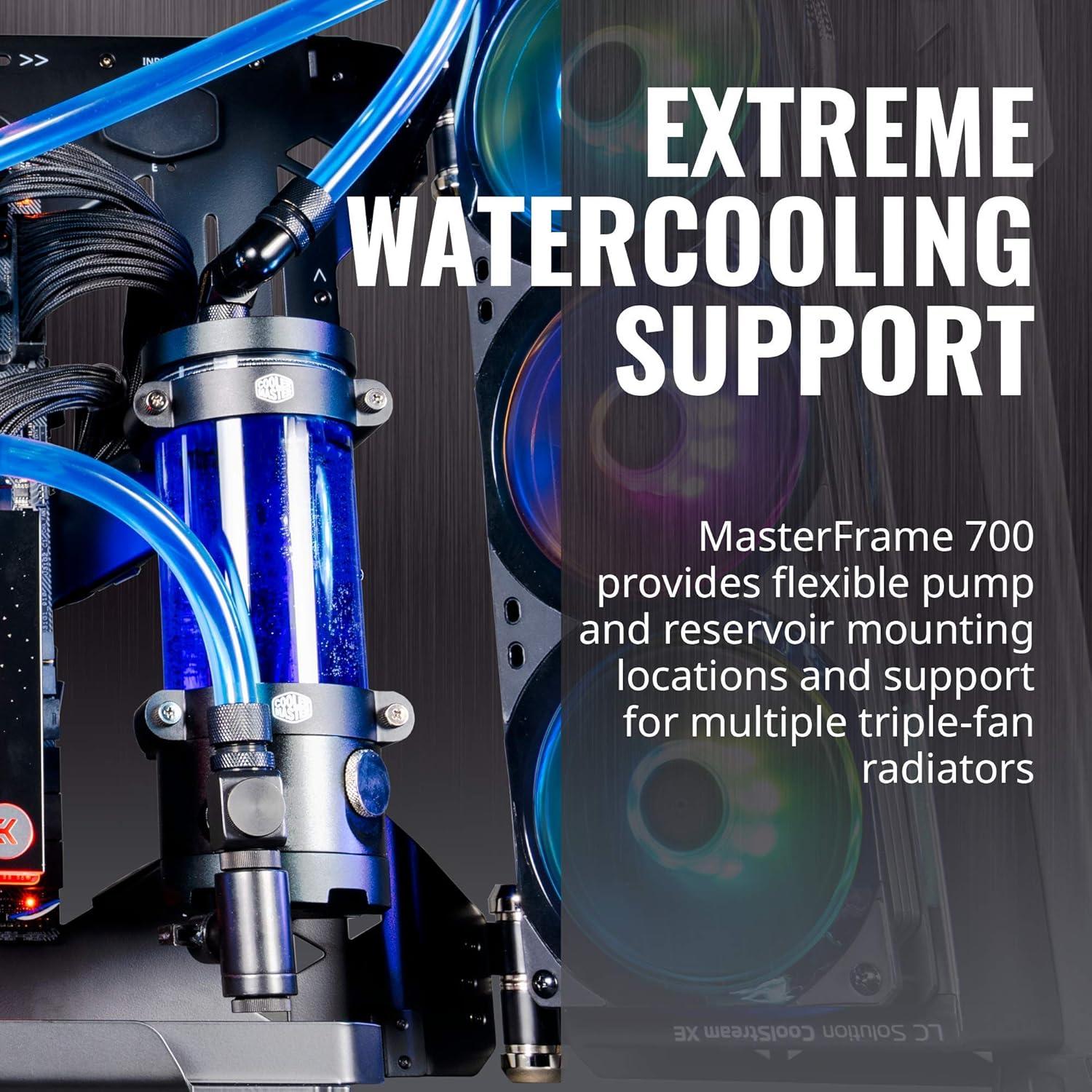

Extreme Water-Cooling Support: Designed with water-cooling in mind, MasterFrame 700 provides a flexible pump and reservoir mounting location and support for multiple triple-fan radiators.

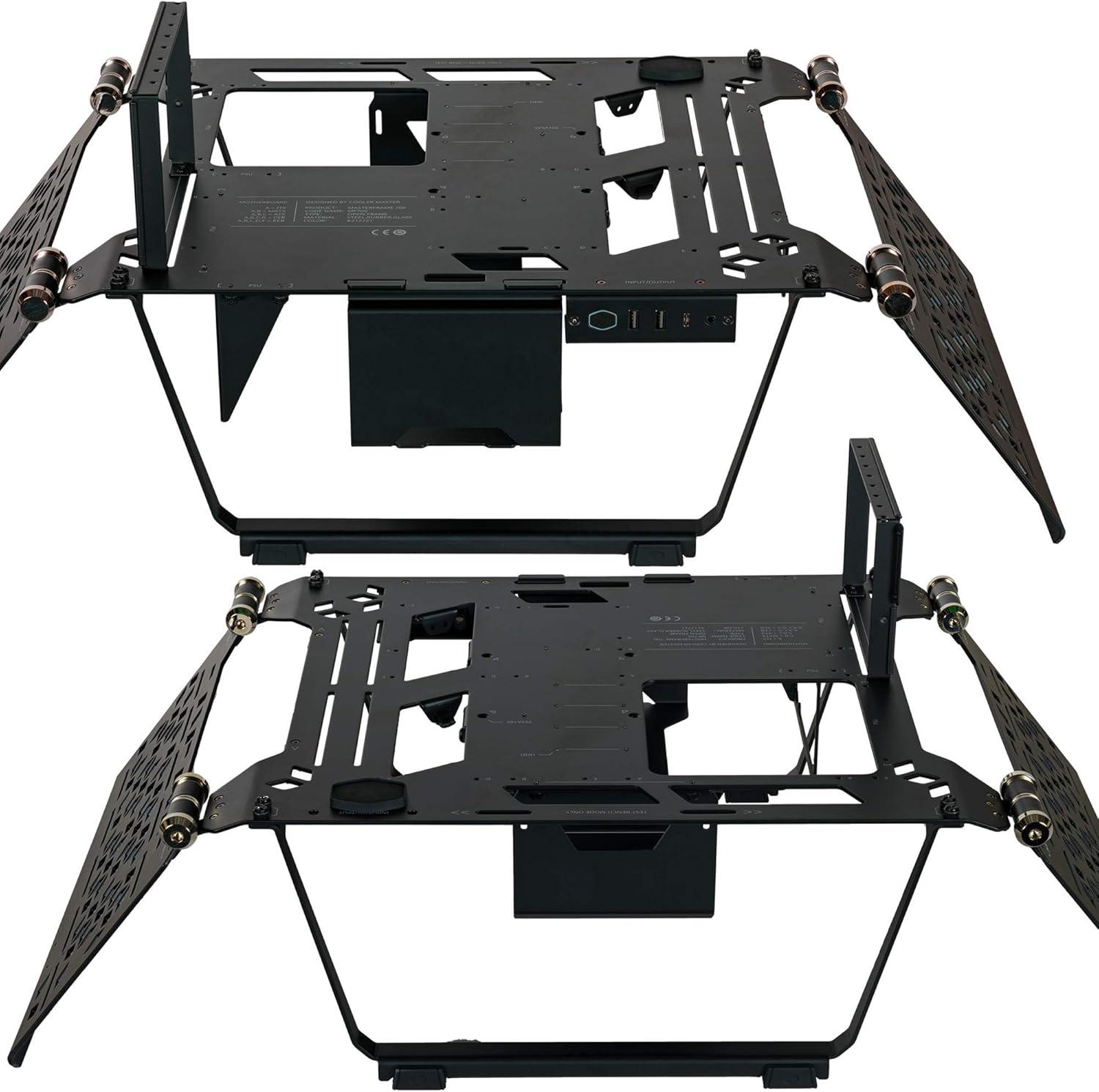

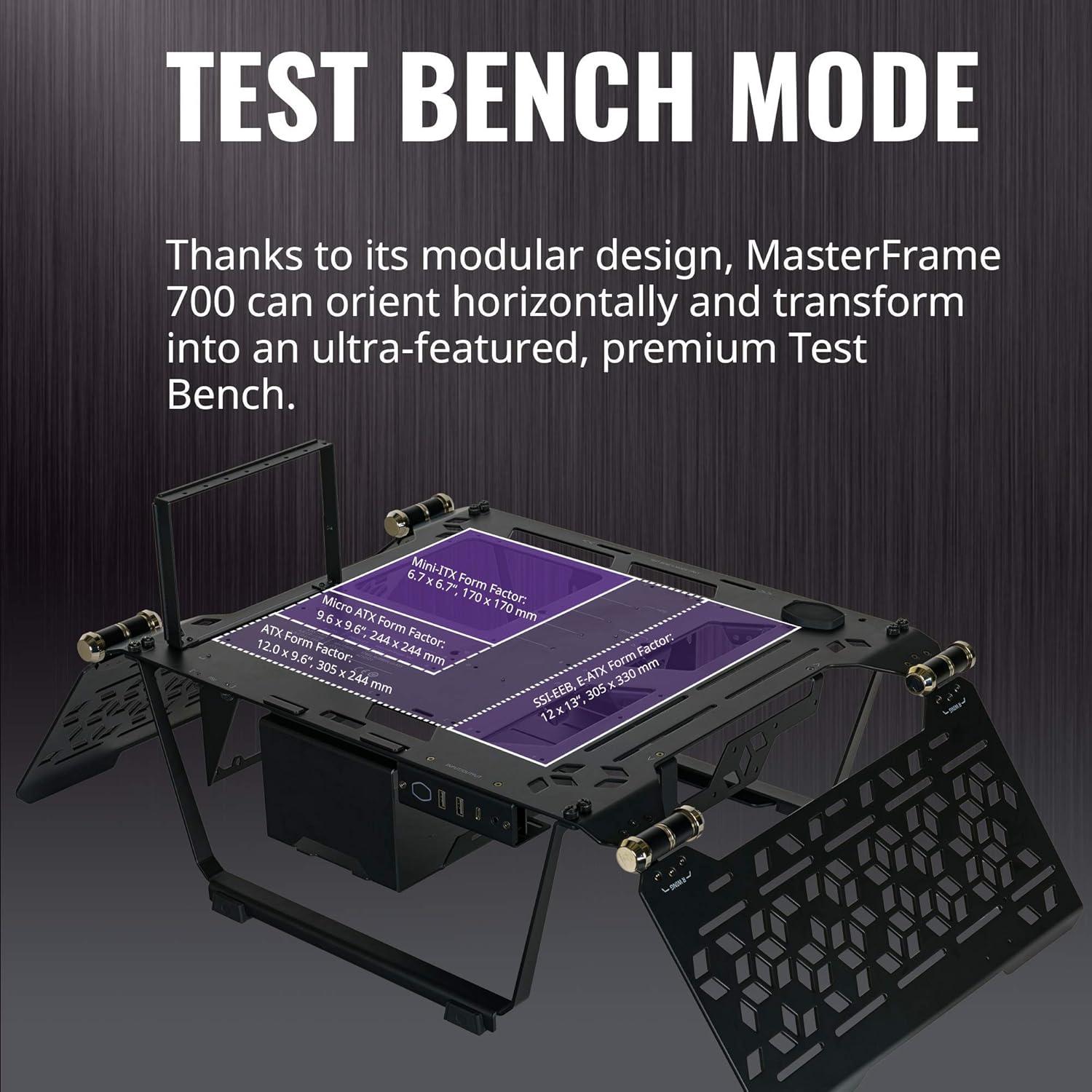

Test Bench Mode: Thanks to its modular design, MasterFrame 700 can lay down horizontally and transform into an ultra-featured premium Test Bench. Cooling and power components are installed out of the way of the motherboard area for interference-free installation of components.

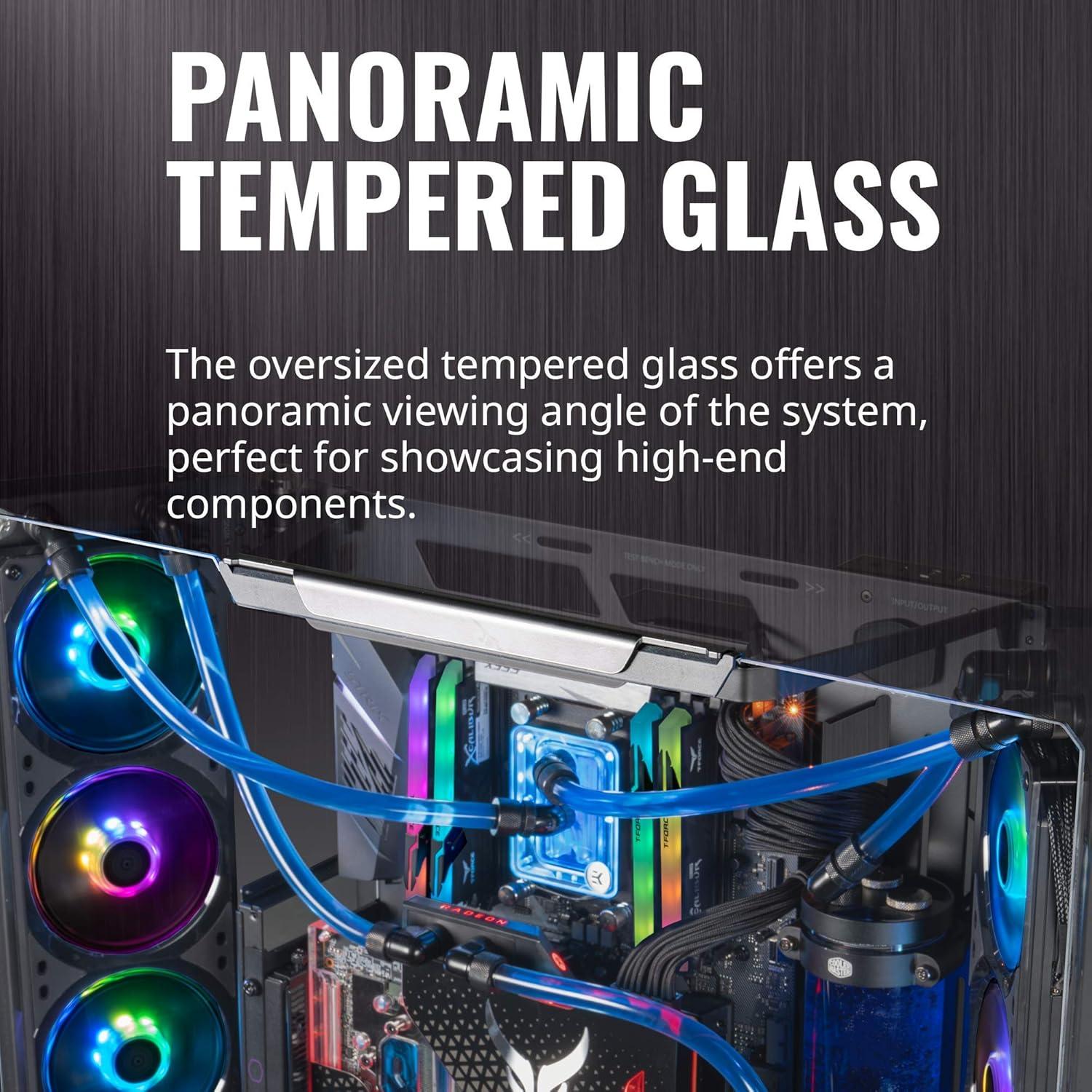

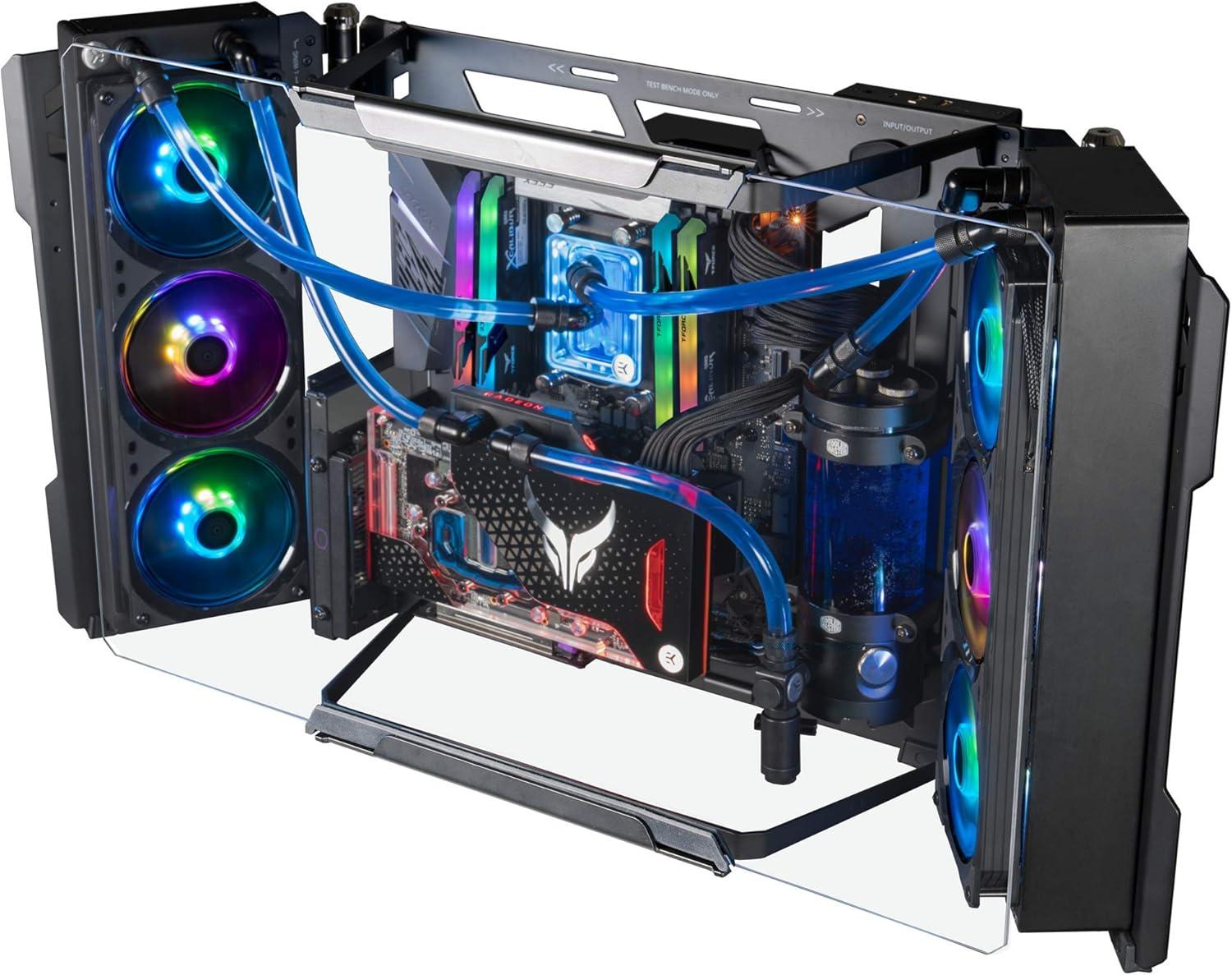

Panoramic Tempered Glass: The oversized panoramic tempered glass offers a greater viewing angle on the components of the system and, together with hardware-centric design of MasterFrame 700, it is the perfect way to showcase high-end components and custom cooling solutions.

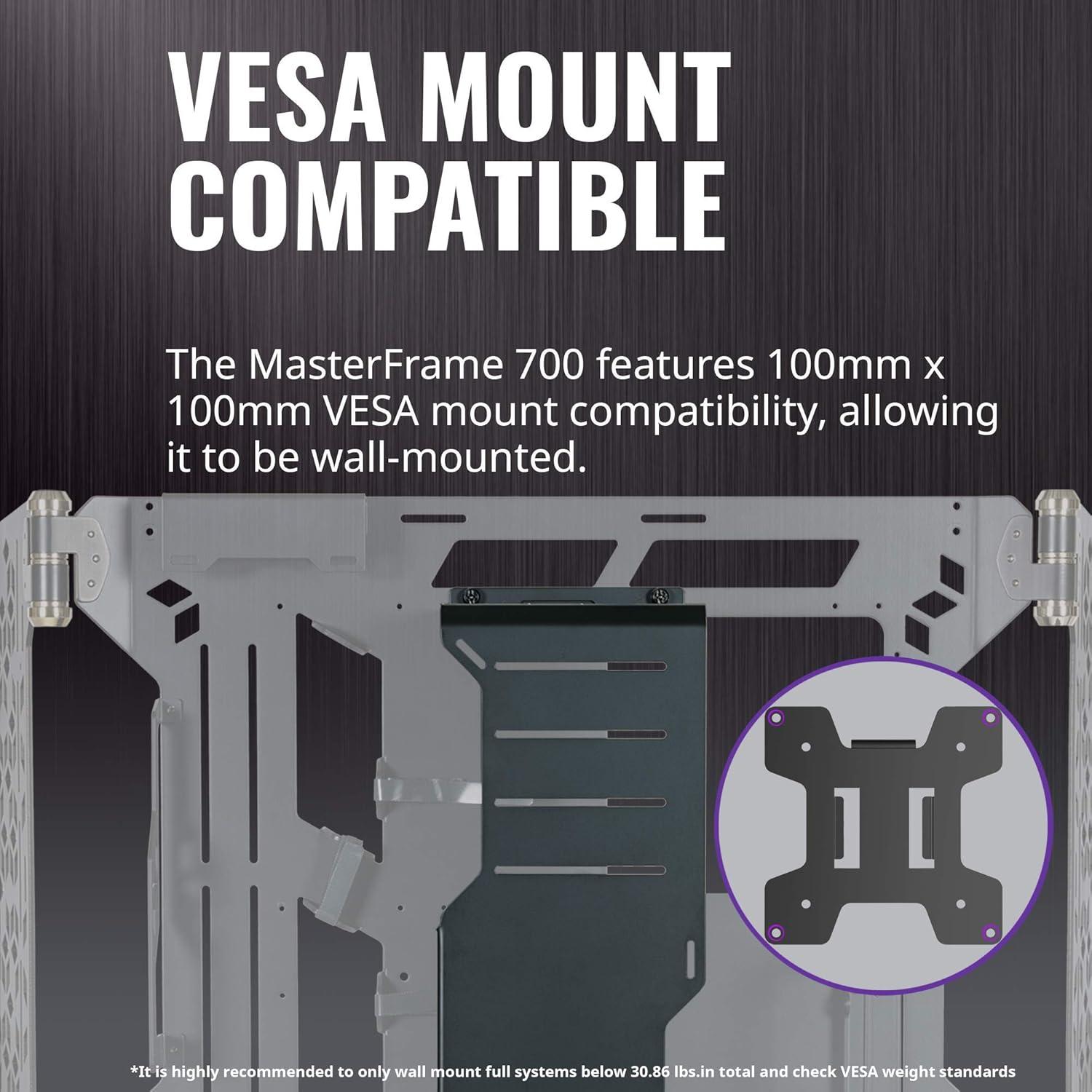

Built-In VESA Mount: The MasterFrame 700 can be wall mounted thanks to the inclusion of a 100mm x 100mm VESA mount. Perfect to showcase custom loops and high-end components. It is highly recommended to only wall mount systems below 14Kg in total.

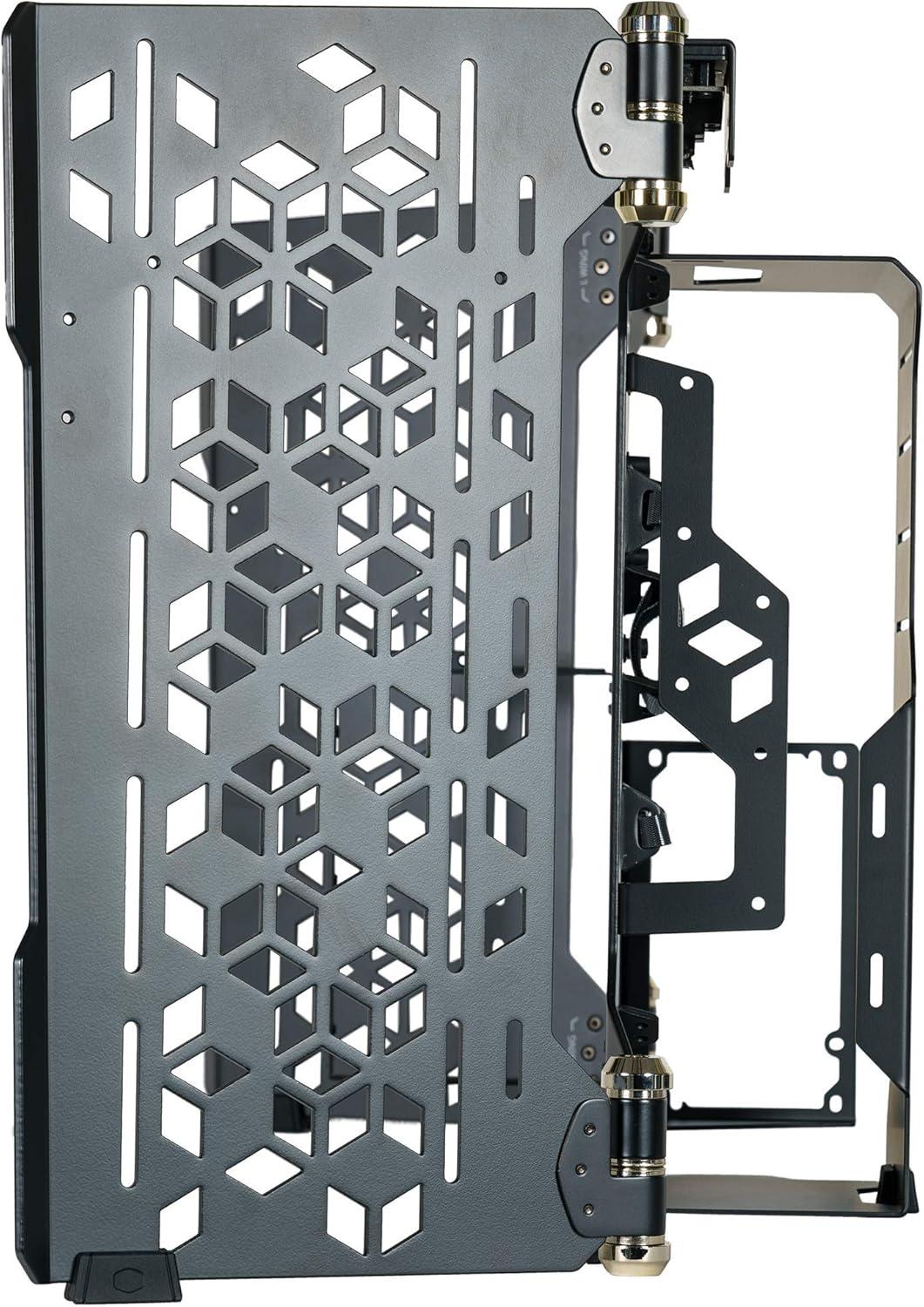

Designed For Customization: The MasterFrame 700 is designed with customization in mind. The 3-parts frame can be easily disassembled easily for painting, wrapping and other modifications.
