Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0
Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0 Review & Specifications

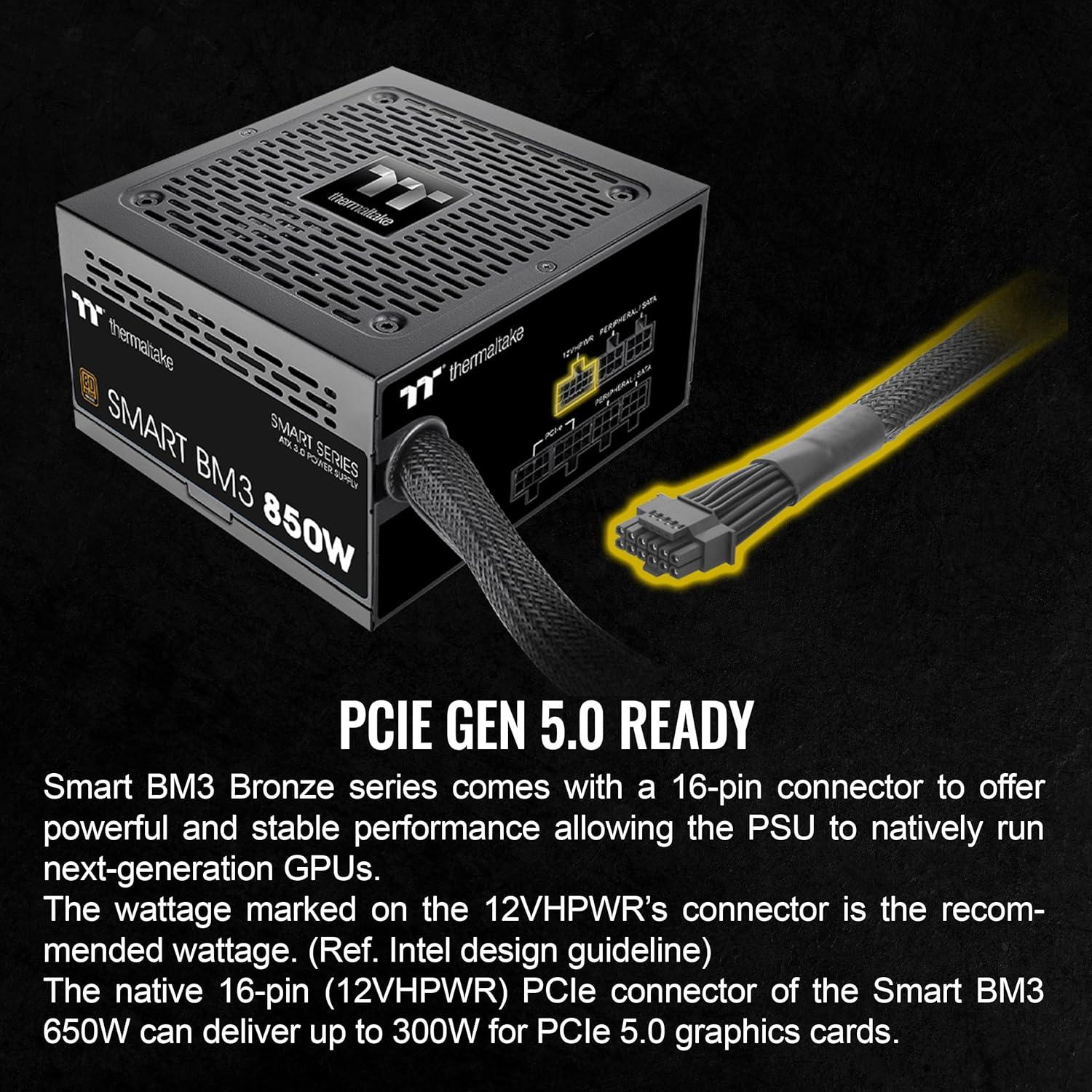

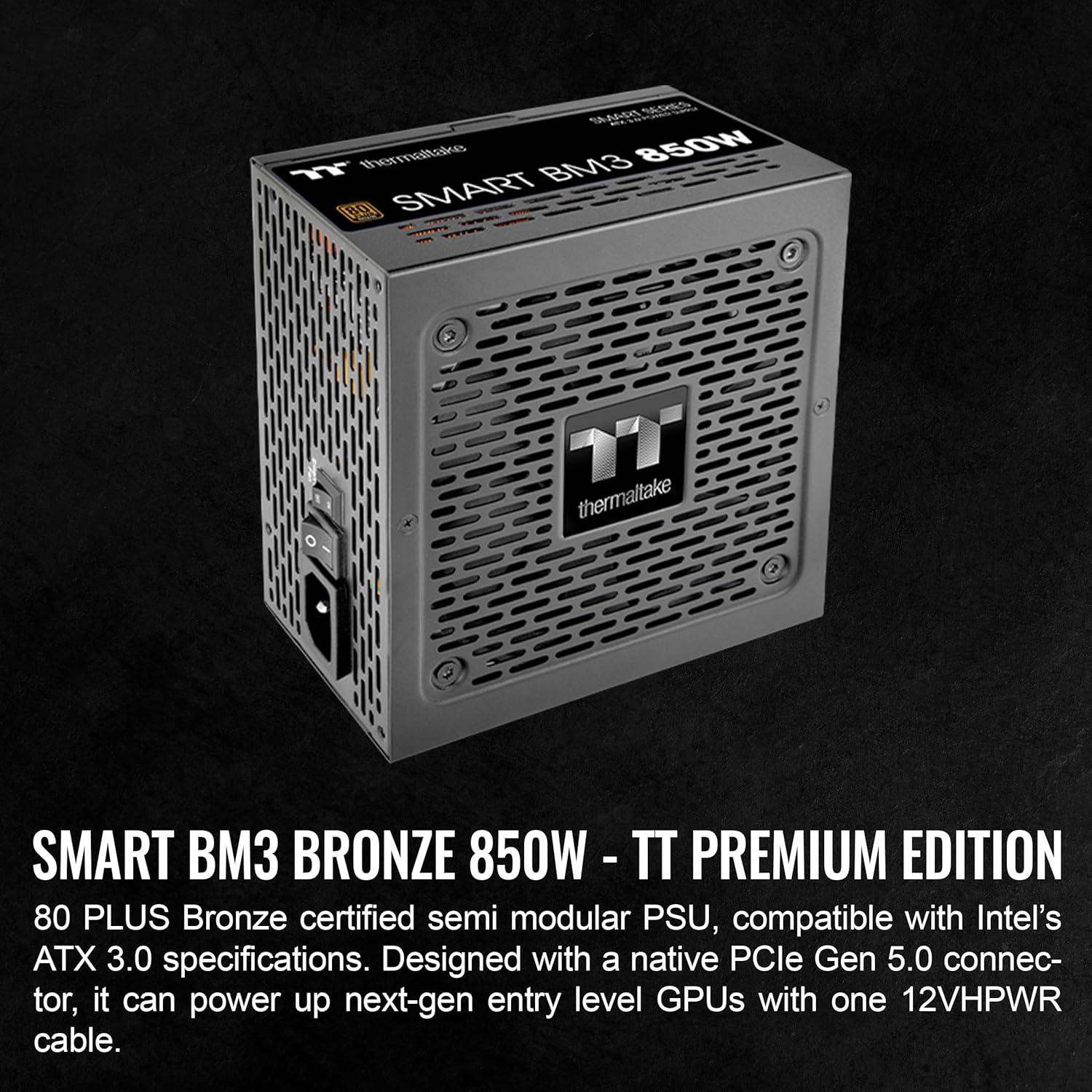

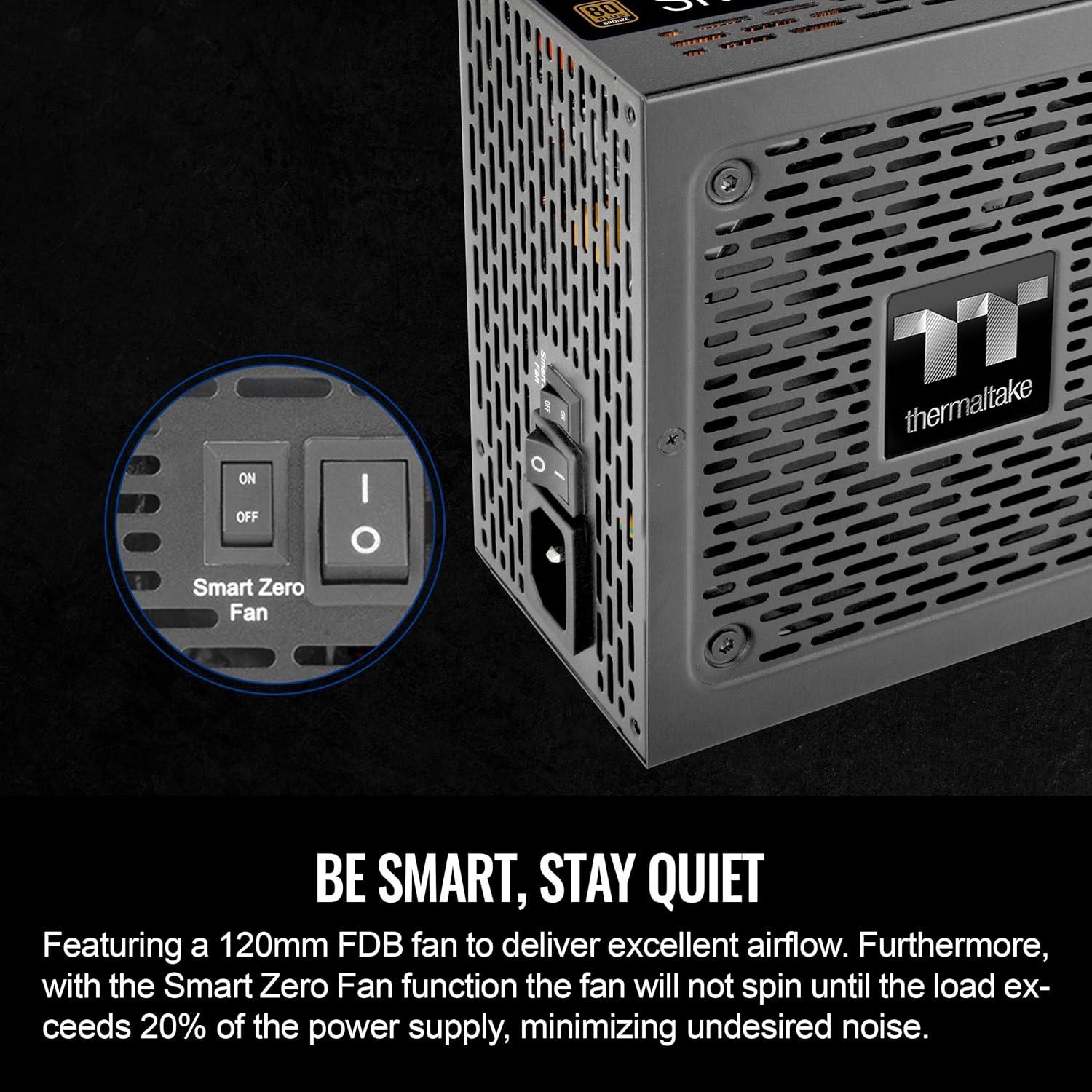

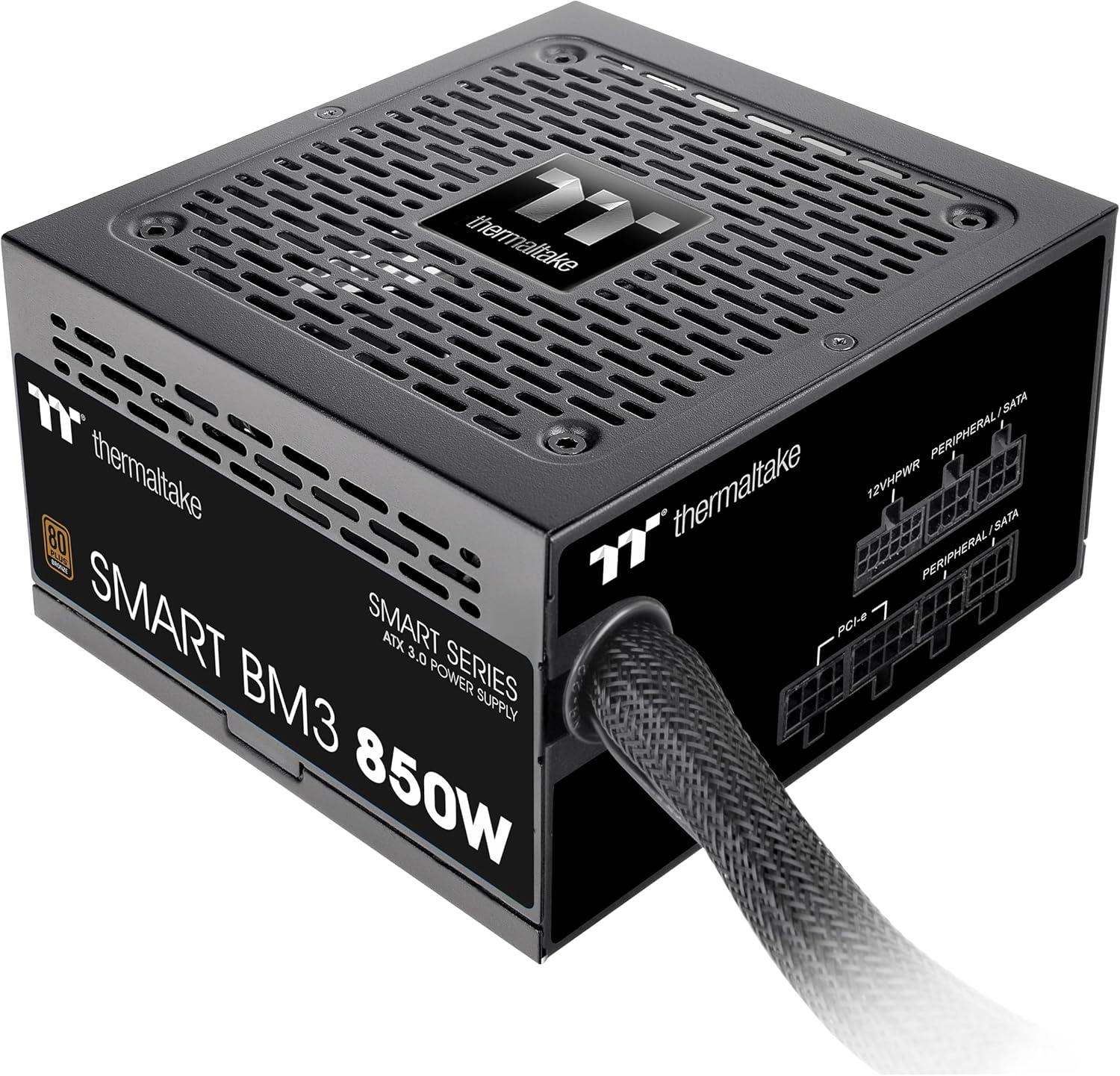

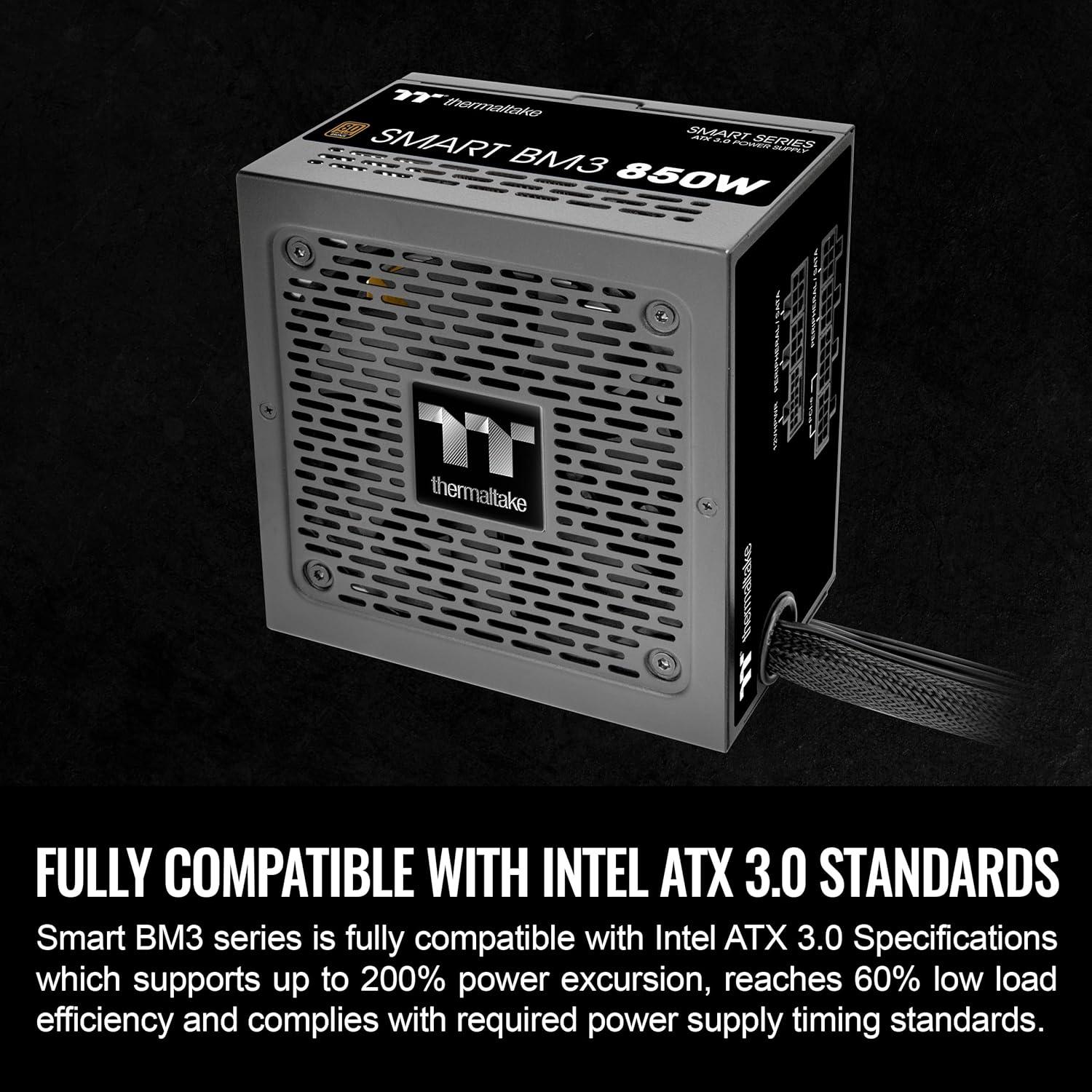

The Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0 by Thermaltake (Model: PS-SPD-0850MNFABU-3) is a power supply unit that provides 850 watts of power output. This unit follows the 3.0 standard and comes in a ATX size. It is certified with 80 PLUS® Bronze and rated at Bronze efficiency, reaching a peak efficiency of 85%. It features a 120 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:
- 71 A on the 12V rail (1 rail(s))
- 18 A on the 5V rail
- 18 A on the 3.3V rail
Power Supply Performance
The Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0 is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.
This PSU offers a mid-range efficiency of 85%, suitable for entry-level to mid-tier systems. It may have a shorter warranty, but it still provides acceptable performance and value for standard computing needs.
This PSU delivers excellent value, with a competitive cost of only $90.0 per kilowatt. Despite its affordable pricing, it maintains respectable performance and efficiency, making it an ideal choice for budget-conscious PC builders who don't want to compromise on quality.
General Information
| Manufacturer | Thermaltake |
|---|---|
| Power Supply Name | Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0 |
| Part Number | PS-SPD-0850MNFABU-3 |
| Current Price Amazon | $76 |
| Amazon Price Updated | 1 day, 9 hours ago. |
| Power Supply Available | True |
Specification
| Power Output | 850 W |
|---|---|
| ATX Version / Form Factor | 3.0 / ATX |
| Certifications | 80 PLUS® Bronze |
| Efficiency Rating | Bronze |
| Modular / Fanless | True / False |
| Fan Size / Fan Stop | 120 mm / True |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| Warranty | 5 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 71 A / 18 A / 18 A |
| Maximum Efficiency | 85% |
| Price per kW | 90.0 USD/kW |
Thermaltake Smart BM3 850W 80Plus Bronze ATX 3.0 & PCIE 5.0 Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$105
|
↑
5.3%
|
64.5%
|
61.4%
|
161.5
161.5
|
|
|
$110
|
0.0%
|
63.0%
|
57.3%
|
129.4
129.4
|
|
|
$80
|
0.0%
|
63.0%
|
78.7%
|
94.1
94.1
|
|
|
$116
|
↓
-17.1%
|
63.0%
|
54.3%
|
136.5
136.5
|
|
|
$76
|
↓
-13.1%
|
61.2%
|
80.0%
|
90.0
90.0
|
|
|
$95
|
↓
-5.0%
|
61.0%
|
64.2%
|
126.7
126.7
|
|
|
$75
|
↓
-21.1%
|
61.0%
|
81.3%
|
100.0
100.0
|
|
|
$133
|
↓
-24.9%
|
61.0%
|
45.8%
|
177.3
177.3
|
|
|
$83
|
0.0%
|
60.2%
|
72.8%
|
110.4
110.4
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$105❗
↑
5.3%
|
$110
0.0%
|
$80
0.0%
|
$116
↓
-17.1%
|
$76
↓
-13.1%
|
$95
↓
-5.0%
|
$75
↓
-21.1%
|
$133
↓
-24.9%
|
$83
0.0%
|
| Price per kW | 161.5 USD/kW | 129.4 USD/kW | 94.1 USD/kW | 136.5 USD/kW | 90.0 USD/kW | 126.7 USD/kW | 100.0 USD/kW | 177.3 USD/kW | 110.4 USD/kW |
| Manufacturer | Corsair | MSI | Thermaltake | Cooler Master | Thermaltake | Thermaltake | Cooler Master | be quiet! | Corsair |
| Wattage | 650 W | 850 W | 850 W | 850 W | 850 W | 750 W | 750 W | 750 W | 750 W |
| Ver. / FF | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 2.3 / ATX |
| Efficiency | Gold (90%) | Gold (90%) | Gold (90%) | Gold (90%) | Bronze (85%) | Gold (90%) | Gold (90%) | Bronze (90%) | Gold (88%) |
| 12V Rails | 1 / 54 A | 1 / 70 A | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 62 A | 1 / 62 A | 1 / 63 A | 1 / 62 A |
| 12V/5V/3.3V | 54 A / 20 A / 20 A | 70 A / 20 A / 20 A | 71 A / 20 A / 20 A | 71 A / 20 A / 20 A | 71 A / 18 A / 18 A | 62 A / 20 A / 20 A | 62 A / 20 A / 20 A | 62 A / 20 A / 20 A | 62 A / 20 A / 24 A |
| Fan Size | 140 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Modular | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ |
| Fan Stop | ✔️ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 140x150x86 | 140 x 150 x 86 mm | 150mm(W)x86mm(H)x140mm(D) | 140 x 150 x 86 mm | 150mm(W)x86mm(H)x140mm(D) | 150mm(W)x86mm(H)x140mm(D) | 140 x 150 x 86 mm | 150 x 140 x 86 mm | 4.92 x 5.91 x 3.39 inches |
| Warranty | 7 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 650 W | 3.1 / ATX / True | Gold, 90% | 1 / 54.00 A | 54 A / 20 A / 20 A | 7 years | |
| 850 W | 3.1 / ATX / True | Gold, 90% | 1 / 70.00 A | 70 A / 20 A / 20 A | 5 years | |
| 850 W | 3.1 / ATX / True | Gold, 90% | 1 / 71.00 A | 71 A / 20 A / 20 A | 5 years | |
| 850 W | 3.1 / ATX / True | Gold, 90% | 1 / 71.00 A | 71 A / 20 A / 20 A | 5 years | |
| 850 W | 3.0 / ATX / True | Bronze, 85% | 1 / 71.00 A | 71 A / 18 A / 18 A | 5 years | |
| 750 W | 3.1 / ATX / True | Gold, 90% | 1 / 62.00 A | 62 A / 20 A / 20 A | 5 years | |
| 750 W | 3.1 / ATX / True | Gold, 90% | 1 / 62.00 A | 62 A / 20 A / 20 A | 5 years | |
| 750 W | 3.1 / ATX / False | Bronze, 90% | 1 / 62.50 A | 62 A / 20 A / 20 A | 5 years | |
| 750 W | 2.3 / ATX / False | Gold, 88% | 1 / 62.00 A | 62 A / 20 A / 24 A | 5 years |
