Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1
Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1 Review & Specifications

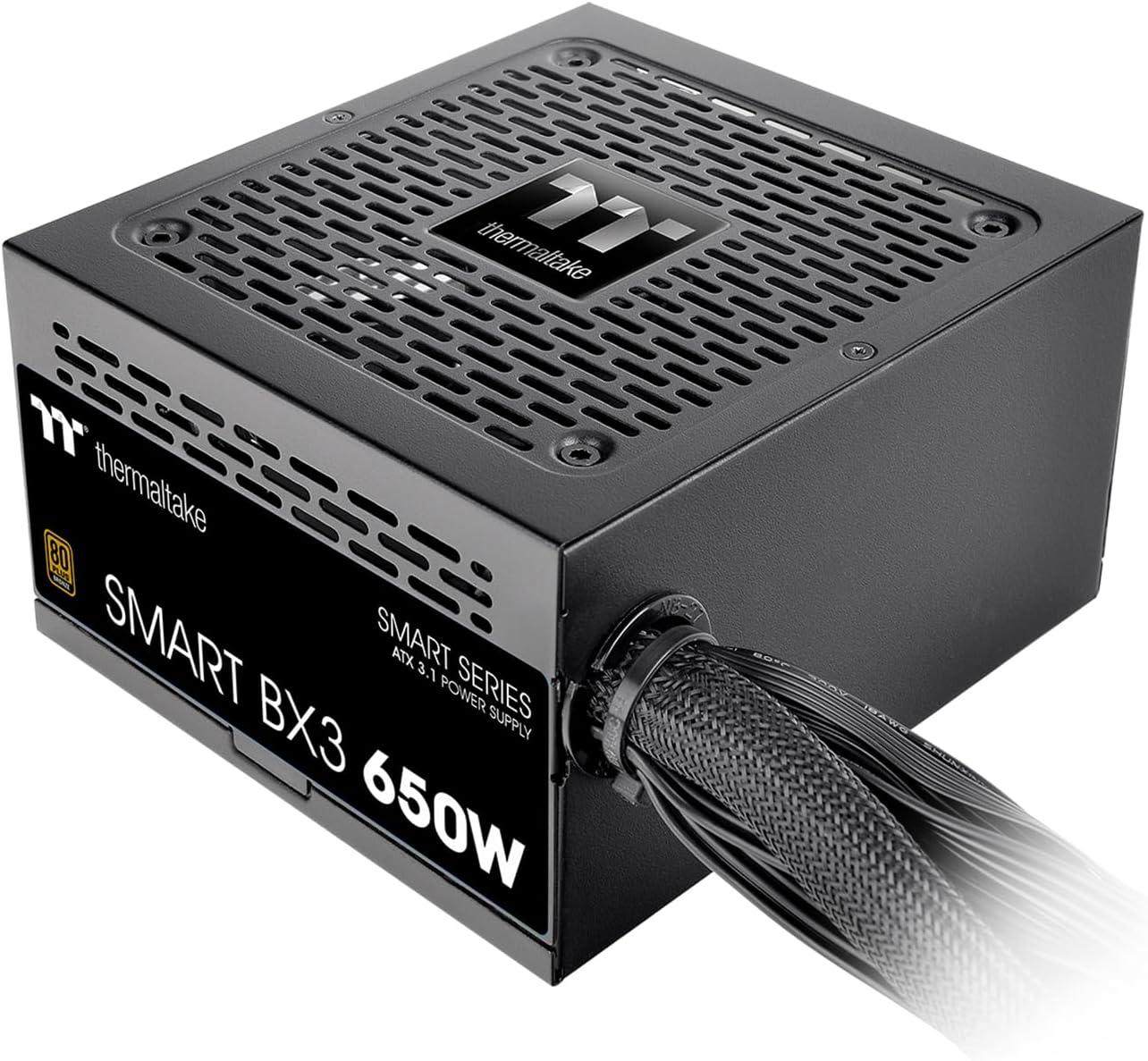

The Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1 by Thermaltake (Model: PS-SPD-0650NNFABU-3) is a power supply unit that provides 650 watts of power output. This unit follows the 3.1 standard and comes in a ATX size. It is certified with 80 PLUS®Bronze and rated at Bronze efficiency, reaching a peak efficiency of 85%. It features a 120 mm cooling fan with fan stop support, and is actively cooled. This PSU is non-modular . It delivers:
- 54 A on the 12V rail (1 rail(s))
- 18 A on the 5V rail
- 18 A on the 3.3V rail
Power Supply Performance
The Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1 is a mid-range power supply, suitable for mainstream gaming builds and entry-level workstation setups. It offers enough capacity for systems using efficient CPUs and mid-tier graphics cards, striking a good balance between efficiency and power needs.
This PSU offers a mid-range efficiency of 85%, suitable for entry-level to mid-tier systems. It may have a shorter warranty, but it still provides acceptable performance and value for standard computing needs.
This PSU offers moderate value, priced at $158.9 per kilowatt. While reasonably priced, its performance-to-cost ratio may fall short compared to competitors. Users may want to consider more capable options in the same price range.
General Information
| Manufacturer | Thermaltake |
|---|---|
| Power Supply Name | Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1 |
| Part Number | PS-SPD-0650NNFABU-3 |
| Current Price Amazon | $103 |
| Amazon Price Updated | 4 days, 16 hours ago. |
| Power Supply Available | True |
Specification
| Power Output | 650 W |
|---|---|

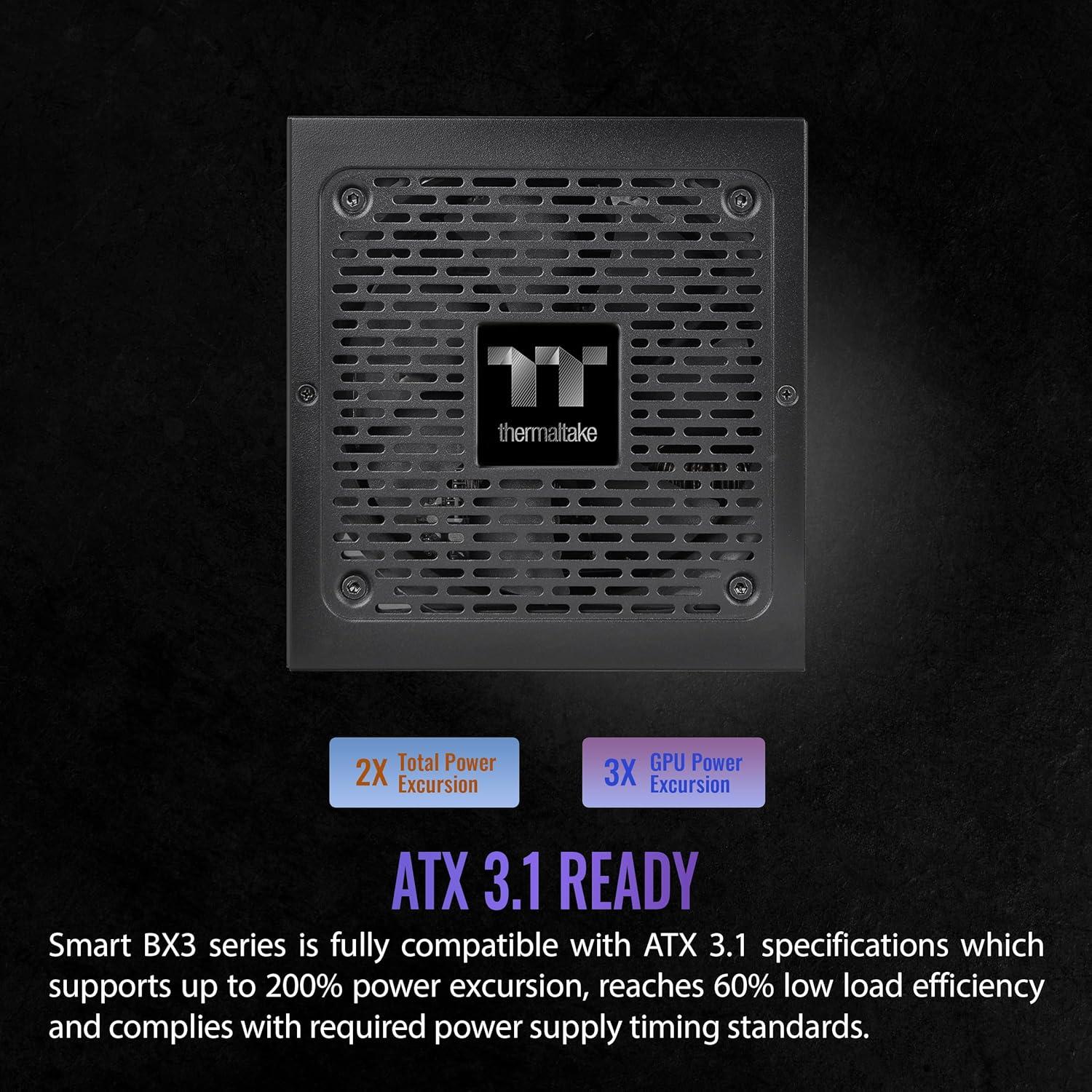

| ATX Version / Form Factor | 3.1 / ATX |
| Certifications | 80 PLUS®Bronze |
| Efficiency Rating | Bronze |

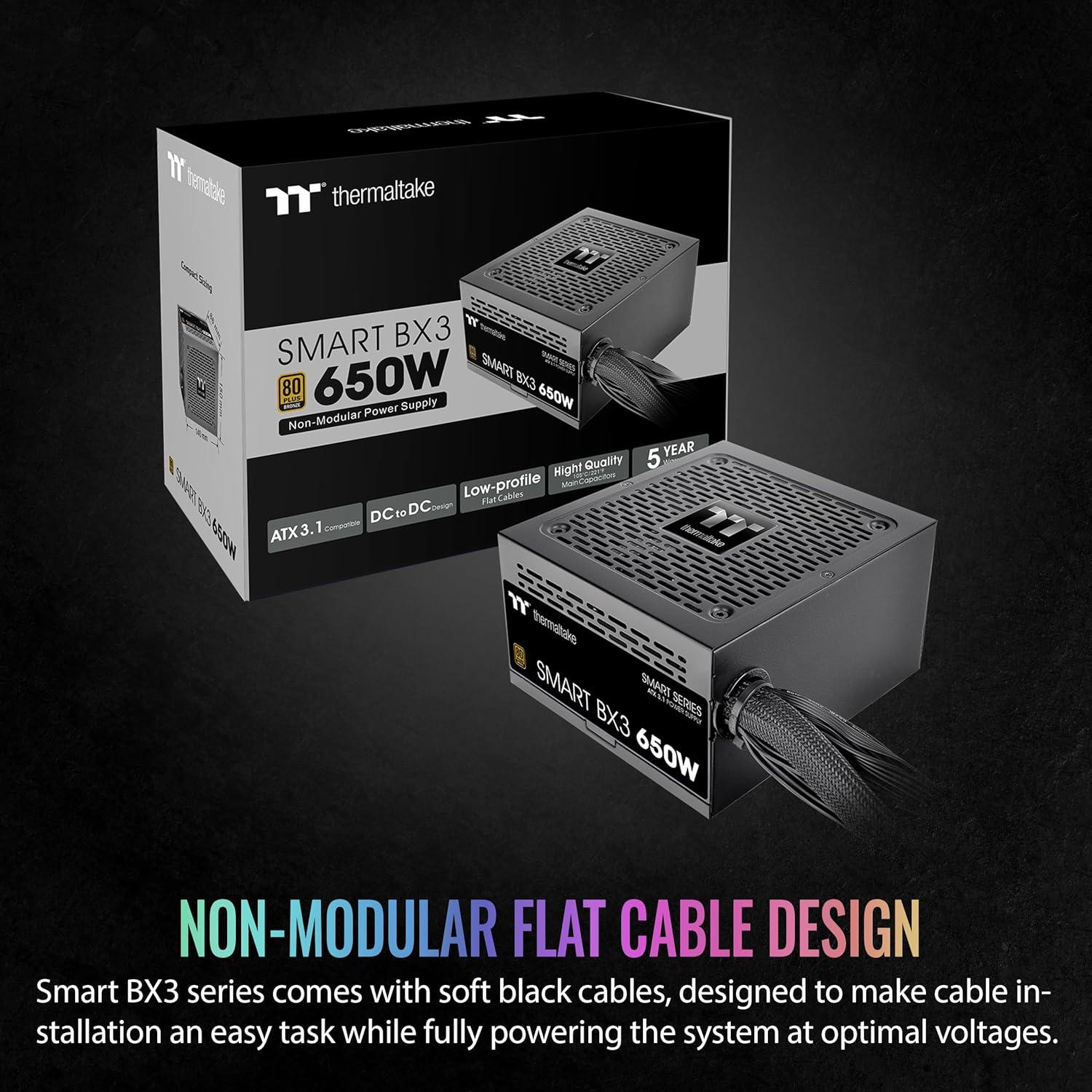

| Modular / Fanless | False / False |

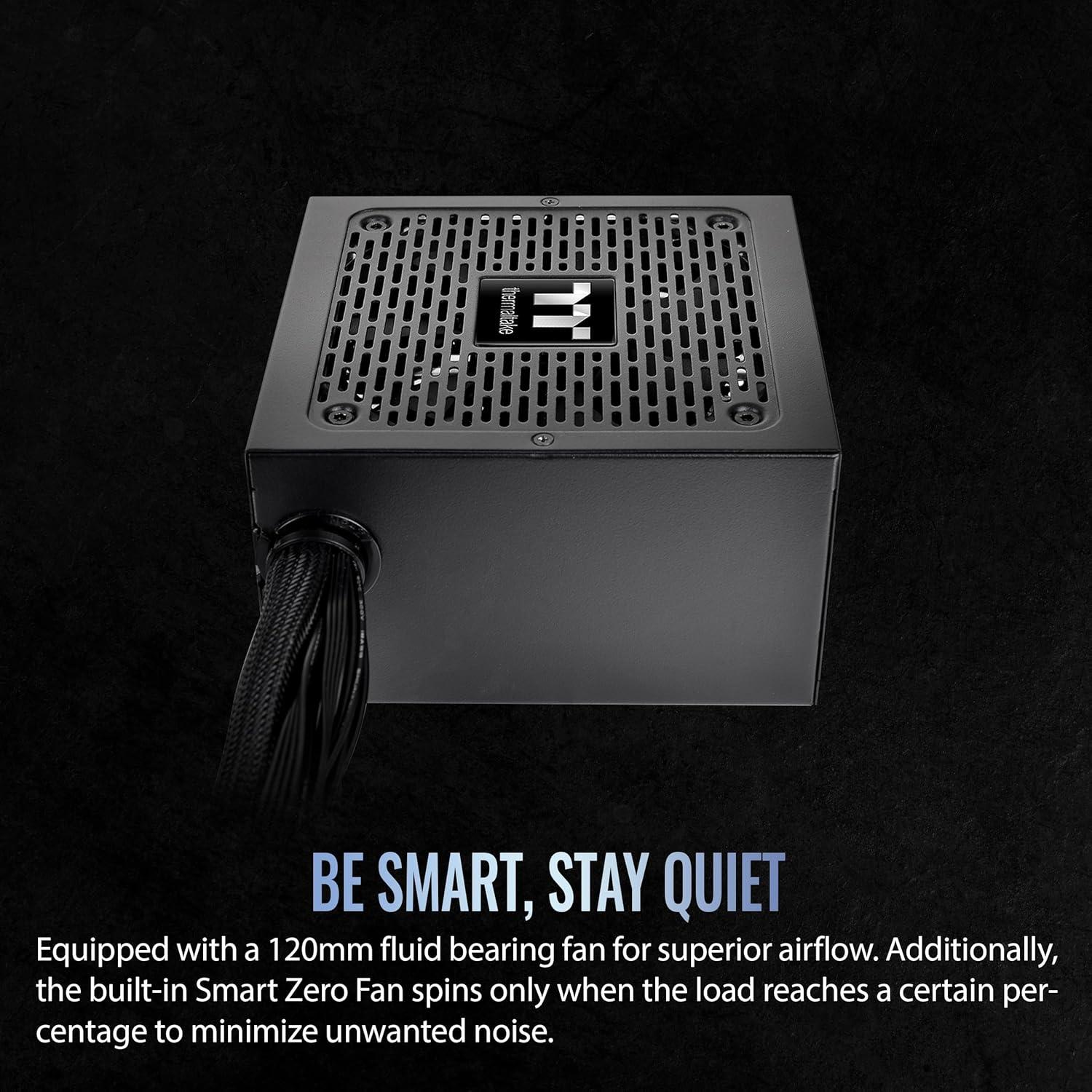

| Fan Size / Fan Stop | 120 mm / True |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| Warranty | 5 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 54 A / 18 A / 18 A |
| Maximum Efficiency | 85% |
| Price per kW | 158.9 USD/kW |
Thermaltake Smart BX3 650W 80Plus Bronze ATX 3.1 Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$85
|
↓
-2.0%
|
58.2%
|
68.1%
|
131.5
131.5
|
|
|
$60
|
0.0%
|
57.9%
|
96.6%
|
100.0
100.0
|
|
|
$81
|
0.0%
|
57.9%
|
71.5%
|
147.3
147.3
|
|
|
$120
|
↑
100.0%
|
57.2%
|
47.6%
|
184.6
184.6
|
|
|
$60
|
0.0%
|
57.2%
|
95.3%
|
92.3
92.3
|
|
|
$60
|
0.0%
|
57.2%
|
95.3%
|
92.3
92.3
|
|
|
$103
|
↑
4.5%
|
57.2%
|
55.3%
|
158.9
158.9
|
|
|
$60
|
0.0%
|
57.2%
|
95.7%
|
91.9
91.9
|
|
|
$150
|
↓
0.0%
|
56.6%
|
37.7%
|
272.8
272.8
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$85
↓
-2.0%
|
$60
0.0%
|
$81
0.0%
|
$120❗
↑
100.0%
|
$60
0.0%
|
$60
0.0%
|
$103
↑
4.5%
|
$60
0.0%
|
$150
↓
0.0%
|
| Price per kW | 131.5 USD/kW | 100.0 USD/kW | 147.3 USD/kW | 184.6 USD/kW | 92.3 USD/kW | 92.3 USD/kW | 158.9 USD/kW | 91.9 USD/kW | 272.8 USD/kW |

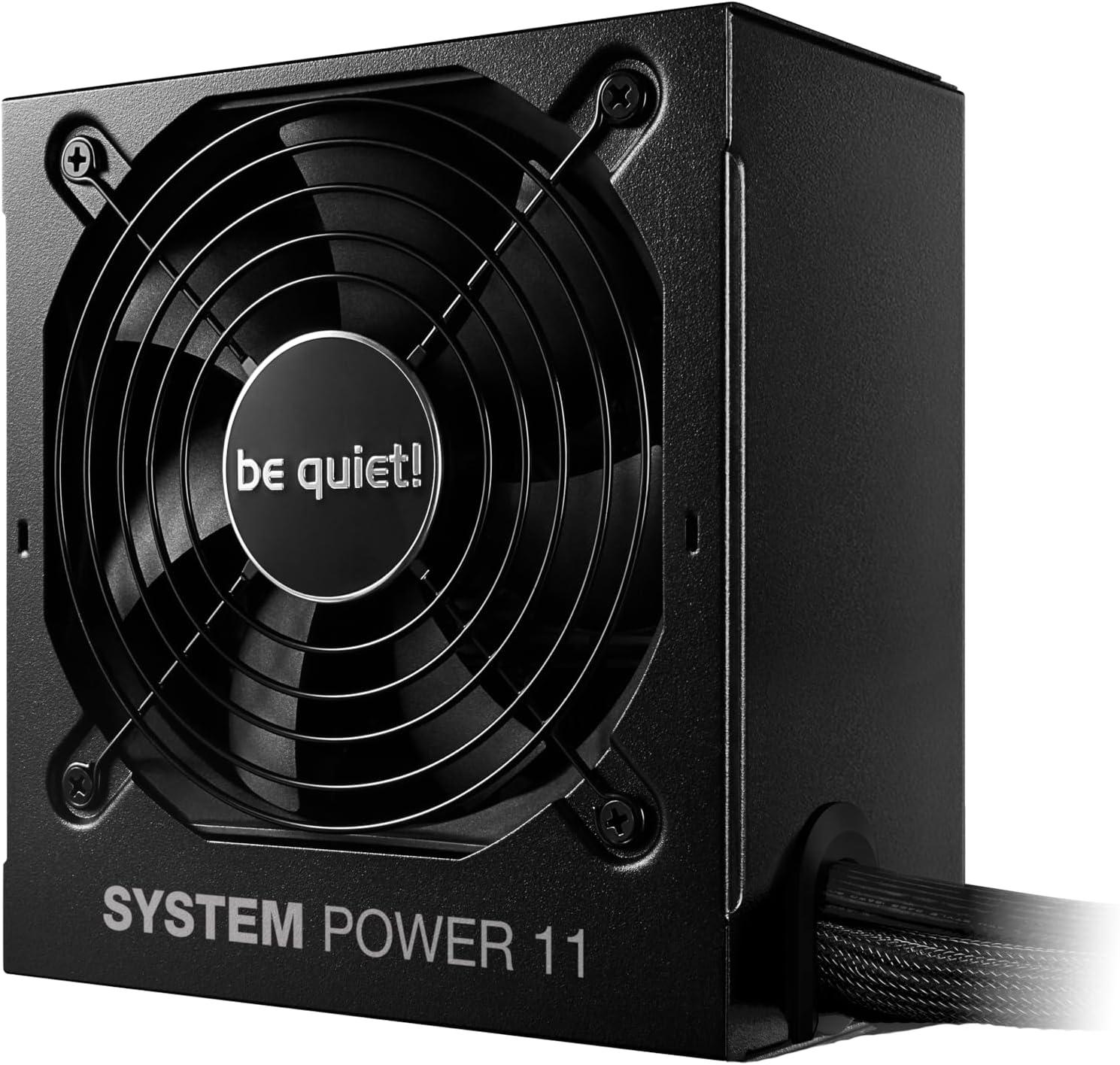

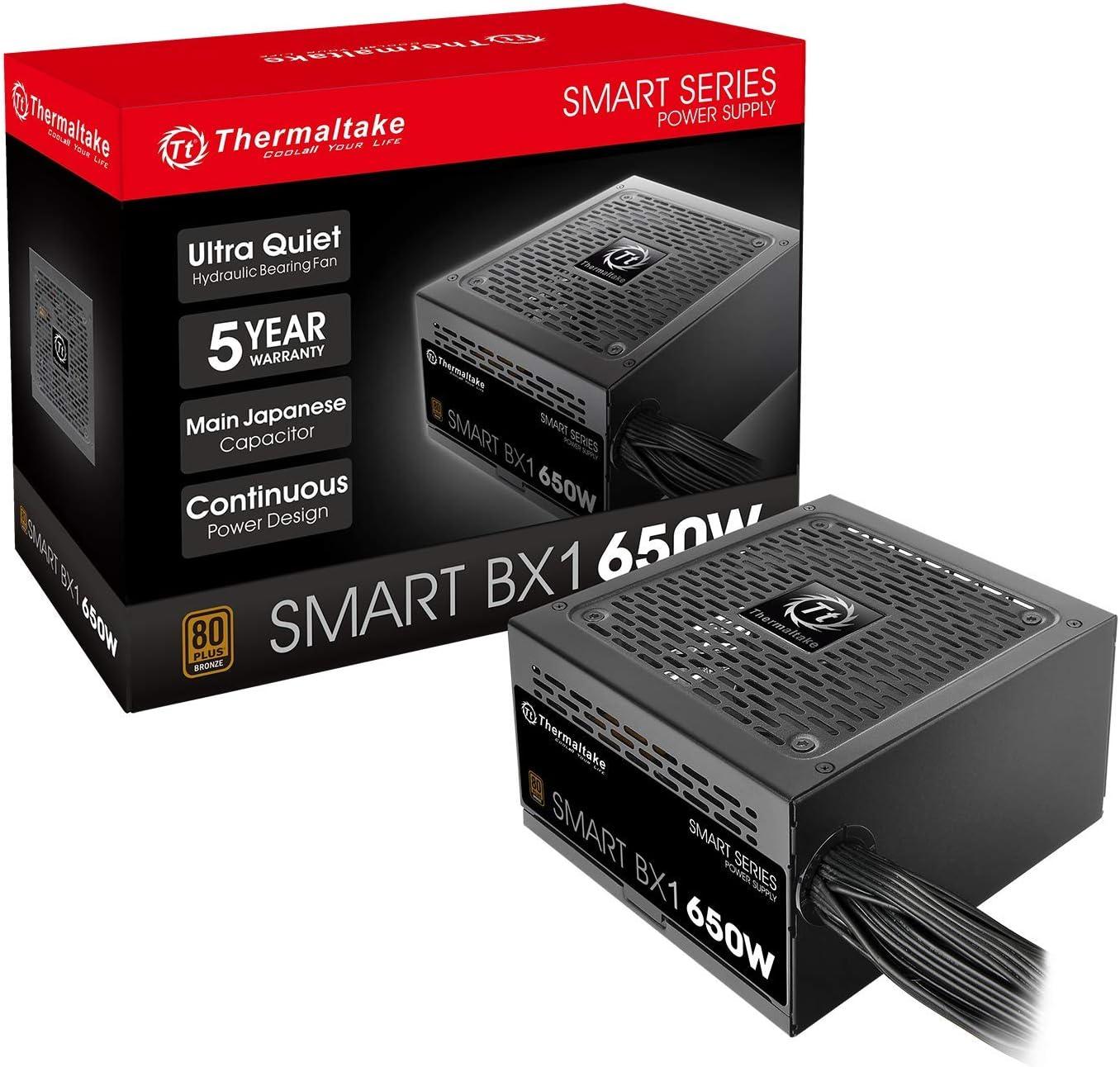

| Manufacturer | Corsair | Thermaltake | ASUS | Thermaltake Technology Co., Ltd | Thermaltake | MSI | Thermaltake | MSI | be quiet! |
| Wattage | 650 W | 600 W | 550 W | 650 W | 650 W | 650 W | 650 W | 650 W | 550 W |
| Ver. / FF | 2.3 / ATX | 2.3 / ATX | 2.4 / ATX | 2.3 / ATX | 3.0 / ATX | 2.3 / ATX | 3.1 / ATX | 2.3 / ATX | 3.1 / ATX |
| Efficiency | Gold (88%) | Gold (90%) | Bronze (85%) | Bronze (85%) | Bronze (85%) | Bronze (85%) | Bronze (85%) | Bronze (85%) | Bronze (89%) |
| 12V Rails | 1 / 52 A | 1 / 49 A | 1 / 46 A | 1 / 54 A | 1 / 54 A | 1 / 54 A | 1 / 54 A | 1 / 54 A | 1 / 46 A |
| 12V/5V/3.3V | 52 A / 20 A / 24 A | 49 A / 20 A / 20 A | 45 A / 20 A / 25 A | 54 A / 20 A / 20 A | 54 A / 18 A / 18 A | 54 A / 20 A / 20 A | 54 A / 18 A / 18 A | 54 A / 20 A / 20 A | 45 A / 20 A / 20 A |
| Fan Size | 120 mm | 120 mm | 135 mm | 140 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Modular | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ❌ |
| Fan Stop | ❌ | ❌ | ❌ | ❌ | ✔️ | ❌ | ✔️ | ❌ | ❌ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 4.92 x 5.91 x 3.39 inches | 150mm x 86mm x 140mm | 150 x 150 x 86 mm | 150mm(W) x 86mm(H) x 160mm(D) | 150mm(W)x86mm(H)x140mm(D) | 140mm x 150mm x 86mm | 150mm(W)x86mm(H)x140mm(D) | 150 x 140 x 86 mm | 150 x 140 x 86 mm |
| Warranty | 5 years | 5 years | 6 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 650 W | 2.3 / ATX / True | Gold, 88% | 1 / 52.00 A | 52 A / 20 A / 24 A | 5 years | |
| 600 W | 2.3 / ATX / False | Gold, 90% | 1 / 49.00 A | 49 A / 20 A / 20 A | 5 years | |
| 550 W | 2.4 / ATX / False | Bronze, 85% | 1 / 45.80 A | 45 A / 20 A / 25 A | 6 years | |
| 650 W | 2.3 / ATX / True | Bronze, 85% | 1 / 54.00 A | 54 A / 20 A / 20 A | 5 years | |
| 650 W | 3.0 / ATX / True | Bronze, 85% | 1 / 54.00 A | 54 A / 18 A / 18 A | 5 years | |
| 650 W | 2.3 / ATX / True | Bronze, 85% | 1 / 54.00 A | 54 A / 20 A / 20 A | 5 years | |
| 650 W | 3.1 / ATX / False | Bronze, 85% | 1 / 54.00 A | 54 A / 18 A / 18 A | 5 years | |
| 650 W | 2.3 / ATX / False | Bronze, 85% | 1 / 54.00 A | 54 A / 20 A / 20 A | 5 years | |
| 550 W | 3.1 / ATX / False | Bronze, 89% | 1 / 45.83 A | 45 A / 20 A / 20 A | 5 years |
