Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum
Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum Review & Specifications

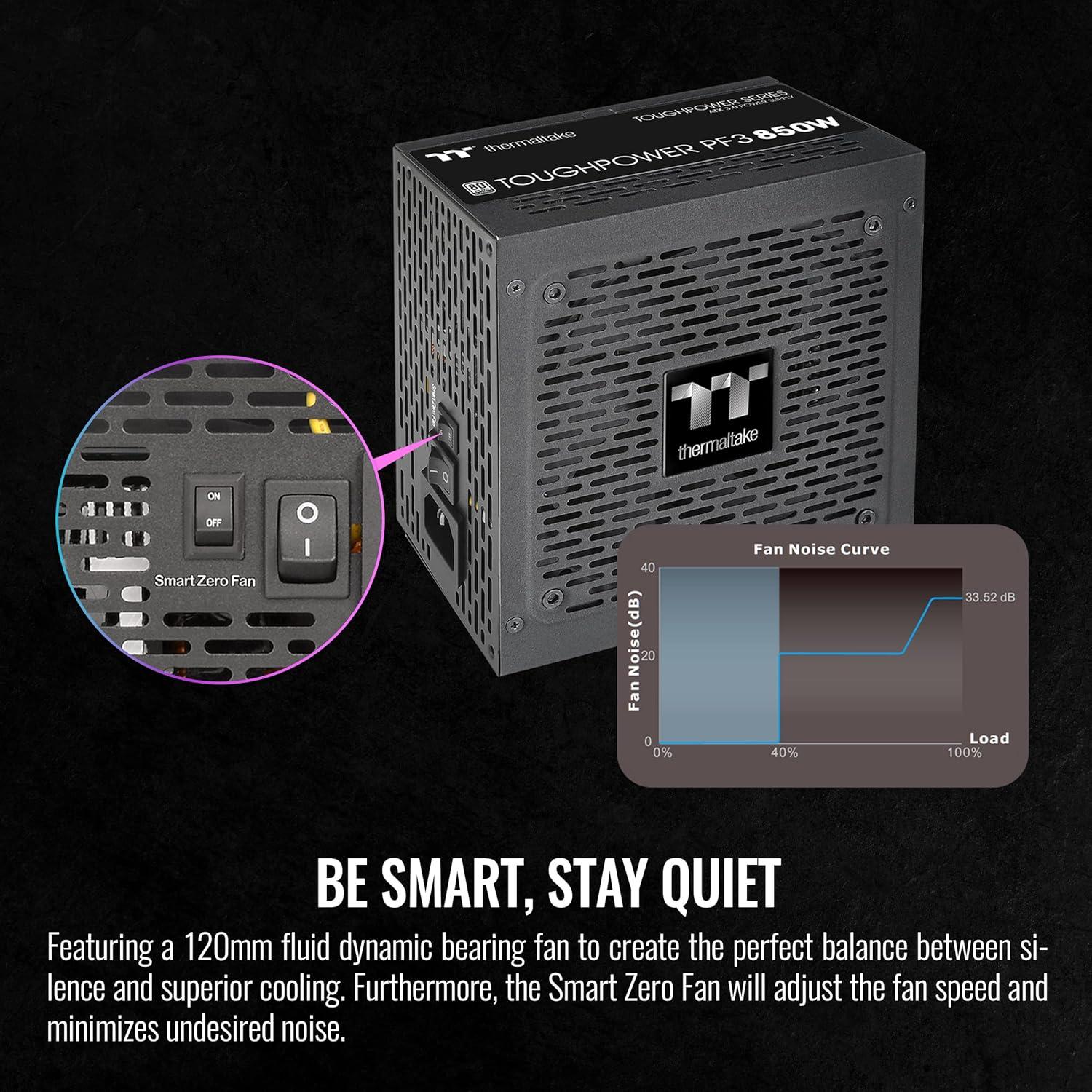

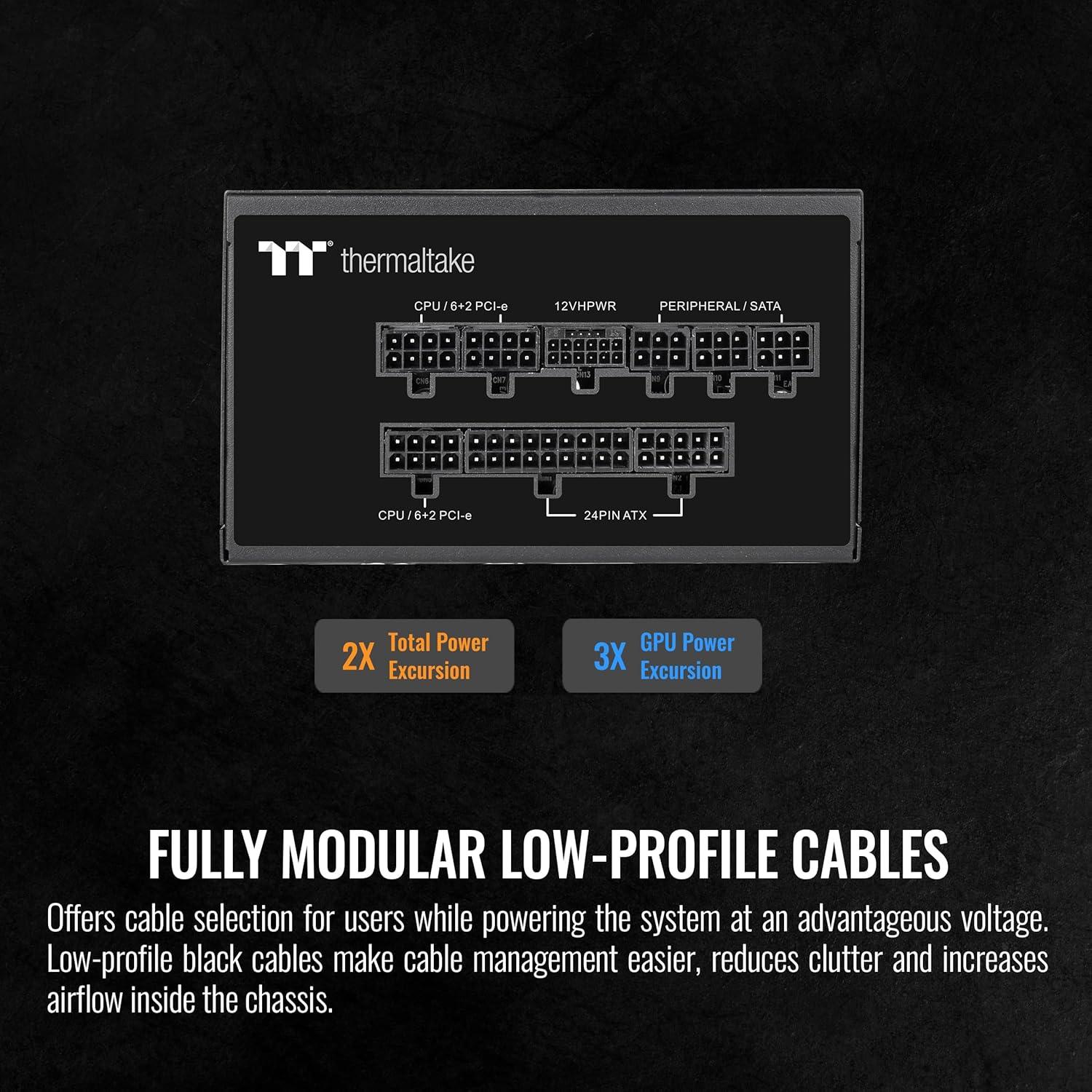

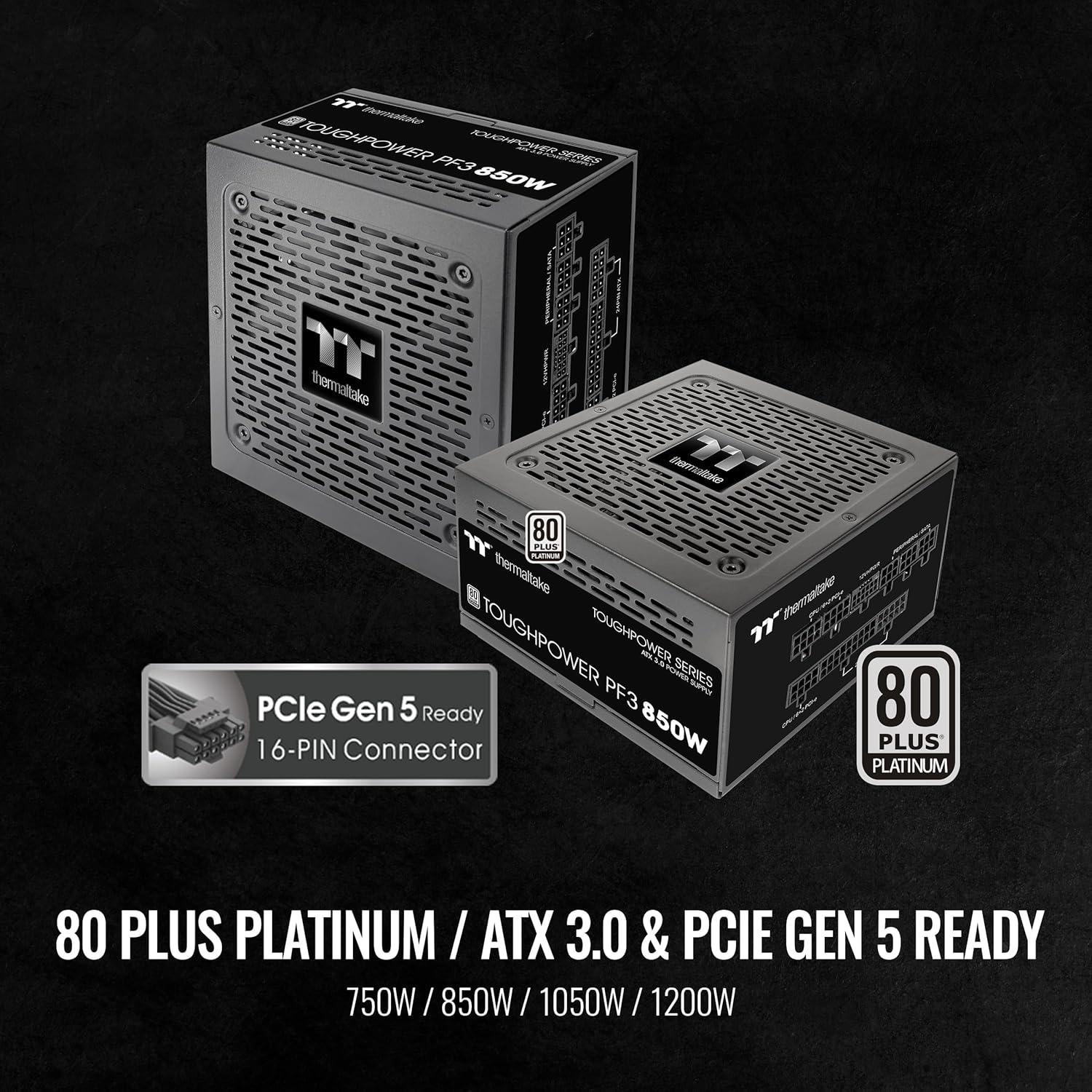

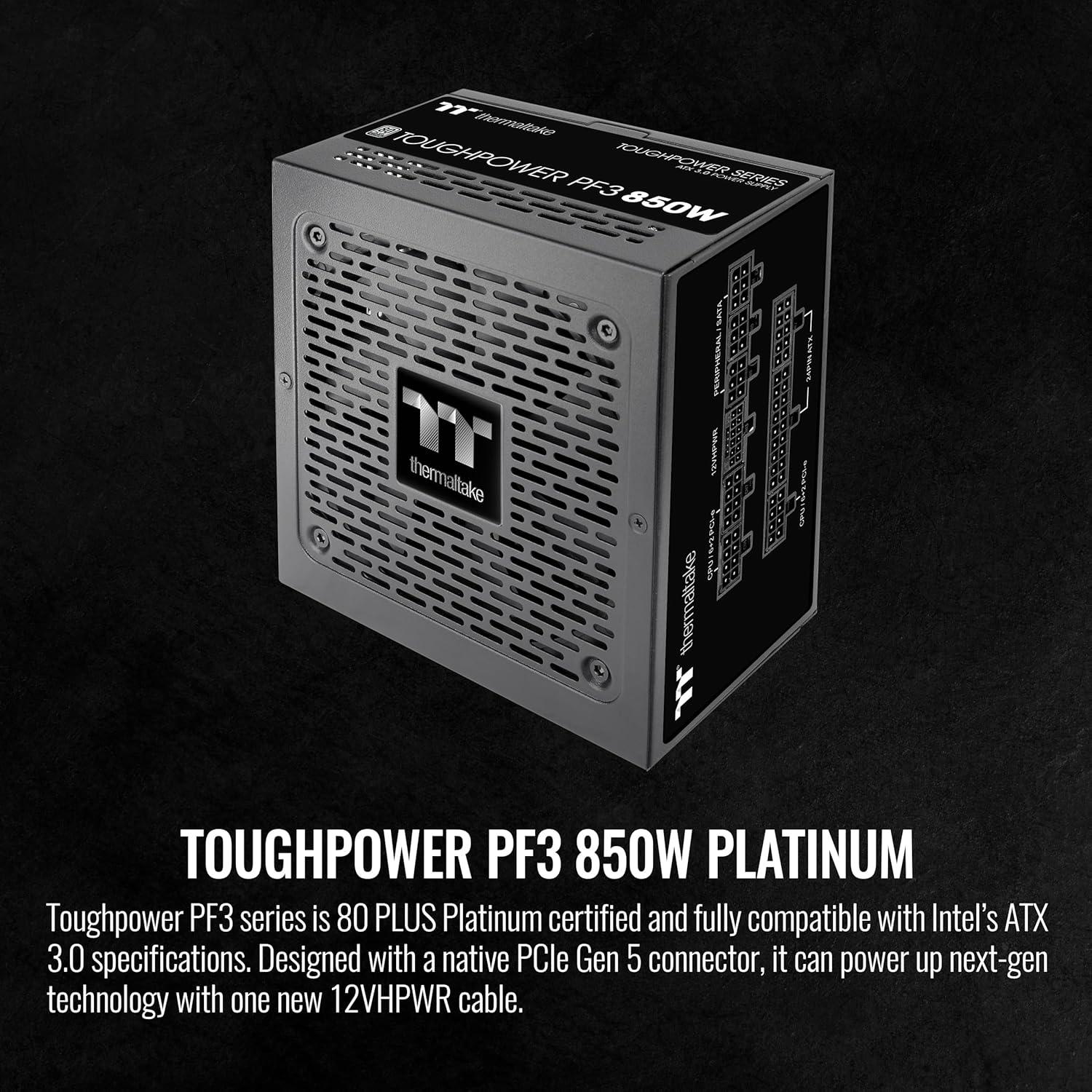

The Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum by Thermaltake (Model: PS-TPD-0850FNFAPU-L) is a power supply unit that provides 850 watts of power output. This unit follows the 3.0 standard and comes in a ATX size. It is certified with 80 PLUS® Platinum and rated at Platinum efficiency, reaching a peak efficiency of 92%. It features a 120 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:

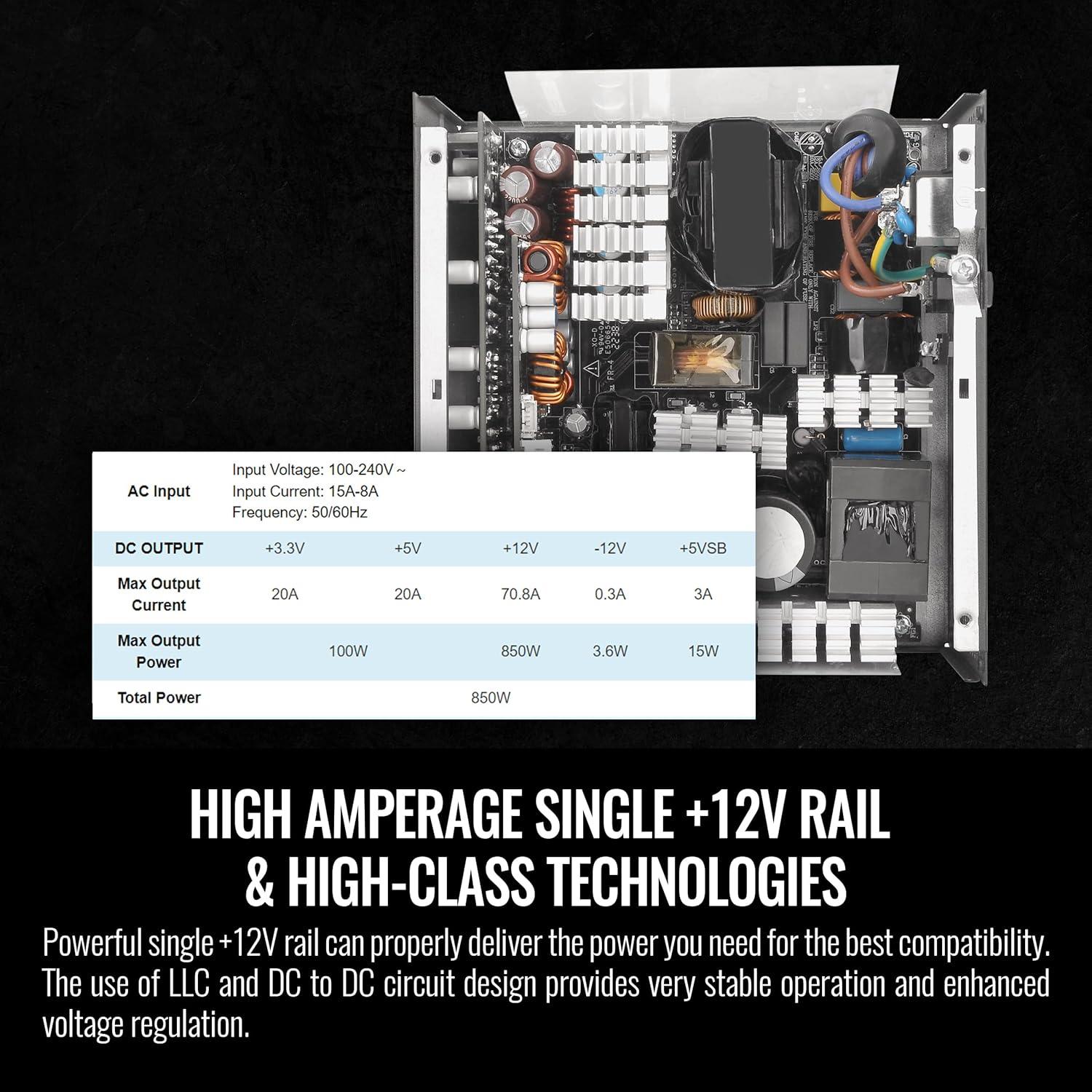

- 71 A on the 12V rail (1 rail(s))
- 20 A on the 5V rail
- 20 A on the 3.3V rail
Power Supply Performance
The Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.
This PSU provides a very high efficiency of 92%, rated as Platinum. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 10-year warranty suggests strong build quality and long-term reliability.
This PSU offers moderate value, priced at $162.3 per kilowatt. It delivers decent performance and efficiency, making it a solid mid-range choice for most PC builds. It strikes a good balance between performance and cost, especially for builders prioritizing stability without overspending.
General Information
| Manufacturer | Thermaltake |
|---|---|
| Power Supply Name | Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum |
| Part Number | PS-TPD-0850FNFAPU-L |
| Current Price Amazon | $138❗N/A |
| Amazon Price Updated | 3 months, 3 weeks ago. |
| Power Supply Available | False |
Specification
| Power Output | 850 W |
|---|---|
| ATX Version / Form Factor | 3.0 / ATX |
| Certifications | 80 PLUS® Platinum |
| Efficiency Rating | Platinum |
| Modular / Fanless | True / False |
| Fan Size / Fan Stop | 120 mm / True |
| Dimensions | 140mm(W)x86mm(H)x150mm(D) |
| Warranty | 10 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 71 A / 20 A / 20 A |
| Maximum Efficiency | 92% |
| Price per kW | 162.3 USD/kW |
Thermaltake Toughpower PF3 ATX 3.0 850W 80+ Platinum Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$191
|
↓
-48.3%
|
77.9%
|
40.8%
|
224.6
224.6
|
|
|
$477
|
0.0%
|
77.9%
|
16.3%
|
561.2
561.2
|
|
|
$128
|
↓
-25.8%
|
77.9%
|
61.1%
|
150.1
150.1
|
|
|
$231
|
↑
6.6%
|
77.9%
|
33.8%
|
271.5
271.5
|
|
|
$80
|
0.0%
|
77.6%
|
97.1%
|
94.0
94.0
|
|
|
$110
|
0.0%
|
77.6%
|
70.6%
|
129.3
129.3
|
|
|
$110
|
0.0%
|
77.6%
|
70.6%
|
129.3
129.3
|
|
|
$138
|
0.0%
|
77.6%
|
56.2%
|
162.3
162.3
|
|
|
$123
|
↓
-17.7%
|
77.2%
|
62.5%
|
145.3
145.3
|
PSU Comparison and Detail Specifications Table
| Specification |
No image available |
No image available |
Perf Chart | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$191❗
↓
-48.3%
|
$477
0.0%
|
$128❗
↓
-25.8%
|
$231
↑
6.6%
|
$80
0.0%
|
$110
0.0%
|
$110
0.0%
|
$138❗
0.0%
|
$123
↓
-17.7%
|
| Price per kW | 224.6 USD/kW | 561.2 USD/kW | 150.1 USD/kW | 271.5 USD/kW | 94.0 USD/kW | 129.3 USD/kW | 129.3 USD/kW | 162.3 USD/kW | 145.3 USD/kW |
| Manufacturer | ASUS | be quiet! | Lian Li | ASUS | MONTECH | be quiet! | be quiet! | Thermaltake | ASUS |
| Wattage | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W |
| Ver. / FF | 2.4 / ATX | 3.1 / ATX | 3.1 / ATX | 3.1 / SFX | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX |
| Efficiency | Platinum (93%) | Platinum (93%) | Platinum (93%) | Platinum (93%) | Gold (92%) | Gold (92%) | Gold (92%) | Platinum (92%) | Gold (91%) |
| 12V Rails | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 71 A | 2 / 40 A | 1 / 71 A | 1 / 71 A |
| 12V/5V/3.3V | 71 A / 20 A / 20 A | 70 A / 25 A / 25 A | 70 A / 20 A / 20 A | 71 A / 20 A / 20 A | 70 A / 20 A / 20 A | 71 A / 22 A / 22 A | 76 A / 22 A / 22 A | 71 A / 20 A / 20 A | 71 A / 25 A / 25 A |
| Fan Size | 135 mm | 135 mm | 120 mm | 120 mm | 135 mm | 120 mm | 120 mm | 120 mm | 135 mm |
| Modular | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ✔️ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 160 x 150 x 86 mm | 160 x 150 x 86 mm | (D)182 mm x (W)86 mm x (H)150 mm | 125 x 125 x 63.5 mm | 140 x 150 x 86 | 160 x 86 x 150 | 160 x 150 x 86 | 140mm(W)x86mm(H)x150mm(D) | 150 x 150 x 86 mm |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 850 W | 2.4 / ATX / True | Platinum, 93% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 3.1 / ATX / True | Platinum, 93% | 1 / 70.80 A | 70 A / 25 A / 25 A | 10 years | |
| 850 W | 3.1 / ATX / True | Platinum, 93% | 1 / 70.80 A | 70 A / 20 A / 20 A | 10 years | |
| 850 W | 3.1 / SFX / True | Platinum, 93% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 92% | 1 / 70.80 A | 70 A / 20 A / 20 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 92% | 1 / 71.00 A | 71 A / 22 A / 22 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 92% | 2 / 40.00 A | 76 A / 22 A / 22 A | 10 years | |
| 850 W | 3.0 / ATX / True | Platinum, 92% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 91% | 1 / 71.00 A | 71 A / 25 A / 25 A | 10 years |
