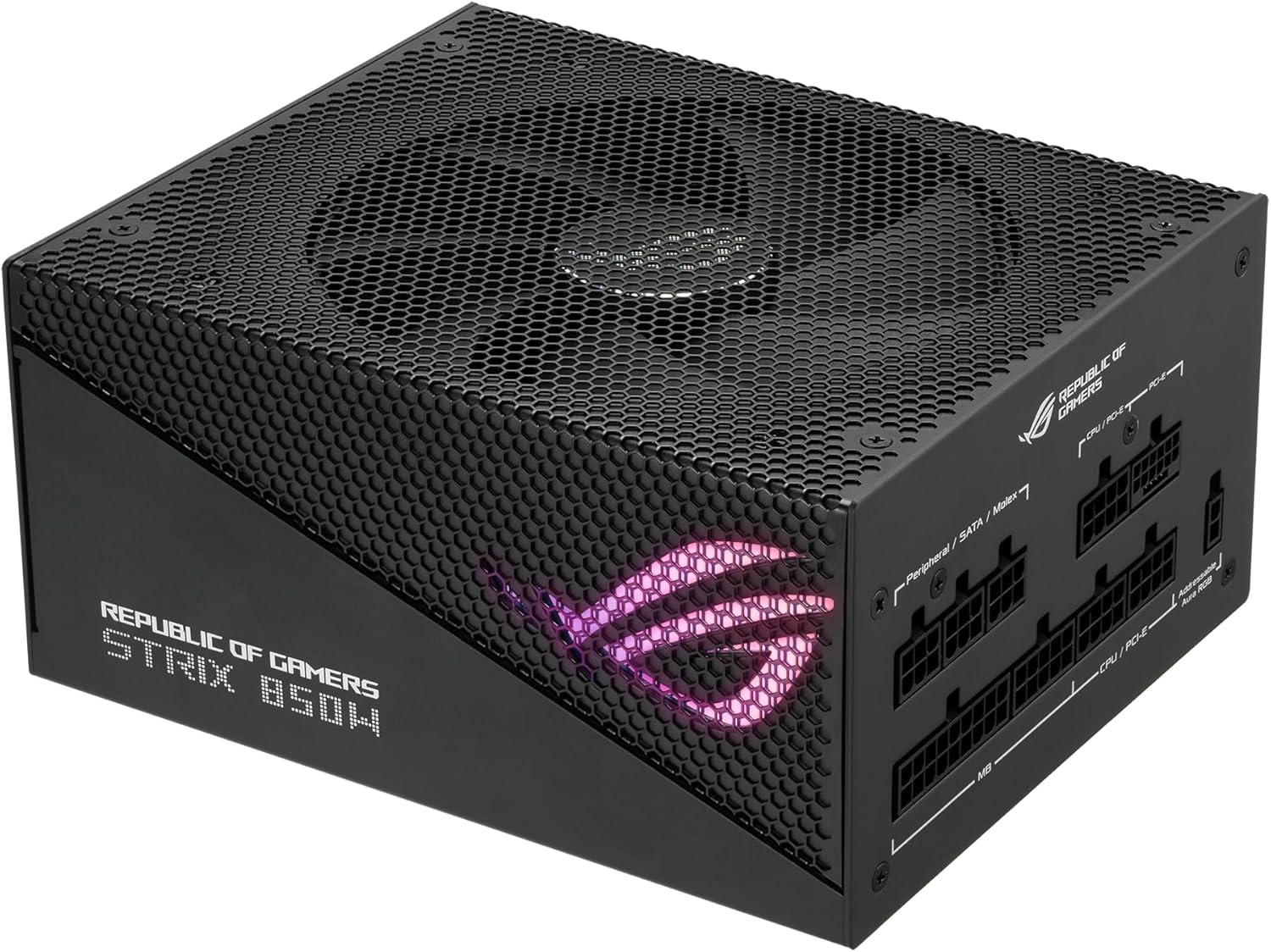

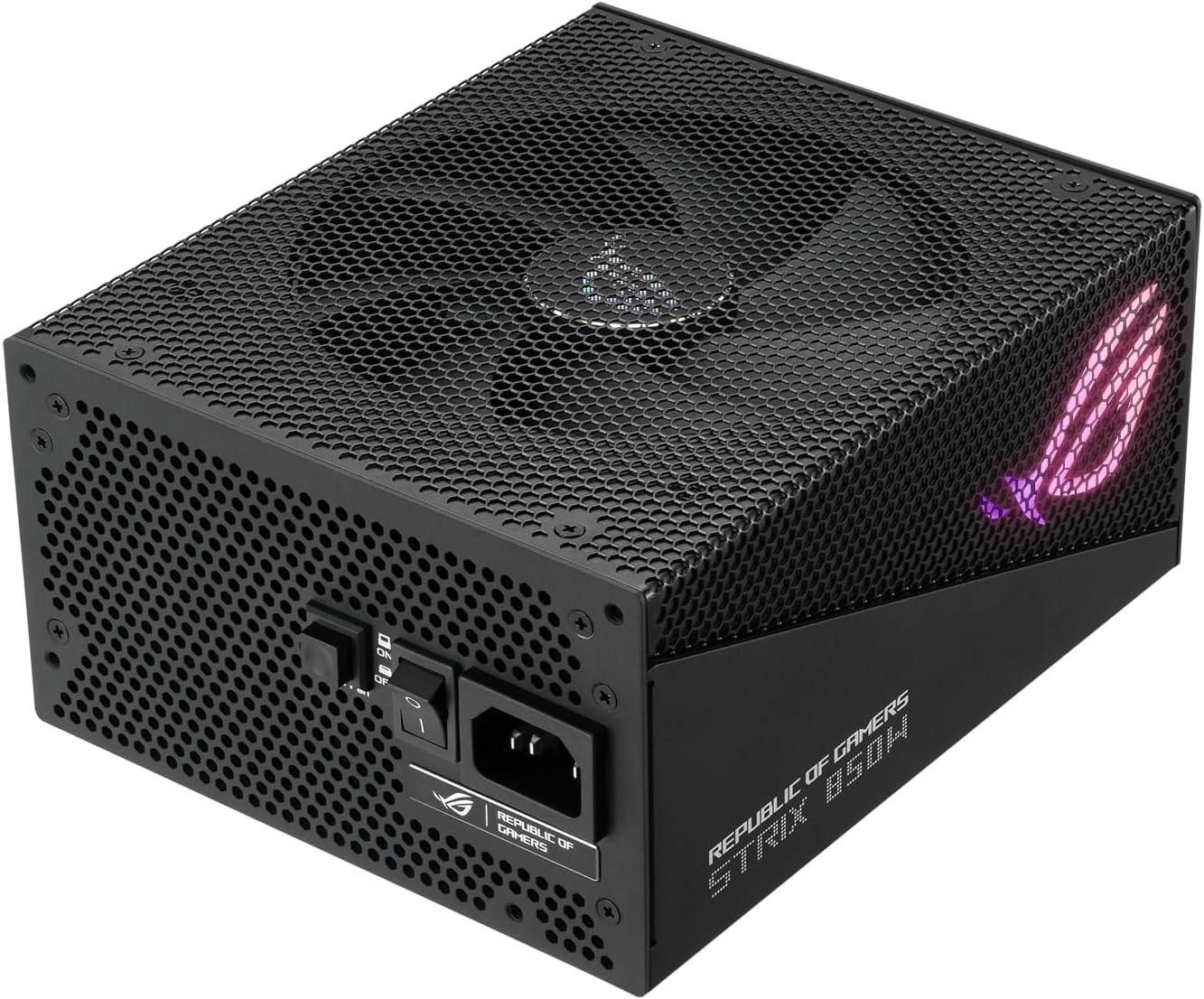

ASUS ROG Strix 850W Gold Aura Edition
ASUS ROG Strix 850W Gold Aura Edition Review & Specifications

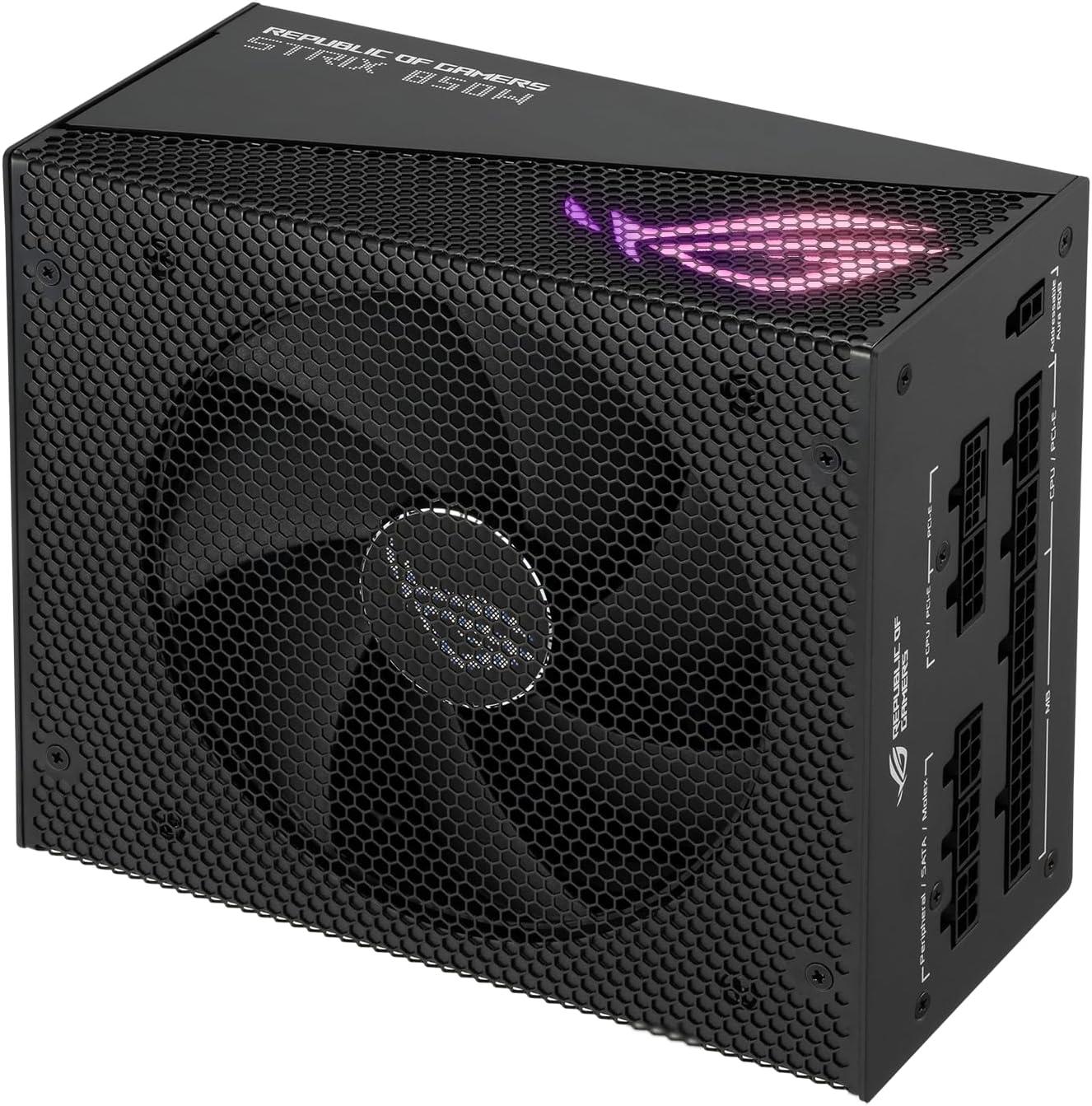

The ASUS ROG Strix 850W Gold Aura Edition by ASUS is a power supply unit that provides 850 watts of power output. This unit follows the 3.0 standard and comes in a ATX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 91%. It features a 135 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:
- 71 A on the 12V rail (1 rail(s))
- 22 A on the 5V rail
- 22 A on the 3.3V rail
Power Supply Performance
The ASUS ROG Strix 850W Gold Aura Edition is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.
This PSU provides a very high efficiency of 91%, rated as Gold. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 10-year warranty suggests strong build quality and long-term reliability.
From a cost-efficiency standpoint, this PSU offers low value, with a high cost of $248.2 per kilowatt. Given that it lacks exceptional performance and efficiency, users may find better alternatives at a lower price, making this PSU less attractive for budget-conscious builders.
General Information
| Manufacturer | ASUS |
|---|---|
| Power Supply Name | ASUS ROG Strix 850W Gold Aura Edition |
| Current Price Amazon | $211❗N/A |
| Amazon Price Updated | 7 months, 3 weeks ago. |
| Power Supply Available | False |
Specification
| Power Output | 850 W |
|---|---|

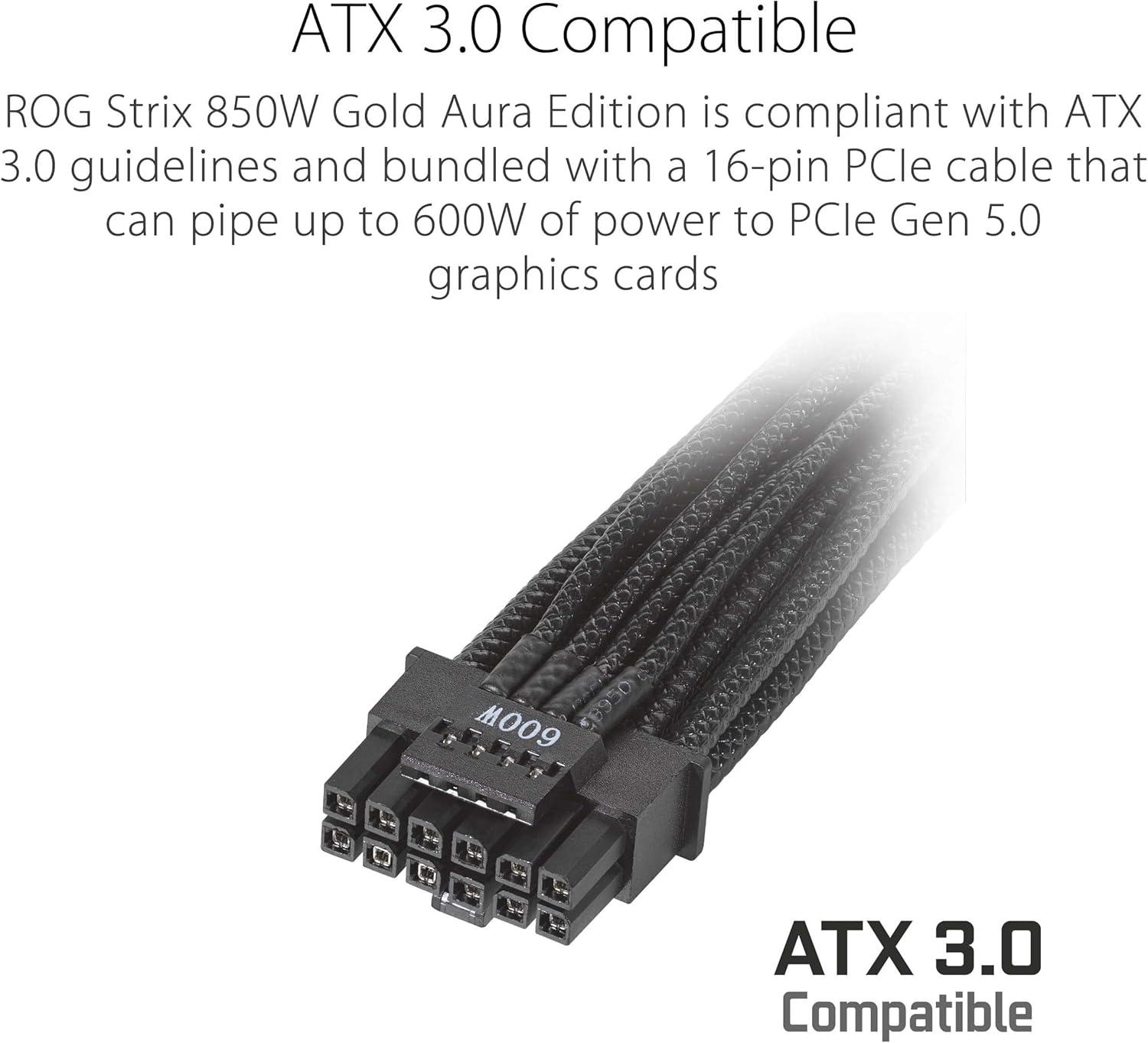

| ATX Version / Form Factor | 3.0 / ATX |
| Certifications | 80 PLUS Gold |
| Efficiency Rating | Gold |
| Modular / Fanless | True / False |

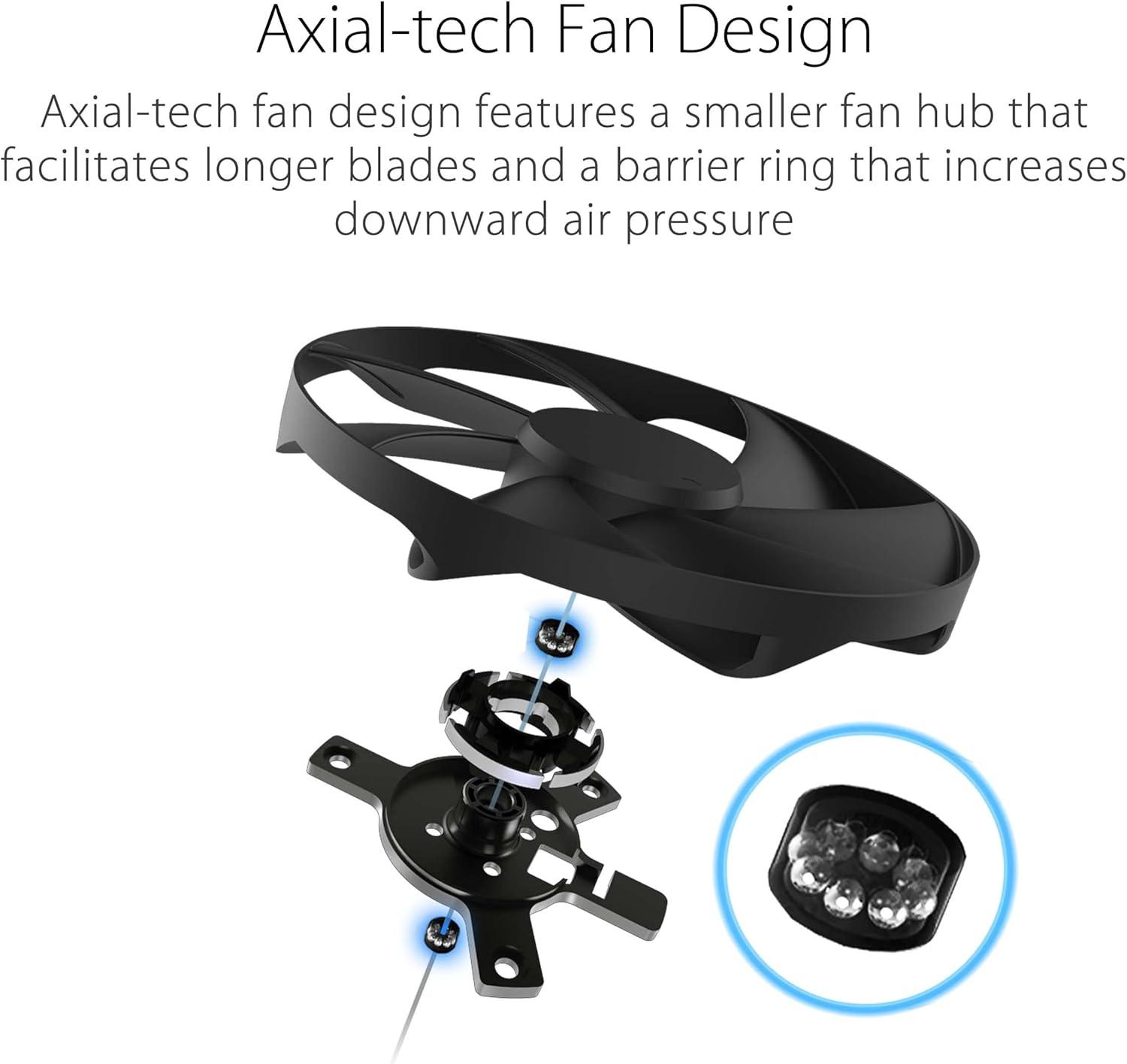

| Fan Size / Fan Stop | 135 mm / True |
| Dimensions | 180 x 150 x 86 mm |
| Warranty | 10 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 71 A / 22 A / 22 A |

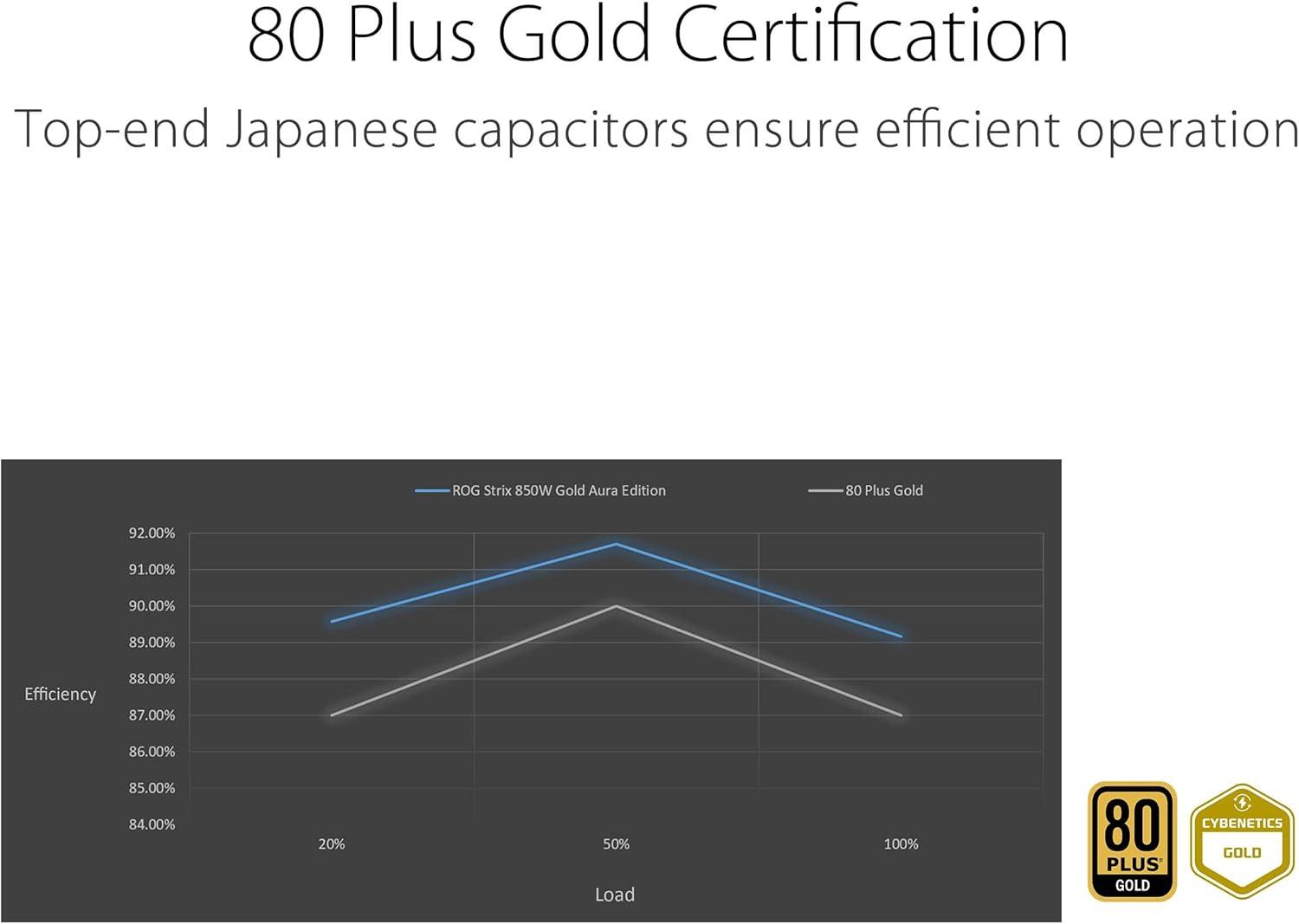

| Maximum Efficiency | 91% |
| Price per kW | 248.2 USD/kW |
ASUS ROG Strix 850W Gold Aura Edition Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$211
|
↑
17.5%
|
77.2%
|
36.6%
|
248.2
248.2
|
|
|
$120
|
0.0%
|
77.2%
|
64.4%
|
141.2
141.2
|
|
|
$140
|
↑
76.1%
|
77.2%
|
55.2%
|
164.7
164.7
|
|
|
$90
|
↓
-48.7%
|
77.2%
|
86.3%
|
105.3
105.3
|
|
|
$209
|
↓
-1.0%
|
77.2%
|
36.9%
|
245.9
245.9
|
|
|
$110
|
0.0%
|
76.9%
|
69.9%
|
129.4
129.4
|
|
|
$89
|
↑
0.4%
|
76.9%
|
86.4%
|
104.7
104.7
|
|
|
$160
|
↑
13.8%
|
76.9%
|
48.0%
|
188.2
188.2
|
|
|
$110
|
0.0%
|
76.9%
|
69.9%
|
129.4
129.4
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$211❗
↑
17.5%
|
$120
0.0%
|
$140
↑
76.1%
|
$90
↓
-48.7%
|
$209❗
↓
-1.0%
|
$110
0.0%
|
$89
↑
0.4%
|
$160
↑
13.8%
|
$110
0.0%
|
| Price per kW | 248.2 USD/kW | 141.2 USD/kW | 164.7 USD/kW | 105.3 USD/kW | 245.9 USD/kW | 129.4 USD/kW | 104.7 USD/kW | 188.2 USD/kW | 129.4 USD/kW |
| Manufacturer | ASUS | NZXT | Corsair | Corsair | ASUS | Thermaltake | Thermaltake | Seasonic | Thermaltake |
| Wattage | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W | 850 W |
| Ver. / FF | 3.0 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 2.4 / ATX | 3.0 / ATX | 3.0 / ATX | 3.0 / ATX | 3.0 / ATX |
| Efficiency | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (90%) | Gold (90%) | Gold (90%) | Gold (90%) |
| 12V Rails | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 71 A | 1 / 70 A | 1 / 71 A | 1 / 71 A | 1 / 70 A | 1 / 71 A |
| 12V/5V/3.3V | 71 A / 22 A / 22 A | 71 A / 22 A / 22 A | 71 A / 20 A / 20 A | 71 A / 20 A / 20 A | 70 A / 20 A / 20 A | 71 A / 22 A / 22 A | 71 A / 20 A / 20 A | 70 A / 20 A / 20 A | 71 A / 20 A / 20 A |
| Fan Size | 135 mm | 135 mm | 140 mm | 140 mm | 135 mm | 135 mm | 140 mm | 120 mm | 120 mm |
| Modular | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 180 x 150 x 86 mm | 135 x 135 x 25 mm | 160x150x86 | 160mm x 150mm x 86mm | 160 x 150 x 86 mm | 150mm(W) x 86mm(H) x 160mm(D) | 150mm(W)x86mm(H)x140mm(D) | 140 × 150 × 86 mm | 150mm(W)x86mm(H)x140mm(D) |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
%20Fully%20Modular%20ATX%20850W%20Gallery/ec6ae5acd9_YPbvchz.jpg)
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 850 W | 3.0 / ATX / True | Gold, 91% | 1 / 71.00 A | 71 A / 22 A / 22 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 91% | 1 / 71.00 A | 71 A / 22 A / 22 A | 10 years | |
| 850 W | 3.1 / ATX / True | Gold, 91% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 3.0 / ATX / True | Gold, 91% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 2.4 / ATX / True | Gold, 91% | 1 / 70.00 A | 70 A / 20 A / 20 A | 10 years | |
| 850 W | 3.0 / ATX / True | Gold, 90% | 1 / 71.00 A | 71 A / 22 A / 22 A | 10 years | |
| 850 W | 3.0 / ATX / True | Gold, 90% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years | |
| 850 W | 3.0 / ATX / True | Gold, 90% | 1 / 70.00 A | 70 A / 20 A / 20 A | 10 years | |
| 850 W | 3.0 / ATX / True | Gold, 90% | 1 / 71.00 A | 71 A / 20 A / 20 A | 10 years |
