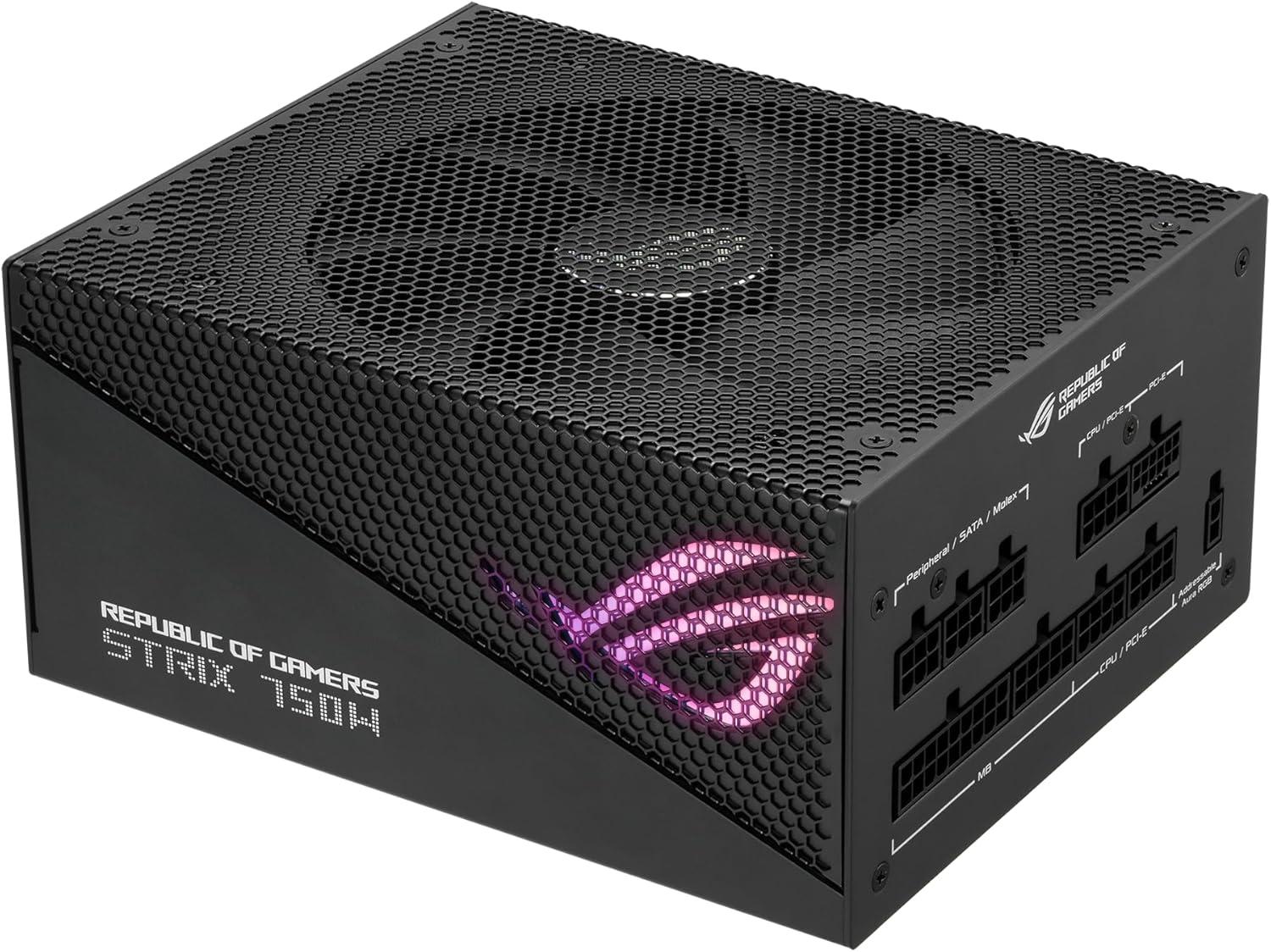

ASUS ROG Strix 750W Gold Aura Edition
ASUS ROG Strix 750W Gold Aura Edition Review & Specifications

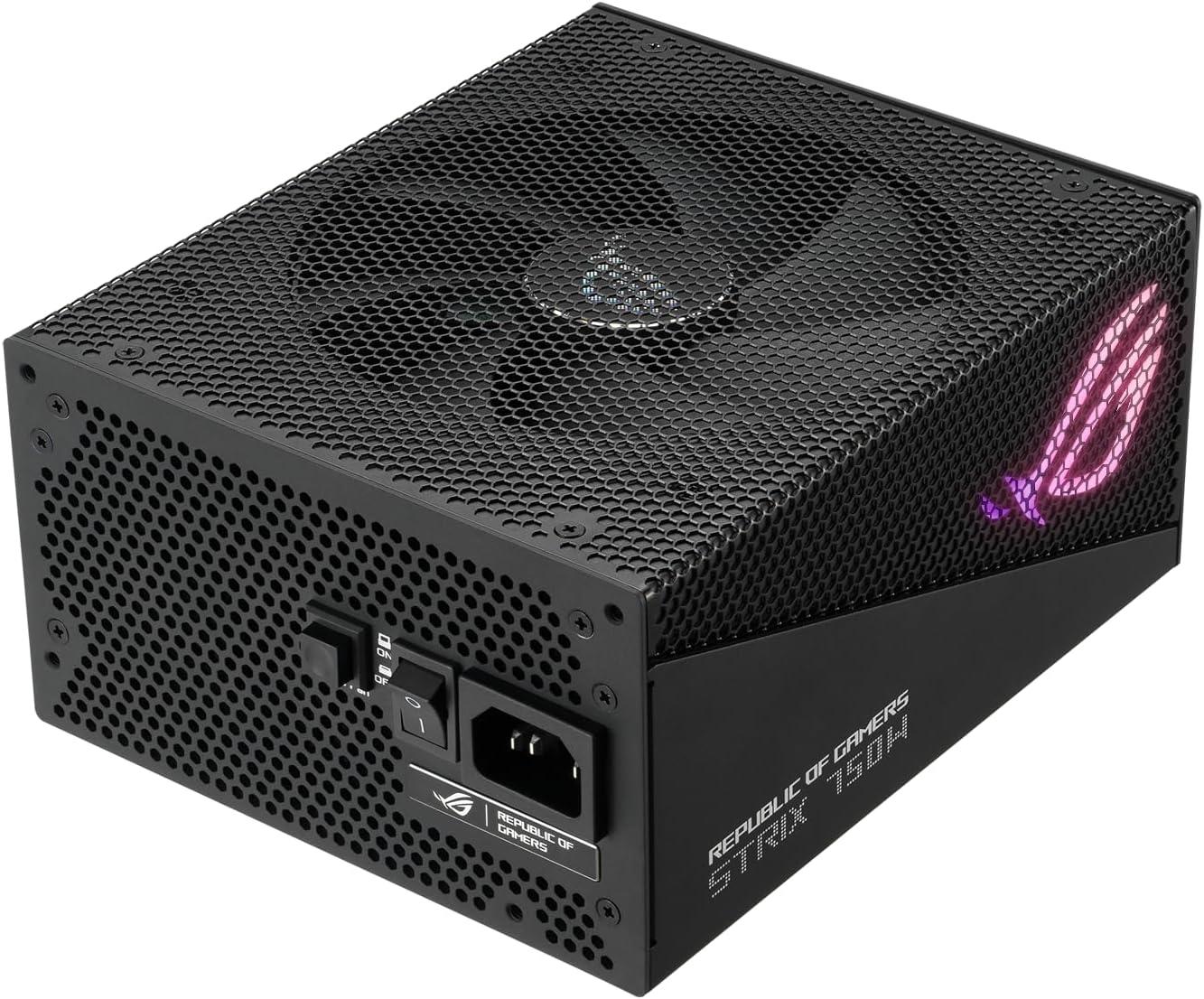

The ASUS ROG Strix 750W Gold Aura Edition by ASUS is a power supply unit that provides 750 watts of power output. This unit follows the 3.0 standard and comes in a ATX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 91%. It features a 135 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:
- 62 A on the 12V rail (1 rail(s))
- 22 A on the 5V rail
- 22 A on the 3.3V rail
Power Supply Performance
The ASUS ROG Strix 750W Gold Aura Edition is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.

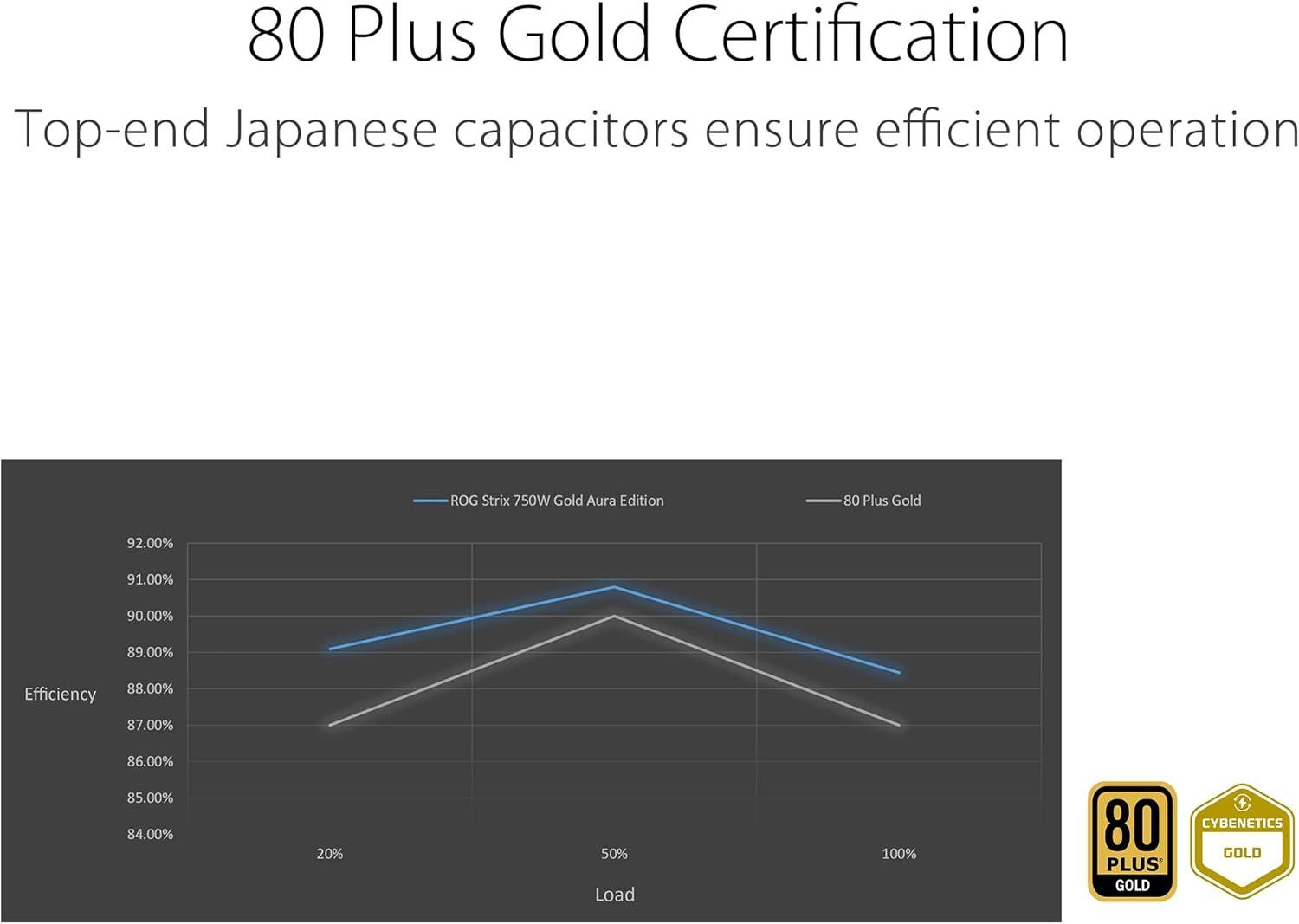

This PSU provides a very high efficiency of 91%, rated as Gold. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 10-year warranty suggests strong build quality and long-term reliability.
This PSU offers moderate value, priced at $200.0 per kilowatt. It delivers decent performance and efficiency, making it a solid mid-range choice for most PC builds. It strikes a good balance between performance and cost, especially for builders prioritizing stability without overspending.
General Information
| Manufacturer | ASUS |
|---|---|
| Power Supply Name | ASUS ROG Strix 750W Gold Aura Edition |
| Current Price Amazon | $150 |
| Amazon Price Updated | 1 day, 12 hours ago. |
| Power Supply Available | True |
Specification
| Power Output | 750 W |
|---|---|

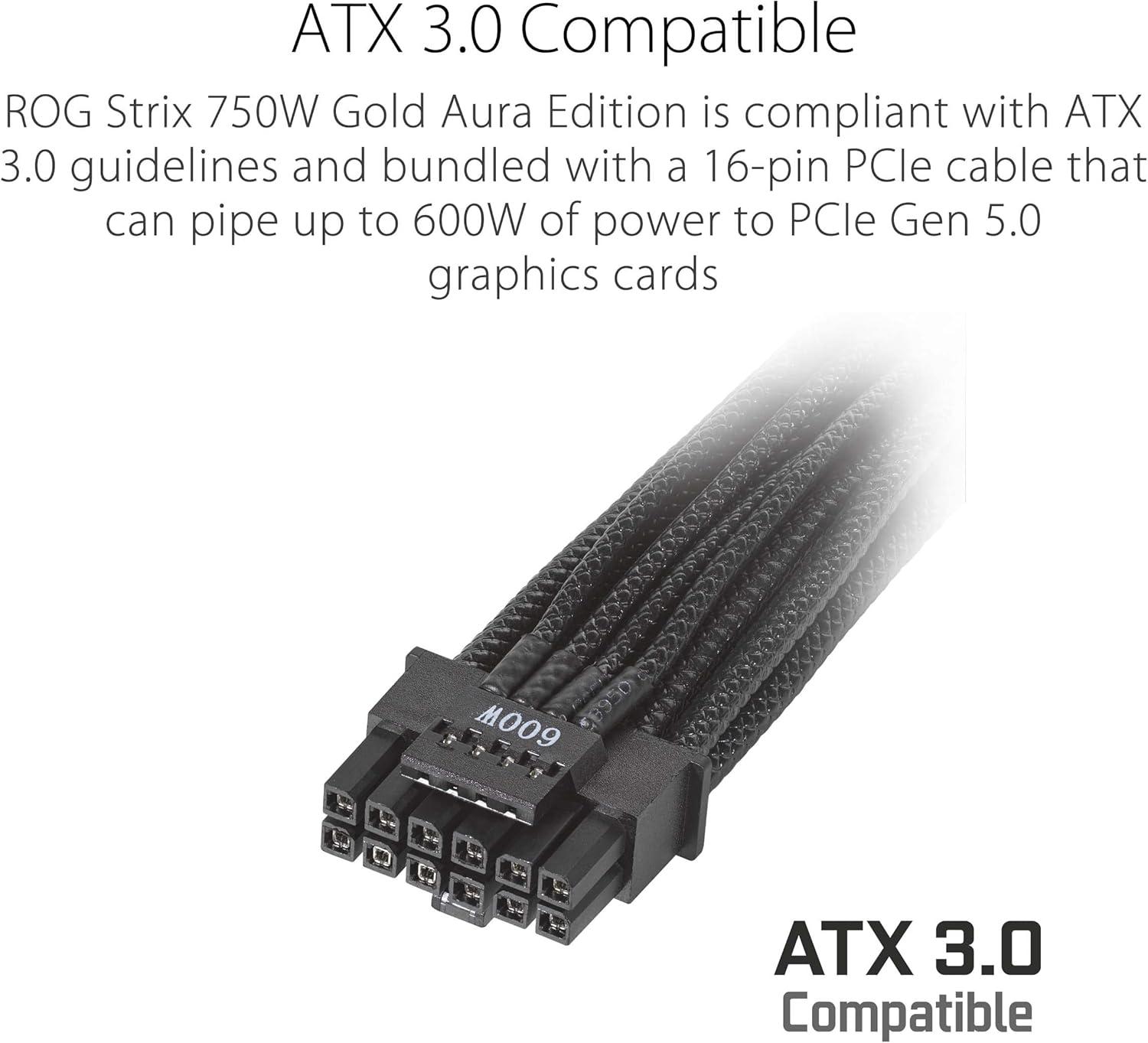

| ATX Version / Form Factor | 3.0 / ATX |
| Certifications | 80 PLUS Gold |
| Efficiency Rating | Gold |

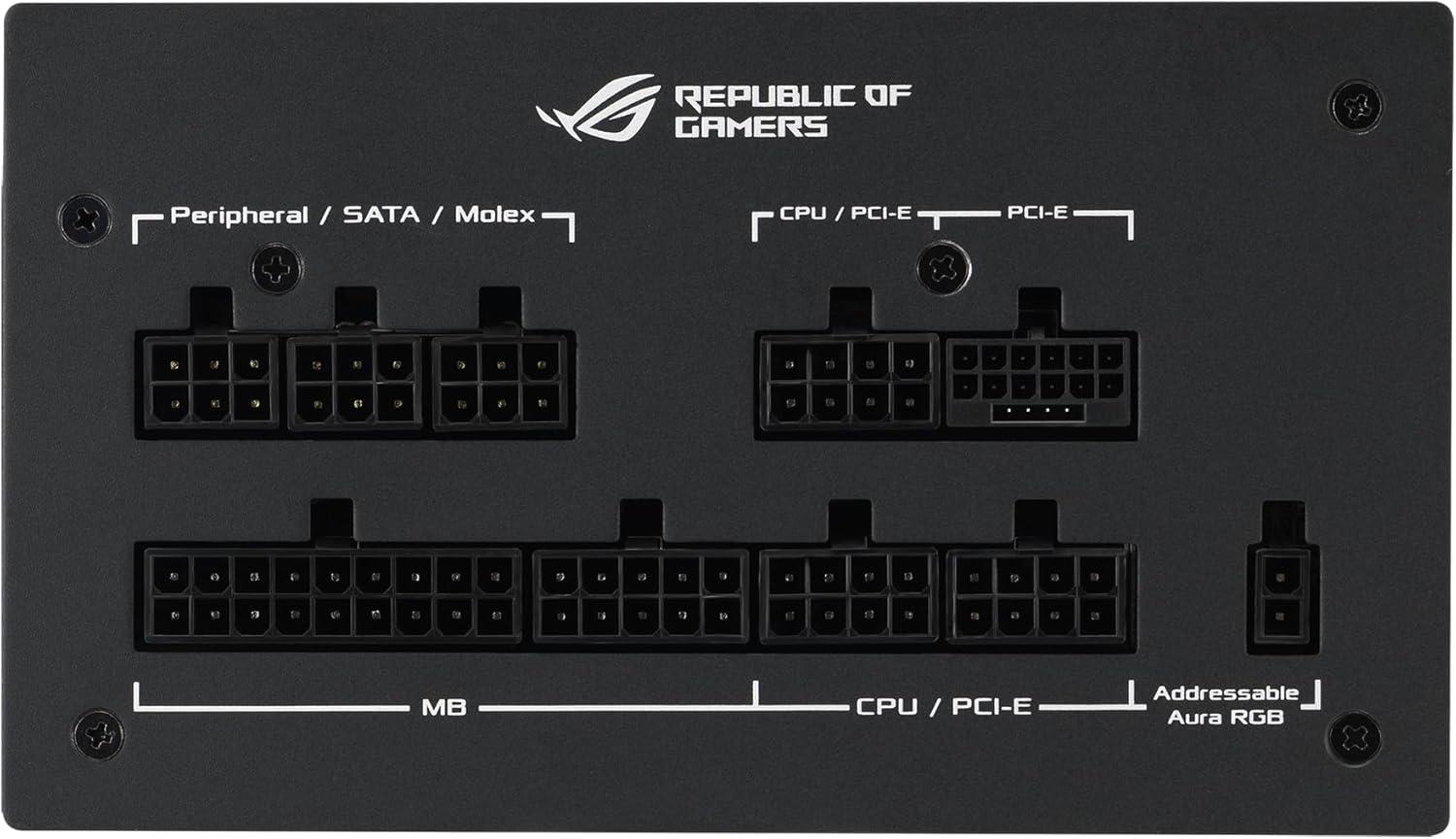

| Modular / Fanless | True / False |

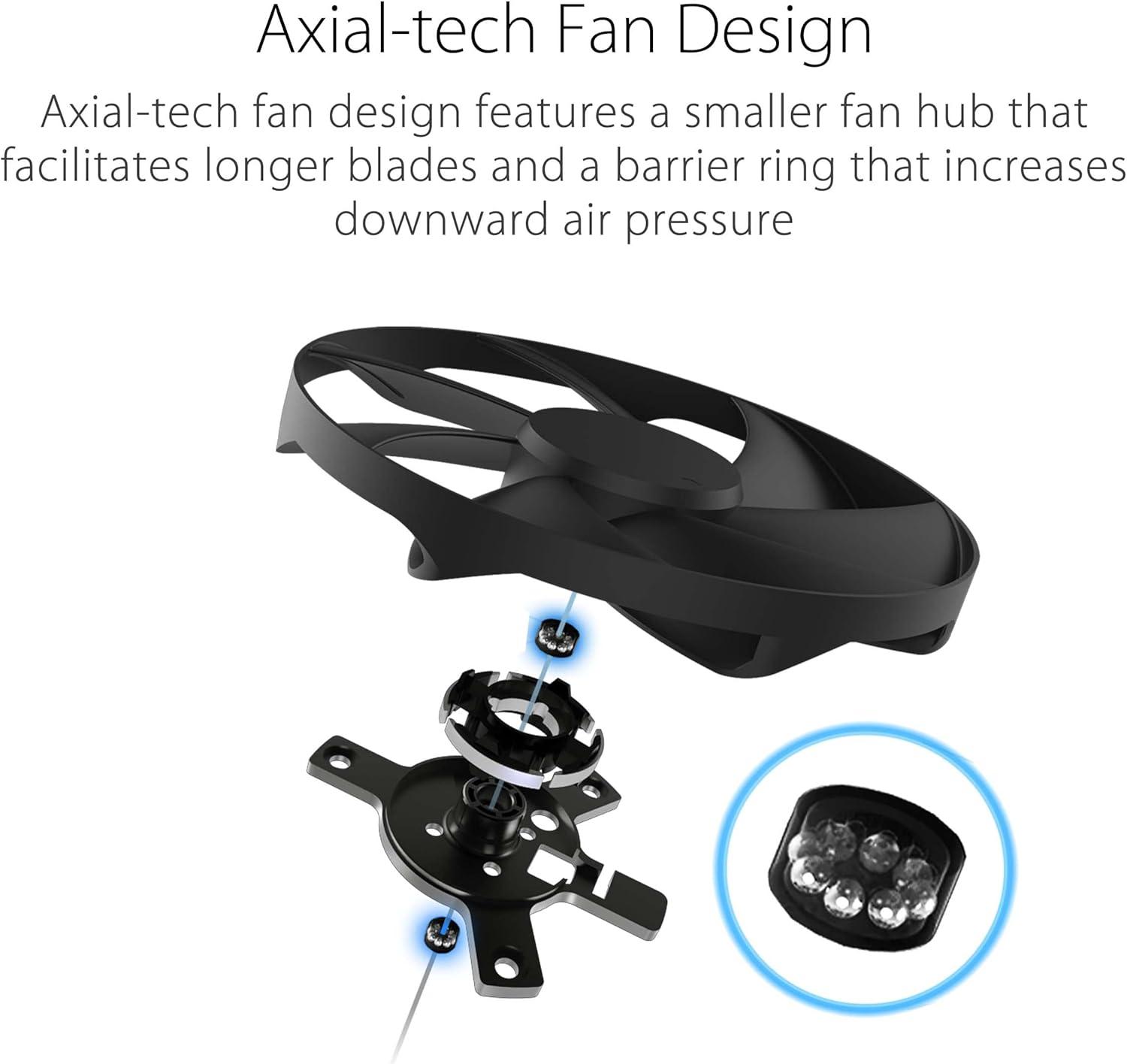

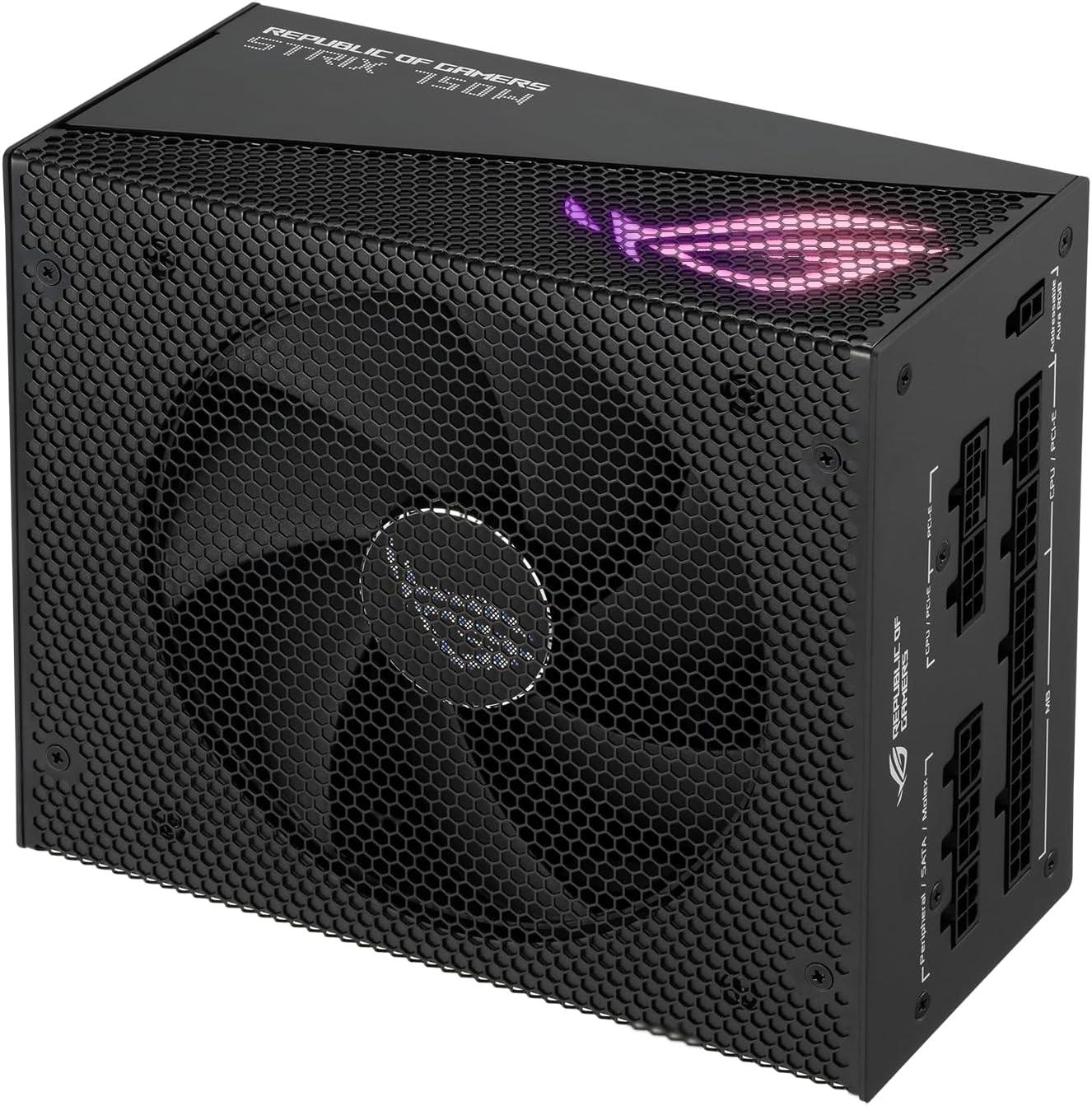

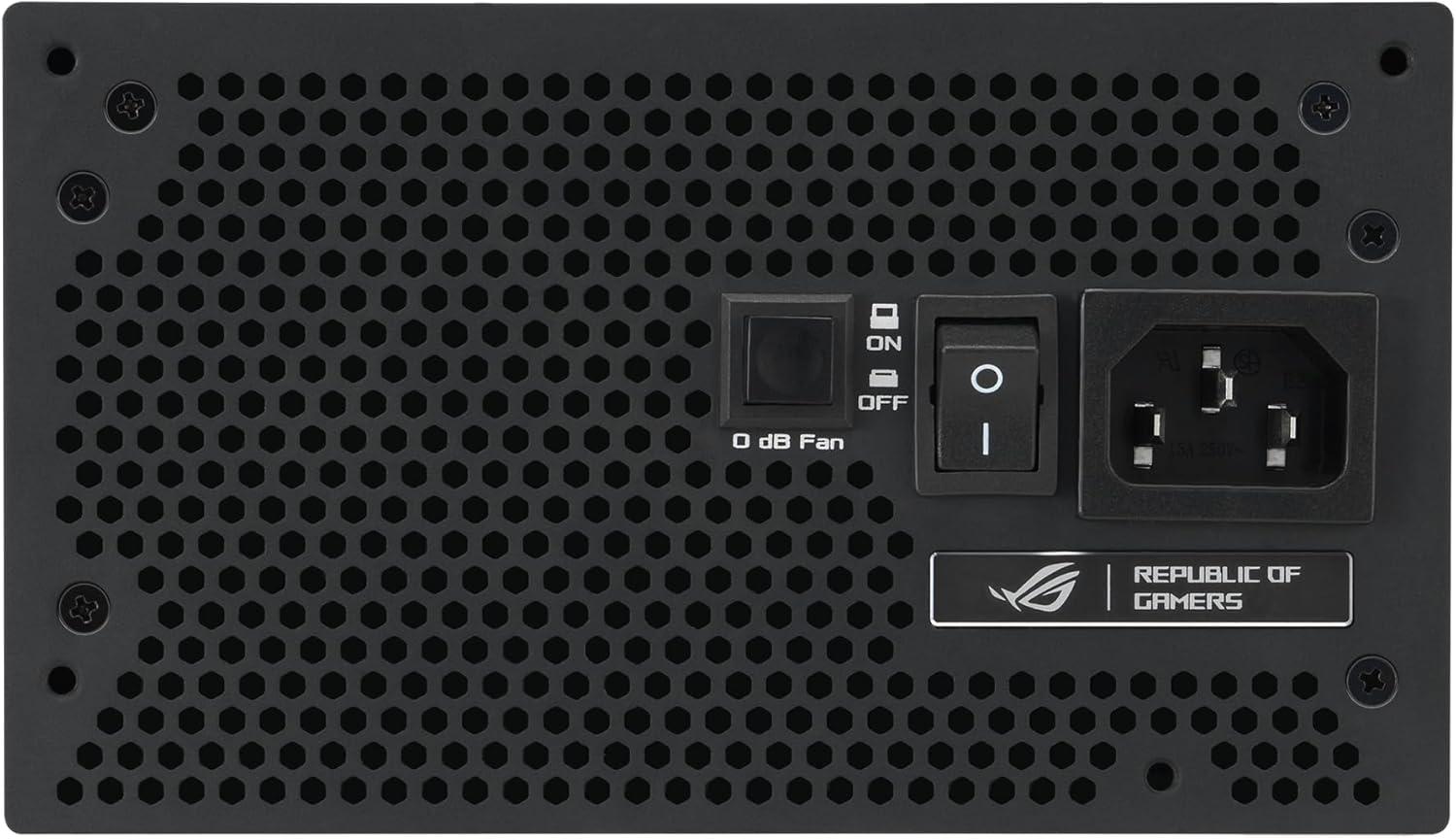

| Fan Size / Fan Stop | 135 mm / True |
| Dimensions | 180 x 150 x 86 mm |
| Warranty | 10 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 62 A / 22 A / 22 A |
| Maximum Efficiency | 91% |
| Price per kW | 200.0 USD/kW |
ASUS ROG Strix 750W Gold Aura Edition Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$80
|
0.0%
|
75.6%
|
94.6%
|
106.5
106.5
|
|
|
$160
|
0.0%
|
75.6%
|
47.2%
|
213.3
213.3
|
|
|
$90
|
0.0%
|
75.6%
|
84.0%
|
119.9
119.9
|
|
|
$115
|
0.0%
|
75.2%
|
65.4%
|
153.3
153.3
|
|
|
$161
|
↓
-5.0%
|
75.2%
|
46.6%
|
215.3
215.3
|
|
|
$150
|
0.0%
|
75.2%
|
50.1%
|
200.0
200.0
|
|
|
$136
|
↑
2.2%
|
75.2%
|
55.4%
|
181.0
181.0
|
|
|
$170
|
0.0%
|
74.8%
|
44.0%
|
226.7
226.7
|
|
|
$109
|
↑
9.9%
|
74.8%
|
68.8%
|
145.1
145.1
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$80
0.0%
|
$160
0.0%
|
$90
0.0%
|
$115
0.0%
|
$161
↓
-5.0%
|
$150
0.0%
|
$136
↑
2.2%
|
$170❗
0.0%
|
$109❗
↑
9.9%
|
| Price per kW | 106.5 USD/kW | 213.3 USD/kW | 119.9 USD/kW | 153.3 USD/kW | 215.3 USD/kW | 200.0 USD/kW | 181.0 USD/kW | 226.7 USD/kW | 145.1 USD/kW |
| Manufacturer | be quiet! | Thermaltake | be quiet! | Corsair | ASUS | ASUS | ASUS | Thermaltake | Thermaltake |
| Wattage | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W |
| Ver. / FF | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 2.4 / ATX | 3.0 / ATX | 3.0 / ATX |
| Efficiency | Gold (92%) | Platinum (92%) | Gold (92%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (90%) | Gold (90%) |
| 12V Rails | 1 / 62 A | 1 / 62 A | 2 / 36 A | 1 / 62 A | 1 / 62 A | 1 / 62 A | 1 / 62 A | 1 / 62 A | 1 / 62 A |
| 12V/5V/3.3V | 62 A / 20 A / 20 A | 62 A / 20 A / 20 A | 68 A / 20 A / 20 A | 62 A / 20 A / 20 A | 62 A / 25 A / 25 A | 62 A / 22 A / 22 A | 62 A / 20 A / 20 A | 62 A / 22 A / 22 A | 62 A / 22 A / 22 A |
| Fan Size | 120 mm | 120 mm | 120 mm | 140 mm | 135 mm | 135 mm | 135 mm | 140 mm | 135 mm |
| Modular | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 160 x 86 x 150 | 140mm(W)x86mm(H)x150mm(D) | 160 x 150 x 86 | 160x150x86 | 150 x 150 x 86 mm | 180 x 150 x 86 mm | 160 x 150 x 86 mm | 150mm(W) x 86mm(H) x 160mm(D) | 150mm(W) x 86mm(H) x 160mm(D) |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 750 W | 3.1 / ATX / False | Gold, 92% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.0 / ATX / True | Platinum, 92% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 92% | 2 / 36.00 A | 68 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 25 A / 25 A | 10 years | |
| 750 W | 3.0 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 22 A / 22 A | 10 years | |
| 750 W | 2.4 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.0 / ATX / True | Gold, 90% | 1 / 62.00 A | 62 A / 22 A / 22 A | 10 years | |
| 750 W | 3.0 / ATX / True | Gold, 90% | 1 / 62.00 A | 62 A / 22 A / 22 A | 10 years |
