be quiet! Pure Power 12 750W
be quiet! Pure Power 12 750W Review & Specifications

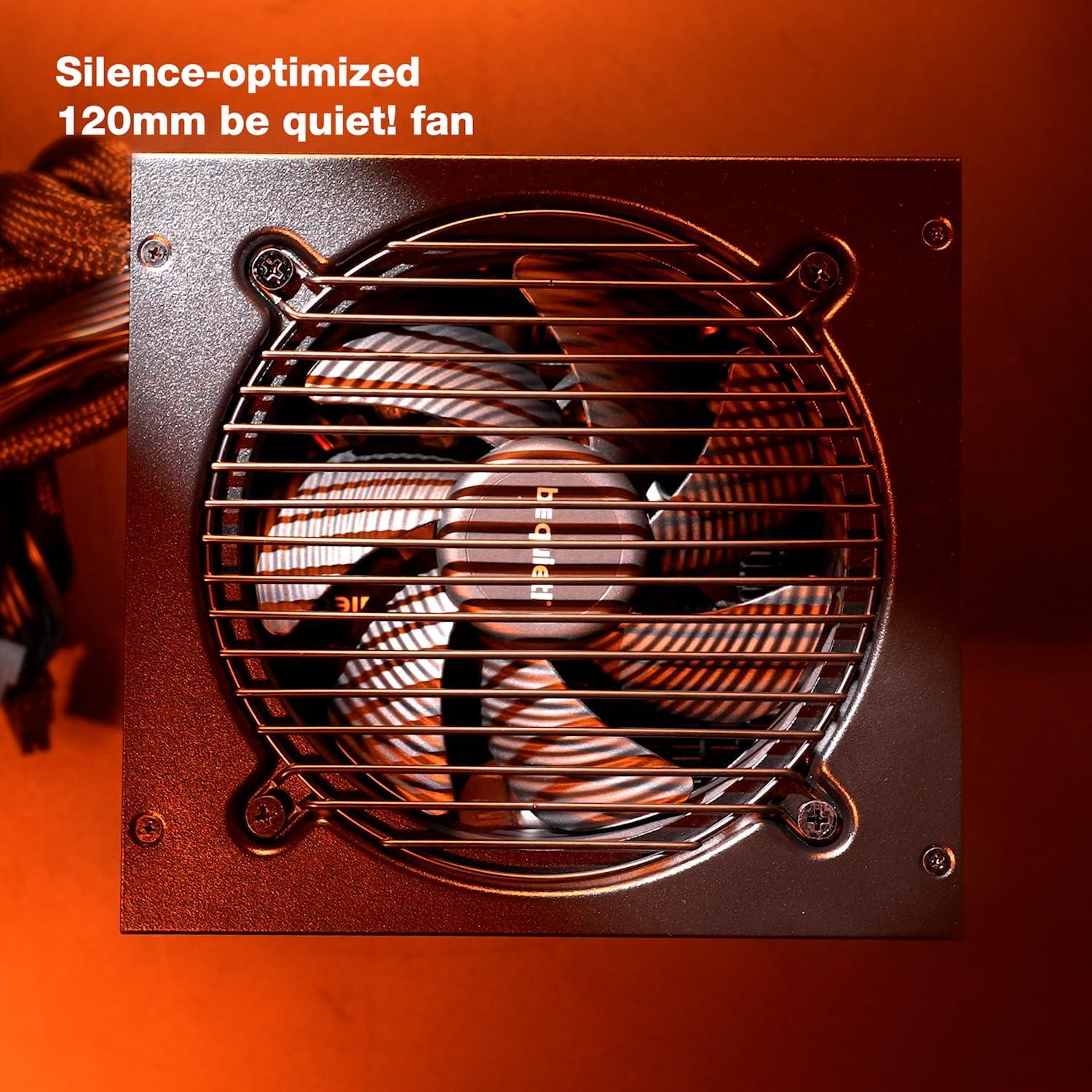

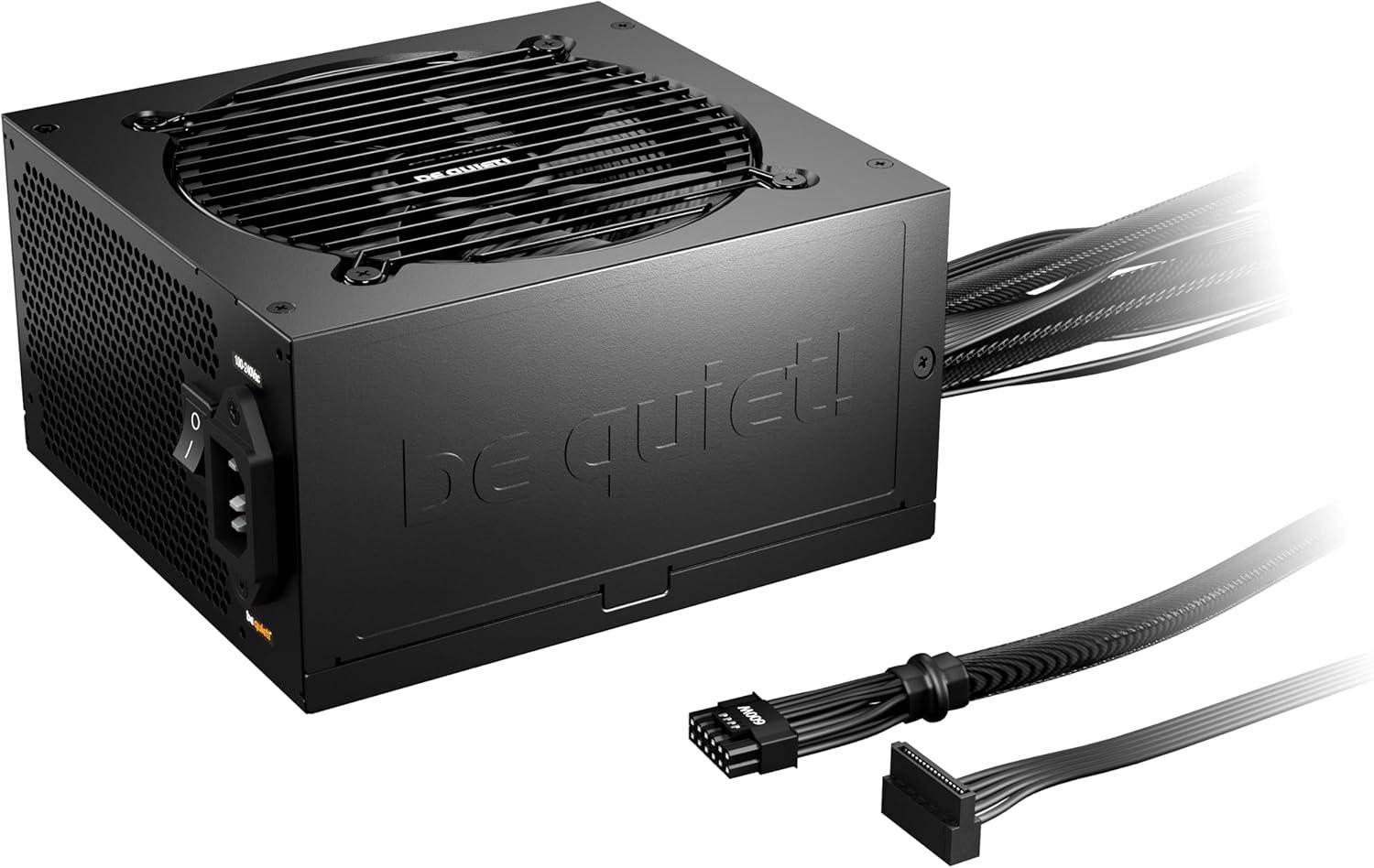

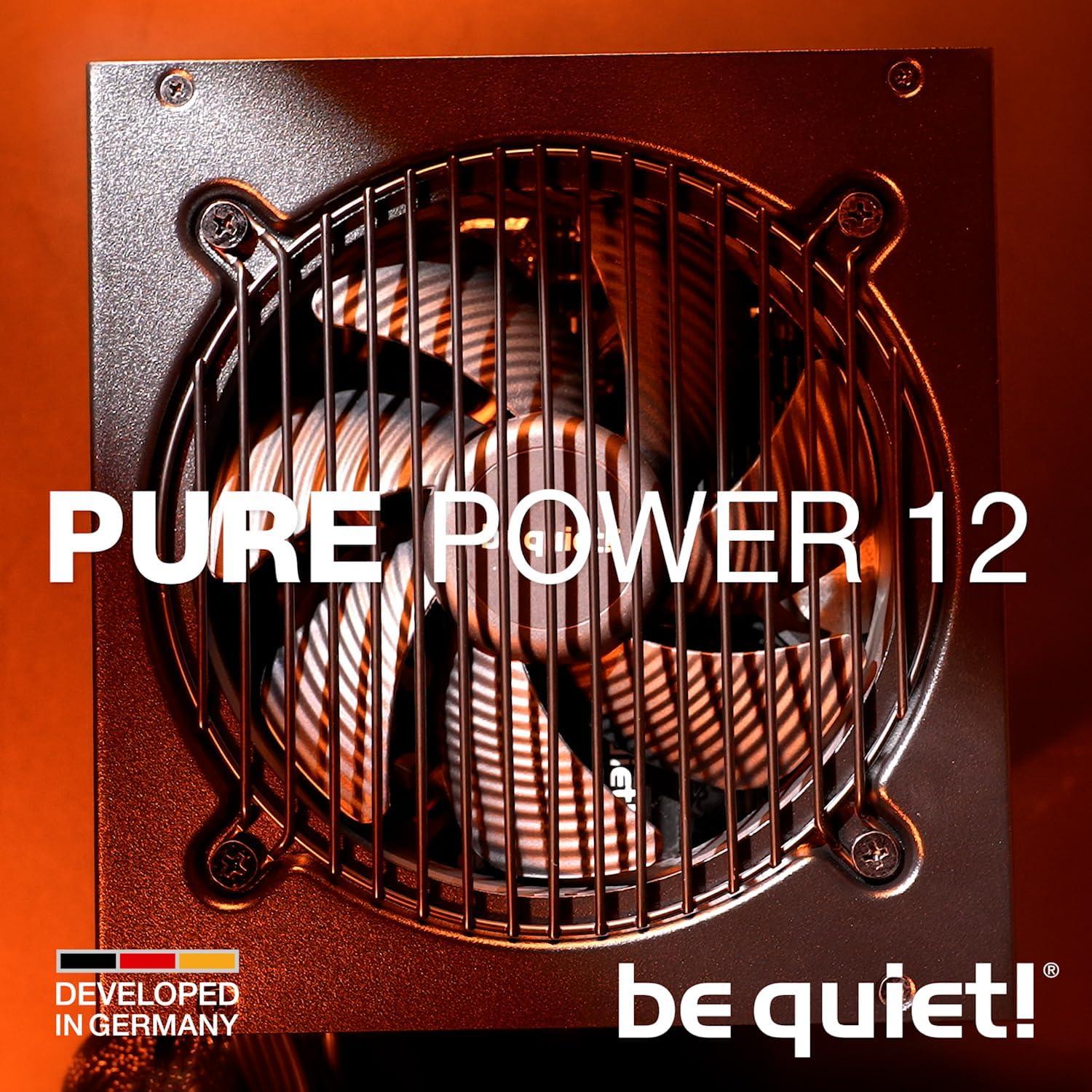

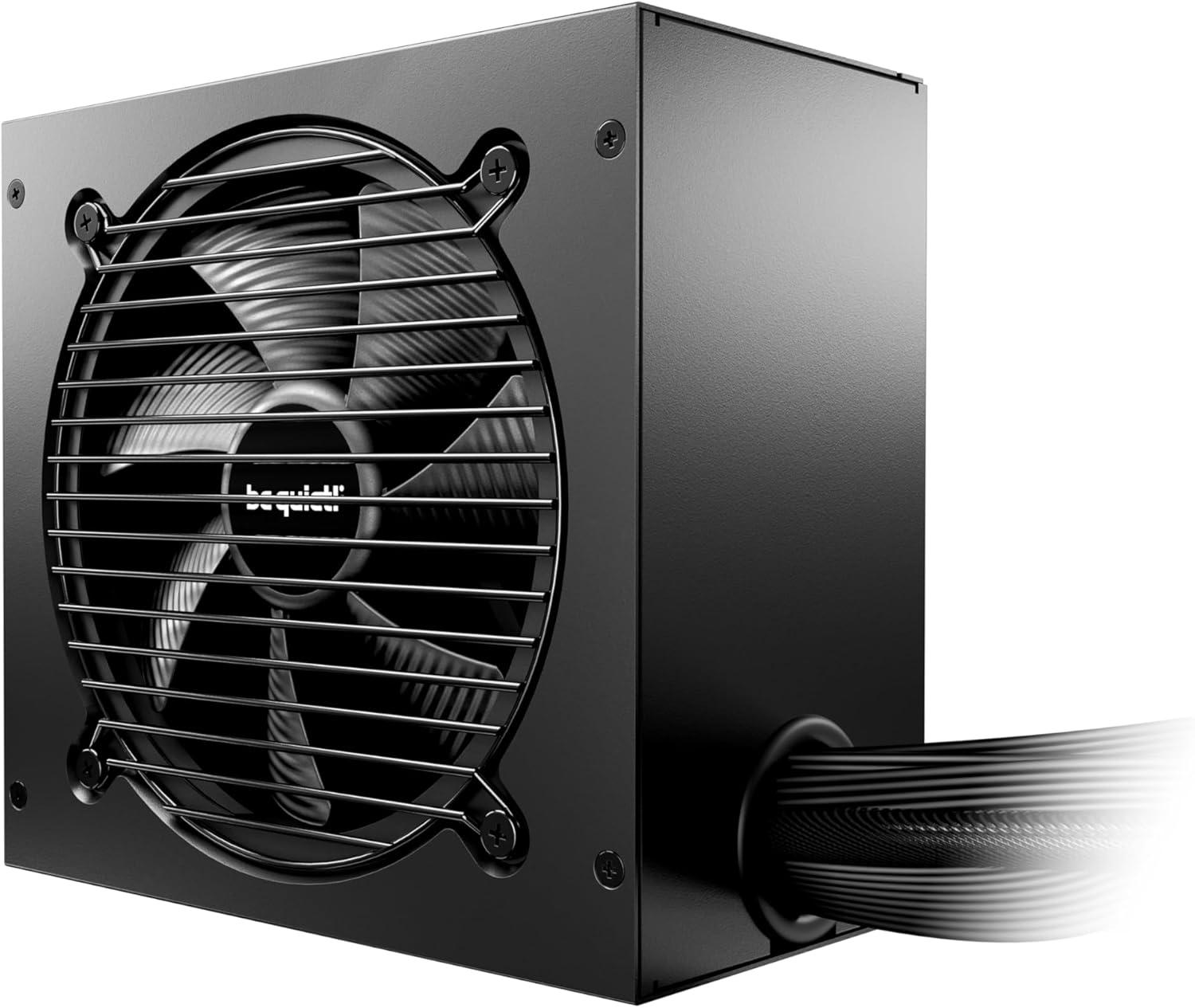

The be quiet! Pure Power 12 750W by be quiet! is a power supply unit that provides 750 watts of power output. This unit follows the 3.1 standard and comes in a ATX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 92%. It features a 120 mm cooling fan , and is actively cooled. This PSU is non-modular . It delivers:
- 62 A on the 12V rail (1 rail(s))
- 20 A on the 5V rail
- 20 A on the 3.3V rail
Power Supply Performance
The be quiet! Pure Power 12 750W is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.

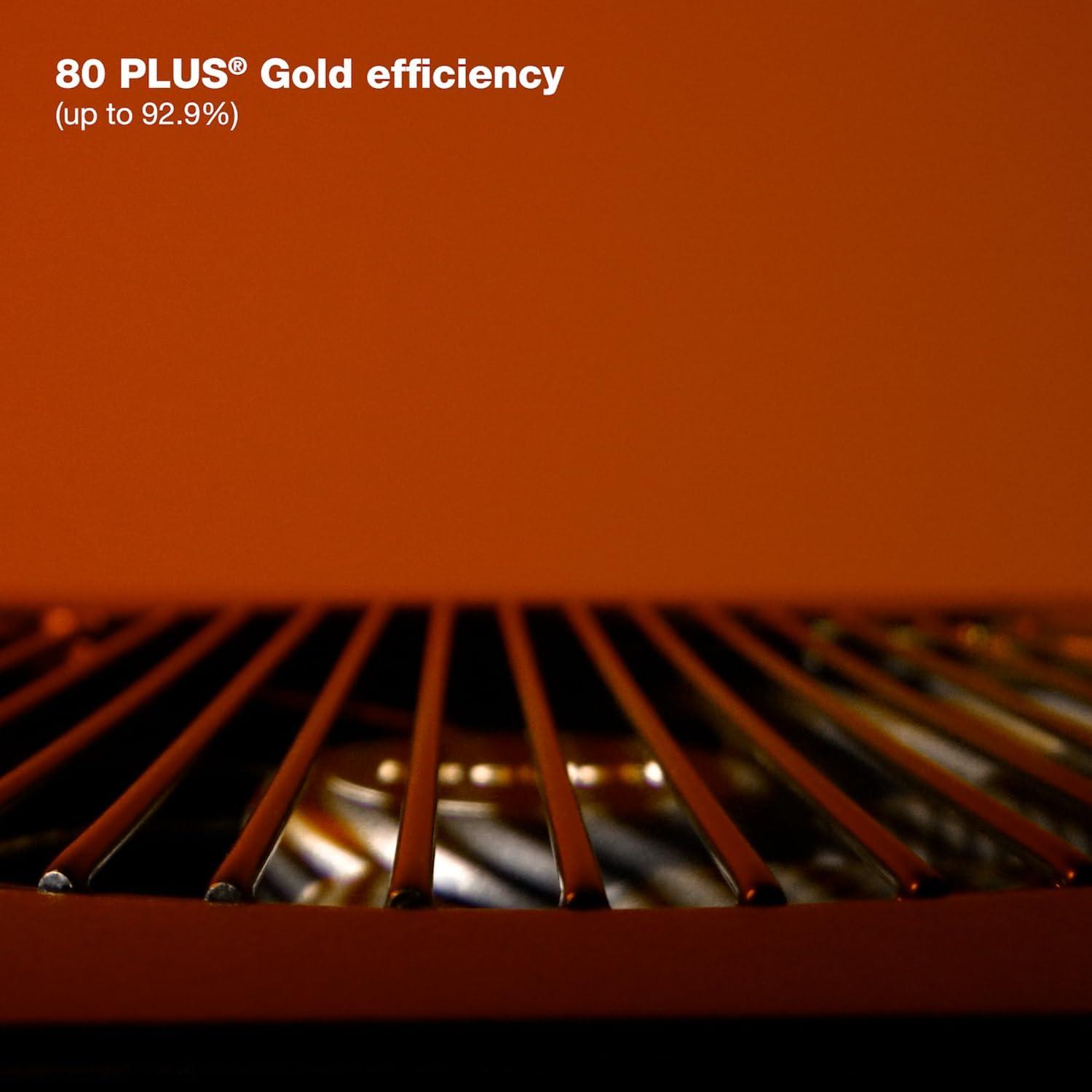

This PSU provides a very high efficiency of 92%, rated as Gold. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 10-year warranty suggests strong build quality and long-term reliability.
This PSU delivers excellent value, with a competitive cost of only $106.5 per kilowatt. Despite its affordable pricing, it maintains respectable performance and efficiency, making it an ideal choice for budget-conscious PC builders who don't want to compromise on quality.
General Information
| Manufacturer | be quiet! |
|---|---|
| Power Supply Name | be quiet! Pure Power 12 750W |
| Current Price Amazon | $80 |
| Amazon Price Updated | 1Â day, 9Â hours ago. |
| Power Supply Available | True |
Specification
| Power Output | 750 W |
|---|---|

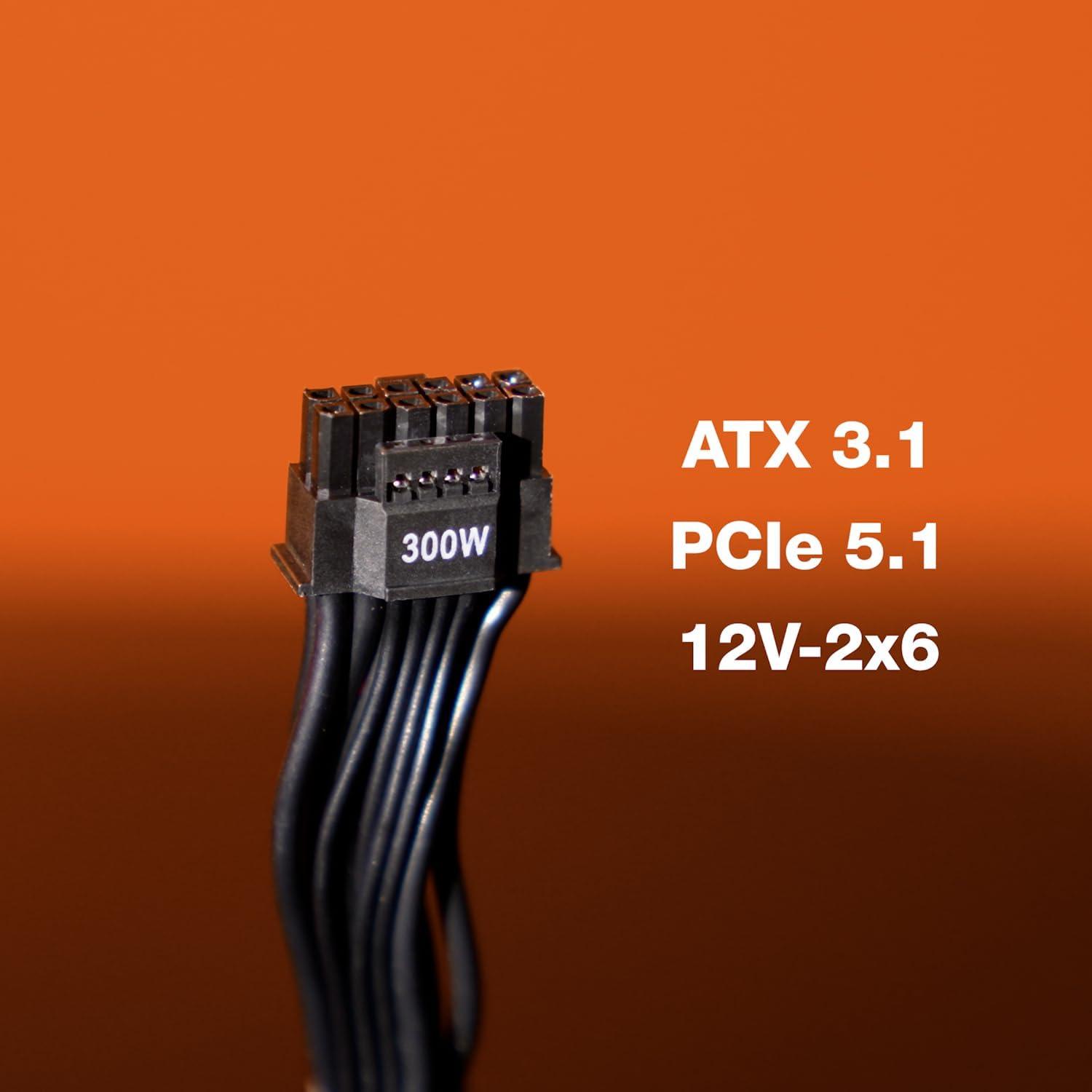

| ATX Version / Form Factor | 3.1 / ATX |
| Certifications | 80 PLUS Gold |
| Efficiency Rating | Gold |
| Modular / Fanless | False / False |
| Fan Size / Fan Stop | 120 mm / False |
| Dimensions | 160 x 86 x 150 |
| Warranty | 10 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 62 A / 20 A / 20 A |
| Maximum Efficiency | 92% |
| Price per kW | 106.5 USD/kW |
be quiet! Pure Power 12 750W Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$135
|
↓
-6.9%
|
75.9%
|
56.2%
|
180.0
180.0
|
|
|
$369
|
0.0%
|
75.9%
|
20.6%
|
492.1
492.1
|
|
|
$80
|
0.0%
|
75.6%
|
94.6%
|
106.5
106.5
|
|
|
$160
|
0.0%
|
75.6%
|
47.2%
|
213.3
213.3
|
|
|
$90
|
0.0%
|
75.6%
|
84.0%
|
119.9
119.9
|
|
|
$115
|
0.0%
|
75.2%
|
65.4%
|
153.3
153.3
|
|
|
$161
|
↓
-5.0%
|
75.2%
|
46.6%
|
215.3
215.3
|
|
|
$150
|
0.0%
|
75.2%
|
50.1%
|
200.0
200.0
|
|
|
$136
|
↑
2.2%
|
75.2%
|
55.4%
|
181.0
181.0
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$135
↓
-6.9%
|
$369
0.0%
|
$80
0.0%
|
$160
0.0%
|
$90
0.0%
|
$115
0.0%
|
$161
↓
-5.0%
|
$150
0.0%
|
$136
↑
2.2%
|
| Price per kW | 180.0 USD/kW | 492.1 USD/kW | 106.5 USD/kW | 213.3 USD/kW | 119.9 USD/kW | 153.3 USD/kW | 215.3 USD/kW | 200.0 USD/kW | 181.0 USD/kW |

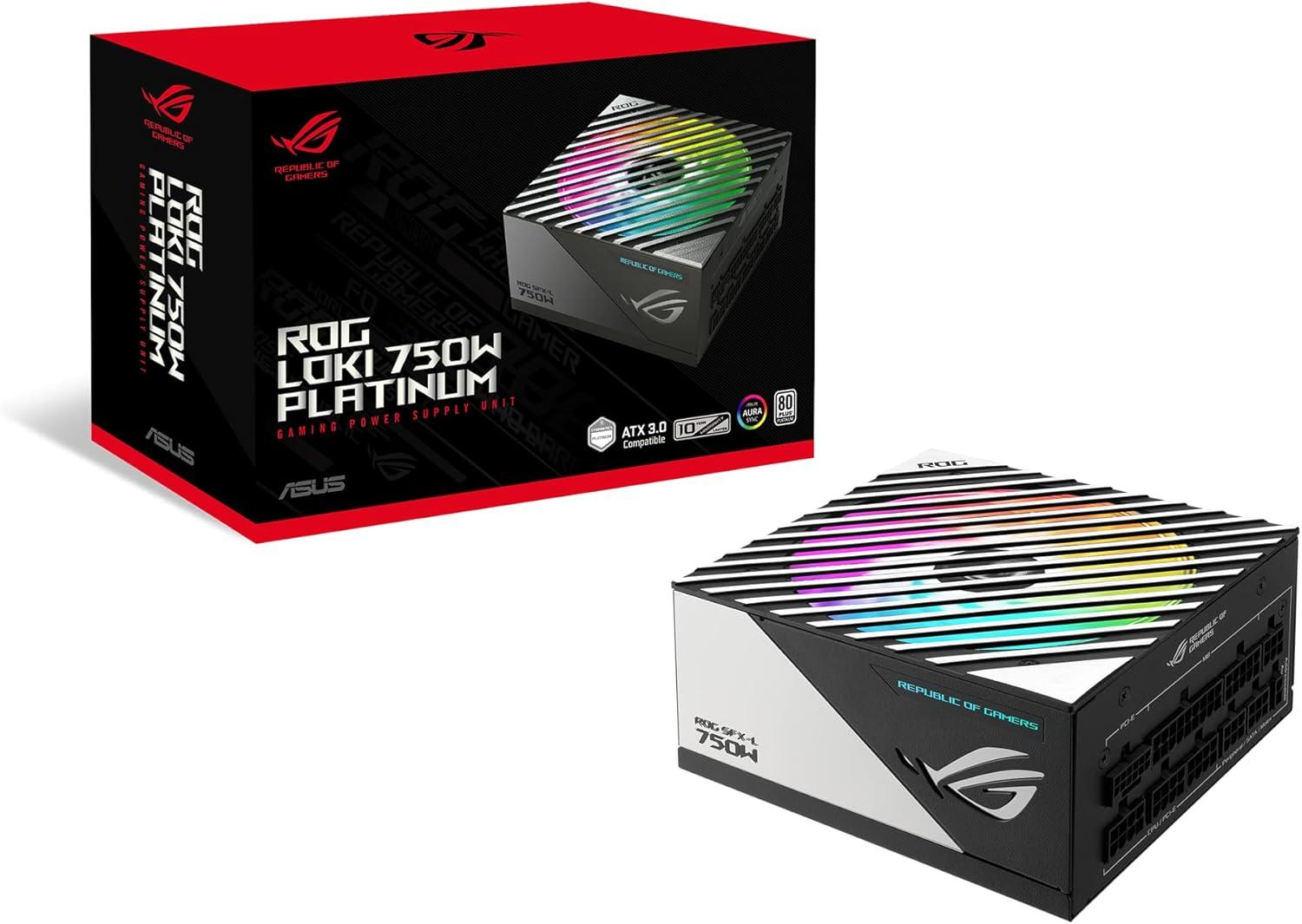

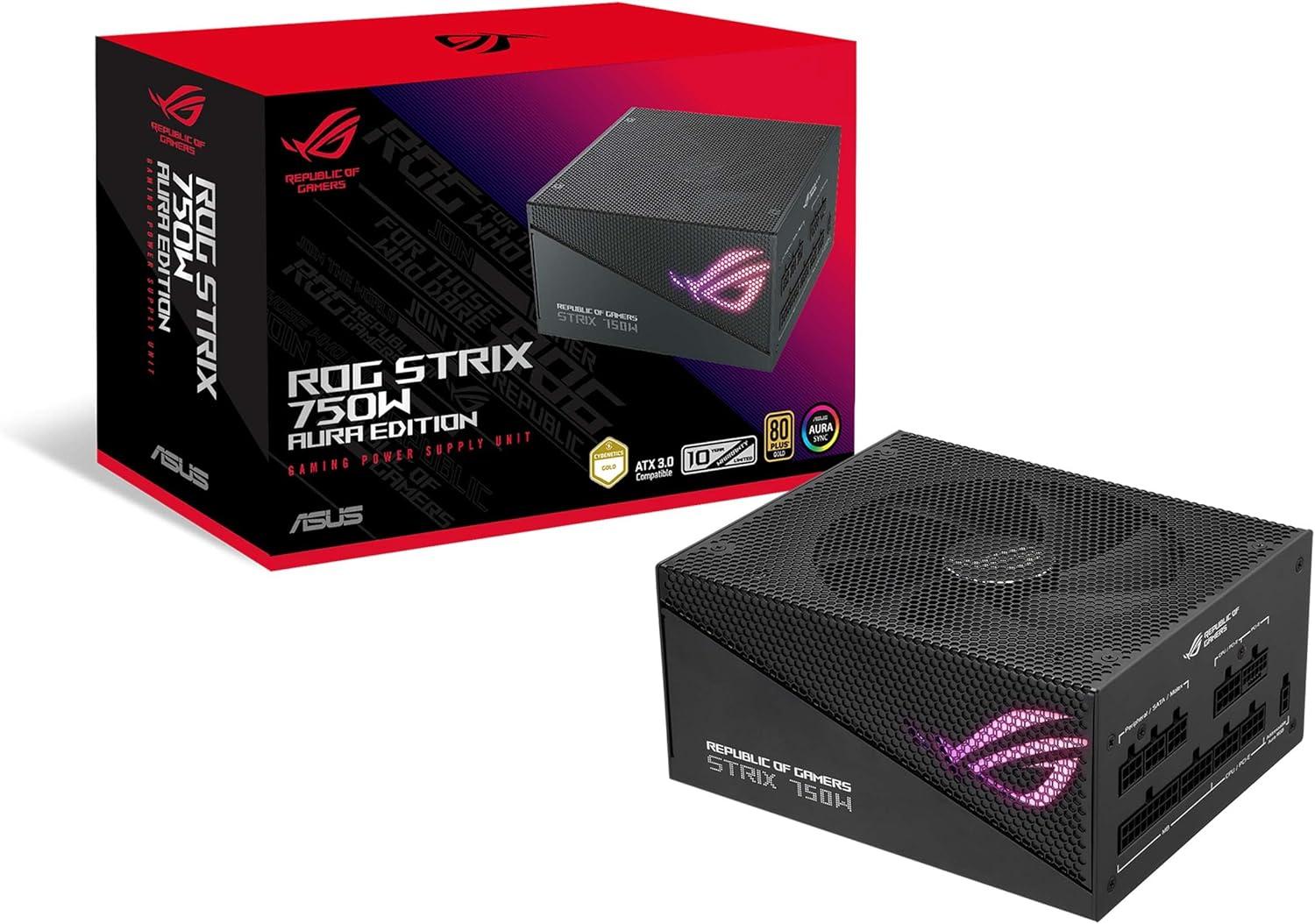

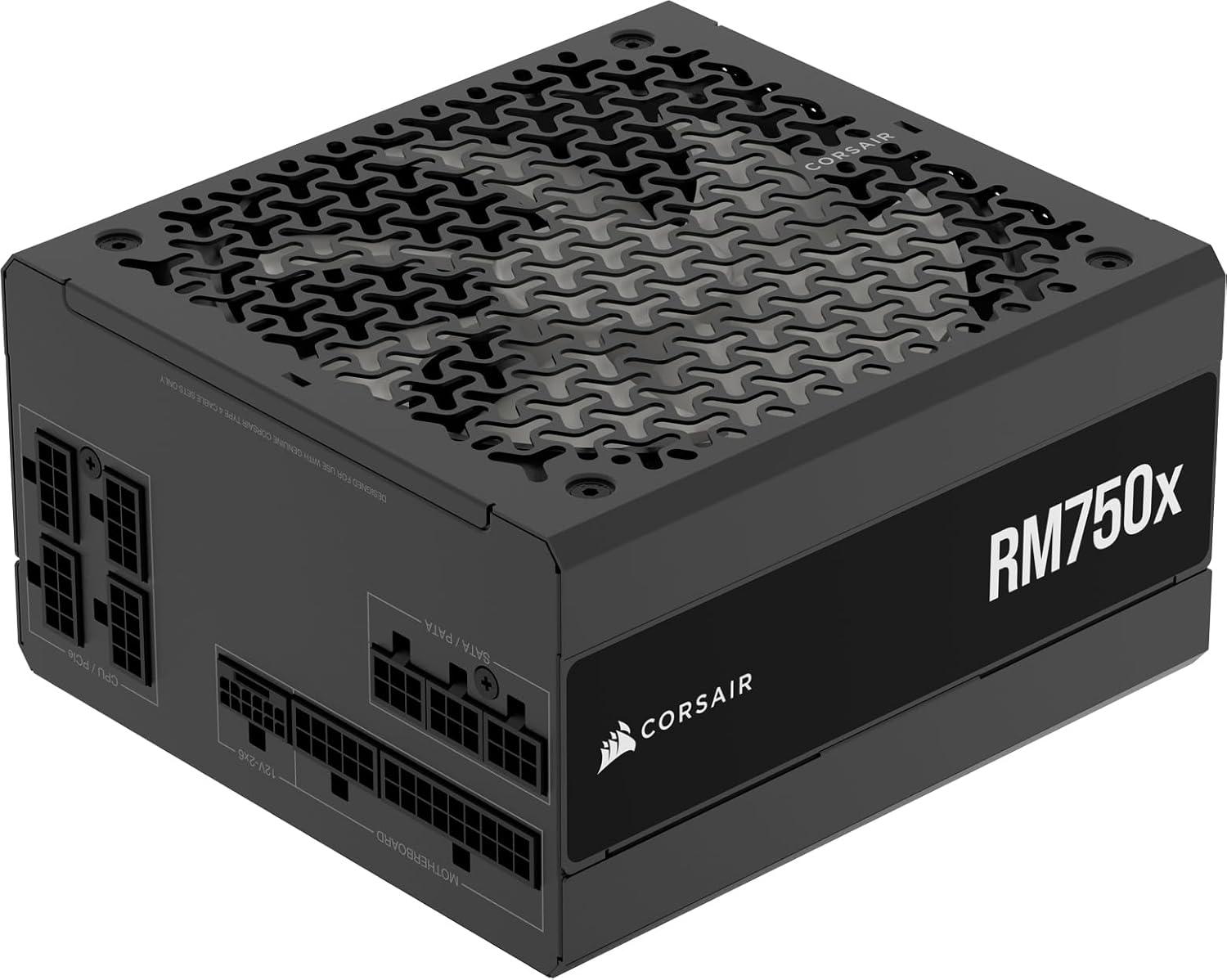

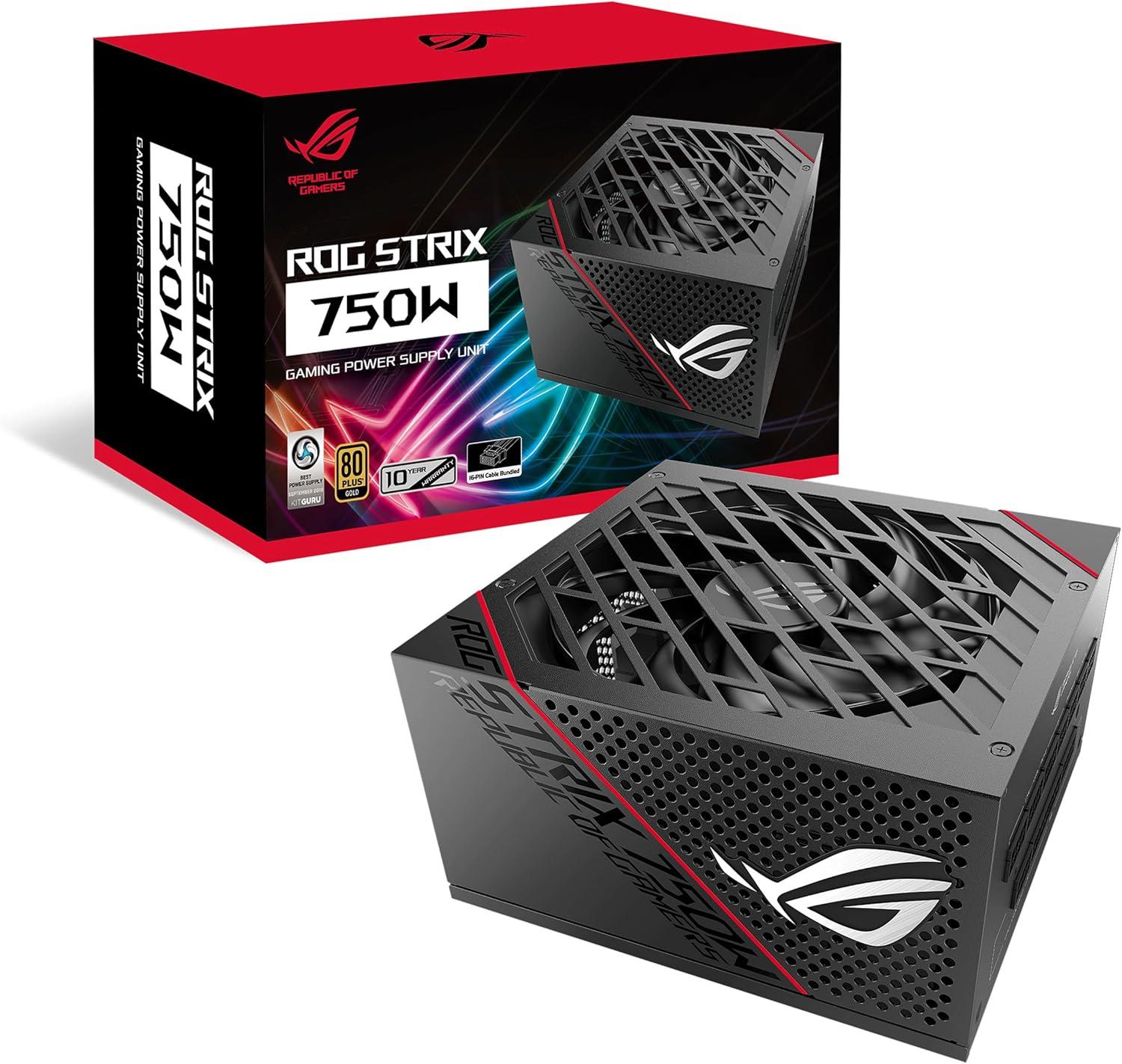

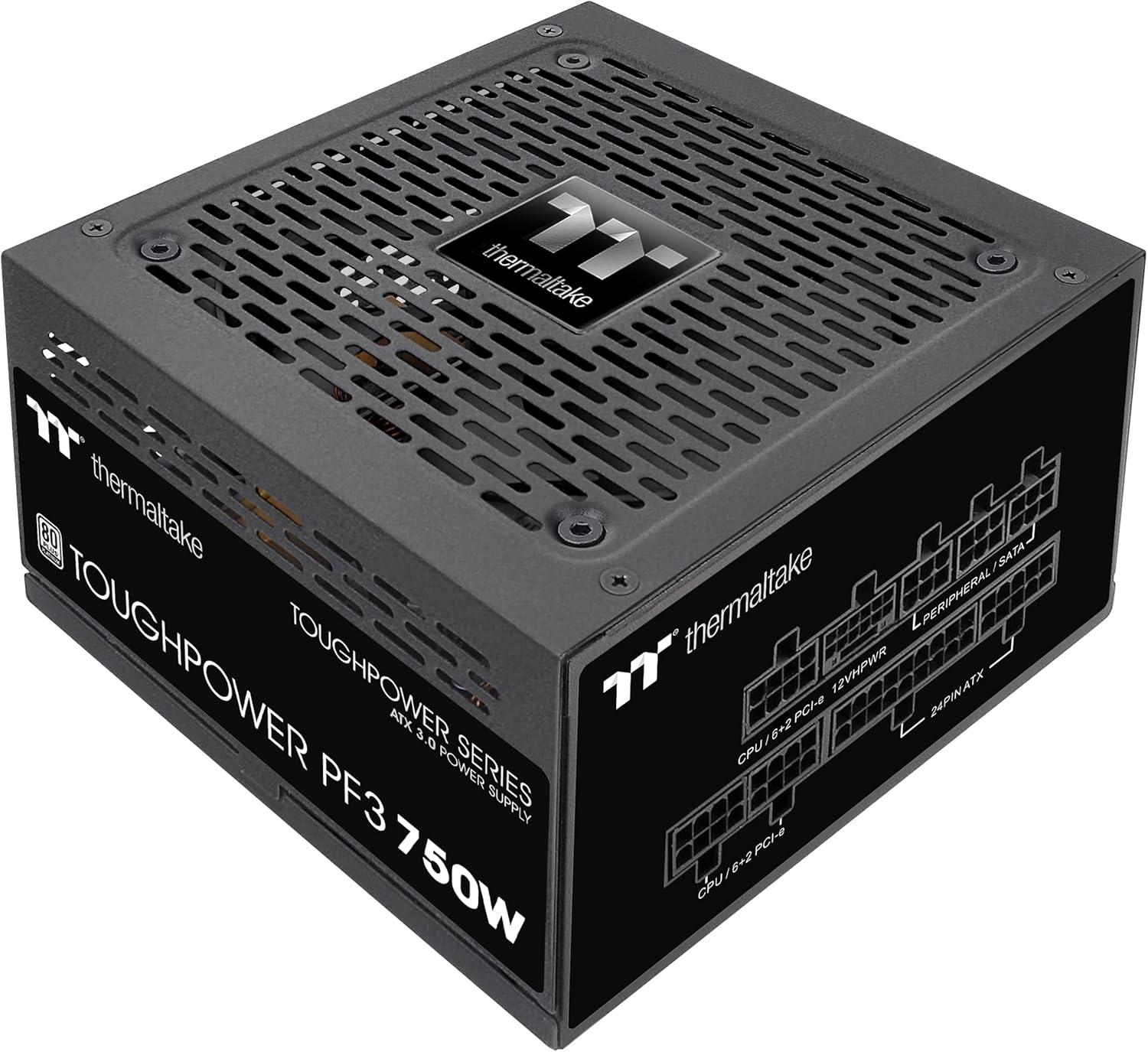

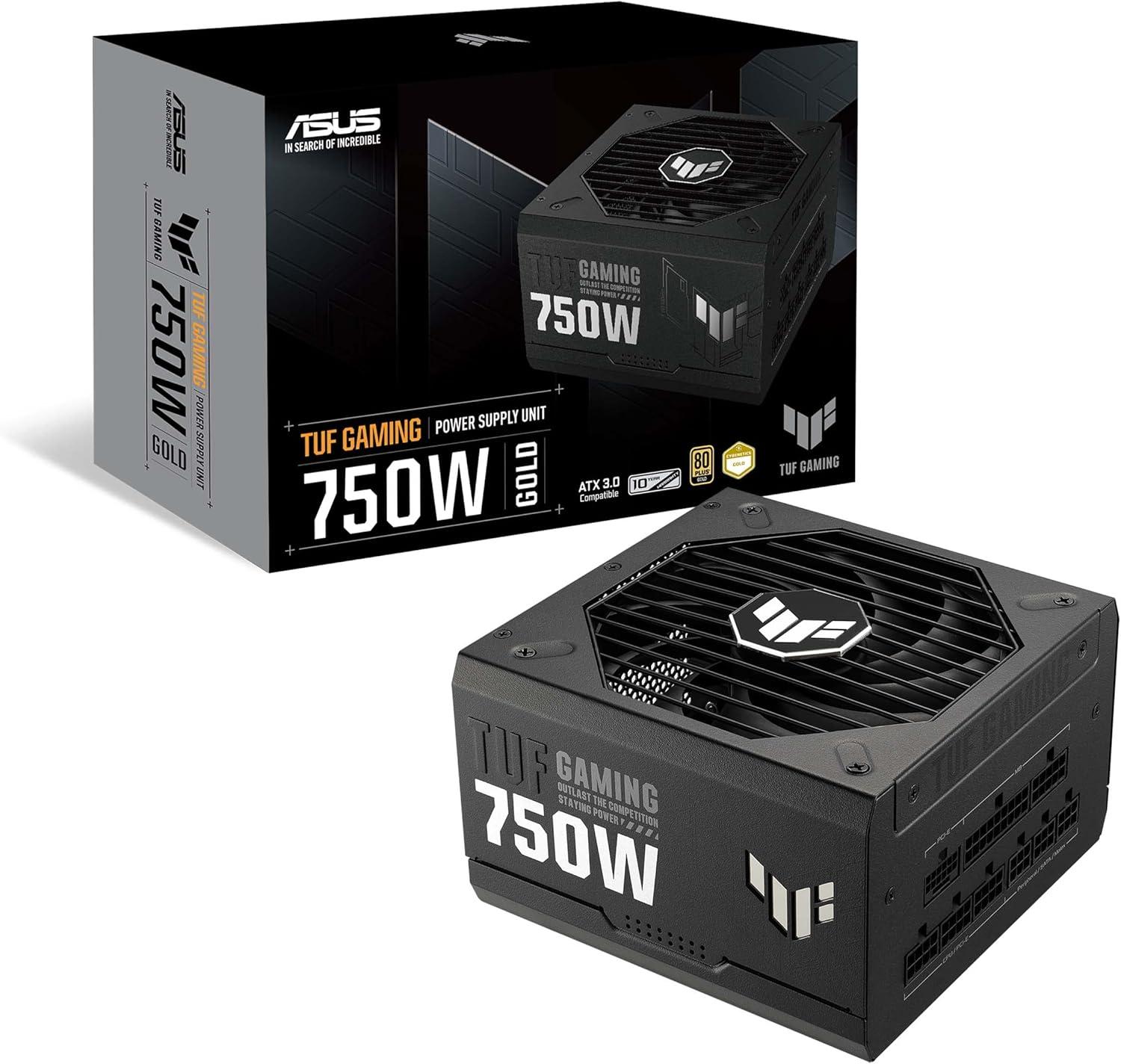

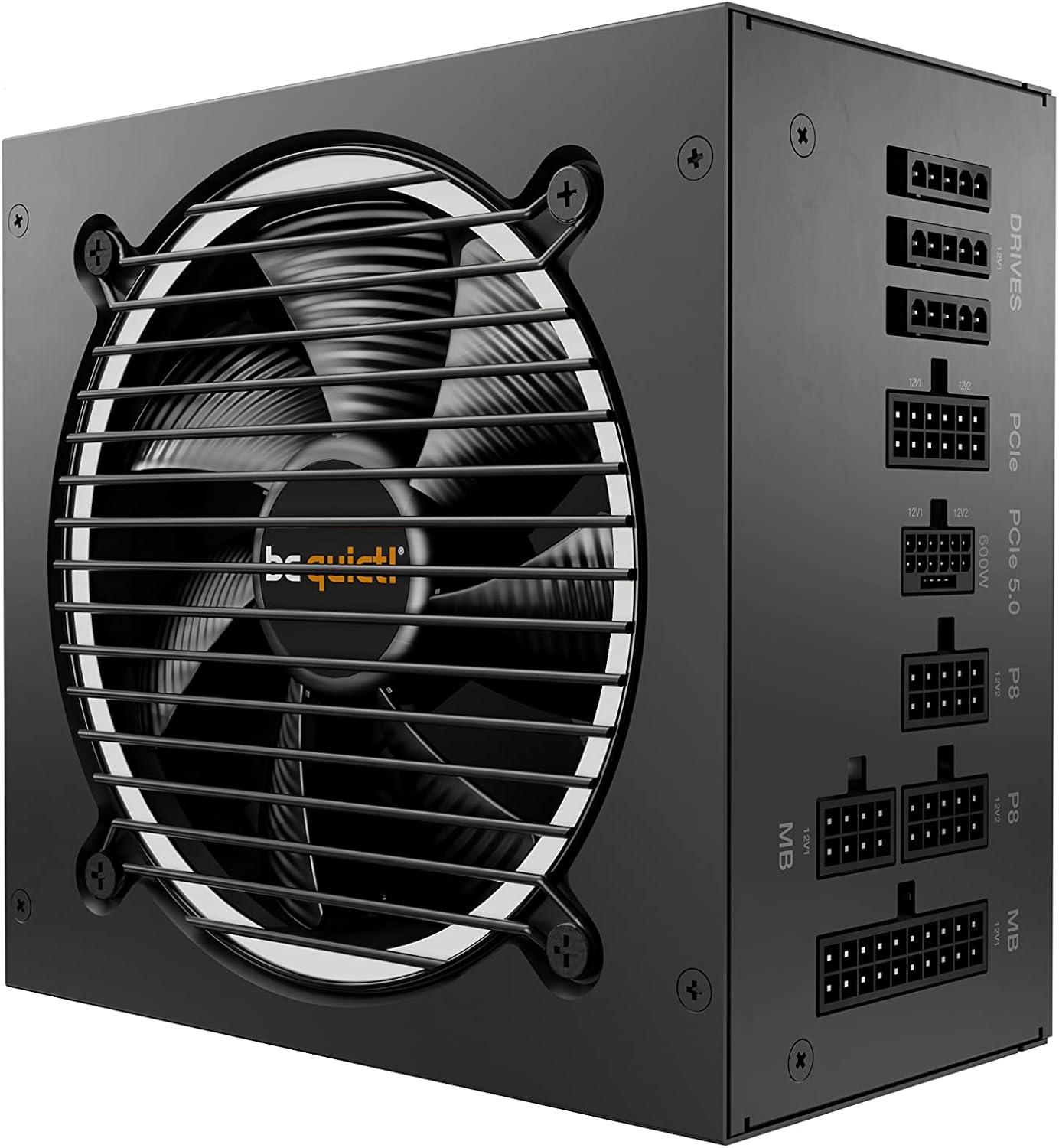

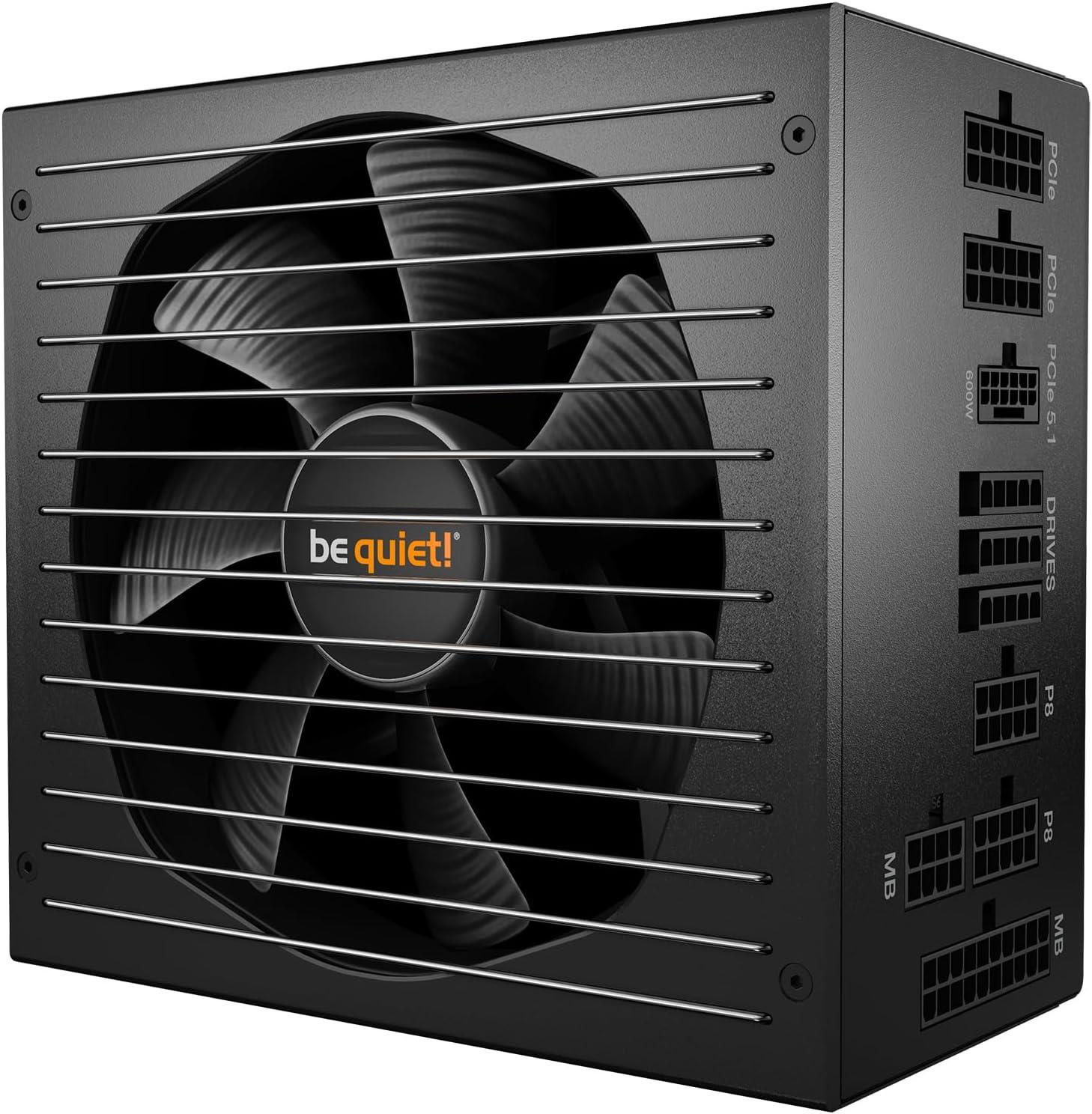

| Manufacturer | ASUS | be quiet! | be quiet! | Thermaltake | be quiet! | Corsair | ASUS | ASUS | ASUS |
| Wattage | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W |
| Ver. / FF | 3.1 / SFX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 2.4 / ATX |
| Efficiency | Platinum (93%) | Platinum (93%) | Gold (92%) | Platinum (92%) | Gold (92%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) |
| 12V Rails | 1 / 62 A | 1 / 63 A | 1 / 62 A | 1 / 62 A | 2 / 36 A | 1 / 62 A | 1 / 62 A | 1 / 62 A | 1 / 62 A |
| 12V/5V/3.3V | 62 A / 20 A / 20 A | 62 A / 25 A / 25 A | 62 A / 20 A / 20 A | 62 A / 20 A / 20 A | 68 A / 20 A / 20 A | 62 A / 20 A / 20 A | 62 A / 25 A / 25 A | 62 A / 22 A / 22 A | 62 A / 20 A / 20 A |
| Fan Size | 120 mm | 135 mm | 120 mm | 120 mm | 120 mm | 140 mm | 135 mm | 135 mm | 135 mm |
| Modular | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ✔️ | ❌ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 125 x 125 x 63.5 mm | 160 x 150 x 86 mm | 160 x 86 x 150 | 140mm(W)x86mm(H)x150mm(D) | 160 x 150 x 86 | 160x150x86 | 150 x 150 x 86 mm | 180 x 150 x 86 mm | 160 x 150 x 86 mm |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 750 W | 3.1 / SFX / True | Platinum, 93% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Platinum, 93% | 1 / 62.50 A | 62 A / 25 A / 25 A | 10 years | |
| 750 W | 3.1 / ATX / False | Gold, 92% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.0 / ATX / True | Platinum, 92% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 92% | 2 / 36.00 A | 68 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years | |
| 750 W | 3.1 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 25 A / 25 A | 10 years | |
| 750 W | 3.0 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 22 A / 22 A | 10 years | |
| 750 W | 2.4 / ATX / True | Gold, 91% | 1 / 62.00 A | 62 A / 20 A / 20 A | 10 years |
