ASUS ROG Strix 1200W Gold Aura Edition Review & Specifications

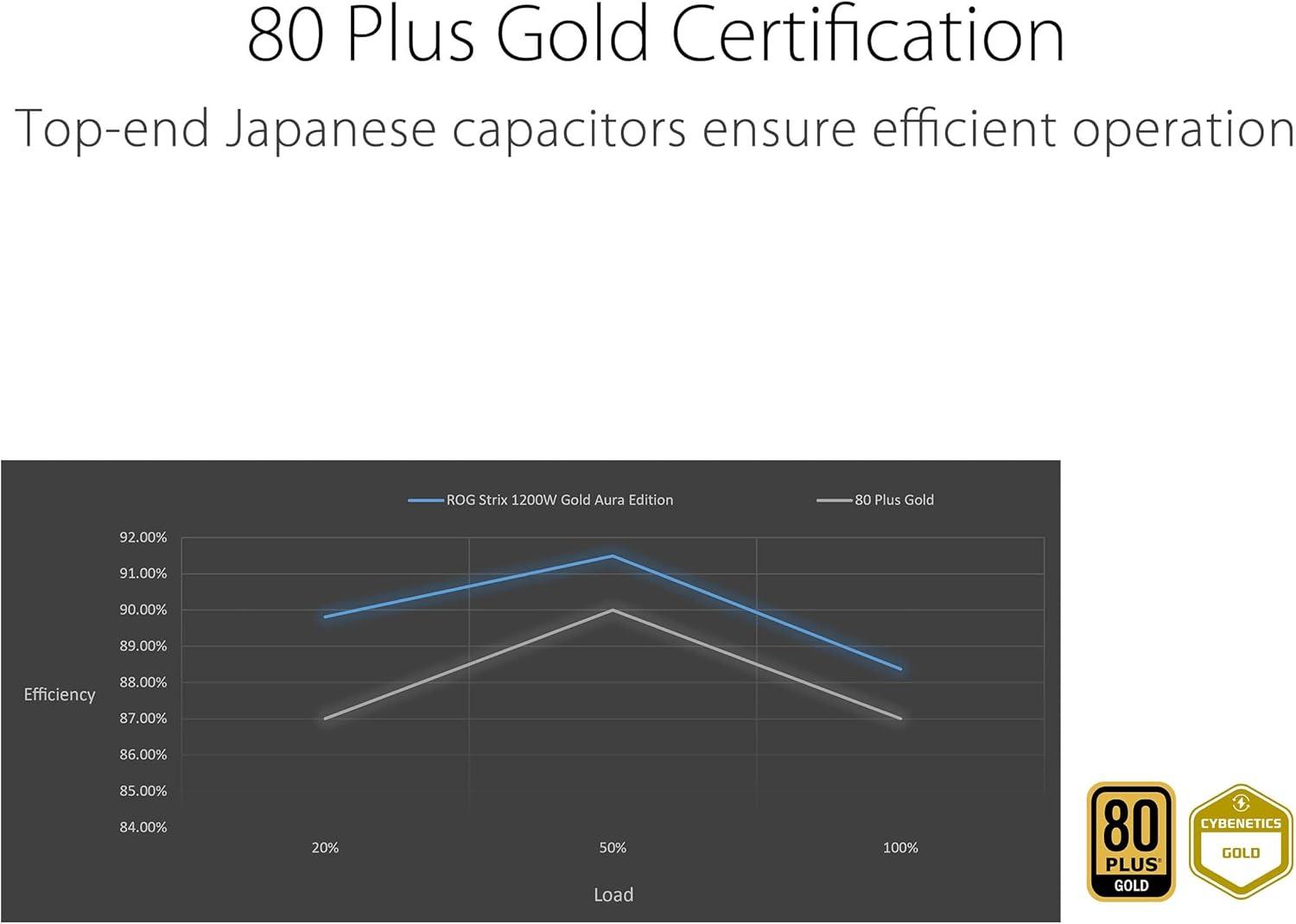

The ASUS ROG Strix 1200W Gold Aura Edition by ASUS is a power supply unit that provides 1200 watts of power output. This unit follows the 3.0 standard and comes in a ATX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 91%. It features a 135 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:
- 100 A on the 12V rail (1 rail(s))
- 22 A on the 5V rail
- 22 A on the 3.3V rail
Power Supply Performance
The ASUS ROG Strix 1200W Gold Aura Edition is classified as a very high power PSU, suitable for extreme gaming rigs and professional workstation setups. It is designed to support ultra high TDP CPUs and multiple high-end GPUs that demand high sustained power delivery and stability under full load.
This PSU provides a very high efficiency of 91%, rated as Gold. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 10-year warranty suggests strong build quality and long-term reliability.
From a cost-efficiency standpoint, this PSU offers low value, with a high cost of $427.4 per kilowatt. However, it compensates with high performance and top-tier efficiency, which justifies the premium for users seeking maximum reliability and power delivery. Enthusiast builders and professionals may still find it worthwhile despite the cost.
General Information
| Manufacturer | ASUS |
|---|---|
| Power Supply Name | ASUS ROG Strix 1200W Gold Aura Edition |
| Current Price Amazon | $513❗N/A |
| Amazon Price Updated | 2 months, 1 week ago. |
| Power Supply Available | False |
Specification
| Power Output | 1200 W |
|---|---|
| ATX Version / Form Factor | 3.0 / ATX |
| Certifications | 80 PLUS Gold |
| Efficiency Rating | Gold |
| Modular / Fanless | True / False |
| Fan Size / Fan Stop | 135 mm / True |
| Dimensions | 180 x 150 x 86 mm |
| Warranty | 10 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 100 A / 22 A / 22 A |
| Maximum Efficiency | 91% |
| Price per kW | 427.4 USD/kW |
ASUS ROG Strix 1200W Gold Aura Edition Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$110
|
0.0%
|
84.6%
|
77.0%
|
91.6
91.6
|
|
|
$175
|
0.0%
|
84.3%
|
48.2%
|
145.8
145.8
|
|
|
$513
|
↑
51.3%
|
84.3%
|
16.4%
|
427.4
427.4
|
|
|
$140
|
↓
-12.0%
|
84.3%
|
60.2%
|
116.7
116.7
|
|
|
$170
|
↑
11.8%
|
84.3%
|
49.6%
|
141.7
141.7
|
|
|
$227
|
0.0%
|
84.3%
|
37.1%
|
189.2
189.2
|
|
|
$150
|
↓
-25.0%
|
83.9%
|
56.0%
|
125.0
125.0
|
|
|
$179
|
↓
-6.8%
|
83.9%
|
46.9%
|
149.2
149.2
|
|
|
$88
|
0.0%
|
83.1%
|
94.9%
|
103.1
103.1
|
PSU Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$110
0.0%
|
$175
0.0%
|
$513❗
↑
51.3%
|
$140
↓
-12.0%
|
$170
↑
11.8%
|
$227
0.0%
|
$150
↓
-25.0%
|
$179❗
↓
-6.8%
|
$88❗
0.0%
|
| Price per kW | 91.6 USD/kW | 145.8 USD/kW | 427.4 USD/kW | 116.7 USD/kW | 141.7 USD/kW | 189.2 USD/kW | 125.0 USD/kW | 149.2 USD/kW | 103.1 USD/kW |
| Manufacturer | MONTECH | LIAN LI | ASUS | NZXT | Corsair | ASUS | Thermaltake | THERMALTAKE | Sea Sonic Electronics Co., Ltd. |
| Wattage | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W | 850 W |
| Ver. / FF | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / ATX | 3.0 / ATX | 3.0 / ATX | 3.0 / ATX |
| Efficiency | Gold (92%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (91%) | Gold (90%) | Gold (90%) | Platinum (92%) |
| 12V Rails | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 100 A | 1 / 70 A |
| 12V/5V/3.3V | 100 A / 20 A / 20 A | 100 A / 20 A / 20 A | 100 A / 22 A / 22 A | 100 A / 22 A / 22 A | 100 A / 20 A / 20 A | 100 A / 25 A / 25 A | 100 A / 20 A / 20 A | 100 A / 22 A / 22 A | 70 A / 20 A / 20 A |
| Fan Size | 135 mm | 120 mm | 135 mm | 135 mm | 140 mm | 135 mm | 120 mm | 135 mm | 135 mm |
| Modular | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 140 x 150 x 86 | (D)182 mm X (W)86 mm X (H)150 mm | 180 x 150 x 86 mm | 135 x 135 x 25 mm | 180mm x 150mm x 86mm | 150 x 150 x 86 mm | 150mm(W)x86mm(H)x140mm(D) | 150mm(W) x 86mm(H) x 160mm(D) | 160 × 150 × 86 mm |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 10 years | 12 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 1200 W | 3.1 / ATX / True | Gold, 92% | 1 / 100.00 A | 100 A / 20 A / 20 A | 10 years | |
| 1200 W | 3.1 / ATX / True | Gold, 91% | 1 / 100.00 A | 100 A / 20 A / 20 A | 10 years | |
| 1200 W | 3.0 / ATX / True | Gold, 91% | 1 / 100.00 A | 100 A / 22 A / 22 A | 10 years | |
| 1200 W | 3.1 / ATX / True | Gold, 91% | 1 / 100.00 A | 100 A / 22 A / 22 A | 10 years | |
| 1200 W | 3.0 / ATX / True | Gold, 91% | 1 / 100.00 A | 100 A / 20 A / 20 A | 10 years | |
| 1200 W | 3.1 / ATX / True | Gold, 91% | 1 / 100.00 A | 100 A / 25 A / 25 A | 10 years | |
| 1200 W | 3.0 / ATX / True | Gold, 90% | 1 / 100.00 A | 100 A / 20 A / 20 A | 10 years | |
| 1200 W | 3.0 / ATX / True | Gold, 90% | 1 / 100.00 A | 100 A / 22 A / 22 A | 10 years | |
| 850 W | 3.0 / ATX / True | Platinum, 92% | 1 / 70.00 A | 70 A / 20 A / 20 A | 12 years |
