Cooler Master · 1600 W · ATX

Cooler Master V Platinum 1600 V2

ATX 3.1 · 80 PLUS Platinum · Modular

Capability: 99
Cap / price: 22
Wattage value: 29
Amazon: $441

View Cooler Master V Platinum 1600 V2 Gallery in high resolution

Not currently available Updated Jul 17, 2026

Capability98.6

Capability / price22.3

Wattage value29.0

$441 on Amazon PSU table Compare this PSU

Size this PSU for a complete buildThe Builder unlocks PSU choices after it knows the CPU, GPU, case format, and estimated demand. Calculate build power first

Written analysis

Cooler Master V Platinum 1600 V2 at a glance

The Cooler Master V Platinum 1600 V2 is a 1600 W ATX power supply built to the ATX 3.1 generation. Efficiency is listed as 80 PLUS Platinum. Cables are modular. It supports fan-stop at low load.

The calculated capability score is 98.6, averaging the available wattage, recorded efficiency percentage, and warranty inputs against fixed references. Listed warranty is 12 years. +12V output is 133 A.

Best fit: Systems whose component power budget calls for a supply rated at 1000 W or more.

Platform and cooling

Dimensions are listed as 160 x 150 x 86 mm . Cooling fan size is 135 mm. The unit uses 1 +12V rail at up to 133.00 A per rail. Certifications include 80 PLUS® Platinum.

Current value

At $441, price per kilowatt is $275.90. Capability / price is 22.3 and wattage value is 29.0. Compare nearby supplies below; wattage alone does not determine value.

Unit data

Full specifications

Wattage, efficiency, platform size, electrical outputs, connectors, cooling, and value in one technical sheet.

General

Manufacturer: Cooler Master
PSU: Cooler Master V Platinum 1600 V2
Launch price: —
Amazon price: $441
Amazon availability: Not currently available
Price updated: Jul 17, 2026

Power & efficiency

Wattage: 1600 W

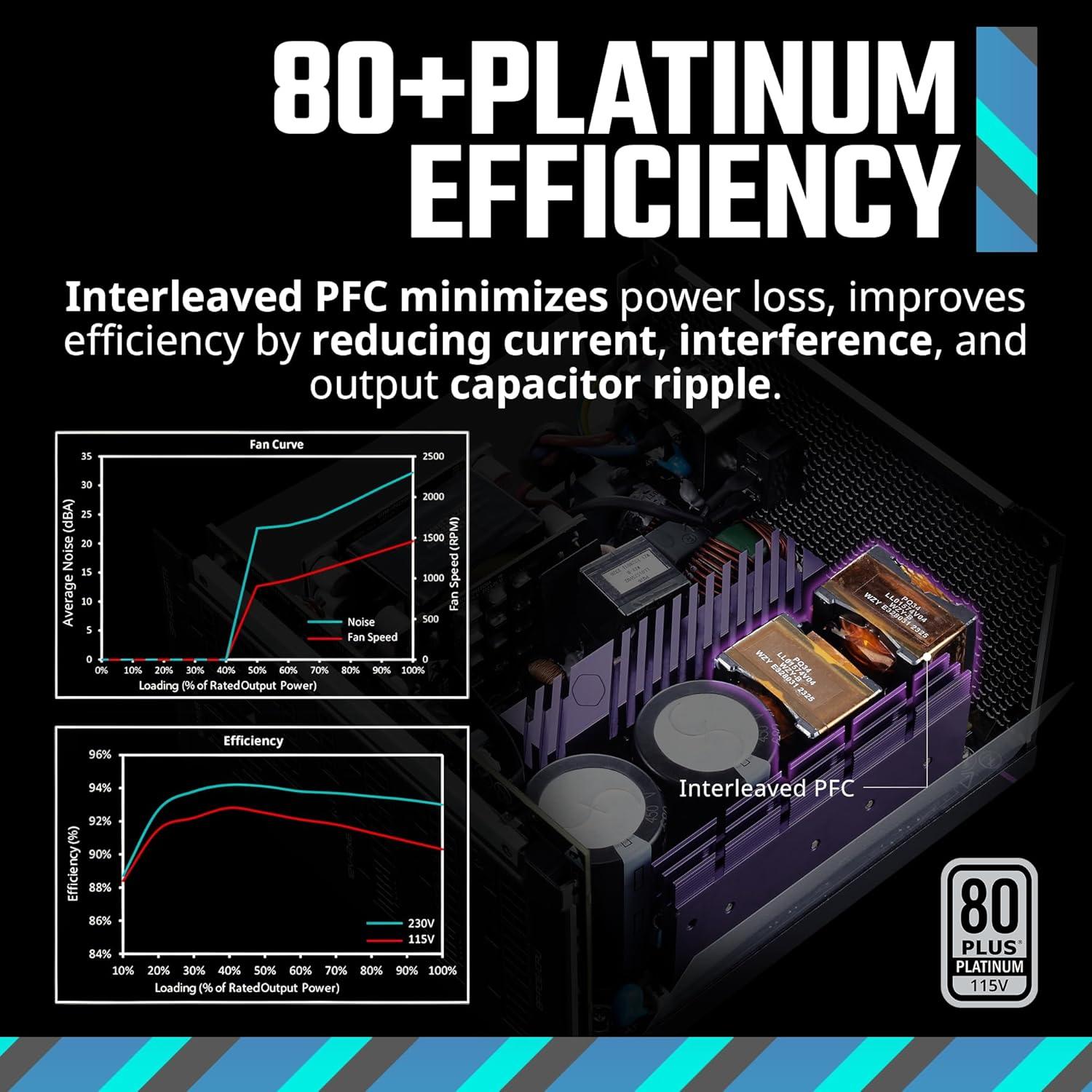

Efficiency: 80 PLUS Platinum
Recorded efficiency: 93%
Warranty: 12 years

Value

Amazon price: $441
Price / kW: $275.90
Capability: 98.6
Capability / price: 22.3
Wattage value: 29.0

Platform & size

ATX generation: 3.1
Form factor: ATX
Dimensions: 160 x 150 x 86 mm

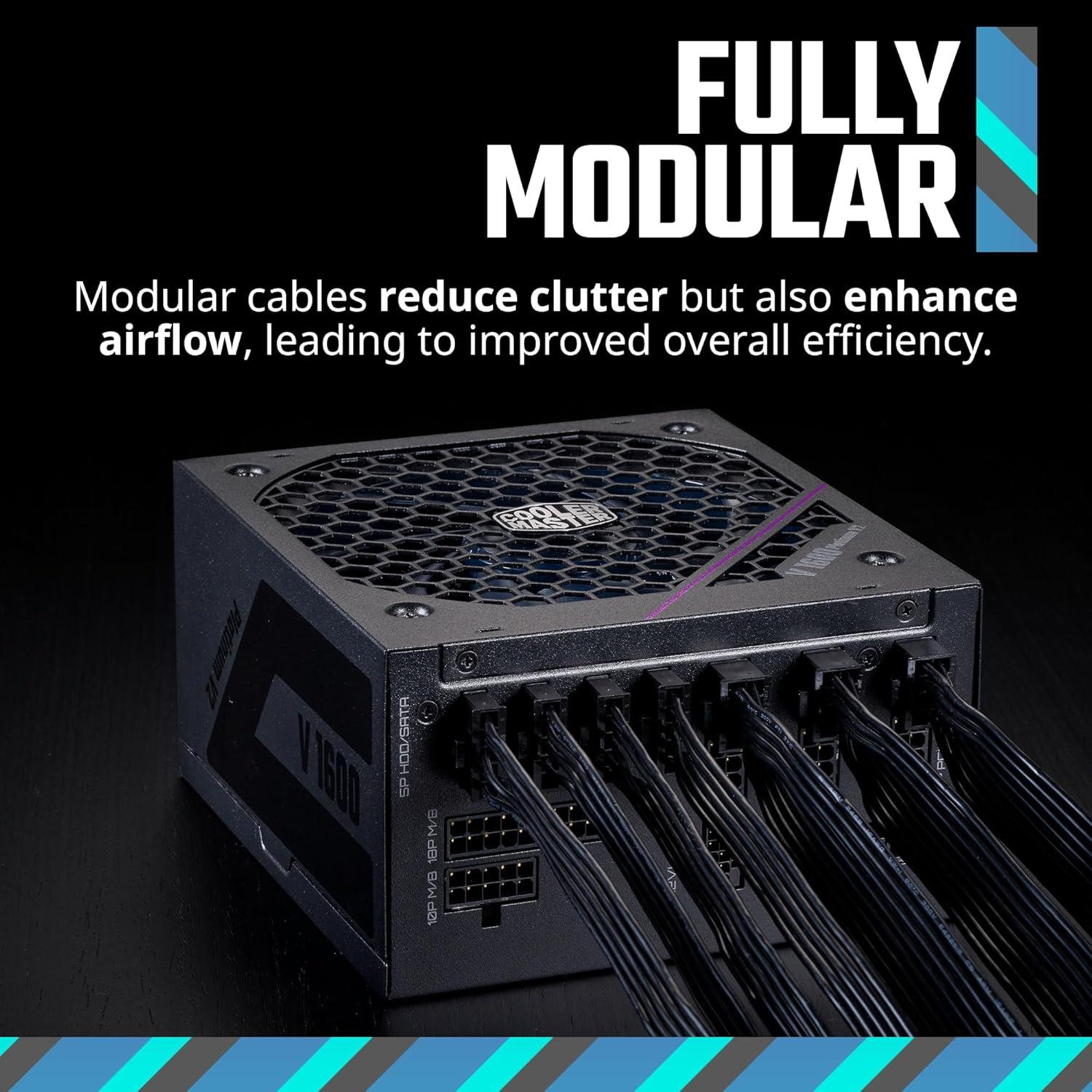

Modular: Yes
Fanless: No

Electrical

Input voltage: 100-240
+12V output: 133 A
+5V output: 20 A
+3.3V output: 20 A
+12V rails: 1
Max amps / rail: 133.00 A

Cooling & build

Fan size: 135 mm
Fan stop: Yes
Certifications: 80 PLUS® Platinum

Additional information

Also listed as: Platinum 1600 V2
Color: Black

Amazon

Price history

Nearby capability

Similar PSUs

Power supplies close to Cooler Master V Platinum 1600 V2 on calculated capability. Open the PSU table to sort, filter, and compare side by side.

Corsair Corsair HX1500i 1500 W · ATX · Modular

91.1

26.0

34.3

$350

Cooler Master Cooler Master X Silent Edge Platinum 850 Fanless 850 W · ATX · Modular

91.5

14.5

10.8

$631

MSI MSI MEG Ai1300P 1300 W · ATX · Modular

92.2

26.3

29.7

$350

Seasonic Seasonic Prime TX-1300 1300 W · ATX · Modular

92.9

23.2

26.0

$400

Thermaltake Thermaltake Toughpower GF3 1650W 1650 W · ATX · Modular

93.0

30.1

42.7

$309

Seasonic Seasonic PRIME PX-1600 1600 W · ATX · Modular

98.3

19.7

25.6

$500

Cooler Master Cooler Master V Platinum 1600 V2 This PSU

98.6

22.3

29.0

$441

MSI MSI MEG Ai1600T 1600 W · ATX · Modular

99.0

16.0

20.7

$619

Seasonic Seasonic Prime TX-1600 1600 W · ATX · Modular

99.0

17.7

22.9

$560

Compare these in the PSU table

Discussion

Comments on Cooler Master V Platinum 1600 V2

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

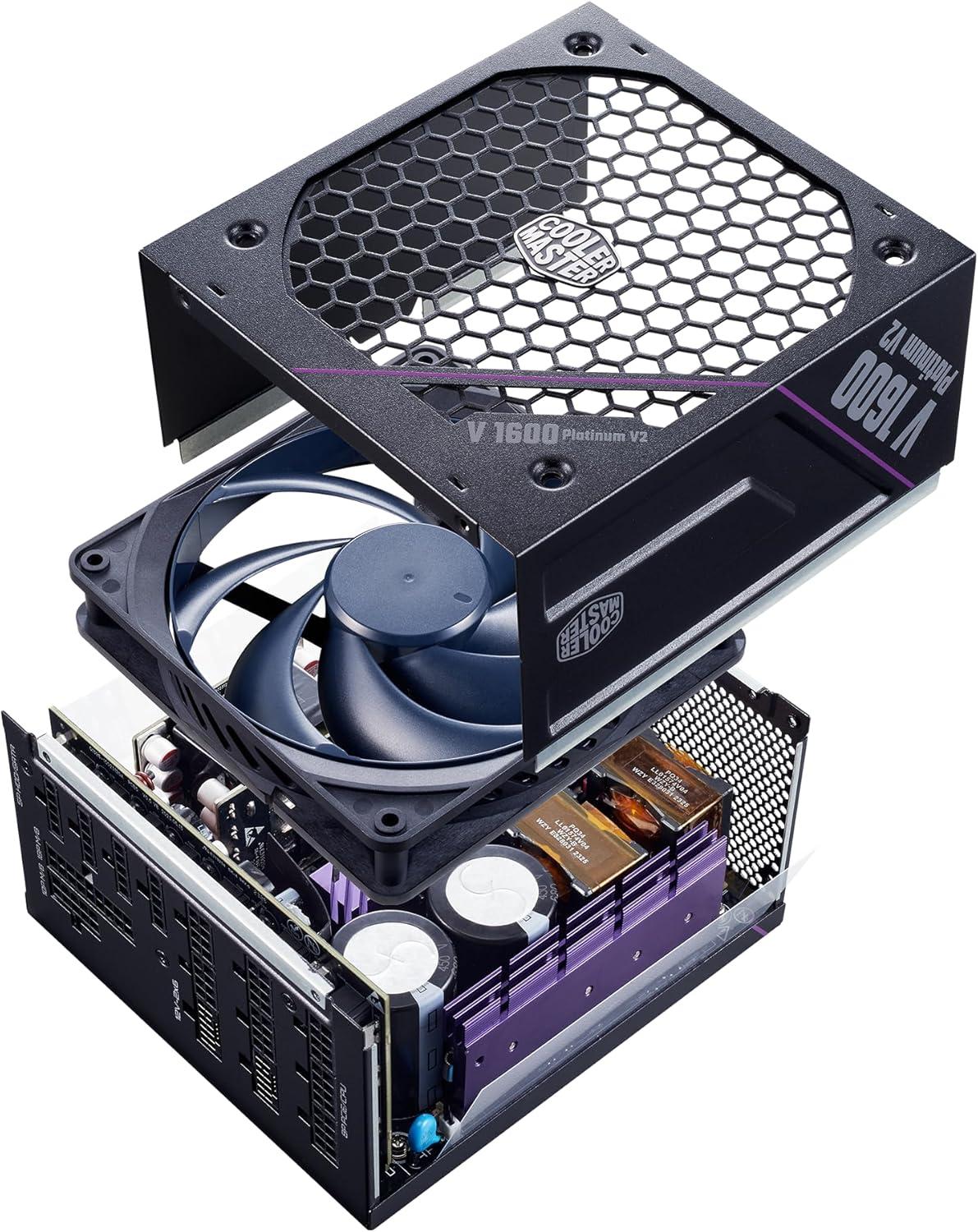

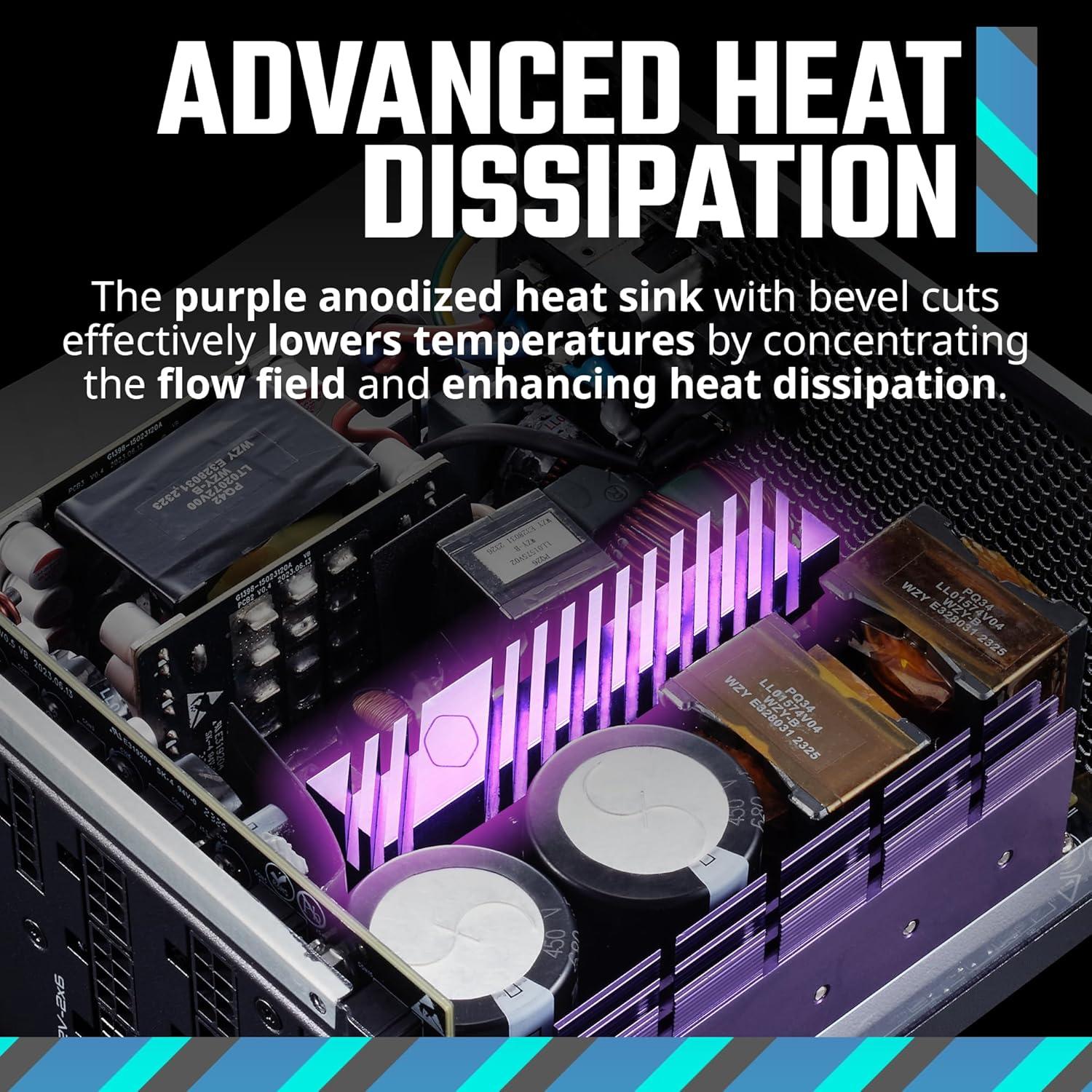

Advanced Heat Dissipation: The purple anodized heat sink with bevel cuts effectively lowers temperatures by concentrating the flow field and enhancing heat dissipation.

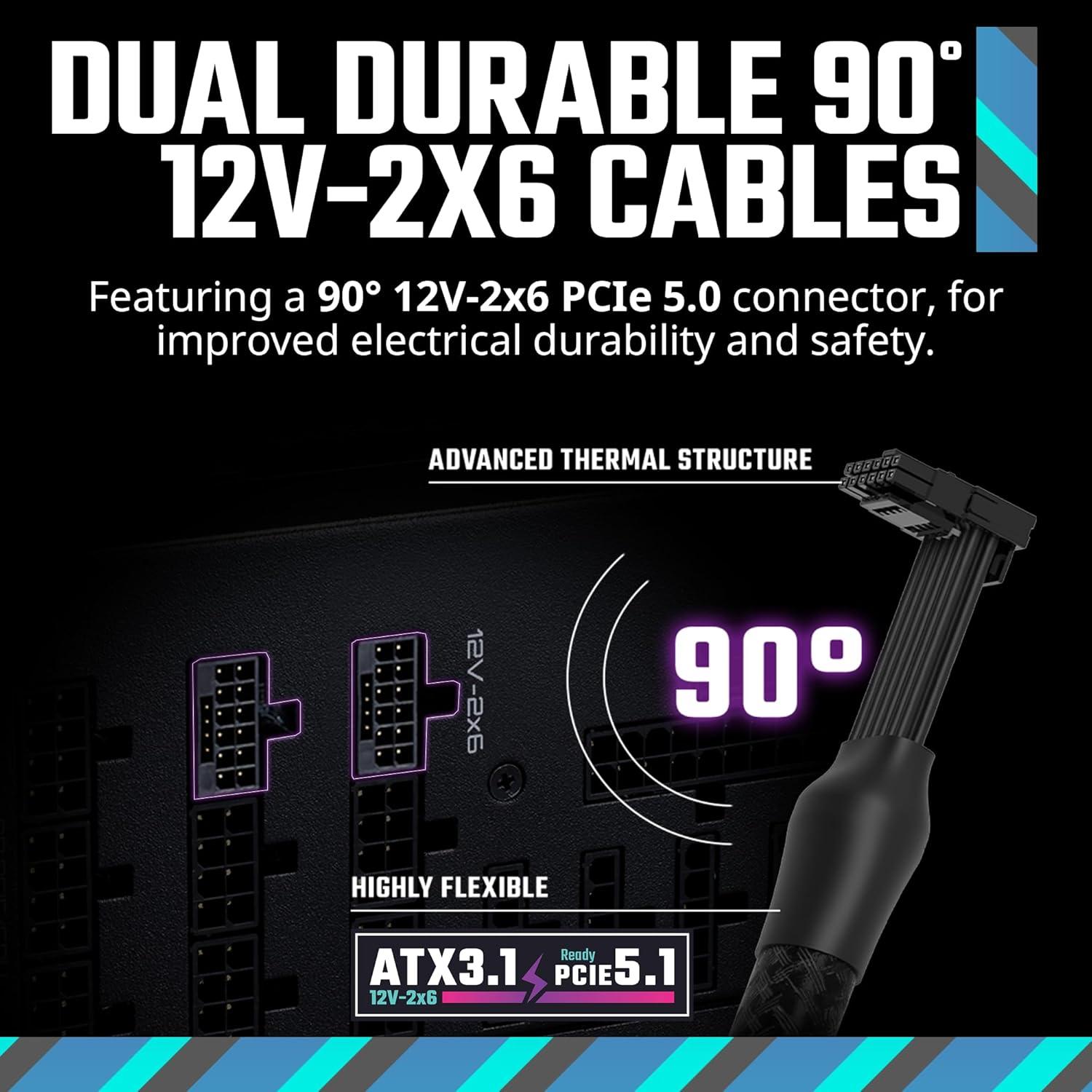

Dual Durable 90° 12v-2X6 Cables: Featuring a 90° 12V-2x6 PCIe 5.0 connector, for improved electrical durability and safety.

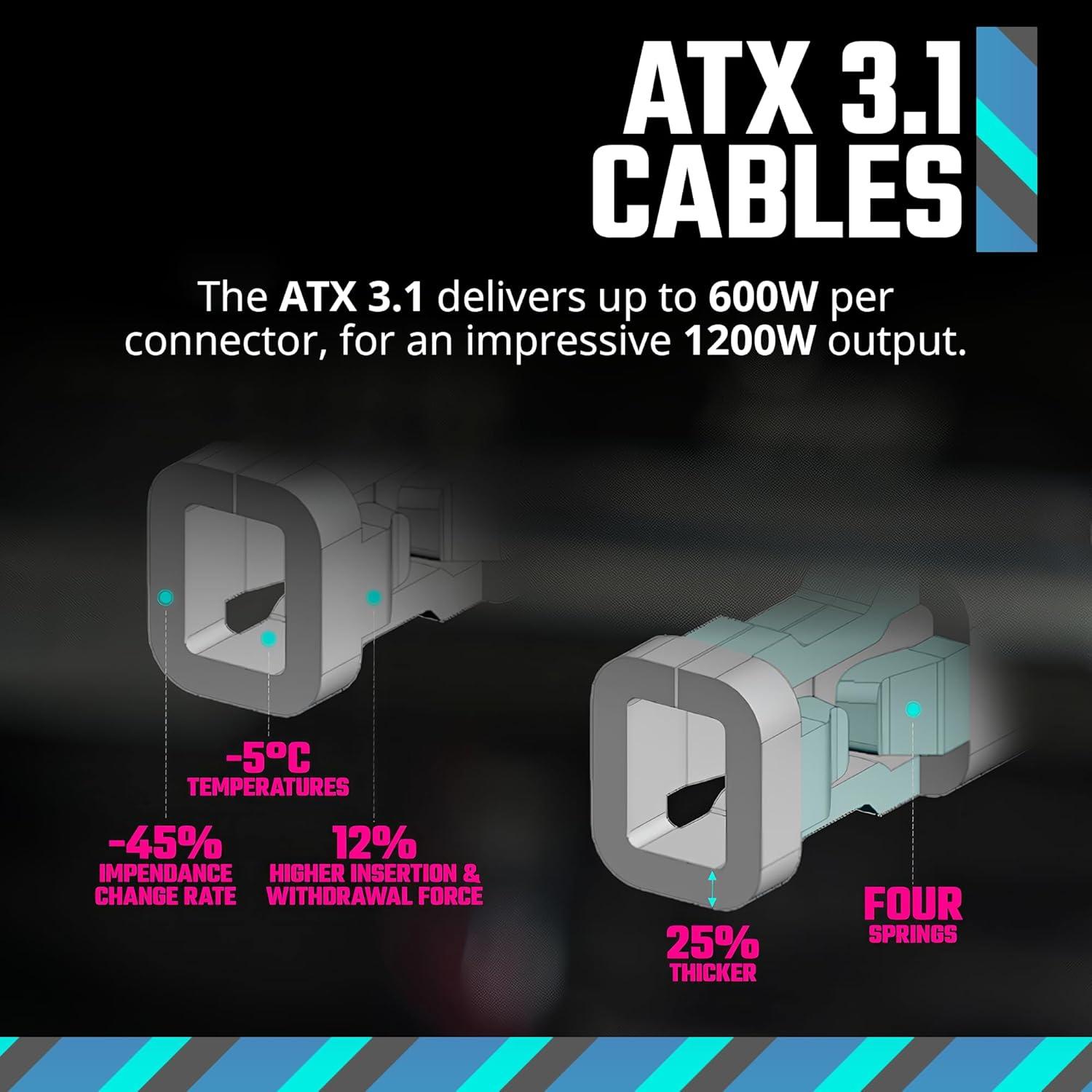

ATX 3.1 Cables: The ATX 3.1 delivers up to 600W per connector, for an impressive 1200W output.

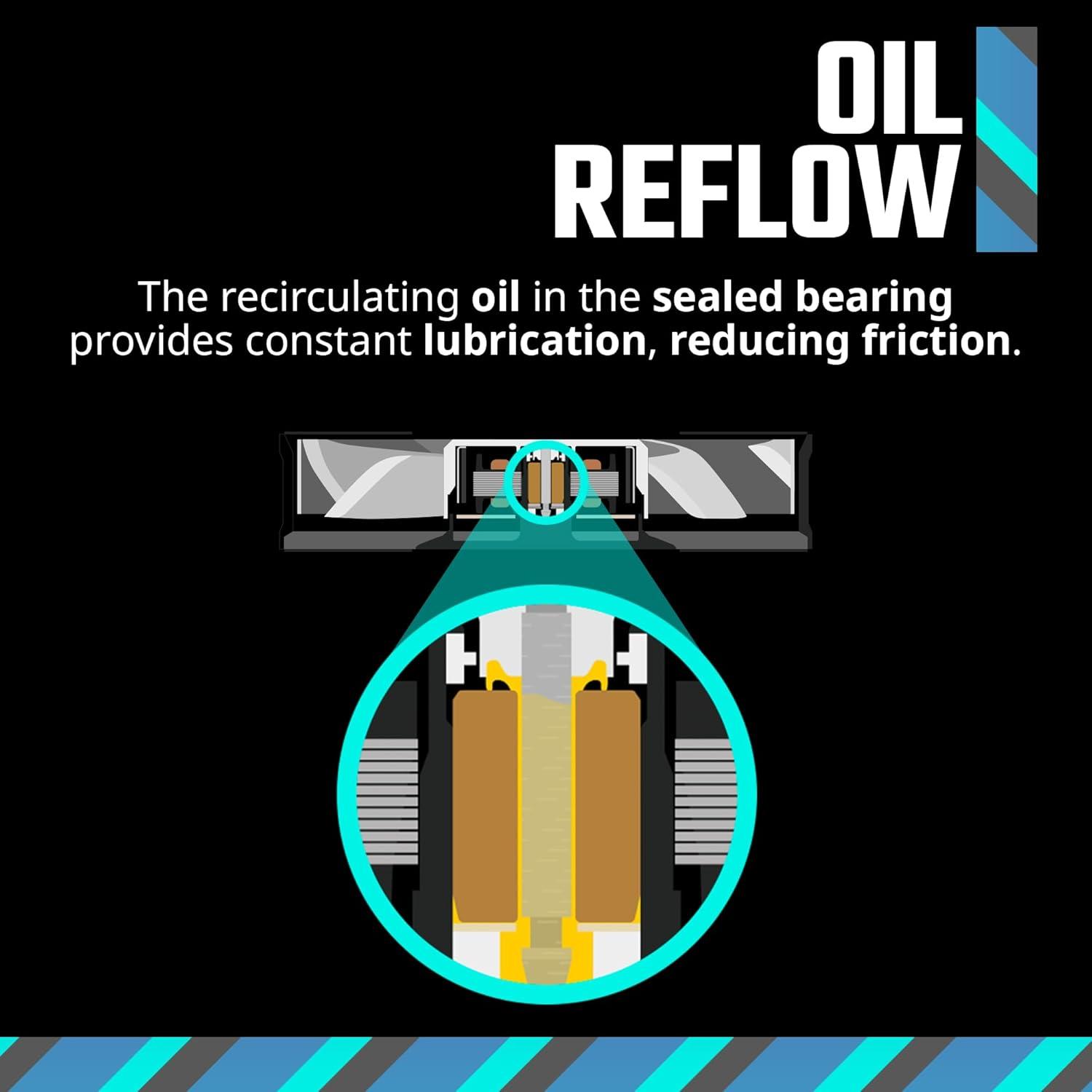

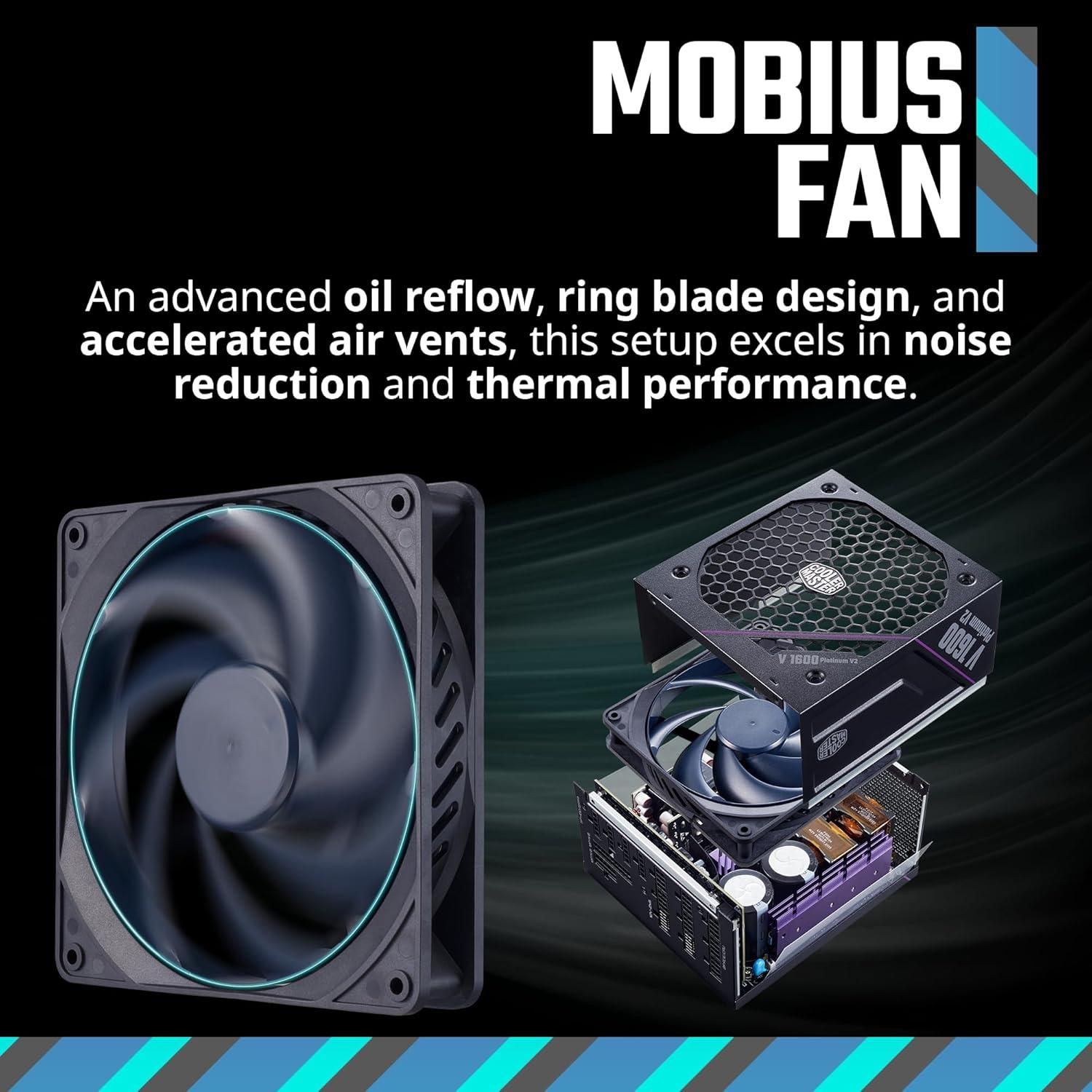

Mobius Fan: An advanced oil reflow, ring blade design, and accelerated air vents, this setup excels in noise reduction and thermal performance.

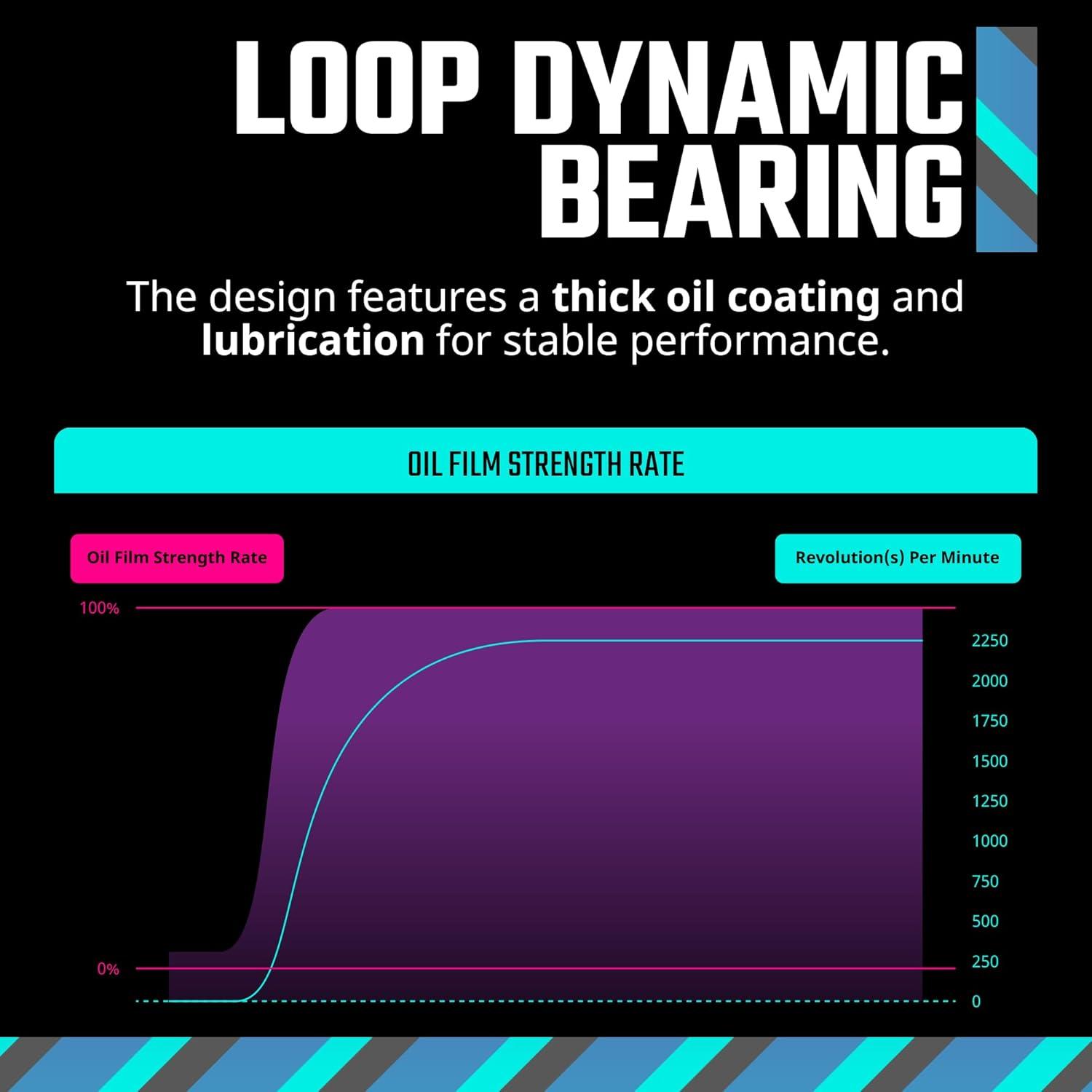

Loop Dynamic Bearing: The design features a thick oil coating and lubrication for stable performance.

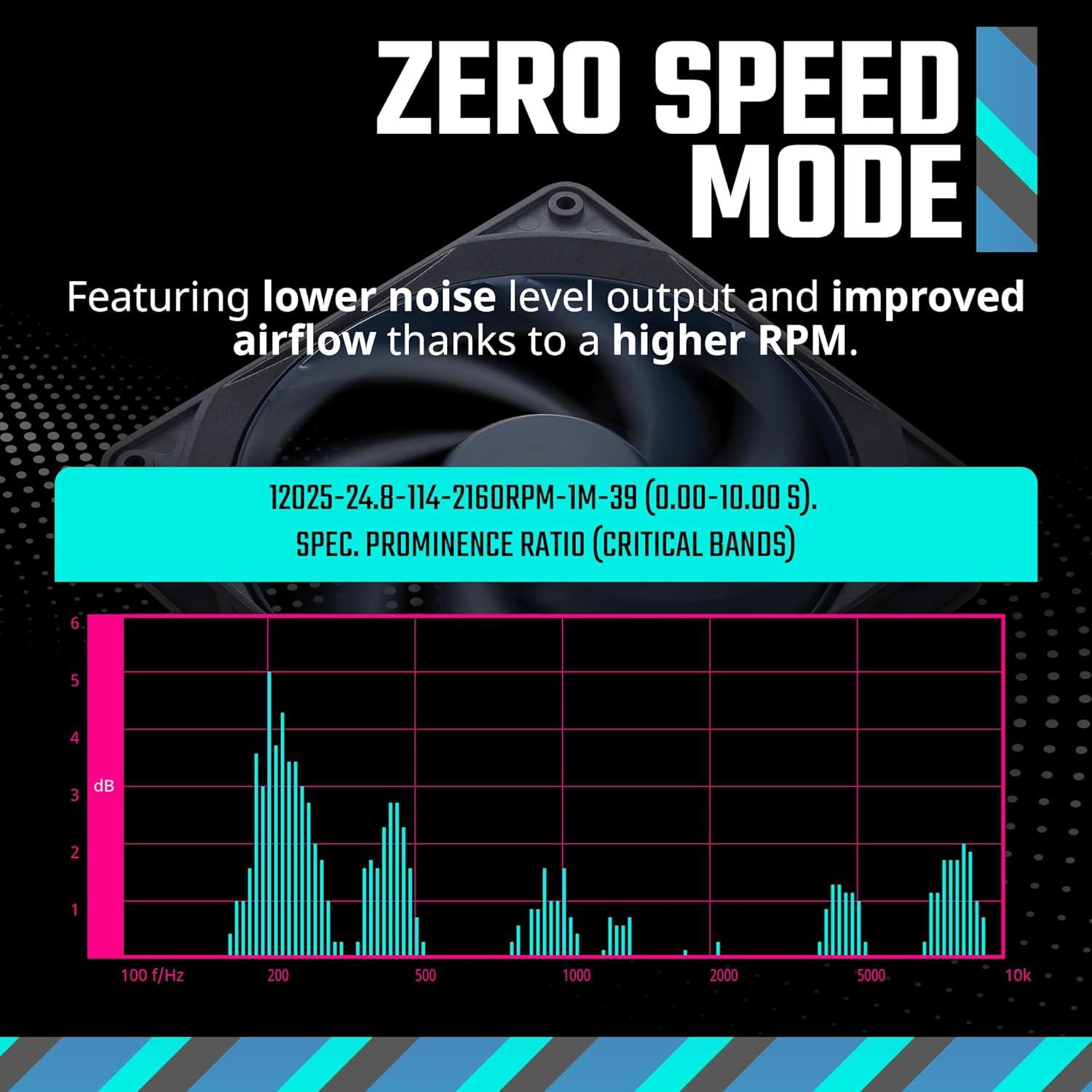

Zero Speed Mode: Featuring lower noise level output and improved airflow thanks to a higher RPM.
