MSI MAG A600DN
MSI MAG A600DN Review & Specifications

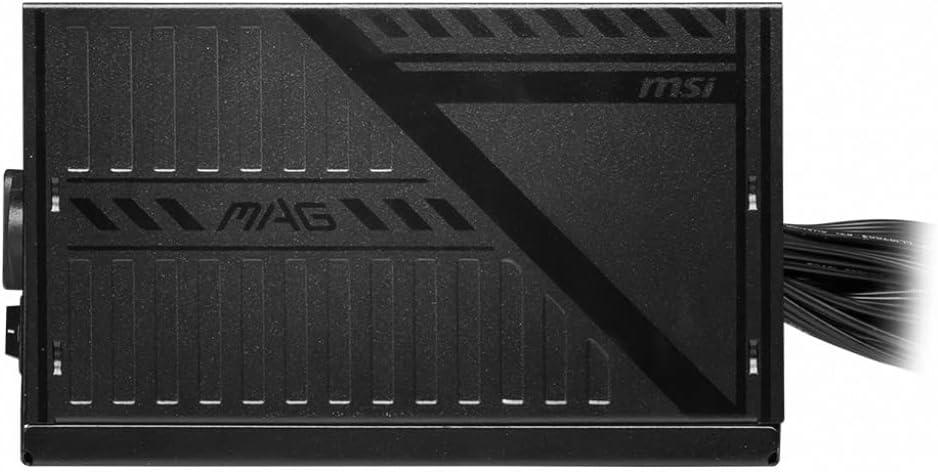

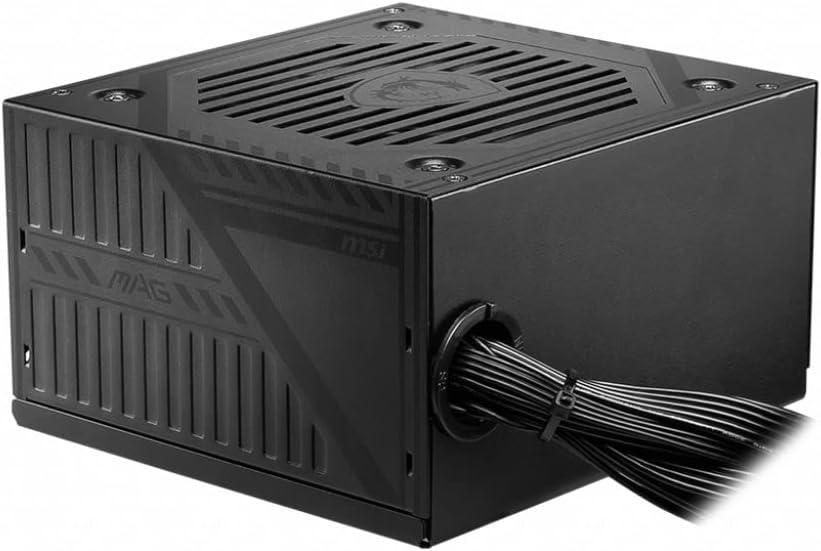

The MSI MAG A600DN by MSI is a power supply unit that provides 600 watts of power output. This unit follows the 2.3 standard and comes in a ATX size. It is certified with 80 PLUS® Standard and rated at 80 PLUS efficiency, reaching a peak efficiency of 81%. It features a 120 mm cooling fan , and is actively cooled. This PSU is non-modular . It delivers:
- 50 A on the 12V rail (2 rail(s))
- 14 A on the 5V rail
- 14 A on the 3.3V rail
Power Supply Performance
The MSI MAG A600DN is a mid-range power supply, suitable for mainstream gaming builds and entry-level workstation setups. It offers enough capacity for systems using efficient CPUs and mid-tier graphics cards, striking a good balance between efficiency and power needs.
This PSU has a lower efficiency rating of 81%, typically found in budget-oriented models. While it may suffice for basic systems, it is less efficient and may result in higher energy loss and heat generation. Such models often come with shorter warranties and are generally recommended for low-power or temporary builds.
This PSU delivers excellent value, with a competitive cost of only $76.7 per kilowatt. While it may not offer high-end performance, it is still recommended at this price point due to its outstanding cost-effectiveness and suitability for entry-level or low-power systems.
General Information
| Manufacturer | MSI |
|---|---|
| Power Supply Name | MSI MAG A600DN |
| Current Price Amazon | $46❗N/A |
| Amazon Price Updated | 7 months, 2 weeks ago. |
| Power Supply Available | False |
Specification
| Power Output | 600 W |
|---|---|
| ATX Version / Form Factor | 2.3 / ATX |
| Certifications | 80 PLUS® Standard |
| Efficiency Rating | 80 PLUS |
| Modular / Fanless | False / False |
| Fan Size / Fan Stop | 120 mm / False |
| Dimensions | 150mm x 140mm x 86mm |
| Warranty | 3 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 2 |
| Output 12V / 5V / 3.3V | 50 A / 14 A / 14 A |
| Maximum Efficiency | 81% |
| Price per kW | 76.7 USD/kW |
MSI MAG A600DN Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$80
|
↑
33.3%
|
57.2%
|
71.5%
|
123.1
123.1
|
|
|
$120
|
↑
100.0%
|
57.2%
|
47.6%
|
184.6
184.6
|
|
|
$150
|
↑
0.0%
|
56.6%
|
37.7%
|
272.8
272.8
|
|
|
$69
|
↓
-1.4%
|
56.2%
|
81.5%
|
125.5
125.5
|
|
|
$43
|
0.0%
|
55.3%
|
128.6%
|
79.6
79.6
|
|
|
$48
|
0.0%
|
55.1%
|
114.9%
|
87.3
87.3
|
|
|
$64
|
0.0%
|
55.1%
|
86.3%
|
116.1
116.1
|
|
|
$40
|
0.0%
|
52.5%
|
131.3%
|
95.2
95.2
|
|
|
$46
|
0.0%
|
49.2%
|
106.9%
|
76.7
76.7
|
PSU Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$80
↑
33.3%
|
$120❗
↑
100.0%
|
$150
↑
0.0%
|
$69
↓
-1.4%
|
$43
0.0%
|
$48❗
0.0%
|
$64❗
0.0%
|
$40
0.0%
|
$46❗
0.0%
|
| Price per kW | 123.1 USD/kW | 184.6 USD/kW | 272.8 USD/kW | 125.5 USD/kW | 79.6 USD/kW | 87.3 USD/kW | 116.1 USD/kW | 95.2 USD/kW | 76.7 USD/kW |
| Manufacturer | Thermaltake | Thermaltake Technology Co., Ltd | be quiet! | Corsair | Thermaltake USA Direct | MSI | Thermaltake | Thermaltake USA Direct | MSI |
| Wattage | 650 W | 650 W | 550 W | 550 W | 540 W | 550 W | 550 W | 420 W | 600 W |
| Ver. / FF | 3.0 / ATX | 2.3 / ATX | 3.1 / ATX | 2.3 / ATX | 2.3 / ATX | 2.3 / ATX | 3.1 / ATX | 2.3 / ATX | 2.3 / ATX |
| Efficiency | Bronze (85%) | Bronze (85%) | Bronze (89%) | Gold (88%) | 80 PLUS (86%) | Bronze (85%) | Bronze (85%) | 80 PLUS (85%) | 80 PLUS (81%) |
| 12V Rails | 1 / 54 A | 1 / 54 A | 1 / 46 A | 1 / 44 A | 1 / 42 A | 1 / 45 A | 1 / 46 A | 1 / 35 A | 2 / 25 A |
| 12V/5V/3.3V | 54 A / 18 A / 18 A | 54 A / 20 A / 20 A | 45 A / 20 A / 20 A | 44 A / 20 A / 24 A | 42 A / 17 A / 22 A | 45 A / 20 A / 20 A | 46 A / 16 A / 16 A | 35 A / 15 A / 20 A | 50 A / 14 A / 14 A |
| Fan Size | 120 mm | 140 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Modular | ✔️ | ✔️ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Fan Stop | ✔️ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) | 150mm(W) x 86mm(H) x 160mm(D) | 150 x 140 x 86 mm | 4.92 x 5.91 x 3.39 inches | 150 x 85 x 140 mm | 150 x 140 x 86 mm | 150mm(W)x86mm(H)x140mm(D) | 150 x 85 x 140 mm | 150mm x 140mm x 86mm |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 3 years |
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 650 W | 3.0 / ATX / True | Bronze, 85% | 1 / 54.00 A | 54 A / 18 A / 18 A | 5 years | |
| 650 W | 2.3 / ATX / True | Bronze, 85% | 1 / 54.00 A | 54 A / 20 A / 20 A | 5 years | |
| 550 W | 3.1 / ATX / False | Bronze, 89% | 1 / 45.83 A | 45 A / 20 A / 20 A | 5 years | |
| 550 W | 2.3 / ATX / False | Gold, 88% | 1 / 44.00 A | 44 A / 20 A / 24 A | 5 years | |
| 540 W | 2.3 / ATX / False | 80 PLUS, 86% | 1 / 42.00 A | 42 A / 17 A / 22 A | 5 years | |
| 550 W | 2.3 / ATX / False | Bronze, 85% | 1 / 45.00 A | 45 A / 20 A / 20 A | 5 years | |
| 550 W | 3.1 / ATX / False | Bronze, 85% | 1 / 46.00 A | 46 A / 16 A / 16 A | 5 years | |
| 420 W | 2.3 / ATX / False | 80 PLUS, 85% | 1 / 35.00 A | 35 A / 15 A / 20 A | 5 years | |
| 600 W | 2.3 / ATX / False | 80 PLUS, 81% | 2 / 25.00 A | 50 A / 14 A / 14 A | 3 years |
