PNY · PCIe 4.0 · 1000 GB

PNY XLR8 CS3040 1TB

M.2 2280 · TLC NAND · DDR4-2400 CL17

Performance: 63
Perf / price: —
Capacity value: —
Amazon: —

Not currently available

Performance63.5

Performance / price—

Capacity value—

Add this SSD to a build Compare this SSD SSD table

Written analysis

PNY XLR8 CS3040 1TB at a glance

The PNY XLR8 CS3040 1TB is a 1000 GB M.2 2280 SSD using PCIe 4.0 x4, NVMe 1.4. The controller is Phison PS5016-E16-32. Flash type is TLC 96-layer. Cache is listed as DDR4-2400 CL17.

Rated sequential throughput is 5600 MB/s read and 4300 MB/s write. Random throughput is 420K read IOPS and 362K write IOPS. The calculated specification score is 63.5.

Best fit: General storage workloads where compatibility and price matter more than peak transfer rates.

Endurance and thermals

Rated endurance is 1800 TBW, or approximately 1800 TBW per TB of capacity. The listed warranty is 5 years.

Current value

Price and capacity are required for price per terabyte; complete throughput data is additionally required for value scores.

Drive data

Full specifications

Interface, flash, controller, cache, throughput, endurance, power, warranty, and value in one technical sheet.

General

Manufacturer: PNY
SSD: PNY XLR8 CS3040 1TB
Model: M280CS3040-1TB-RB
Capacity: 1000 GB
Form factor: M.2 2280
Launch price: —
Amazon price: —
Amazon availability: Not currently available

Performance

Sequential read: 5600 MB/s
Sequential write: 4300 MB/s
Random read: 420K IOPS
Random write: 362K IOPS

Value

Amazon price: —
Price / TB: —
Performance / price: —
Capacity value: —

Hardware & cache

Interface: PCIe 4.0 x4, NVMe 1.4
Interface generation: PCIe 4.0
Controller: Phison PS5016-E16-32
NAND: TLC 96-layer
Process: 28.0
Cache type: DDR4-2400 CL17
DRAM: DDR4-2400 CL17
DRAM capacity: 1024 MB
DRAM speed: 2400 MT/s
SLC cache: Dynamic

Durability & power

Endurance: 1800 TBW
Endurance / TB: 1800 TBW
Warranty: 5 years
Idle power: —
Active power: —

Additional information

Also listed as: XLR8 CS3040 1TB

Nearby performance

Similar SSDs

Drives close to PNY XLR8 CS3040 1TB on calculated specification performance. Open the SSD table to sort, filter, and compare side by side.

Western Digital WD Green SN3000 500GB 500 GB · PCIe 4.0 · QLC

63.1

97.7

48.8

$97

TEAMGROUP TEAMGROUP MP44L 1TB SLC Cache NVMe 1.4 PCIe Gen 4x4 1000 GB · PCIe 4.0 · TLC

63.4

54.3

$175

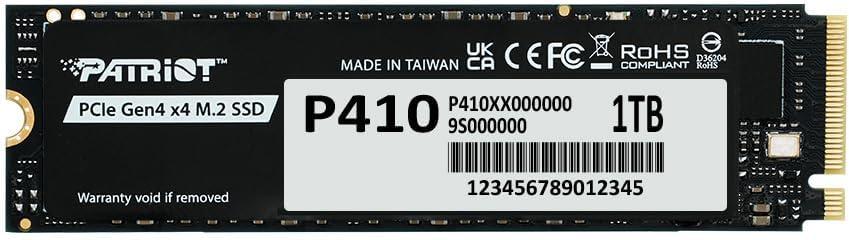

Patriot Patriot P410 1TB 1000 GB · PCIe 4.0 · TLC

63.4

57.7

$165

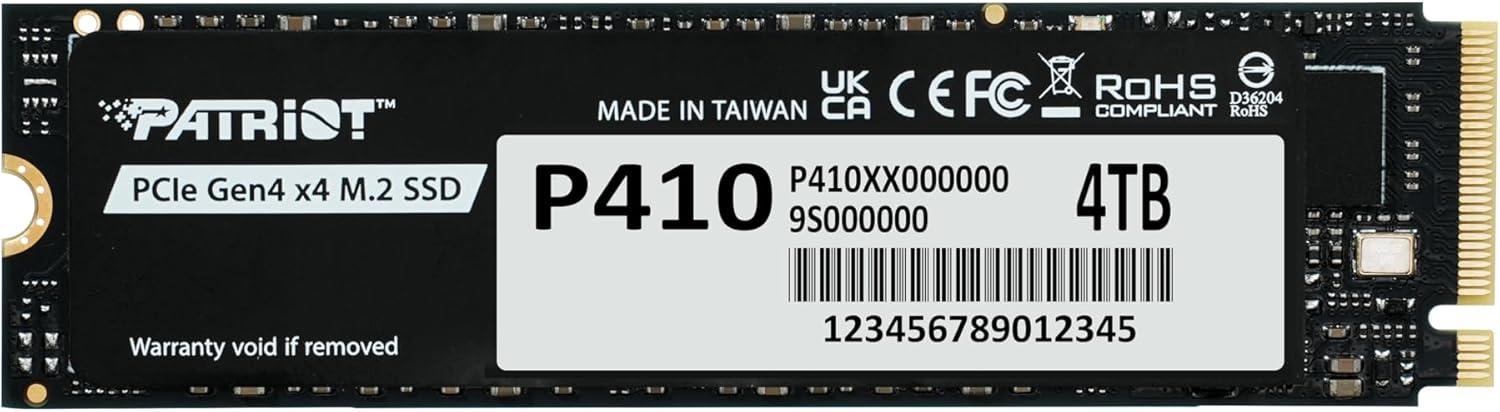

Patriot Patriot P410 4TB 4000 GB · PCIe 4.0 · TLC

63.4

19.7

78.6

$484

PNY PNY XLR8 CS3040 1TB This drive

63.5

—

Western Digital Western Digital 500GB WD Blue SN5000 500 GB · PCIe 4.0 · TLC

63.6

43.5

21.8

$219

PNY PNY CS2241 1TB M.2 NVMe Gen4 1000 GB · PCIe 4.0 · QLC

63.6

48.4

$197

SanDisk WD_BLACK 500GB SN770 500 GB · PCIe 4.0 · TLC

63.7

50.3

25.1

$190

Silicon Power Silicon Power 4TB UD90 NVMe 4.0 Gen4 PCIe M.2 SSD 4000 GB · PCIe 4.0 · TLC

63.7

18.7

75.0

$510

Compare these in the SSD table
