Fikwot FN950 2TBNVMe SSD PCIe Gen4x4

Fikwot FN950 2TBNVMe SSD PCIe Gen4x4 Review & Specifications

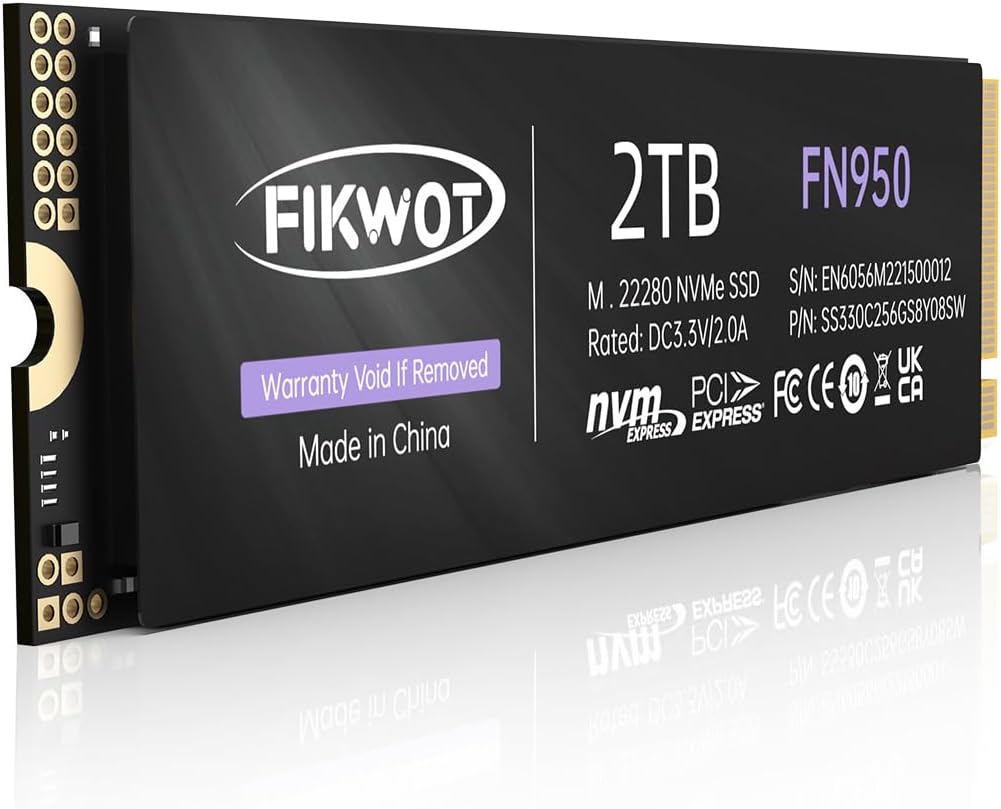

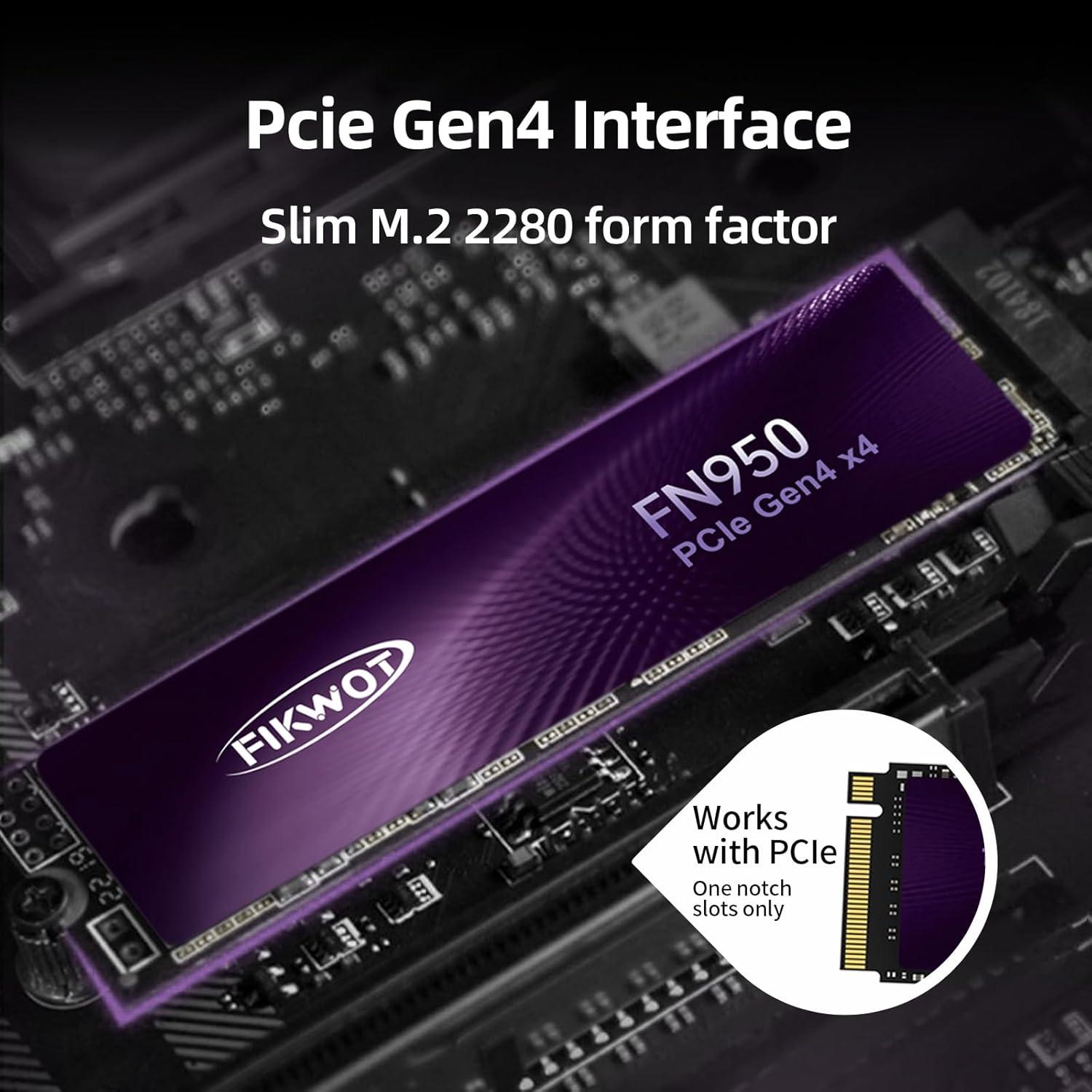

The Fikwot FN950 2TBNVMe SSD PCIe Gen4x4 by Fikwot is a NVMe solid-state drive (SSD) featuring 2000 GB of storage. It is built with 3D TLC NAND NAND flash memory and utilizes a Maxio MAP1602 controller to manage data access, wear leveling, and overall performance. This drive runs on the PCIe 4.0 x4 interface (up to 16 GB/s) and utilizes the NVMe 1.4 protocol. NVMe 1.4 brought significant updates such as improved power management, persistent memory region support, and native command retry. The SSD comes in a M.2 2280 form factor. PCIe 4.0 is backward compatible with older PCIe slots, but speeds will adjust accordingly.

NVMe SSD Performance

Sequential read and write speeds reach 4800 MB/s and 4500 MB/s respectively, while random read/write performance delivers up to 700k and 850k IOPS. The drive offers an endurance rating of 1400 TBW and is backed by a 5-year manufacturer warranty.

This SSD does not include a dedicated external DRAM cache chip. Instead, it relies on a small internal SRAM cache integrated into the controller, typically around 32 MB to 128 MB. Manufacturers may sometimes refer to this SRAM as "DRAM cache," but it is not the same as a discrete DRAM module. Furthermore, because it uses the NVMe interface, the SSD may also support Host Memory Buffer (HMB) — a feature that allocates a small portion of your system’s RAM (usually 64–128 MB) to act as a substitute for DRAM. While this design is cost-effective and suitable for everyday tasks, performance under heavy or sustained random I/O can be lower compared to full-DRAM SSDs. A Dynamic SLC cache is still included to help with write bursts and improve responsiveness.

This SSD module offers entry-level performance in our synthetic benchmark, scoring 65.1% relative to the fastest NVMe SSDs in our database. However, this classification doesn't always reflect real-world capability. Many drives in this range — especially those with DRAM cache, and even some newer, efficient DRAM-less models — can still deliver responsive performance in general computing, gaming, light creative work, and casual development environments. Unless your workload involves large file transfers or sustained heavy I/O, this level of performance is more than adequate.

Cost-Effectiveness

From a cost-per-storage perspective, this SSD offers below-average value at $125.0 per terabyte. The overall combined performance-to-price ratio, which evaluates both maximum performance and total storage capacity per dollar, is calculated at 60.4%. Based on this metric, the drive is a less favorable value in this category. Considering its performance rating of 65.1%, other SSDs at similar or lower prices may deliver better overall performance and capacity per dollar, making this drive less competitive.

General Information

ManufacturerFikwot
SSD NameFikwot FN950 2TBNVMe SSD PCIe Gen4x4
Current Price Amazon $250
Amazon Price Updated 1 day ago.
SSD AvailableTrue

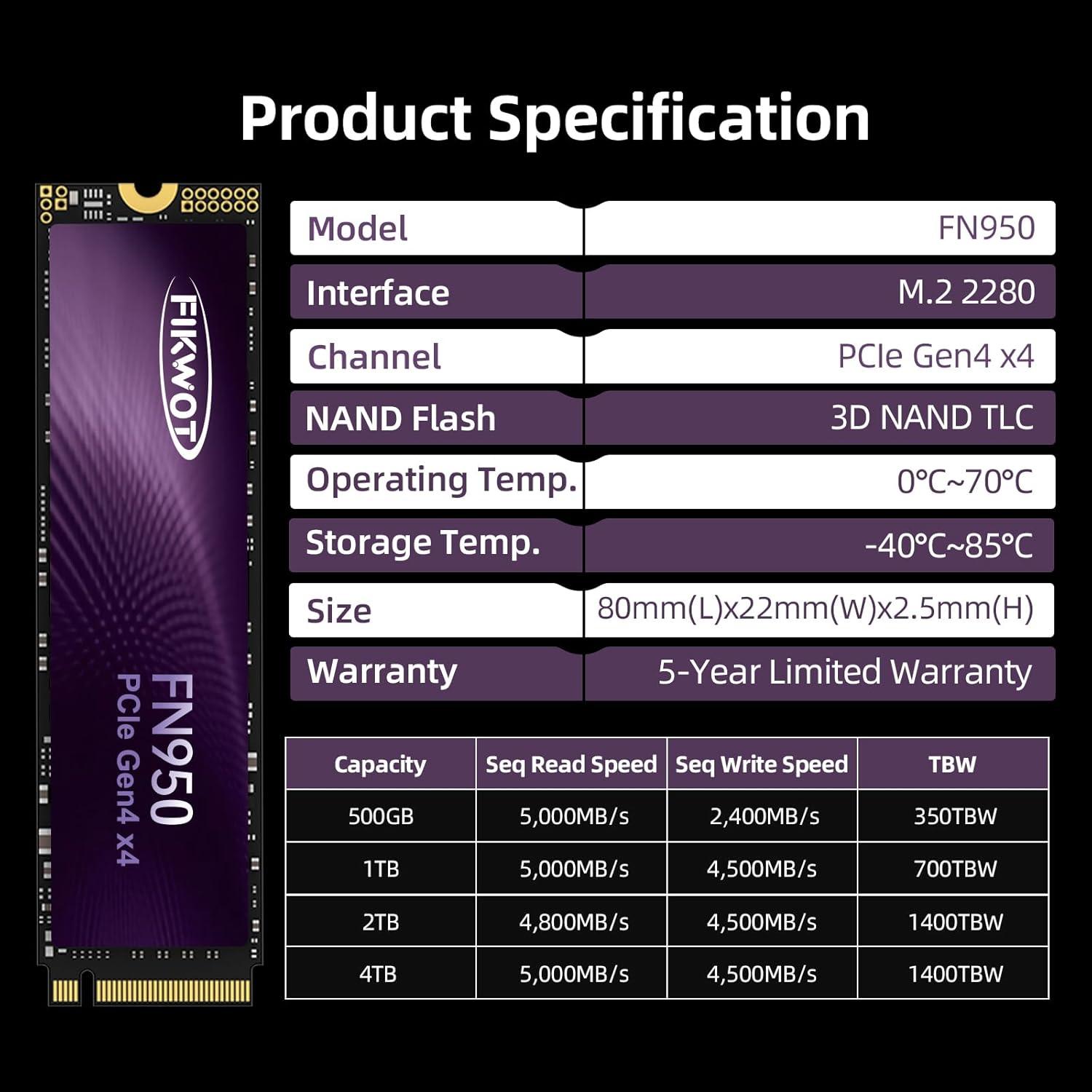

Specification

Capacity2000 GB
Form FactorM.2 2280
InterfacePCIe 4.0 x4, NVMe 1.4
NAND Type3D TLC NAND
ControllerMaxio MAP1602

DRAM Cache

DRAM CacheHost-Memory-Buffer (HMB)
DRAM Capacity64 MB
SLC CacheDynamic

Performance

Sequential Read4800 MB/s
Sequential Write4500 MB/s
Random Read700k IOPS
Random Write850k IOPS
Endurance1400 TBW
Warranty5 years
Price per Terabyte125.0 USD/TB

Calculated Performance


Fikwot FN950 2TBNVMe SSD PCIe Gen4x4 Compared to NVMe SSDs with Similar Performance

NVMe SSD Price / Performance Table

NVMe SSD (Desc) Price (Desc) Performance (Desc) Perf/Price (Desc) Comb/Price (Desc) USD/Terabyte (Desc)
Western Digital 1TB WD Blue SN5000
$183 | ↓ -13.0%
65.5%
41.2%
41.6%
182.8
KLEVV CRAS C910 1TB M.2 2280 SLC Cache …
$164 | 0.0%
65.4%
45.8%
46.2%
164.0
ORICO 512GB NVMe SSD PCIe 4.0- Up to 70…
$450 | 0.0%
65.2%
16.7%
8.4%
900.0
WD_BLACK 2TB SN770
$385 | ↓ -0.5%
65.2%
19.5%
39.3%
192.5
Fikwot FN950 2TBNVMe SSD PCIe Gen4x4
$250 | 0.0%
65.1%
30.0%
60.4%
125.0
Western Digital 2TB WD Blue SN5000
$300 | 0.0%
65.1%
25.0%
50.3%
150.0
Fikwot FN950 4TBNVMe SSD PCIe Gen4x4
$440 | 0.0%
65.1%
17.0%
68.6%
110.0
Crucial P3 Plus 2TB PCIe Gen4 3D NAND
$324 | 0.0%
65.0%
23.1%
46.5%
162.1
SAMSUNG 990 EVO SSD 2TB, PCIe Gen 4x4, …
$400 | 0.0%
64.9%
18.6%
37.6%
200.0

NVMe SSD Comparison and Detail Specifications Table

Specification
Western Digital 1TB WD Blue SN5000
Western Digital 1TB WD Blue S…
KLEVV CRAS C910 1TB M.2 2280 SLC Cache NVMe PCIe Gen4x4
KLEVV CRAS C910 1TB M.2 2280 …
ORICO 512GB NVMe SSD PCIe 4.0- Up to 7000MB/s, O7000
ORICO 512GB NVMe SSD PCIe 4.0…
WD_BLACK 2TB SN770
WD_BLACK 2TB SN770

No image available

Fikwot FN950 2TBNVMe SSD PCIe…
Western Digital 2TB WD Blue SN5000
Western Digital 2TB WD Blue S…

No image available

Fikwot FN950 4TBNVMe SSD PCIe…
Crucial P3 Plus 2TB PCIe Gen4 3D NAND
Crucial P3 Plus 2TB PCIe Gen4…
SAMSUNG 990 EVO SSD 2TB, PCIe Gen 4x4, Gen 5x2 M.2 2280 NVMe
SAMSUNG 990 EVO SSD 2TB, PCIe…
Perf Chart
Price
$183 | ↓ -13.0%
$164 | 0.0%
$450❗ | 0.0%
$385 | ↓ -0.5%
$250 | 0.0%
$300 | 0.0%
$440 | 0.0%
$324 | 0.0%
$400 | 0.0%
Price per TB 182.8 USD/TB 164.0 USD/TB 900.0 USD/TB 192.5 USD/TB 125.0 USD/TB 150.0 USD/TB 110.0 USD/TB 162.1 USD/TB 200.0 USD/TB
Manufacturer Sandisk Technologies, Inc. KLEVV SHENZHEN ORICO TECHNOLOGIES CO.,LTD Western Digital Technologies, Inc. Fikwot Sandisk Technologies, Inc. Fikwot Crucial Samsung
Interface PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 1.4 PCIe 4.0 x4, NVMe 2.0
Capacity 1000 GB 1000 GB 500 GB 2000 GB 2000 GB 2000 GB 4000 GB 2000 GB 2000 GB
Sequential R/W 5150 / 4900 MB/s 5000 / 4800 MB/s 7000 / 6500 MB/s 5150 / 4850 MB/s 4800 / 4500 MB/s 5150 / 4850 MB/s 5000 / 4500 MB/s 5000 / 4200 MB/s 5000 / 4200 MB/s
Random R/W 730k / 770k IOPS 830k / 670k IOPS 550k / 300k IOPS 650k / 800k IOPS 700k / 850k IOPS 650k / 770k IOPS 700k / 800k IOPS 660k / 880k IOPS 700k / 800k IOPS
Endurance 600 TBW 700 TBW 300 TBW 1200 TBW 1400 TBW 900 TBW 2800 TBW 440 TBW 1200 TBW
NAND Type TLC 112-layer TLC TLC 232-layer TLC 112-layer 3D TLC NAND TLC 112-layer 3D TLC NAND QLC 176-layer TLC 133-layer
Controller WD Polaris 3 A101-000172-A1 IG5220 (RainierQX) MAP1602A Falcon Lite Polaris MP16+ Maxio MAP1602 WD Polaris 3 A101-000172-A1 Maxio MAP1602 Phison PS5021-E21T Piccolo (S4LY022)
DRAM Cache
SLC Cache Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic
Part Number WDS100T4B0E K01TBM2SP0-C91 No data WDS200T3X0E No data WDS200T4B0E No data CT2000P3PSSD8 MZ-V9E2T0B/AM
Form Factor M.2 2280 M.2 2280 M.2 2280 M.2 2280 M.2 2280 M.2 2280 M.2 2280 M.2 2280 M.2 2280
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years

NVMe SSD Specification Table

NVMe SSD (Desc) Interface Capacity Sequential_Read/Write Random_Read/Write Endurance
Western Digital 1TB WD Blue SN5000
PCIe 4.0 x4, NVMe 1.4 1000 GB 5150 MB/s / 4900 MB/s 730k IOPS / 770k IOPS 600 TBW
KLEVV CRAS C910 1TB M.2 2280 SLC Cache …
PCIe 4.0 x4, NVMe 1.4 1000 GB 5000 MB/s / 4800 MB/s 830k IOPS / 670k IOPS 700 TBW
ORICO 512GB NVMe SSD PCIe 4.0- Up to 70…
PCIe 4.0 x4, NVMe 1.4 500 GB 7000 MB/s / 6500 MB/s 550k IOPS / 300k IOPS 300 TBW
WD_BLACK 2TB SN770
PCIe 4.0 x4, NVMe 1.4 2000 GB 5150 MB/s / 4850 MB/s 650k IOPS / 800k IOPS 1200 TBW
Fikwot FN950 2TBNVMe SSD PCIe Gen4x4
PCIe 4.0 x4, NVMe 1.4 2000 GB 4800 MB/s / 4500 MB/s 700k IOPS / 850k IOPS 1400 TBW
Western Digital 2TB WD Blue SN5000
PCIe 4.0 x4, NVMe 1.4 2000 GB 5150 MB/s / 4850 MB/s 650k IOPS / 770k IOPS 900 TBW
Fikwot FN950 4TBNVMe SSD PCIe Gen4x4
PCIe 4.0 x4, NVMe 1.4 4000 GB 5000 MB/s / 4500 MB/s 700k IOPS / 800k IOPS 2800 TBW
Crucial P3 Plus 2TB PCIe Gen4 3D NAND
PCIe 4.0 x4, NVMe 1.4 2000 GB 5000 MB/s / 4200 MB/s 660k IOPS / 880k IOPS 440 TBW
SAMSUNG 990 EVO SSD 2TB, PCIe Gen 4x4, …
PCIe 4.0 x4, NVMe 2.0 2000 GB 5000 MB/s / 4200 MB/s 700k IOPS / 800k IOPS 1200 TBW
