Acer Predator GM7 4 TB
Acer Predator GM7 4 TB Review & Specifications

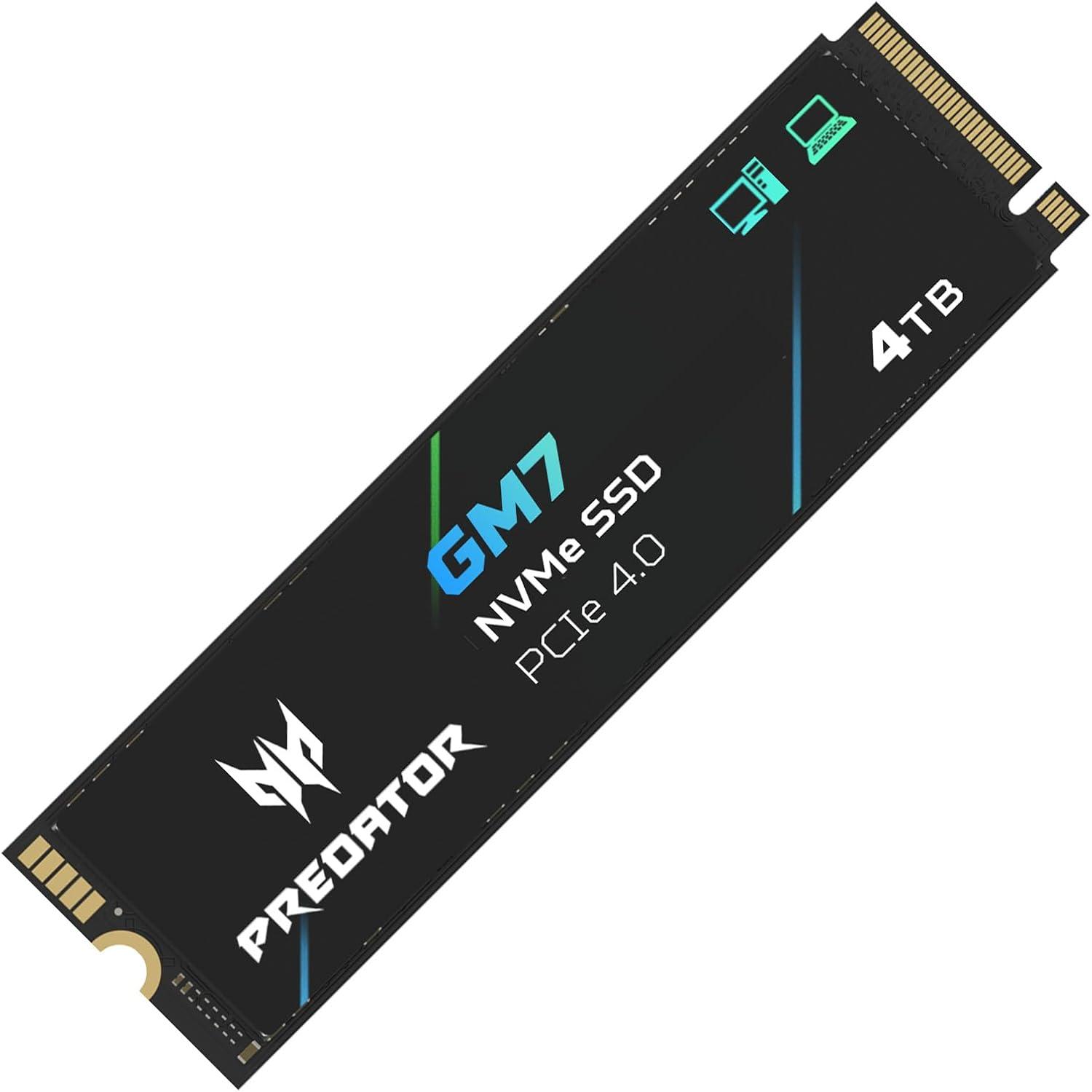

The Acer Predator GM7 4 TB by Biwin is a NVMe solid-state drive (SSD) featuring 4000 GB of storage. It is built with TLC 232-layer NAND flash memory and utilizes a Maxiotech MAP1602A controller to manage data access, wear leveling, and overall performance. This SSD features the PCIe 4.0 x4 interface, supporting a theoretical maximum throughput of 16 GB/s. Combined with the advanced NVMe 2.0 standard, it offers high efficiency, low latency, and advanced scalability. It is offered in the M.2 2280 form factor. PCIe 4.0 is backward compatible with older PCIe slots, but speeds will adjust accordingly.
NVMe SSD Performance

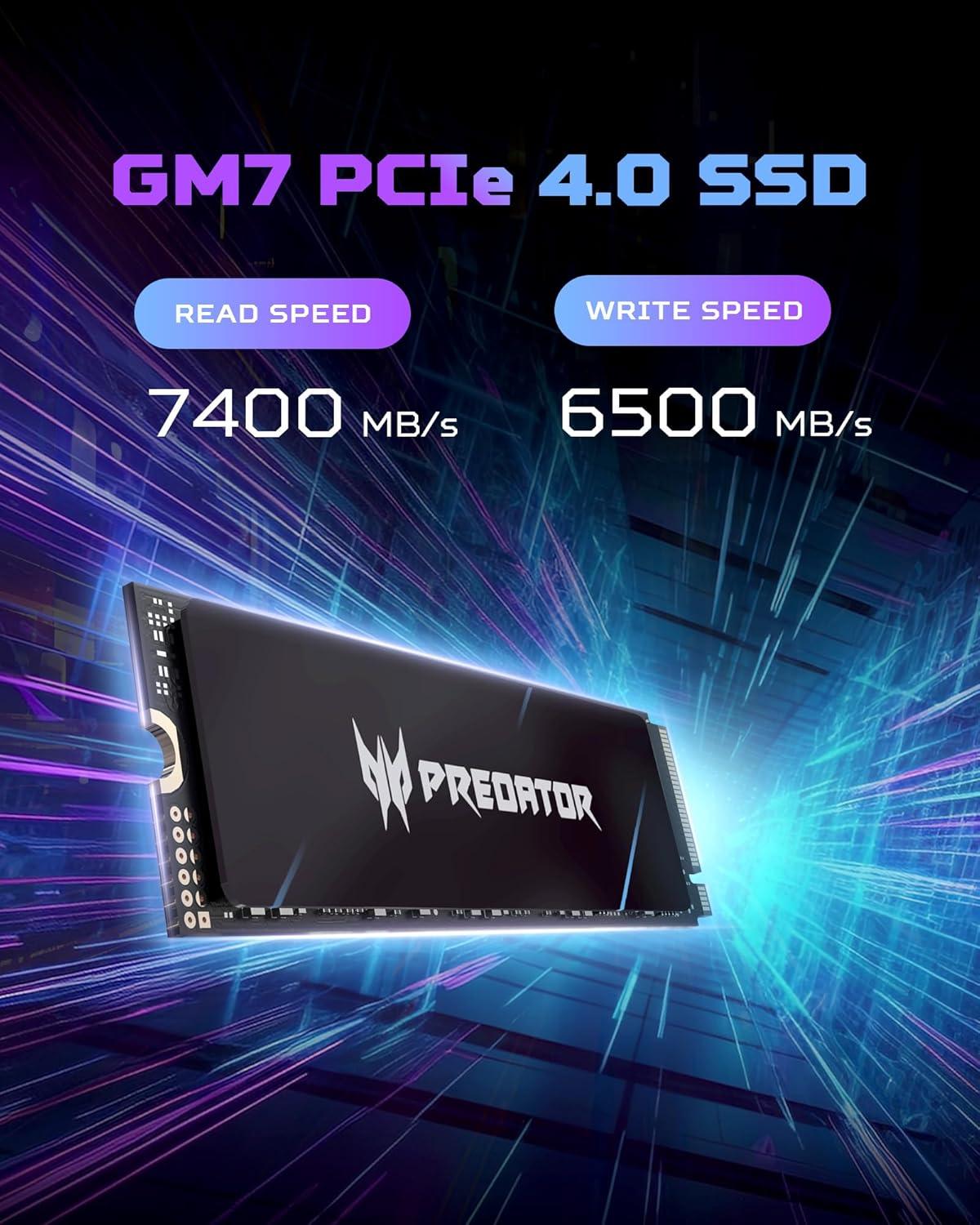

Sequential read and write speeds reach 7400 MB/s and 6500 MB/s respectively, while random read/write performance delivers up to 950k and 980k IOPS. The drive offers an endurance rating of 2400 TBW and is backed by a 5-year manufacturer warranty.
This SSD does not include a dedicated external DRAM cache chip. Instead, it relies on a small internal SRAM cache integrated into the controller, typically around 32 MB to 128 MB. Manufacturers may sometimes refer to this SRAM as "DRAM cache," but it is not the same as a discrete DRAM module. Furthermore, because it uses the NVMe interface, the SSD may also support Host Memory Buffer (HMB) — a feature that allocates a small portion of your system’s RAM (usually 64–128 MB) to act as a substitute for DRAM. While this design is cost-effective and suitable for everyday tasks, performance under heavy or sustained random I/O can be lower compared to full-DRAM SSDs. A Dynamic SLC cache is still included to help with write bursts and improve responsiveness.
This SSD module offers entry-level performance in our synthetic benchmark, scoring 69.9% relative to the fastest NVMe SSDs in our database. However, this classification doesn't always reflect real-world capability. Many drives in this range — especially those with DRAM cache, and even some newer, efficient DRAM-less models — can still deliver responsive performance in general computing, gaming, light creative work, and casual development environments. Unless your workload involves large file transfers or sustained heavy I/O, this level of performance is more than adequate.
Cost-Effectiveness
From a cost-per-storage perspective, this SSD offers below-average value at $127.5 per terabyte. The overall combined performance-to-price ratio, which evaluates both maximum performance and total storage capacity per dollar, is calculated at 82.2%. Based on this metric, the drive is an outstanding choice for users seeking the highest performance and storage return per dollar spent.
General Information
| Manufacturer | Biwin |
|---|---|
| SSD Name | Acer Predator GM7 4 TB |
| Release Price | $299.00 |
| Current Price Amazon | $510 |
| Amazon Price Updated | 12 hours, 43 minutes ago. |
| SSD Available | True |
Specification
| Capacity | 4000 GB |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4, NVMe 2.0 |
| NAND Type | TLC 232-layer |
| Controller | Maxiotech MAP1602A |
| Power (Active) | 5.80 W |
DRAM Cache
| DRAM Cache | Host-Memory-Buffer (HMB) 40 MB |
|---|---|
| DRAM Capacity | 40 MB |
| SLC Cache | Dynamic |
Performance
| Sequential Read | 7400 MB/s |
|---|---|
| Sequential Write | 6500 MB/s |
| Random Read | 950k IOPS |
| Random Write | 980k IOPS |
| Endurance | 2400 TBW |
| Warranty | 5 years |
| Price per Terabyte | 127.5 USD/TB |
Calculated Performance
Acer Predator GM7 4 TB Compared to NVMe SSDs with Similar Performance
NVMe SSD Price / Performance Table
| NVMe SSD (Desc) | Price (Desc) | Performance (Desc) | Perf/Price (Desc) | Comb/Price (Desc) | USD/Terabyte (Desc) |
|---|---|---|---|---|---|
|
$280
|
↓
-41.7%
|
70.2%
|
37.6%
|
75.2%
|
140.0
|
|
|
$470
|
↓
-6.0%
|
70.0%
|
22.3%
|
44.7%
|
235.0
|
|
|
$600
|
0.0%
|
69.9%
|
17.5%
|
69.9%
|
150.0
|
|
|
$170
|
0.0%
|
69.9%
|
61.7%
|
61.7%
|
170.0
|
|
|
$510
|
↓
-27.5%
|
69.9%
|
20.6%
|
82.2%
|
127.5
|
|
|
$176
|
↓
-4.9%
|
69.8%
|
59.5%
|
59.5%
|
176.0
|
|
|
$280
|
0.0%
|
69.8%
|
37.4%
|
74.8%
|
140.0
|
|
|
$290
|
0.0%
|
69.8%
|
36.1%
|
72.2%
|
145.0
|
|
|
$490
|
↑
6.5%
|
69.8%
|
21.4%
|
85.5%
|
122.5
|
NVMe SSD Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$280
|
↓
-41.7%
|
$470
|
↓
-6.0%
|
$600
|
0.0%
|
$170
|
0.0%
|
$510
|
↓
-27.5%
|
$176
|
↓
-4.9%
|
$280
|
0.0%
|
$290
|
0.0%
|
$490
|
↑
6.5%
|
| Price per TB | 140.0 USD/TB | 235.0 USD/TB | 150.0 USD/TB | 170.0 USD/TB | 127.5 USD/TB | 176.0 USD/TB | 140.0 USD/TB | 145.0 USD/TB | 122.5 USD/TB |

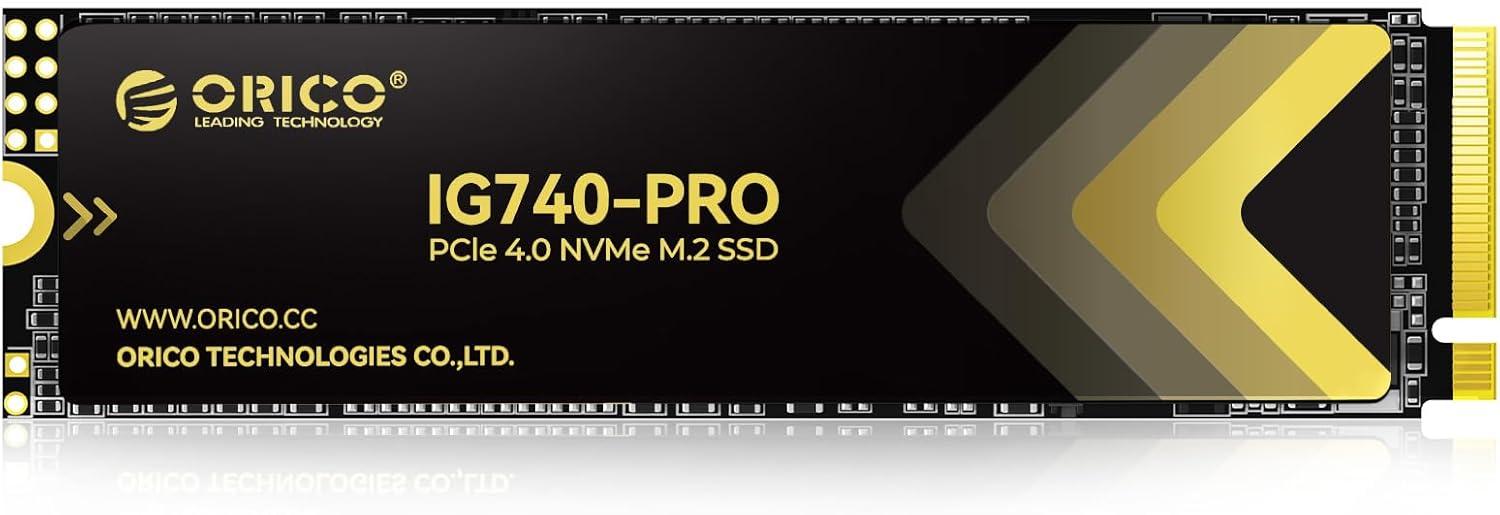

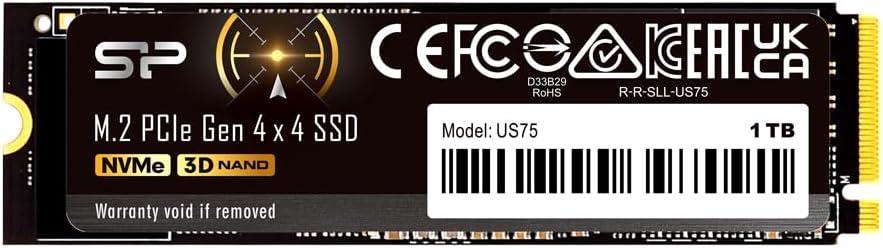

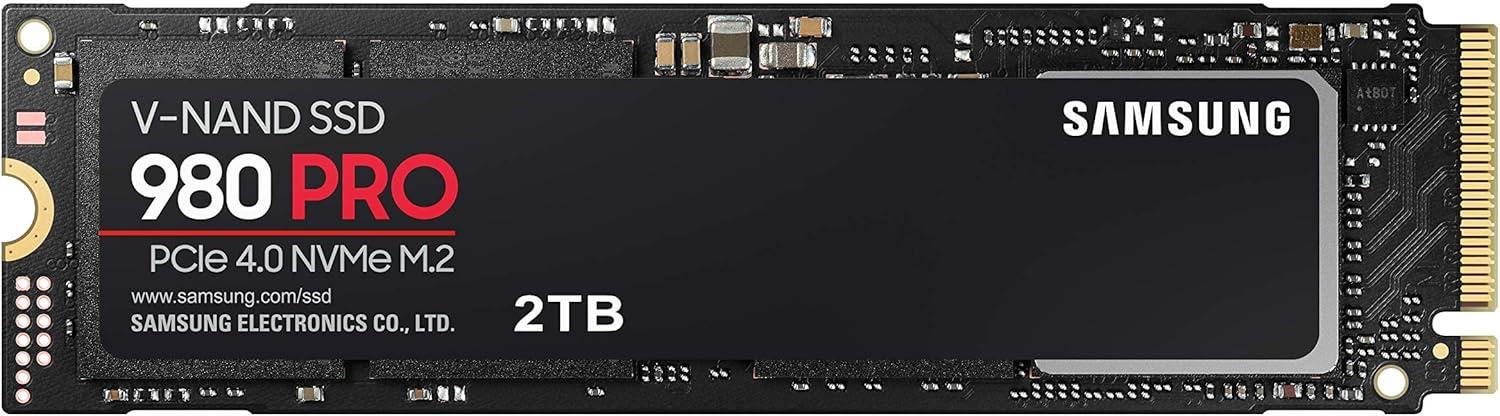

| Manufacturer | SHENZHEN ORICO TECHNOLOGIES CO.,LTD | Samsung | SanDisk | SP Silicon Power | Biwin | Biwin | Fikwot | Biwin | Biwin |
| Interface | PCIe 4.0 x4, NVMe 1.4 | PCIe 4.0 x4, NVMe 1.3 | PCIe 4.0 x4, NVMe 2.0 | PCIe 4.0 x4, NVMe 1.4 | PCIe 4.0 x4, NVMe 2.0 | PCIe 4.0 x4, NVMe 2.0 | PCIe 4.0 x4, NVMe 1.4 | PCIe 4.0 x4, NVMe 2.0 | PCIe 4.0 x4, NVMe 2.0 |
| Capacity | 2000 GB | 2000 GB | 4000 GB | 1000 GB | 4000 GB | 1000 GB | 2000 GB | 2000 GB | 4000 GB |
| Sequential R/W | 7400 / 6500 MB/s | 7000 / 5100 MB/s | 6900 / 6700 MB/s | 7000 / 6000 MB/s | 7400 / 6500 MB/s | 7200 / 6300 MB/s | 7300 / 6400 MB/s | 7450 / 6500 MB/s | 7450 / 6500 MB/s |
| Random R/W | 1000k / 1000k IOPS | 1000k / 1000k IOPS | 900k / 1100k IOPS | 1000k / 1100k IOPS | 950k / 980k IOPS | 990k / 997k IOPS | 950k / 1000k IOPS | 1000k / 900k IOPS | 1000k / 900k IOPS |
| Endurance | 1200 TBW | 1200 TBW | 1200 TBW | 600 TBW | 2400 TBW | 600 TBW | 1400 TBW | 1000 TBW | 2000 TBW |
| NAND Type | No data | TLC 128-layer | 3D QLC NAND (BiCS8) | TLC 232-layer | TLC 232-layer | TLC 232-layer | 3D QLC NAND | QLC 232-layer | QLC 232-layer |
| Controller | No data | Samsung Elpis (S4LV003) | WD Polaris 3 | Maxiotech MAP1602A | Maxiotech MAP1602A | Maxiotech MAP1602A | Maxio MAP1602 | MAP1602A Falcon Lite | MAP1602A Falcon Lite |
| DRAM Cache | ❌ | 2048 MB / 1866 MHz | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| SLC Cache | Dynamic | 230 GB Dynamic + 6 GB Static | Dynamic | Dynamic | Dynamic | Dynamic | Dynamic | Dynamic | Dynamic |
| Part Number | IG740PRO | MZ-V8P2T0B/AM | SDSP51400TAN | SP01KGBP44US7505 | BL.9BWWR.120 | No data | No data | No data | No data |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
NVMe SSD Specification Table
| NVMe SSD (Desc) | Interface | Capacity | Sequential_Read/Write | Random_Read/Write | Endurance |
|---|---|---|---|---|---|
| PCIe 4.0 x4, NVMe 1.4 | 2000 GB | 7400 MB/s / 6500 MB/s | 1000k IOPS / 1000k IOPS | 1200 TBW | |
| PCIe 4.0 x4, NVMe 1.3 | 2000 GB | 7000 MB/s / 5100 MB/s | 1000k IOPS / 1000k IOPS | 1200 TBW | |
| PCIe 4.0 x4, NVMe 2.0 | 4000 GB | 6900 MB/s / 6700 MB/s | 900k IOPS / 1100k IOPS | 1200 TBW | |
| PCIe 4.0 x4, NVMe 1.4 | 1000 GB | 7000 MB/s / 6000 MB/s | 1000k IOPS / 1100k IOPS | 600 TBW | |
| PCIe 4.0 x4, NVMe 2.0 | 4000 GB | 7400 MB/s / 6500 MB/s | 950k IOPS / 980k IOPS | 2400 TBW | |
| PCIe 4.0 x4, NVMe 2.0 | 1000 GB | 7200 MB/s / 6300 MB/s | 990k IOPS / 997k IOPS | 600 TBW | |
| PCIe 4.0 x4, NVMe 1.4 | 2000 GB | 7300 MB/s / 6400 MB/s | 950k IOPS / 1000k IOPS | 1400 TBW | |
| PCIe 4.0 x4, NVMe 2.0 | 2000 GB | 7450 MB/s / 6500 MB/s | 1000k IOPS / 900k IOPS | 1000 TBW | |
| PCIe 4.0 x4, NVMe 2.0 | 4000 GB | 7450 MB/s / 6500 MB/s | 1000k IOPS / 900k IOPS | 2000 TBW |
