Thermalright AXP90-X53 Full Cooper

【Optimized Details】The main cpu cooler body of heat dissipation adopts Seiko micro-carved copper bottom + pure copper anti-oxidation process + fine fins, which reduces wind damage and can effectively increase the effect of heat dissipation in the case of stability.

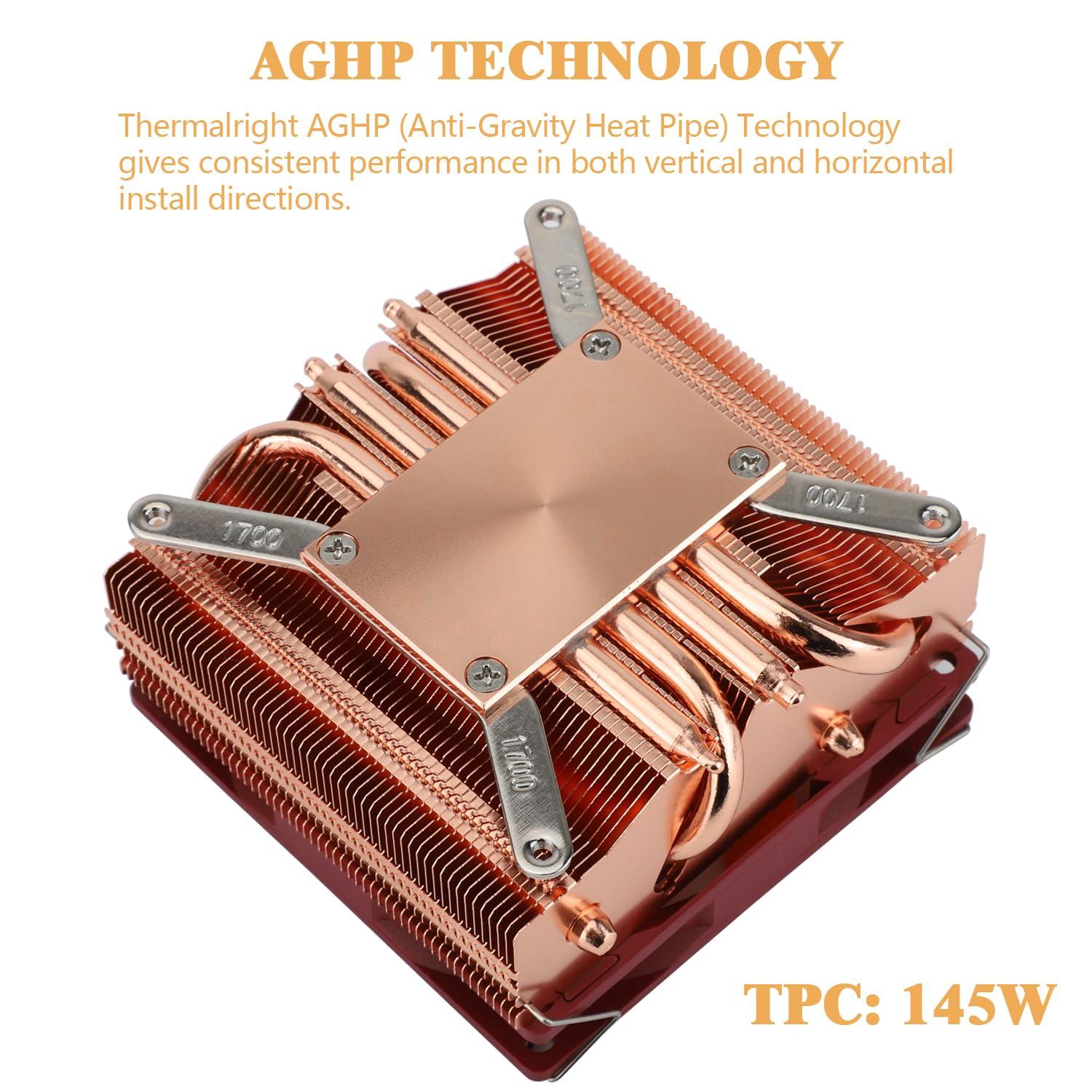

【AGHP technique】The 4x6mm heat pipe adopts the 4th generation technology of AGHP upgrade, Solve the Inverse gravity effect caused by vertical/horizontal orientation,with 2 soldered heat pipe fins, the heat transfer efficiency of the cooler heatsink is doubled, and the overall height is 53mm, which can be compatible with more small motherboards.

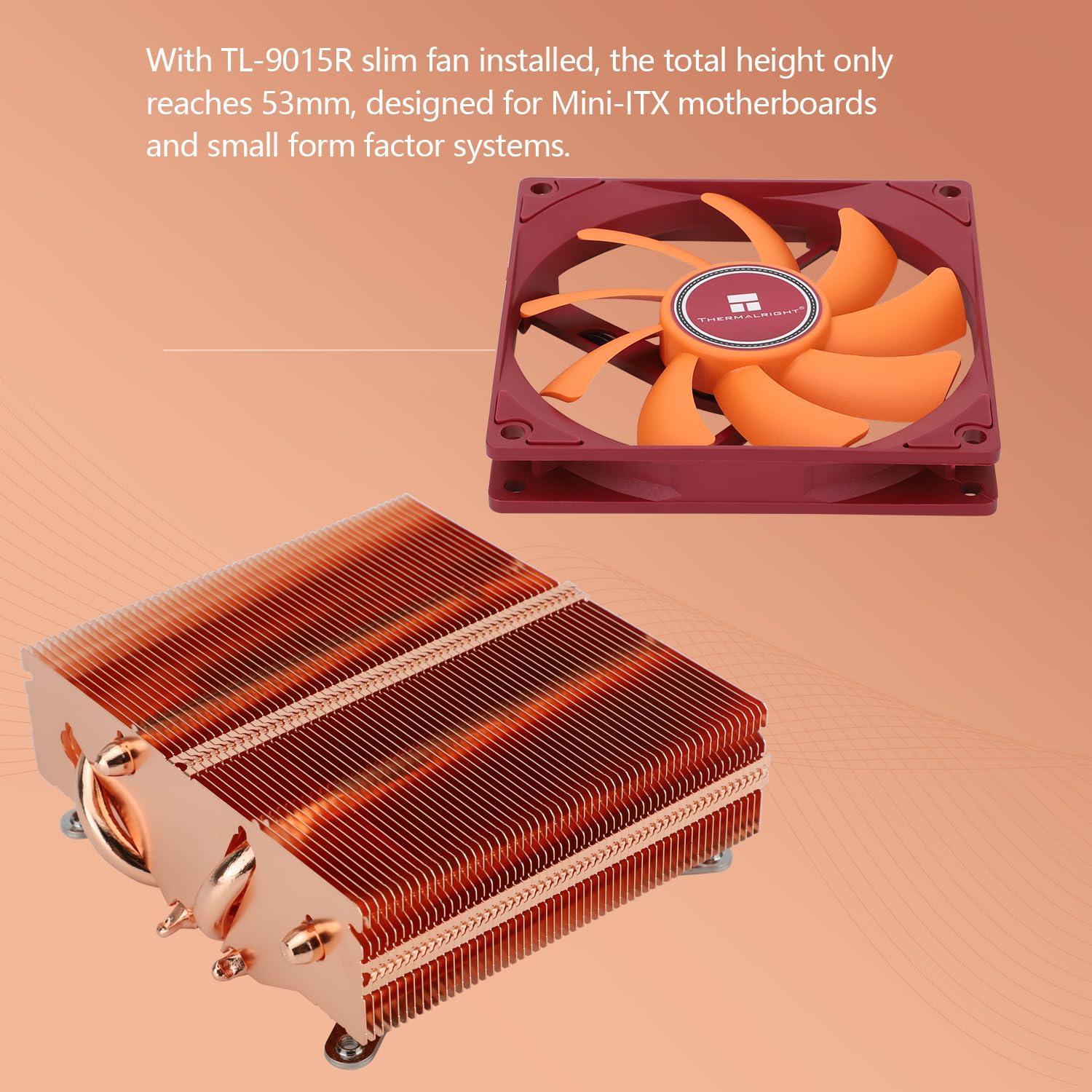

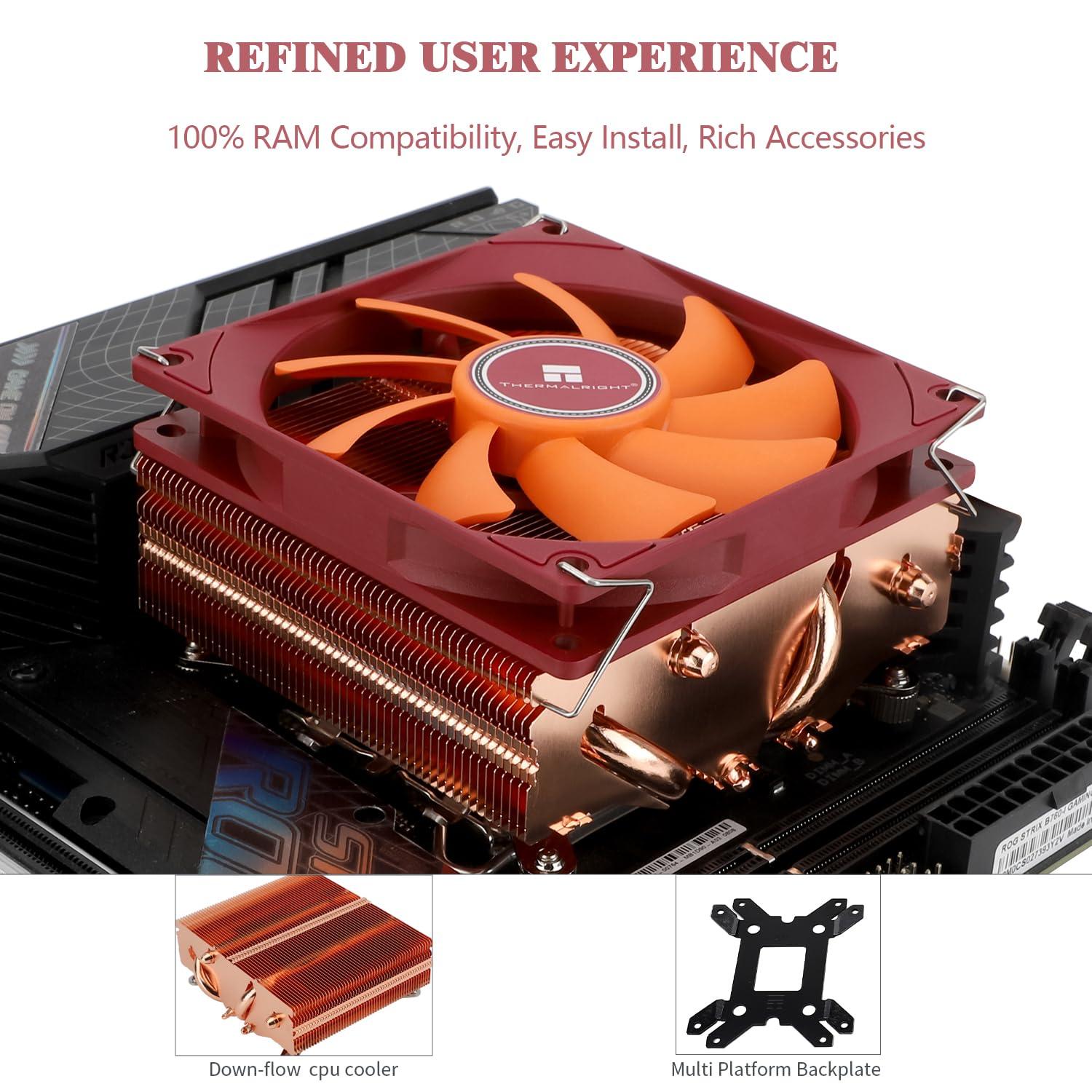

【53mm Height】The AXP90 X53 Full low profile cooler, combined with a 92mm PWM fan for automatic temperature control and ultra-quiet operation, and a total cooler height of just 53mm, makes it ideal for HTPC, ITX and small models with a small CPU cooler without any memory limitation worries.

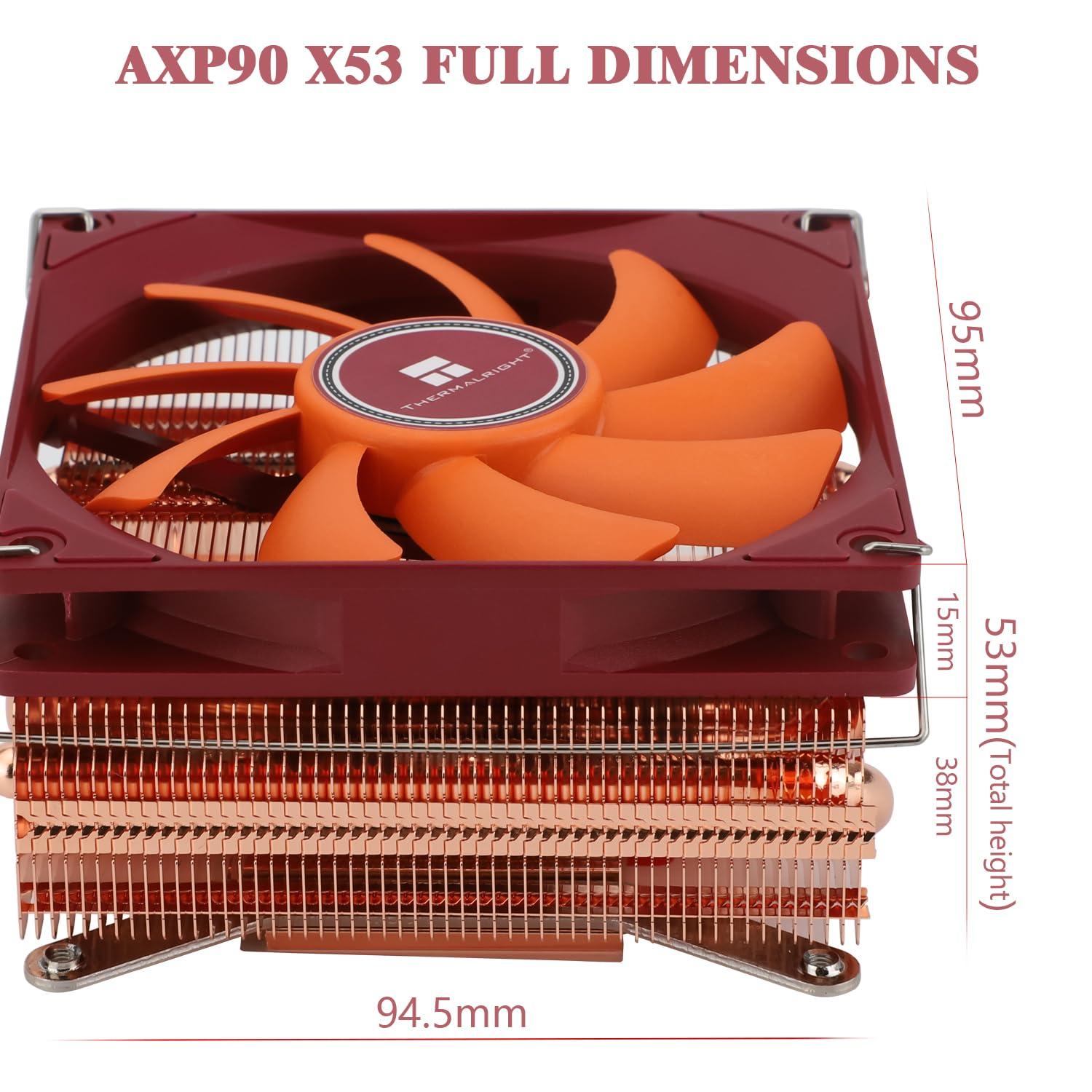

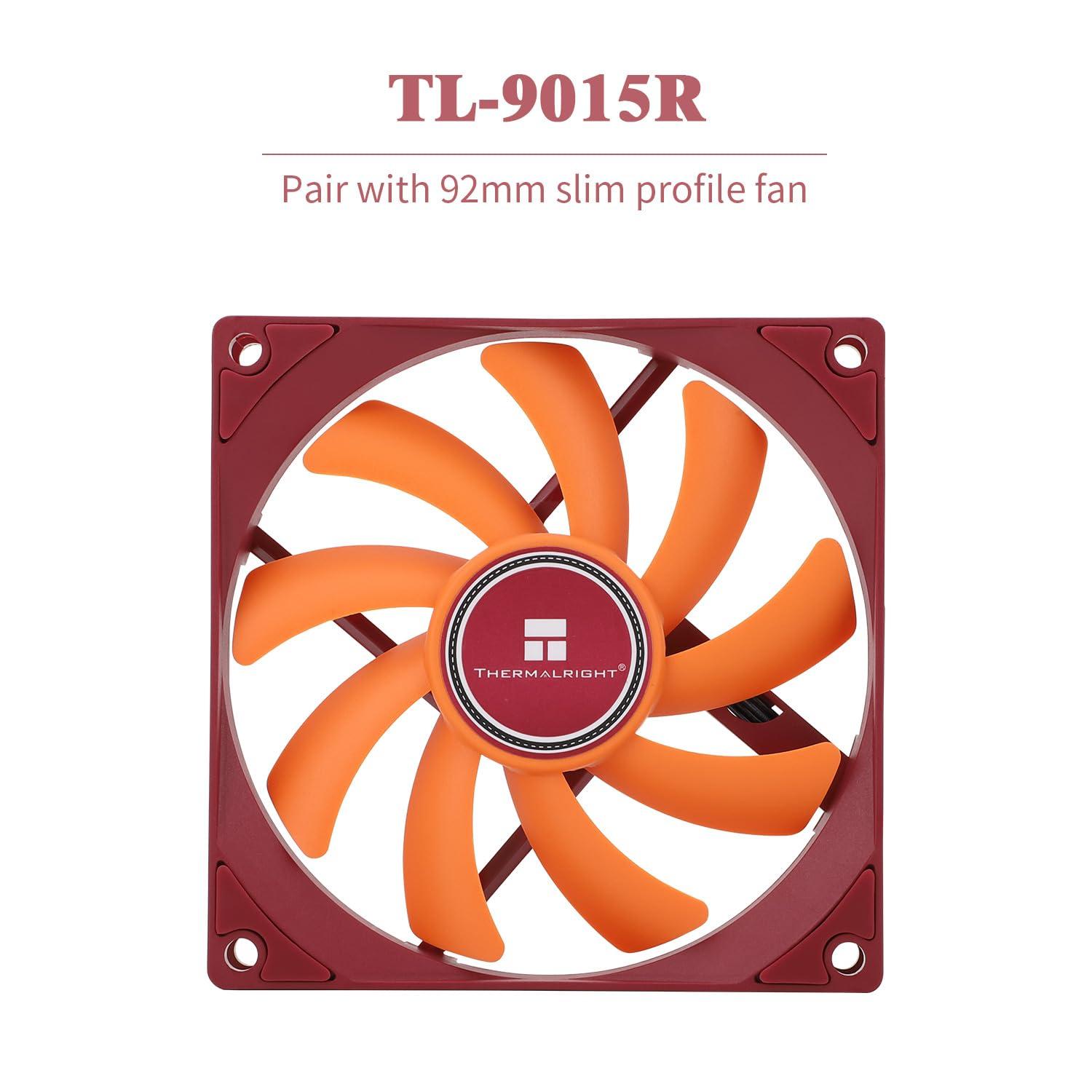

【cpu cooler specifications】cpu cooling Size: 94.5×95×53mm, matched fan: TL-9015R, air volume: 42.58CFM (MAX), air pressure: 1.33mmH2O (MAX), speed: 2700RPM±10%, noise: 22.4db (A), fan pin: 4PIN PWM, radiator material: Pure copper. The attached heat transfer paste can provide good cooling effect and improve the heat transfer of the CPU.The radiator is made of pure copper, which greatly increases the oxidation resistance of the cooler.

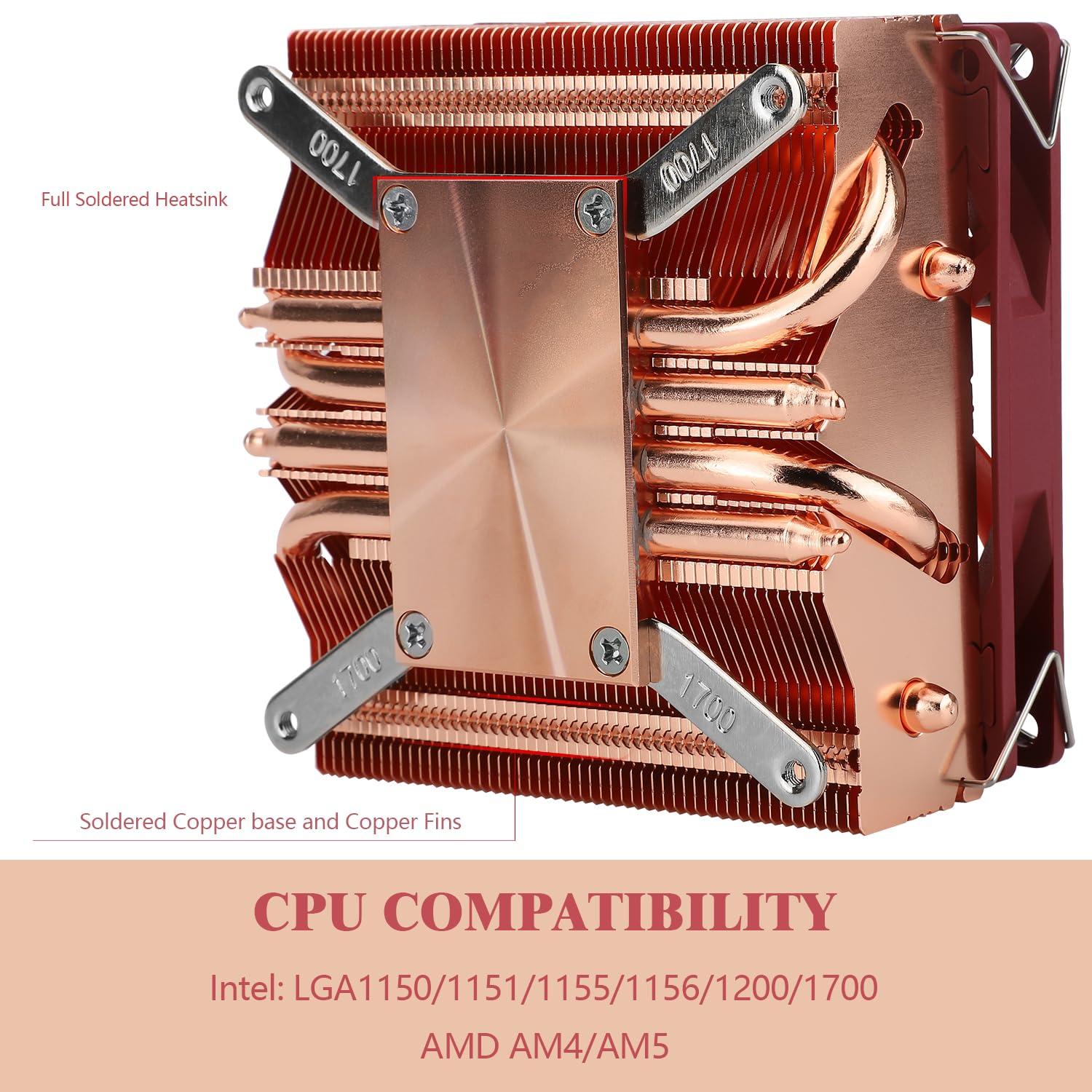

【Broad Compatibility】The heatsink supports CPU slots: Intel: LGA1700/1150/1151/1155/1156/1200; AMD/AM4/AM5, for different platforms, the pc cooler is equipped with the corresponding metal mounting fasteners, which can be installed in conjunction with the manual or installation video.

【Installation Details】If the AXP90-X backplane conflicts with the components on the back of the motherboard, you need to use the long screws that come with the AXP90-X and install the backplane in reverse. If you encounter a non-removable bottom metal backplate when installing the AM4/AM5, you can remove the front plastic bracket and screws, and use the attached long screws to install through the metal backplate. If you have any questions, please contact the store's customer service.
