GIGABYTE GeForce RTX 5060 Eagle OC 8G

Written analysis

GIGABYTE GeForce RTX 5060 Eagle OC 8G at a glance

The GIGABYTE GeForce RTX 5060 Eagle OC 8G is a GIGABYTE retail card of the RTX 5060 on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2497 MHz.

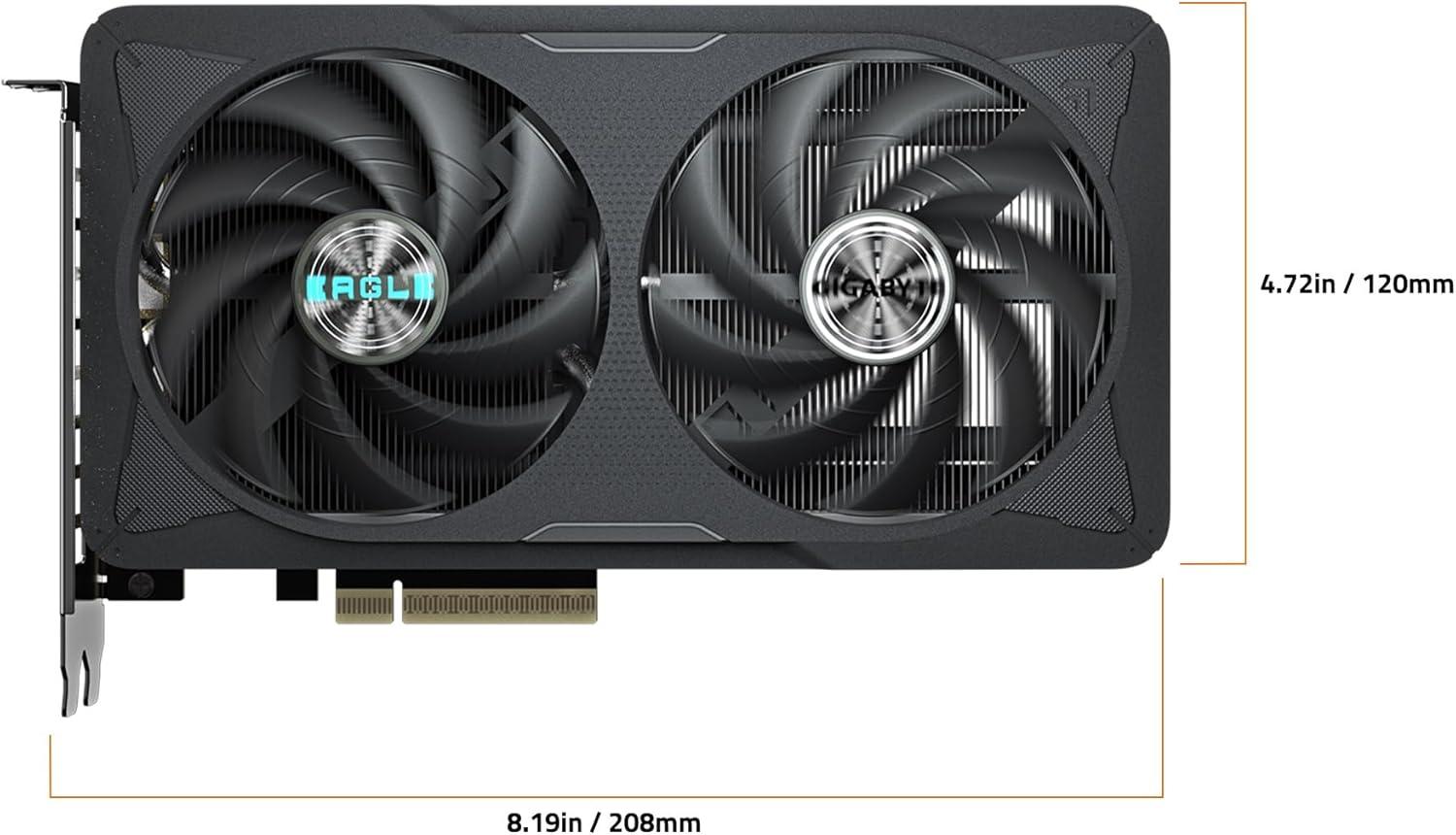

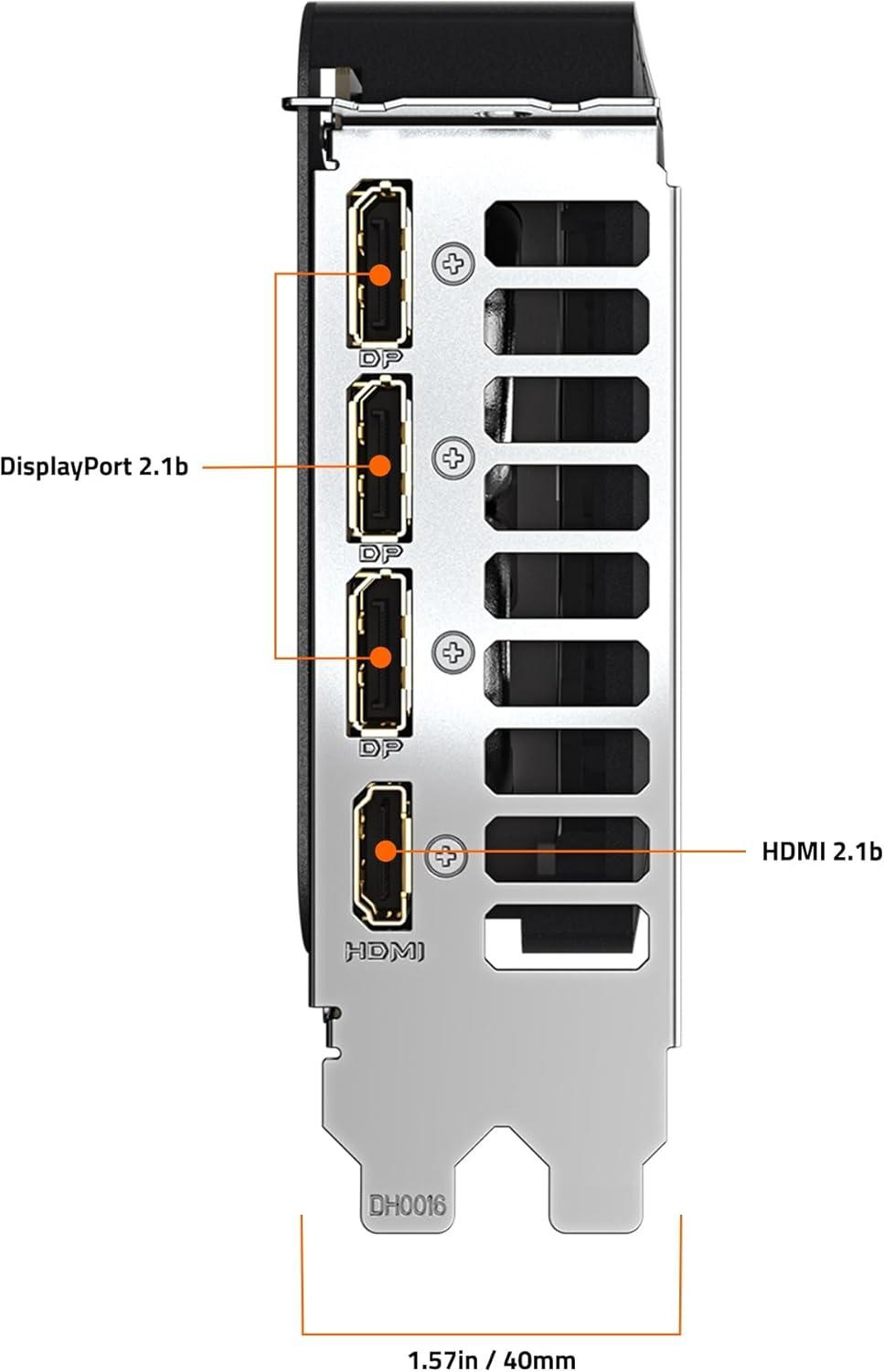

Length is 208 mm and it occupies 2.0 slots (L=208 W=120 H=40 mm). Board power is 145 W with 1 x 8-pin. Outputs: DisplayPort 2.1b *3 HDMI 2.1b *1. Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most RTX 5060 partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RTX 5060, not from this cooler. At 1440p that is 30.98% of the dataset’s best (budget), with 39% at 1080p and 24% at 4K. The chip uses 8 GB GDDR7.

This card’s 1440p value is excellent at 90.2 performance per dollar.

Compare other GIGABYTE and partner boards of this GPU in the RTX 5060 retail-card table.
