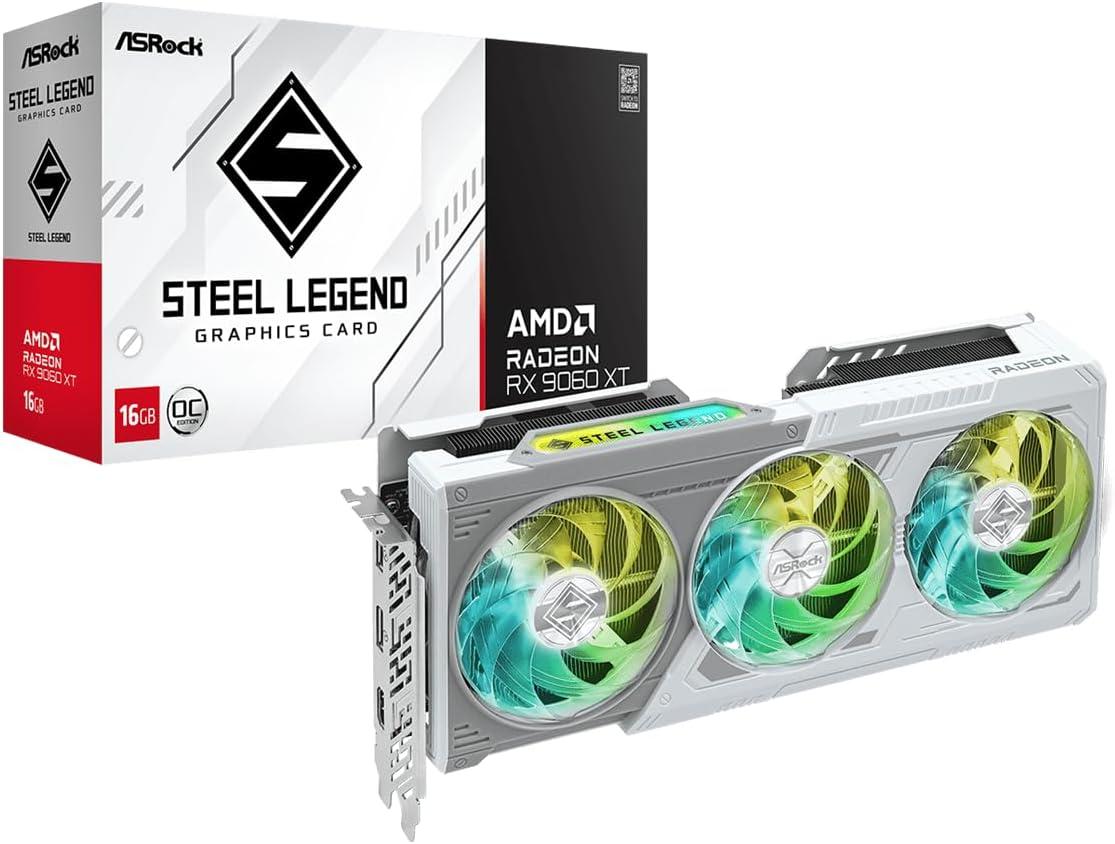

ASRock AMD Radeon™ RX 9060 XT Steel Legend 16GB OC

Written analysis

ASRock AMD Radeon™ RX 9060 XT Steel Legend 16GB OC at a glance

The ASRock AMD Radeon™ RX 9060 XT Steel Legend 16GB OC is a ASRock retail card of the RX 9060 XT 16GB on RDNA 4.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 3130 MHz.

Length is 298 mm and it occupies 2.5 slots (298 x 131 x 51 mm,). Board power is 160 W with 8 pin x 1. Outputs: - 2x DisplayPort 2.1a - 1x HDMI 2.1b. Warranty is 36 months.

Length is mainstream. It fits most ATX cases and many compact mid-towers.

Best fit: Builds prioritizing this card’s price, cooler, output selection, and warranty over a factory overclock.

Inherited GPU performance

Raster scores come from the RX 9060 XT 16GB, not from this cooler. At 1440p that is 35.98% of the dataset’s best (entry-level), with 43% at 1080p and 30% at 4K. The chip uses 16 GB GDDR6.

This card’s 1440p value is balanced at 66.0 performance per dollar.

Compare other ASRock and partner boards of this GPU in the RX 9060 XT 16GB retail-card table.
