GIGABYTE Radeon RX 9060 XT Gaming OC 8G

Written analysis

GIGABYTE Radeon RX 9060 XT Gaming OC 8G at a glance

The GIGABYTE Radeon RX 9060 XT Gaming OC 8G is a GIGABYTE retail card of the RX 9060 XT 8GB on RDNA 4.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 3130 MHz.

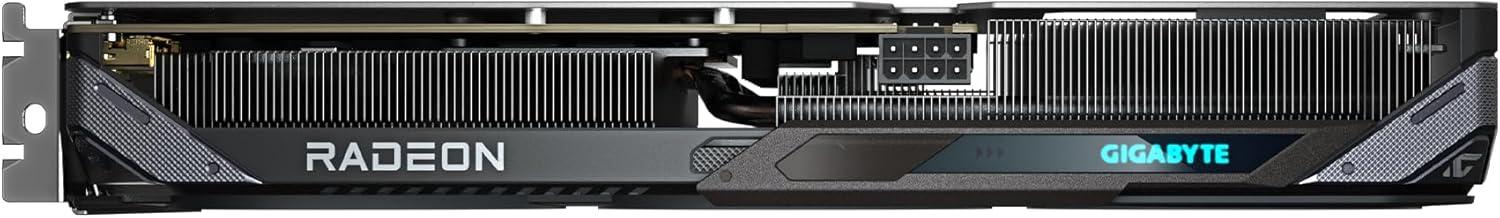

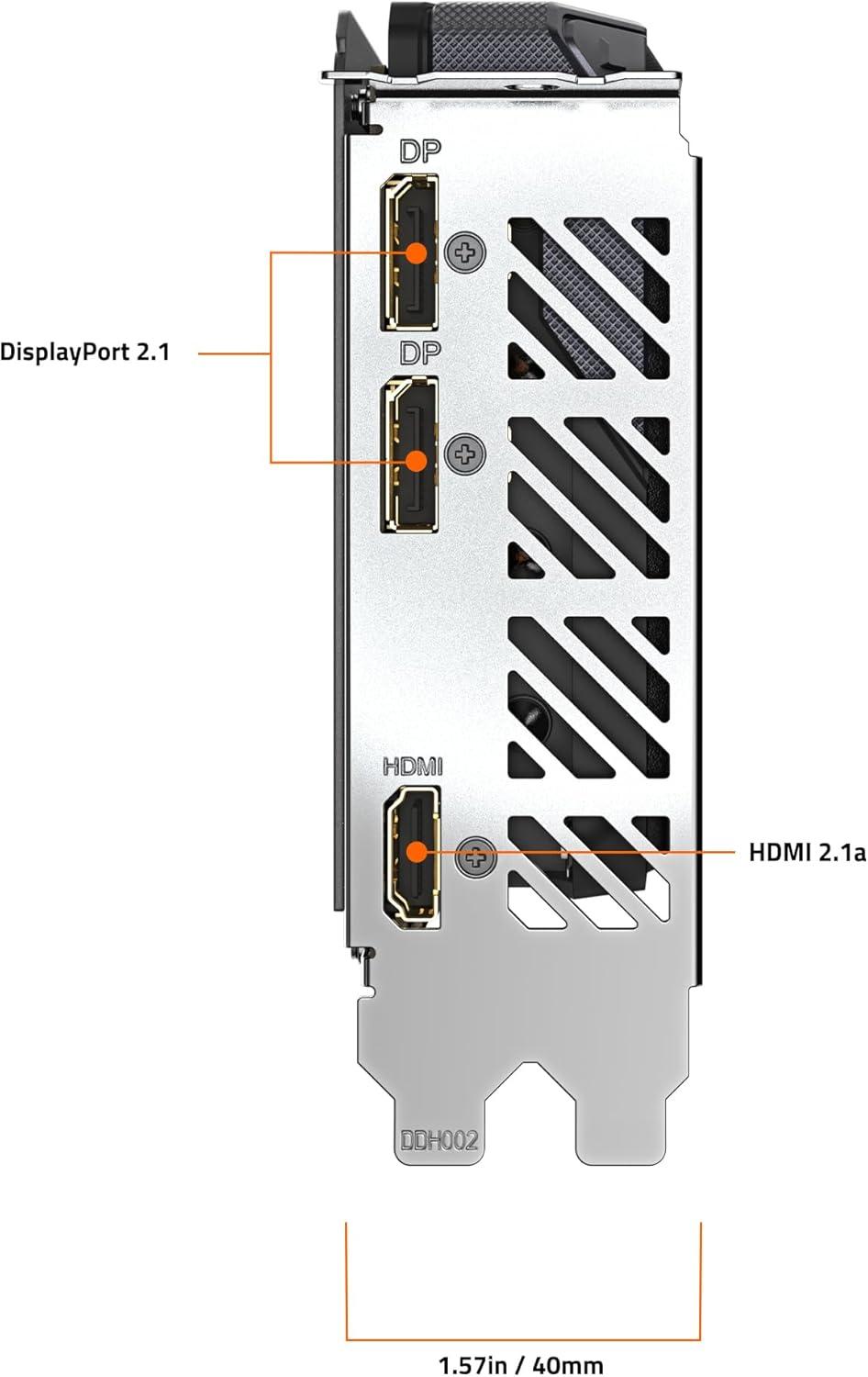

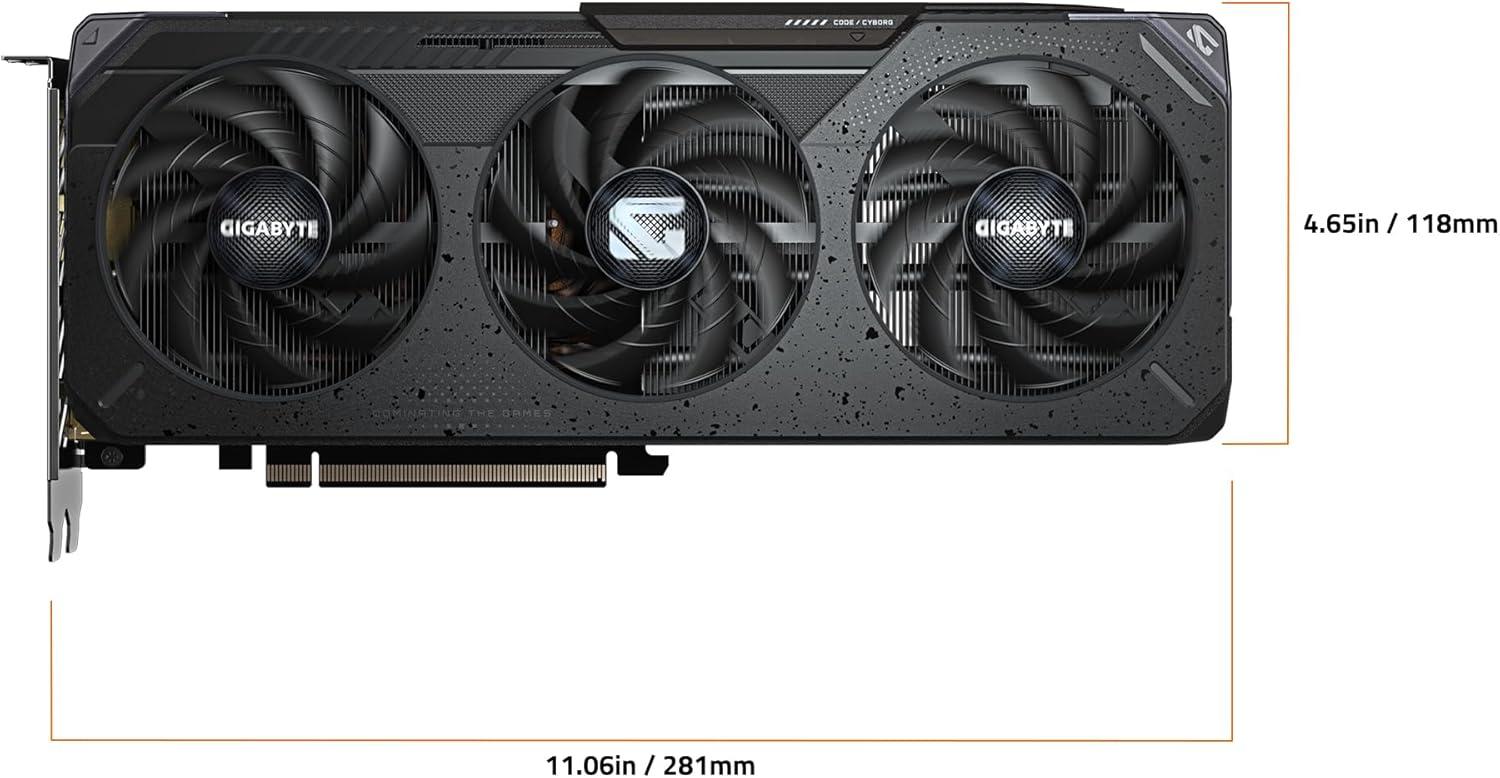

Length is 281 mm and it occupies 2.0 slots (L=281 W=118 H=40 mm). Board power is 150 W with 8 pin x 1. Outputs: DisplayPort 2.1a x2, HDMI 2.1b x1. Warranty is 36 months.

Length is mainstream. It fits most ATX cases and many compact mid-towers.

Best fit: Builds prioritizing this card’s price, cooler, output selection, and warranty over a factory overclock.

Inherited GPU performance

Raster scores come from the RX 9060 XT 8GB, not from this cooler. At 1440p that is 33.17% of the dataset’s best (budget), with 41% at 1080p and 26% at 4K. The chip uses 8 GB GDDR6.

This card’s 1440p value is balanced at 69.9 performance per dollar.

Compare other GIGABYTE and partner boards of this GPU in the RX 9060 XT 8GB retail-card table.
