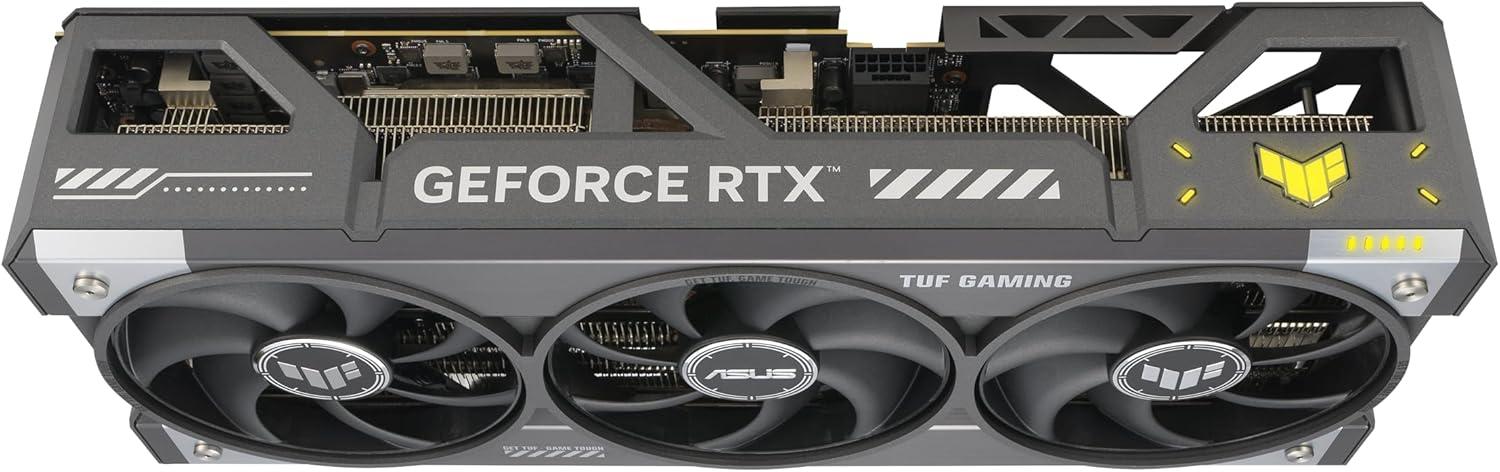

ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition

Written analysis

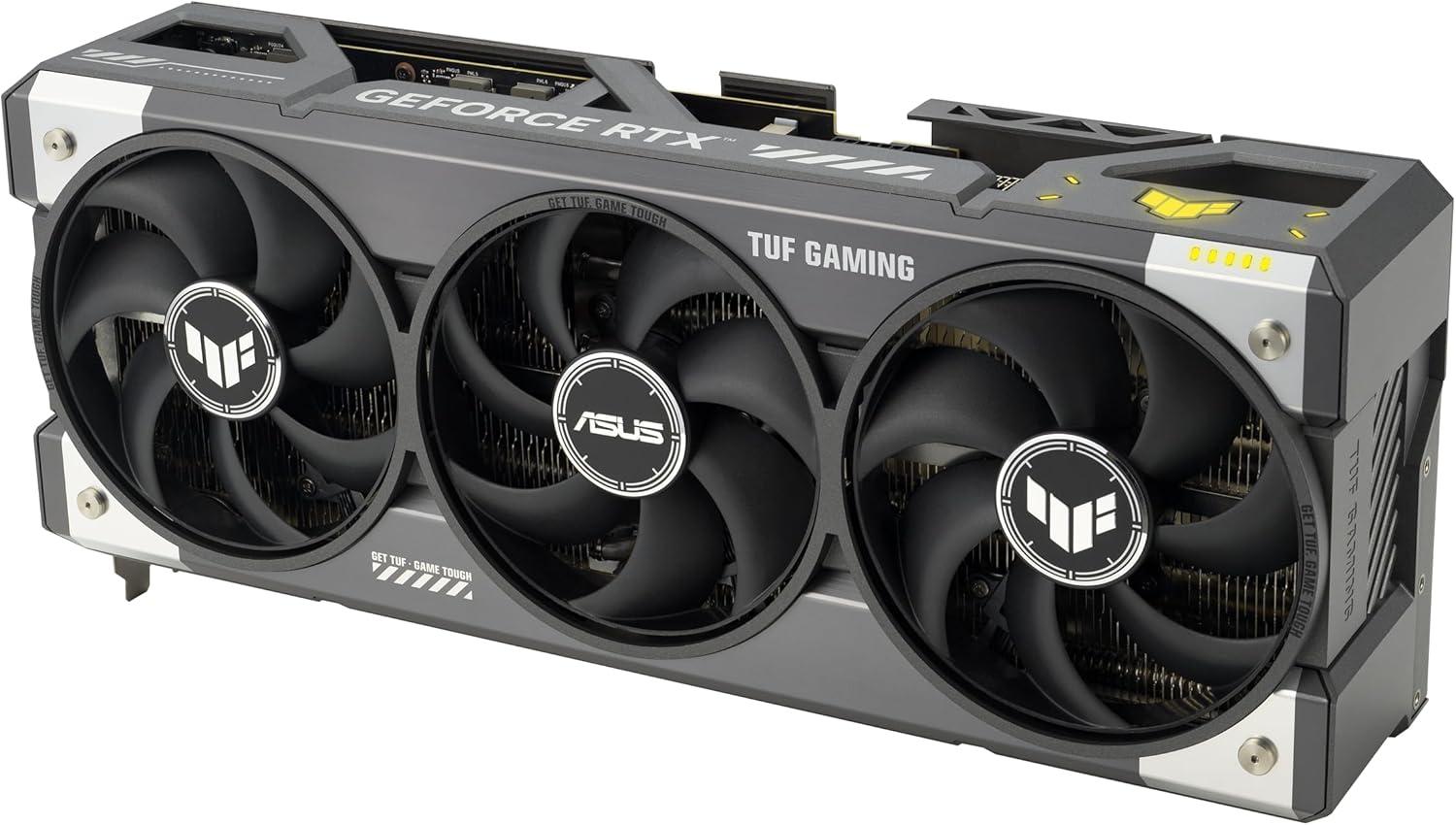

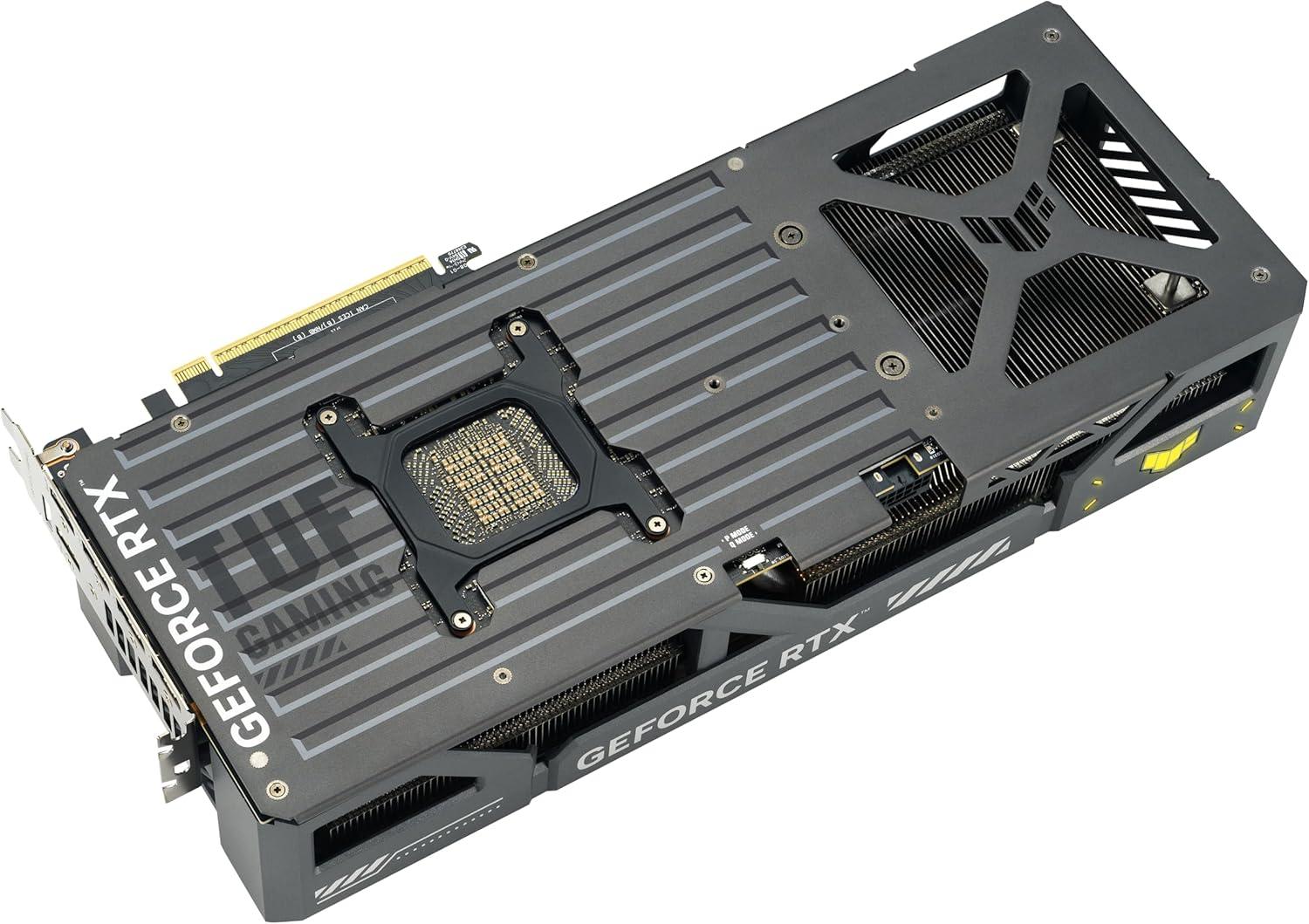

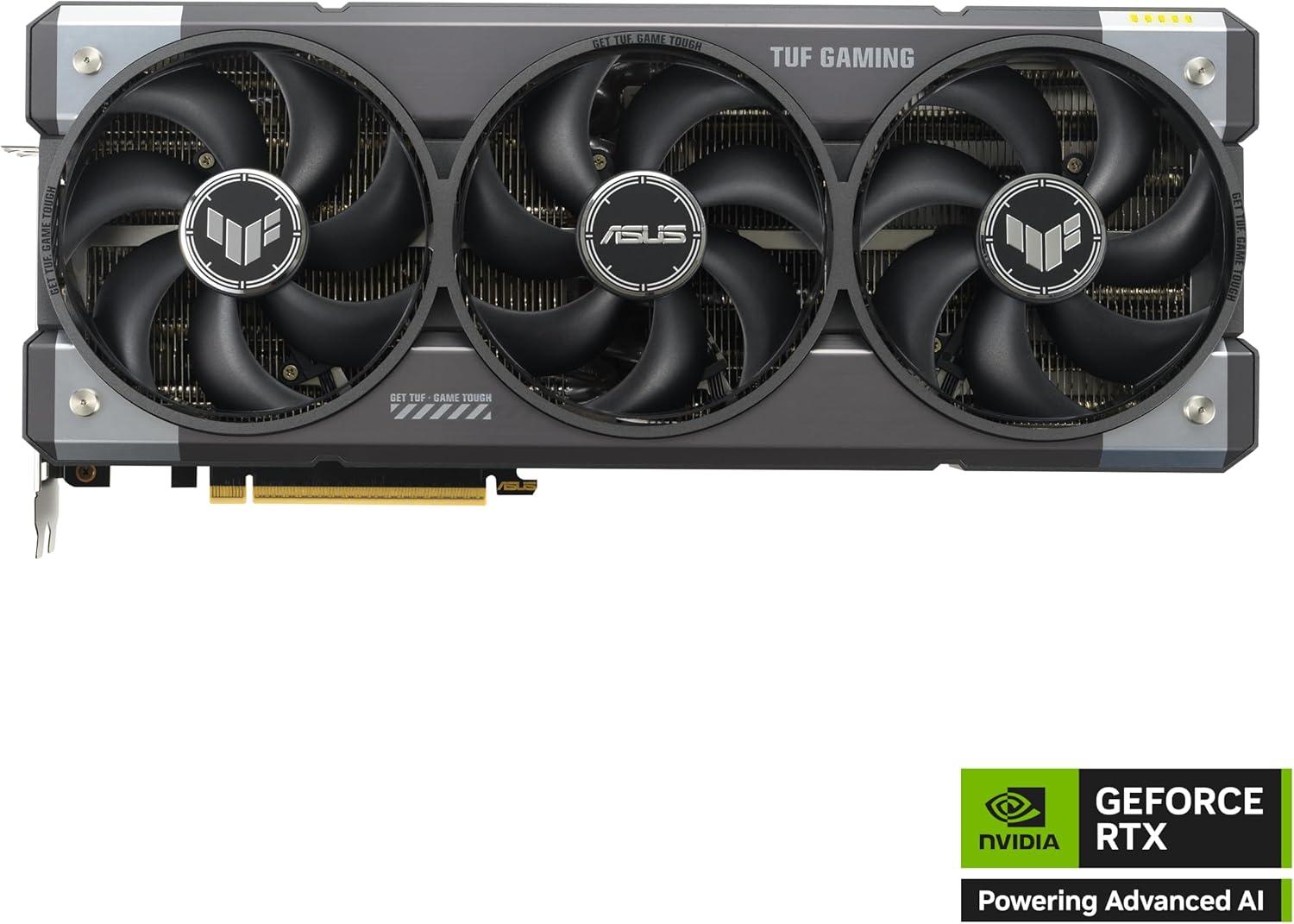

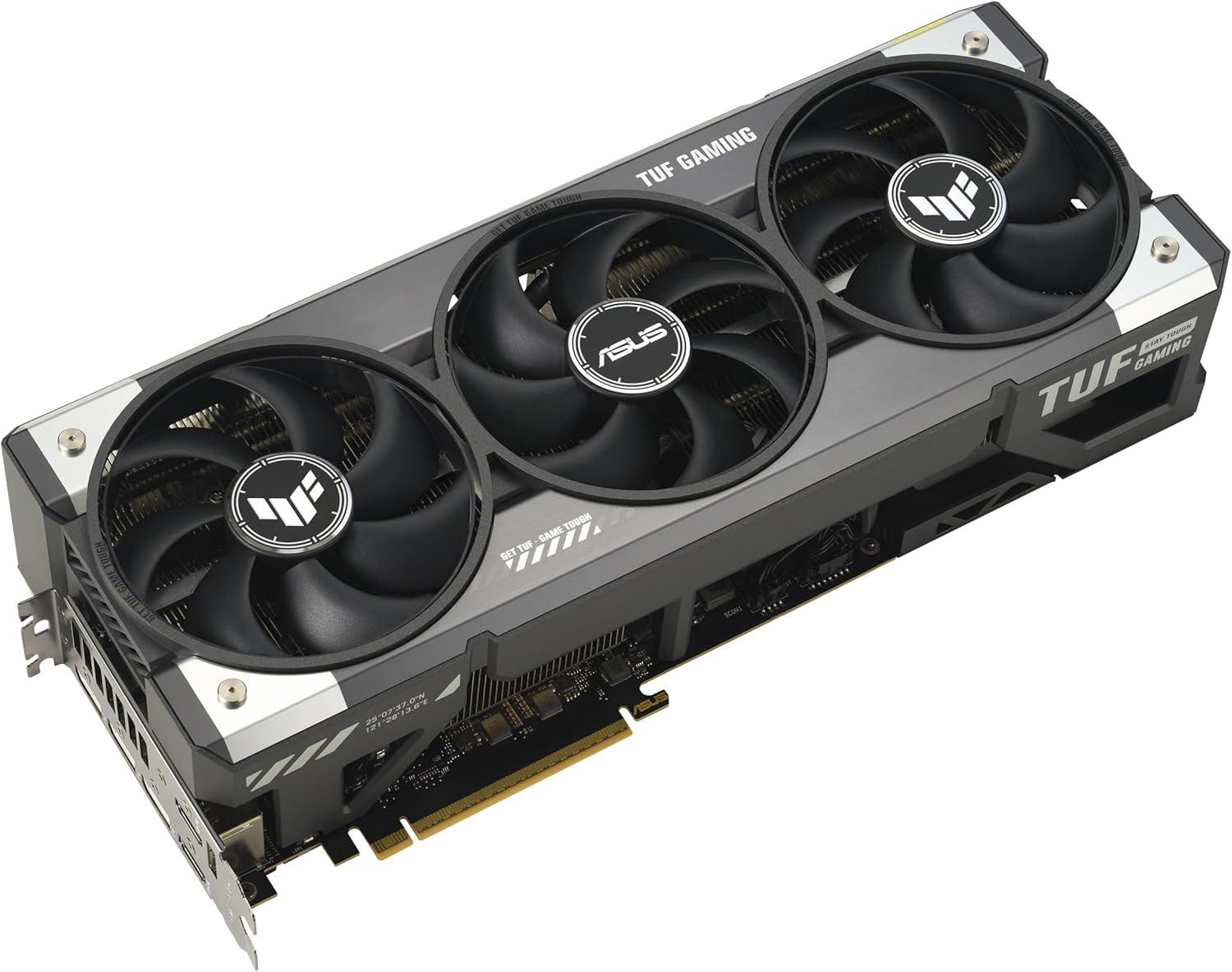

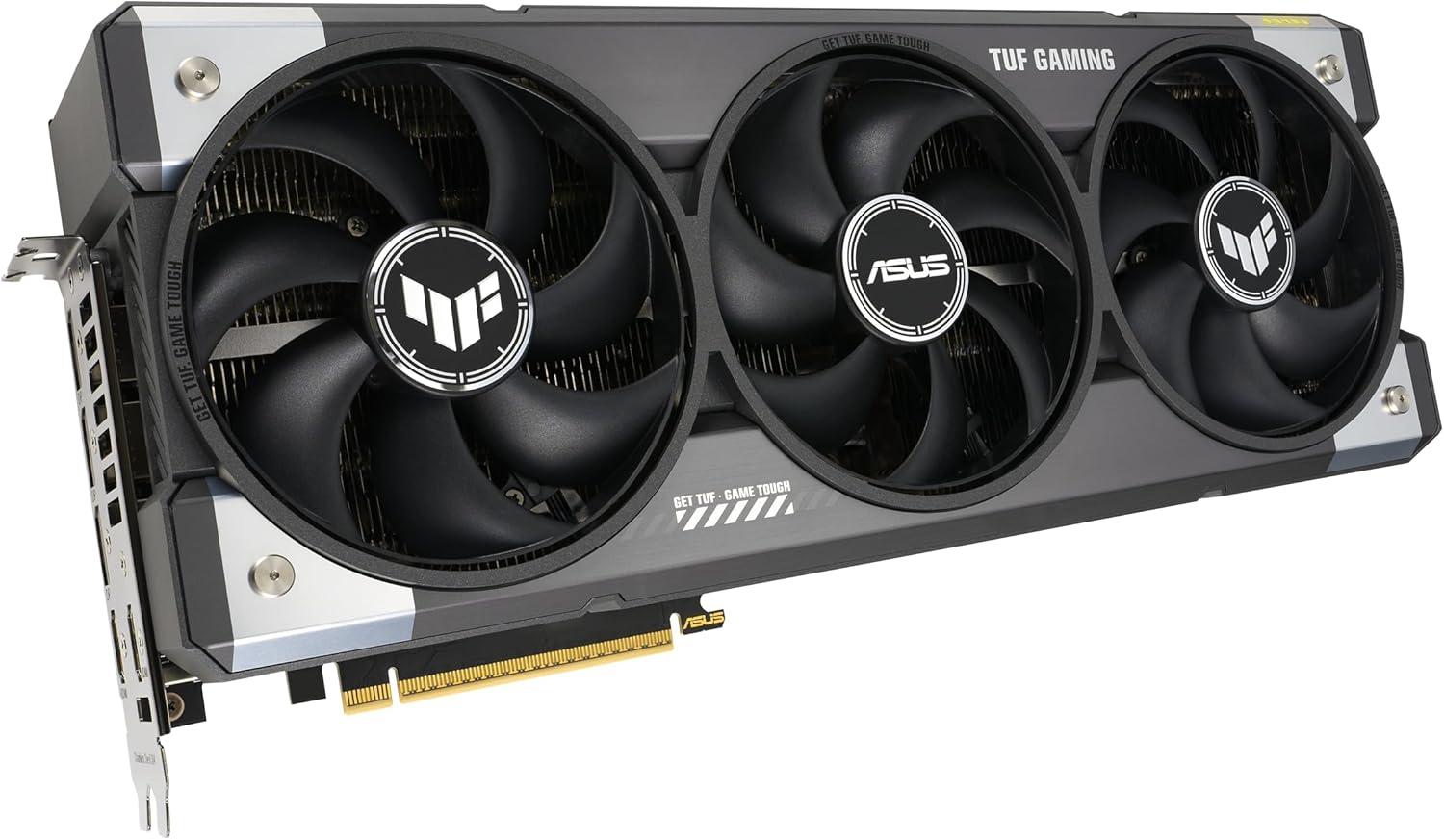

ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition at a glance

The ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition is a ASUS retail card of the RTX 5090 on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2407 MHz.

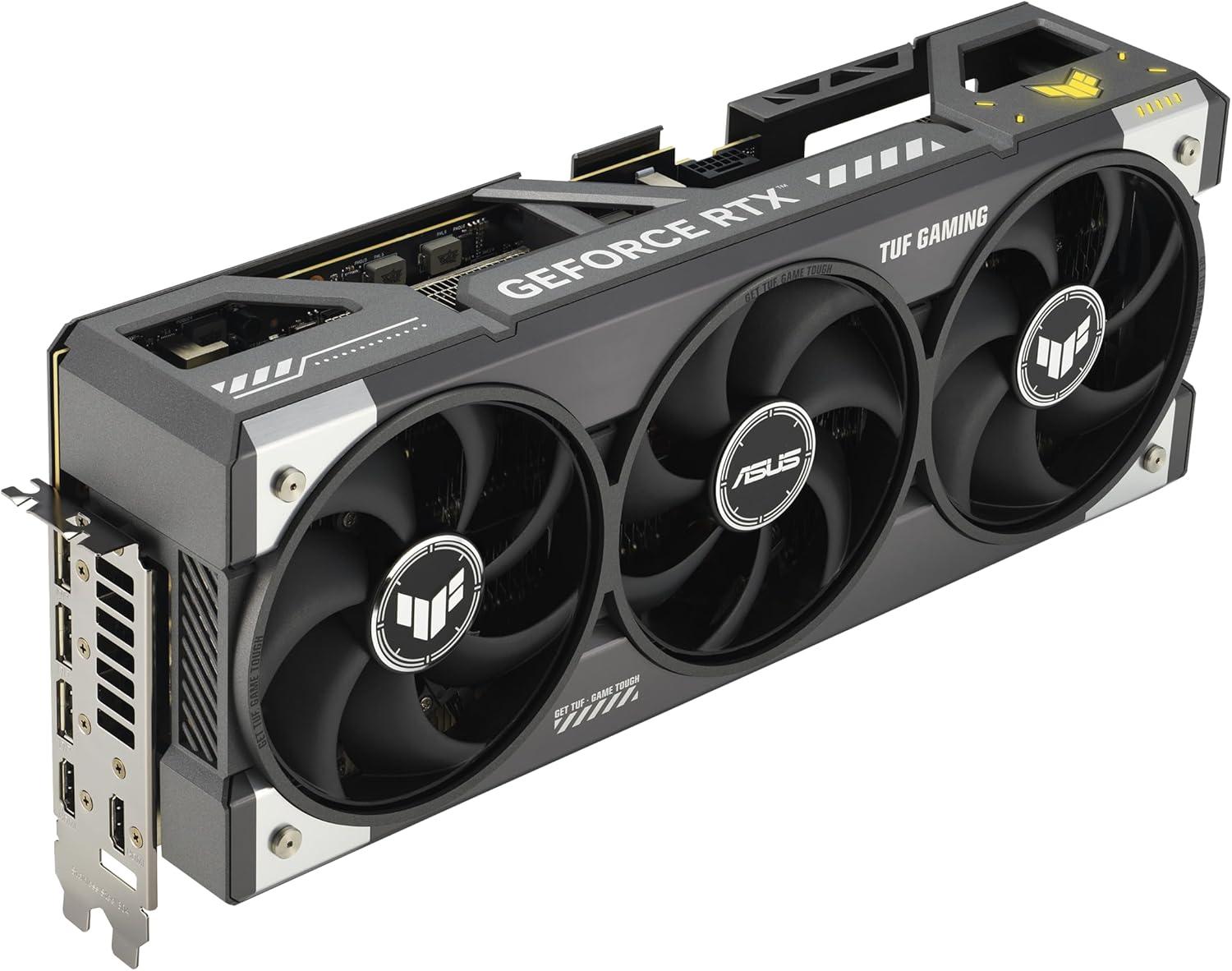

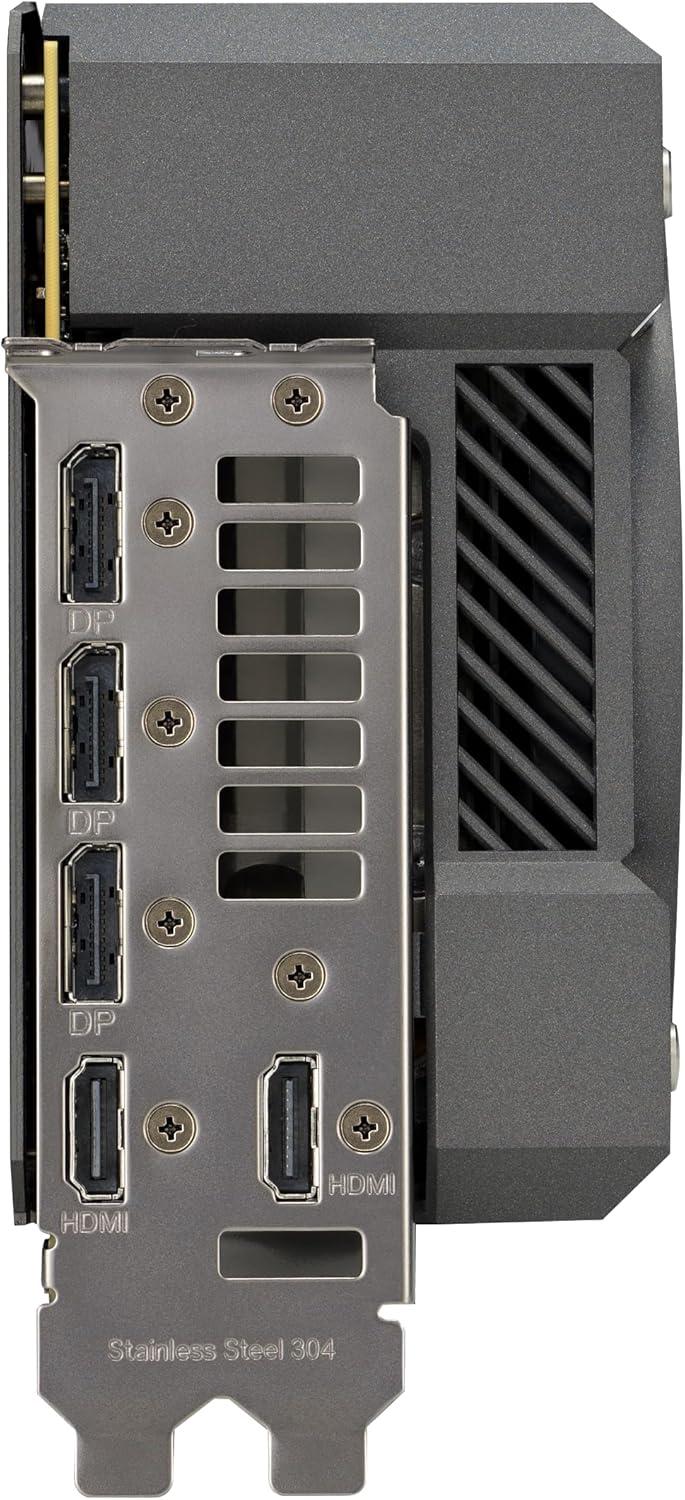

Length is 348 mm and it occupies 4.0 slots (348 x 146 x 72 mm). Board power is 575 W with 16-pin x 1 . Outputs: Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3). Warranty is 36 months.

This is a long card. Confirm GPU clearance in the case table before you buy, especially in compact or dual-radiator builds.

Best fit: Full-size cases with verified GPU clearance and airflow for an unusually long partner card.

Inherited GPU performance

Raster scores come from the RTX 5090, not from this cooler. At 1440p that is 100.00% of the dataset’s best (high-end), with 100% at 1080p and 100% at 4K. The chip uses 32 GB GDDR7.

This card’s 1440p value is 19.4 performance per dollar. Other RTX 5090 partners in the card table may be cheaper for the same silicon.

Compare other ASUS and partner boards of this GPU in the RTX 5090 retail-card table.
