ASUS ROG STRIX Z890-E GAMING
ASUS ROG STRIX Z890-E GAMING Specifications Review
ASUS ROG STRIX Z890-E GAMING by ASUS is a Standard-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8800 MHz.
VRM Quality
The ASUS ROG STRIX Z890-E GAMING features an ultra high-end VRM configuration, delivering 110 A across 18 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG STRIX Z890-E GAMING offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 7 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 standard, delivering fast and reliable internet speeds and wired Realtek 5G Ethernet LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ROG SupremeFX ALC4080, Savitech SV3H712 AMP — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASUS ROG STRIX Z890-E GAMING represents the pinnacle of design and engineering with an outstanding overall quality score of 101.80. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard has a solid 58.8% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG STRIX Z890-E GAMING |
| Current Price Amazon | $329 |
| Amazon Price Updated | 5Â hours, 56Â minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 18 (110 A) |
|---|---|
| Power Design | 18(110A)+1(90A)+2(90A)+2(80A) |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 7 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX ALC4080, Savitech SV3H712 AMP |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 8K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 7 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 30W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 6 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek 5G Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| RAM | Supports Non-ECC, Clocked Unbuffered DIMM (CUDIMM). Features include DIMM Flex, NitroPath DRAM Technology, DIMM Fit, and ASUS Enhanced Memory Profile III (AEMP III). Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. |
|---|---|
| Display | Graphics specifications may vary between CPU types. The 2 Intel Thunderbolt 4 ports support DisplayPort and Thunderbolt video outputs. In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2. In DP alt mode, only one USB Type-C port supports up to UHBR20 at a time. When installing the OS, ensure your monitor is connected to the HDMI port or a discrete graphics card. |
| Expansion | The primary PCIe 5.0 x16 slot supports bifurcation and can run in x16 or x8/x4/x4 modes. The second physical x16 slot is a PCIe 4.0 slot that only supports x4 mode. A PCIe bifurcation table is available on the ASUS support site. |
| Storage |
M.2 Slot Details:
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. M.2 slots connected to the CPU only support RAID 0/1/5. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio. Impedance sense for front and rear headphone outputs. Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking. High quality 120 dB SNR stereo playback output and 110 dB SNR recording input. Supports up to 32-Bit/384 kHz playback. Features Audio Shielding, Premium audio capacitors, and an Audio cover. The LINE OUT port on the rear panel does not support spatial audio. |
| Networking | Wi-Fi 7 (802.11be) with up to 5.8Gbps transfer rate. Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later; older versions support Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth version may vary; refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Buttons | The motherboard includes a FlexKey button and a Start button. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG STRIX Z890-E GAMING Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$957âť—
|
0.0%
|
104.2%
|
110.0%
|
100.0%
|
100.0%
|
110.0%
|
101.0%
|
20.7%
|
|
|
$375
|
0.0%
|
103.6%
|
110.0%
|
97.0%
|
110.0%
|
110.0%
|
91.0%
|
52.5%
|
|
|
$344
|
↓
-1.6%
|
102.4%
|
98.0%
|
97.0%
|
109.0%
|
110.0%
|
98.0%
|
56.5%
|
|
|
$362
|
↑
6.5%
|
102.2%
|
110.0%
|
100.0%
|
110.0%
|
110.0%
|
81.0%
|
53.6%
|
|
|
$400
|
0.0%
|
101.8%
|
110.0%
|
99.0%
|
110.0%
|
102.0%
|
88.0%
|
48.4%
|
|
|
$329
|
↓
-3.4%
|
101.8%
|
103.0%
|
100.0%
|
105.0%
|
110.0%
|
91.0%
|
58.8%
|
|
|
$216
|
0.0%
|
100.4%
|
110.0%
|
95.0%
|
93.0%
|
108.0%
|
96.0%
|
88.3%
|
|
|
$329
|
↑
2.4%
|
96.2%
|
90.0%
|
100.0%
|
93.0%
|
107.0%
|
91.0%
|
55.6%
|
|
|
$550
|
0.0%
|
94.0%
|
63.0%
|
92.0%
|
110.0%
|
110.0%
|
95.0%
|
32.5%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$957âť—
|
0.0%
|
$375
|
0.0%
|
$344
|
↓
-1.6%
|
$362
|
↑
6.5%
|
$400
|
0.0%
|
$329
|
↓
-3.4%
|
$216
|
0.0%
|
$329
|
↑
2.4%
|
$550
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUSTeK COMPUTER INC. | ASUS | GIGABYTE | MSI | MSI | ASUS | ASRock | ASUS | GIGABYTE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Intel ® Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ATX | Standard-ATX | E-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 22 (110 A) | 22 (110 A) | 18 (110 A) | 20 (110 A) | 20 (110 A) | 18 (110 A) | 20 (110 A) | 16 (110 A) | 16 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 22 + 1 + 2 + 2 | 22(110A)+1(90A)+2(90A)+2(80A) | 18+1+2 | 20+1+1+1 | 20+2+1+1 | 18(110A)+1(90A)+2(90A)+2(80A) | 20+1+2+1+1 | 16(110A)+1(90A)+2(90A)+2(80A) | 16+1+2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9200 MHz | 128 GB / 9600 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 128 GB / 9600 MHz | 256 GB / 8800 MHz | 256 GB / 9600 MHz | 256 GB / 8600 MHz | 256 GB / 9500 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x4 Gen4 | 1x1 Gen4 | 2x16 Gen5 | 2x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 6 | 6 | 5 | 5 | 6 | 7 | 6 | 5 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 6 | 4 | 4 | 4 | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ALC4082, ESS ES9219 QUAD DAC | ALC4080 | Realtek® ALC1220 CODEC, ESS E… | Realtek® ALC1220P Codec | Realtek® ALC4080 Codec | ROG SupremeFX ALC4080, Savite… | Realtek ALC4082 Audio Codec | Realtek® ALC4080 | ESS ES9260 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ❌ | ✔️ (1.4) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Intel ® 2.5Gb Ethern… (2 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | Marvell® AQtion AQC113C … (1 ports) | 1x Intel® Killer™ E5000B… (2 ports) | 1x Intel® Killer E5000B … (1 ports) | Realtek 5G Ethernet (1 ports) | 1 x 5 Gigabit LAN 10/100… (2 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
❌ |
|
|
❌ |
|
|
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634âť—
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346âť—
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU |
Official Manufacturer Data
Memory:
Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics:
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports max. 8K@60Hz as specified in HDMI 2.1. Â
**** In ThunderboltTM Â 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
****** VGA resolution support depends on processors' or graphic cards' resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Storage:
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
Expansion Slots:
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

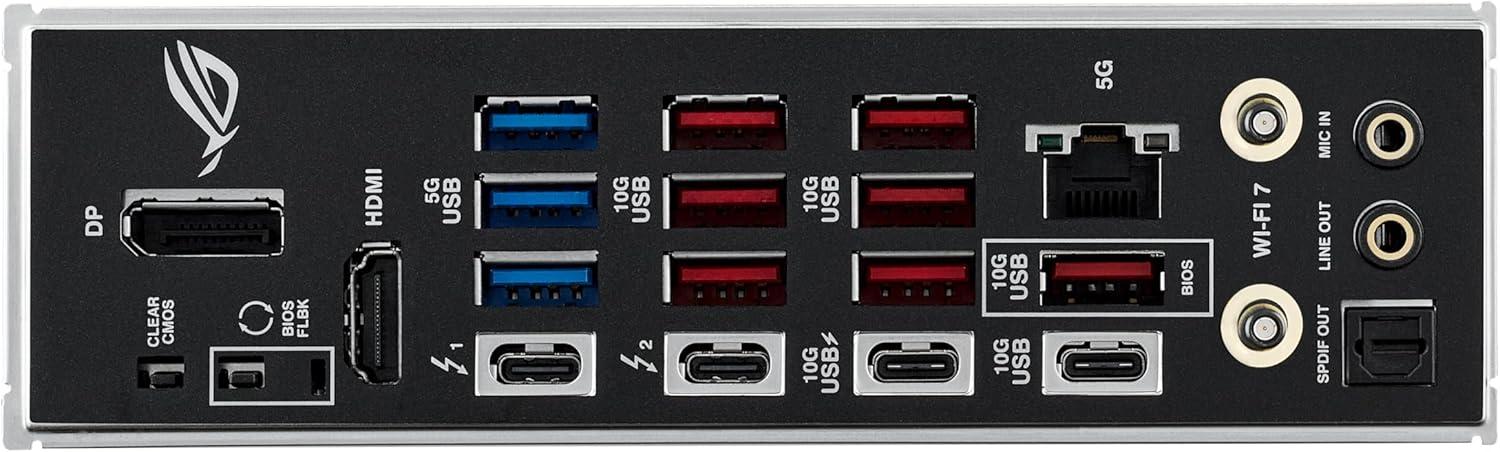

Back Panel I/O:
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
 For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
 For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP Â
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

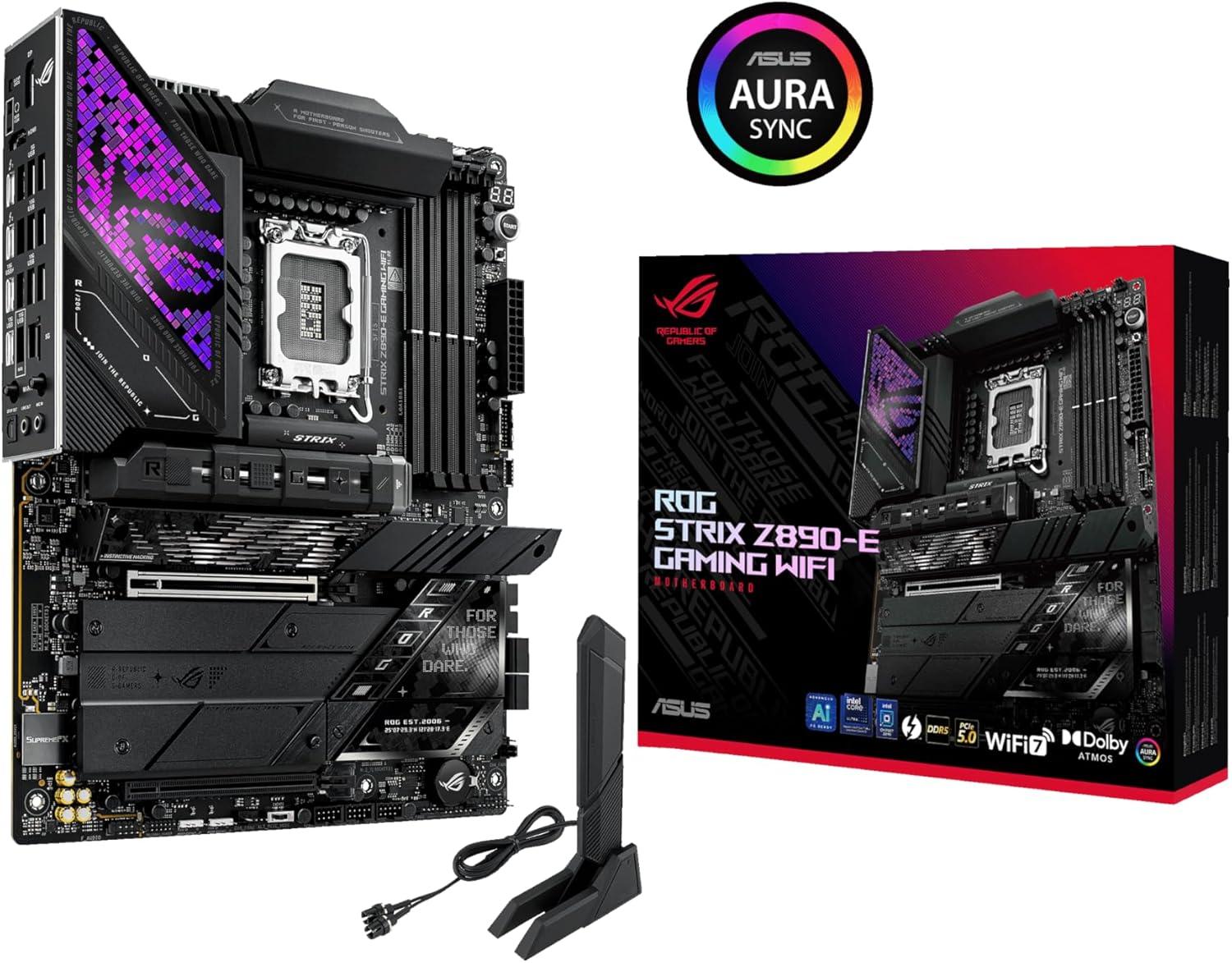

Aura Sync
- Addressable Gen2 headers
Add Comment on ASUS ROG STRIX Z890-E GAMING
