ASUS ROG MAXIMUS Z890 APEX
ASUS ROG MAXIMUS Z890 APEX Specifications Review
ASUS ROG MAXIMUS Z890 APEX by ASUS is a Standard-ATX form factor motherboard based on the high-end Intel ® Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 9600 MHz.
VRM Quality

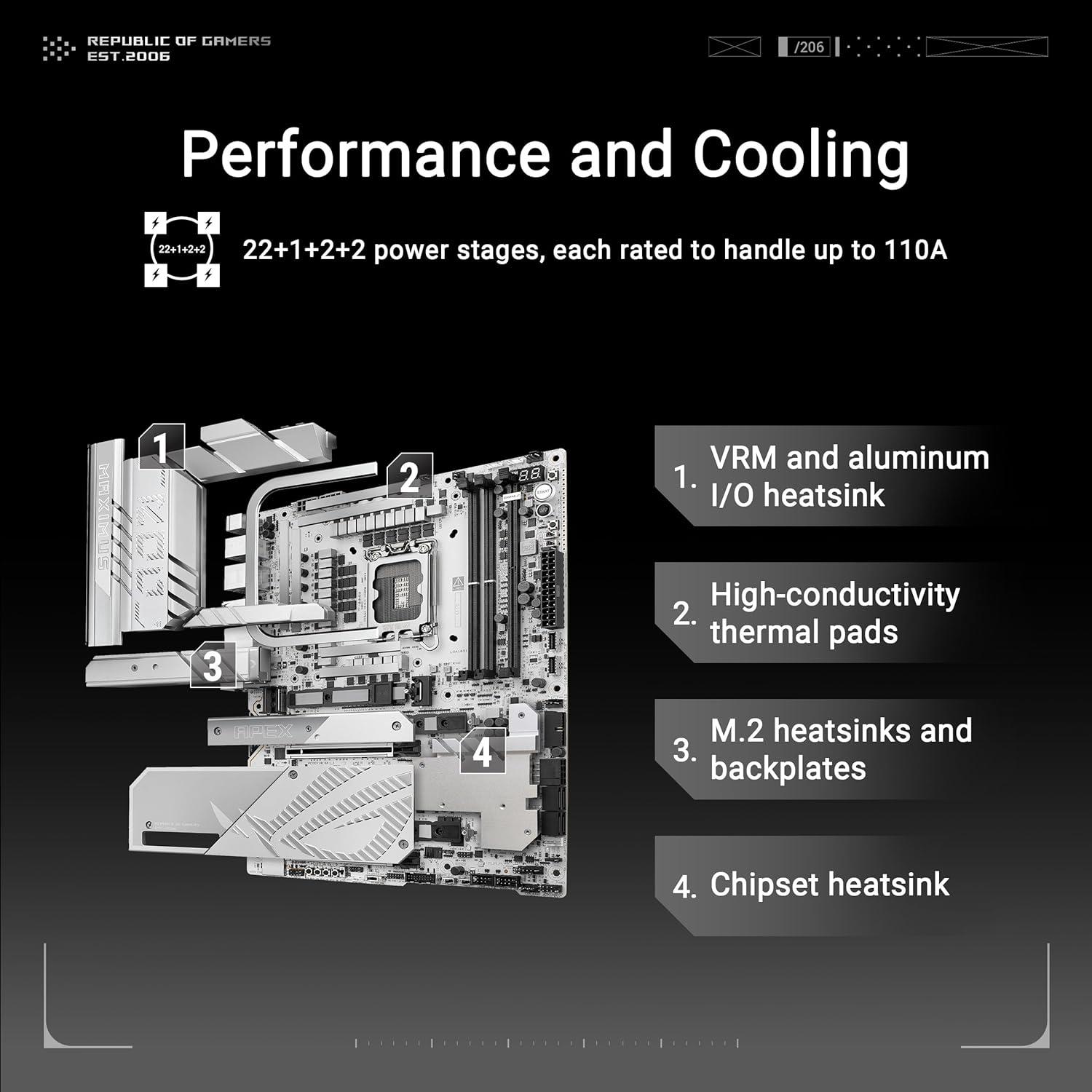

The ASUS ROG MAXIMUS Z890 APEX features an ultra high-end VRM configuration, delivering 110 A across 22 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG MAXIMUS Z890 APEX offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 2 x4 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 6 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 (802.11be) standard, delivering fast and reliable internet speeds and wired 1 x Realtek 5Gb EthernetASUS LANGuard LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ALC4080 — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASUS ROG MAXIMUS Z890 APEX represents the pinnacle of design and engineering with an outstanding overall quality score of 103.60. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard has a solid 52.5% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG MAXIMUS Z890 APEX |
| Current Price Amazon | $375 |
| Amazon Price Updated | 5 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | Intel ® Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 22 (110 A) |
|---|---|
| Power Design | 22(110A)+1(90A)+2(90A)+2(80A) |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 9600 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 2 | 0 |
| x4 | 2 | 0 | 2 |
Storage Configuration
| M.2 Slot Count | 6 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242, 2230 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ALC4080 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 8K@60Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| Power Delivery (W) | 60W |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
| USB4 / Thunderbolt Header (40 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 5Gb EthernetASUS LANGuard LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 (802.11be) Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | Support Intel ® Core™ Ultra Processors(Series 2) , LGA1851 Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| OS Support | Windows 11 (22H2 & later) |
| RAM | Supports Un-buffered and Clocked Unbuffered DIMM (CUDIMM). Features include DIMM Fit, DIMM Flex, and ASUS Enhanced Memory Profile III (AEMP III). Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function. |
| Display | Features 2 Intel Thunderbolt 4 ports (USB Type-C) that support DisplayPort and Thunderbolt video outputs. In Thunderbolt 4 mode, it supports up to 8K@60Hz with DSC or two 4K@60Hz displays. In DP alt mode, only one USB Type-C port supports up to UHBR20 at a time. Graphics specifications may vary between CPU types. The manufacturer recommends connecting the monitor to a discrete graphics card during OS installation. |
| Expansion | The two PCIe 5.0 x16 slots support x16, x8/x8, or x8/x4/x4 modes. M.2_3 & M.2_4 share bandwidth with the second PCIe 5.0 x16 slot (PCIEX16(G5)_2). When M.2_3 is enabled, the first slot (PCIEX16(G5)_1) runs at x8 and the second slot runs at x4. When both M.2_3 & M.2_4 are enabled, the first slot runs at x8 and the second slot is disabled. Please check the PCIe bifurcation table on the support site for more details. |
| Storage |
M.2 Slot Details:
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. M.2 slots from the CPU only support RAID 0/1/5. |
| Audio | ROG SupremeFX 7.1 Surround Sound. Features Savitech SV3H712 AMP, SupremeFX Shielding Technology, and premium audio capacitors. Supports impedance sensing for front and rear outputs, 120 dB SNR playback, and 110 dB SNR recording. 32-Bit/384 kHz playback is supported via the front panel. The LINE OUT port on the rear panel does not support spatial audio. |
| Networking | ASUS LANGuard. Wi-Fi transfer rate up to 5.8Gbps. Wi-Fi features may vary depending on the operating system: For Windows 11, Wi-Fi 7 requires 24H2 or later; older versions only support Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulations may vary between countries. The Bluetooth version may vary; refer to the Wi-Fi module manufacturer's website. |
| Buttons | The motherboard includes several miscellaneous buttons and switches: an Alteration PCIe mode switch, 4 BCLK buttons, a BIOS Switch button, a FlexKey button, a Pause switch, a ReTry button, a Safe Boot button, a Slow Mode switch, and a Start button. |

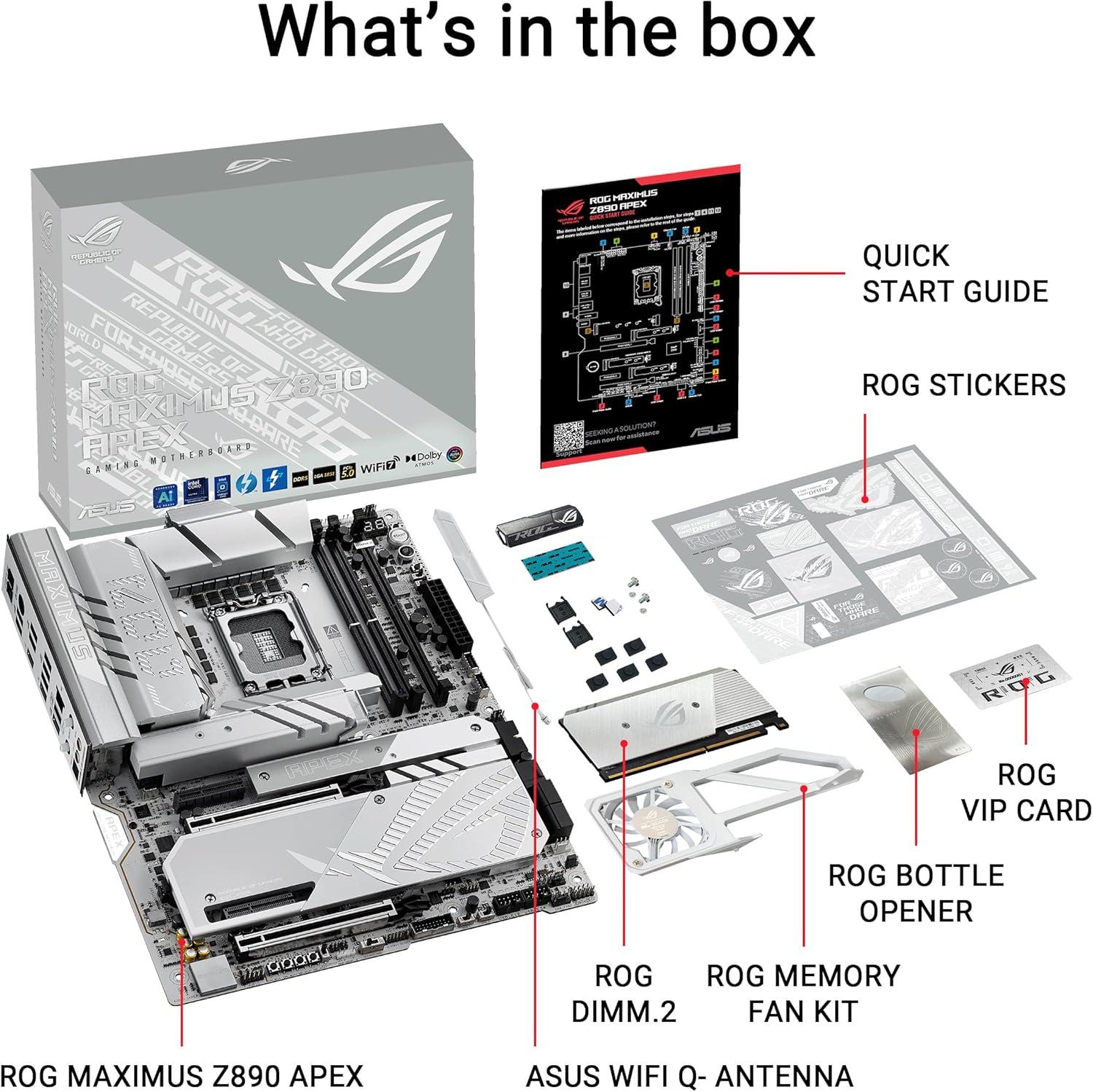

| Accessories | ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Thermal pad for M.2 22110 1 x ROG Memory Fan Kit Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG VIP card 3 x M.2 Q-Slide package 5 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide |
| Dimensions | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG MAXIMUS Z890 APEX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$1054
|
0.0%
|
105.4%
|
110.0%
|
99.0%
|
110.0%
|
110.0%
|
98.0%
|
19.0%
|
|
|
$550
|
0.0%
|
105.0%
|
110.0%
|
92.0%
|
110.0%
|
110.0%
|
103.0%
|
36.3%
|
|
|
$434
|
0.0%
|
104.4%
|
110.0%
|
100.0%
|
106.0%
|
110.0%
|
96.0%
|
45.7%
|
|
|
$957❗
|
0.0%
|
104.2%
|
110.0%
|
100.0%
|
100.0%
|
110.0%
|
101.0%
|
20.7%
|
|
|
$375
|
0.0%
|
103.6%
|
110.0%
|
97.0%
|
110.0%
|
110.0%
|
91.0%
|
52.5%
|
|
|
$344
|
↓
-1.6%
|
102.4%
|
98.0%
|
97.0%
|
109.0%
|
110.0%
|
98.0%
|
56.5%
|
|
|
$362
|
↑
6.5%
|
102.2%
|
110.0%
|
100.0%
|
110.0%
|
110.0%
|
81.0%
|
53.6%
|
|
|
$400
|
0.0%
|
101.8%
|
110.0%
|
99.0%
|
110.0%
|
102.0%
|
88.0%
|
48.4%
|
|
|
$329
|
↓
-3.4%
|
101.8%
|
103.0%
|
100.0%
|
105.0%
|
110.0%
|
91.0%
|
58.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$1054
|
0.0%
|
$550
|
0.0%
|
$434
|
0.0%
|
$957❗
|
0.0%
|
$375
|
0.0%
|
$344
|
↓
-1.6%
|
$362
|
↑
6.5%
|
$400
|
0.0%
|
$329
|
↓
-3.4%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | GIGABYTE | ASUS | ASUSTeK COMPUTER INC. | ASUS | GIGABYTE | MSI | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 26 (110 A) | 22 (110 A) | 22 (110 A) | 22 (110 A) | 22 (110 A) | 18 (110 A) | 20 (110 A) | 20 (110 A) | 18 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 26+2+1+1 | 22+1+2 | 22+2+1+2 | 22 + 1 + 2 + 2 | 22(110A)+1(90A)+2(90A)+2(80A) | 18+1+2 | 20+1+1+1 | 20+2+1+1 | 18(110A)+1(90A)+2(90A)+2(80A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9200 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 128 GB / 9600 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 128 GB / 9600 MHz | 256 GB / 8800 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x4 Gen4 | 1x1 Gen4 | 2x16 Gen5 | 2x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 8 | 4 | 6 | 6 | 6 | 5 | 5 | 6 | 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4082 Codec + ESS9… | ESS ES9280AC DAC chip+2 ESS E… | Realtek® ALC4082 | ALC4082, ESS ES9219 QUAD DAC | ALC4080 | Realtek® ALC1220 CODEC, ESS E… | Realtek® ALC1220P Codec | Realtek® ALC4080 Codec | ROG SupremeFX ALC4080, Savite… | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ❌ | ❌ | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (1.4) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Marvell® AQC113CS 10G… (2 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Intel® 2.5Gb Etherne… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | Marvell® AQtion AQC113C … (1 ports) | 1x Intel® Killer™ E5000B… (2 ports) | 1x Intel® Killer E5000B … (1 ports) | Realtek 5G Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
❌ |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
❌ |
|
|
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634❗
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346❗
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU |
Official Manufacturer Data
Memory:
Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel ® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**In Thunderbolt4TM mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***In DP alt mode, Only one USB Type-C ® port supports up to UHBR20 at a time.
**** VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to a discrete graphics card.
Storage:
Support Intel ® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel ® Z890 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel ® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Expansion Slots:
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel ® Z890 Chipset
2 x PCIe 4.0 x4 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
USB:
2 x Thunderbolt™ 4 ports (2 x USB Type-C ® )
1 x USB 20Gbps port (1 x USB Type-C ® )
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C ® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C ® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C ® power delivery output: max. 5V/3A
*USB Type-C ® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
2 x 4-pin Full Speed Fan headers
1 x W_PUMP+ header
1 x Extra Flow Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C ® )
1 x USB 10Gbps connector (supports USB Type-C ® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 80 Light Bar jumper
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
1 x Pause switch
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switches
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4 ® ) header*
*The Thunderbolt™ card can only be used when installed to the PCIEX4(G4)_2 slot.
Ensure to install your Thunderbolt™ card to the PCIEX4(G4)_2 slot.

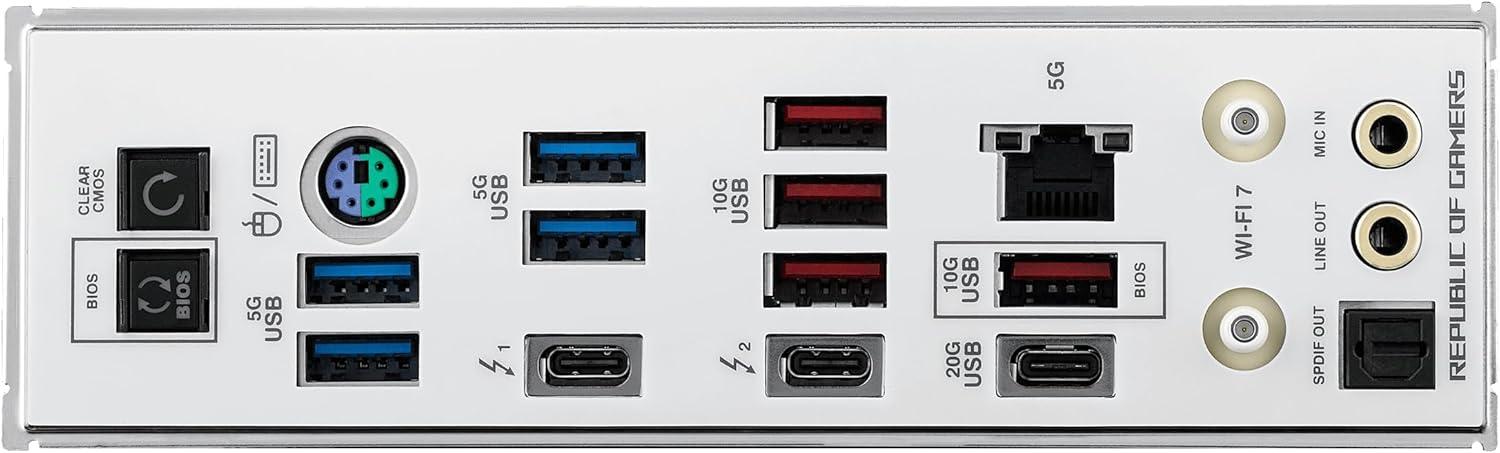

Back Panel I/O:
1 x USB 20Gbps port (1 x USB Type-C ® )
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x PS/2 keyboard/mouse combo port
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth ® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- SMD Capacitor
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Dual BIOS
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Add Comment on ASUS ROG MAXIMUS Z890 APEX
