ASUS Prime B760M-A D4 Specifications Review
ASUS Prime B760M-A D4 by ASUS is a Micro-ATX form factor motherboard based on the mid-range B760M chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 7200 MHz.

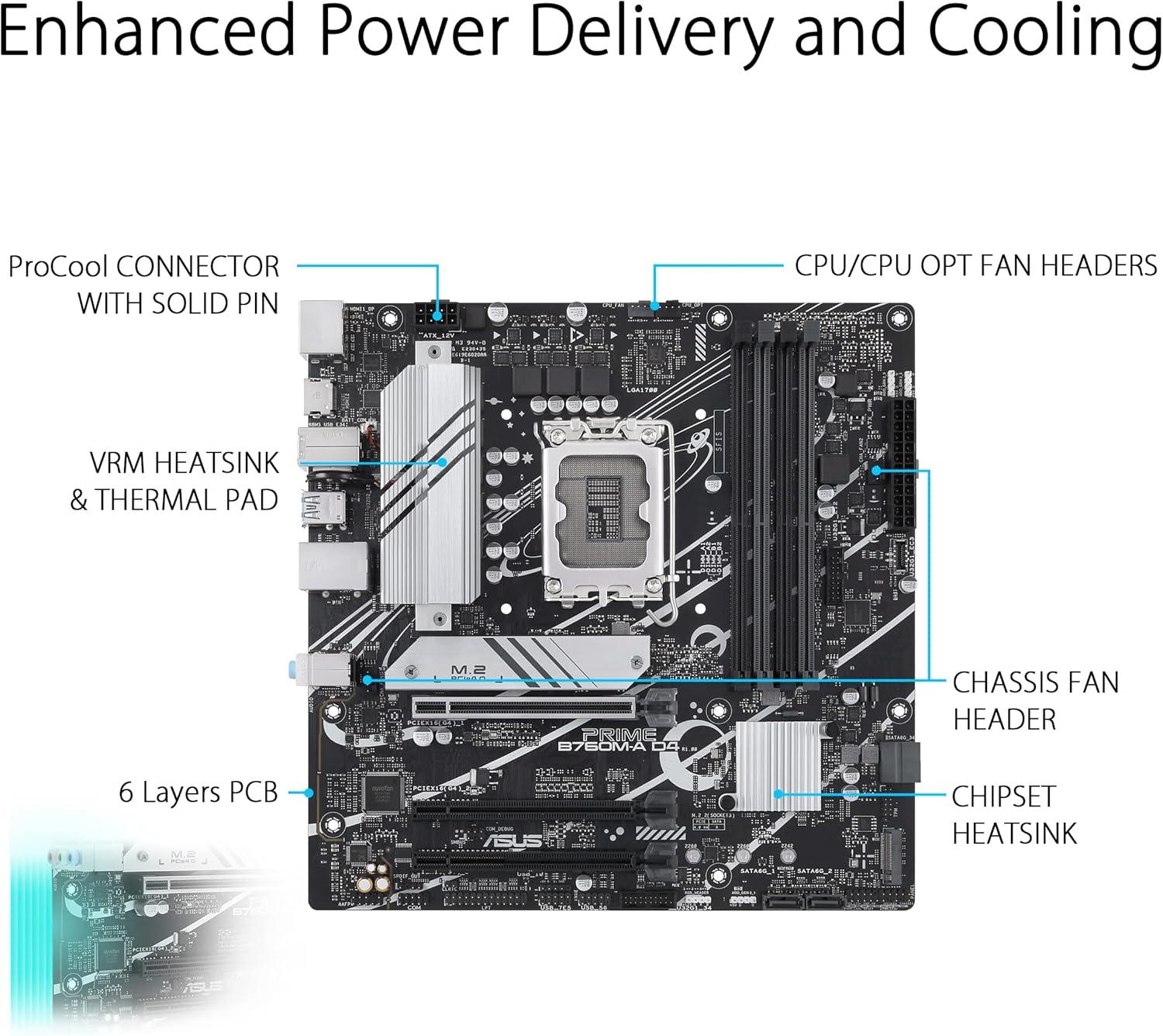

VRM Quality
The ASUS Prime B760M-A D4 has a basic VRM configuration, delivering 55 A across 5 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS Prime B760M-A D4 offers a very extensive expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 4 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 6 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired 1 x Realtek 2.5Gb Ethernet Ethernet wireless networking with the Wi-Fi 6 standard, Bluetooth 5.2 is included for wireless peripherals. USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC892/ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
ASUS Prime B760M-A D4 is a dependable choice with a respectable overall quality score of 54.60. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 69.2% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS Prime B760M-A D4 |
| Current Price Amazon | $150 |
| Amazon Price Updated | 6 hours, 37 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B760M / LGA 1700 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 5 (55 A) |
|---|---|
| Power Design | 5+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 7200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 4 | 4 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280 |
| SATA Ports | 6 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC892/ALC897 |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
Front USB Ports
| USB 3.2 Gen 1 Type-C (5 Gbps) | 2 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6 Frequency Bands: 2.4/5GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.2 |
Button Features
| Buttons |
|---|
Quality & Features
Additional Information
| RAM | Supports Un-buffered Memory. Features OptiMem II. Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, refer to the manufacturer's memory support list. |
|---|---|
| Display | Graphics specifications may vary between CPU types. |
| Expansion | The primary PCIe 4.0 x16 slot is connected to the CPU. The B760 chipset provides one physical PCIe 4.0 x16 slot that operates in x4 mode, and two physical PCIe 4.0 x16 slots that operate in x1 mode. |
| Storage |
M.2 Slot Details:
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | Features Audio Shielding, premium audio capacitors, and dedicated audio PCB layers. Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, and up to 24-Bit/192 kHz playback. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Networking | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Buttons | The text mentions a 'Clear CMOS header', which is a set of pins for clearing the CMOS, not a physical button. |
| Dimensions | 24.4cm x 24.4cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS Prime B760M-A D4 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$111❗
|
↓
-14.9%
|
56.6%
|
43.0%
|
65.0%
|
69.0%
|
63.0%
|
43.0%
|
97.3%
|
|
|
$300
|
↓
-30.2%
|
54.8%
|
24.0%
|
92.0%
|
67.0%
|
45.0%
|
46.0%
|
34.7%
|
|
|
$436
|
0.0%
|
54.8%
|
43.0%
|
65.0%
|
60.0%
|
63.0%
|
43.0%
|
23.9%
|
|
|
$186
|
↑
0.6%
|
54.8%
|
32.0%
|
67.0%
|
74.0%
|
55.0%
|
46.0%
|
56.0%
|
|
|
$140
|
0.0%
|
54.6%
|
37.0%
|
65.0%
|
74.0%
|
54.0%
|
43.0%
|
74.1%
|
|
|
$126
|
0.0%
|
54.6%
|
14.0%
|
67.0%
|
100.0%
|
47.0%
|
45.0%
|
82.3%
|
|
|
$150
|
0.0%
|
54.6%
|
14.0%
|
67.0%
|
100.0%
|
47.0%
|
45.0%
|
69.2%
|
|
|
$138
|
0.0%
|
54.0%
|
34.0%
|
65.0%
|
74.0%
|
54.0%
|
43.0%
|
74.4%
|
|
|
$120❗
|
0.0%
|
52.0%
|
31.0%
|
62.0%
|
66.0%
|
61.0%
|
40.0%
|
82.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$111❗
|
↓
-14.9%
|
$300
|
↓
-30.2%
|
$436
|
0.0%
|
$186
|
↑
0.6%
|
$140
|
0.0%
|
$126
|
0.0%
|
$150
|
0.0%
|
$138
|
0.0%
|
$120❗
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | MICRO CENTER | THFKLXT | ASUS | MSI | ASUS | ASUS | MSI | ASROCK | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B760M / LGA 1700 | Z790 / LGA 1700 | B760M / LGA 1700 | B760 / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Micro-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 12 (75 A) | 8 (60 A) | 12 (75 A) | 12 (50 A) | 12 (60 A) | 5 (55 A) | 5 (55 A) | 12 (55 A) | 12 (50 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 12+1+1 | 8+1+1 | 12+1+1 | 12(50A)+1(60A)+1 | 12+1 | 5+1+1 | 5+1+1 | 12+1+1 | 12+1+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR4 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR4 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7800 MHz | 128 GB / 5333 MHz | 256 GB / 7800 MHz | 192 GB / 7200 MHz | 256 GB / 6800 MHz | 128 GB / 7200 MHz | 128 GB / 7200 MHz | 128 GB / 5333 MHz | 256 GB / 7200 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x4 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 2x1 Gen3 | 2x16 Gen4 | 3x16 Gen3 | 4x16 Gen4 | 4x16 Gen4 | 2x16 Gen4 | 3x16 Gen3 | 1x16 Gen5 | 1x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 3 | 3 | 3 | 2 | 2 | 2 | 2 | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC897 Codec | Realtek® Audio CODEC | Realtek® ALC897 Codec | Realtek 7.1 Surround Sound Hi… | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek ALC897 | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5Gbps LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5Gbps LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | 1 x Realtek 2.5Gb Ether… (1 ports) | 1 x Realtek 2.5Gb Ether… (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 802.11ac | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6 | Wi-Fi 6E | Wi-Fi 6 | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.1 | v5.3 | v5.2 | v5.3 | v5.2 | v5.2 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics:
2 x HDMITM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMTM 2.1.
1 x DisplayPort**
2 x HDMITM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMTM 2.1.
Storage:
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

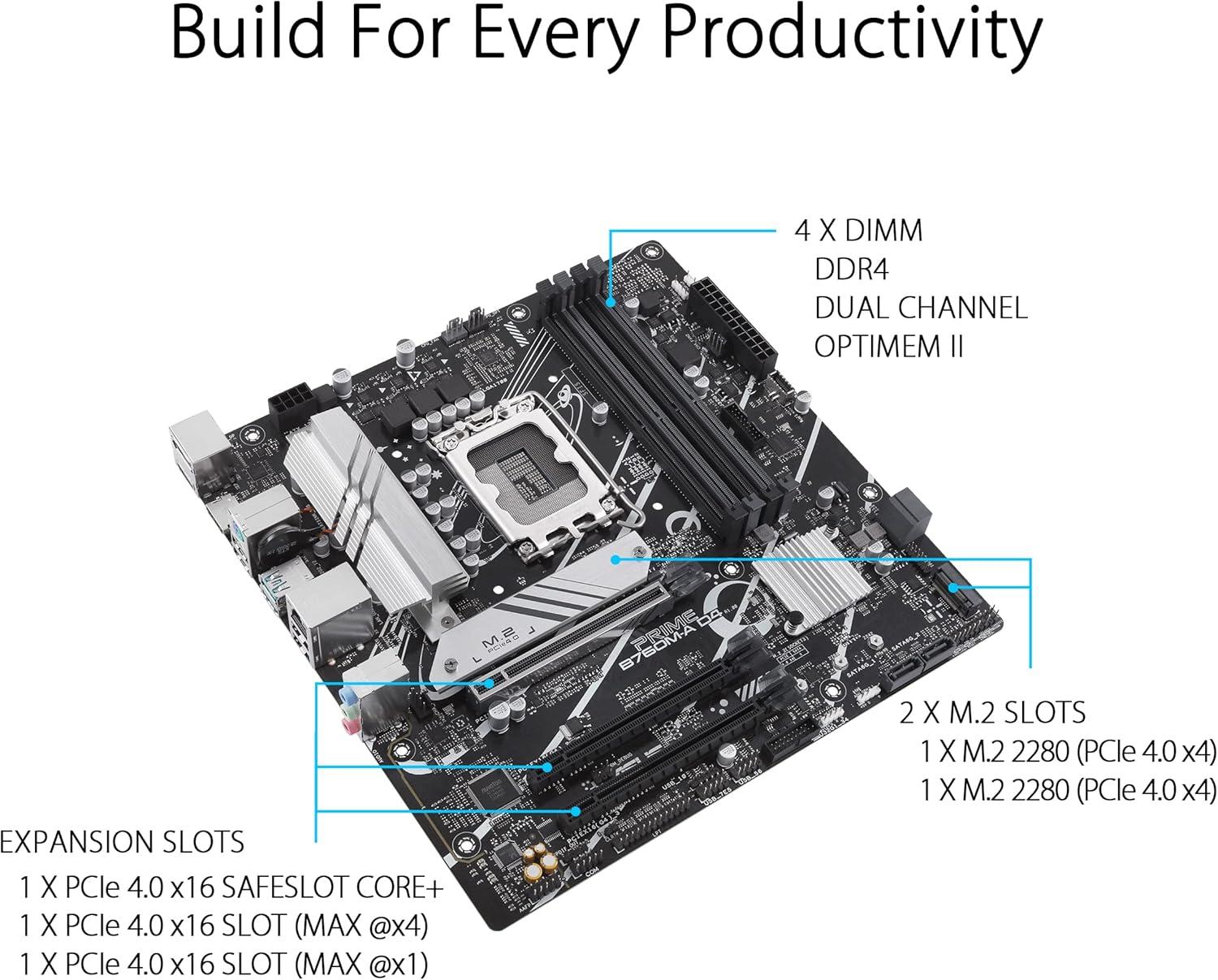

Expansion Slots:
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports

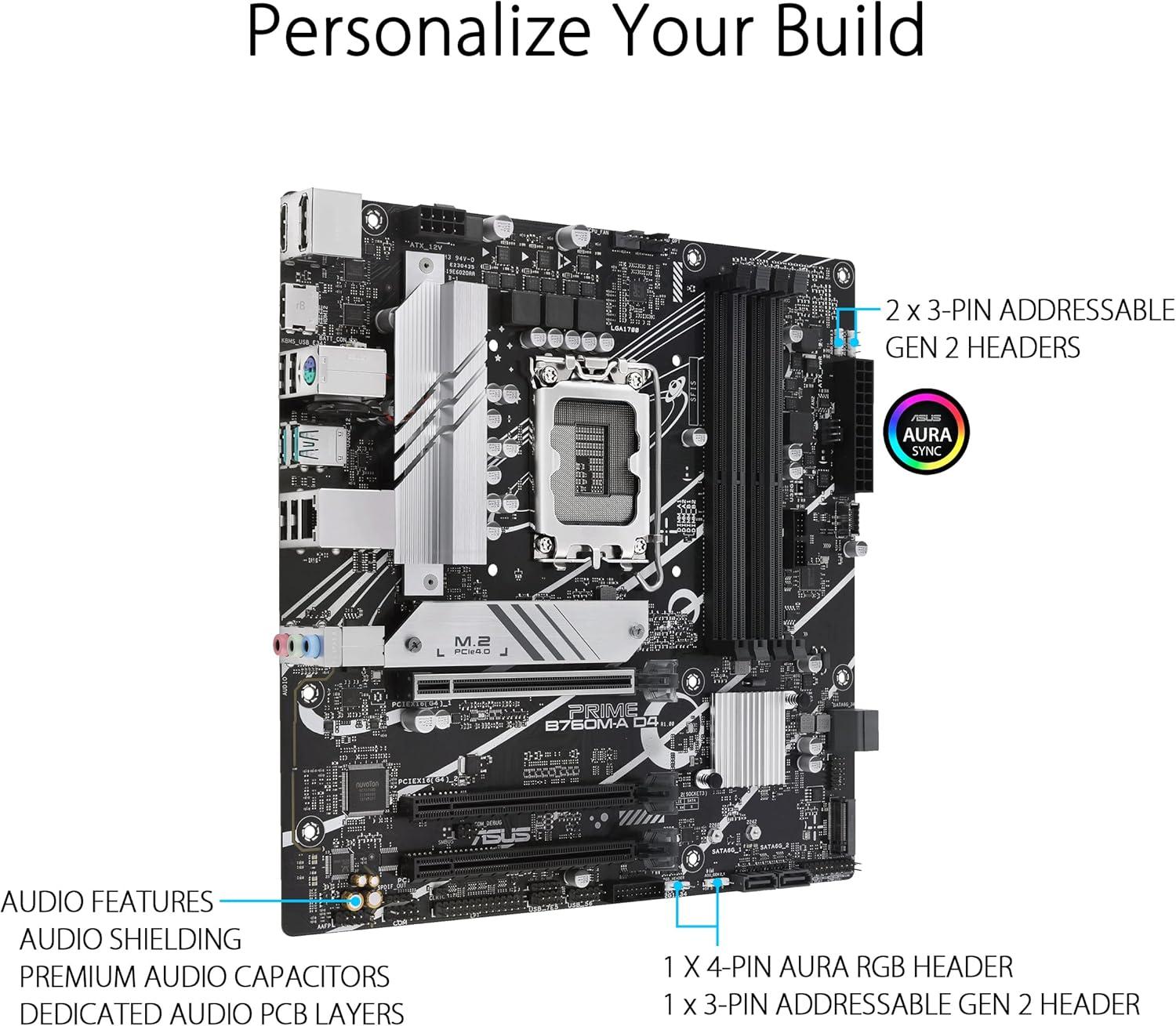

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header

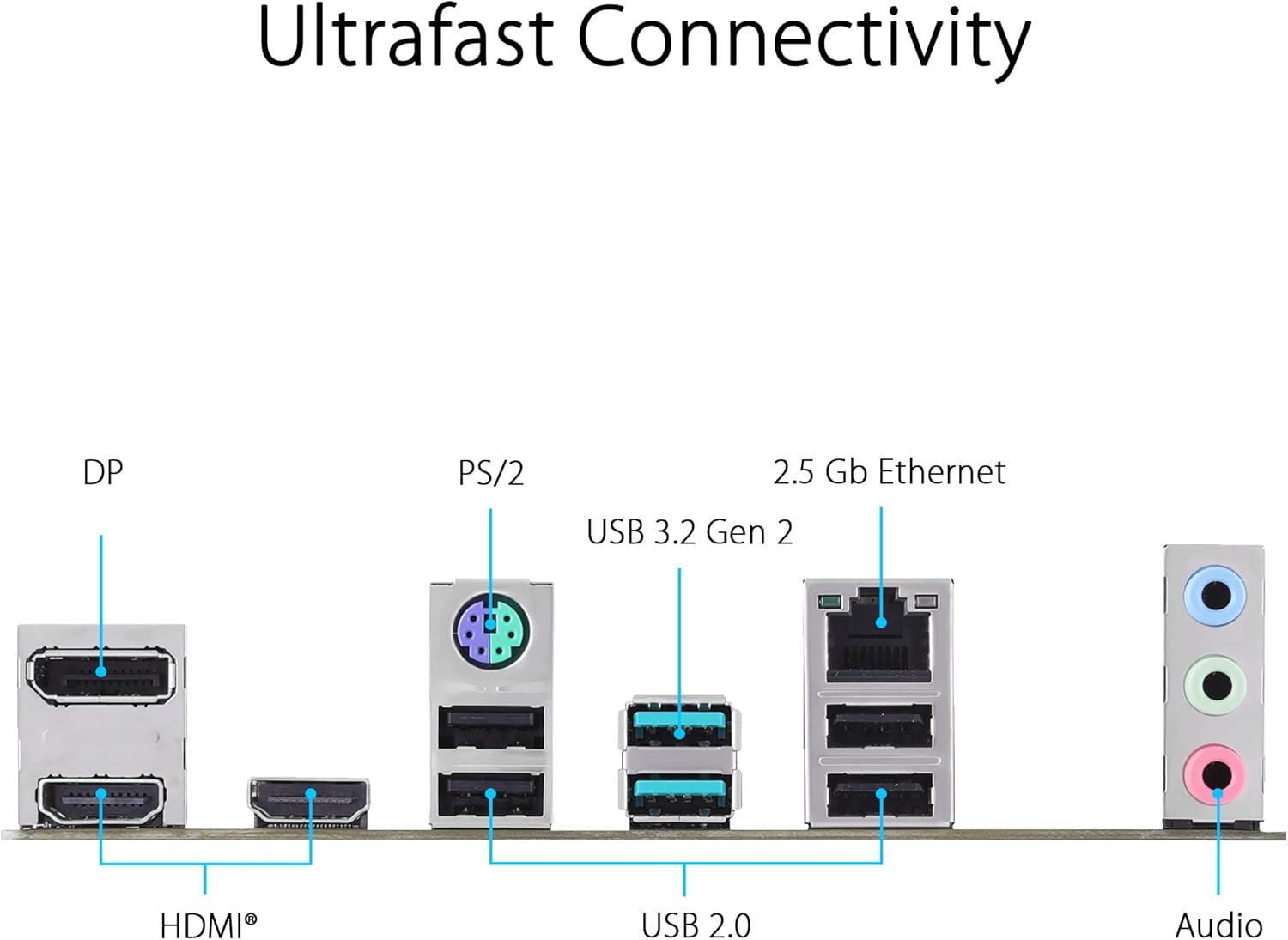

Back Panel I/O:
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
WiFi:
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
