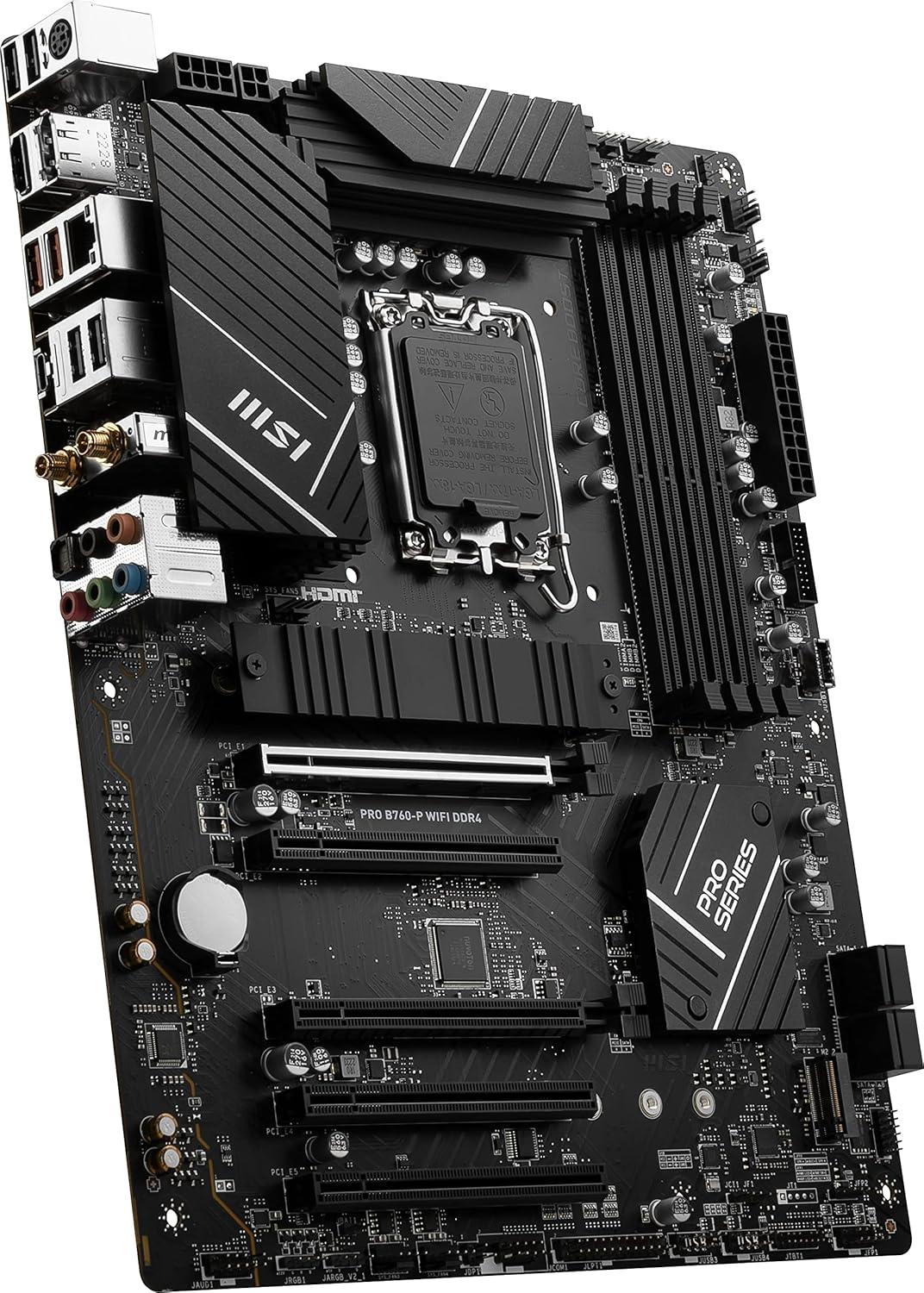

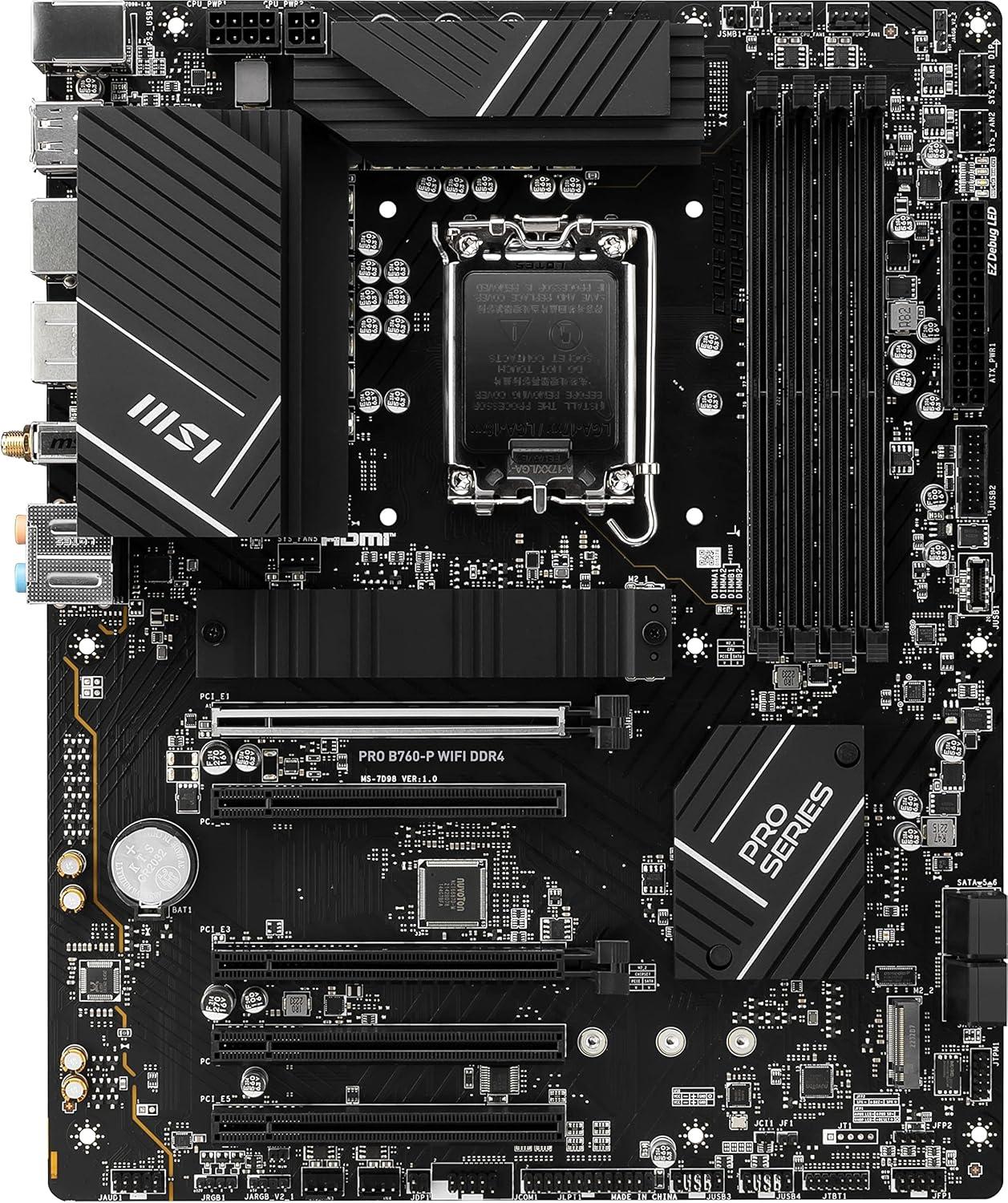

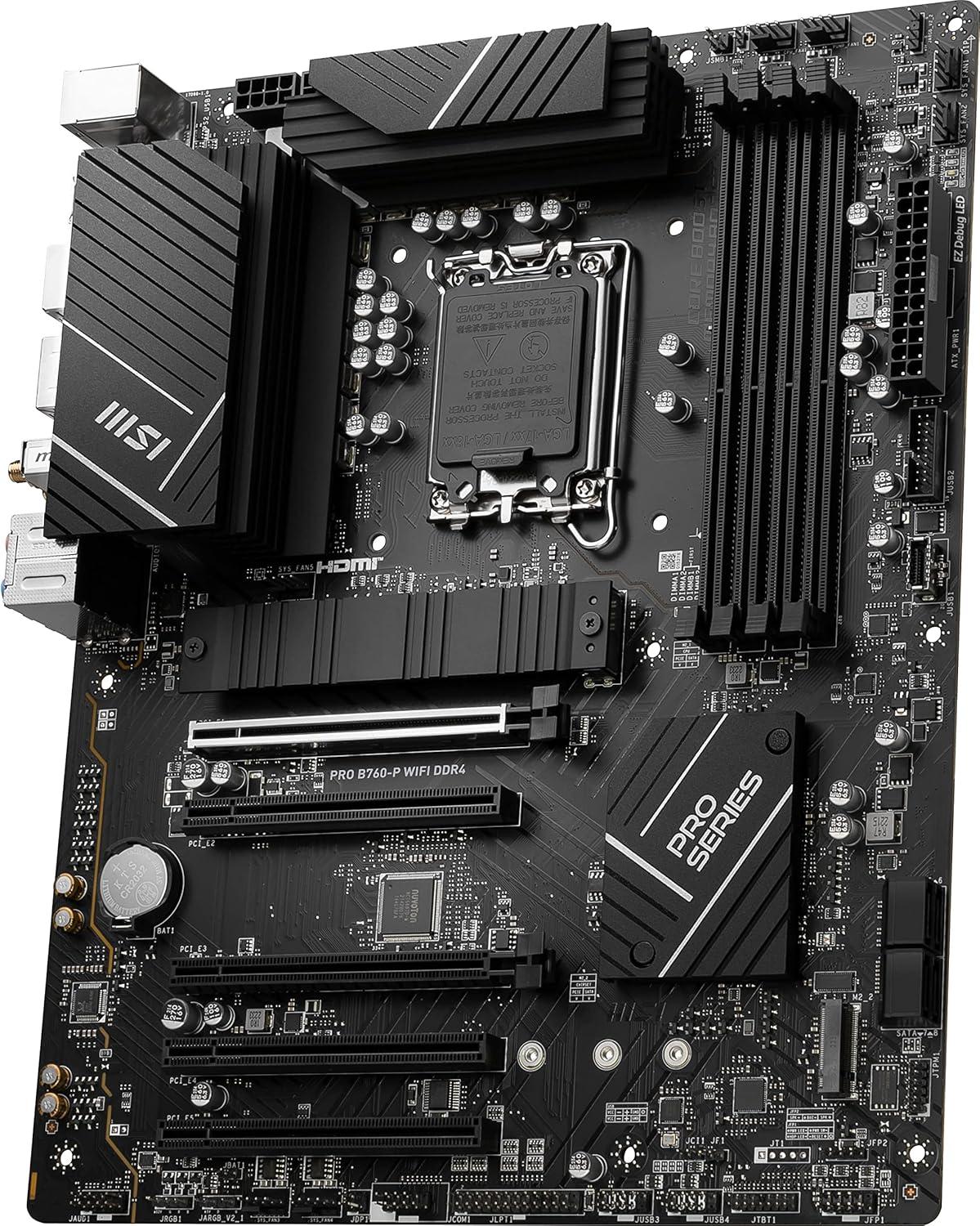

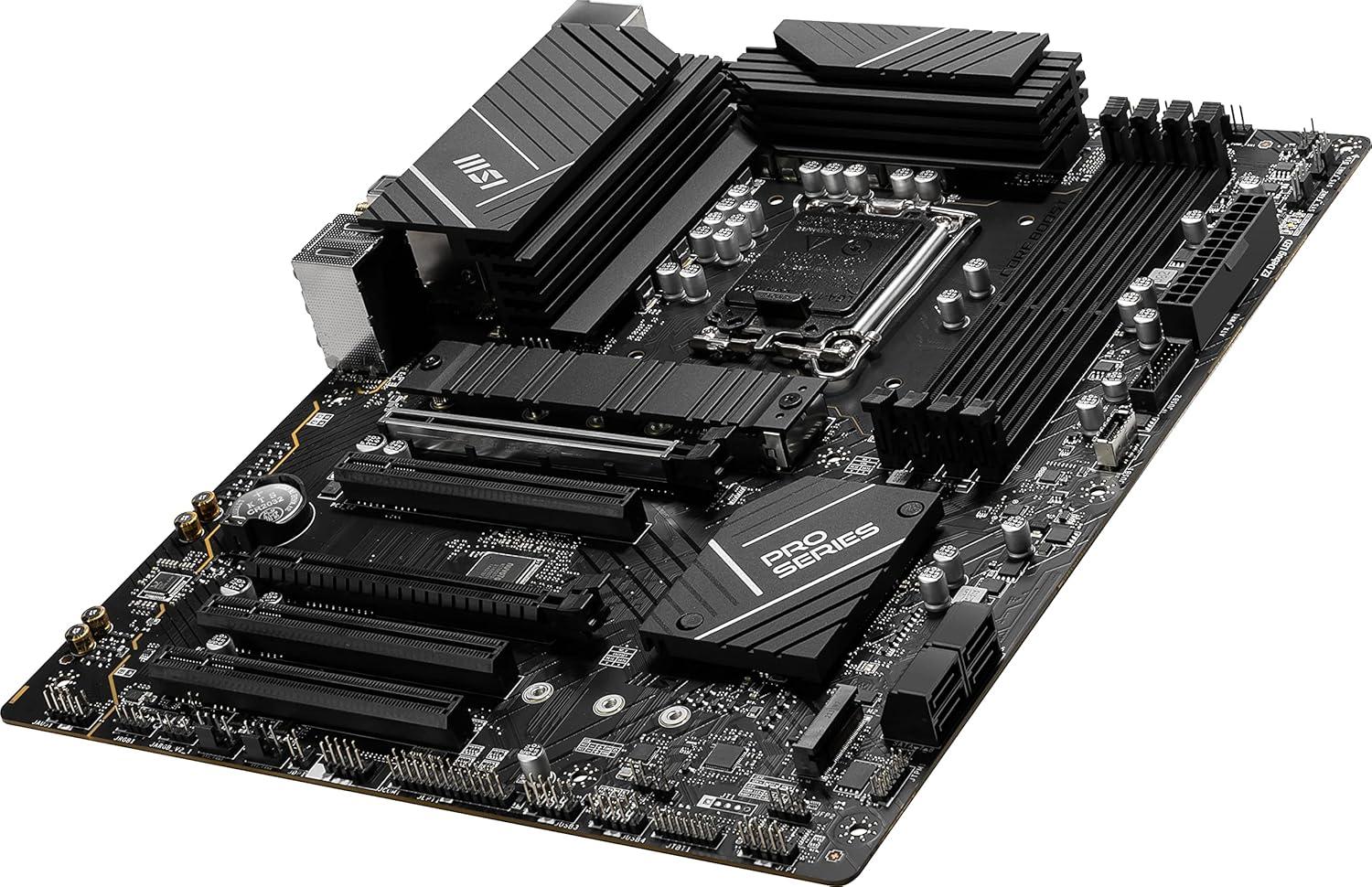

MSI PRO B760-P WiFi DDR4
MSI PRO B760-P WiFi DDR4 Specifications Review
MSI PRO B760-P WiFi DDR4 by MSI is a Standard-ATX form factor motherboard based on the mid-range B760 chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR4 memory, with 4 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 5333 MHz.
VRM Quality
The MSI PRO B760-P WiFi DDR4 comes with an entry-level VRM setup, delivering 55 A across 12 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI PRO B760-P WiFi DDR4 offers a well-equipped expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 5 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 6E and wired Realtek® RTL8125BG 2.5G LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC897 Codec) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI PRO B760-P WiFi DDR4 is a dependable choice with a respectable overall quality score of 54.00. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 74.4% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI PRO B760-P WiFi DDR4 |
| Current Price Amazon | $138 |
| Amazon Price Updated | 6 hours, 37 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B760 / LGA 1700 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (55 A) |
|---|---|
| Power Design | 12+1+1 |
Memory Information
| Type / Slots | DDR4 / 4 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 5333 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 | Gen3 |
|---|---|---|---|
| x16 | 5 | 2 | 3 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC897 Codec |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K 60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 3 |
Networking Information
| Ethernet | Chipset: Realtek® RTL8125BG 2.5G LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Quality & Features
Additional Information
| RAM | Supports DDR4 memory with a wide range of speeds from 2133(JEDEC) to 5333(OC). Supports un-buffered memory. Maximum overclocking frequency varies by configuration: 1DPC 1R up to 5333+ MHz, 1DPC 2R up to 4800+ MHz, 2DPC 1R up to 4400+ MHz, and 2DPC 2R up to 4000+ MHz. Standard JEDEC speeds supported are 3200, 2933, 2666, 2400, and 2133 MHz. |
|---|---|
| Display | Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset). |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel High Definition Audio |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, up to 2.4Gbps. Supports 802.11 a/b/g/n/ac/ax. Bluetooth supports FIPS, FISMA. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI PRO B760-P WiFi DDR4 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$300
|
↓
-30.2%
|
54.8%
|
24.0%
|
92.0%
|
67.0%
|
45.0%
|
46.0%
|
34.7%
|
|
|
$140
|
0.0%
|
54.6%
|
37.0%
|
65.0%
|
74.0%
|
54.0%
|
43.0%
|
74.1%
|
|
|
$126
|
0.0%
|
54.6%
|
14.0%
|
67.0%
|
100.0%
|
47.0%
|
45.0%
|
82.3%
|
|
|
$150
|
0.0%
|
54.6%
|
14.0%
|
67.0%
|
100.0%
|
47.0%
|
45.0%
|
69.2%
|
|
|
$138
|
0.0%
|
54.0%
|
34.0%
|
65.0%
|
74.0%
|
54.0%
|
43.0%
|
74.4%
|
|
|
$120❗
|
0.0%
|
52.0%
|
31.0%
|
62.0%
|
66.0%
|
61.0%
|
40.0%
|
82.3%
|
|
|
$220
|
0.0%
|
51.8%
|
24.0%
|
68.0%
|
64.0%
|
57.0%
|
46.0%
|
44.7%
|
|
|
$210
|
0.0%
|
51.6%
|
34.0%
|
68.0%
|
52.0%
|
56.0%
|
48.0%
|
46.7%
|
|
|
$310
|
↑
9.8%
|
50.2%
|
34.0%
|
65.0%
|
50.0%
|
59.0%
|
43.0%
|
30.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$300
|
↓
-30.2%
|
$140
|
0.0%
|
$126
|
0.0%
|
$150
|
0.0%
|
$138
|
0.0%
|
$120❗
|
0.0%
|
$220
|
0.0%
|
$210
|
0.0%
|
$310
|
↑
9.8%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MICRO CENTER | MSI | ASUS | ASUS | MSI | ASROCK | GIGABYTE | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | B760 / LGA 1700 | B760I / LGA 1700 | B760 / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Micro-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Mini-ITX | Mini-ITX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (60 A) | 12 (60 A) | 5 (55 A) | 5 (55 A) | 12 (55 A) | 12 (50 A) | 8 (60 A) | 8 (90 A) | 8 (90 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 8+1+1 | 12+1 | 5+1+1 | 5+1+1 | 12+1+1 | 12+1+1 | 8+1+1 | 8+1+1 | 8+1+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR4 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR4 | 4 / DDR5 | 4 / DDR4 | 2 / DDR4 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 128 GB / 5333 MHz | 256 GB / 6800 MHz | 128 GB / 7200 MHz | 128 GB / 7200 MHz | 128 GB / 5333 MHz | 256 GB / 7200 MHz | 256 GB / 7600 MHz | 64 GB / 5333 MHz | 128 GB / 7200 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 2x16 Gen3 | 2x16 Gen4 | 3x16 Gen3 | 4x16 Gen4 | 4x16 Gen4 | 2x16 Gen4 | 3x16 Gen3 | 1x16 Gen5 | 1x1 Gen4 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen5 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 2 | 2 | 2 | 2 | 3 | 3 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 6 | 6 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek ALC897 | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | 1 x Realtek 2.5Gb Ether… (1 ports) | 1 x Realtek 2.5Gb Ether… (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® 2.5GbE LAN chip (… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 802.11ac | Wi-Fi 6E | Wi-Fi 6 | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.1 | v5.3 | v5.2 | v5.2 | v5.3 | v5.3 | v5.3 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$188
|
↓
-4.1%
|
36.1%
|
64.8%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$234
|
0.0%
|
35.0%
|
64.0%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | None | |
|
$268
|
0.0%
|
33.9%
|
63.7%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.30 GHz / 4.80 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$210
|
0.0%
|
32.3%
|
62.5%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.00 GHz / 4.60 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$165
|
↓
-0.3%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | None | |
|
$248
|
↑
0.2%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | UHD Graphics 730 | |
|
$250
|
↑
38.9%
|
22.9%
|
57.1%
|
60 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$115❗
|
0.0%
|
22.9%
|
57.1%
|
58 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$135
|
0.0%
|
21.3%
|
53.0%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | None | |
|
$275
|
↑
63.6%
|
21.3%
|
53.0%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | UHD Graphics 730 |
Official Manufacturer Data
Memory:
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics:
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Expansion Slots:
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
USB:
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
Internal I/O:
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

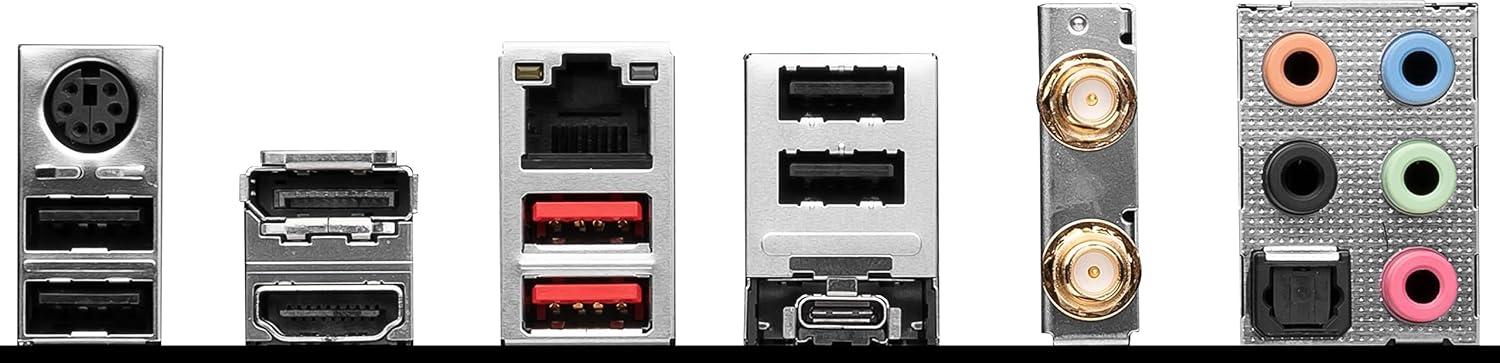

Back Panel I/O:
DisplayPort
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUT
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
7.1-Channel High Definition Audio
