ASUS Prime B760M-A AX

Micro-ATX · DDR5 · 4 DIMMs · 5-phase VRM · 6

Quality
55
VRM
14
Value
94
Amazon
$110

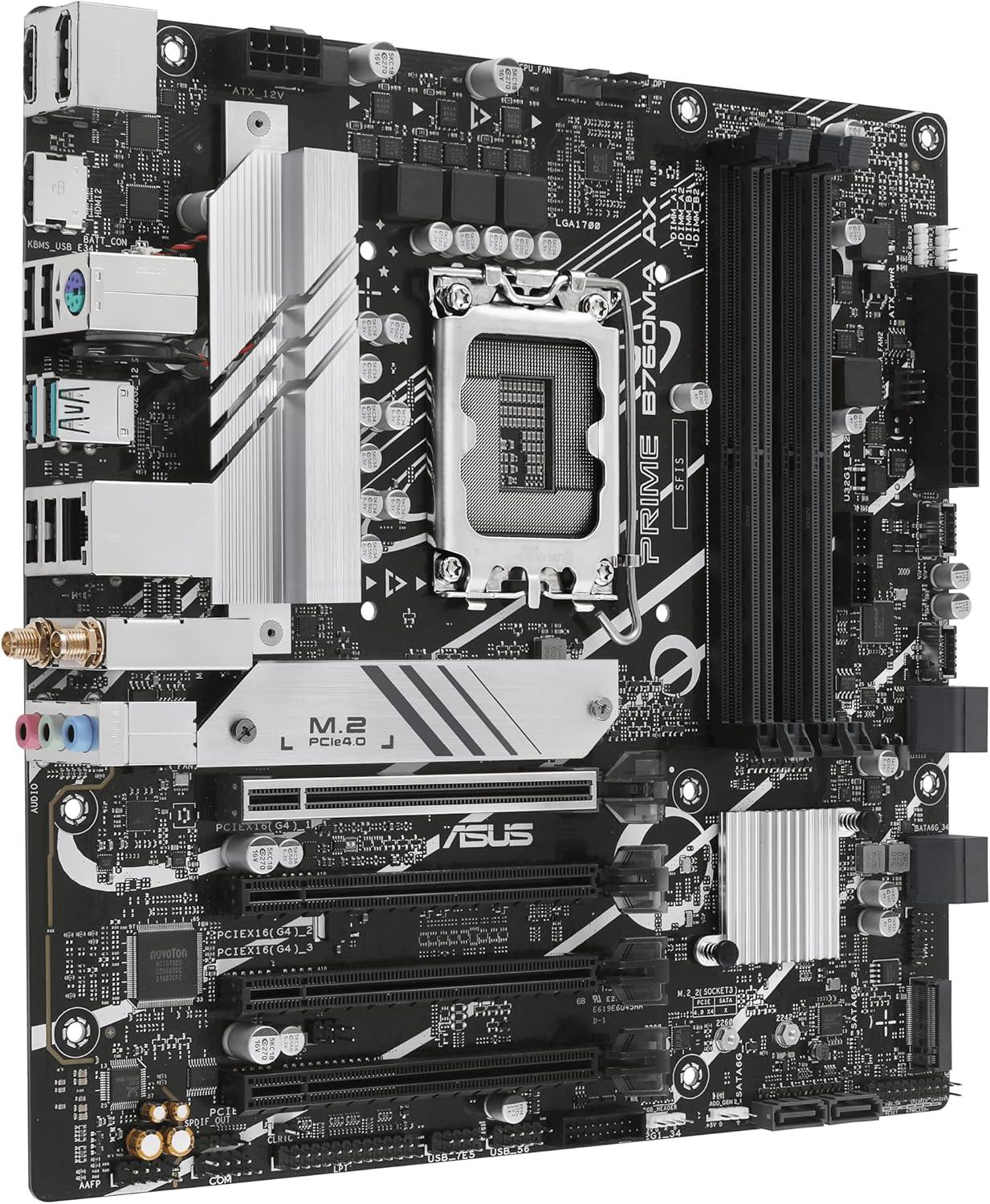

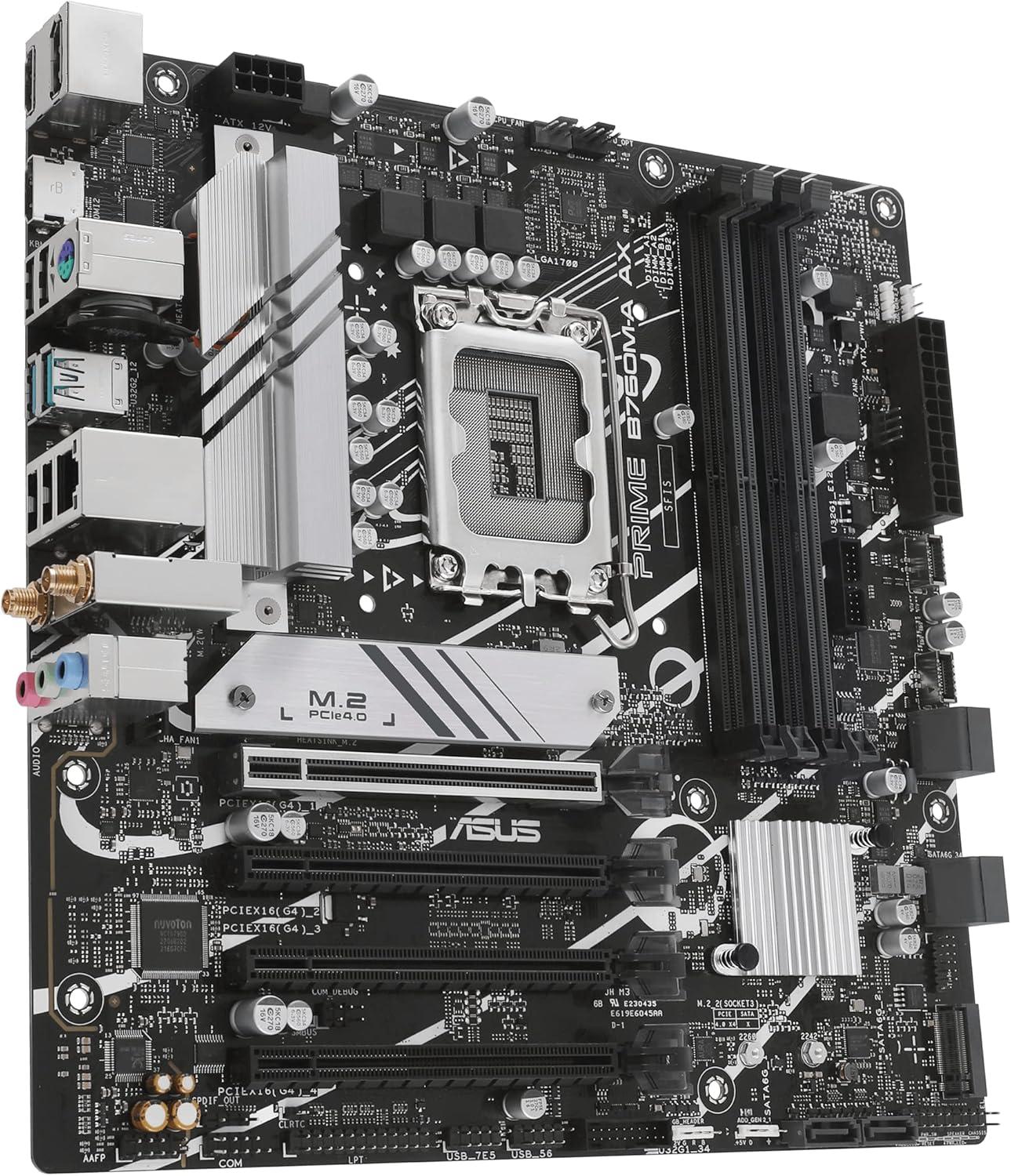

ASUS Prime B760M-A AX
View ASUS Prime B760M-A AX Gallery in high resolution
$110
Available Updated 3 days, 22 hours ago Prime FBA
Overall54.6
VRM14.0
Chipset67.0
Expansion / storage100.0
Connectivity47.0
Audio45.0
Quality / price94.3
$110 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

ASUS Prime B760M-A AX at a glance

The ASUS Prime B760M-A AX uses the Micro-ATX form factor, LGA 1700 socket, and B760M chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 128 GB and rated overclocked speeds up to 7200 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a mainstream gaming, home, or office system with moderate expansion needs.

Power delivery

The calculated VRM score is 14.0, placing the power delivery in the basic class. The board lists 5 CPU power phases, 55 A power stages in a 5+1+1 layout. CPU power input is listed as 1. Keep it paired with lower-power processors and avoid sustained overclocked loads.

Expansion and storage

The expansion and storage score is 100.0: exceptionally well equipped . The platform supports PCIe 4.0. Physical expansion includes 4 ×16 slots.

On-board storage consists of 2 M.2 slots and 6 SATA ports. Supported M.2 lengths are listed as 2242, 2260, 2280. The two-slot layout covers a typical OS-and-games or OS-and-project-drive setup.

Connectivity and rear I/O

The connectivity score is 47.0, rated essential. Wireless networking is Wi-Fi 6 ; wired networking is 1 x Realtek 2.5Gb Ethernet at up to 2500 Mbps. Bluetooth 5.2 is included. The recorded USB provision is 6 rear connections and 2 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 45.0. This is a standard onboard solution using Realtek® ALC892/ALC897. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 54.60, a mainstream result. The essential platform features are covered, while premium I/O and tuning extras are more selective.

At the recorded Amazon price, the quality-to-price score is 94.3—an excellent value relative to the other boards in the catalog.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
ASUS
Motherboard
ASUS Prime B760M-A AX
Chipset / socket
B760M / LGA 1700
Form factor
Micro-ATX
Launch price
—
Amazon price
$110
Availability
In stock
Price updated
3 days, 22 hours ago

VRM

CPU phases
5 (55 A)
Power design
5+1+1
EPS connector
1

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
128 GB / 7200 MT/s
Per DIMM
32 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 4.0
x16 physical
4
x16 Gen 4
4

Storage

M.2 slots
2
M.2 lengths
2242, 2260, 2280
SATA ports
6

Display outputs

HDMI
Yes · 2.1 · 4K@60Hz
DisplayPort
Yes · 1.4 · 4K@60Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
2
Front USB 3.2 Gen 1 Type-C 5 Gbps
2
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
4

Networking

Ethernet
1 x Realtek 2.5Gb Ethernet
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
6
Bands
2.4GHz, 5GHz
Antenna connectors
2
Bluetooth
5.2

Audio

Chipset
Realtek® ALC892/ALC897
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
Rear output

Additional information

Memory notes
Supports Un-buffered Memory. Features OptiMem II. Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
Display notes
Graphics specifications may vary between CPU types.
Expansion notes
The primary PCIe 4.0 x16 slot is connected to the CPU. The B760 chipset provides one physical PCIe 4.0 x16 slot that operates in x4 mode, and two physical PCIe 4.0 x16 slots that operate in x1 mode.
M.2_1
4.0 4 · 2242, 2260, 2280 · CPU
M.2_2
4.0 4 · 2242, 2260, 2280 · Chipset
RAID
SATA (['0', '1', '5', '10'])
Storage notes
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio notes
Features Audio Shielding, premium audio capacitors, and dedicated audio PCB layers. Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, and up to 24-Bit/192 kHz playback. A chassis with a front panel HD audio module is required for 7.1 Surround Sound output.
Networking notes
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Button notes
The motherboard includes a Clear CMOS header.
Fan / RGB headers
1 CPU · 1 OPT · — AIO · 2 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · System panel · TPM
Dimensions
24.4cm x 24.4cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on LGA 1700 close to ASUS Prime B760M-A AX on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

Discussion

Comments on ASUS Prime B760M-A AX

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort**
2 x HDMITM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMTM 2.1.
1 x DisplayPort**
2 x HDMITM ports***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMTM 2.1.

Expansion slots

Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Internal I/O

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header

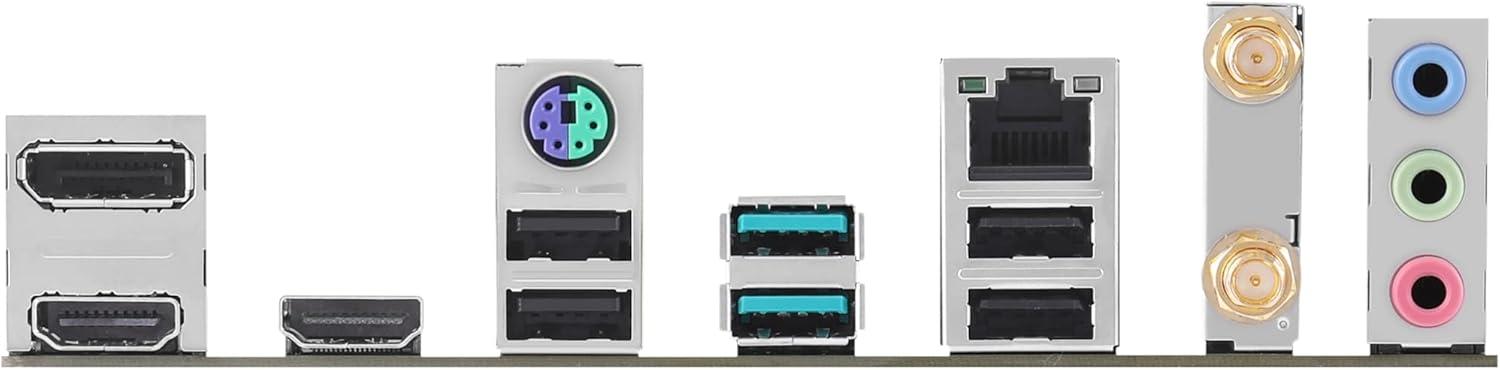

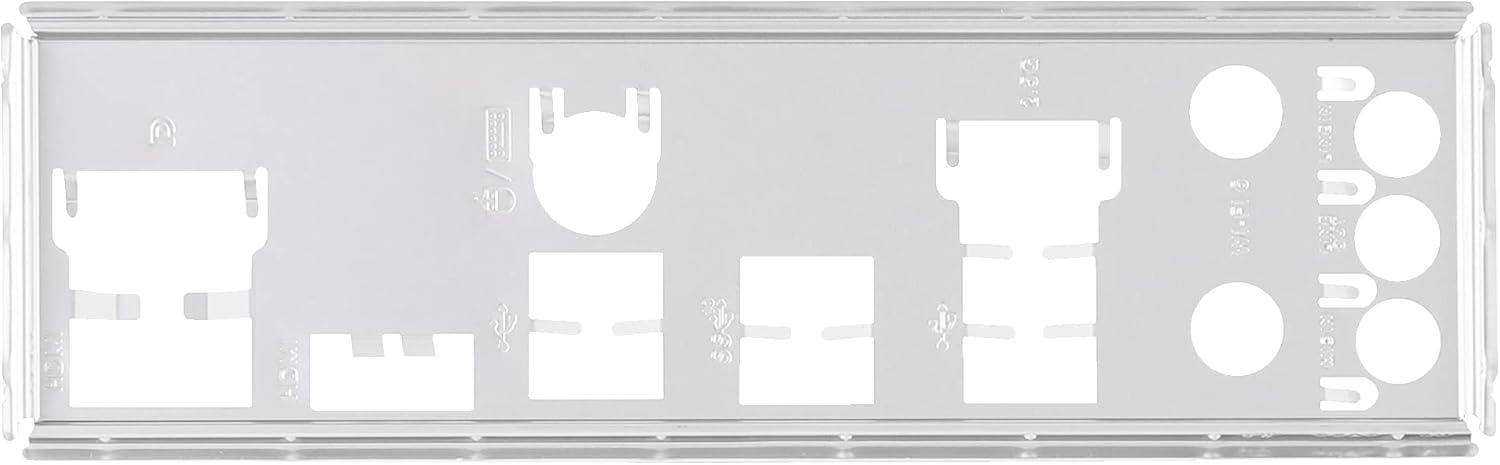

Rear I/O
