GIGABYTE · LGA 1700 · B760M

GIGABYTE B760M C V2

Micro-ATX · DDR5 · 4 DIMMs · 6-phase VRM · ax

Quality
49
VRM
16
Value
63
Amazon
$149
GIGABYTE B760M C V2
View GIGABYTE B760M C V2 Gallery in high resolution
$149
Unavailable Updated 3 months, 3 weeks ago
Overall49.0
VRM16.0
Chipset68.0
Expansion / storage76.0
Connectivity37.0
Audio48.0
Quality / price62.5
$149 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

GIGABYTE B760M C V2 at a glance

The GIGABYTE B760M C V2 uses the Micro-ATX form factor, LGA 1700 socket, and B760M chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 7600 MT/s. ECC modules are accepted, subject to CPU support. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a mainstream gaming, home, or office system with moderate expansion needs.

Power delivery

The calculated VRM score is 16.0, placing the power delivery in the basic class. The board lists 6 CPU power phases, 55 A power stages in a 6+2+1 layout. CPU power input is listed as 1. Keep it paired with lower-power processors and avoid sustained overclocked loads.

Expansion and storage

The expansion and storage score is 76.0: well equipped . The platform supports PCIe 4.0. Physical expansion includes 4 ×16 slots.

On-board storage consists of 4 M.2 slots and 4 SATA ports. Supported M.2 lengths are listed as 22110, 2280. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 37.0, rated essential. Wireless networking is Wi-Fi ax ; wired networking is Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) at up to 1000 Mbps. Bluetooth .32 is included. The recorded USB provision is 6 rear connections and 9 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.2. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 48.0. This is a standard onboard solution using Realtek® ALC892/ALC897. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks. Optical S/PDIF is present for digital audio equipment.

Buying verdict

Overall quality is 49.00, a basic but usable result for office, media, and budget gaming systems.

At the recorded Amazon price, the quality-to-price score is 62.5—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
GIGABYTE
Motherboard
GIGABYTE B760M C V2
Chipset / socket
B760M / LGA 1700
Form factor
Micro-ATX
Launch price
—
Amazon price
$149
Availability
Unavailable
Price updated
3 months, 3 weeks ago

VRM

CPU phases
6 (55 A)
Power design
6+2+1
EPS connector
1

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 7600 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes
ECC
Modules supported

PCIe

Supported version
PCIe 4.0
x16 physical
4
x16 Gen 4
1
x16 Gen 3
3

Storage

M.2 slots
4
M.2 lengths
22110, 2280
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4096x2160@60 Hz
DisplayPort
Yes · 1.2 · 4096x2304@60 Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
1
Rear USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Front USB 2.0
6
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 1 Type-C 5 Gbps
1
Header USB 2.0
6
Header USB 3.2 Gen 1 Type-A 5 Gbps
3

Networking

Ethernet
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
LAN ports
1
LAN speed
1000 Mbps
Wi-Fi
ax
Wi-Fi bandwidth
80MHz
Bands
2.4/5 GHz
Antenna connectors
2
Bluetooth
.32

Audio

Chipset
Realtek® ALC892/ALC897
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
Yes
Spatial audio
No

Buttons

BIOS flashback
No
Clear CMOS
No
Q-Flash Plus
Yes
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' for more information.
Display notes
Requires Integrated Graphics Processor with Intel® HD Graphics support. Both ports support HDCP 2.3. The HDMI port is a native HDMI 2.1 TMDS compatible port. Graphics specifications may vary depending on CPU support.
Expansion notes
The primary PCIEX16 slot (PCIe 4.0 x16) can only support a graphics card or an NVMe SSD. The second physical x16 slot runs at PCIe 3.0 x4 electrical speed. The other two physical x16 slots run at PCIe 3.0 x1 electrical speed.
M2A_CPU
4.0 4 · 22110, 2280 · CPU
M2P_SB
4.0 4 · 2280 · Chipset
M2Y_SB
3.0 1 · 2280 · Chipset
M2X_SB
3.0 1 · 2280 · Chipset
RAID
SATA (['0', '1', '5', '10'])
USB notes
Includes 2 x Thunderbolt™ add-in card connectors for expansion.
Audio notes
High Definition Audio with support for 2/4/5.1/7.1-channel configurations. The functionality of an audio jack can be changed using the audio software, which is also required to configure 7.1-channel audio.
Networking notes
Wi-Fi module: Realtek RTL8851BE. Antenna configuration: 1T1R. Actual data rate may vary depending on environment and equipment.
Button notes
The text lists a 'Clear CMOS jumper' and a 'reset jumper', but not a dedicated Clear CMOS button.
Fan / RGB headers
1 CPU · — OPT · — AIO · 3 chassis · 2 ARGB · 2 RGB
Other headers
Front audio · System panel · Thunderbolt
Dimensions
24.4 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on LGA 1700 close to GIGABYTE B760M C V2 on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

Discussion

Comments on GIGABYTE B760M C V2

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Expansion slots

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage

CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+2 USB 2.0 Hubs:
10 x USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

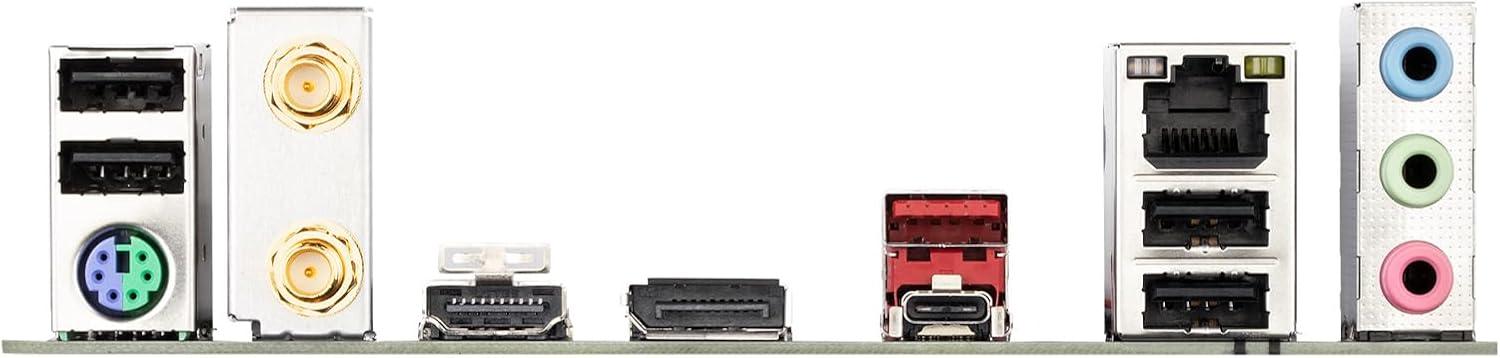

Rear I/O

1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Wireless

Realtek® Wi-Fi RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH .32
Support for 11ax 80MHz wireless
(Actual data rate may vary depending on environment and equipment.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Special features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
