ASRock B760M PG Riptide WiFi

Micro-ATX · DDR5 · 4 DIMMs · 14-phase VRM · Wi-Fi 6E

Quality
49
VRM
41
Value
78
Amazon
$120
ASRock B760M PG Riptide WiFi

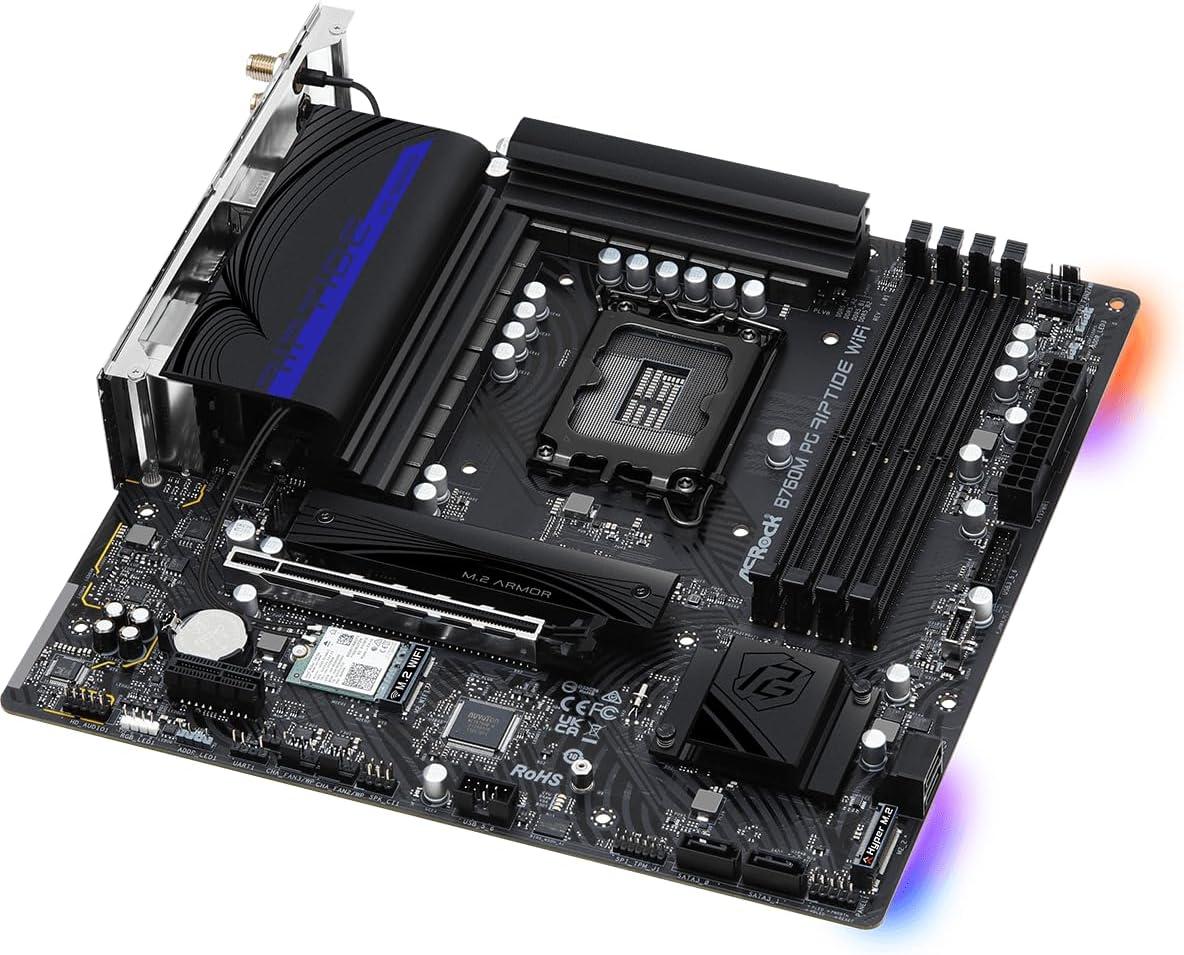

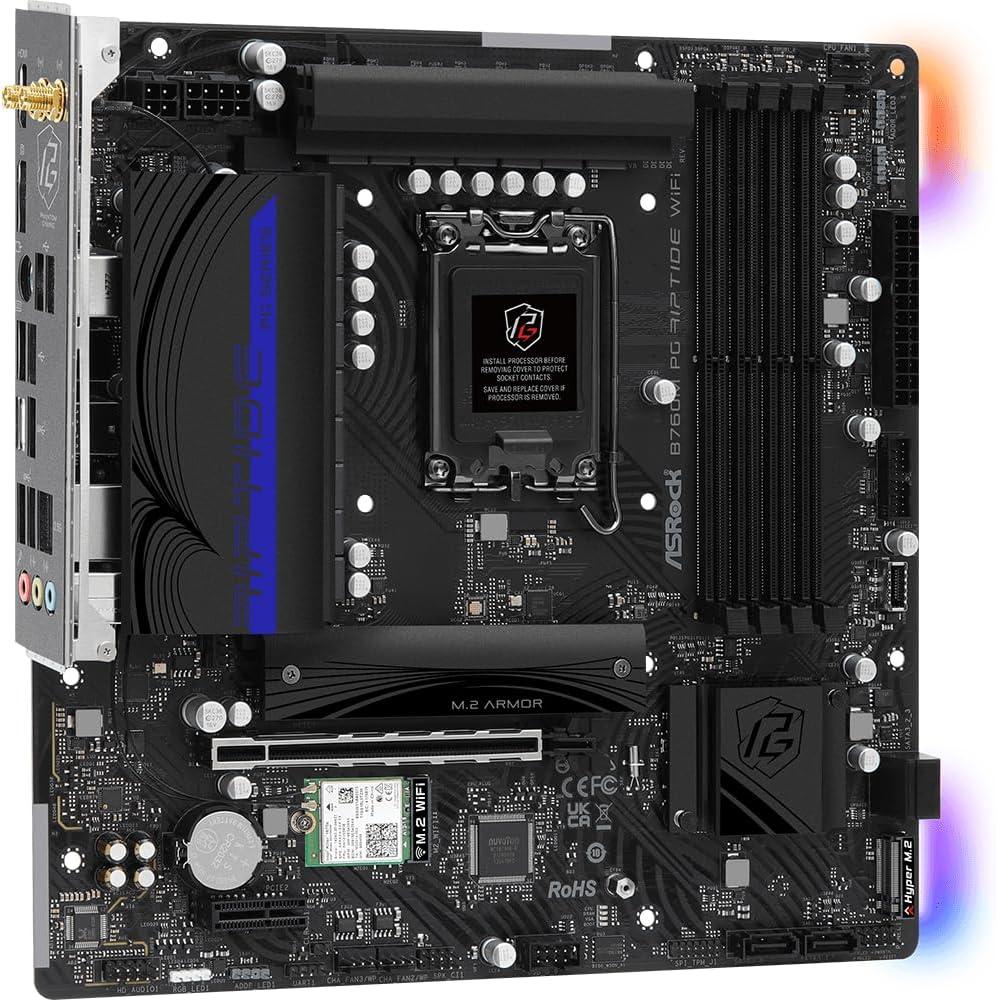

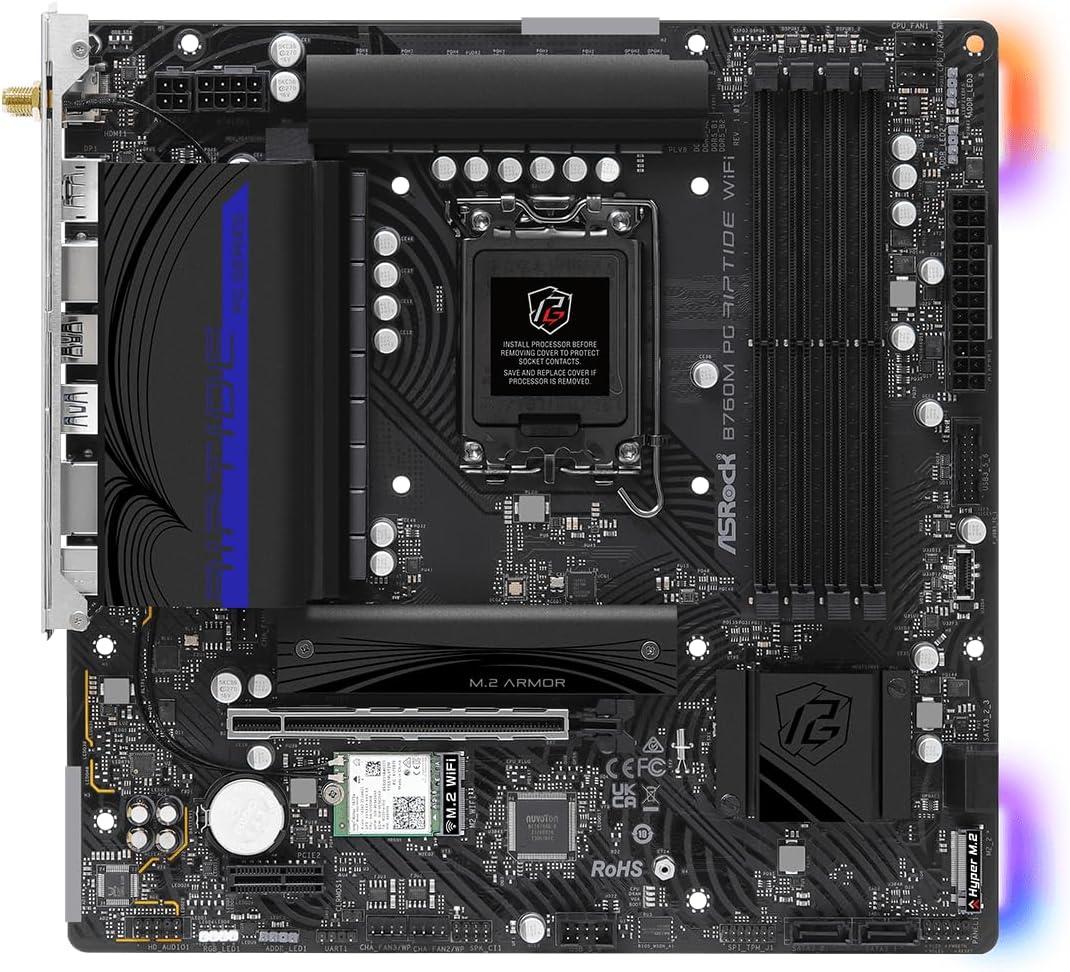

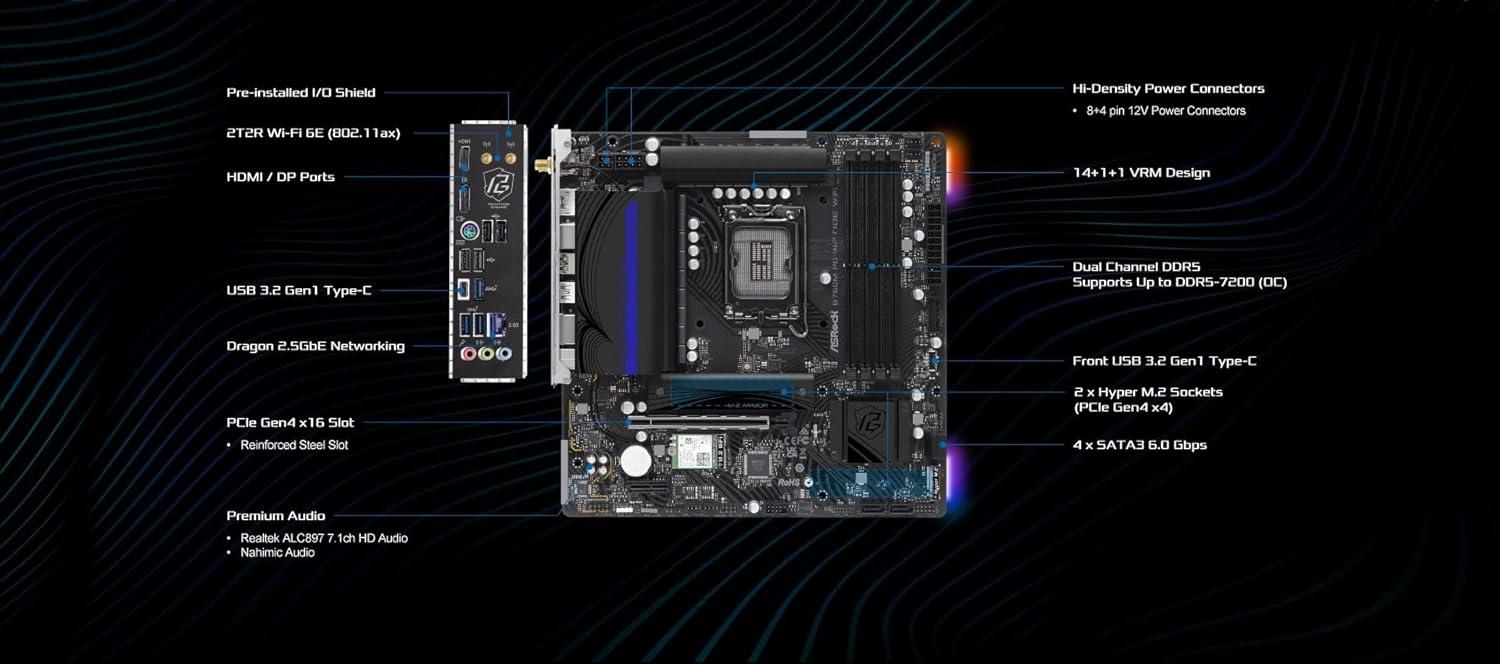

View ASRock B760M PG Riptide WiFi Gallery in high resolution
$120
Available Updated 4 days, 3 hours ago Prime FBA
Overall49.0
VRM41.0
Chipset62.0
Expansion / storage50.0
Connectivity52.0
Audio40.0
Quality / price77.6
$120 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

ASRock B760M PG Riptide WiFi at a glance

The ASRock B760M PG Riptide WiFi uses the Micro-ATX form factor, LGA 1700 socket, and B760M chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 7200 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a mainstream gaming, home, or office system with moderate expansion needs.

Power delivery

The calculated VRM score is 41.0, placing the power delivery in the mid-range class. The board lists 14 CPU power phases, 60 A power stages in a 14+1+1 layout. CPU power input is listed as 2. It is a sensible match for mainstream processors, with conservative tuning on higher-power chips.

Expansion and storage

The expansion and storage score is 50.0: focused on the essentials. The platform supports PCIe 4.0. Physical expansion includes 1 ×16 slot, and 1 ×1.

On-board storage consists of 2 M.2 slots supporting Gen4x4 and 4 SATA ports. Supported M.2 lengths are listed as 2280. The two-slot layout covers a typical OS-and-games or OS-and-project-drive setup.

Connectivity and rear I/O

The connectivity score is 52.0, rated adequate . Wireless networking is Wi-Fi 6E ; wired networking is 2.5 Gigabit LAN 10/100/1000/2500 Mb/s at up to 2500 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 8 rear connections and 5 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek ALC897 Audio Codec. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 49.00, a basic but usable result for office, media, and budget gaming systems.

At the recorded Amazon price, the quality-to-price score is 77.6—an excellent value relative to the other boards in the catalog.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
ASRock
Motherboard
ASRock B760M PG Riptide WiFi
Chipset / socket
B760M / LGA 1700
Form factor
Micro-ATX
Launch price
—
Amazon price
$120
Availability
In stock
Price updated
4 days, 3 hours ago

VRM

CPU phases
14 (60 A)
Power design
14+1+1
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 7200 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 4.0
x16 physical
1
x16 Gen 4
1
x1 physical
1
x1 Gen 4
1

Storage

M.2 slots
2
M.2 lengths
2280
M.2 modes
Gen4x4
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4K 60Hz
DisplayPort
Yes · 1.4 · 8K 60Hz / 5K 120Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 1 Type-A 5 Gbps
3
Rear USB 3.2 Gen 1 Type-C 5 Gbps
1
Front USB 2.0
2
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 1 Type-C 5 Gbps
1
Header USB 2.0
2
Header USB 3.2 Gen 1 Type-A 5 Gbps
3

Networking

Ethernet
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
Wi-Fi 6E
Wi-Fi bandwidth
160MHz
Bands
Dual-Band, 6GHz
Antenna connectors
2
Bluetooth
5.3

Audio

Chipset
Realtek ALC897 Audio Codec
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
Rear output

Additional information

Memory notes
Supports DDR5 non-ECC, un-buffered memory. Speed support varies by configuration: 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Display notes
Graphics are based on Intel® Xe Graphics Architecture (Gen 12). Both ports support HDCP 2.3. The DisplayPort uses DSC (compressed). The integrated graphics outputs can only be supported with processors which have an integrated GPU.
Expansion notes
Supports NVMe SSD as boot disks. Also includes one M.2 Socket (Key E) for a type 2230 WiFi/BT module.
M2_1
4.0 4 · 2280 · CPU
M2_2
4.0 4 · 2280 · Chipset
RAID
PCIe
Storage notes
Supports Intel® Volume Management Device (VMD). Supports NVMe SSD as boot disks.
USB notes
All USB ports support ESD Protection
Audio notes
7.1 CH HD Audio with Nahimic Audio support. The rear panel has jacks for Line in, Front Speaker, and Microphone.
Networking notes
Supports IEEE 802.11a/b/g/n/ac/ax. 2x2 diversity technology. Supports MU-MIMO. Supports Killer LAN Software. Bluetooth supports High speed class II. Wi-Fi 6E (6GHz band) support depends on OS and regional regulations and requires a compatible router.
Fan / RGB headers
1 CPU · 1 OPT · — AIO · 3 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · TPM
Dimensions
24.4 cm x 24 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on LGA 1700 close to ASRock B760M PG Riptide WiFi on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

LGA 1700 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open LGA 1700 CPUs in the CPU table

Discussion

Comments on ASRock B760M PG Riptide WiFi

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

Graphics

- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.A4:XFD4

Expansion slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks

Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

USB

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection

Internal I/O

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

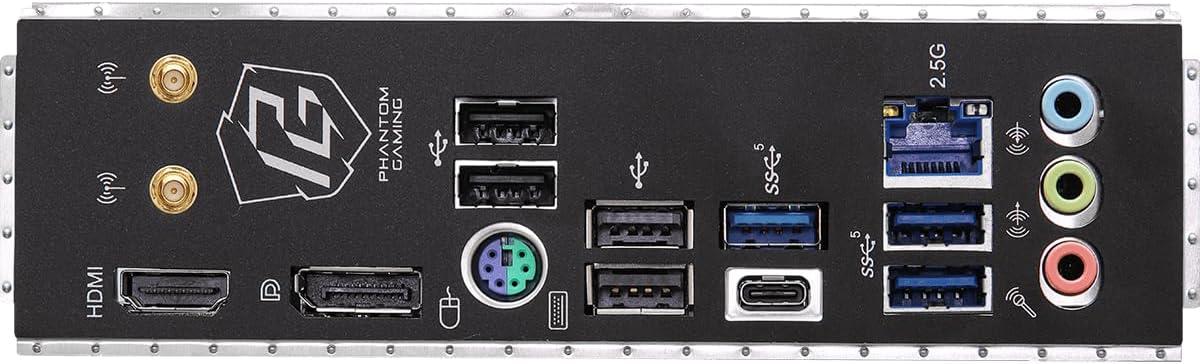

Rear I/O

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Wireless

- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software

* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

Special features

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
