GIGABYTE Z890 AERO G
GIGABYTE Z890 AERO G Specifications Review
GIGABYTE Z890 AERO G by GIGABYTE is a Standard-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9200 MHz.
VRM Quality
The GIGABYTE Z890 AERO G includes an upper mid-range VRM configuration, delivering 80 A through 16 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE Z890 AERO G offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots (x4/x2) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired 2 x Intel® 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC1220 CODEC — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
GIGABYTE Z890 AERO G is a premium motherboard boasting a high overall quality score of 85.80. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 65.2% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE Z890 AERO G |
| Current Price Amazon | $250 |
| Amazon Price Updated | 19 hours, 39 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (80 A) |
|---|---|
| Power Design | 16+1+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 2 | 1 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| M.2 PCIe Modes | x4/x2 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC1220 CODEC |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 5120x2880@60 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 2 x Intel® 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
Q-Flash Plus Start Button Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, but they operate in non-ECC mode. Also supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules and CUDIMM memory modules. The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; refer to the 'Memory Support List' for more information. |
|---|---|
| Display | Features one rear HDMI 2.1 port (4096x2160@60 Hz) and one front HDMI 1.4 port (1920x1080@30 Hz). Also includes one Intel Thunderbolt 4 connector (USB Type-C) supporting DisplayPort 2.1. The max resolution on the Type-C port is 5120x2880@60 Hz with a Thunderbolt monitor or 3840x2160@240 Hz with a USB4 Type-C monitor. All ports support HDCP 2.3. Supports up to triple-display output simultaneously. Graphics specifications may vary depending on CPU support. |
| Expansion | The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. The third physical x16 slot (PCIEX4) is connected to the chipset and runs at PCIe 4.0 x4. |
| Storage |
M.2 Slot Details:
|
| Audio | The back panel line out jack supports DSD audio. Supports 2/4/5.1/7.1-channel audio. You can change the functionality of an audio jack using the audio software. |
| Networking | Wi-Fi module: Intel® Wi-Fi 7 BE202 (BE200NGW M). Supported standards: 802.11a, b, g, n, ac, ax, be. Antenna configuration: 2T2R. Wi-Fi 7 features require Windows 11 SV3. 6 GHz band availability depends on individual country's regulations. |
| Buttons | The text mentions a power button, a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE Z890 AERO G Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$263
|
0.0%
|
88.6%
|
71.0%
|
92.0%
|
109.0%
|
90.0%
|
81.0%
|
64.0%
|
|
|
$240❗
|
0.0%
|
88.4%
|
72.0%
|
90.0%
|
97.0%
|
99.0%
|
84.0%
|
70.0%
|
|
|
$283
|
0.0%
|
88.4%
|
74.0%
|
100.0%
|
93.0%
|
87.0%
|
88.0%
|
59.4%
|
|
|
$476
|
↓
-0.2%
|
86.0%
|
71.0%
|
99.0%
|
91.0%
|
88.0%
|
81.0%
|
34.3%
|
|
|
$250
|
0.0%
|
85.8%
|
63.0%
|
92.0%
|
110.0%
|
83.0%
|
81.0%
|
65.2%
|
|
|
$199
|
↑
1.3%
|
85.4%
|
71.0%
|
99.0%
|
94.0%
|
82.0%
|
81.0%
|
81.6%
|
|
|
$180
|
0.0%
|
85.0%
|
72.0%
|
90.0%
|
91.0%
|
85.0%
|
87.0%
|
89.7%
|
|
|
$259
|
0.0%
|
84.4%
|
63.0%
|
92.0%
|
109.0%
|
77.0%
|
81.0%
|
61.9%
|
|
|
$130❗
|
0.0%
|
84.4%
|
71.0%
|
94.0%
|
94.0%
|
82.0%
|
81.0%
|
123.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$263
|
0.0%
|
$240❗
|
0.0%
|
$283
|
0.0%
|
$476
|
↓
-0.2%
|
$250
|
0.0%
|
$199
|
↑
1.3%
|
$180
|
0.0%
|
$259
|
0.0%
|
$130❗
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | ASRock | ASUS | MSI Computer | GIGABYTE | MSI | ASRock | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (90 A) | 18 (80 A) | 16 (90 A) | 16 (90 A) | 16 (80 A) | 16 (90 A) | 18 (80 A) | 16 (80 A) | 16 (90 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 18+1+1+1+1 | 16(90A)+1(90A)+2(90A)+2(80A) | 16+1+1+1 | 16+1+2 | 16+1+1+1 | 18+1+1+1+1 | 16+1+2 | 16+1+1+1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9500 MHz | 256 GB / 9466 MHz | 256 GB / 9066 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9466 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 4 | 5 | 5 | 5 | 4 | 4 | 5 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek ALC1220 | ROG SupremeFX ALC4080, Savite… | Realtek® ALC1220P Codec | Realtek® ALC1220 CODEC | Realtek® ALC1220P Codec | Realtek ALC1220 | Realtek® ALC1220 CODEC | Realtek® ALC1220P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (1.4) | ✔️ (2.1) | ✔️ (None) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ✔️ (None) | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 5GbE LAN chip (… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1x Intel® Killer™ E5000B… (1 ports) | 2 x Intel® 2.5GbE LAN … (2 ports) | Intel® Killer™ E5000 5Gb… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 8126 5Gbps LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634❗
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346❗
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Storage:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Expansion Slots:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
USB:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O:
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU.

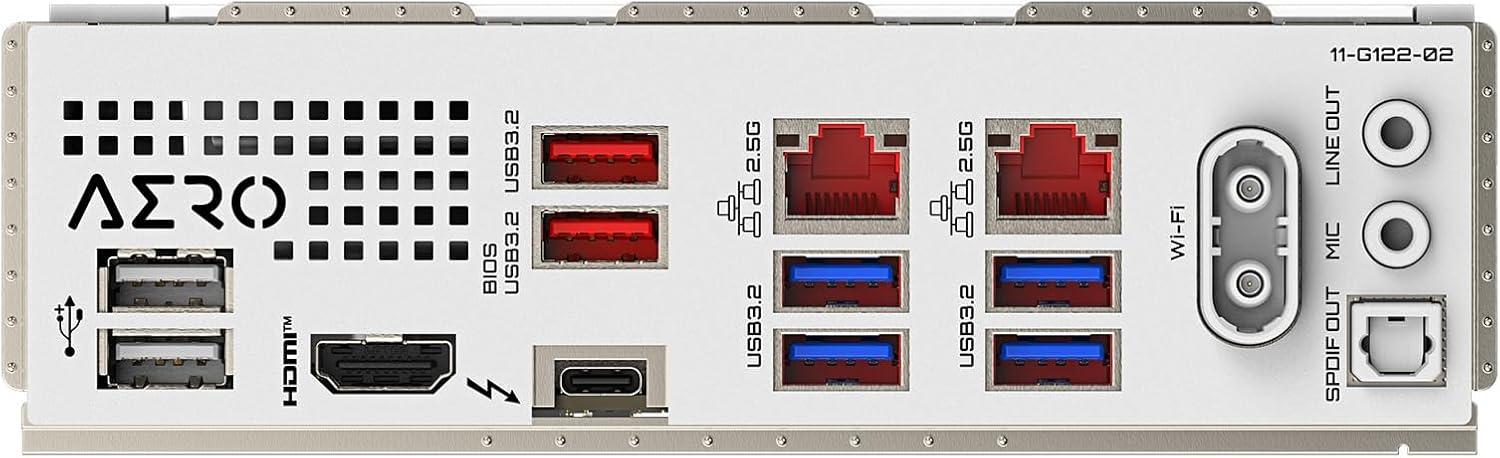

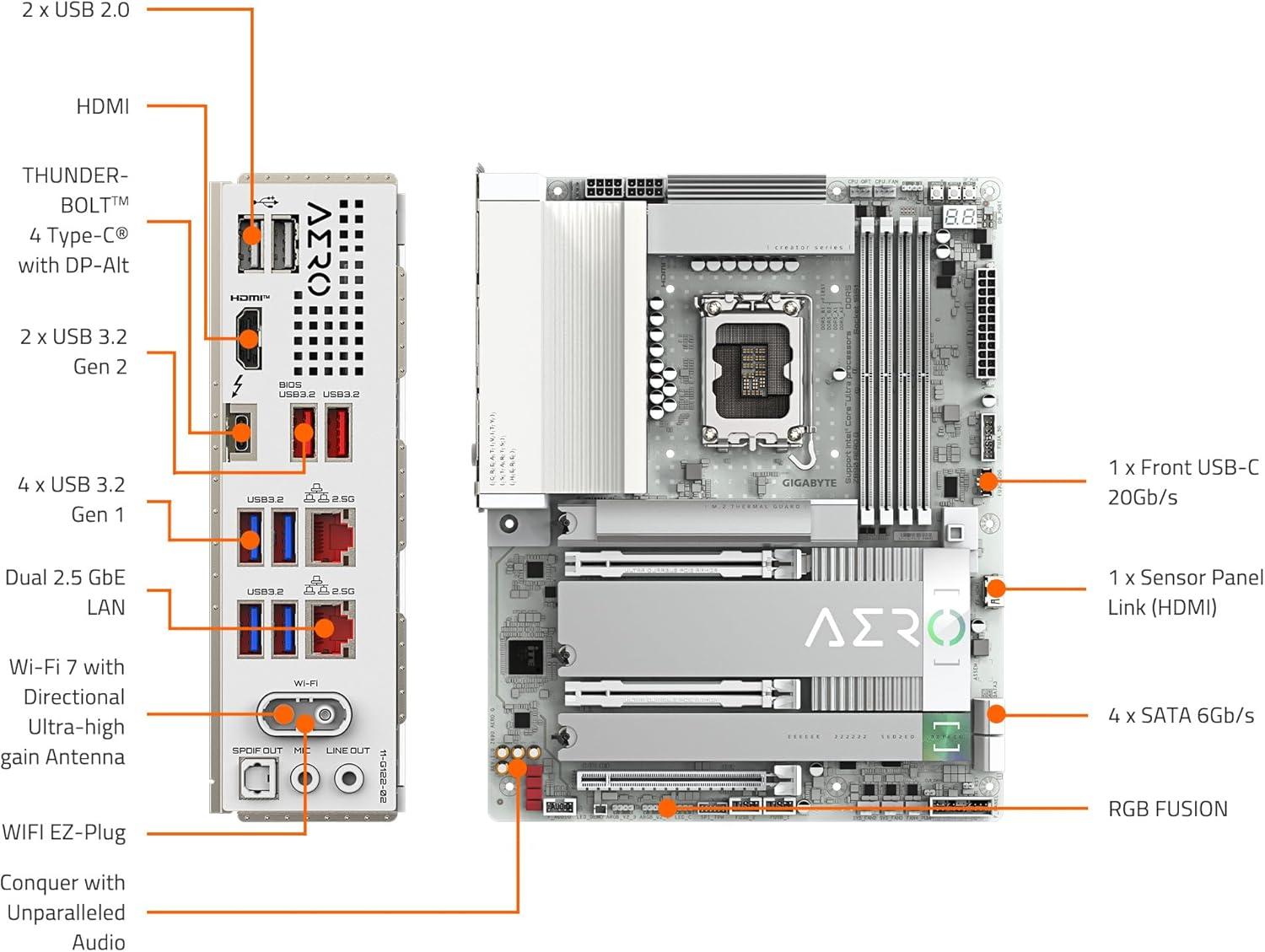

Back Panel I/O:
1 x HDMI port (Note)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x RJ-45 ports
4 x USB 3.2 Gen 1 ports
2 x SMA antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Audio:
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Add Comment on GIGABYTE Z890 AERO G
