ASRock Intel Core Ultra Z890 Lightning WiFi 7
ASRock Intel Core Ultra Z890 Lightning WiFi 7 Specifications Review
ASRock Intel Core Ultra Z890 Lightning WiFi 7 by ASRock is a Standard-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9466 MHz.
VRM Quality

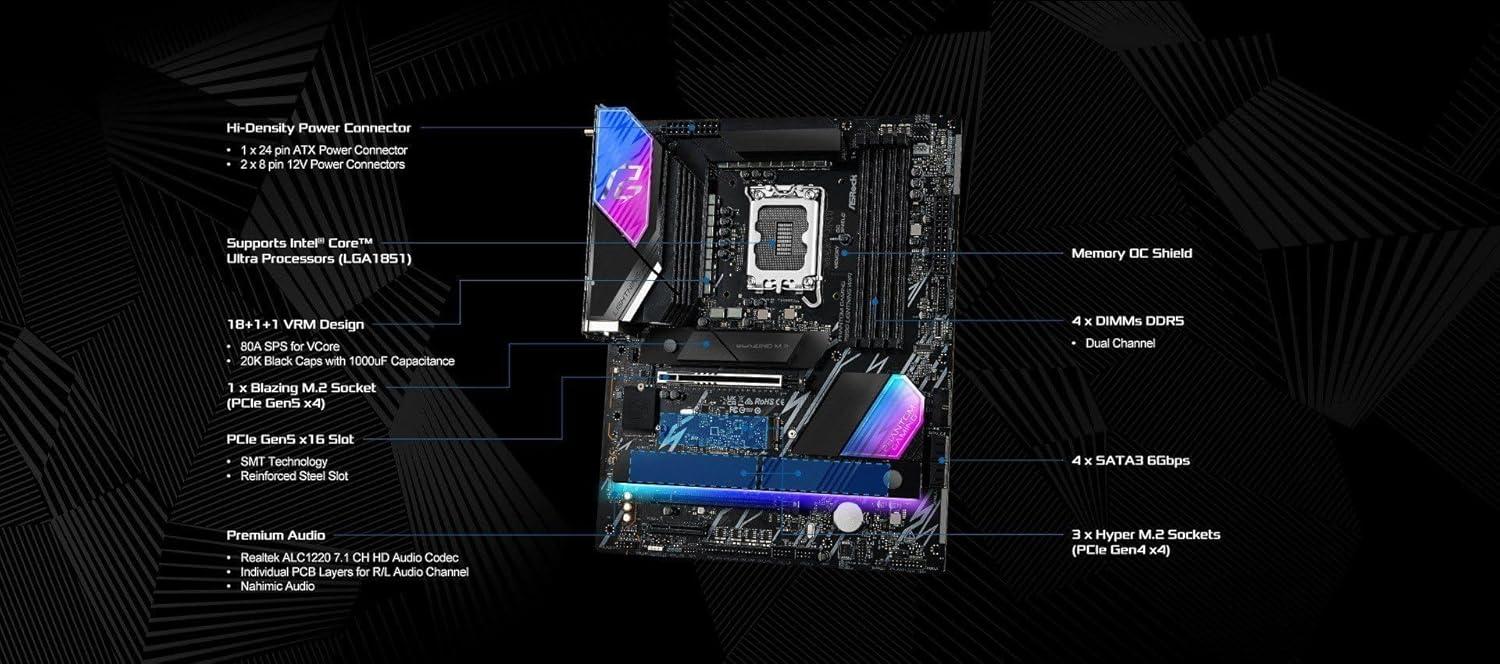

The ASRock Intel Core Ultra Z890 Lightning WiFi 7 features a high-end VRM setup, supplying 80 A across 18 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock Intel Core Ultra Z890 Lightning WiFi 7 offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ALC1220 — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio, plus multiple audio jacks (6) for flexible connectivity.
Overall Quality and Value
ASRock Intel Core Ultra Z890 Lightning WiFi 7 is a premium motherboard boasting a high overall quality score of 85.00. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 89.7% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | ASRock Intel Core Ultra Z890 Lightning WiFi 7 |
| Current Price Amazon | $180 |
| Amazon Price Updated | 12Â hours, 16Â minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 18 (80 A) |
|---|---|
| Power Design | 18+1+1+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9466 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
| x4 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2230, 2242, 2260, 2280 |
| M.2 PCIe Modes | PCIe 5.0 x4, PCIe 4.0 x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Analog Audio Jacks | 6 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C (Max: 8K 60Hz / 5K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 15W |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz/5GHz/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Features Dual Channel DDR5 Memory Technology. Supports non-ECC, un-buffered memory and Clocked Unbuffered DIMM (CUDIMM). Supports Intel Extreme Memory Profile (XMP) 3.0x. |
|---|---|
| Display | Features Intel® Xe LPG Graphics Architecture. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The two Intel® Thunderbolt™ 4 ports also support HDCP 2.3. Video outputs can only be used with processors that have integrated GPUs. The system supports two 4K displays or one 8K display. Only the CPU's embedded graphics can be displayed through the Thunderbolt™ ports. |
| Expansion | The PCIe 5.0 x16 slot (PCIE1) supports bifurcation via riser cards to x8/x8 or x8/x4/x4 modes. The second physical x16 slot (PCIE2) is PCIe 4.0 and operates in x4 mode. An M.2 Socket (Key E) is available for a type 2230 WiFi/BT module. The board supports NVMe SSD as boot disks. |
| Storage |
M.2 Slot Details:
Supports Intel® Volume Management Device (VMD). Supports NVMe SSD as boot disks. |
| Audio | 7.1 CH HD Audio with Content Protection. Features Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Nahimic Audio, and LED-lit jacks. |
| Networking | 802.11be 2x2 Wi-Fi 7 Module. Supports IEEE 802.11a/b/g/n/ac/ax/axe/be. 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology. Supports MU-MIMO. The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock Intel Core Ultra Z890 Lightning WiFi 7 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$240âť—
|
0.0%
|
88.4%
|
72.0%
|
90.0%
|
97.0%
|
99.0%
|
84.0%
|
70.0%
|
|
|
$476
|
↓
-0.2%
|
86.0%
|
71.0%
|
99.0%
|
91.0%
|
88.0%
|
81.0%
|
34.3%
|
|
|
$250
|
0.0%
|
85.8%
|
63.0%
|
92.0%
|
110.0%
|
83.0%
|
81.0%
|
65.2%
|
|
|
$199
|
↑
1.3%
|
85.4%
|
71.0%
|
99.0%
|
94.0%
|
82.0%
|
81.0%
|
81.6%
|
|
|
$180
|
0.0%
|
85.0%
|
72.0%
|
90.0%
|
91.0%
|
85.0%
|
87.0%
|
89.7%
|
|
|
$259
|
0.0%
|
84.4%
|
63.0%
|
92.0%
|
109.0%
|
77.0%
|
81.0%
|
61.9%
|
|
|
$130âť—
|
0.0%
|
84.4%
|
71.0%
|
94.0%
|
94.0%
|
82.0%
|
81.0%
|
123.4%
|
|
|
$236
|
↓
0.0%
|
83.2%
|
63.0%
|
97.0%
|
103.0%
|
72.0%
|
81.0%
|
67.0%
|
|
|
$450
|
0.0%
|
80.0%
|
36.0%
|
100.0%
|
110.0%
|
76.0%
|
78.0%
|
33.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$240âť—
|
0.0%
|
$476
|
↓
-0.2%
|
$250
|
0.0%
|
$199
|
↑
1.3%
|
$180
|
0.0%
|
$259
|
0.0%
|
$130âť—
|
0.0%
|
$236
|
↓
0.0%
|
$450
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | MSI Computer | GIGABYTE | MSI | ASRock | GIGABYTE | MSI | GIGABYTE | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | W880 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 18 (80 A) | 16 (90 A) | 16 (80 A) | 16 (90 A) | 18 (80 A) | 16 (80 A) | 16 (90 A) | 16 (80 A) | 8 (90 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 18+1+1+1+1 | 16+1+1+1 | 16+1+2 | 16+1+1+1 | 18+1+1+1+1 | 16+1+2 | 16+1+1+1 | 16+1+2 | 8+1+2+2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9466 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9466 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9066 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 5 | 5 | 4 | 4 | 5 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC1220 | Realtek® ALC1220P Codec | Realtek® ALC1220 CODEC | Realtek® ALC1220P Codec | Realtek ALC1220 | Realtek® ALC1220 CODEC | Realtek® ALC1220P | Realtek® ALC1220 CODEC | Realtek ALC1220P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ (2.1) | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | - 2.5 Gigabit LAN 10/100… (1 ports) | 1x Intel® Killer™ E5000B… (1 ports) | 2 x Intel® 2.5GbE LAN … (2 ports) | Intel® Killer™ E5000 5Gb… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 8126 5Gbps LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2 x Intel® 2.5Gb Etherne… (3 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634âť—
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346âť—
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Expansion Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Supports NVMe SSD as boot disks
USB:
- 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Internal I/O:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**

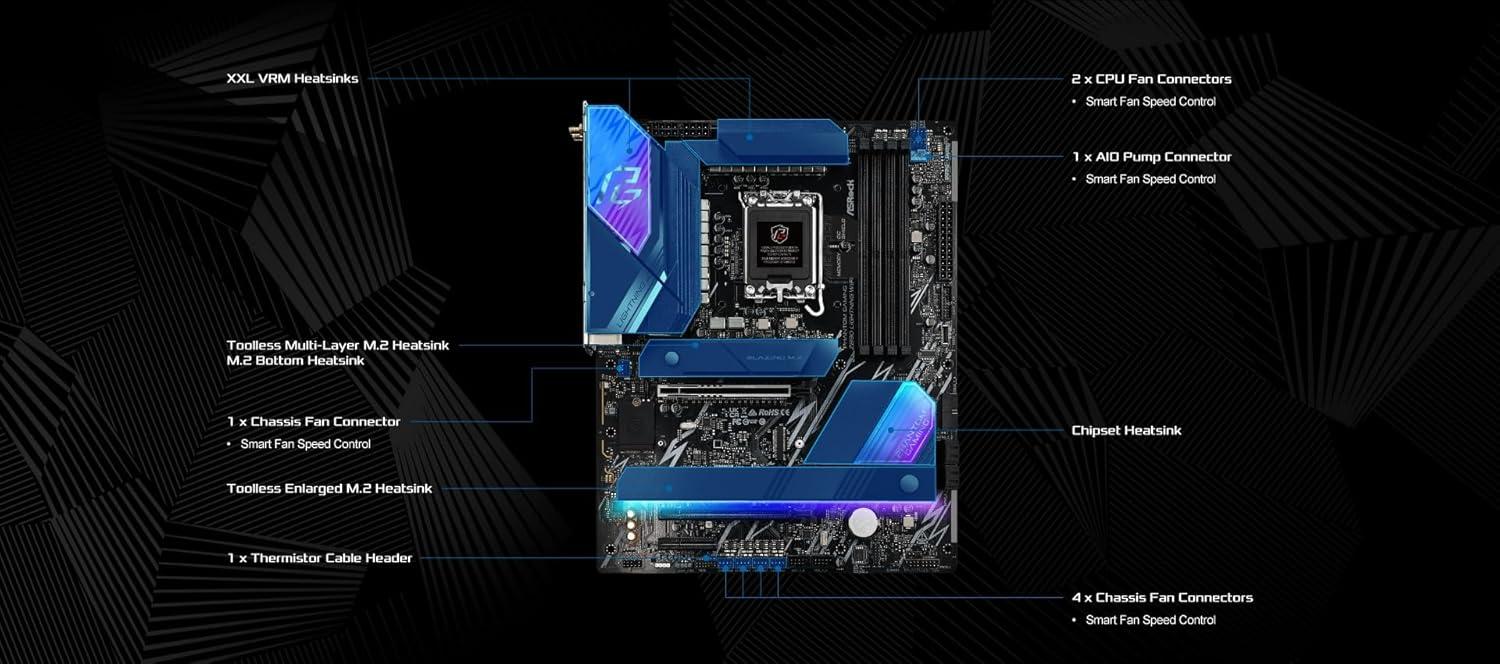

- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15ÎĽ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

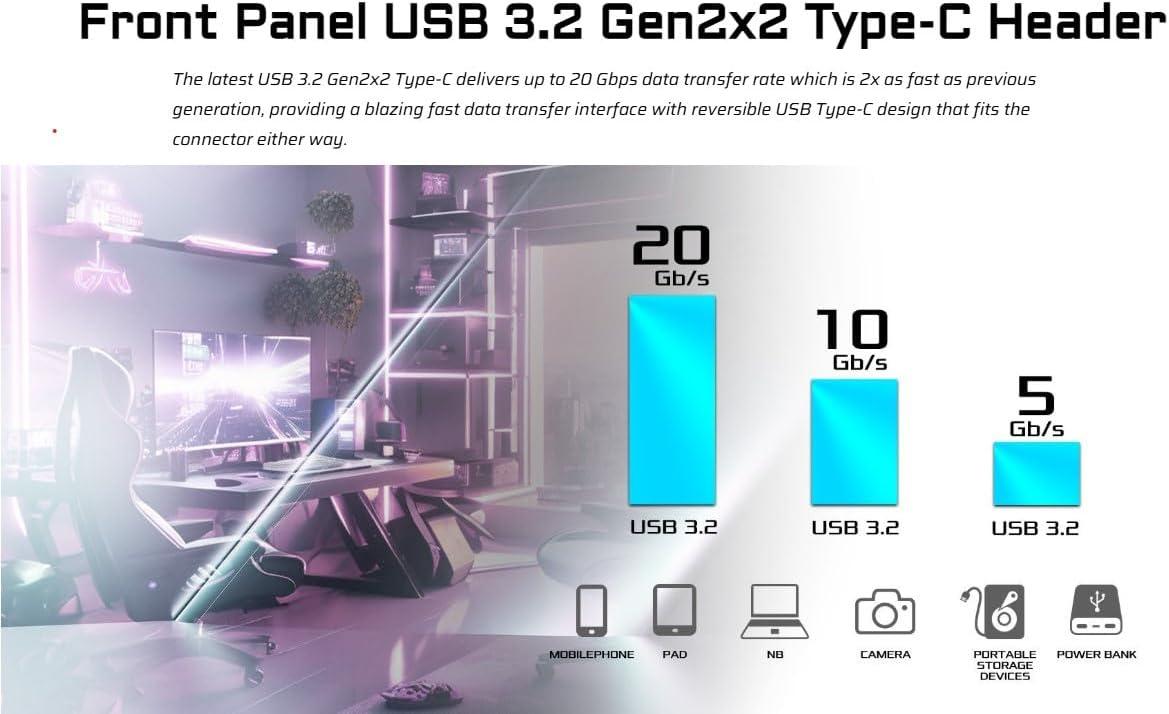

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

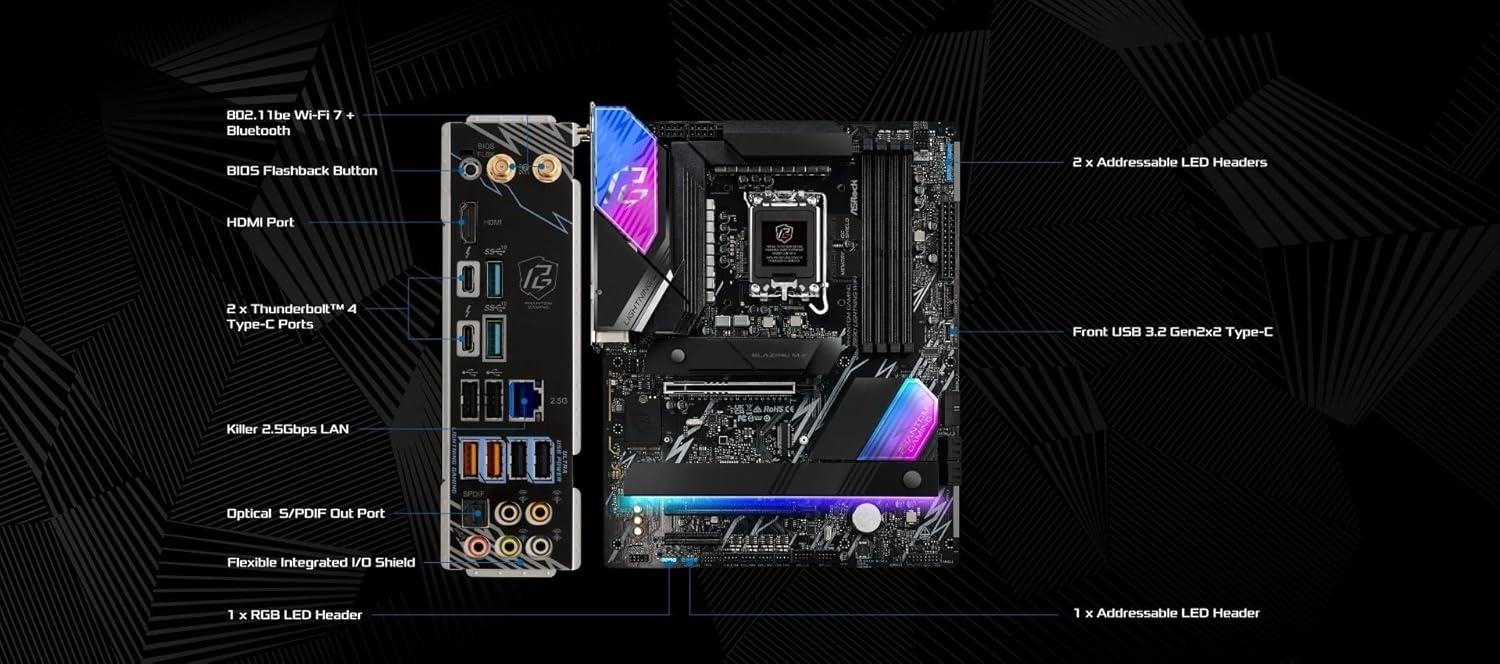

Back Panel I/O:
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port

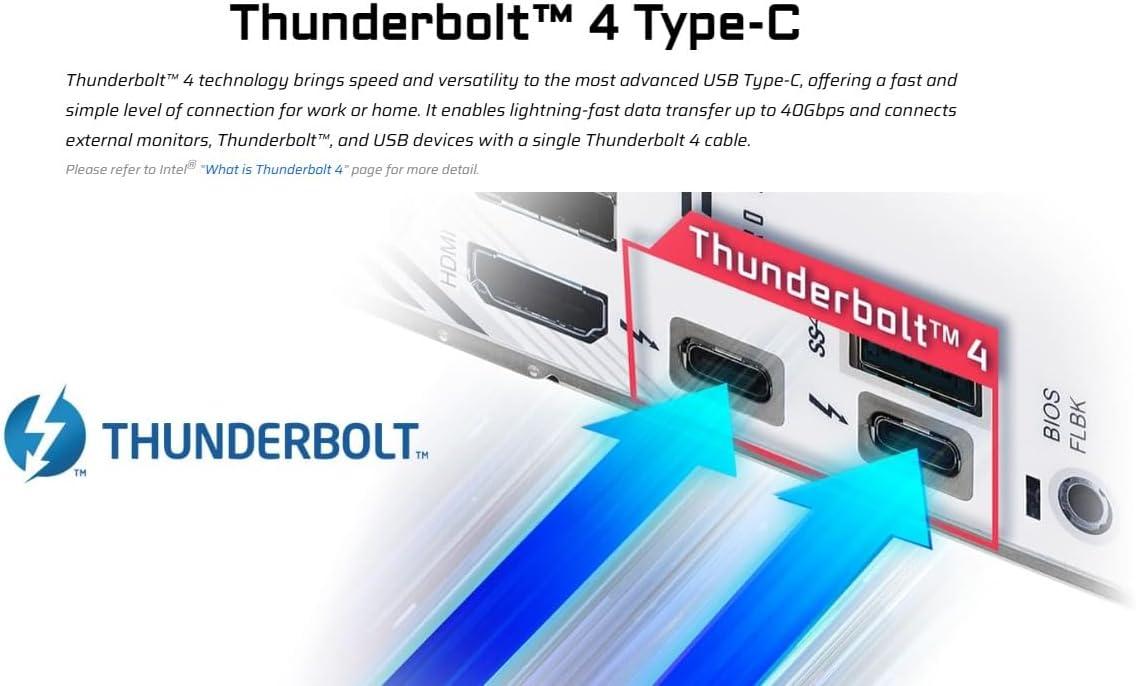

- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
- 4 x USB 3.2 Gen1 Ports**
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.

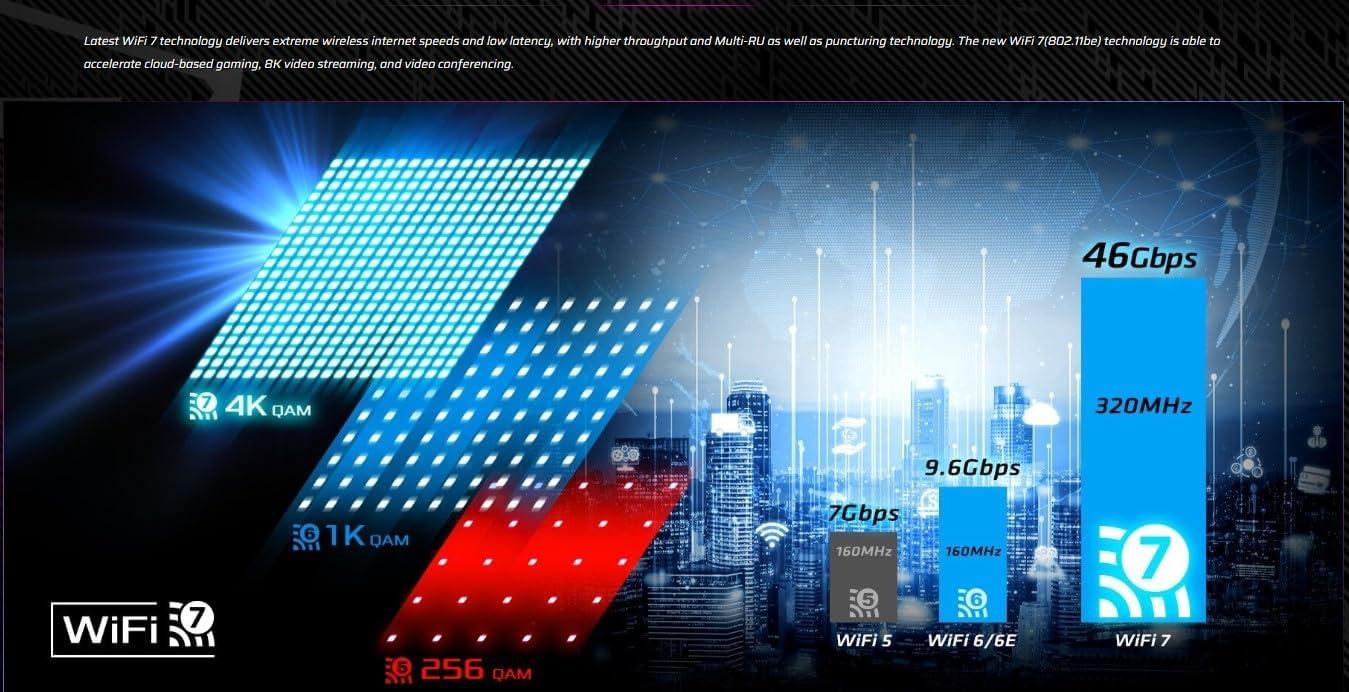

WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band*
- Supports 320MHz channel bandwidth with 6GHz frequency band*
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
Audio:
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Add Comment on ASRock Intel Core Ultra Z890 Lightning WiFi 7
