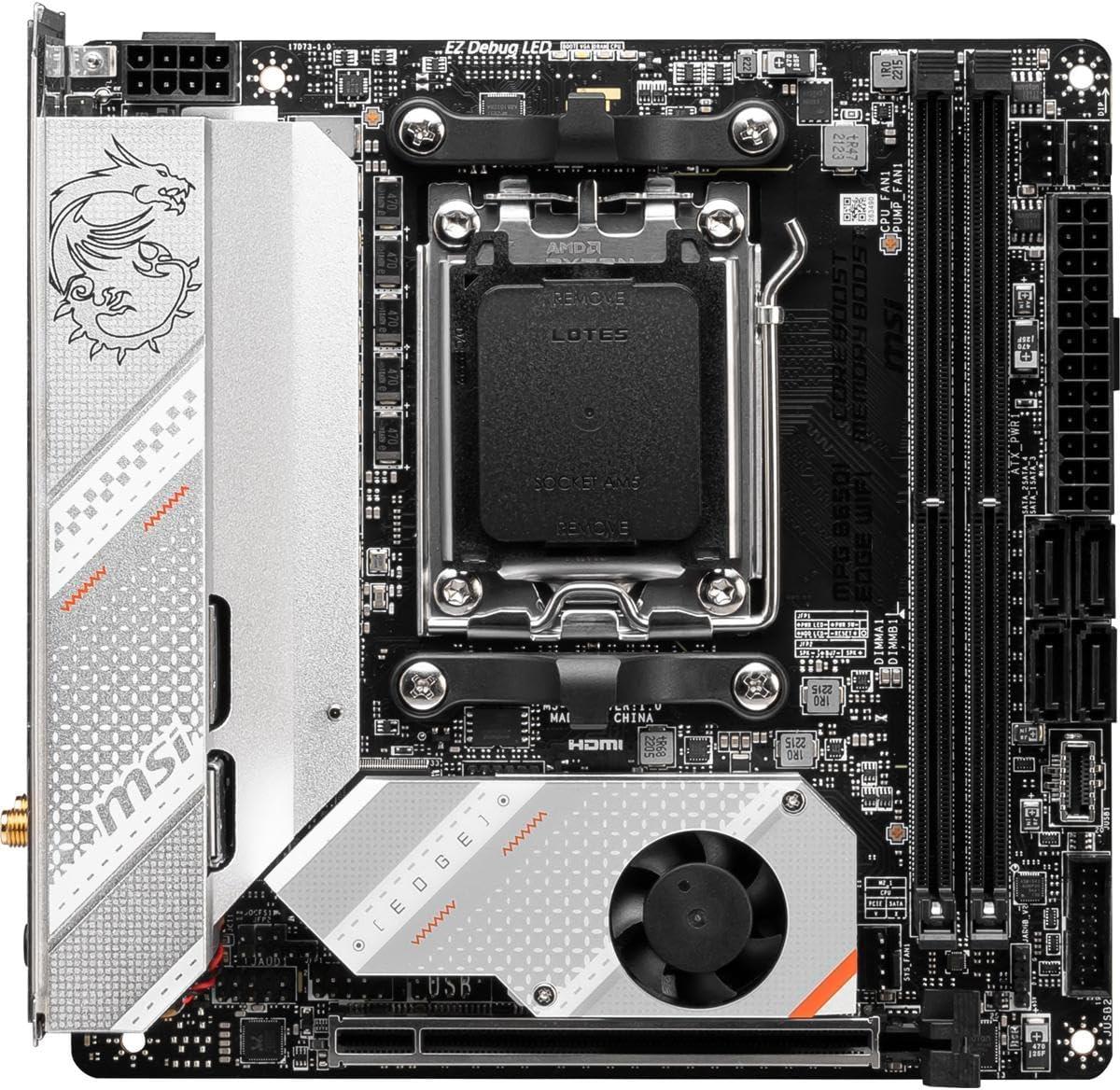

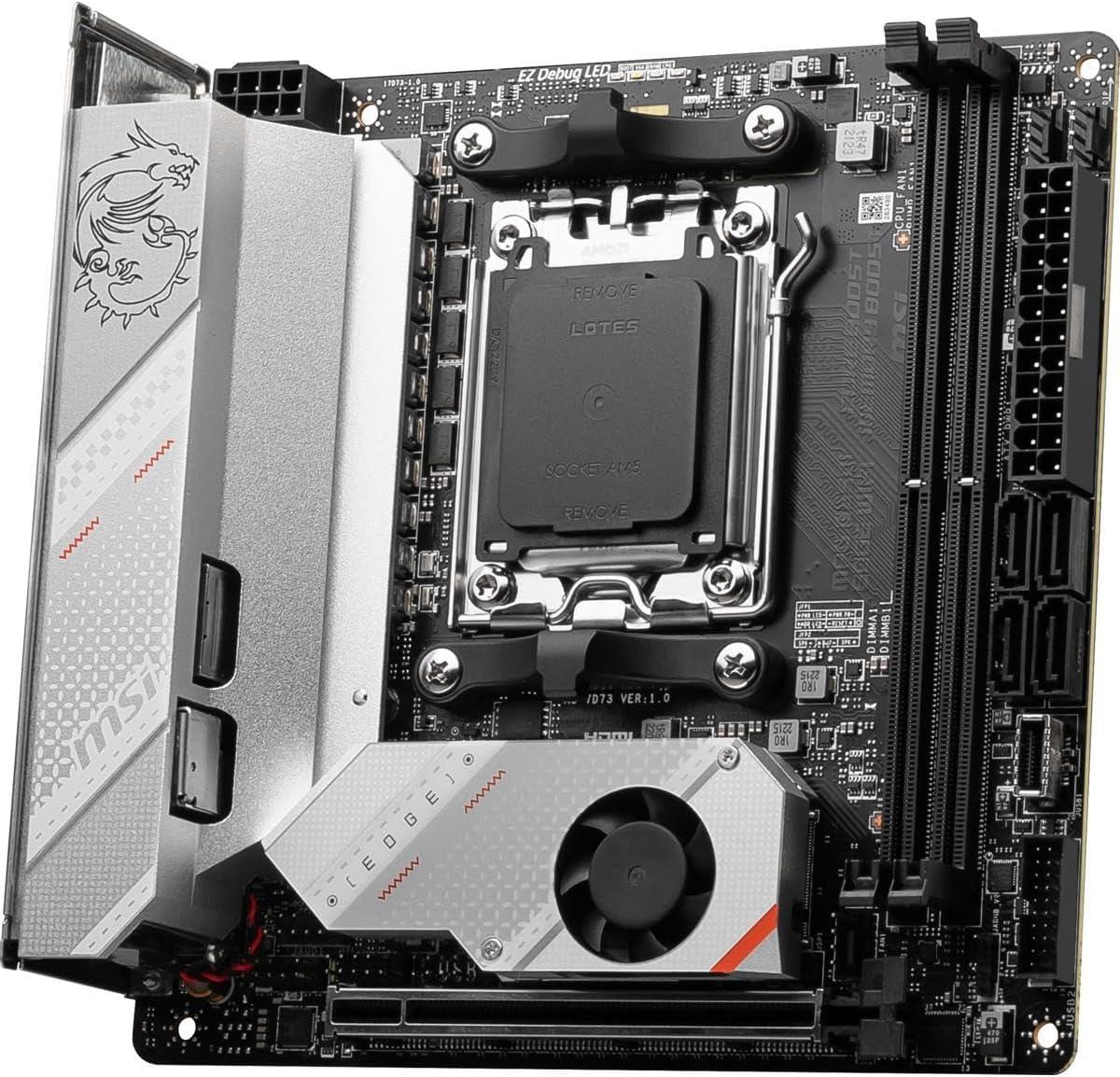

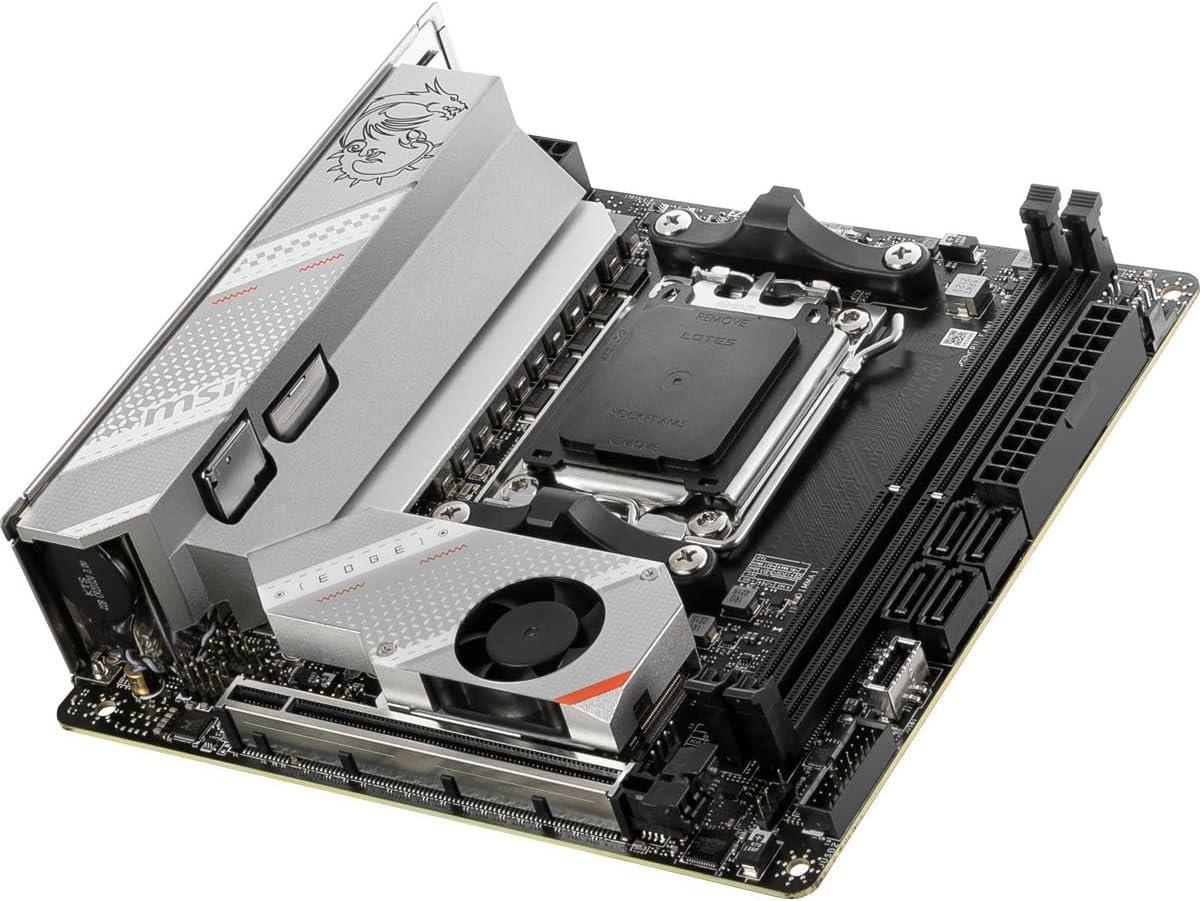

MSI MPG B650I Edge
MSI MPG B650I Edge Specifications Review
MSI MPG B650I Edge by MSI is a Mini-ITX form factor motherboard based on the mid-range B650I chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 7200 MHz.
VRM Quality
The MSI MPG B650I Edge comes with an entry-level VRM setup, delivering 80 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI MPG B650I Edge offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 6E and wired Realtek® RTL8125BG 2.5Gbps ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 FRL . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality.
Overall Quality and Value
MSI MPG B650I Edge is a dependable choice with a respectable overall quality score of 58.20. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard shows a 43.4% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI MPG B650I Edge |
| Current Price Amazon | $255 |
| Amazon Price Updated | 4 hours, 38 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B650I / AM5 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (80 A) |
|---|---|
| Power Design | 8+2+1 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 7200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280, 2260 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 FRL (Max: 4K 120Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® RTL8125BG 2.5Gbps LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 20/40/80/160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| RAM | Supports un-buffered memory and AMD EXPO™. The base JEDEC speed is 4800 MHz. Max overclocking frequency details: 1DPC 1R supports up to 7200+ MHz, and 1DPC 2R supports up to 6400+ MHz. |
|---|---|
| Display | Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU). Supports x16 (For Ryzen™ 9000/ 7000 Series processors). Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors). Supports x4 (For Ryzen™ 8500/ 8300 Series processors). |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel. |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Buttons | The text lists a 'Flash BIOS Button' and a 'Clear CMOS Button' as part of the rear I/O panel. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI MPG B650I Edge Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$140
|
0.0%
|
58.8%
|
54.0%
|
69.0%
|
78.0%
|
53.0%
|
40.0%
|
79.8%
|
|
|
$150
|
0.0%
|
58.6%
|
25.0%
|
86.0%
|
69.0%
|
73.0%
|
40.0%
|
74.2%
|
|
|
$150
|
0.0%
|
58.4%
|
37.0%
|
74.0%
|
64.0%
|
74.0%
|
43.0%
|
74.0%
|
|
|
$145❗
|
↑
1.4%
|
58.4%
|
37.0%
|
74.0%
|
64.0%
|
74.0%
|
43.0%
|
76.3%
|
|
|
$255
|
0.0%
|
58.2%
|
31.0%
|
76.0%
|
40.0%
|
59.0%
|
85.0%
|
43.4%
|
|
|
$288
|
0.0%
|
58.0%
|
37.0%
|
80.0%
|
71.0%
|
62.0%
|
40.0%
|
38.3%
|
|
|
$189
|
0.0%
|
58.0%
|
25.0%
|
78.0%
|
77.0%
|
62.0%
|
48.0%
|
58.3%
|
|
|
$180
|
↑
0.2%
|
57.8%
|
25.0%
|
84.0%
|
81.0%
|
54.0%
|
45.0%
|
61.0%
|
|
|
$147
|
0.0%
|
56.6%
|
22.0%
|
86.0%
|
74.0%
|
56.0%
|
45.0%
|
73.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$140
|
0.0%
|
$150
|
0.0%
|
$150
|
0.0%
|
$145❗
|
↑
1.4%
|
$255
|
0.0%
|
$288
|
0.0%
|
$189
|
0.0%
|
$180
|
↑
0.2%
|
$147
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | MSI | GIGABYTE | GIGABYTE | MSI | Gigabyte | ASUS | ASUS | MSI | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | B850M / AM5 | B650M / AM5 | B650M / AM5 | B650I / AM5 | B850 / AM5 | B650 / AM5 | AMD B850 / AM5 | B850M / AM5 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Micro-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 8 (60 A) | 12 (60 A) | 12 (60 A) | 8 (80 A) | 12 (60 A) | 8 (60 A) | 8 (60 A) | 7 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 8+2 + 1 | 12+2+2 | 12+2+2 | 8+2+1 | 12+2+2 | 8(60A)+2(60A)+1 | 8 + 2 + 1 | 7+2 + 1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 7200 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 128 GB / 7200 MHz | 256 GB / 8200 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 2x16 Gen4 | 2x16 Gen4 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC897 Audio Codec | Realtek® ALC897 | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC4080 Codec | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® 2.5GbE LAN (1 ports) | Realtek® 2.5GbE LAN (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® 2.5GbE LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | ❌ | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| BT | ❌ | v5.4 | v5.2 / 5.3 | v5.3 | v5.3 | v5.3 | v5.3 | v5.3 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
❌ |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
❌ |
❌ |
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Graphics:
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Expansion Slots:
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
USB:
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

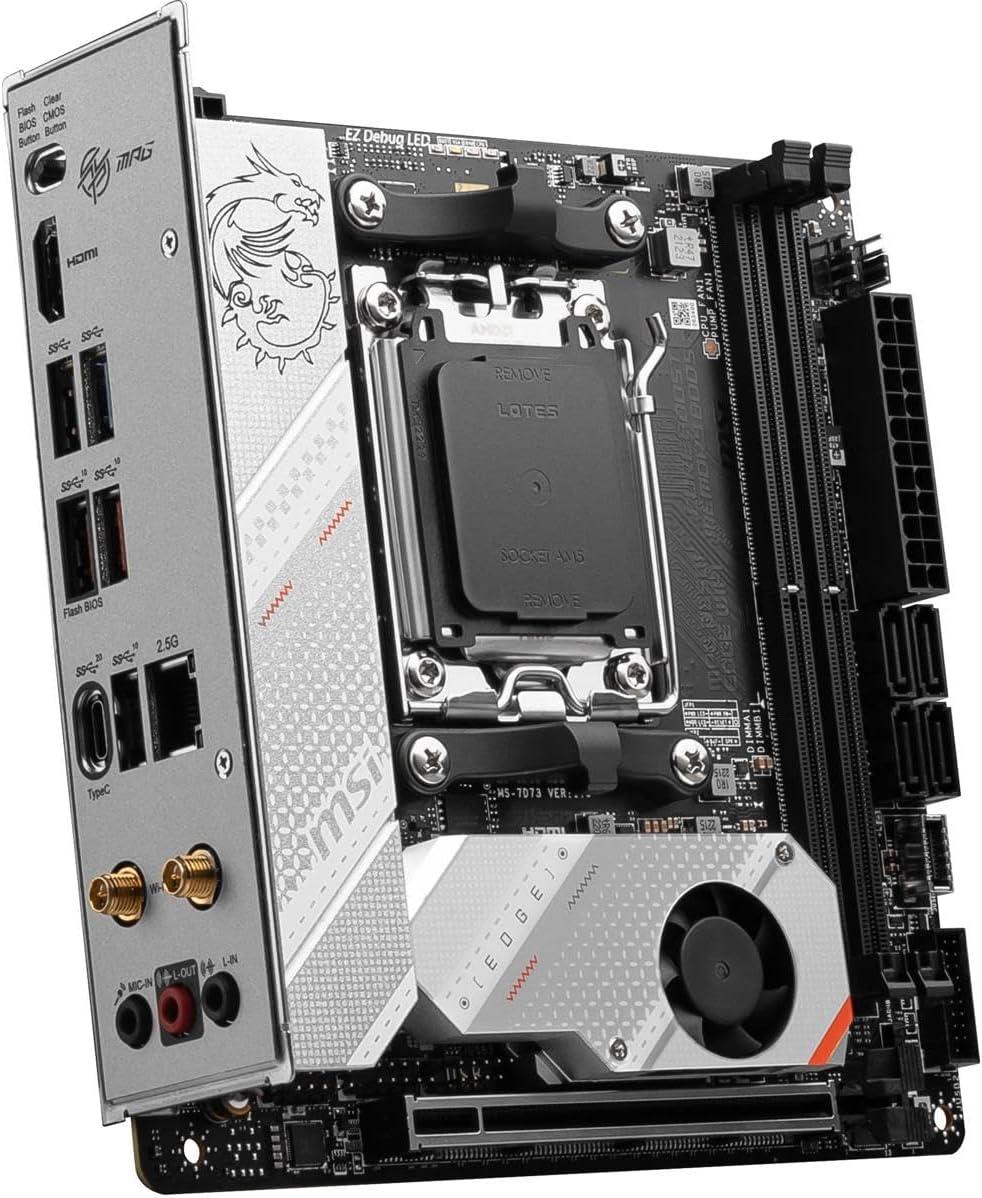

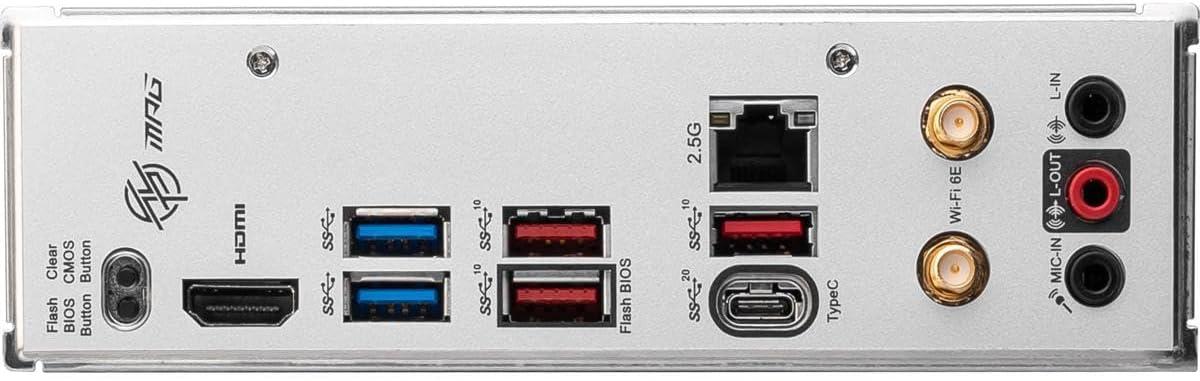

Back Panel I/O:
USB 5Gbps (Type-A)
2.5G LAN
Wireless / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-A)
USB 20Gbps (Type-C)
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
