ASUS · AM5 · B650

ASUS TUF Gaming B650-E WIFI

ATX · DDR5 · 4 DIMMs · 8-phase VRM · 6E

Quality
58
VRM
25
Value
61
Amazon
$180
ASUS TUF Gaming B650-E WIFI

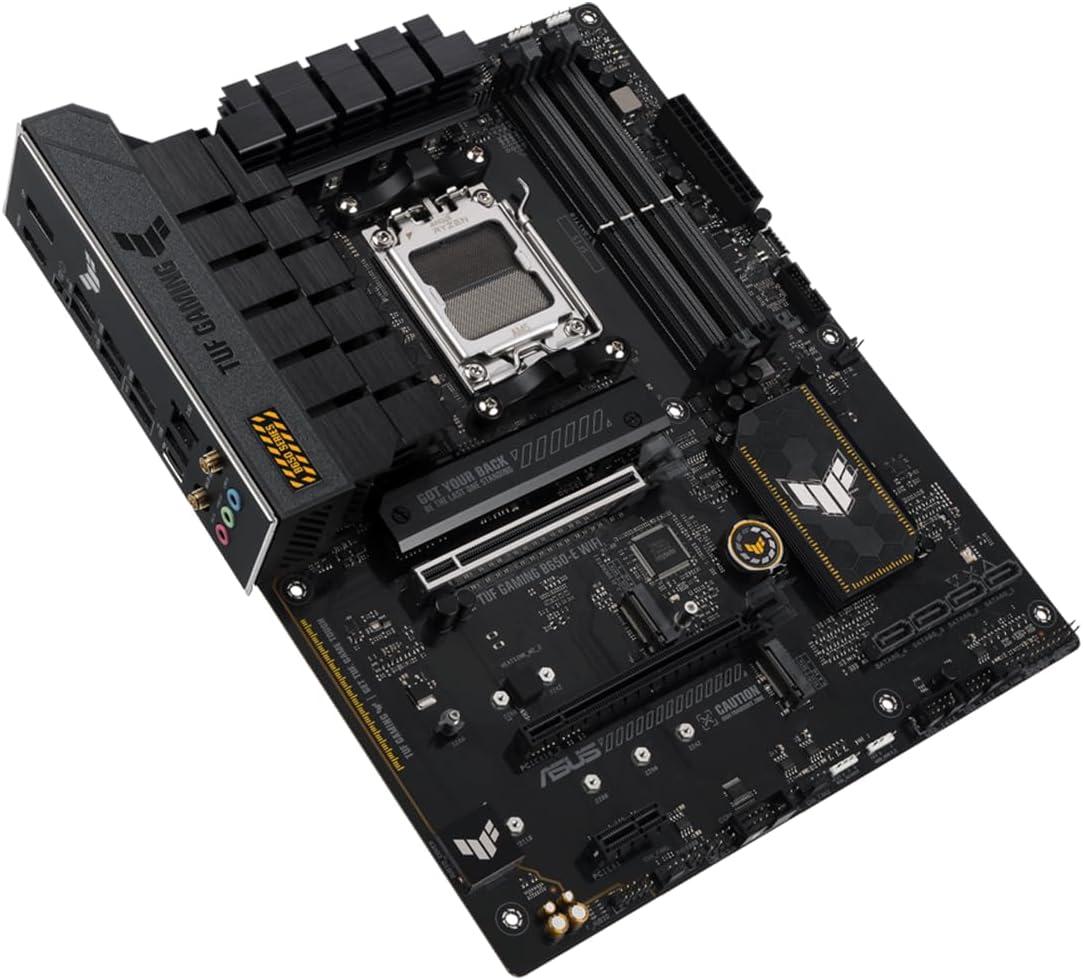

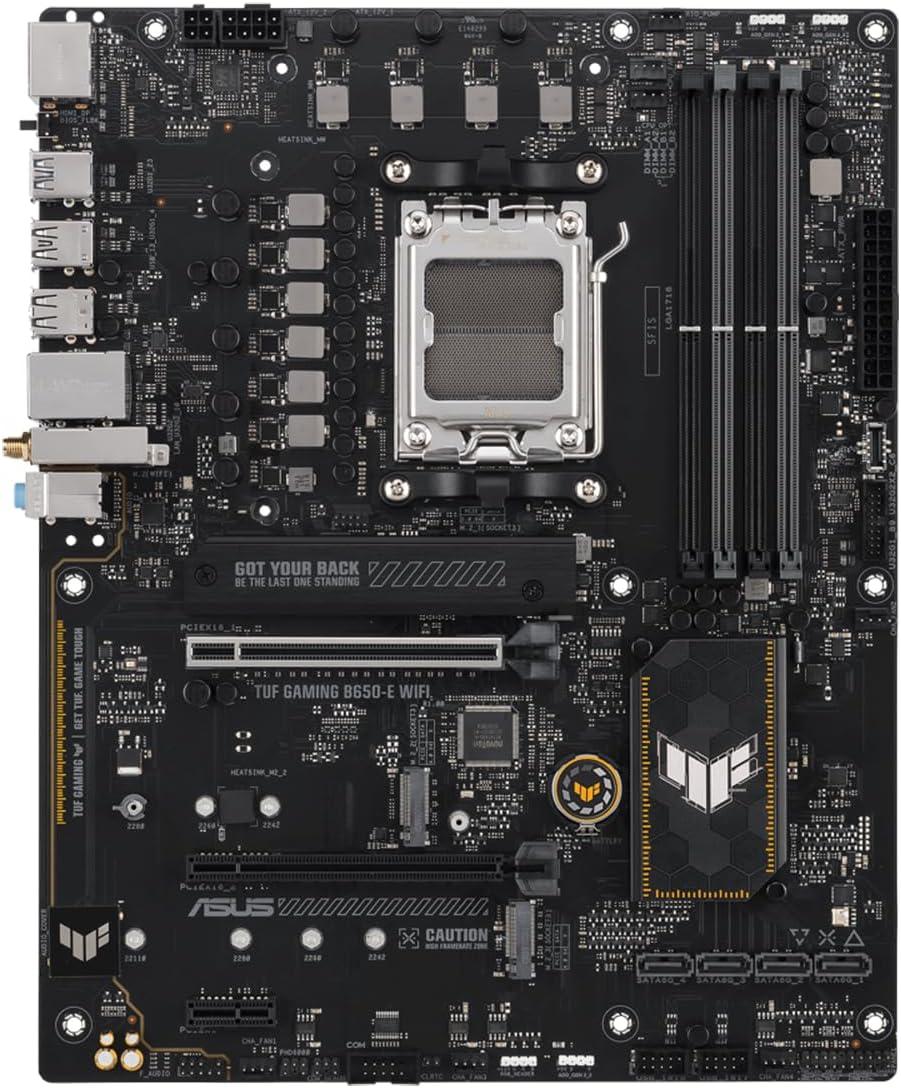

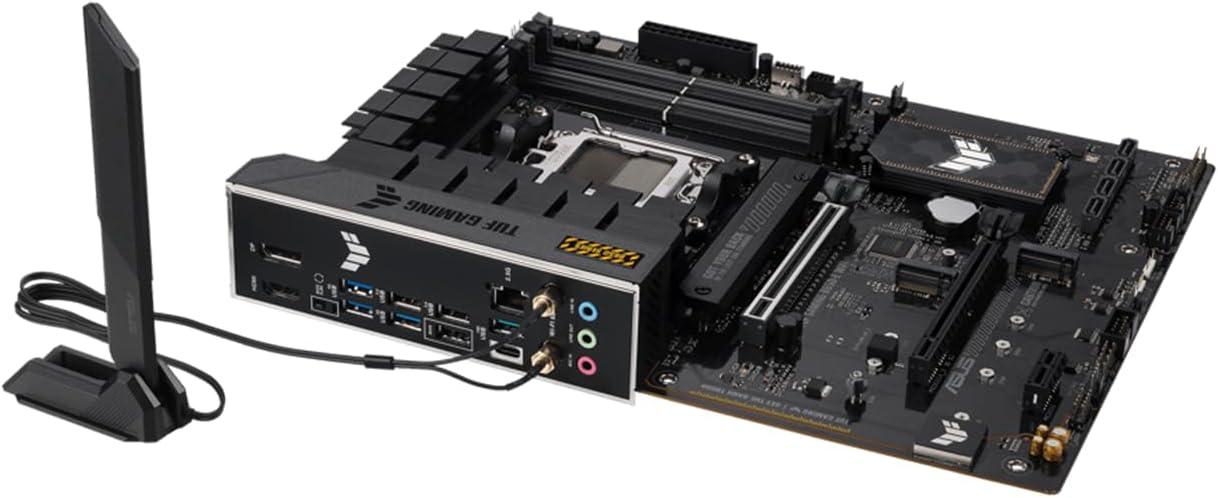

View ASUS TUF Gaming B650-E WIFI Gallery in high resolution
$180
Available Updated 3 days, 14 hours ago Prime FBA
Overall58.0
VRM25.0
Chipset78.0
Expansion / storage77.0
Connectivity62.0
Audio48.0
Quality / price61.2
$180 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

ASUS TUF Gaming B650-E WIFI at a glance

The ASUS TUF Gaming B650-E WIFI uses the ATX form factor, AM5 socket, and B650 chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 192 GB and rated overclocked speeds up to 8000 MT/s. The board can operate memory in ECC mode. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a mainstream gaming, home, or office system with moderate expansion needs.

Power delivery

The calculated VRM score is 25.0, placing the power delivery in the basic class. The board lists 8 CPU power phases, 60 A power stages in a 8(60A)+2(60A)+1 layout. CPU power input is listed as 2. Keep it paired with lower-power processors and avoid sustained overclocked loads.

Expansion and storage

The expansion and storage score is 77.0: well equipped . The platform supports PCIe 4.0. Physical expansion includes 2 ×16 slots, and 1 ×1.

On-board storage consists of 3 M.2 slots supporting PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2 and 4 SATA ports. Supported M.2 lengths are listed as 22110, 2280, 2260, 2242. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 62.0, rated adequate . Wireless networking is Wi-Fi 6E ; wired networking is Realtek 2.5Gb Ethernet at up to 2500 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 8 rear connections and 1 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 48.0. This is a standard onboard solution using Realtek® ALC892/ALC897. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 5 analogue jacks.

Buying verdict

Overall quality is 58.00, a mainstream result. The essential platform features are covered, while premium I/O and tuning extras are more selective.

At the recorded Amazon price, the quality-to-price score is 61.2—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
ASUS
Motherboard
ASUS TUF Gaming B650-E WIFI
Chipset / socket
B650 / AM5
Form factor
ATX
Launch price
—
Amazon price
$180
Availability
In stock
Price updated
3 days, 14 hours ago

VRM

CPU phases
8 (60 A)
Power design
8(60A)+2(60A)+1
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
192 GB / 8000 MT/s
Per DIMM
48 GB
XMP / EXPO
Yes
ECC
Operates in ECC mode

PCIe

Supported version
PCIe 4.0
x16 physical
2
x16 Gen 4
2
x1 physical
1
x1 Gen 4
1

Storage

M.2 slots
3
M.2 lengths
22110, 2280, 2260, 2242
M.2 modes
PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4K@60Hz
DisplayPort
Yes · 1.4 · 8K@60Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
3
Rear USB 3.2 Gen 1 Type-A 5 Gbps
3
Rear USB 3.2 Gen 2 Type-A 10 Gbps
1
Rear USB 3.2 Gen 2 Type-C 10 Gbps
1
Front USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
2

Networking

Ethernet
Realtek 2.5Gb Ethernet
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
6E
Bands
2.4/5/6GHz
Antenna connectors
2
Bluetooth
5.3

Audio

Chipset
Realtek® ALC892/ALC897
Analog jacks
5
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
Rear output

Buttons

BIOS flashback
Yes
Clear CMOS
No
Q-Flash Plus
No
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
Supports AMD EXTended Profiles for Overclocking (EXPO™). Features OptiMem II. Memory is Un-buffered. Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Display notes
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion notes
Specifications vary by CPU type. The primary x16 slot from the CPU supports x8/x4 mode with AMD Ryzen™ 8000 Series Desktop Processors. The second x16 slot, from the AMD B650 Chipset, supports x1 mode. Users should check the PCIe bifurcation table on the ASUS support site for detailed configurations.
M.2_1
5.0 x4 · 2242, 2260, 2280 · CPU — The supported PCIe version depends on the installed CPU. With AMD Ryzen™ 9000 & 7000 Series, the slot supports PCIe 5.0 x4 mode. With AMD Ryzen™ 8000 Series, it supports PCIe 4.0 x4 mode.
M.2_2
4.0 x4 · 2242, 2260, 2280 · CPU — The supported mode varies by CPU type. With AMD Ryzen™ 9000 & 7000 Series, it supports PCIe 4.0 x4 mode. With AMD Ryzen™ 8000 Series, it supports PCIe 4.0 x4/x2 mode.
M.2_3
4.0 x4 · 2242, 2260, 2280, 22110 · Chipset
RAID
SATA / PCIe (0, 1, 10)
Storage notes
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. M.2 slot specifications vary by CPU type.
Audio notes
Features include Audio Shielding, premium audio capacitors, dedicated audio PCB layers, and an audio cover. Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, and up to 24-Bit/192 kHz playback. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Networking notes
WiFi 6E 6GHz regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Button notes
The motherboard includes a Clear CMOS header, but not a dedicated button.
Fan / RGB headers
1 CPU · 1 OPT · 1 AIO · 4 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · System panel
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to ASUS TUF Gaming B650-E WIFI on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on ASUS TUF Gaming B650-E WIFI

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

4 x DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on
support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

USB

Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Internal I/O

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function

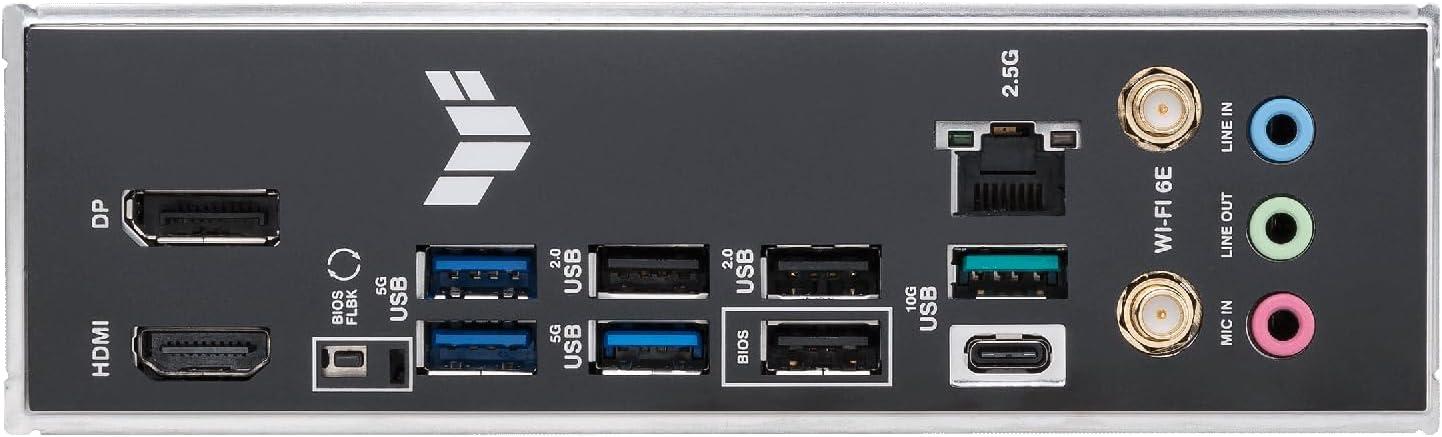

Rear I/O

2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Special features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
