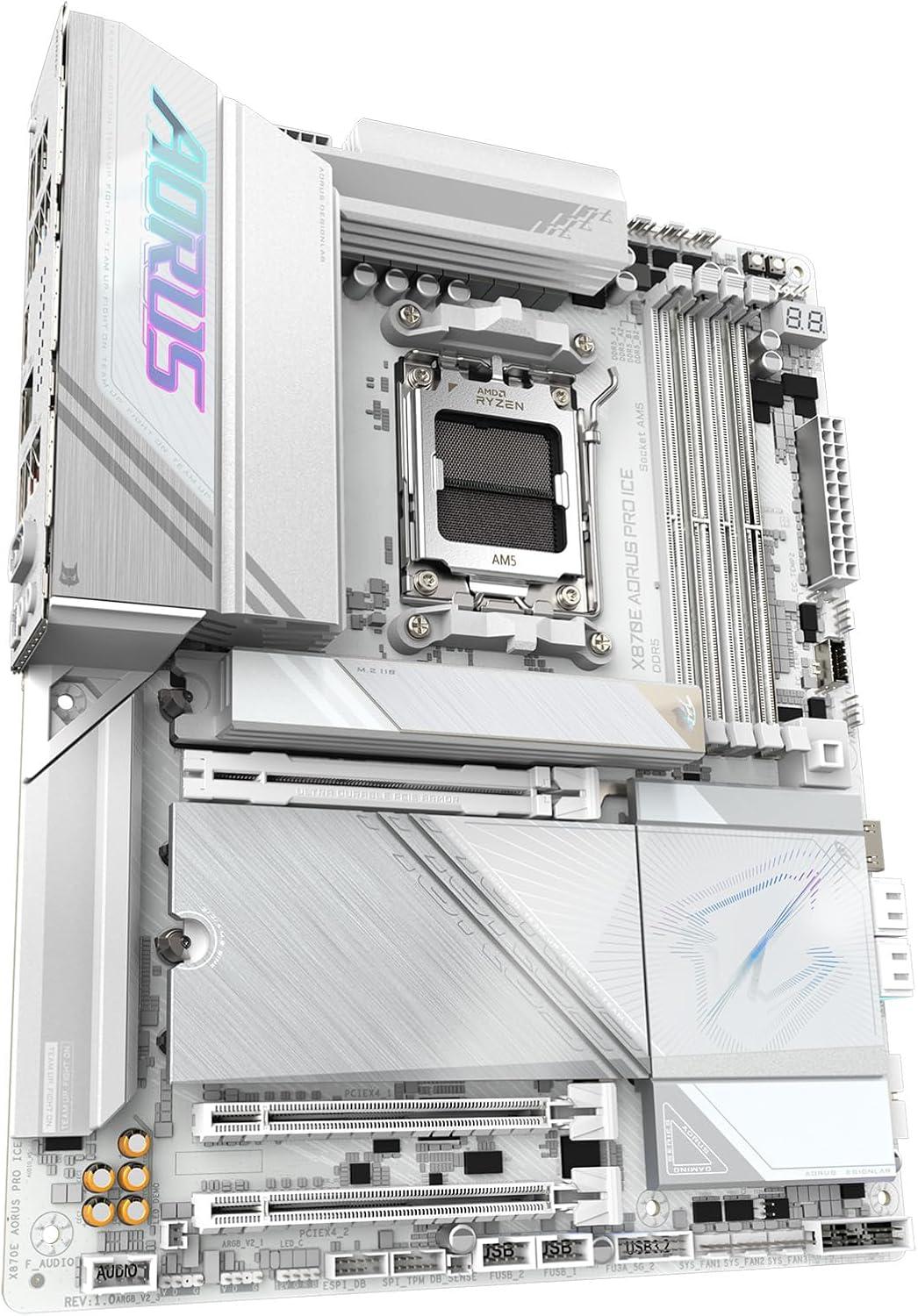

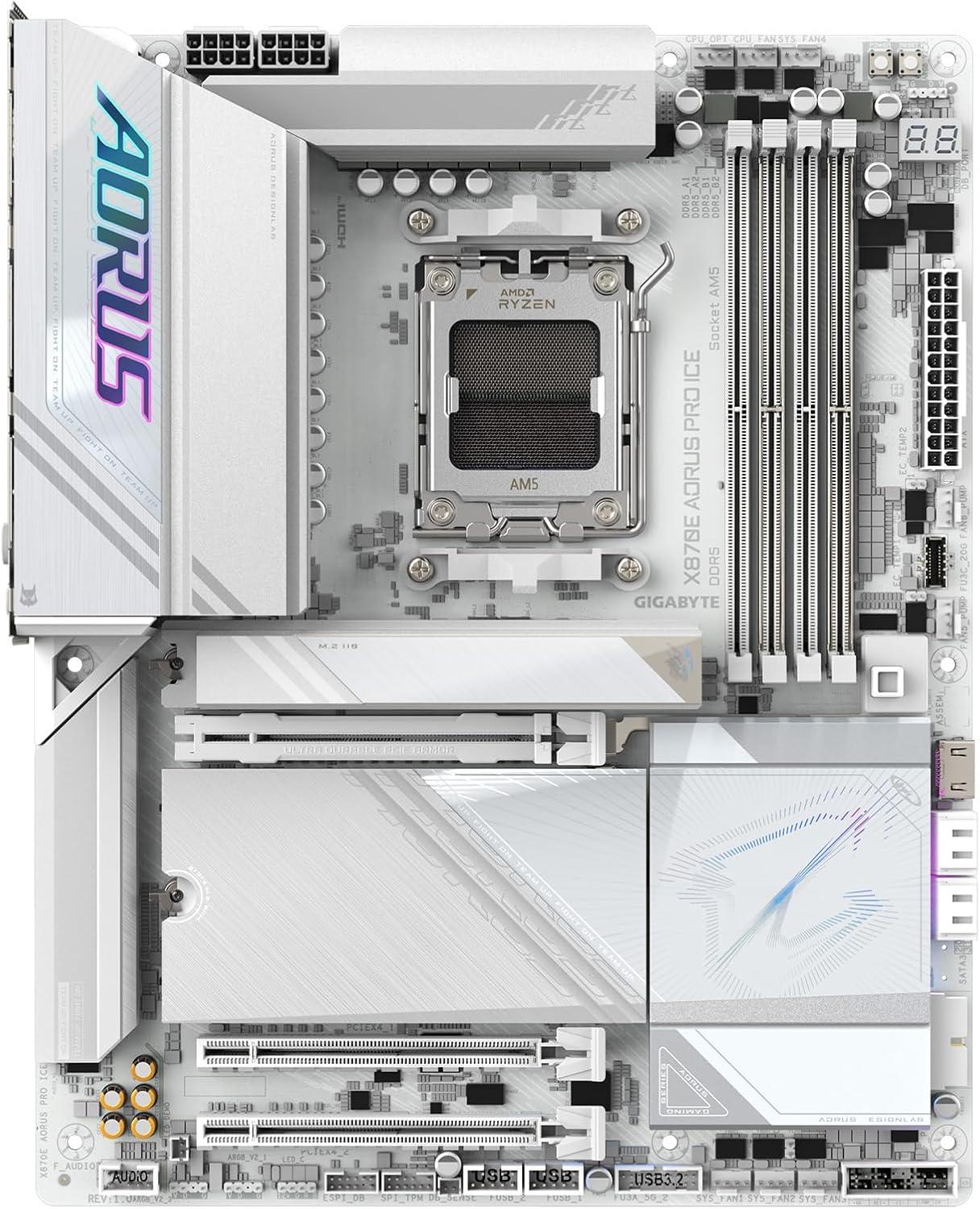

GIGABYTE X870E AORUS PRO ICE

ATX · DDR5 · 4 DIMMs · 16-phase VRM · Wi-Fi 7

Quality
84
VRM
63
Value
55
Amazon
$286
GIGABYTE X870E AORUS PRO ICE
View GIGABYTE X870E AORUS PRO ICE Gallery in high resolution
$286
Available Updated 3 days, 19 hours ago Prime FBA
Overall83.6
VRM63.0
Chipset92.0
Expansion / storage93.0
Connectivity89.0
Audio81.0
Quality / price55.4
$286 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

GIGABYTE X870E AORUS PRO ICE at a glance

The GIGABYTE X870E AORUS PRO ICE uses the ATX form factor, AM5 socket, and X870E chipset. This is a high-end platform with the feature headroom expected in an enthusiast gaming or productivity build.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 8200 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a premium gaming or creator build that will use the stronger VRM, storage, and I/O rather than simply needing a compatible socket.

Power delivery

The calculated VRM score is 63.0, placing the power delivery in the upper mid-range class. The board lists 16 CPU power phases, 80 A power stages in a 16+2+2 layout. CPU power input is listed as 2. It suits performance processors at stock; sustained extreme overclocking is not its main purpose.

Expansion and storage

The expansion and storage score is 93.0: exceptionally well equipped . The platform supports PCIe 5.0. Physical expansion includes 3 ×16 slots.

On-board storage consists of 4 M.2 slots supporting PCIe 5.0, PCIe 4.0 and 4 SATA ports. Supported M.2 lengths are listed as 25110, 22110, 2580, 2280. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 89.0, rated premium . Wireless networking is Wi-Fi 7 ; wired networking is Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) at up to 2500 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 11 rear connections; a front-panel total is not recorded. USB4 Type-C is available at the rear. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, USB-C DisplayPort. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 81.0. This is a high-end onboard implementation using Realtek® ALC1220 CODEC, suitable for good headsets, powered speakers, and everyday content work. The rear panel has 2 analogue jacks. Optical S/PDIF is present for digital audio equipment.

Buying verdict

Overall quality is 83.60, a premium result. It makes sense when the build will use its stronger VRM and richer connectivity; otherwise a lower-tier board may deliver the same CPU performance for less.

At the recorded Amazon price, the quality-to-price score is 55.4—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
GIGABYTE
Motherboard
GIGABYTE X870E AORUS PRO ICE
Chipset / socket
X870E / AM5
Form factor
ATX
Launch price
—
Amazon price
$286
Availability
In stock
Price updated
3 days, 19 hours ago

VRM

CPU phases
16 (80 A)
Power design
16+2+2
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 8200 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 5.0
x16 physical
3
x16 Gen 5
1
x16 Gen 4
1
x16 Gen 3
1

Storage

M.2 slots
4
M.2 lengths
25110, 22110, 2580, 2280
M.2 modes
PCIe 5.0, PCIe 4.0
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4096x2160@60 Hz
DisplayPort
No
USB-C DisplayPort
Yes · 1.4 · 3840x2160@240 Hz

USB

Rear USB 2.0
2
Rear USB 3.2 Gen 1 Type-A 5 Gbps
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
3
Rear USB4 Type-C
2
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
4
Header USB 3.2 Gen 2×2 Type-C 20 Gbps
1
USB4
Type-C · rear

Networking

Ethernet
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
Wi-Fi 7
Wi-Fi bandwidth
320MHz
Bands
2.4GHz, 5GHz, 6GHz
Antenna connectors
2
Bluetooth
5.3

Audio

Chipset
Realtek® ALC1220 CODEC
Analog jacks
2
Gold-plated jacks
No
Optical S/PDIF
Yes
Spatial audio
No

Buttons

BIOS flashback
No
Clear CMOS
No
Q-Flash Plus
Yes
Smart button
No
Onboard start / reset
Start / Reset

Additional information

Memory notes
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; refer to the manufacturer's website for more information.
Display notes
Features 2 x USB4® USB Type-C® ports supporting DisplayPort 1.4 and HDR. Also includes one rear HDMI 2.1 port (4096x2160@60 Hz) with HDCP 2.3 and HDR support, and one front HDMI 1.4 port (1920x1080@30 Hz). Graphics specifications may vary depending on CPU support. The USB4 ports are managed by an ASMedia USB4® Controller.
Expansion notes
The primary PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors; when either is populated, the PCIEX16 slot operates at up to x8 mode. The PCIEX16 slot's performance varies by CPU: Ryzen 9000/7000 support PCIe 5.0 x16, Ryzen 8000-Phoenix 1 support PCIe 4.0 x8, and Ryzen 8000-Phoenix 2 support PCIe 4.0 x4. The second physical x16 slot (PCIEX4_1) runs at PCIe 4.0 x4. The third physical x16 slot (PCIEX4_2) runs at PCIe 3.0 x4.
M2A_CPU
5.0 4 · 25110, 22110, 2580, 2280 · CPU — Functionality depends on the CPU installed. Supports PCIe 5.0 x4/x2 with AMD Ryzen 9000/7000 Series Processors. Supports PCIe 4.0 x4/x2 with AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors.
M2B_CPU
5.0 4 · 22110, 2280 · CPU — This slot is unavailable when using AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors. With AMD Ryzen 9000/7000 Series Processors, it supports PCIe 5.0 x4/x2.
M2C_CPU
5.0 4 · 22110, 2280 · CPU — This slot is unavailable when using AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors. With AMD Ryzen 9000/7000 Series Processors, it supports PCIe 5.0 x4/x2.
M2D_SB
4.0 4 · 22110, 2280 · Chipset
RAID
SATA / PCIe (0, 1, 5, 10)
Storage notes
RAID 5 for NVMe SSDs is only available on AMD Ryzen 9000 Series Processors. The M2B_CPU and M2C_CPU connectors are unavailable when using AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors. M.2 slot performance and availability are dependent on the installed CPU.
USB notes
The 2 rear USB4 Type-C ports also support DisplayPort.
Audio notes
Supports 2/4/5.1/7.1-channel High Definition Audio. The back panel line out jack supports DSD audio. The functionality of an audio jack can be changed using the audio software to configure 7.1-channel audio.
Networking notes
Wi-Fi module: Qualcomm Wi-Fi 7 QCNCM865. Antenna configuration: 2T2R. Wi-Fi 7 features require Windows 11 SV3. Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Button notes
The text lists an onboard power button and a reset button. It also specifies a Clear CMOS jumper and a reset jumper.
Fan / RGB headers
1 CPU · 1 OPT · 2 AIO · 4 chassis · 3 ARGB · 1 RGB
Thermal sensors
2
Other headers
Front audio · System panel · TPM
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to GIGABYTE X870E AORUS PRO ICE on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on GIGABYTE X870E AORUS PRO ICE

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)

Expansion slots

1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
* RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

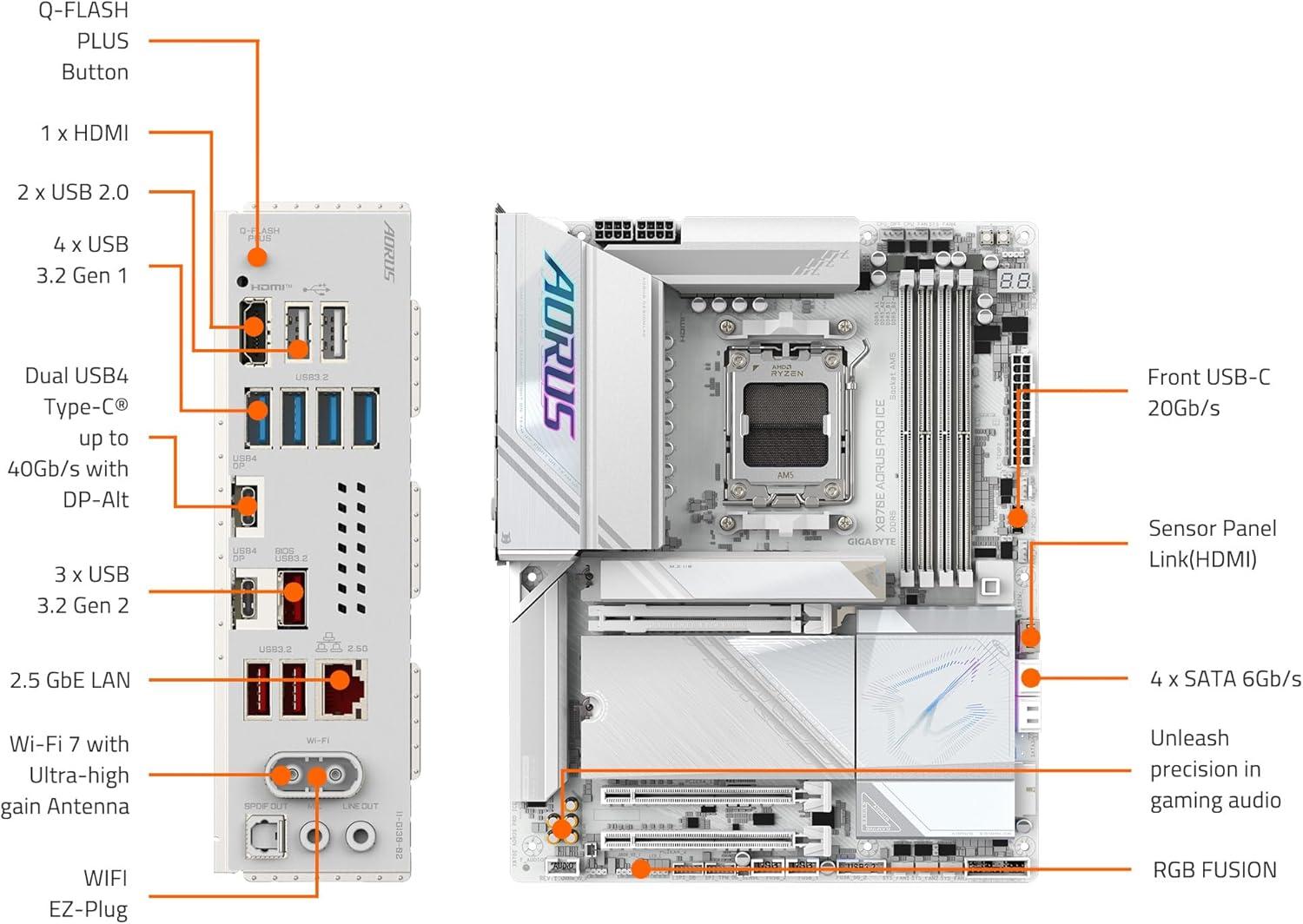

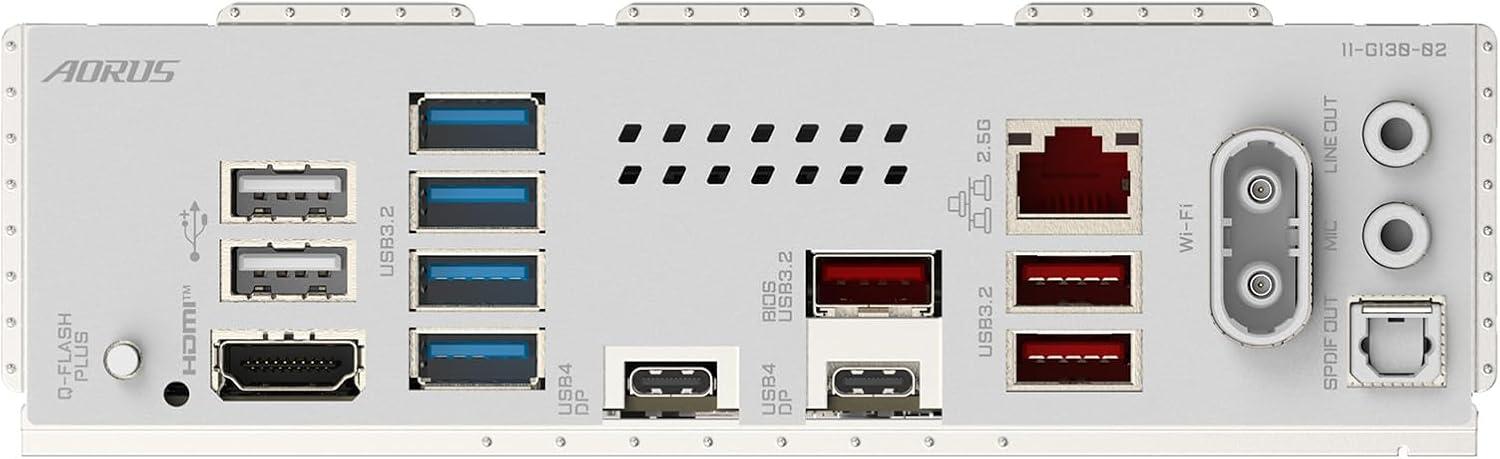

Rear I/O

1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
4 x USB 3.2 Gen 1 ports
2 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks

Wireless

Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Audio

Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Special features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
