ASRock A620M-HDV/M.2

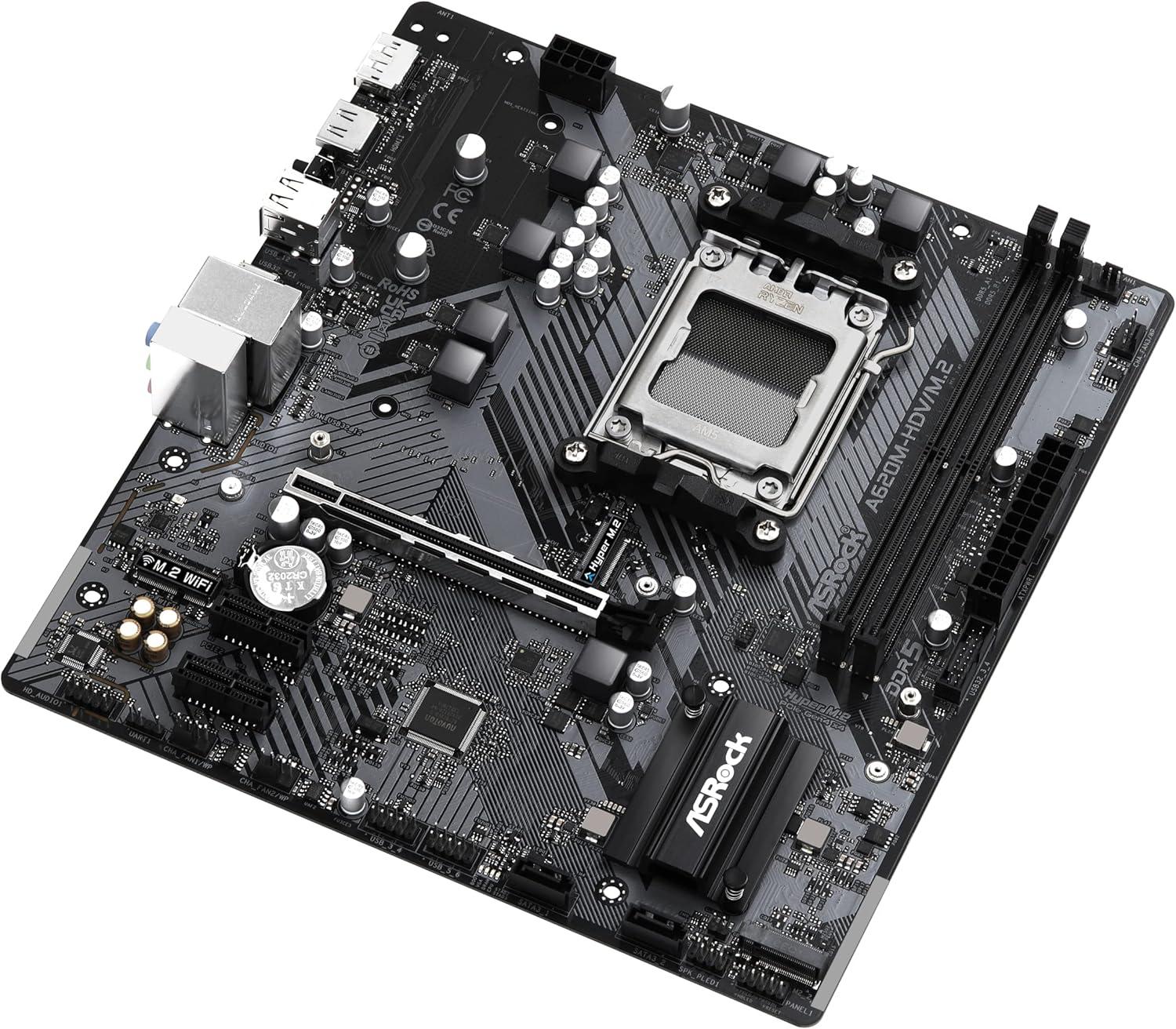

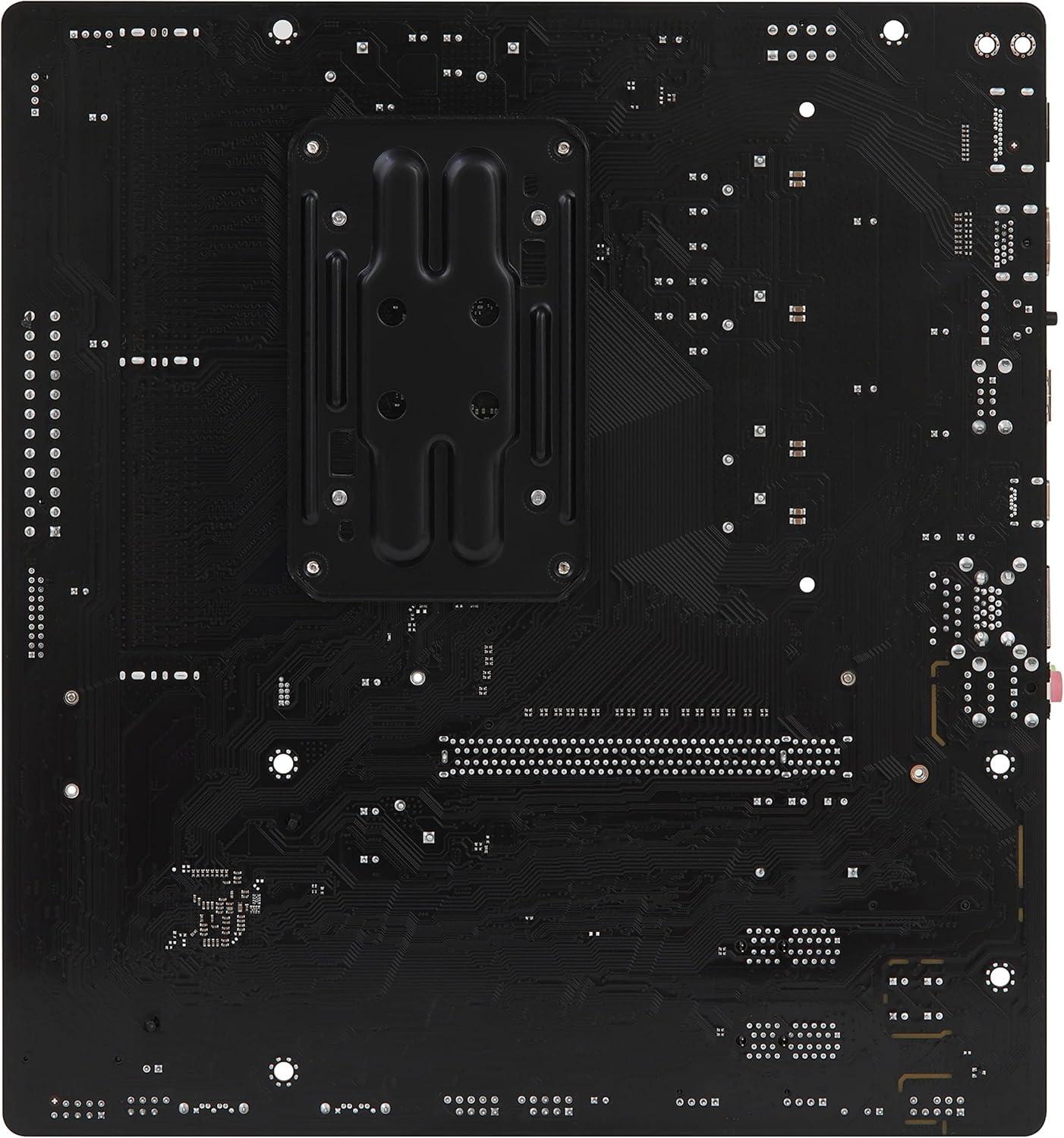

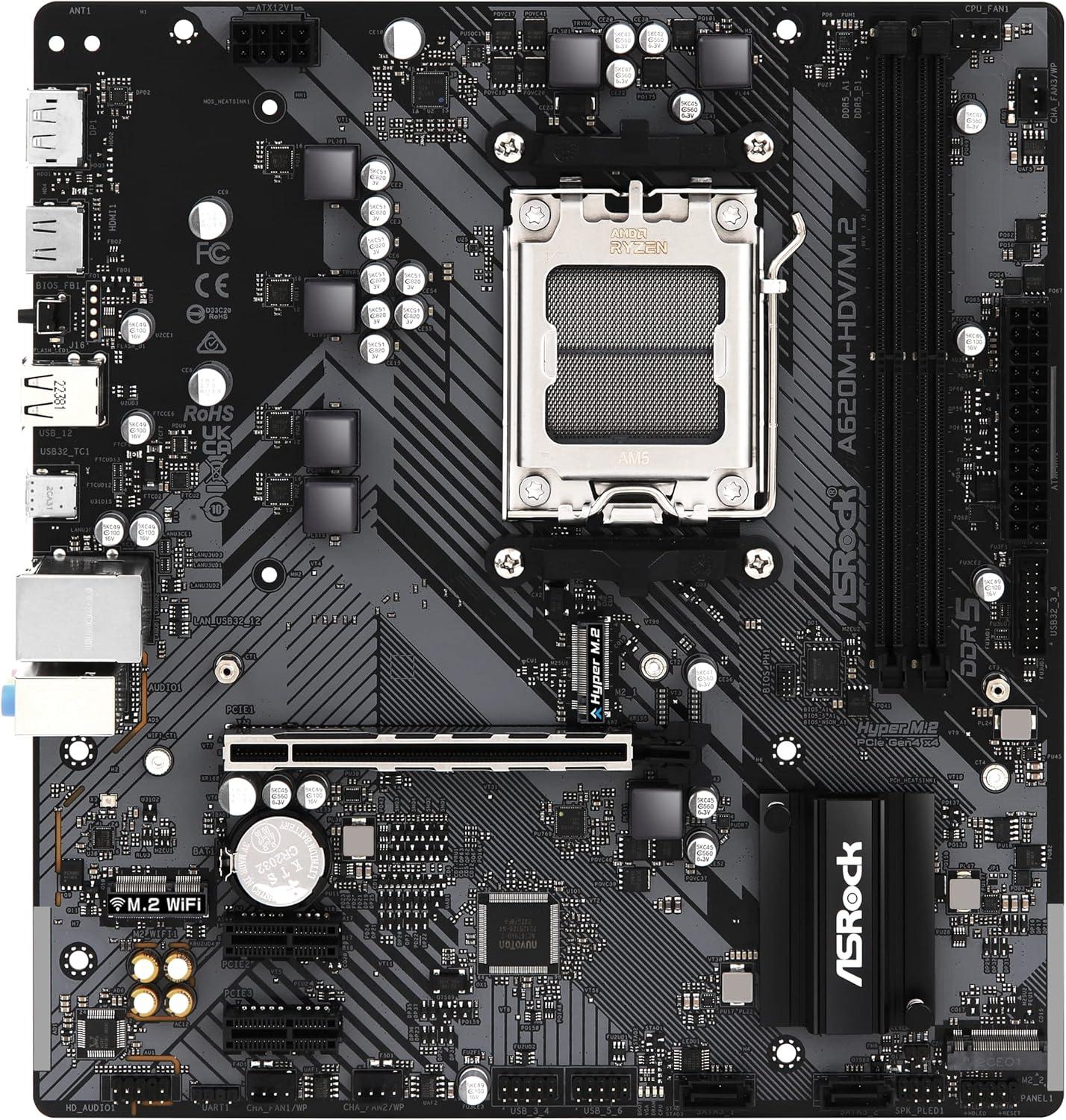

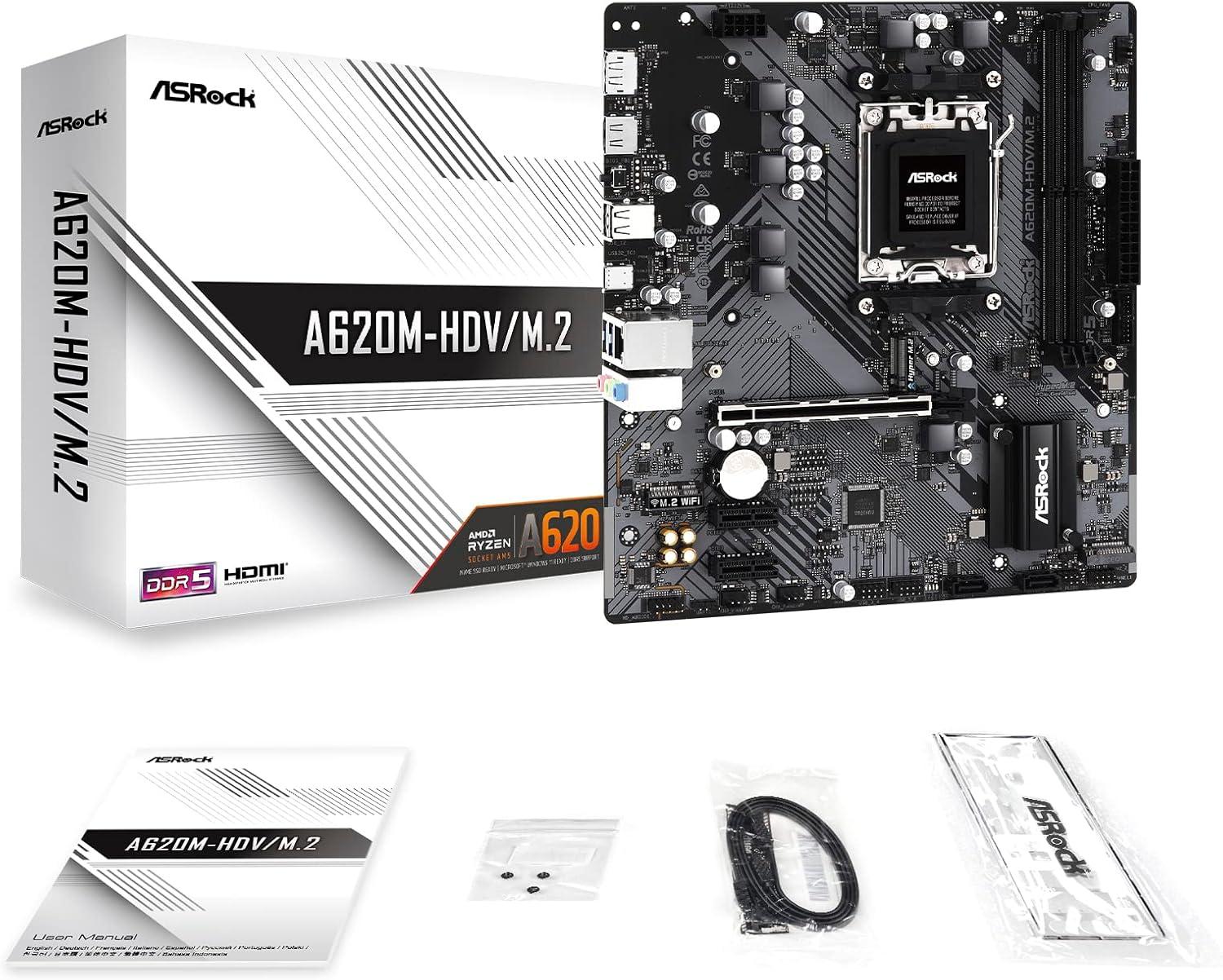

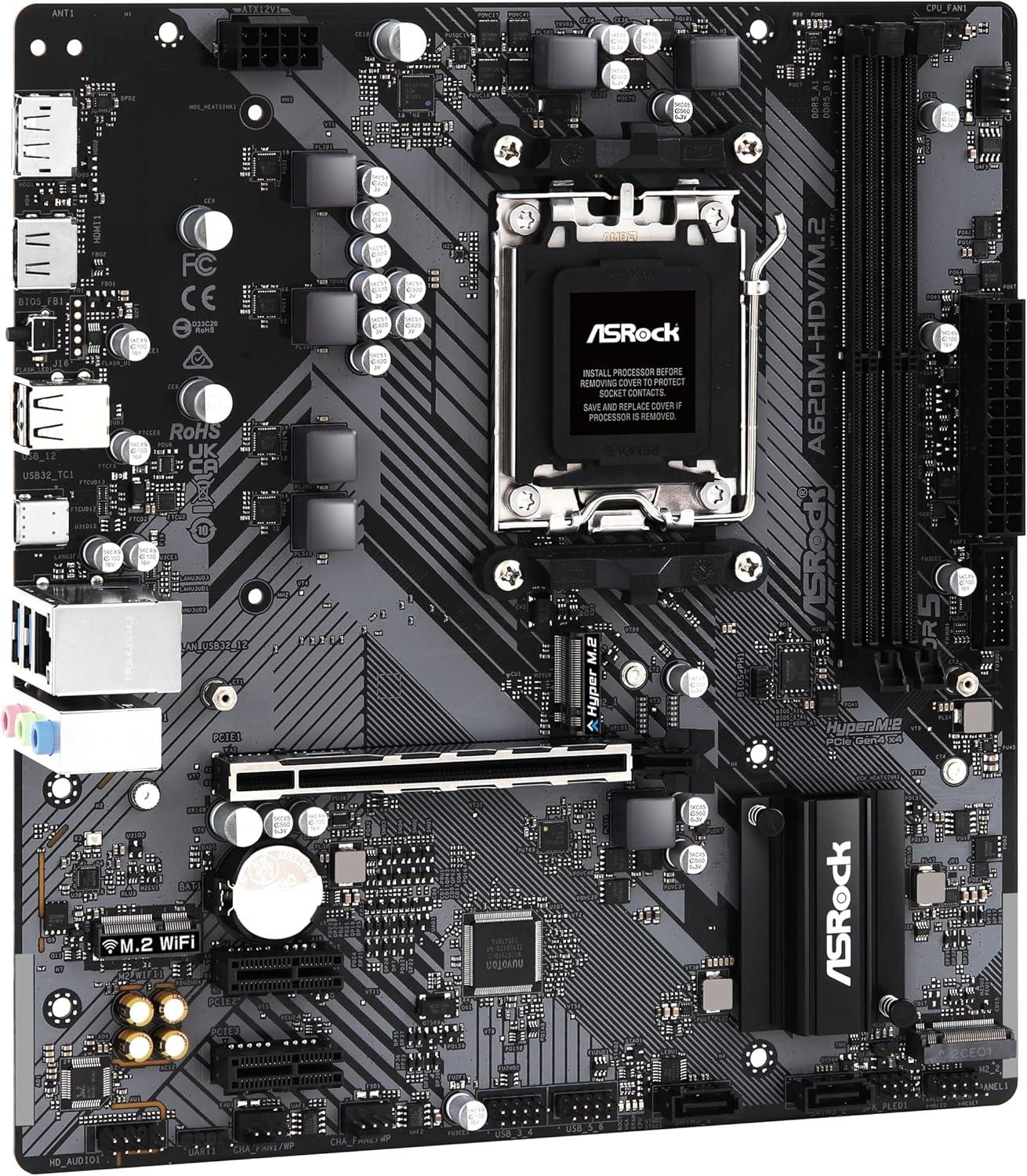

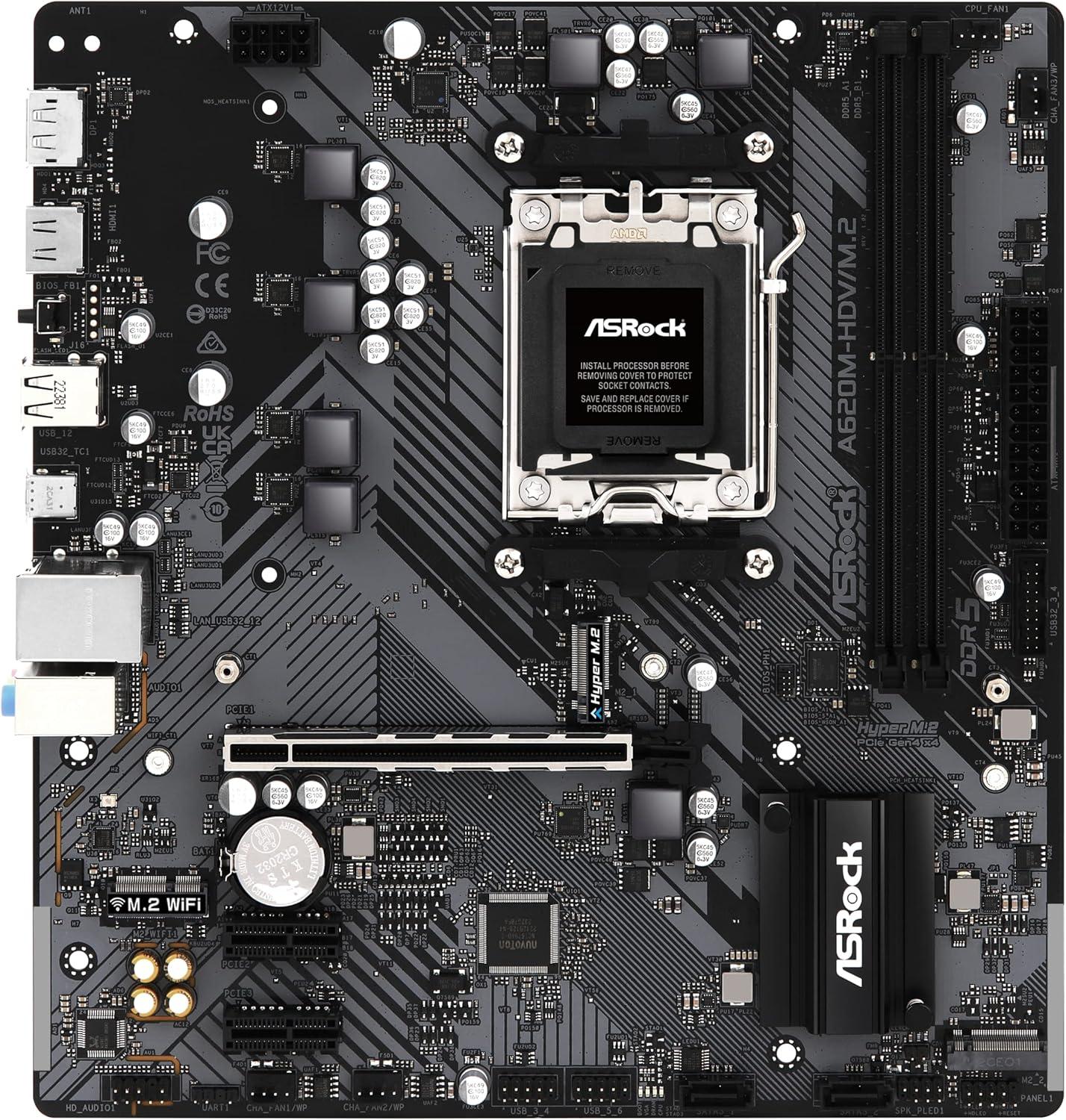

View ASRock A620M-HDV/M.2 Gallery With High-Resolution Images

As an Amazon Associate I earn from qualifying purchases.

ASRock A620M-HDV/M.2 Specifications Review

ASRock A620M-HDV/M.2 by ASRock is a Micro-ATX form factor motherboard based on the entry-level A620M chipset and AM5 socket, with basic features and limited connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 6400 MHz.

VRM Quality

The ASRock A620M-HDV/M.2 has a basic VRM configuration, delivering 50 A across 4 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.

See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.

Expansion and Storage Overview

The ASRock A620M-HDV/M.2 offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.

For storage, this motherboard provides 2 M.2 slots (PCIe 4.0 x4, PCIe 3.0 x2) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.

Connectivity Overview

This motherboard has essential connectivity features with wired Gigabit LAN 10/100/1000 Mb/s Ethernet . USB connectivity covers basic needs. Please refer to the specification table for details.

For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.

Audio Quality

The motherboard includes a standard audio chipset (Realtek ALC897 Audio Codec) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.

Overall Quality and Value

ASRock A620M-HDV/M.2 is minimalist and barebones, with a low overall quality score of 30.80. It is suitable only for very basic computing needs or legacy systems where performance, connectivity, and features are limited, best reserved for simple, low-demand environments.

This motherboard has a solid 58.5% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.

General Information

Manufacturer	ASRock
Motherboard Name	ASRock A620M-HDV/M.2
Current Price Amazon	$100❗N/A
Amazon Price Updated	2 months, 2 weeks ago.
Motherboard Available	False
Chipset / Socket	A620M / AM5
Form Factor	Micro-ATX

VRM Configuration

CPU Power Phases (Amps)	4 (50 A)
Power Design	4+1+1

Memory Information

Type / Slots	DDR5 / 2 slots
Max Capacity / Max OC	128 GB / 6400 MHz

PCIe Slot Configuration

Supported Version	PCIe 4.0

Slot Size	Physical Slots	Gen4	Gen3
x16	1	1	0
x1	2	0	2

Storage Configuration

M.2 Slot Count	2 slots
M.2 Supported Lengths	2280, 2260
M.2 PCIe Modes	PCIe 4.0 x4, PCIe 3.0 x2
SATA Ports	2

Onboard Audio Features

Audio Chipset	Realtek ALC897 Audio Codec
Analog Audio Jacks	3 jacks
Spatial/Surround Audio	✔️ Rear Output Supports Spatial Audio

Motherboard Display Outputs

HDMI Output	HDMI - Version 2.1 (Max: 4K 120Hz)
DisplayPort Output	DisplayPort - Version 1.4 (Max: 4K 120Hz)

USB and Thunderbolt Connectivity

Rear USB Ports

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

Front USB Ports

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2

Internal USB Headers

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

Networking Information

Ethernet	Chipset: Gigabit LAN 10/100/1000 Mb/s LAN Ports: 1
Wi-Fi	Module: Not Included
Bluetooth	Supported: No

Button Features

Buttons	BIOS Flashback

Quality & Features

Additional Information

RAM	Supports un-buffered memory and EXTended Profiles for Overclocking (EXPO) memory modules.
Display	Features Integrated AMD RDNA™ graphics, but actual support may vary by CPU. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The DisplayPort port supports DSC (compressed) and HDCP 2.3.
Expansion	The M.2 Socket (Key E) supports a type 2230 WiFi/BT PCIe WiFi module. The primary VGA PCIe slot (PCIE1) features 15μ Gold Contact.
Storage	M.2 Slot Details: M2_1 – 4.0 , Lengths: 2280 , Source: CPU M2_2 – 3.0 + SATA , Lengths: 2260, 2280 , Source: Chipset The text indicates special conditions for the M.2 slots with an asterisk (), but does not provide an explanation for them.*
Audio	Features 7.1 CH HD Audio and Nahimic Audio.
Networking	2 x Antenna Mounting Points
Dimensions	24.4cm x 24.4cm

Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.

ASRock A620M-HDV/M.2 Compared to Motherboards with Similar Performance and Features

Motherboard Quality & Features per Price Table

Motherboard (Desc) Motherboard Name Sorts motherboards alphabetically. Click to toggle order (A–Z / Z–A).	Price (Desc) Amazon Price Sorts motherboards by their current Amazon price. Click to toggle ascending/descending.	Overall_Q (Desc) Overall Quality & Features Scores based on chipset, VRMs, connectivity, expansion, storage, audio and extra features. Click to toggle sort order.	VRM_Q (Desc) VRM Quality Score reflecting power delivery strength, calculated from the number of phases and their amperage rating. Click to toggle sort order.	Chipset (Desc) Chipset Quality Capabilities and features provided by the motherboard chipset. Determines available PCIe lanes, I/O support, and BIOS features. Click to toggle sort order.	Exp_Str (Desc) Expansion & Storage Score reflecting number of expansion slots and storage options. Based on PCIe slots, M.2 slots, and SATA ports availability. Click to toggle sort order.	Connect (Desc) Connectivity Quality Quantity and quality of ports and networking options. Includes USB ports, Ethernet LAN, Wi-Fi, and Bluetooth support. Click to toggle sort order.	Audio (Desc) Audio Quality Quality of onboard audio hardware components. Considers audio codec and additional functionalities. Click to toggle sort order.	Q&F/Price (Desc) Value Score This value shows how much Quality and Features you're getting per unit of cost. Higher values mean better overall value for money when buying this motherboard.
ASUS Prime A620M-A-CSM ASUS Prime A620M-A-CSM View detailed specs, features, charts, and comparison for this Motherboard.	$0 ASUS Prime A620M-A-CSM No Amazon Link This Motherboard has no link to an Amazon product page. \| 0.0% ASUS Prime A620M-A-CSM Price Change No significant price change detected.	38.4%	16.0%	42.0%	54.0%	35.0%	45.0%	N/A
ASRock A620I Lightning WiFi Mini-ITX ASRock A620I Lightning WiFi Mini-ITX View detailed specs, features, charts, and comparison for this Motherboard.	$236❗ ASRock A620I Lightning WiFi Mini-ITX Price Not Available Last known price from Amazon. Currently unavailable. \| ↓ -39.3% ASRock A620I Lightning WiFi Mini-ITX Price Change Price decreased from the last update.	36.6%	24.0%	34.0%	34.0%	51.0%	40.0%	29.5%
MSI PRO A620M-E MSI PRO A620M-E View detailed specs, features, charts, and comparison for this Motherboard.	$99 MSI PRO A620M-E Current Amazon Price Click to view this Motherboard on Amazon. \| 0.0% MSI PRO A620M-E Price Change No significant price change detected.	35.6%	17.0%	31.0%	37.0%	50.0%	43.0%	68.3%
GIGABYTE A620I AX GIGABYTE A620I AX View detailed specs, features, charts, and comparison for this Motherboard.	$110 GIGABYTE A620I AX Current Amazon Price Click to view this Motherboard on Amazon. \| 0.0% GIGABYTE A620I AX Price Change No significant price change detected.	35.4%	14.0%	40.0%	35.0%	48.0%	40.0%	61.2%
ASRock A620M-HDV/M.2 ASRock A620M-HDV/M.2 View detailed specs, features, charts, and comparison for this Motherboard.	$100❗ ASRock A620M-HDV/M.2 Price Not Available Last known price from Amazon. Currently unavailable. \| 0.0% ASRock A620M-HDV/M.2 Price Change No significant price change detected.	30.8%	9.0%	39.0%	40.0%	26.0%	40.0%	58.5%

Motherboard Comparison and Detail Specifications Table

Specification

No image available

Perf Chart

Price

Manufacturer

Chip/Socket

Form

CPU Phases

PWR Design

Mem Slots

Max Mem

PCIe

PCIe Slots

M.2

SATA

Audio

S/PDIF

HDMI

LAN

Wi-Fi

Rear USB

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	1
USB 3.2 Gen 2 Type-A (10 Gbps)	2
USB 3.2 Gen 2 Type-C (10 Gbps)	1

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	4
USB 3.2 Gen 2 Type-A (10 Gbps)	3
USB 3.2 Gen 2x2 Type-C (20 Gbps)	1

USB 2.0 Type-A (480 Mbps)	3
USB 3.2 Gen 1 Type-A (5 Gbps)	1
USB 3.2 Gen 1 Type-C (5 Gbps)	1
USB 3.2 Gen 2 Type-A (10 Gbps)	1

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

USB Headers

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	2
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	2
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

Front USB

USB 3.2 Gen 1 Type-C (5 Gbps)	1

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 2 Type-C (10 Gbps)	1

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2

VRM Appropriate CPU Specification Table
VRM Appropriate
This table lists CPUs that are suitable for the motherboard's Voltage Regulator Module (VRM) capacity, ensuring stable performance without overheating or instability.

CPU CPU Name Sorts CPUs alphabetically. Click to change order.	Price Price (Amazon) Current Amazon price.	App_Performance General Performance Based on multi-purpose workloads like rendering, encoding and compression.	Game_Performance Gaming Performance (1080p) Measures relative gaming performance in modern games at 1080p.	TDP/Max Power Consumption Typical (TDP) and maximum (peak) power draw in watts.	C/SC/T Cores / Small Cores / Threads Number of main performance cores, efficiency cores, and threads.	L2/L3 Cache Cache Memory L2 and L3 cache sizes, which affect performance in data access,multitasking and gaming.	Base/Boost Clock Speeds Base frequency and maximum turbo boost frequency in GHz.	Code Name CPU Architecture Code Name Indicates the internal design generation.	GPU Integrated Graphics Built-in GPU name, if present. Useful for systems without a dedicated GPU.
No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database.

Official Manufacturer Data

Memory:

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Graphics:

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Storage:

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors

Expansion Slots:

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

USB:

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Internal I/O:

- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

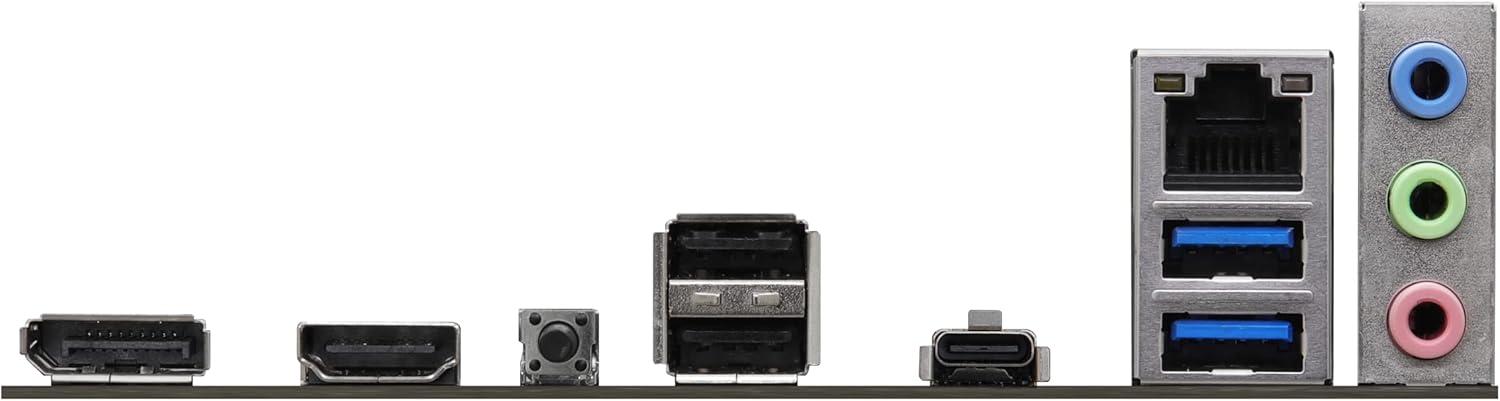

Back Panel I/O:

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 2 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Audio:

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
