ASRock A620I Lightning WiFi Mini-ITX
ASRock A620I Lightning WiFi Mini-ITX Specifications Review
ASRock A620I Lightning WiFi Mini-ITX by CJWDPDSWEZ is a Mini-ITX form factor motherboard based on the entry-level A620I chipset and AM5 socket, with basic features and limited connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 7200 MHz.
VRM Quality
The ASRock A620I Lightning WiFi Mini-ITX has a basic VRM configuration, delivering 60 A across 8 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock A620I Lightning WiFi Mini-ITX offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (PCIe 4.0 x4, PCIe 3.0 x4) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 6E and wired 2.5 Gigabit LAN 10/100/1000/2500 Mb/s ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.2 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek ALC897 Audio Codec) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
ASRock A620I Lightning WiFi Mini-ITX is basic and functional, carrying an overall quality score of 36.60. It is designed for budget-conscious builds or office setups where advanced features are not required, handling standard tasks effectively but lacking the polish or expandability of higher-tier models.
This motherboard shows a 29.5% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | CJWDPDSWEZ |
|---|---|
| Motherboard Name | ASRock A620I Lightning WiFi Mini-ITX |
| Current Price Amazon | $236❗N/A |
| Amazon Price Updated | 9 months, 4 weeks ago. |
| Motherboard Available | False |
| Chipset / Socket | A620I / AM5 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (60 A) |
|---|---|
| Power Design | 8+2+1 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 7200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | PCIe 4.0 x4, PCIe 3.0 x4 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek ALC897 Audio Codec |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 1 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.2 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports un-buffered memory and EXTended Profiles for Overclocking (EXPO) memory modules. |
|---|---|
| Display | Features Integrated AMD RDNA™ graphics, but actual support may vary by CPU. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. |
| Expansion | The PCIe 4.0 x16 slot (PCIE1) has 15μ Gold Contact. There is also one Vertical M.2 Socket (Key E) which supports a type 2230 WiFi/BT PCIe WiFi module. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1 CH HD Audio with Nahimic Audio support. |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax. 2x2 diversity technology. Supports MU-MIMO. Bluetooth High speed class II. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock A620I Lightning WiFi Mini-ITX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$120
|
0.0%
|
42.6%
|
14.0%
|
74.0%
|
51.0%
|
34.0%
|
40.0%
|
67.5%
|
|
|
$166
|
↑
4.4%
|
42.2%
|
14.0%
|
65.0%
|
55.0%
|
32.0%
|
45.0%
|
48.2%
|
|
|
$139❗
|
↓
-2.2%
|
40.4%
|
20.0%
|
71.0%
|
37.0%
|
34.0%
|
40.0%
|
55.2%
|
|
|
$240❗
|
0.0%
|
40.2%
|
24.0%
|
40.0%
|
45.0%
|
44.0%
|
48.0%
|
31.8%
|
|
|
$0
|
0.0%
|
38.4%
|
16.0%
|
42.0%
|
54.0%
|
35.0%
|
45.0%
|
N/A | |
|
$236❗
|
↓
-39.3%
|
36.6%
|
24.0%
|
34.0%
|
34.0%
|
51.0%
|
40.0%
|
29.5%
|
|
|
$99
|
0.0%
|
35.6%
|
17.0%
|
31.0%
|
37.0%
|
50.0%
|
43.0%
|
68.3%
|
|
|
$110
|
0.0%
|
35.4%
|
14.0%
|
40.0%
|
35.0%
|
48.0%
|
40.0%
|
61.2%
|
|
|
$100❗
|
0.0%
|
30.8%
|
9.0%
|
39.0%
|
40.0%
|
26.0%
|
40.0%
|
58.5%
|
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$120
|
0.0%
|
$166
|
↑
4.4%
|
$139❗
|
↓
-2.2%
|
$240❗
|
0.0%
|
$0
|
0.0%
|
$236❗
|
↓
-39.3%
|
$99
|
0.0%
|
$110
|
0.0%
|
$100❗
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | Gigabyte | MSI | parts-quick | ASUS | CJWDPDSWEZ | MSI | GIGABYTE | ASRock | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650M / AM5 | AMD B840 / AM5 | B650M / AM5 | A620M / AM5 | A620M / AM5 | A620I / AM5 | A620M / AM5 | A620I / AM5 | A620M / AM5 | ||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Mini-ITX | Micro-ATX | Mini-ITX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 5 (60 A) | 5 (60 A) | 7 (55 A) | 8 (60 A) | 6 (50 A) | 8 (60 A) | 6 (55 A) | 5 (60 A) | 4 (50 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 5+2+2 | 5+2+2 | 7+2+1 | 8+2+1 | 6+1+1 | 8+2+1 | 6+1+1 | 5+2+1 | 4+1+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 128 GB / 7600 MHz | 128 GB / 6800 MHz | 256 GB / 8000 MHz | 192 GB / 7600 MHz | 128 GB / 7200 MHz | 128 GB / 6800 MHz | 128 GB / 6400 MHz | 128 GB / 6400 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 2x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 1 | 1 | 2 | 2 | 1 | 1 | 2 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 2 | 4 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC897 Codec | Realtek® Audio CODEC | Realtek ALC897 Audio Codec | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 8125BG 2.5G (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | 1 x Realtek 1Gb Ethernet (2 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® RTL8111H Gigabi… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Gigabit LAN 10/100/1000 … (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | ❌ | ❌ | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||||||
| BT | ❌ | ❌ | ❌ | v5.2 | ❌ | v5.2 | ❌ | v5.3 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |

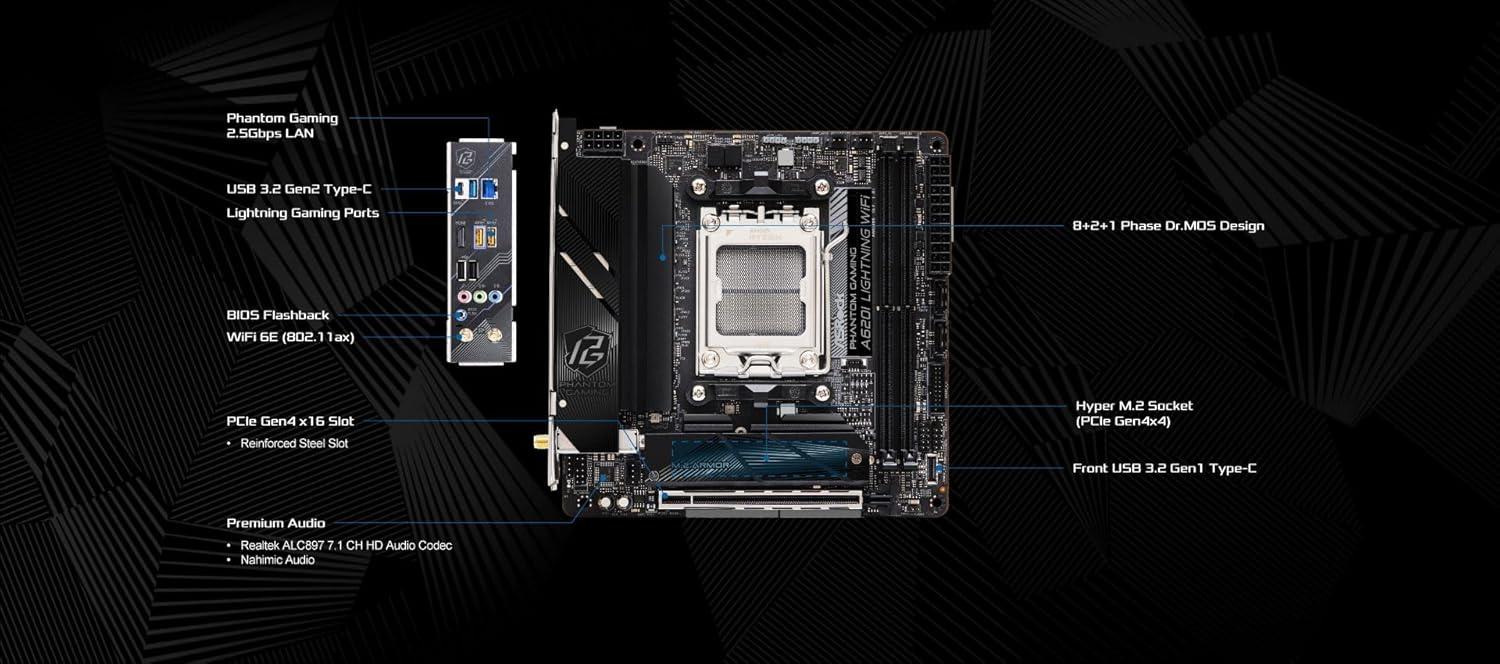

Official Manufacturer Data
Memory:
- 2 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Storage:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
Expansion Slots:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
USB:
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 2 x USB 3.2 Gen1 Type-A (Front)
- 4 x USB 2.0 (2 Rear, 2 Front)
Internal I/O:
- 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Back Panel I/O:
- 1 x HDMI Port
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)*
- 1 x USB 3.2 Gen1 Type-A Port*
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO
Audio:
- Nahimic Audio
Special Features:
- Dual Channel DDR5
Rock-Solid Durability

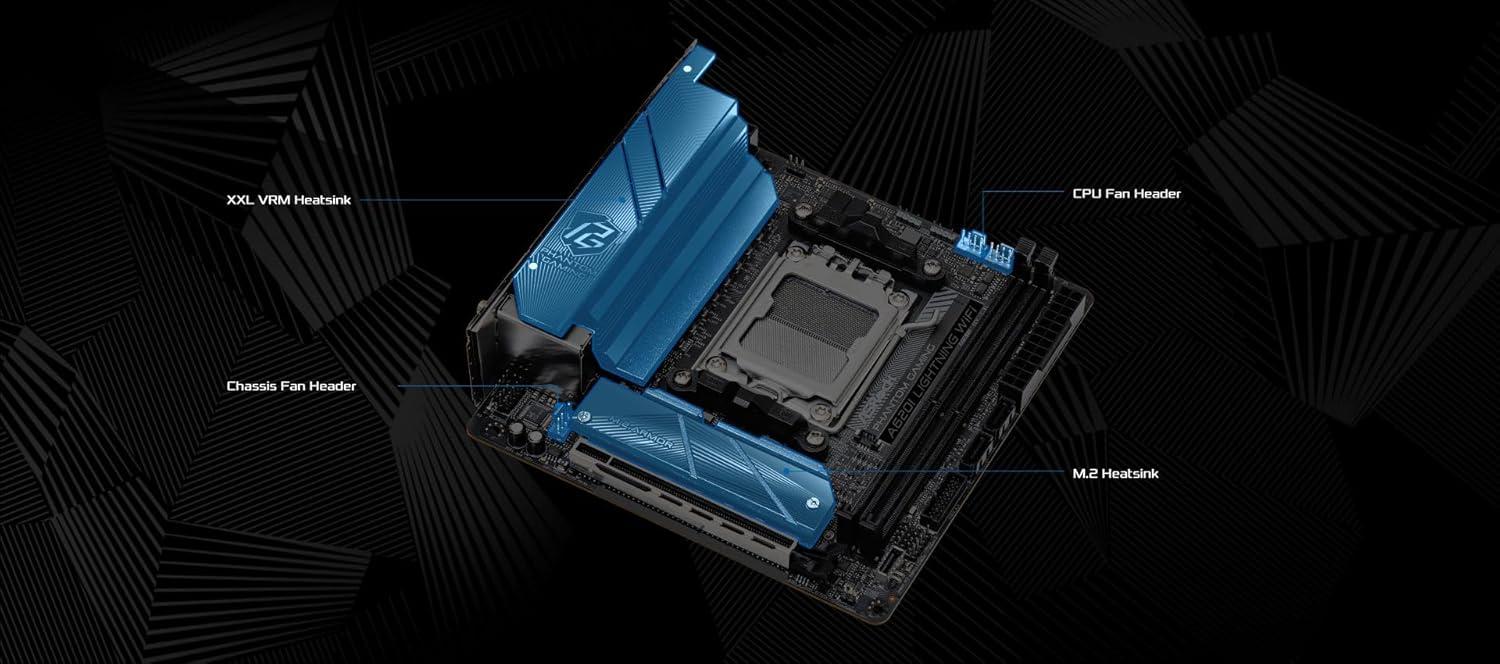

- 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor
- Pre-Installed I/O Shield
- Flexible Integrated I/O Shield
Ultrafast Gaming
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
