GIGABYTE A620I AX
GIGABYTE A620I AX Specifications Review

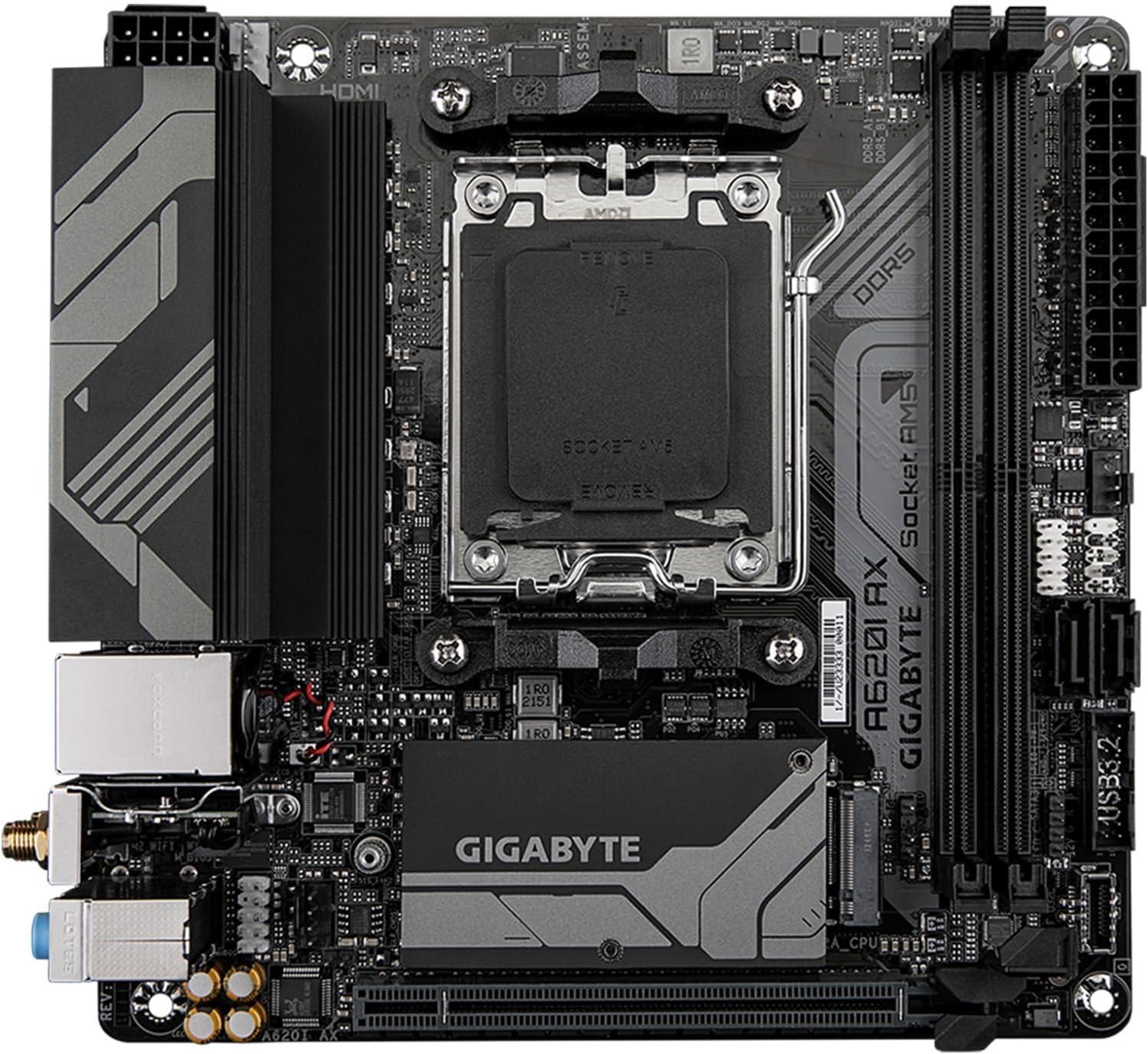

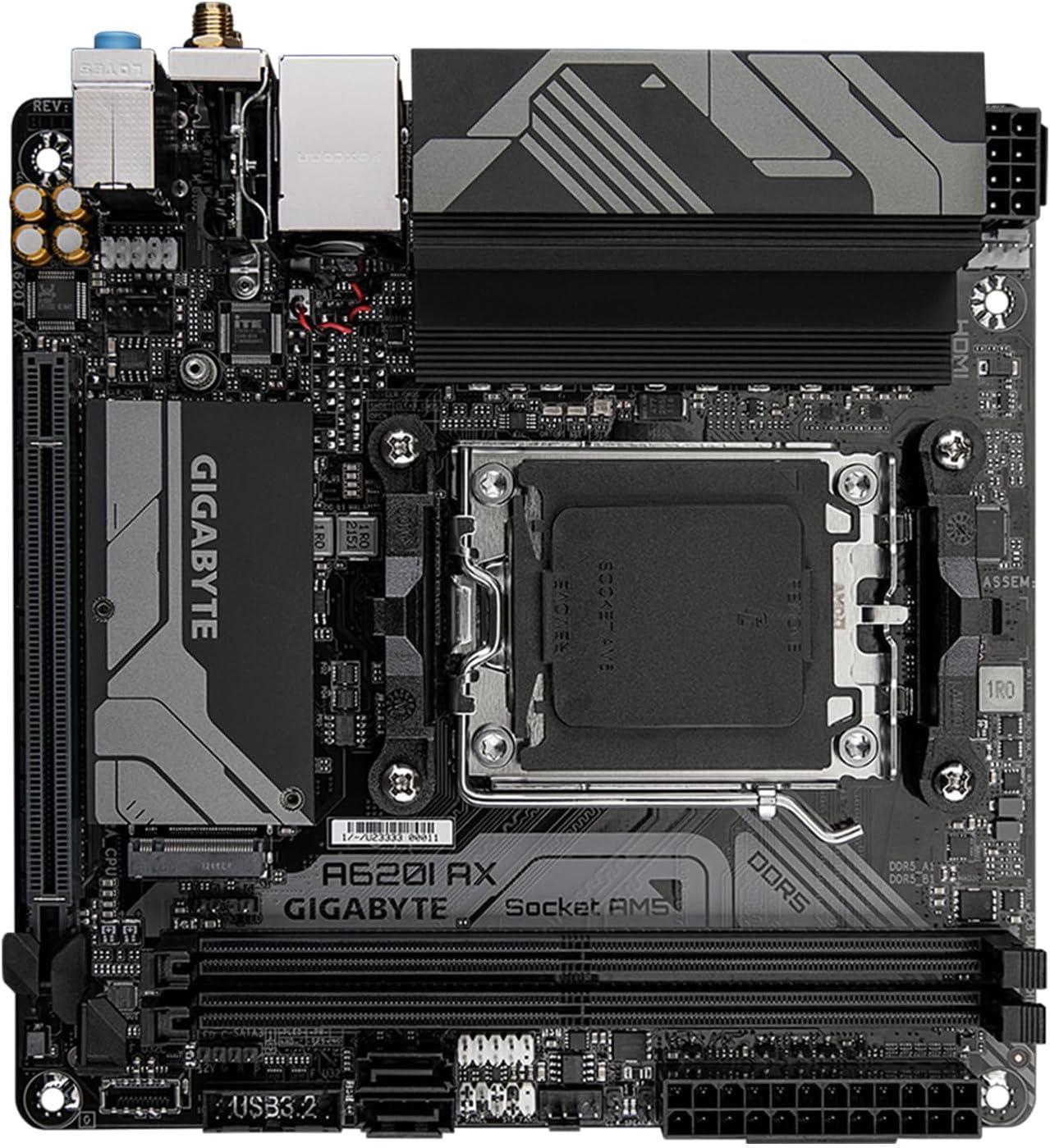

GIGABYTE A620I AX by GIGABYTE is a Mini-ITX form factor motherboard based on the entry-level A620I chipset and AM5 socket, with basic features and limited connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 6400 MHz.
VRM Quality
The GIGABYTE A620I AX has a basic VRM configuration, delivering 60 A across 5 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE A620I AX offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 1 M.2 slot (PCIe 4.0 x4/x2) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Ethernet wireless networking with the wireless Wi-Fi 6E Bluetooth 5.3 is included for wireless peripherals. USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE A620I AX is basic and functional, carrying an overall quality score of 35.40. It is designed for budget-conscious builds or office setups where advanced features are not required, handling standard tasks effectively but lacking the polish or expandability of higher-tier models.
This motherboard has a solid 61.2% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE A620I AX |
| Current Price Amazon | $110 |
| Amazon Price Updated | 2 days ago. |
| Motherboard Available | True |
| Chipset / Socket | A620I / AM5 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 5 (60 A) |
|---|---|
| Power Design | 5+2+1 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 6400 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 1 slot |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | PCIe 4.0 x4/x2 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 3 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 1 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate, and number of DRAM modules; refer to the manufacturer's Memory Support List for more information. |
|---|---|
| Display | Requires Integrated Graphics Processor with AMD Radeon™ Graphics support. The HDMI port supports HDCP 2.3 and native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU support. |
| Expansion | The single PCI Express x16 slot's operating mode is dependent on the installed CPU. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode. The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
|
| Audio | Supports 2/4/5.1/7.1-channel High Definition Audio. The functionality of an audio jack can be changed using the audio software, which is also required to configure 7.1-channel audio. |
| Networking | Wi-Fi supports up to 2.4 Gbps data rate. 2T2R antenna configuration. |
| Buttons | The text lists a 'Clear CMOS jumper' but not a button. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE A620I AX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$120
|
0.0%
|
42.6%
|
14.0%
|
74.0%
|
51.0%
|
34.0%
|
40.0%
|
67.5%
|
|
|
$166
|
↑
4.4%
|
42.2%
|
14.0%
|
65.0%
|
55.0%
|
32.0%
|
45.0%
|
48.2%
|
|
|
$139❗
|
↓
-2.2%
|
40.4%
|
20.0%
|
71.0%
|
37.0%
|
34.0%
|
40.0%
|
55.2%
|
|
|
$240❗
|
0.0%
|
40.2%
|
24.0%
|
40.0%
|
45.0%
|
44.0%
|
48.0%
|
31.8%
|
|
|
$0
|
0.0%
|
38.4%
|
16.0%
|
42.0%
|
54.0%
|
35.0%
|
45.0%
|
N/A | |
|
$236❗
|
↓
-39.3%
|
36.6%
|
24.0%
|
34.0%
|
34.0%
|
51.0%
|
40.0%
|
29.5%
|
|
|
$99
|
0.0%
|
35.6%
|
17.0%
|
31.0%
|
37.0%
|
50.0%
|
43.0%
|
68.3%
|
|
|
$110
|
0.0%
|
35.4%
|
14.0%
|
40.0%
|
35.0%
|
48.0%
|
40.0%
|
61.2%
|
|
|
$100❗
|
0.0%
|
30.8%
|
9.0%
|
39.0%
|
40.0%
|
26.0%
|
40.0%
|
58.5%
|
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$120
|
0.0%
|
$166
|
↑
4.4%
|
$139❗
|
↓
-2.2%
|
$240❗
|
0.0%
|
$0
|
0.0%
|
$236❗
|
↓
-39.3%
|
$99
|
0.0%
|
$110
|
0.0%
|
$100❗
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | Gigabyte | MSI | parts-quick | ASUS | CJWDPDSWEZ | MSI | GIGABYTE | ASRock | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650M / AM5 | AMD B840 / AM5 | B650M / AM5 | A620M / AM5 | A620M / AM5 | A620I / AM5 | A620M / AM5 | A620I / AM5 | A620M / AM5 | ||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Mini-ITX | Micro-ATX | Mini-ITX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 5 (60 A) | 5 (60 A) | 7 (55 A) | 8 (60 A) | 6 (50 A) | 8 (60 A) | 6 (55 A) | 5 (60 A) | 4 (50 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 5+2+2 | 5+2+2 | 7+2+1 | 8+2+1 | 6+1+1 | 8+2+1 | 6+1+1 | 5+2+1 | 4+1+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 128 GB / 7600 MHz | 128 GB / 6800 MHz | 256 GB / 8000 MHz | 192 GB / 7600 MHz | 128 GB / 7200 MHz | 128 GB / 6800 MHz | 128 GB / 6400 MHz | 128 GB / 6400 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 1x16 Gen4 | 2x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 1 | 1 | 2 | 2 | 1 | 1 | 2 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 2 | 4 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC897 Codec | Realtek® Audio CODEC | Realtek ALC897 Audio Codec | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 8125BG 2.5G (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | 1 x Realtek 1Gb Ethernet (2 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® RTL8111H Gigabi… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Gigabit LAN 10/100/1000 … (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | ❌ | ❌ | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||||||
| BT | ❌ | ❌ | ❌ | v5.2 | ❌ | v5.2 | ❌ | v5.3 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Storage:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
Expansion Slots:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

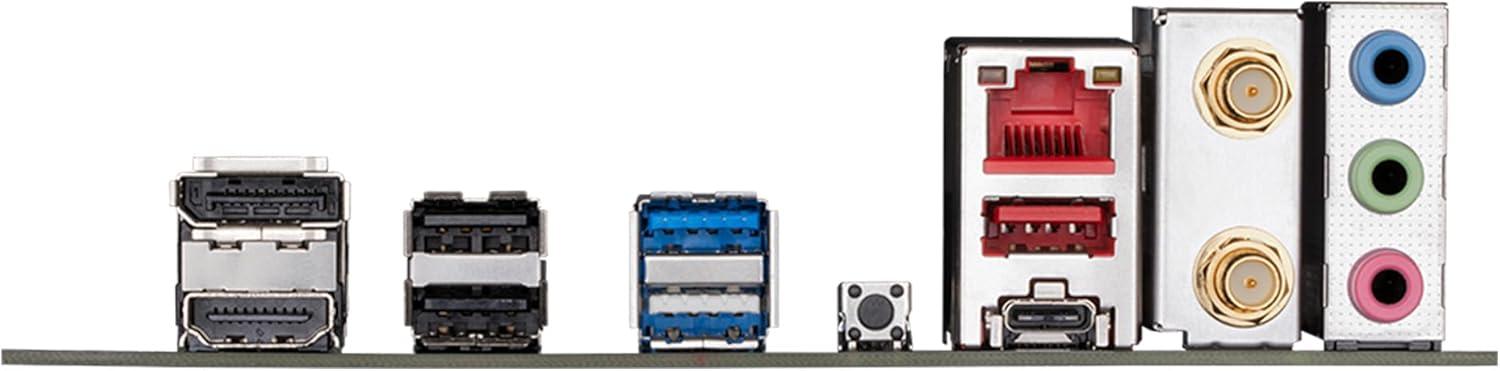

Back Panel I/O:
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
WiFi:
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
