ASRock Phantom Gaming Z890i Nova WiFi
ASRock Phantom Gaming Z890i Nova WiFi Specifications Review

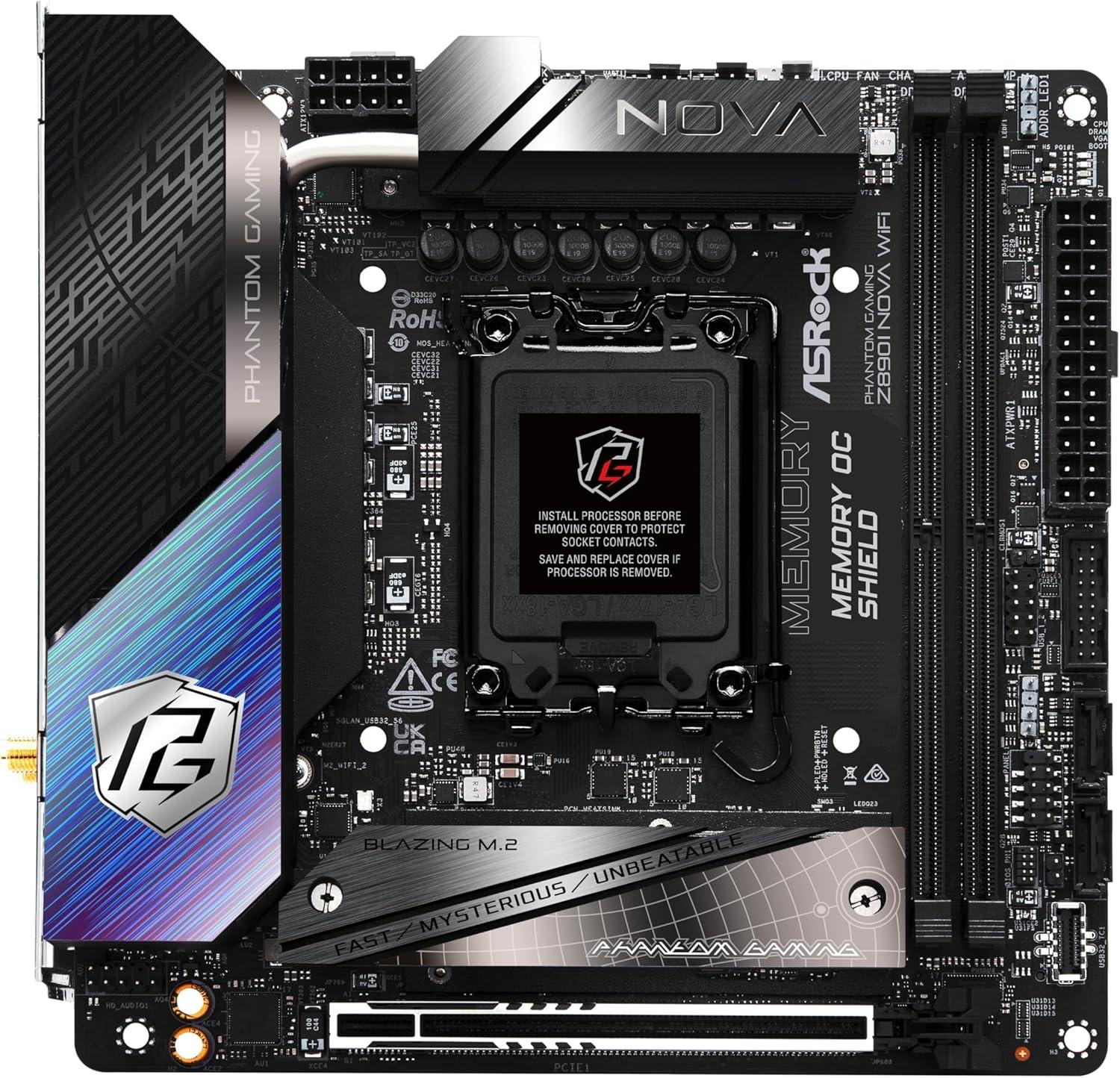

ASRock Phantom Gaming Z890i Nova WiFi by ASRock is a Mini-ITX form factor motherboard based on the high-end Z890I chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 9866 MHz.

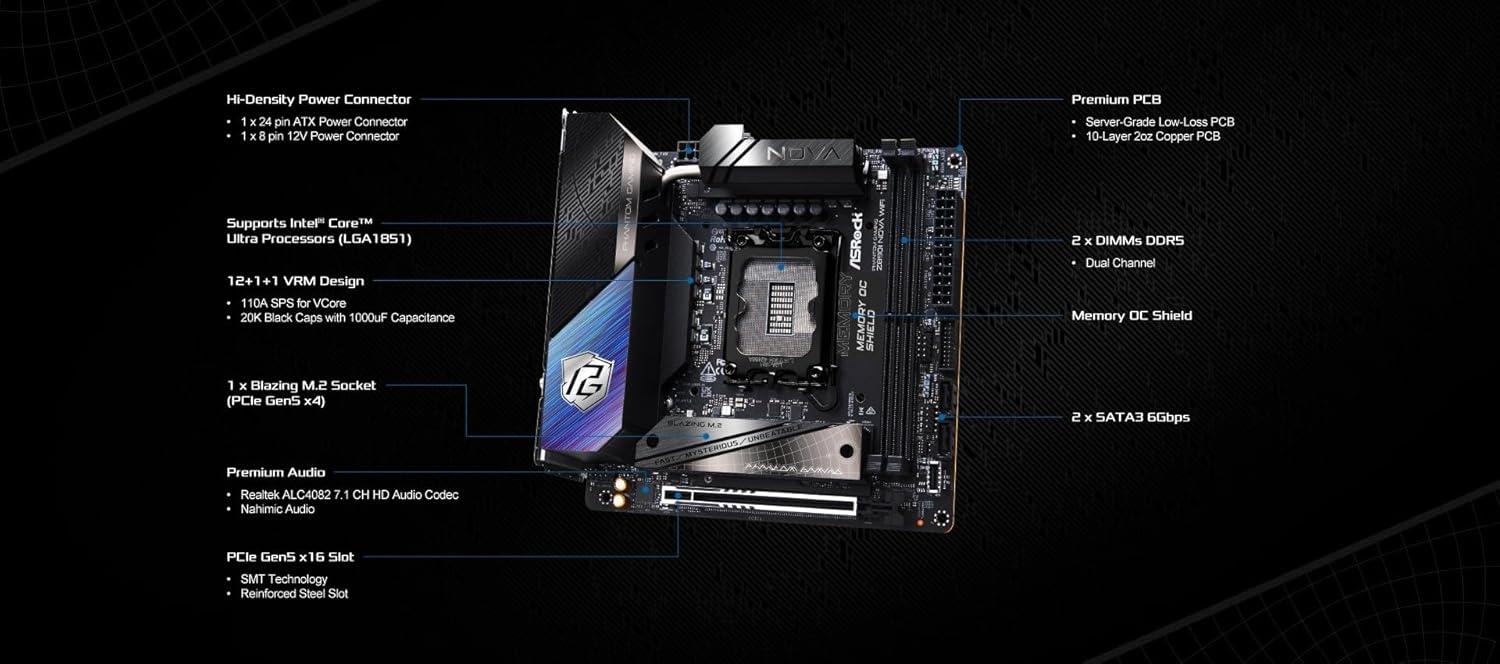

VRM Quality
The ASRock Phantom Gaming Z890i Nova WiFi includes an upper mid-range VRM configuration, delivering 110 A through 12 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock Phantom Gaming Z890i Nova WiFi offers a simplified expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 7 and wired 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 ethernet supporting speeds up to 5000 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the Realtek ALC4082 Audio Codec — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASRock Phantom Gaming Z890i Nova WiFi delivers a strong overall quality score of 76.40. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard has a solid 58.1% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | ASRock Phantom Gaming Z890i Nova WiFi |
| Current Price Amazon | $250âť—N/A |
| Amazon Price Updated | 1Â week, 6Â days ago. |
| Motherboard Available | False |
| Chipset / Socket | Z890I / LGA 1851 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (110 A) |
|---|---|
| Power Design | 12+1+1+1+1 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 9866 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek ALC4082 Audio Codec |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C (Max: 8K 60Hz / 5K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 2 Type-A (10 Gbps) | 6 |
|---|---|
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 15W |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz/5GHz/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports DDR5 non-ECC, un-buffered memory. Supports Clocked Unbuffered DIMM (CUDIMM). Supports Intel Extreme Memory Profile (XMP) 3.0x. Speed details: 1DPC 1R Up to 9866+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively. |
|---|---|
| Display | Features Intel® Xe LPG Graphics Architecture. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The two Intel® Thunderbolt™ 4 ports also support HDCP 2.3. Video outputs can only be used with processors that have an integrated GPU. The system supports two 4K displays or one 8K display. Only the CPU's embedded graphics can be displayed through the Thunderbolt ports. |
| Expansion | The PCIE1 slot supports PCIe riser cards to be bifurcated into x8/x8 or x8/x4/x4 configurations. The board also includes one Vertical M.2 Socket (Key E) for a type 2230 WiFi/BT module. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1 CH HD Audio with Content Protection; Nahimic Audio |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax/axe/be. 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology. Supports MU-MIMO. The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Dimensions | 17.0 cm x 17.0 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock Phantom Gaming Z890i Nova WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$259
|
0.0%
|
84.4%
|
63.0%
|
92.0%
|
109.0%
|
77.0%
|
81.0%
|
61.9%
|
|
|
$236
|
↓
0.0%
|
83.2%
|
63.0%
|
97.0%
|
103.0%
|
72.0%
|
81.0%
|
67.0%
|
|
|
$450
|
0.0%
|
80.0%
|
36.0%
|
100.0%
|
110.0%
|
76.0%
|
78.0%
|
33.8%
|
|
|
$200
|
0.0%
|
76.8%
|
60.0%
|
100.0%
|
110.0%
|
69.0%
|
45.0%
|
73.0%
|
|
|
$250âť—
|
0.0%
|
76.4%
|
62.0%
|
90.0%
|
50.0%
|
84.0%
|
96.0%
|
58.1%
|
|
|
$385âť—
|
↓
-3.8%
|
76.0%
|
56.0%
|
97.0%
|
51.0%
|
81.0%
|
95.0%
|
37.5%
|
|
|
$300
|
0.0%
|
75.8%
|
51.0%
|
100.0%
|
56.0%
|
84.0%
|
88.0%
|
48.0%
|
|
|
$240
|
↑
14.5%
|
74.8%
|
50.0%
|
97.0%
|
110.0%
|
72.0%
|
45.0%
|
59.2%
|
|
|
$175
|
0.0%
|
73.6%
|
54.0%
|
72.0%
|
81.0%
|
77.0%
|
84.0%
|
80.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$259
|
0.0%
|
$236
|
↓
0.0%
|
$450
|
0.0%
|
$200
|
0.0%
|
$250âť—
|
0.0%
|
$385âť—
|
↓
-3.8%
|
$300
|
0.0%
|
$240
|
↑
14.5%
|
$175
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | ASUS | ASUS | ASRock | ASUS | MSI | ASUS | ASRock | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | W880 / LGA 1851 | Z890-P / LGA 1851 | Z890I / LGA 1851 | Z890-I / LGA 1851 | Z890I / LGA 1851 | Z890 / LGA 1851 | B860 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Mini-ITX | Mini-ITX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (80 A) | 16 (80 A) | 8 (90 A) | 14 (80 A) | 12 (110 A) | 10 (110 A) | 10 (110 A) | 12 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 16+1+2 | 8+1+2+2 | 14(80A) + 1(80A) + 2(80A) + 1(80A) | 12+1+1+1+1 | 10+1+2+1 | 10+1+1+1 | 12(80A) + 1(80A) + 2(80A) + 1(80A) | 14+1+1+1+1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 256 GB / 9066 MHz | 256 GB / 8666 MHz | 128 GB / 9866 MHz | 128 GB / 9200 MHz | 128 GB / 8600 MHz | 256 GB / 9066 MHz | 256 GB / 8933 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 4 | 4 | 4 | 3 | 2 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 8 | 4 | 2 | 2 | 2 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek ALC1220P | Realtek® ALC892/ALC897 | Realtek ALC4082 Audio Codec | ESS® SABRE9260Q DAC | Realtek® ALC4080 Codec | Realtek® ALC892/ALC897 | Realtek ALC1220 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ✔️ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (1.4) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (2.1) | ❌ | ✔️ (1.4) | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2 x Intel® 2.5Gb Etherne… (3 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | 5 Gigabit LAN 10/100/100… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1x Intel® Killer™ E5000B… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | ❌ | Wi-Fi Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | ❌ | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
❌ |
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634âť—
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346âť—
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9866+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
*1DPC 1R Up to 9866+ MHz (OC), 6400 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Expansion Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15ÎĽ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Supports NVMe SSD as boot disks
USB:
- 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 6 x USB 3.2 Gen2 Type-A (Rear)
- 2 x USB 3.2 Gen1 (Front)
- 2 x USB 2.0 (Front)
* All USB ports support ESD Protection

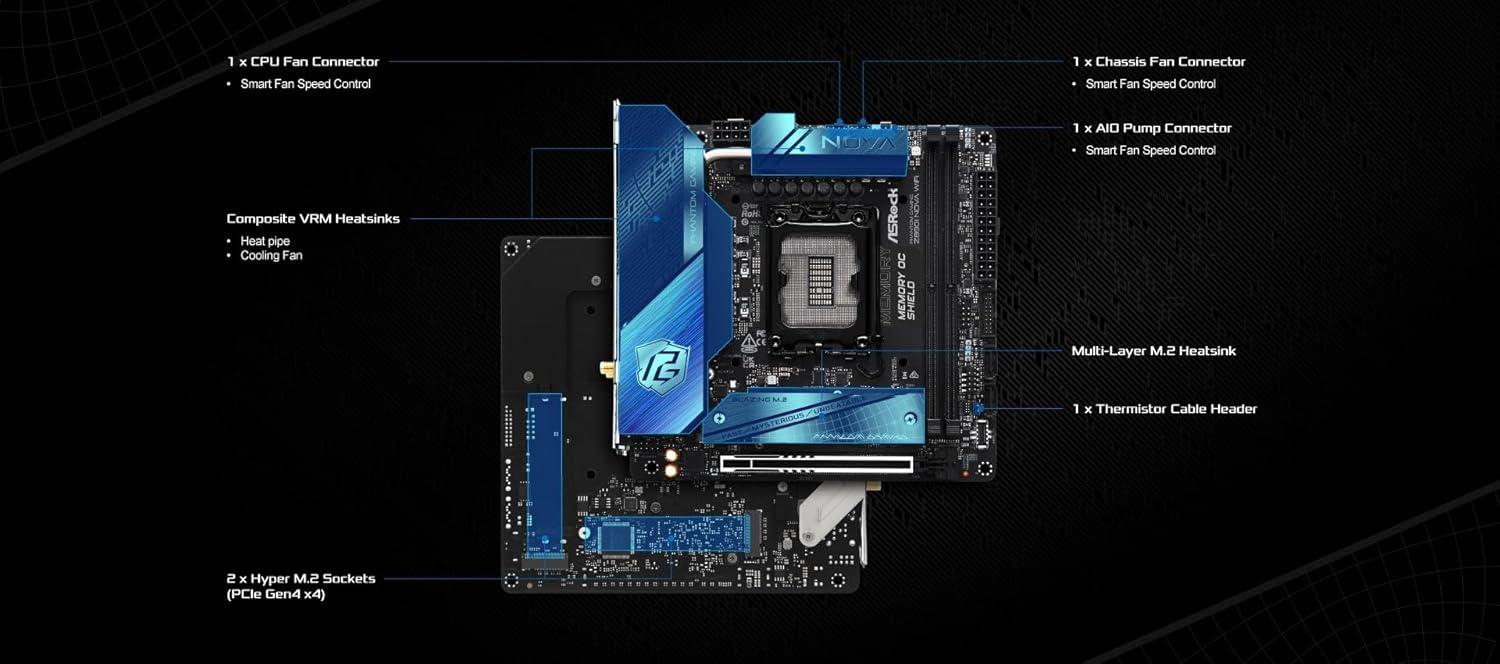

Internal I/O:
- 2 x Addressable LED Headers*
- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15ÎĽ Gold Audio Connector)
- 1 x USB 2.0 Headers (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)

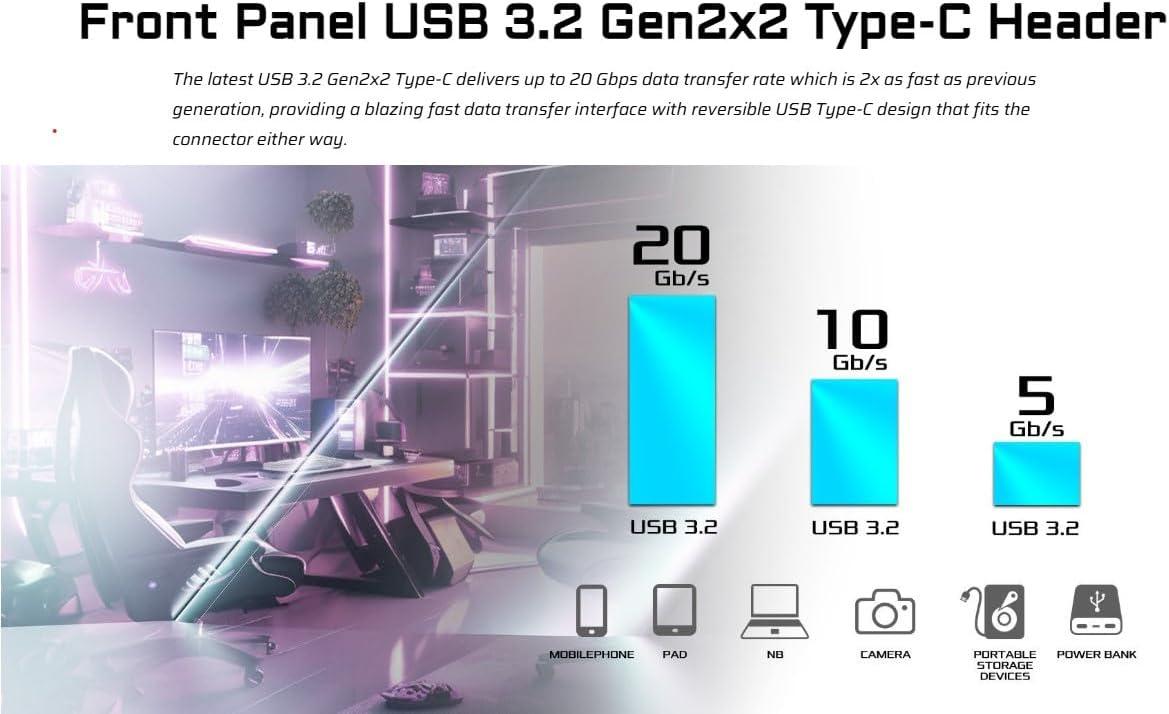

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W).
*** AIO_PUMP supports the fan power up to 3A (36W).
AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

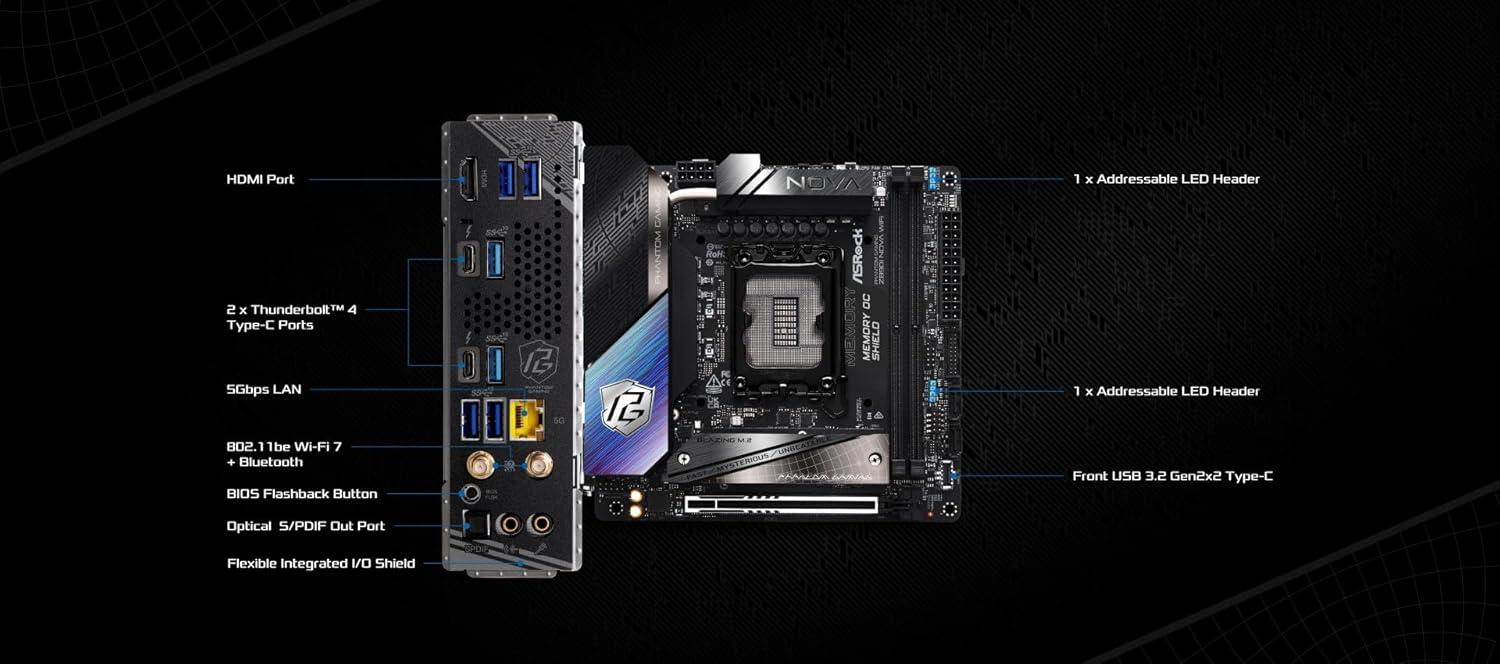

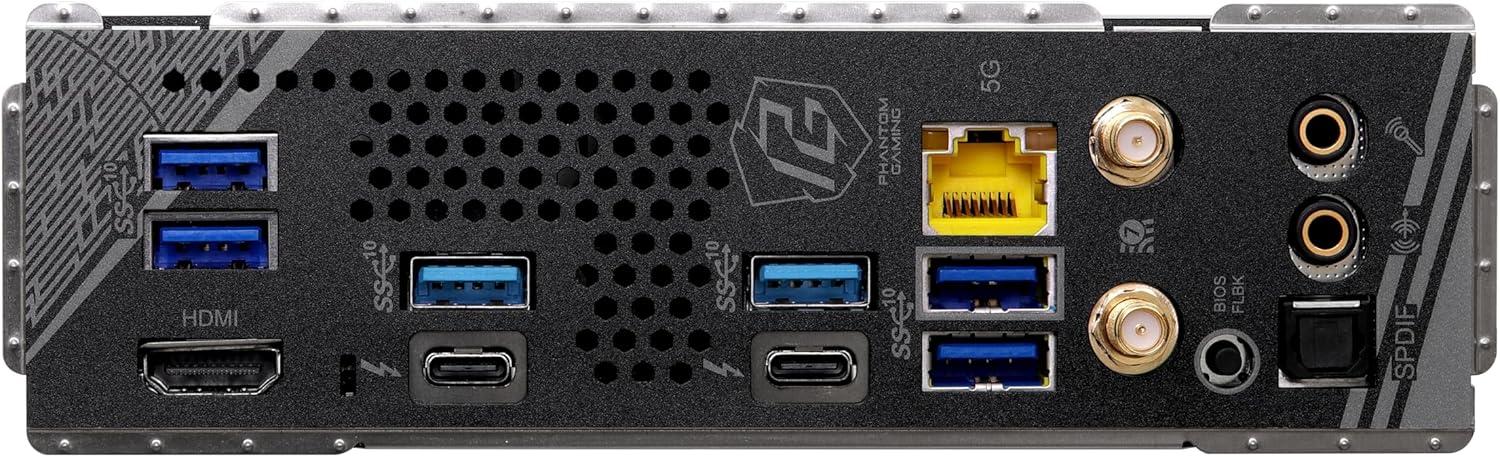

Back Panel I/O:
- 1 x HDMI Port
- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
- 1 x Optical SPDIF Out Port
- 6 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band*
- Supports 320MHz channel bandwidth with 6GHz frequency band*
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
Audio:
- Nahimic Audio
