ASRock Phantom Gaming B860 Lightning WiFi 6E
ASRock Phantom Gaming B860 Lightning WiFi 6E Specifications Review
ASRock Phantom Gaming B860 Lightning WiFi 6E by ASRock is a Standard-ATX form factor motherboard based on the mid-range B860 chipset and LGA 1851 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8933 MHz.
VRM Quality
The ASRock Phantom Gaming B860 Lightning WiFi 6E has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock Phantom Gaming B860 Lightning WiFi 6E offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 6E and wired - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ALC1220 — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASRock Phantom Gaming B860 Lightning WiFi 6E delivers a strong overall quality score of 73.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 80.0% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | ASRock Phantom Gaming B860 Lightning WiFi 6E |
| Current Price Amazon | $175 |
| Amazon Price Updated | 7Â hours, 58Â minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B860 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+1+1+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8933 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2230, 2242, 2260, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K 60Hz / 5K 120Hz) |
| DP over USB-C | DisplayPort over USB-C (Max: 8K 60Hz / 5K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 3 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
| Power Delivery (W) | 15W |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: Dual-Band, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports DDR5 non-ECC, un-buffered memory. Also supports Clocked Unbuffered DIMM (CUDIMM) and Intel Extreme Memory Profile (XMP) 3.0x. |
|---|---|
| Display | Features Intel® Xe LPG Graphics Architecture. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The DisplayPort uses DSC (compressed) and supports HDCP 2.3. The Thunderbolt 4 port supports HDCP 2.3 and can drive two 4K displays or one 8K display. All video outputs can only be used with processors that have integrated graphics (GPU integrated). Only the CPU's embedded graphics can be displayed through the Thunderbolt port. |
| Expansion | The first slot (PCIE1) is a PCIe 5.0 x16 slot that supports x16 mode. The second slot (PCIE2) is a physical PCIe 4.0 x16 slot, but it only supports x2 mode electrically. Both slots support NVMe SSDs as boot disks. There is also one M.2 Socket (Key E) for a WiFi/BT module. |
| Storage |
M.2 Slot Details:
Supports Intel® Volume Management Device (VMD). Supports NVMe SSD as boot disks. |
| Audio | 7.1 CH HD Audio with Content Protection; Impedance Sensing on Rear Out port; Individual PCB Layers for R/L Audio Channel; Nahimic Audio. |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax/axe. 2x2 diversity technology. Supports MU-MIMO. Supports Killer LAN Software and Killer DoubleShot™ Pro. The Wi-Fi 6E module is supported by Microsoft Windows® 11 only and requires a 6GHz compatible router. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock Phantom Gaming B860 Lightning WiFi 6E Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$250âť—
|
0.0%
|
76.4%
|
62.0%
|
90.0%
|
50.0%
|
84.0%
|
96.0%
|
58.1%
|
|
|
$385âť—
|
↓
-3.8%
|
76.0%
|
56.0%
|
97.0%
|
51.0%
|
81.0%
|
95.0%
|
37.5%
|
|
|
$300
|
0.0%
|
75.8%
|
51.0%
|
100.0%
|
56.0%
|
84.0%
|
88.0%
|
48.0%
|
|
|
$240
|
↑
14.5%
|
74.8%
|
50.0%
|
97.0%
|
110.0%
|
72.0%
|
45.0%
|
59.2%
|
|
|
$175
|
0.0%
|
73.6%
|
54.0%
|
72.0%
|
81.0%
|
77.0%
|
84.0%
|
80.0%
|
|
|
$253
|
↑
32.6%
|
72.6%
|
48.0%
|
97.0%
|
103.0%
|
72.0%
|
43.0%
|
54.5%
|
|
|
$205
|
0.0%
|
72.0%
|
40.0%
|
99.0%
|
101.0%
|
80.0%
|
40.0%
|
66.7%
|
|
|
$200
|
0.0%
|
72.0%
|
40.0%
|
99.0%
|
101.0%
|
80.0%
|
40.0%
|
68.4%
|
|
|
$199
|
↑
16.9%
|
71.2%
|
41.0%
|
100.0%
|
110.0%
|
60.0%
|
45.0%
|
68.1%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$250âť—
|
0.0%
|
$385âť—
|
↓
-3.8%
|
$300
|
0.0%
|
$240
|
↑
14.5%
|
$175
|
0.0%
|
$253
|
↑
32.6%
|
$205
|
0.0%
|
$200
|
0.0%
|
$199
|
↑
16.9%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | ASUS | MSI | ASUS | ASRock | GIGABYTE | MSI | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890I / LGA 1851 | Z890-I / LGA 1851 | Z890I / LGA 1851 | Z890 / LGA 1851 | B860 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890M / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Mini-ITX | Mini-ITX | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 12 (110 A) | 10 (110 A) | 10 (110 A) | 12 (80 A) | 14 (80 A) | 16 (60 A) | 14 (55 A) | 14 (55 A) | 10 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 12+1+1+1+1 | 10+1+2+1 | 10+1+1+1 | 12(80A) + 1(80A) + 2(80A) + 1(80A) | 14+1+1+1+1 | 16+1+2 | 14+1+1+1 | 14+1+1+1 | 10(80A) + 1(80A) + 2(80A) + 1(80A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 128 GB / 9866 MHz | 128 GB / 9200 MHz | 128 GB / 8600 MHz | 256 GB / 9066 MHz | 256 GB / 8933 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 8666 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 3x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC4082 Audio Codec | ESS® SABRE9260Q DAC | Realtek® ALC4080 Codec | Realtek® ALC892/ALC897 | Realtek ALC1220 | Realtek® Audio CODEC | Realtek® ALC897 | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 5 Gigabit LAN 10/100/100… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1x Intel® Killer™ E5000B… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® Killer™ E5000 5Gb… (1 ports) | Realtek® 8126 5Gbps LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$634âť—
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz**
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Expansion Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* Supports NVMe SSD as boot disks
USB:
- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
- 7 x USB 2.0 (3 Rear, 4 Front)
* All USB ports support ESD Protection
Internal I/O:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

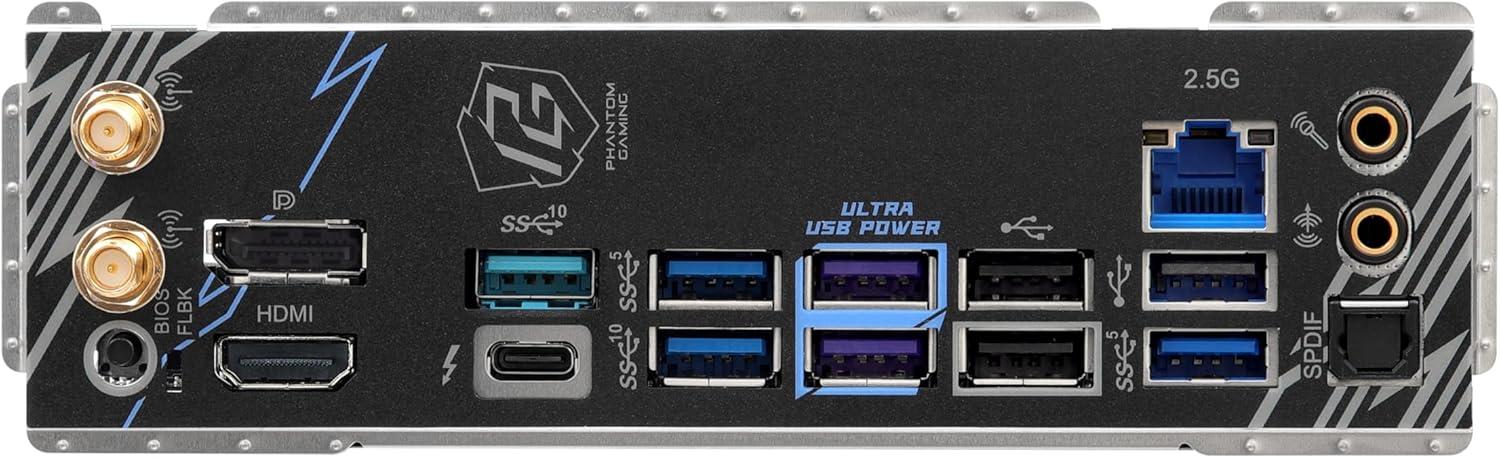

Back Panel I/O:
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports**
- 3 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_45 support Ultra USB Power.
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShot™ Pro
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Audio:
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
