ASRock Z890 Pro RS WiFi 6E

ATX · DDR5 · 4 DIMMs · 16-phase VRM · 6E

Quality
70
VRM
48
Value
74
Amazon
$180
ASRock Z890 Pro RS WiFi 6E

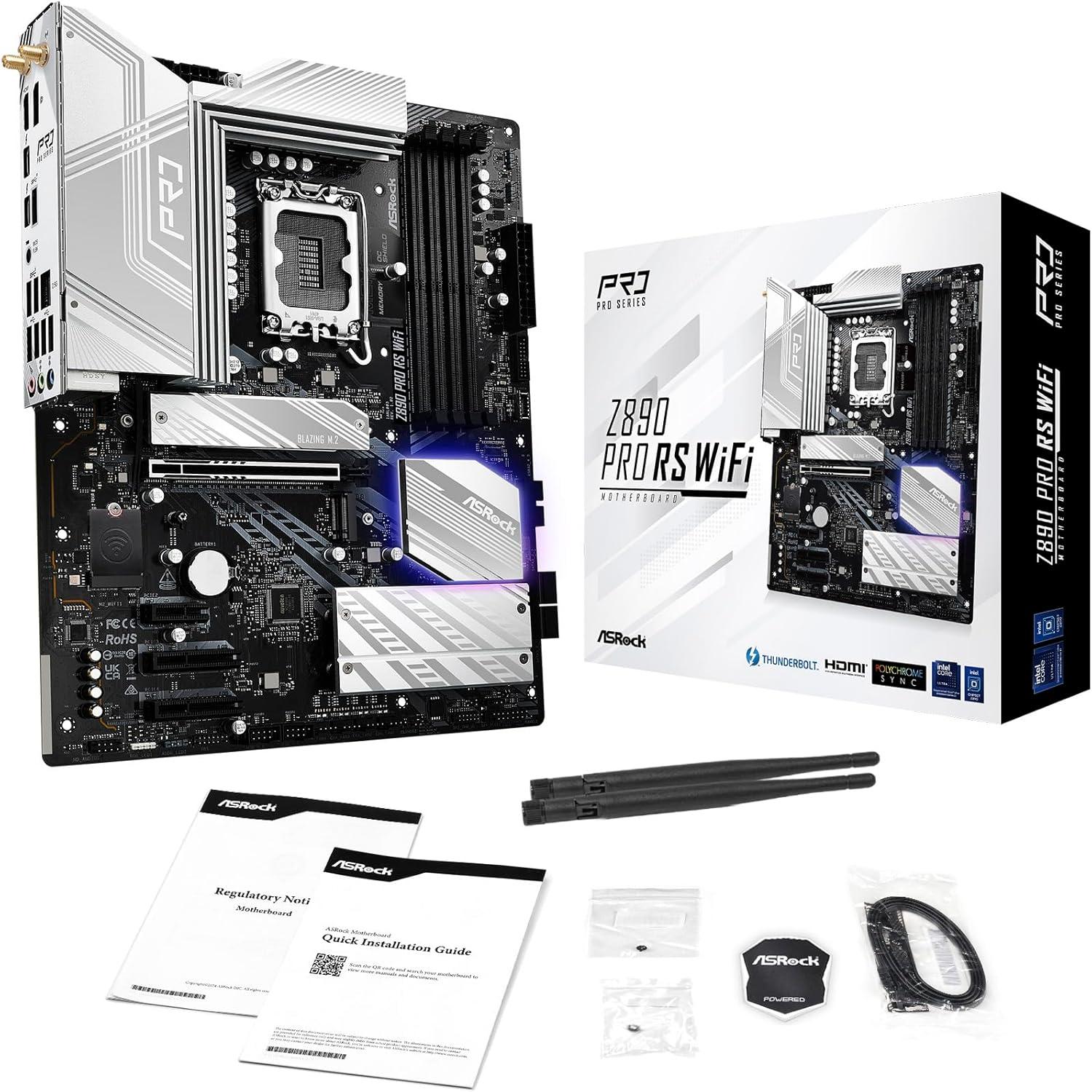

View ASRock Z890 Pro RS WiFi 6E Gallery in high resolution
$180
Available Updated 3 days, 19 hours ago Prime FBA
Overall70.4
VRM48.0
Chipset95.0
Expansion / storage92.0
Connectivity77.0
Audio40.0
Quality / price74.3
$180 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

ASRock Z890 Pro RS WiFi 6E at a glance

The ASRock Z890 Pro RS WiFi 6E uses the ATX form factor, LGA 1851 socket, and Z890 chipset. This is a high-end platform with the feature headroom expected in an enthusiast gaming or productivity build.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 9066 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a performance gaming and productivity PC that needs a balanced board without workstation-class excess.

Power delivery

The calculated VRM score is 48.0, placing the power delivery in the mid-range class. The board lists 16 CPU power phases, 60 A power stages in a 16+1+1+1+1 layout. CPU power input is listed as 2. It is a sensible match for mainstream processors, with conservative tuning on higher-power chips.

Expansion and storage

The expansion and storage score is 92.0: exceptionally well equipped . The platform supports PCIe 5.0. Physical expansion includes 1 ×16 slot, 2 ×4, and 1 ×1.

On-board storage consists of 4 M.2 slots and 4 SATA ports. Supported M.2 lengths are listed as 2230, 2242, 2260, 2280. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 77.0, rated strong . Wireless networking is Wi-Fi 6E ; wired networking is - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG at up to 2500 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 9 rear connections and 1 front-panel connections. USB4 Type-C is available at the rear. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4, USB-C DisplayPort. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek ALC897 Audio Codec. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 70.40, a strong performance-class result. This is the practical sweet spot for a powerful gaming or productivity PC without paying for every flagship extra.

At the recorded Amazon price, the quality-to-price score is 74.3—an excellent value relative to the other boards in the catalog.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
ASRock
Motherboard
ASRock Z890 Pro RS WiFi 6E
Chipset / socket
Z890 / LGA 1851
Form factor
ATX
Launch price
—
Amazon price
$180
Availability
In stock
Price updated
3 days, 19 hours ago

VRM

CPU phases
16 (60 A)
Power design
16+1+1+1+1
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 9066 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 5.0
x16 physical
1
x16 Gen 5
1
x4 physical
2
x4 Gen 4
2
x1 physical
1
x1 Gen 4
1

Storage

M.2 slots
4
M.2 lengths
2230, 2242, 2260, 2280
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4K 120Hz
DisplayPort
Yes · 1.4 · 8K 60Hz / 5K 120Hz
USB-C DisplayPort
Yes · 8K 60Hz / 5K 120Hz

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 1 Type-A 5 Gbps
2
Rear USB 3.2 Gen 2 Type-A 10 Gbps
1
Rear USB4 Type-C
2
Front USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
4
Header USB 3.2 Gen 2×2 Type-C 20 Gbps
1
USB4
Type-C · rear

Networking

Ethernet
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
6E
Bands
['2.4 GHz', '5 GHz', '6 GHz']
Antenna connectors
2
Bluetooth
5.3

Audio

Chipset
Realtek ALC897 Audio Codec
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
Rear output

Buttons

BIOS flashback
Yes
Clear CMOS
No
Q-Flash Plus
No
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
Supports DDR5 non-ECC, un-buffered memory and Clocked Unbuffered DIMM (CUDIMM). Overclocking speeds vary by configuration: 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
Display notes
Features Intel® Xe LPG Graphics Architecture. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The DisplayPort uses DSC (compressed) and supports HDCP 2.3. The two Intel® Thunderbolt™ 4 ports also support HDCP 2.3. There is an asterisk on the Thunderbolt 4 specification, which may indicate a footnote not provided in the source text.
Expansion notes
The text also lists one M.2 Socket (Key E) that supports a type 2230 WiFi/BT PCIe WiFi module.
M2_1
5.0 4 · 2280 · CPU
M2_2
4.0 4 · 2280 · CPU
M2_3
4.0 4 · 2280 · Chipset
M2_4
4.0 4 · SATA · 2230, 2242, 2260, 2280 · Chipset
RAID
PCIe
Storage notes
Supports Intel® Volume Management Device (VMD). Supports NVMe SSD as boot disks.
USB notes
All USB ports support ESD Protection. The 2 rear Thunderbolt 4 Type-C ports support USB4 protocol.
Audio notes
7.1 CH HD Audio with Nahimic Audio support.
Networking notes
802.11axe Wi-Fi 6E Module. Supports IEEE 802.11a/b/g/n/ac/ax/axe. Supports Dual-Band 2x2 with extended 6GHz band support. 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology. Supports MU-MIMO.
Fan / RGB headers
2 CPU · — OPT · 1 AIO · 5 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · System panel · TPM
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on LGA 1851 close to ASRock Z890 Pro RS WiFi 6E on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

LGA 1851 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open LGA 1851 CPUs in the CPU table

Discussion

Comments on ASRock Z890 Pro RS WiFi 6E

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x

*1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.

Graphics

- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

Expansion slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks

USB

CPU:
- 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection

Internal I/O

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)* *Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

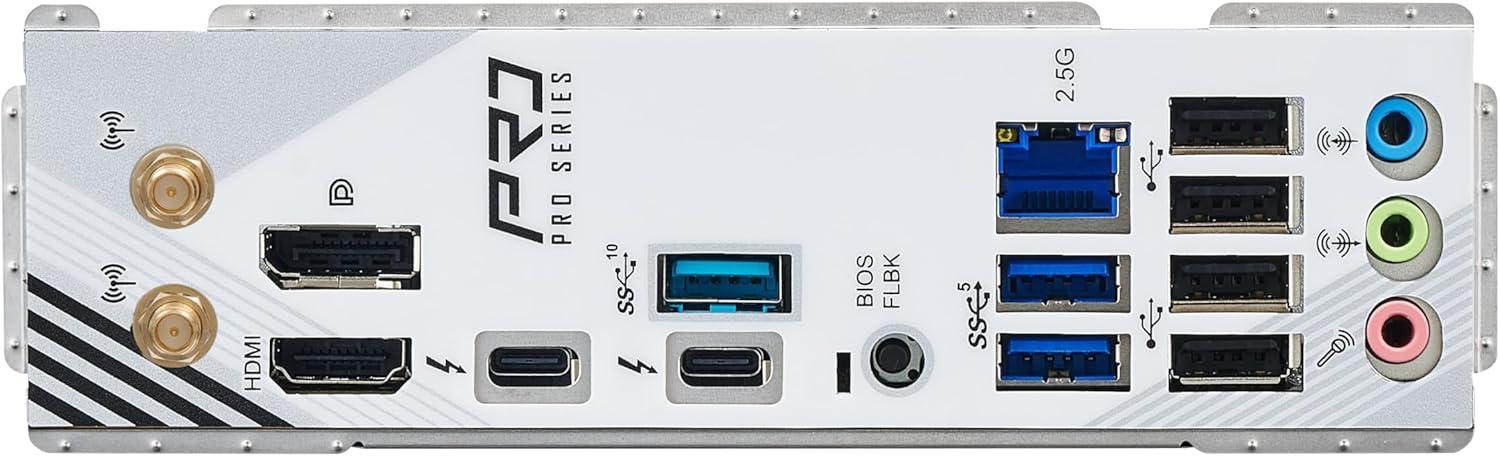

Rear I/O

- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Wireless

- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic AudioA
