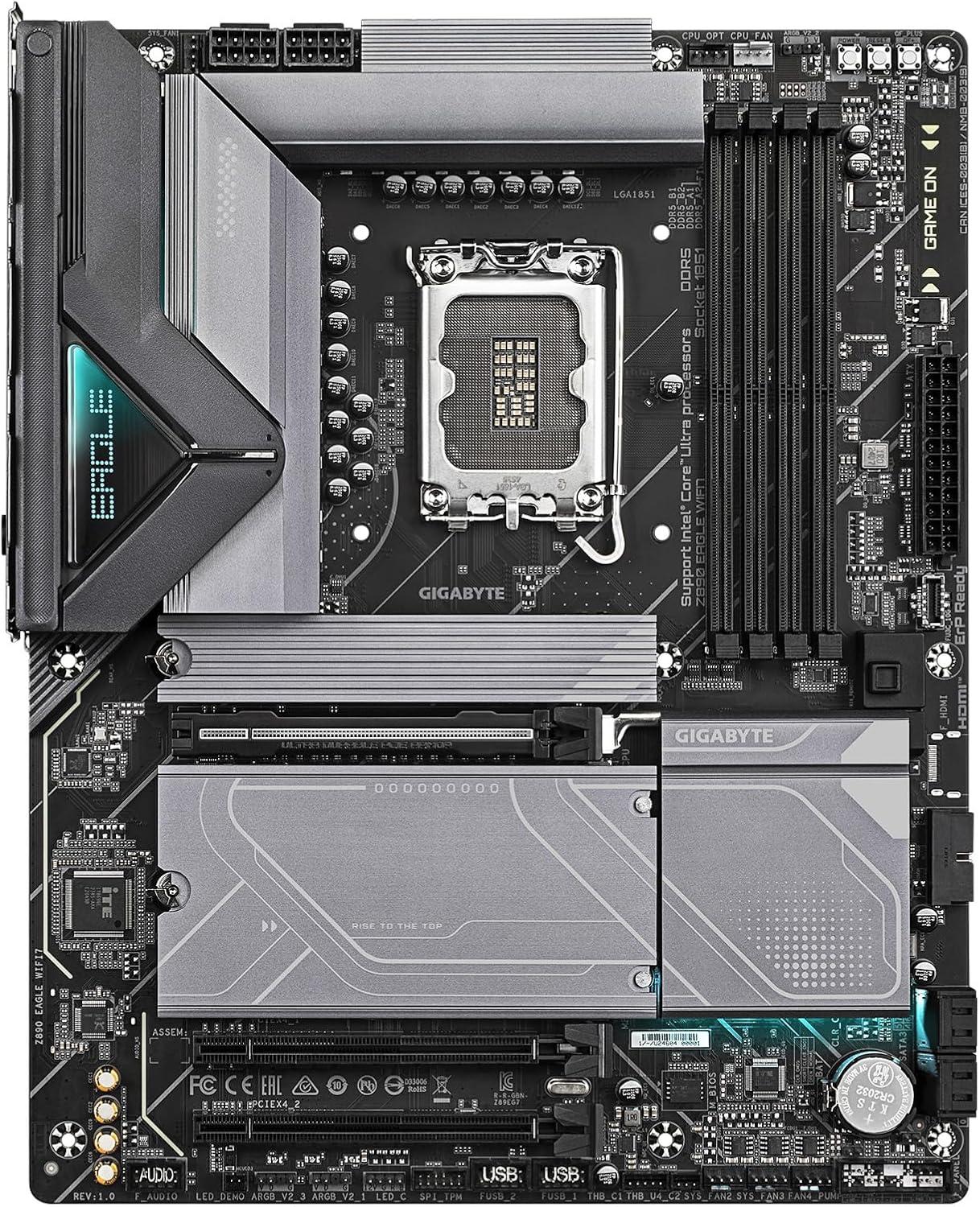

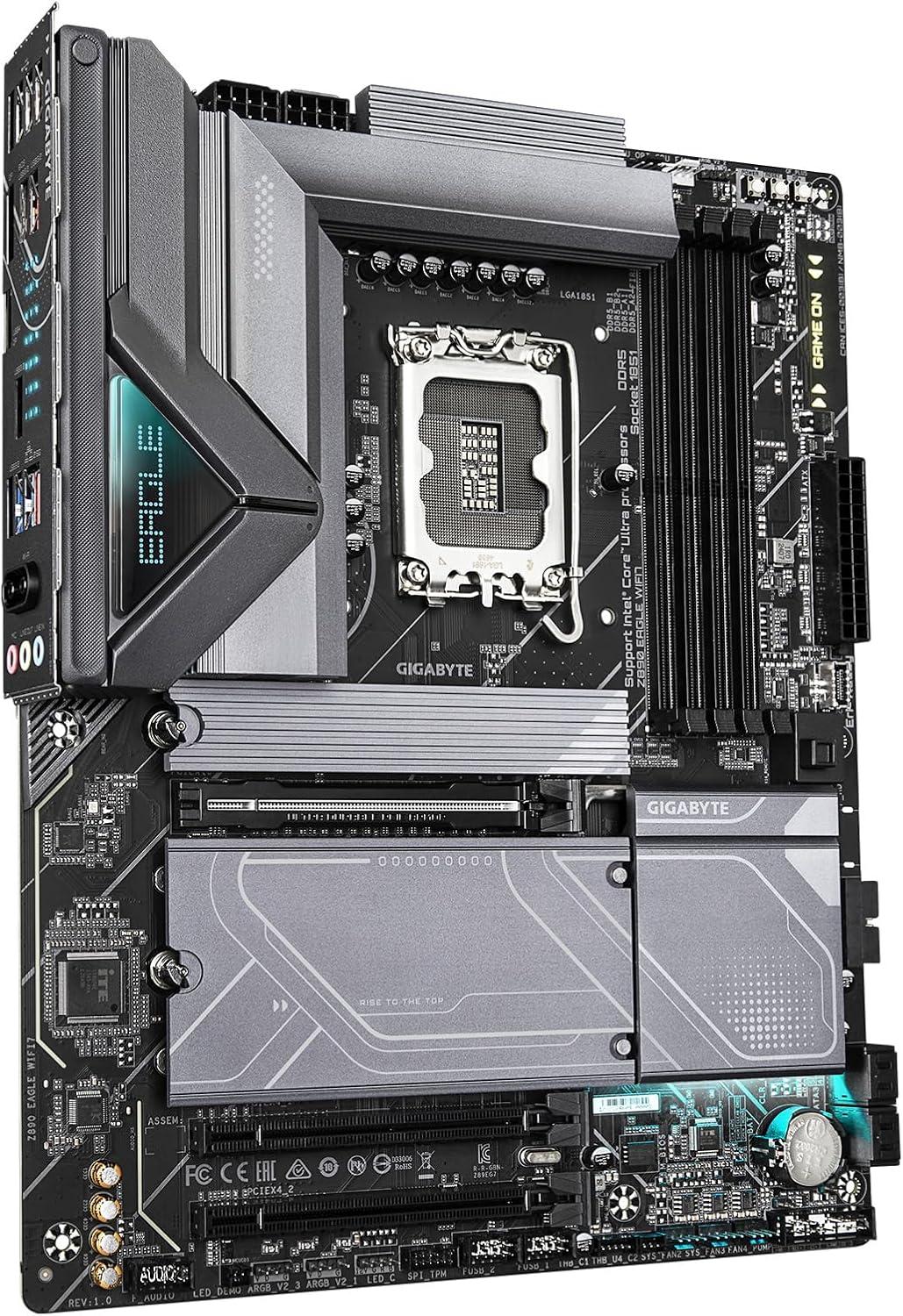

GIGABYTE Z890 Eagle WIFI7
GIGABYTE Z890 Eagle WIFI7 Specifications Review
GIGABYTE Z890 Eagle WIFI7 by GIGABYTE is a Standard-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9200 MHz.
VRM Quality
The GIGABYTE Z890 Eagle WIFI7 has a mid-range VRM configuration, providing 60 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE Z890 Eagle WIFI7 offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes DisplayPort version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC892/ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE Z890 Eagle WIFI7 delivers a strong overall quality score of 70.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 67.1% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE Z890 Eagle WIFI7 |
| Current Price Amazon | $200 |
| Amazon Price Updated | 6 days, 12 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (60 A) |
|---|---|
| Power Design | 14+1+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC892/ALC897 |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| DisplayPort Output | DisplayPort - Version 2.1 (Max: 3840x2160@144 Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
Q-Flash Plus Start Button Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Supports CUDIMM memory modules. The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' for more information. |
|---|---|
| Display | Graphics specifications may vary depending on CPU support. The USB Type-C port is a USB4 port. |
| Expansion | The primary PCIEX16 slot supports PCIe 5.0 and runs at x16. The two other physical x16 slots are connected to the chipset, support PCIe 4.0, and operate at x4 speed. The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
|
| Audio | High Definition Audio with 2/4/5.1/7.1-channel support. The functionality of an audio jack can be changed using the audio software, which is also used to configure 7.1-channel audio. |
| Networking | The Wi-Fi module can be either a MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) or a Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1). Supported standards: 802.11a, b, g, n, ac, ax, be. The antenna configuration is 2T2R. Wi-Fi 7 features require Windows 11 SV3. Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Buttons | The board includes a power button, a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE Z890 Eagle WIFI7 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$248
|
↑
29.8%
|
72.6%
|
48.0%
|
97.0%
|
103.0%
|
72.0%
|
43.0%
|
55.6%
|
|
|
$206
|
0.0%
|
72.0%
|
40.0%
|
99.0%
|
101.0%
|
80.0%
|
40.0%
|
66.4%
|
|
|
$200
|
↓
-13.0%
|
72.0%
|
40.0%
|
99.0%
|
101.0%
|
80.0%
|
40.0%
|
68.4%
|
|
|
$170
|
0.0%
|
71.2%
|
41.0%
|
100.0%
|
110.0%
|
60.0%
|
45.0%
|
79.6%
|
|
|
$200
|
0.0%
|
70.6%
|
41.0%
|
92.0%
|
103.0%
|
72.0%
|
45.0%
|
67.1%
|
|
|
$180❗
|
0.0%
|
70.4%
|
48.0%
|
95.0%
|
92.0%
|
77.0%
|
40.0%
|
74.3%
|
|
|
$180
|
0.0%
|
69.0%
|
37.0%
|
92.0%
|
110.0%
|
66.0%
|
40.0%
|
72.8%
|
|
|
$180
|
0.0%
|
68.4%
|
63.0%
|
95.0%
|
59.0%
|
79.0%
|
46.0%
|
72.2%
|
|
|
$196
|
0.0%
|
67.8%
|
50.0%
|
77.0%
|
85.0%
|
76.0%
|
51.0%
|
65.7%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$248
|
↑
29.8%
|
$206
|
0.0%
|
$200
|
↓
-13.0%
|
$170
|
0.0%
|
$200
|
0.0%
|
$180❗
|
0.0%
|
$180
|
0.0%
|
$180
|
0.0%
|
$196
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | MSI | MSI | ASUS | GIGABYTE | ASRock | GIGABYTE | ASRock | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890M / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890M / LGA 1851 | B860 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (60 A) | 14 (55 A) | 14 (55 A) | 10 (80 A) | 14 (60 A) | 16 (60 A) | 12 (60 A) | 16 (80 A) | 12 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 14+1+1+1 | 14+1+1+1 | 10(80A) + 1(80A) + 2(80A) + 1(80A) | 14+1+2 | 16+1+1+1+1 | 12+1+2 | 16+1+1 | 12(80A) + 1(80A) + 2(80A) + 1(80A) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 8666 MHz | 256 GB / 9200 MHz | 256 GB / 9066 MHz | 256 GB / 9200 MHz | 256 GB / 9466 MHz | 256 GB / 8666 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x4 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 4 | 4 | 3 | 4 | 4 | 3 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 6 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC897 | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek® Audio CODEC | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (2.1) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® Killer™ E5000 5Gb… (1 ports) | Realtek® 8126 5Gbps LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$634❗
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$380
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$320
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↓
-10.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
(Graphics specifications may vary depending on CPU support.)
Storage:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Expansion Slots:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
USB:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O:
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

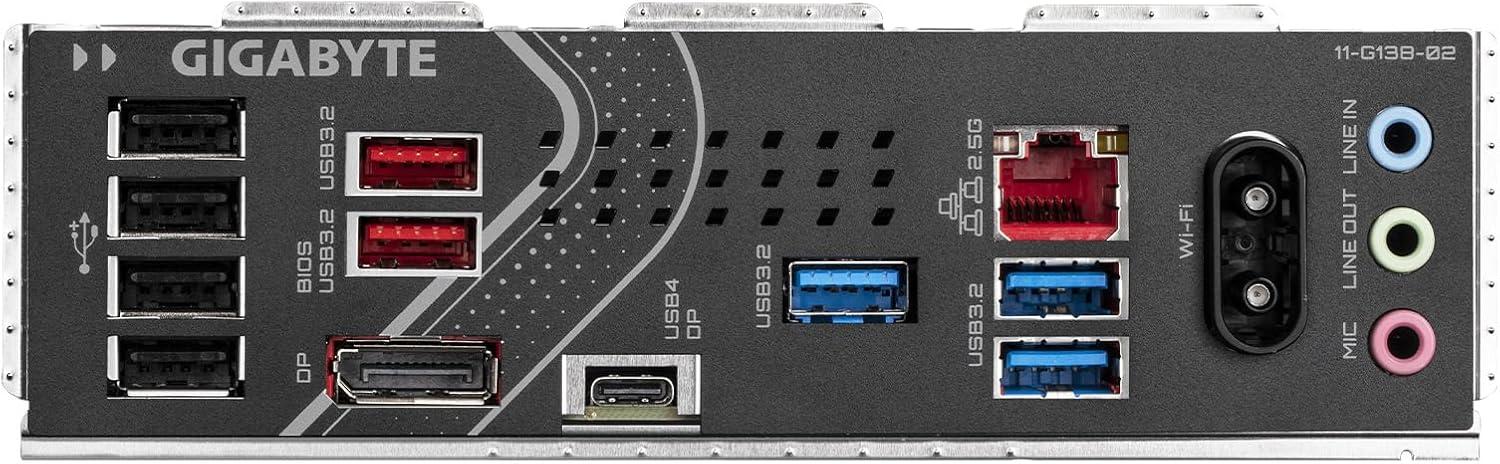

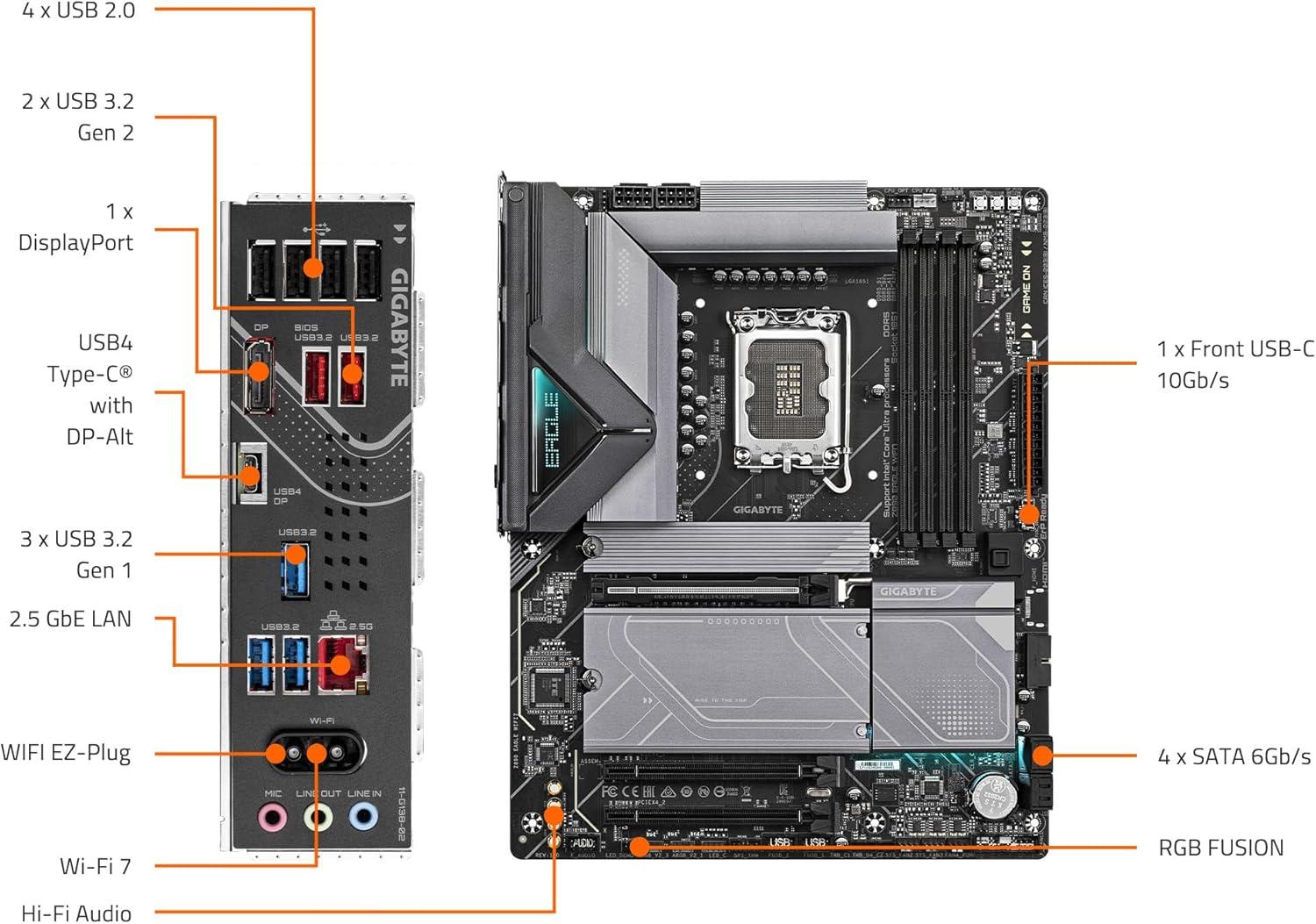

Back Panel I/O:
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
