MSI MEG Z890 GODLIKE Specifications Review
MSI MEG Z890 GODLIKE by MSI is a E-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9200 MHz.
VRM Quality
The MSI MEG Z890 GODLIKE features an ultra high-end VRM configuration, delivering 110 A across 26 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI MEG Z890 GODLIKE offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 8 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 standard, delivering fast and reliable internet speeds and wired 1x Marvell® AQC113CS 10Gbps LAN 1x Intel® Killer™ E5000B 5G LAN LAN support capable of speeds up to 10000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI MEG Z890 GODLIKE represents the pinnacle of design and engineering with an outstanding overall quality score of 105.40. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard shows a 19.0% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI MEG Z890 GODLIKE |
| Current Price Amazon | $1054 |
| Amazon Price Updated | 2 hours, 50 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | E-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 26 (110 A) |
|---|---|
| Power Design | 26+2+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 2 | 0 |
| x4 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 8 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 4K@120Hz / 8K@60Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 2 Type-A (10 Gbps) | 8 |
|---|---|
| USB 3.2 Gen 2 Type-C (10 Gbps) | 5 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| Power Delivery (W) | 60W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1x Marvell® AQC113CS 10Gbps LAN
1x Intel® Killer™ E5000B 5G LAN LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Smart Button |
|---|
Quality & Features
Additional Information
| RAM | Max overclocking frequency depends on the configuration: 1DPC 1R up to 9200+ MT/s, 1DPC 2R up to 7200+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 5600+ MT/s. Supports Intel® POR Speed, JEDEC Speed, and CUDIMM (un-buffered memory). |
|---|---|
| Display | Features 2x Type-C DisplayPorts via Thunderbolt™ 4, supporting DisplayPort 2.1 with UHBR20. Video output is available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot. PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High-Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel. |
| Networking | Wi-Fi module: Intel Killer BE1750x (pre-installed in M.2 Key-E slot). Supports MU-MIMO TX/RX, MLO, 4KQAM. Wi-Fi speed up to 5.8Gbps. 6GHz band support may depend on country regulations. Wi-Fi 7 and Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Buttons | The text also mentions a Slow Mode Booting Jumper (JSLOW) and V-check points. |
| Dimensions | 30.5 cm x 27.7cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI MEG Z890 GODLIKE Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$638
|
0.0%
|
105.6%
|
110.0%
|
100.0%
|
110.0%
|
110.0%
|
98.0%
|
31.4%
|
|
|
$849
|
↓
-1.5%
|
105.6%
|
110.0%
|
100.0%
|
110.0%
|
110.0%
|
98.0%
|
23.6%
|
|
|
$1054
|
0.0%
|
105.4%
|
110.0%
|
99.0%
|
110.0%
|
110.0%
|
98.0%
|
19.0%
|
|
|
$550
|
0.0%
|
105.0%
|
110.0%
|
92.0%
|
110.0%
|
110.0%
|
103.0%
|
36.3%
|
|
|
$434
|
0.0%
|
104.4%
|
110.0%
|
100.0%
|
106.0%
|
110.0%
|
96.0%
|
45.7%
|
|
|
$957❗
|
0.0%
|
104.2%
|
110.0%
|
100.0%
|
100.0%
|
110.0%
|
101.0%
|
20.7%
|
|
|
$375
|
0.0%
|
103.6%
|
110.0%
|
97.0%
|
110.0%
|
110.0%
|
91.0%
|
52.5%
|
|
|
$344
|
↓
-1.6%
|
102.4%
|
98.0%
|
97.0%
|
109.0%
|
110.0%
|
98.0%
|
56.5%
|
|
|
$362
|
↑
6.5%
|
102.2%
|
110.0%
|
100.0%
|
110.0%
|
110.0%
|
81.0%
|
53.6%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$638
|
0.0%
|
$849
|
↓
-1.5%
|
$1054
|
0.0%
|
$550
|
0.0%
|
$434
|
0.0%
|
$957❗
|
0.0%
|
$375
|
0.0%
|
$344
|
↓
-1.6%
|
$362
|
↑
6.5%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | MSI | GIGABYTE | ASUS | ASUSTeK COMPUTER INC. | ASUS | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Intel ® Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | E-ATX | E-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 24 (110 A) | 24 (110 A) | 26 (110 A) | 22 (110 A) | 22 (110 A) | 22 (110 A) | 22 (110 A) | 18 (110 A) | 20 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 24+2+1+1 | 24(110A)+1(90A)+2(90A)+2(80A) | 26+2+1+1 | 22+1+2 | 22+2+1+2 | 22 + 1 + 2 + 2 | 22(110A)+1(90A)+2(90A)+2(80A) | 18+1+2 | 20+1+1+1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | 256 GB / 9200 MHz | 128 GB / 9600 MHz | 256 GB / 9500 MHz | 256 GB / 9200 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x4 Gen4 | 1x1 Gen4 | 2x16 Gen5 | 2x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 6 | 8 | 4 | 6 | 6 | 6 | 5 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4082 Codec + ESS9… | ALC4082, ESS ES9219 QUAD DAC | Realtek® ALC4082 Codec + ESS9… | ESS ES9280AC DAC chip+2 ESS E… | Realtek® ALC4082 | ALC4082, ESS ES9219 QUAD DAC | ALC4080 | Realtek® ALC1220 CODEC, ESS E… | Realtek® ALC1220P Codec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (1.4) | ✔️ (2.1) | ❌ | ❌ | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (1.4) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Marvell® AQC113CS 10G… (1 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | 1x Marvell® AQC113CS 10G… (2 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Intel® 2.5Gb Etherne… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | Marvell® AQtion AQC113C … (1 ports) | 1x Intel® Killer™ E5000B… (2 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
❌ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
❌ |
|
|
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634❗
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346❗
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU |
Official Manufacturer Data
Memory:
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Graphics:
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
4x SATA 6G

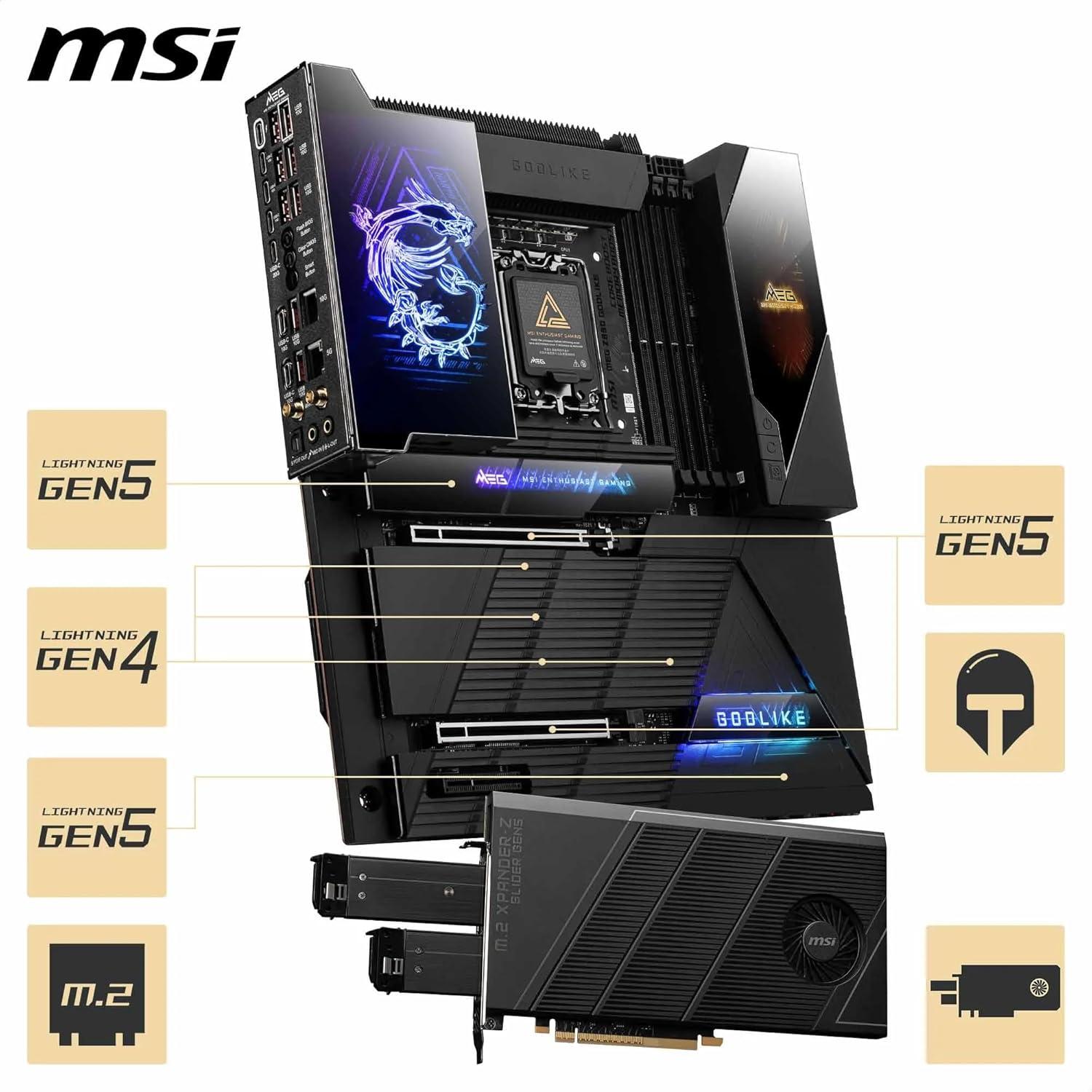

M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
* Supports onboard 6x M.2 slots and additional 2x M.2 slots via M.2 card.
** M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
*** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot.
**** Please refer to the manual for M.2 SSD heatsink restrictions.
Expansion Slots:
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
* PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot.
** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot.
USB:
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit.
Internal I/O:
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
7x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

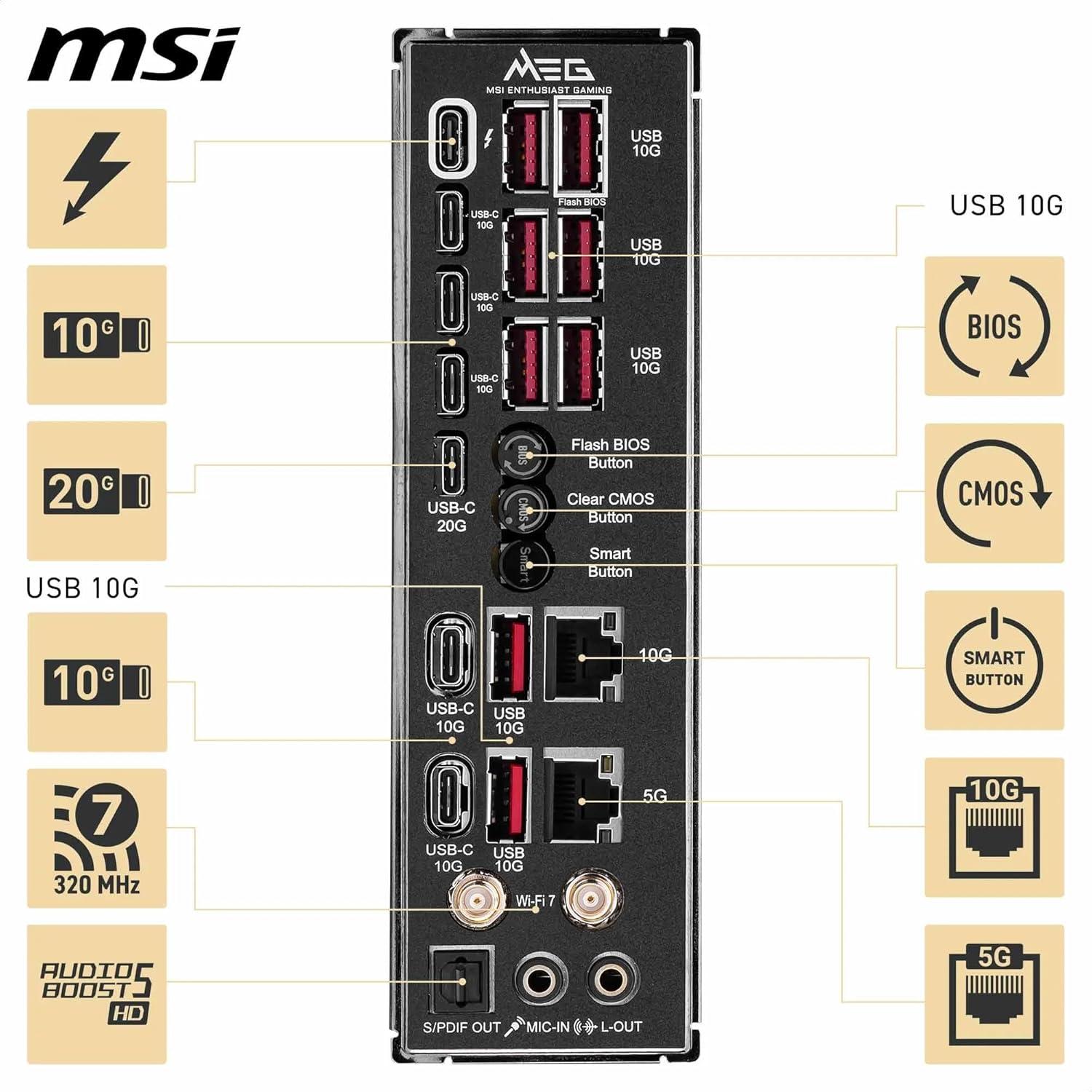

Back Panel I/O:
Flash BIOS Button
Clear CMOS Button
Smart Button
10G LAN
5G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
Thunderbolt 4 40Gbps (Type-C)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
USB 10Gbps (Type-C)
USB 10Gbps (Type-A)
Optical S/PDIF-Out
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Audio:
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
