ASRock B850M Steel Legend WiFi Specifications Review
ASRock B850M Steel Legend WiFi by ASRock is a Micro-ATX form factor motherboard based on the mid-range AMD B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The ASRock B850M Steel Legend WiFi comes with an entry-level VRM setup, delivering 60 A across 12 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock B850M Steel Legend WiFi offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 7 and wired 2.5 Gigabit LAN 10/100/1000/2500 Mb/s ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features a quality mid-range audio solution (Realtek ALC1220), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment.
Overall Quality and Value
ASRock B850M Steel Legend WiFi delivers a strong overall quality score of 65.80. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 78.1% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | ASRock B850M Steel Legend WiFi |
| Current Price Amazon | $160❗N/A |
| Amazon Price Updated | 2 weeks, 1 day ago. |
| Motherboard Available | False |
| Chipset / Socket | AMD B850 / AM5 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (60 A) |
|---|---|
| Power Design | 12+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 1 | 1 | 0 |
| x4 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2280, 2260 |
| M.2 PCIe Modes | PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 5 |
Networking Information
| Ethernet | Chipset: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors * * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
|---|---|
| OS Support | Microsoft Windows ® 10 64-bit / 11 64-bit |
| RAM | Supports DDR5 un-buffered memory. Also supports EXTended Profiles for Overclocking (EXPO) memory modules. |
| Display | Utilizes Integrated AMD RDNA™ graphics, but actual support may vary by CPU. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The DisplayPort supports DSC (compressed) and HDCP 2.3. |
| Expansion | The PCIE1 slot will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors, and Gen4x4 with 8000 (Phoenix 2) series processors. |
| Storage |
M.2 Slot Details:
Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation. RAID 10 for M.2 NVMe storage devices requires additional M.2 NVMe expansion cards. |
| Audio | 7.1 CH HD Audio with Content Protection. Impedance Sensing on Rear Out port. Individual PCB Layers for R/L Audio Channel. Nahimic Audio. |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax/axe/be. 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology. Supports MU-MIMO. The Wi-Fi 7 module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. |

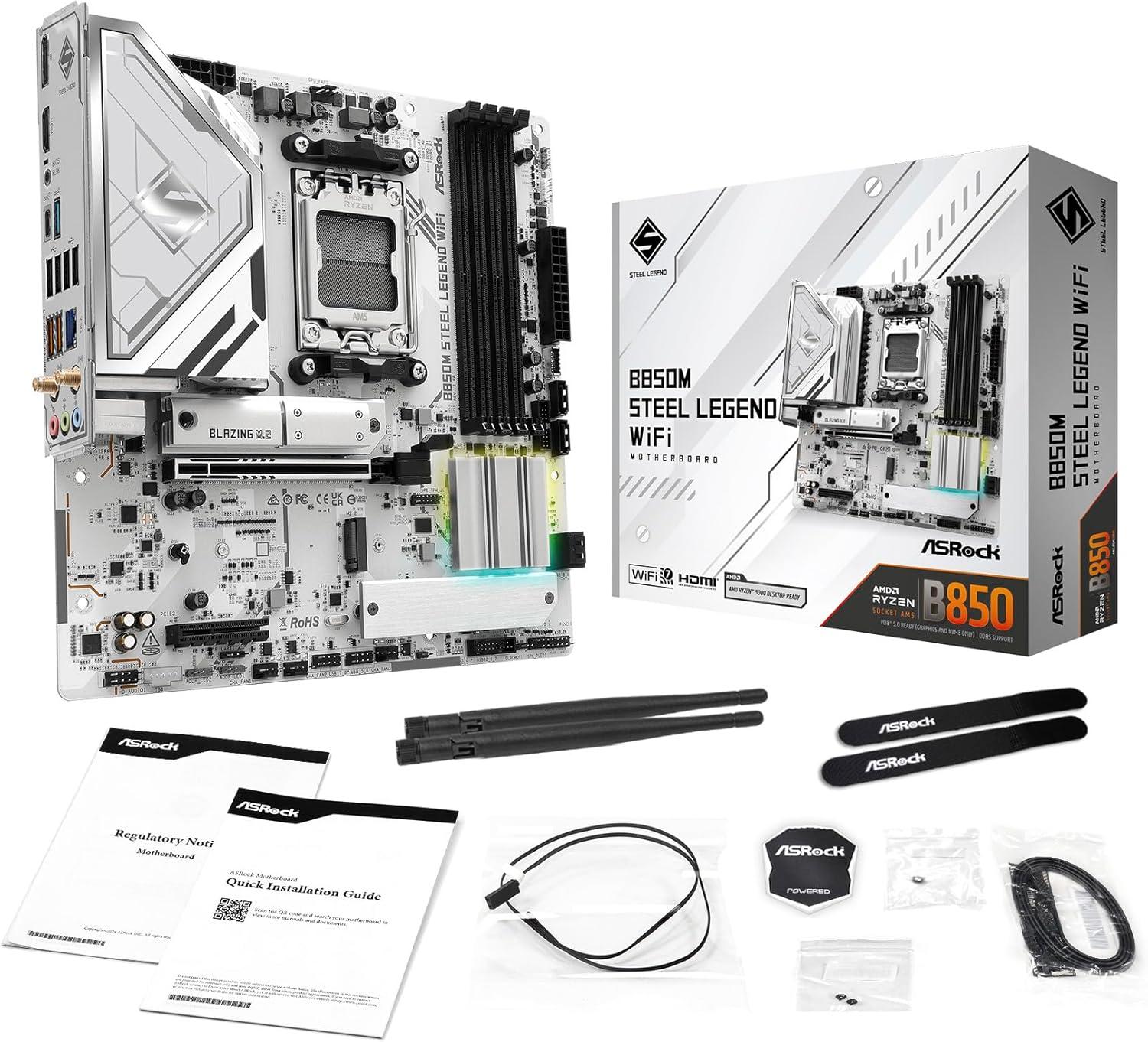

| Accessories | - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Thermistor Cable - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Dimensions | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm2oz Copper PCB |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock B850M Steel Legend WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$170
|
↓
-13.8%
|
68.0%
|
41.0%
|
95.0%
|
84.0%
|
80.0%
|
40.0%
|
76.0%
|
|
|
$248
|
0.0%
|
67.2%
|
37.0%
|
76.0%
|
65.0%
|
67.0%
|
91.0%
|
51.5%
|
|
|
$290
|
0.0%
|
66.8%
|
41.0%
|
88.0%
|
53.0%
|
67.0%
|
85.0%
|
43.8%
|
|
|
$160❗
|
0.0%
|
65.8%
|
37.0%
|
78.0%
|
74.0%
|
62.0%
|
78.0%
|
78.1%
|
|
|
$170
|
0.0%
|
65.8%
|
41.0%
|
88.0%
|
77.0%
|
78.0%
|
45.0%
|
73.5%
|
|
|
$181
|
↓
-14.9%
|
65.4%
|
32.0%
|
84.0%
|
104.0%
|
62.0%
|
45.0%
|
68.7%
|
|
|
$265
|
↑
0.8%
|
65.2%
|
25.0%
|
89.0%
|
106.0%
|
66.0%
|
40.0%
|
46.7%
|
|
|
$380
|
↓
-0.8%
|
65.2%
|
41.0%
|
81.0%
|
51.0%
|
65.0%
|
88.0%
|
32.6%
|
|
|
$301
|
↓
-0.8%
|
64.8%
|
36.0%
|
89.0%
|
44.0%
|
67.0%
|
88.0%
|
41.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$170
|
↓
-13.8%
|
$248
|
0.0%
|
$290
|
0.0%
|
$160❗
|
0.0%
|
$170
|
0.0%
|
$181
|
↓
-14.9%
|
$265
|
↑
0.8%
|
$380
|
↓
-0.8%
|
$301
|
↓
-0.8%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | MSI | GIGABYTE | ASRock | GIGABYTE | ASUS | ASUS | Asus | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870-P / AM5 | B650M / AM5 | X870 / AM5 | AMD B850 / AM5 | X870 / AM5 | B850 / AM5 | AMD B850 Chipset / AM5 | B650E-I / AM5 | B850I / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Mini-ITX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Mini-ITX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (60 A) | 12 (60 A) | 8 (110 A) | 12 (60 A) | 14 (60 A) | 8 (80 A) | 8 (60 A) | 10 (80 A) | 10 (90 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 12+2+1 | 8+2+1 | 12+2+1 | 14+2+2 | 8+2+1 | 8 + 2 + 1 | 10+1+2 | 10+2+1 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 7600 MHz | 128 GB / 8400 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 96 GB / 8000 MHz | 128 GB / 8400 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen5 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 2 | 2 | 3 | 3 | 3 | 3 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 6 | 2 | 4 | 4 | 4 | 4 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC897 | Realtek ALC4080 | Realtek® ALC4080 CODEC | Realtek ALC1220 | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek 7.1 Surround Sound Hi… | ROG SupremeFX ALC4080, Savite… | ALC4080 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 8126VB 5G LAN (1 ports) | Realtek® RTL8125B 2.5Gbp… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 6E (802.11ax) | Wi-Fi 6E | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.2 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode *
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors., - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *
* Requires additional M.2 NVMe expansion cards to support RAID 10
Expansion Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode *
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode *
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks
USB:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection

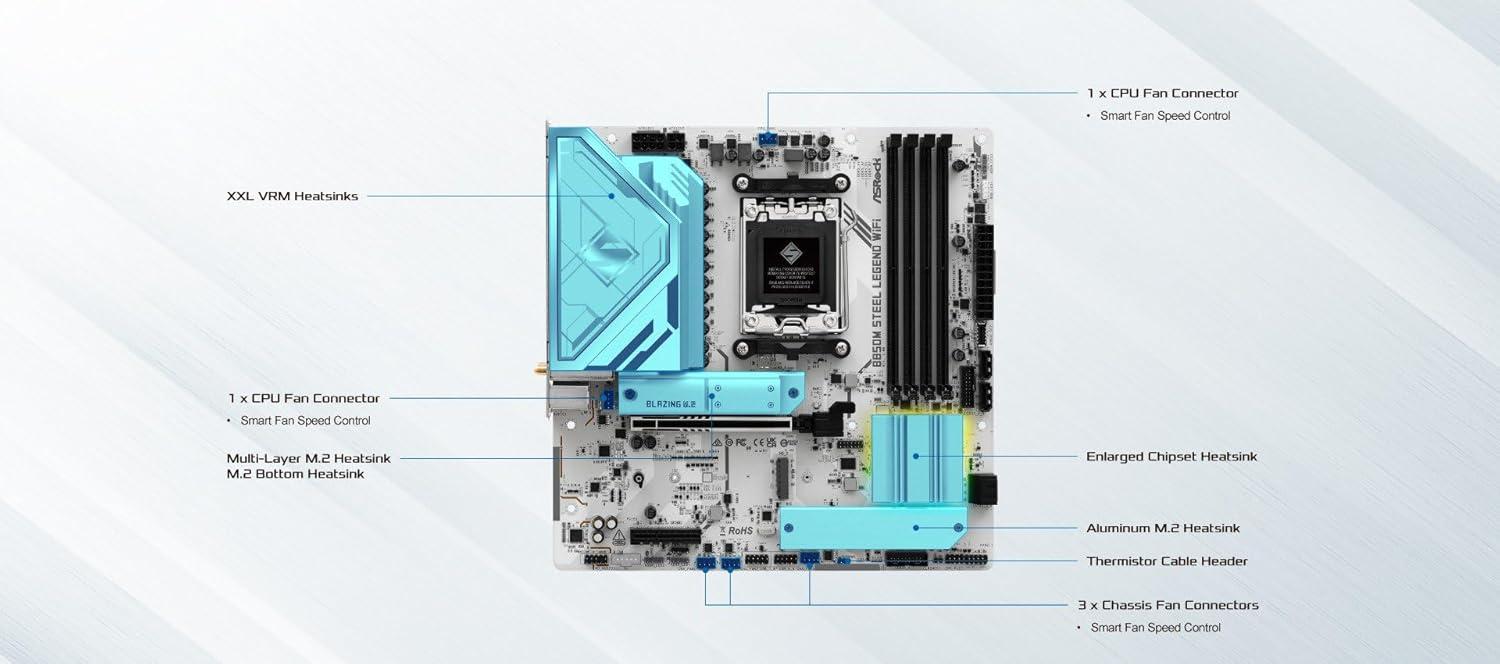

Internal I/O:
- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header *
- 3 x Addressable LED Headers * *
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) * * *
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) * * *
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
* * Support in total up to 5V/3A, 15W LED Strip
* * * CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

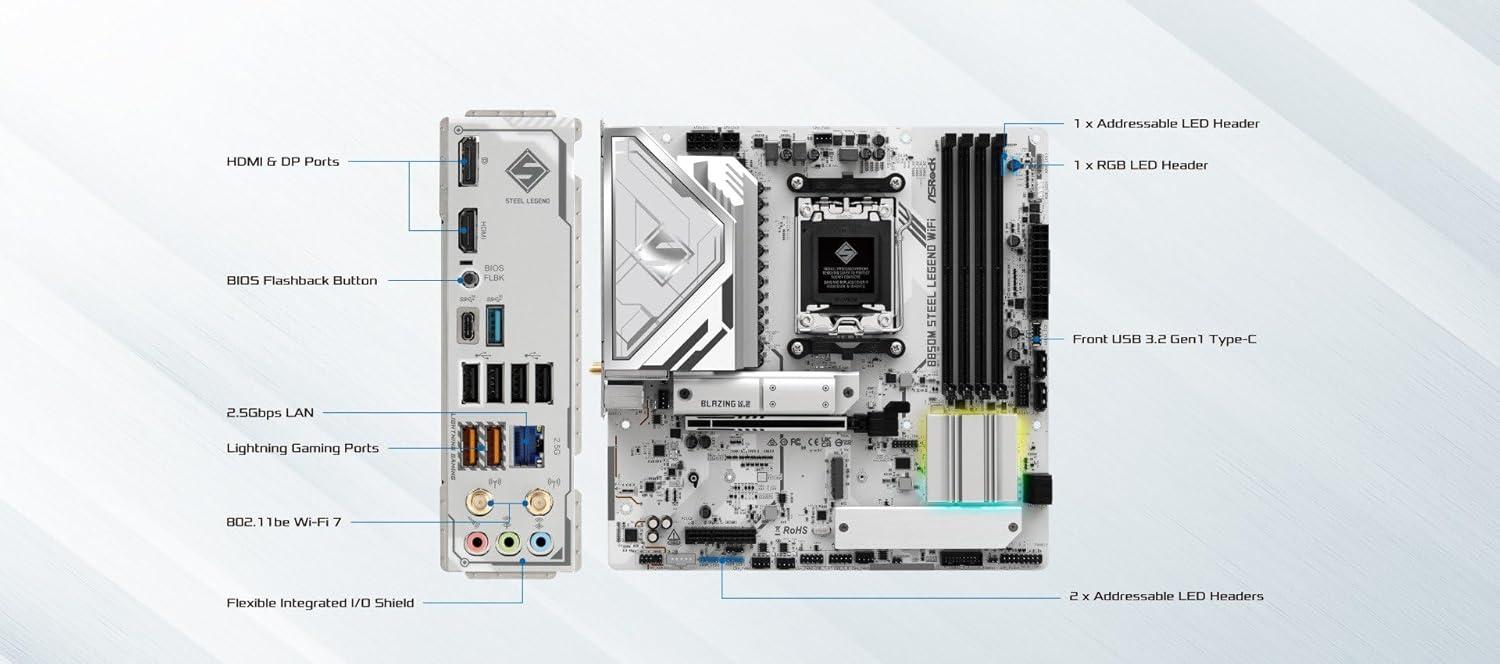

Back Panel I/O:
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz * frequency band
- Supports 160MHz channel bandwidth with 6GHz * frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
* The Wi-Fi 7 module is supported by Microsoft Windows ® 11 only. There is no driver available for Windows ® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows ® Update and software updates once available.
Audio:
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio

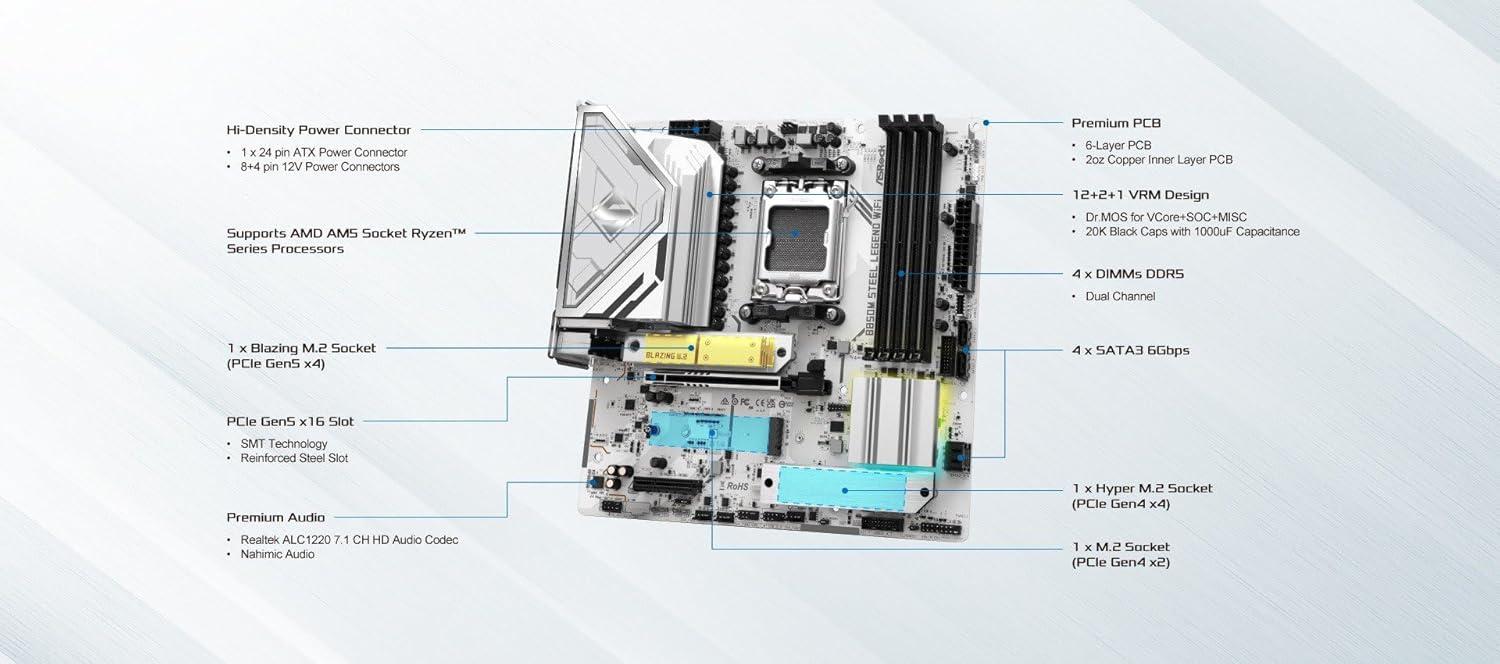

Special Features:
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Add Comment on ASRock B850M Steel Legend WiFi
