MSI X870 Gaming Plus WiFi

ATX · DDR5 · 4 DIMMs · 14-phase VRM · 7

Quality
68
VRM
41
Value
60
Amazon
$214
MSI X870 Gaming Plus WiFi
View MSI X870 Gaming Plus WiFi Gallery in high resolution
$214
Available Updated 2 days, 10 hours ago Prime FBA
Overall68.0
VRM41.0
Chipset95.0
Expansion / storage84.0
Connectivity80.0
Audio40.0
Quality / price60.3
$214 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

MSI X870 Gaming Plus WiFi at a glance

The MSI X870 Gaming Plus WiFi uses the ATX form factor, AM5 socket, and X870 chipset. This is a high-end platform with the feature headroom expected in an enthusiast gaming or productivity build.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 8200 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a performance gaming and productivity PC that needs a balanced board without workstation-class excess.

Power delivery

The calculated VRM score is 41.0, placing the power delivery in the mid-range class. The board lists 14 CPU power phases, 60 A power stages in a 14+2+1 layout. CPU power input is listed as 2. It is a sensible match for mainstream processors, with conservative tuning on higher-power chips.

Expansion and storage

The expansion and storage score is 84.0: well equipped . The platform supports PCIe 5.0. Physical expansion includes 4 ×16 slots.

On-board storage consists of 3 M.2 slots and 4 SATA ports. Supported M.2 lengths are listed as 22110, 2280, 2260. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 80.0, rated strong . Wireless networking is Wi-Fi 7 ; wired networking is Realtek® 8126VB 5G LAN at up to 5000 Mbps. Bluetooth 5.4 is included. The recorded USB provision is 10 rear connections and 7 front-panel connections. USB4 Type-C is available at the rear. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, USB-C DisplayPort. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek® ALC897. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface.

Buying verdict

Overall quality is 68.00, a strong performance-class result. This is the practical sweet spot for a powerful gaming or productivity PC without paying for every flagship extra.

At the recorded Amazon price, the quality-to-price score is 60.3—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
MSI
Motherboard
MSI X870 Gaming Plus WiFi
Chipset / socket
X870 / AM5
Form factor
ATX
Launch price
—
Amazon price
$214
Availability
In stock
Price updated
2 days, 10 hours ago

VRM

CPU phases
14 (60 A)
Power design
14+2+1
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 8200 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 5.0
x16 physical
4
x16 Gen 5
1
x16 Gen 4
1
x16 Gen 3
2

Storage

M.2 slots
3
M.2 lengths
22110, 2280, 2260
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4K 60Hz
DisplayPort
No
USB-C DisplayPort
Yes · 1.4 · 4K 60Hz

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 1 Type-A 5 Gbps
2
Rear USB 3.2 Gen 2 Type-A 10 Gbps
2
Rear USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Rear USB4 Type-C
1
Front USB 2.0
4
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 2 Type-C 10 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
2
Header USB 3.2 Gen 2 Type-A 10 Gbps
1
USB4
Type-C · rear

Networking

Ethernet
Realtek® 8126VB 5G LAN
LAN ports
1
LAN speed
5000 Mbps
Wi-Fi
7
Wi-Fi bandwidth
5.8Gbps
Bands
2.4GHz, 5GHz, 6GHz
Antenna connectors
2
Bluetooth
5.4

Audio

Chipset
Realtek® ALC897
Analog jacks
—
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
Rear output

Buttons

BIOS flashback
Yes
Clear CMOS
Yes
Q-Flash Plus
No
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
Supports AMD POR Speed, JEDEC Speed, and AMD EXPO. Supports CUDIMM in Clock Driver bypass mode only, with support varying by CPU series. For Ryzen™ 9000 Series, max overclocking frequency depends on configuration: 1DPC 1R up to 8200+, 1DPC 2R up to 6400+, 2DPC 1R up to 6400+, 2DPC 2R up to 4800+. The DIMM slots have double-sided latches. Memory compatibility can vary depending on the CPU and memory configuration.
Display notes
The Type-C DisplayPort is a USB4® port, supporting DisplayPort 1.4 with HBR3. Video outputs are available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion notes
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
M.2_1
5.0 4 · 2280, 2260 · From CPU — Supports up to PCIe 5.0 x4 for Ryzen™ 9000/7000 Series processors; Supports up to PCIe 4.0 x4 for Ryzen™ 8000 Series processors.
M.2_2
4.0 4 · 22110, 2280 · From Chipset
M.2_3
4.0 2 · 2280, 2260 · From Chipset
Storage notes
Please refer to the manual for M.2 SSD heatsink restrictions.
USB notes
The back panel includes a Flash BIOS Button.
Audio notes
7.1-Channel High Definition Audio
Networking notes
The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, MLO, 4KQAM. Supports 802.11 a/b/g/n/ac/ax/be. 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Fan / RGB headers
1 CPU · — OPT · 1 AIO · 6 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · System panel · TPM
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to MSI X870 Gaming Plus WiFi on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on MSI X870 Gaming Plus WiFi

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

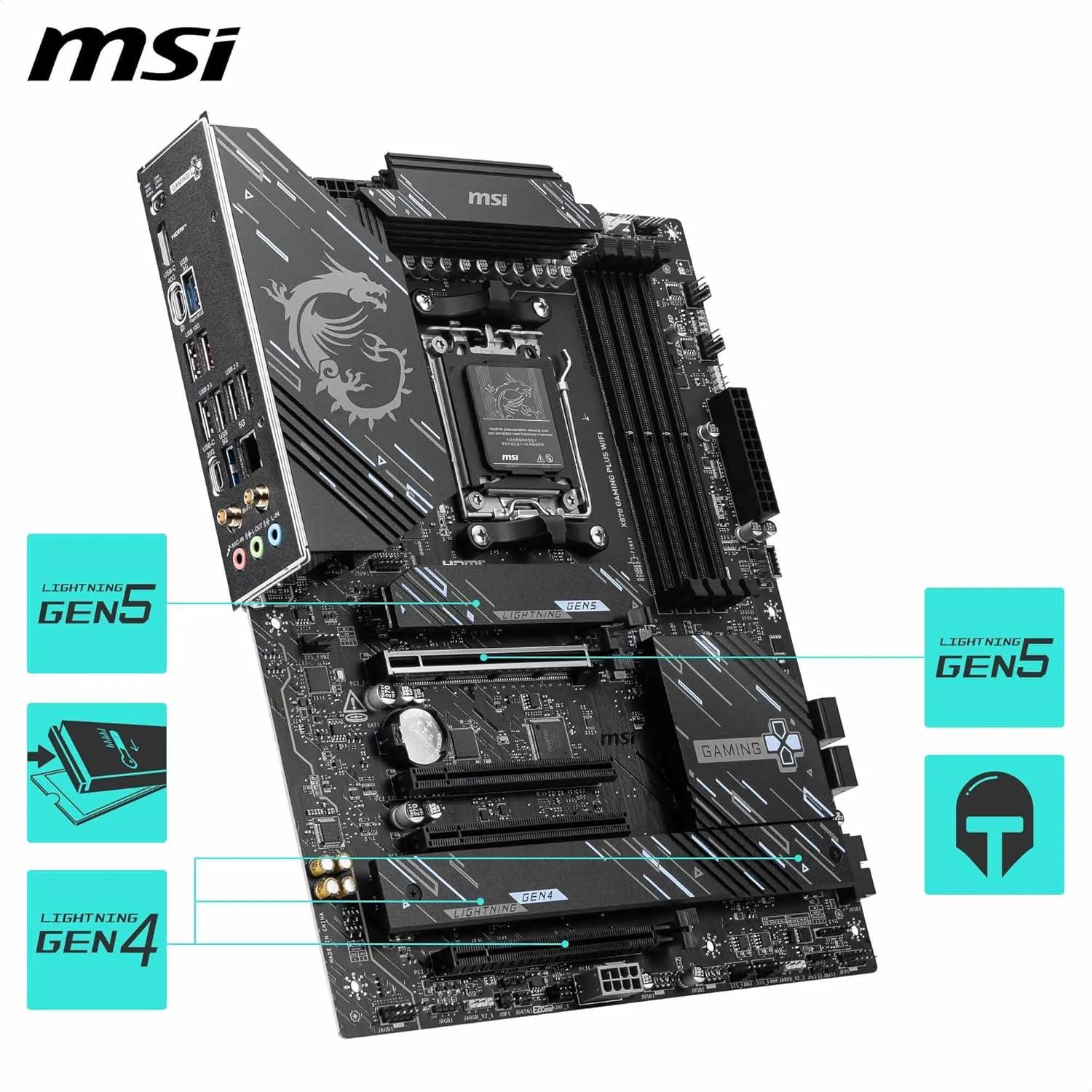

Expansion slots

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.

Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)

Internal I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

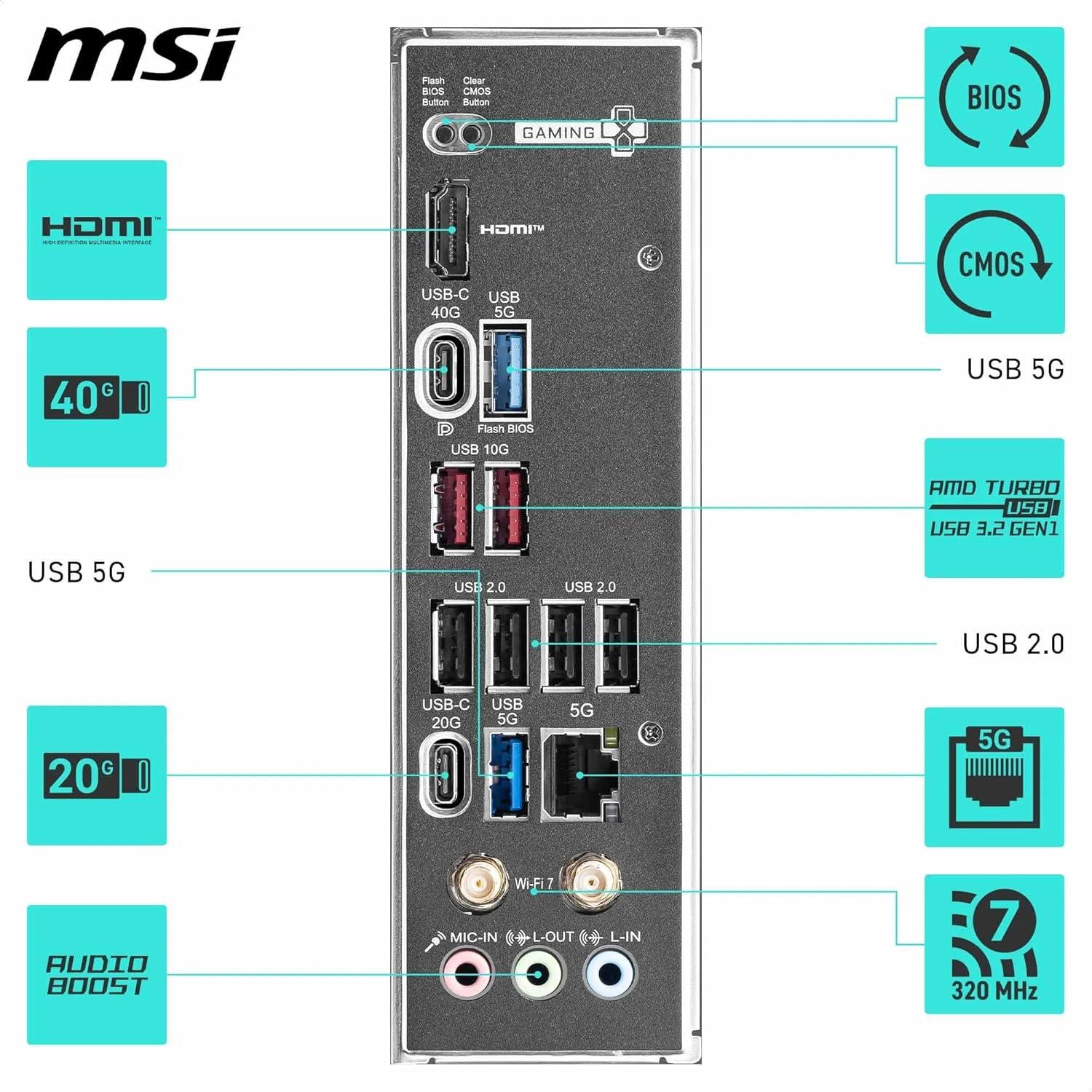

Rear I/O

Clear CMOS Button
USB 5Gbps Type-A
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 2.0
USB 20Gbps Type-C
USB 5Gbps Type-A

Wireless

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Audio

Realtek® ALC897
7.1-Channel High Definition Audio
