PRO B850-S WIFI6E
PRO B850-S WIFI6E Specifications Review

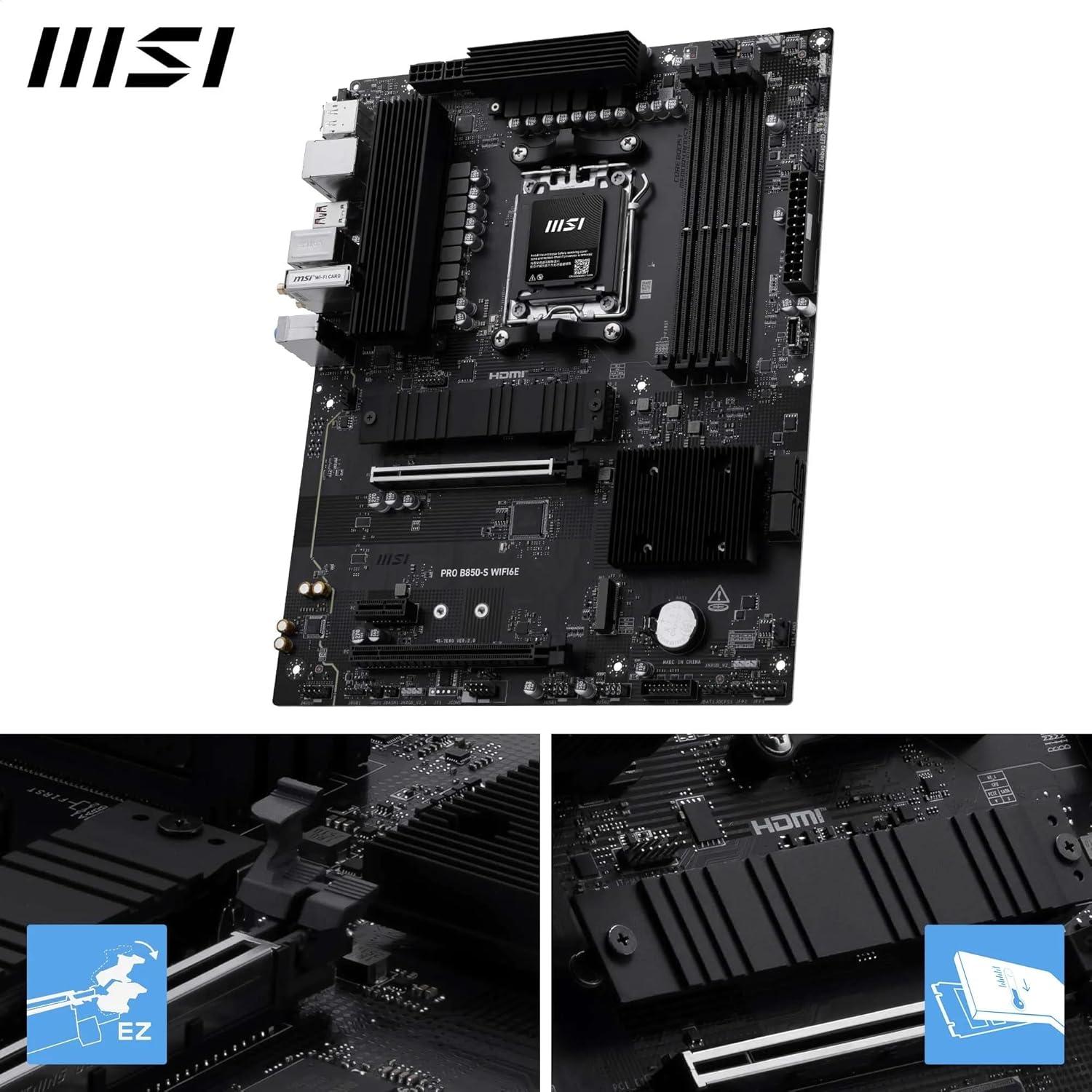

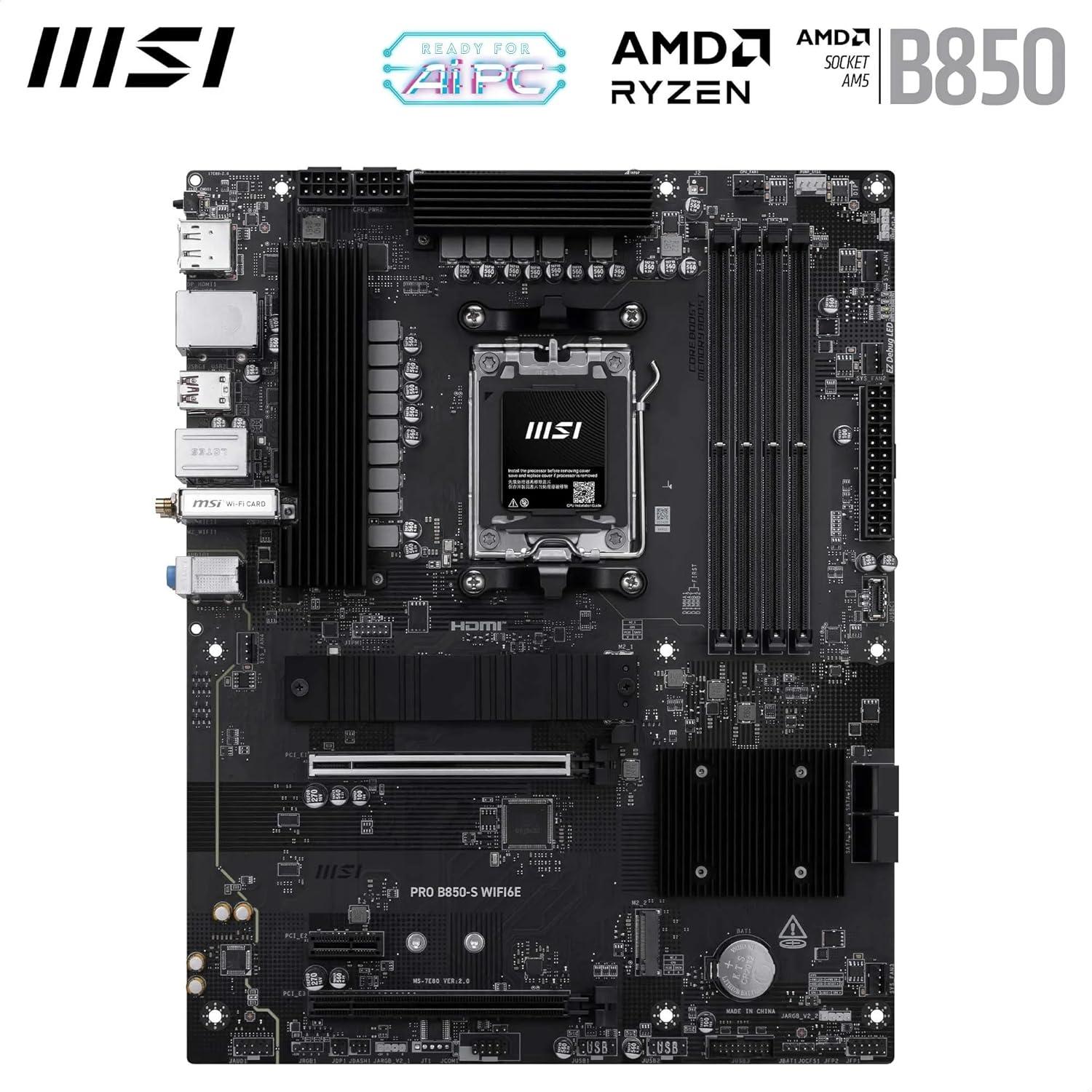

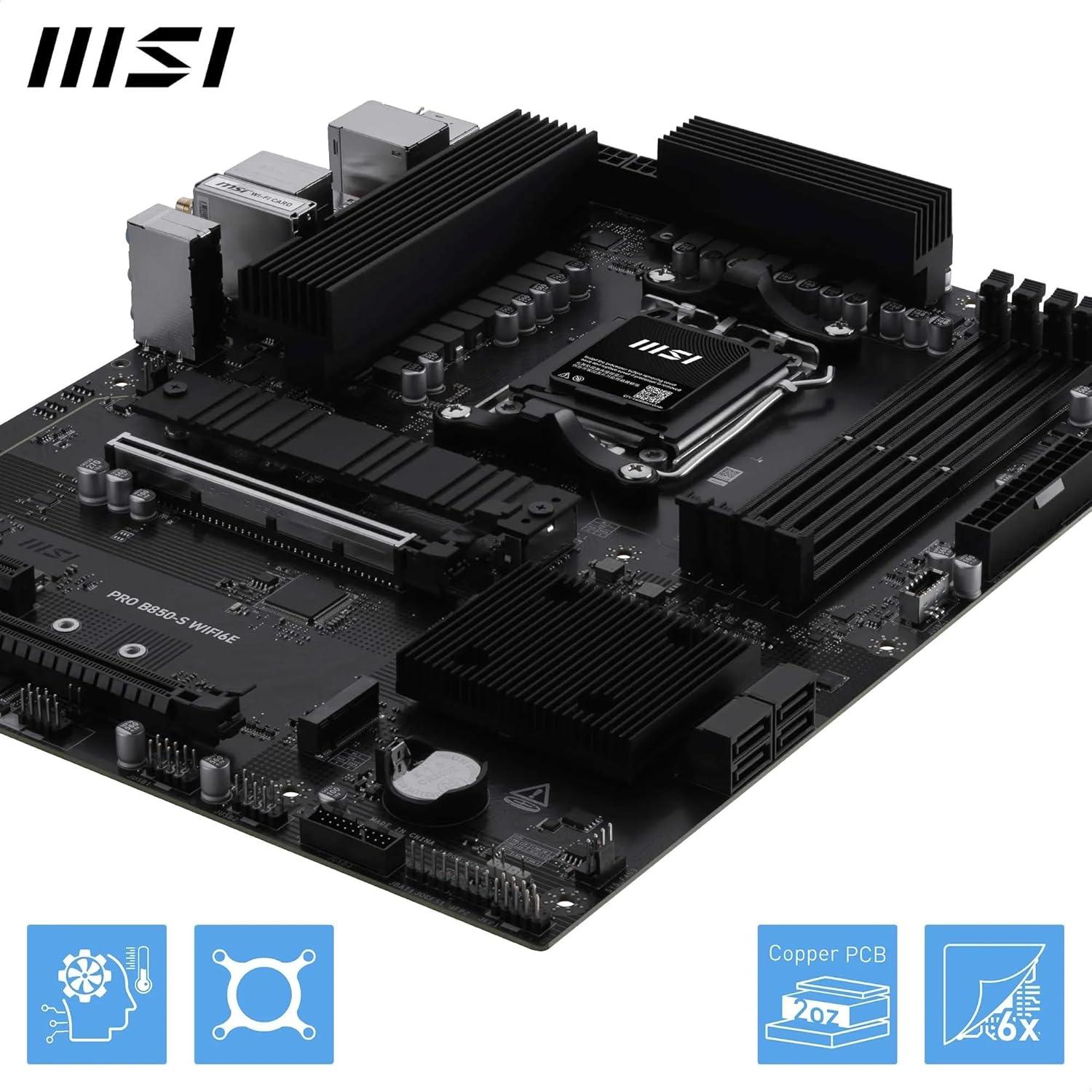

PRO B850-S WIFI6E by MSI is a Standard-ATX form factor motherboard based on the mid-range AMD B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The PRO B850-S WIFI6E comes with an entry-level VRM setup, delivering 60 A across 12 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview

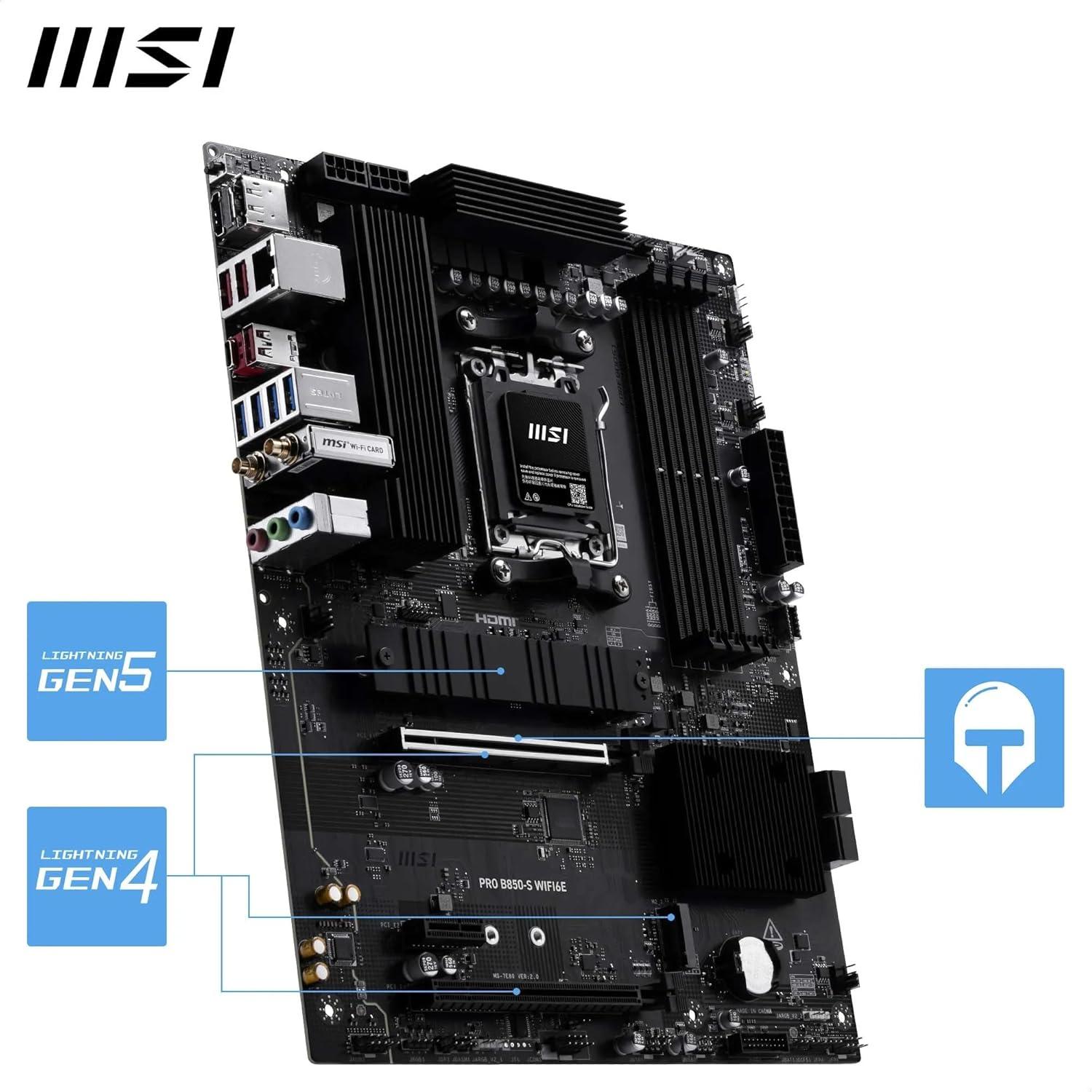

The PRO B850-S WIFI6E offers a balanced expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 2 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (M2_1:PCIe5.0x4(9000/7000)/PCIe4.0x4(8000);M2_2:PCIe4.0x4(9000/8700/8600/8400/7000)/PCIe4.0x2(8500/8300)) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi Wi‑Fi 6E (802.11ax) standard, and wired Realtek ® 8125 2.5G LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek ® ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
PRO B850-S WIFI6E is a dependable choice with a respectable overall quality score of 59.00. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 80.1% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | PRO B850-S WIFI6E |
| Current Price Amazon | $140 |
| Amazon Price Updated | 8 hours, 8 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD B850 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (60 A) |
|---|---|
| Power Design | 12 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 | Gen3 |
|---|---|---|---|
| x16 | 2 | 2 | 0 |
| x1 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260 |
| M.2 PCIe Modes | M2_1:PCIe5.0x4(9000/7000)/PCIe4.0x4(8000);M2_2:PCIe4.0x4(9000/8700/8600/8400/7000)/PCIe4.0x2(8500/8300) |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ® ALC897 |
|---|
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K 60Hz) |

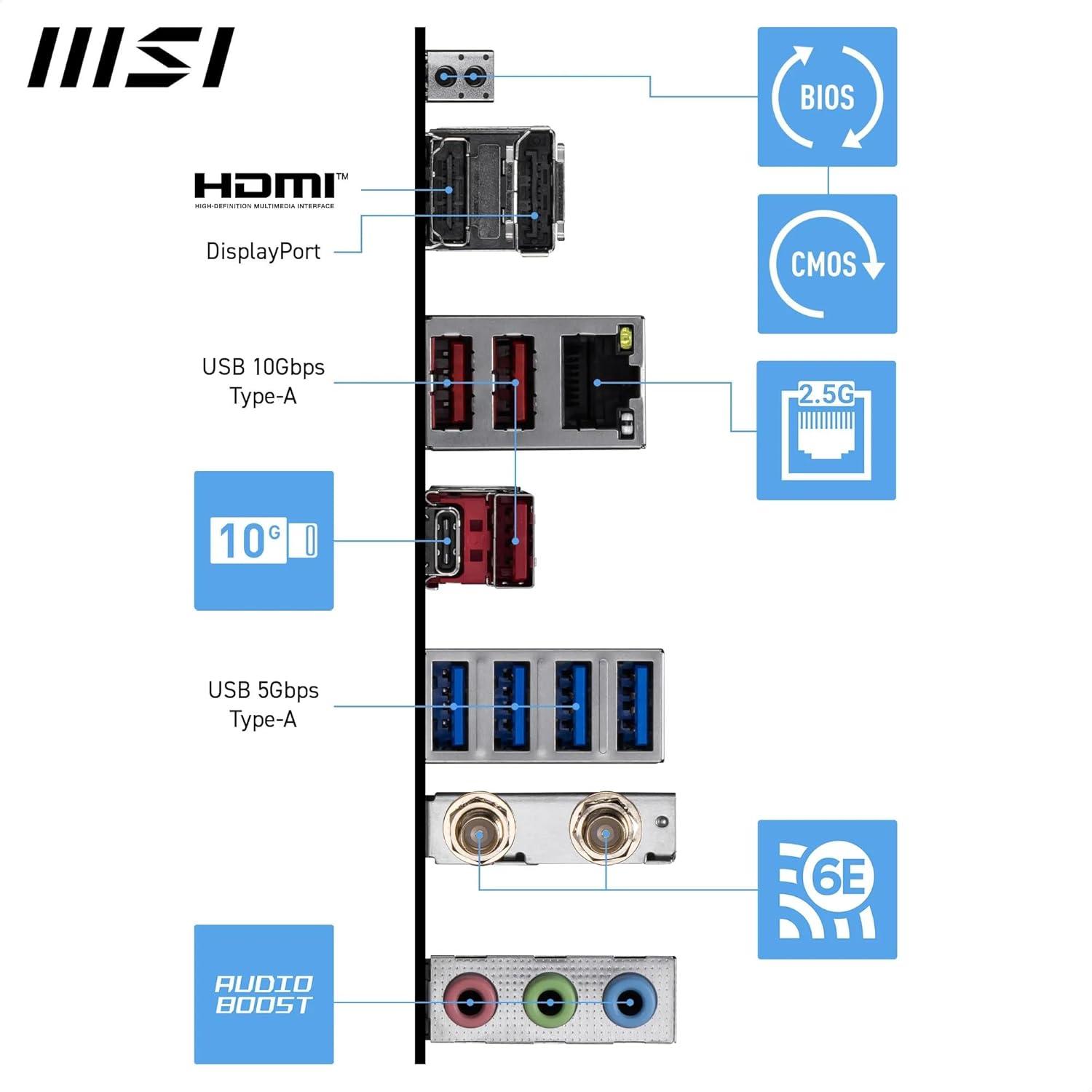

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek ® 8125 2.5G LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi‑Fi 6E (802.11ax) Bandwidth: 160MHz, up to 2.4 Gbps Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5, |
|---|---|
| OS Support | Support for Windows ® 11 64-bit, |
| RAM | Supports Ryzen 9000 Series with varying max OC speeds by configuration: 1DPC 1R up to 8200+ MT/s, 1DPC 2R up to 6400+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 6000+ MT/s. Supports AMD POR Speed and JEDEC Speed, memory overclocking and AMD EXPO. Supports dual-channel, non‑ECC unbuffered DIMMs, and CUDIMM (clock driver bypass mode only). CUDIMM support and POR boot frequency may vary by CPU series; some CPUs may fail to boot without manual overclocking and future BIOS updates may improve compatibility. DIMM slots have single-sided latches. Memory compatibility and supported speeds depend on CPU and memory configuration; see the Memory Compatibility List on the product Support page (https://www.msi.com/support) for details. |
| Display | 1x HDMI (HDMI 2.1) and 1x DisplayPort (DisplayPort 1.4). Maximum listed resolution for both outputs is 4K at 60Hz. These outputs are available only when using a processor with integrated graphics; graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot, • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors), • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), |
| Storage |
M.2 Slot Details:
2x M.2 slots (both from CPU). 4x SATA 6G. M.2 SSD heatsink restrictions apply per manual. RAID supported: SATA (0/1/10), M.2 NVMe (0/1). |
| Audio | 7.1-Channel High Definition Audio; 'Audio Connectors' mentioned but no specific rear jack count, gold plating, or optical S/PDIF Out indicated. |
| Networking | Wireless module pre-installed in M.2 (Key-E) slot; supports MU-MIMO TX/RX; supports 802.11 a/b/g/n/ac/ax; 6GHz band support may depend on country regulations; Wi-Fi 6E requires Windows 11; Bluetooth version may be updated per vendor; FIPS/FISMA noted. |
| Buttons | Also includes DisplayPort, HDMI, 2.5G LAN, Wi‑Fi/Bluetooth, and audio connectors; multiple high-speed USB ports (10Gbps Type‑A, 10Gbps Type‑C, 5Gbps Type‑A) plus 4x USB 2.0 ports; power connectors: 1x ATX_PWR, 2x CPU_PWR; fan headers: 1x CPU_Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan; front headers: 2x Front Panel (JFP), Front Audio (JAUD), Chassis Intrusion (JCI), 1x Com Port (JCOM); tuning controller (JDASH); RGB headers: 3x Addressable V2 (JARGB_V2), 1x RGB (JRGB); TPM pin header (supports TPM 2.0). |
| Accessories | , |
| Dimensions | ATX, 243.84mmx304.8mm, |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
PRO B850-S WIFI6E Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$209
|
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
54.9%
|
|
|
$166
|
↑
0.5%
|
60.2%
|
25.0%
|
81.0%
|
90.0%
|
60.0%
|
45.0%
|
69.0%
|
|
|
$170
|
0.0%
|
59.8%
|
37.0%
|
80.0%
|
65.0%
|
74.0%
|
43.0%
|
66.8%
|
|
|
$170
|
0.0%
|
59.4%
|
16.0%
|
78.0%
|
94.0%
|
58.0%
|
51.0%
|
66.4%
|
|
|
$140
|
0.0%
|
59.0%
|
37.0%
|
86.0%
|
67.0%
|
65.0%
|
40.0%
|
80.1%
|
|
|
$140
|
0.0%
|
58.8%
|
54.0%
|
69.0%
|
78.0%
|
53.0%
|
40.0%
|
79.8%
|
|
|
$150
|
0.0%
|
58.6%
|
25.0%
|
86.0%
|
69.0%
|
73.0%
|
40.0%
|
74.2%
|
|
|
$150
|
0.0%
|
58.4%
|
37.0%
|
74.0%
|
64.0%
|
74.0%
|
43.0%
|
74.0%
|
|
|
$145❗
|
↑
1.4%
|
58.4%
|
37.0%
|
74.0%
|
64.0%
|
74.0%
|
43.0%
|
76.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$209
|
0.0%
|
$166
|
↑
0.5%
|
$170
|
0.0%
|
$170
|
0.0%
|
$140
|
0.0%
|
$140
|
0.0%
|
$150
|
0.0%
|
$150
|
0.0%
|
$145❗
|
↑
1.4%
|
||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | ASUS | GIGABYTE | ASUS | MSI | ASRock | MSI | GIGABYTE | GIGABYTE | ||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650 / AM5 | B650E / AM5 | B850M / AM5 | B650 / AM5 | AMD B850 / AM5 | B850 / AM5 | B850M / AM5 | B650M / AM5 | B650M / AM5 | ||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Micro-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (70 A) | 8 (60 A) | 12 (60 A) | 6 (50 A) | 12 (60 A) | 14 (80 A) | 8 (60 A) | 12 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+2 | 8+2+1 | 12+2+2 | 6+1+1 | 12 + 2 + 1 | 14+2+1 | 8+2 + 1 | 12+2+2 | 12+2+2 | ||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 192 GB / 7600 MHz | 256 GB / 8200 MHz | 192 GB / 7200 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 3x16 Gen4 | 2x1 Gen4 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 2x16 Gen4 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 2 | 2 | 2 | 4 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek ® ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC897 | Realtek® Audio CODEC | Realtek® Audio CODEC | ||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek ® 8125 2.5G LAN (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® 2.5GbE LAN (1 ports) | Realtek® 2.5GbE LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi‑Fi 6E (802.11ax) | ❌ | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||
| BT | v5.2 / 5.3 | v5.3 | v5.3 | v5.3 | v5.3 | ❌ | v5.4 | v5.2 / 5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
❌ |
|
❌ |
|
|
||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
❌ |
|
|
|
|
❌ |
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
• 1DPC 1R Max speed up to 8200+ MT/s,
• 1DPC 2R Max speed up to 6400+ MT/s,
• 2DPC 1R Max speed up to 6400+ MT/s,
• 2DPC 2R Max speed up to 6000+ MT/s, , Supports AMD POR Speed and JEDEC Speed,
Supports Memory Overclocking and AMD EXPO TM,
Supports Dual-Channel mode,
Supports Non-ECC, Un-buffered memory,
Supports CUDIMM, Clock Driver bypass mode only*, , * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility., • The DIMM slots on this motherboard only have single-sided latches.,
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.,
Graphics:
Storage:
M2_1 slot,
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), ,
M2_2 slot,
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors),
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors), , *Please refer to the manual for M.2 SSD heatsink restrictions.,, Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices,
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices,
Expansion Slots:
PCI_E1 slot,
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors),
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors),
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor),
USB:
Internal I/O:
Back Panel I/O:
WiFi:
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps,
Supports 802.11 a/ b/ g/ n/ ac/ ax, , Supports Bluetooth ® 5.3**, FIPS, FISMA, , * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11.,
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.,
Audio:
