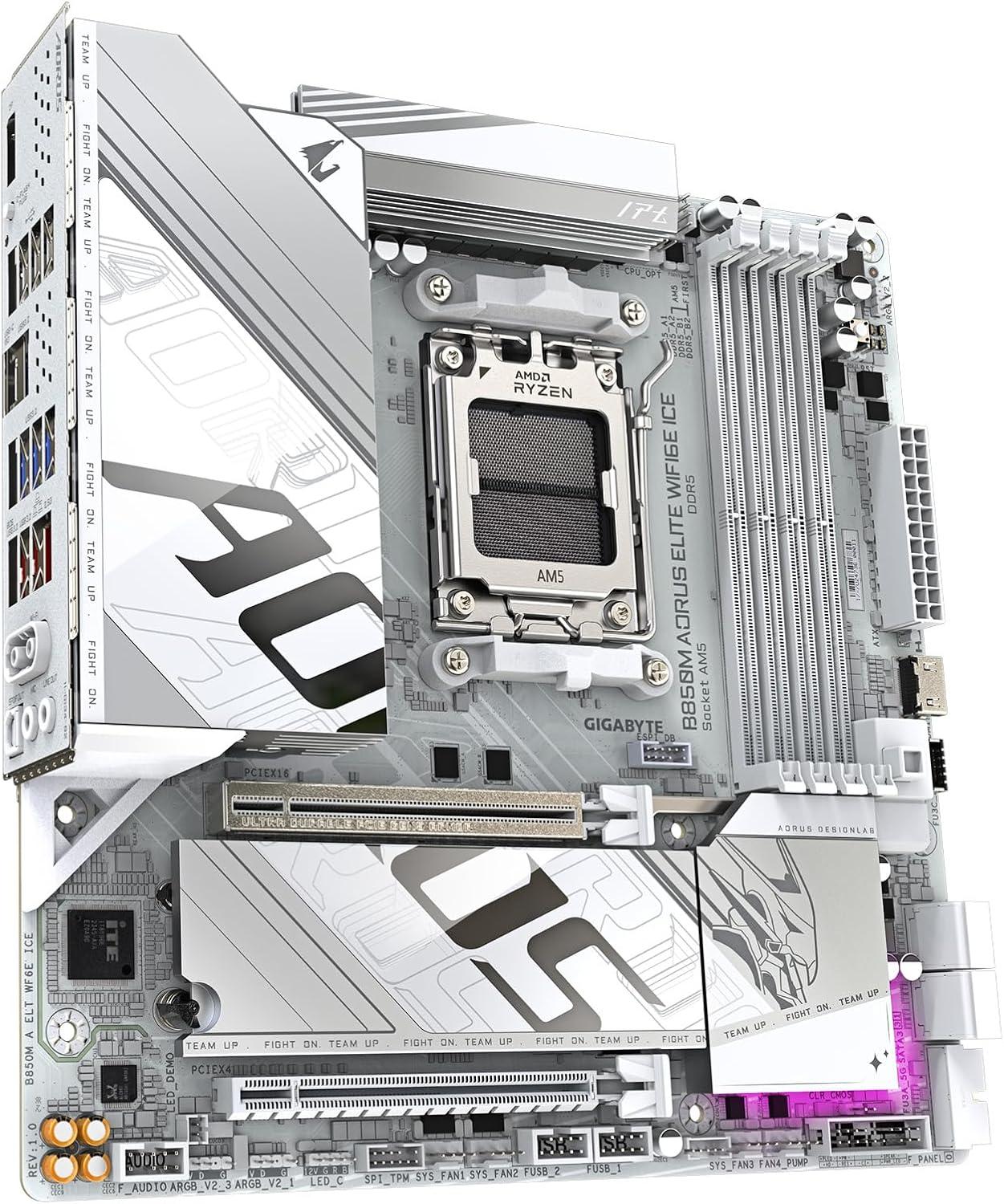

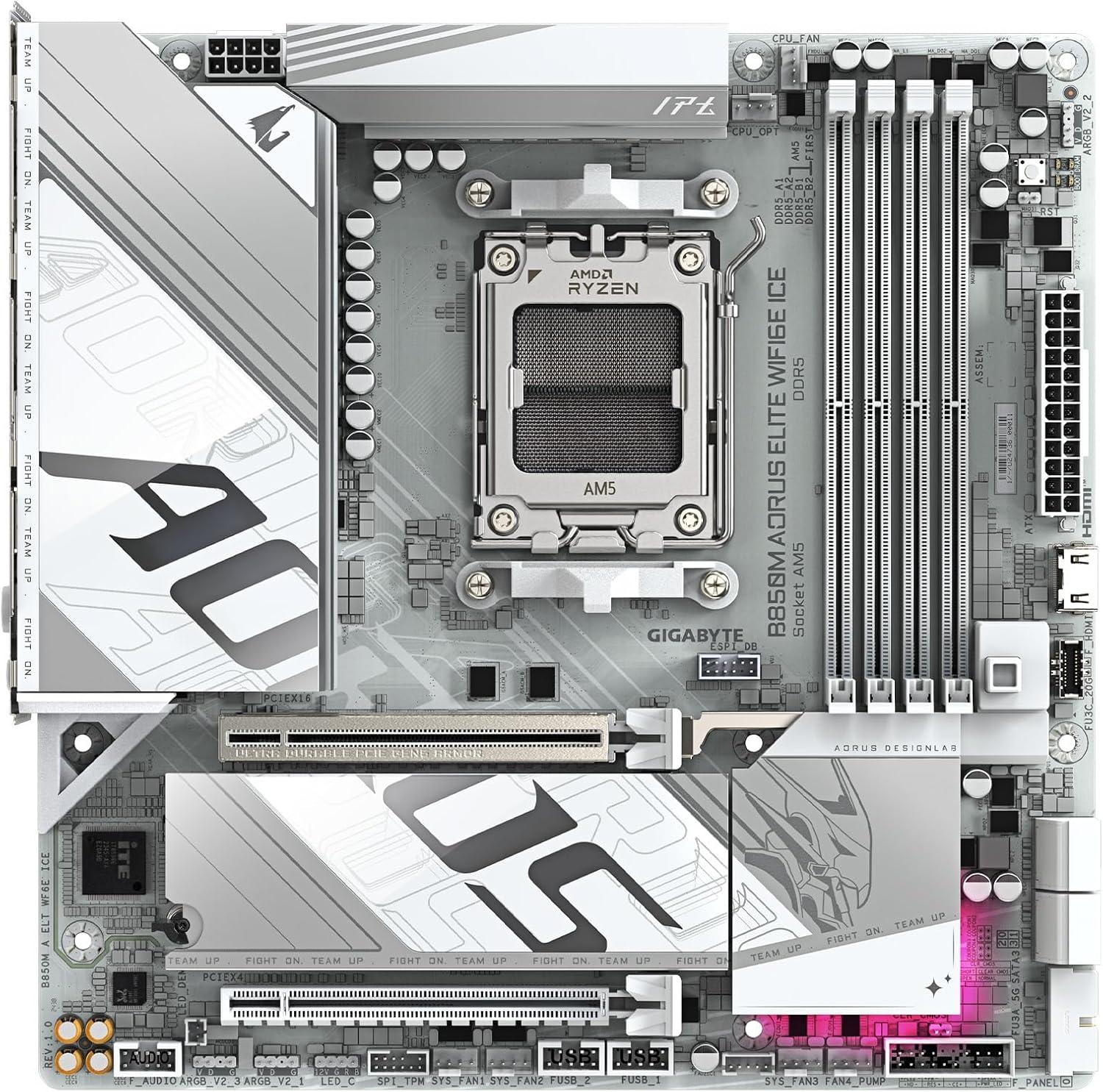

GIGABYTE B850M AORUS Elite
GIGABYTE B850M AORUS Elite Specifications Review
GIGABYTE B850M AORUS Elite by GIGABYTE is a Micro-ATX form factor motherboard based on the mid-range B850M chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The GIGABYTE B850M AORUS Elite comes with an entry-level VRM setup, delivering 60 A across 12 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B850M AORUS Elite offers a balanced expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 6E standard, and wired Realtek® 2.5GbE LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 1.4 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
GIGABYTE B850M AORUS Elite is a dependable choice with a respectable overall quality score of 59.80. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 66.8% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B850M AORUS Elite |
| Current Price Amazon | $170 |
| Amazon Price Updated | 10 hours, 50 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B850M / AM5 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (60 A) |
|---|---|
| Power Design | 12+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 1.4 (Max: 1920x1080@30 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 5 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; it is recommended to refer to the "Memory Support List" on GIGABYTE's website for more information. |
|---|---|
| Display | Integrated Graphics Processor with AMD Radeon™ Graphics support. The DisplayPort supports HDR. The HDMI port is a front port. Graphics specifications may vary depending on CPU support. |
| Expansion | The primary x16 slot (PCIEX16) is CPU-integrated. Its speed is dependent on the installed CPU: PCIe 5.0 x16 for Ryzen 9000/7000 series, PCIe 4.0 x8 for Ryzen 8000 Phoenix 1, or PCIe 4.0 x4 for Ryzen 8000 Phoenix 2. The second physical x16 slot (PCIEX4) is connected to the chipset and operates at PCIe 3.0 x4. |
| Storage |
M.2 Slot Details:
RAID 5 for NVMe SSDs is only available on AMD Ryzen 9000 Series Processors. |
| Audio | High Definition Audio, 2/4/5.1/7.1-channel support. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Networking | Wi-Fi module: Realtek RTL8852CE. Supports WIFI a, b, g, n, ac, ax. Antennas are 2T2R. |
| Buttons | The board includes a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 24.4cm x 24.4cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B850M AORUS Elite Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$209
|
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
54.9%
|
|
|
$140
|
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
82.0%
|
|
|
$229
|
↑
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
50.1%
|
|
|
$166
|
↑
0.5%
|
60.2%
|
25.0%
|
81.0%
|
90.0%
|
60.0%
|
45.0%
|
69.0%
|
|
|
$170
|
0.0%
|
59.8%
|
37.0%
|
80.0%
|
65.0%
|
74.0%
|
43.0%
|
66.8%
|
|
|
$170
|
0.0%
|
59.4%
|
16.0%
|
78.0%
|
94.0%
|
58.0%
|
51.0%
|
66.4%
|
|
|
$140
|
0.0%
|
59.0%
|
37.0%
|
86.0%
|
67.0%
|
65.0%
|
40.0%
|
80.1%
|
|
|
$140
|
0.0%
|
58.8%
|
54.0%
|
69.0%
|
78.0%
|
53.0%
|
40.0%
|
79.8%
|
|
|
$150
|
0.0%
|
58.6%
|
25.0%
|
86.0%
|
69.0%
|
73.0%
|
40.0%
|
74.2%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$209
|
0.0%
|
$140
|
0.0%
|
$229
|
↑
0.0%
|
$166
|
↑
0.5%
|
$170
|
0.0%
|
$170
|
0.0%
|
$140
|
0.0%
|
$140
|
0.0%
|
$150
|
0.0%
|
||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | GIGABYTE | ASUS | GIGABYTE | ASUS | MSI | ASRock | MSI | ||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650 / AM5 | B650 / AM5 | B650 / AM5 | B650E / AM5 | B850M / AM5 | B650 / AM5 | AMD B850 / AM5 | B850 / AM5 | B850M / AM5 | ||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (70 A) | 14 (70 A) | 14 (70 A) | 8 (60 A) | 12 (60 A) | 6 (50 A) | 12 (60 A) | 14 (80 A) | 8 (60 A) | ||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+2 | 14+2+2 | 14+2+2 | 8+2+1 | 12+2+2 | 6+1+1 | 12 + 2 + 1 | 14+2+1 | 8+2 + 1 | ||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 192 GB / 7600 MHz | 256 GB / 8200 MHz | 192 GB / 7200 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 3x16 Gen4 | 2x1 Gen4 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 3 | 3 | 2 | 2 | 2 | 4 | 2 | ||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek ® ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC897 | ||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek ® 8125 2.5G LAN (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi‑Fi 6E (802.11ax) | ❌ | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||
| BT | v5.2 / 5.3 | v5.2 / 5.3 | v5.3 | v5.3 | v5.3 | v5.3 | v5.3 | ❌ | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
❌ |
|
❌ |
||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
❌ |
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU

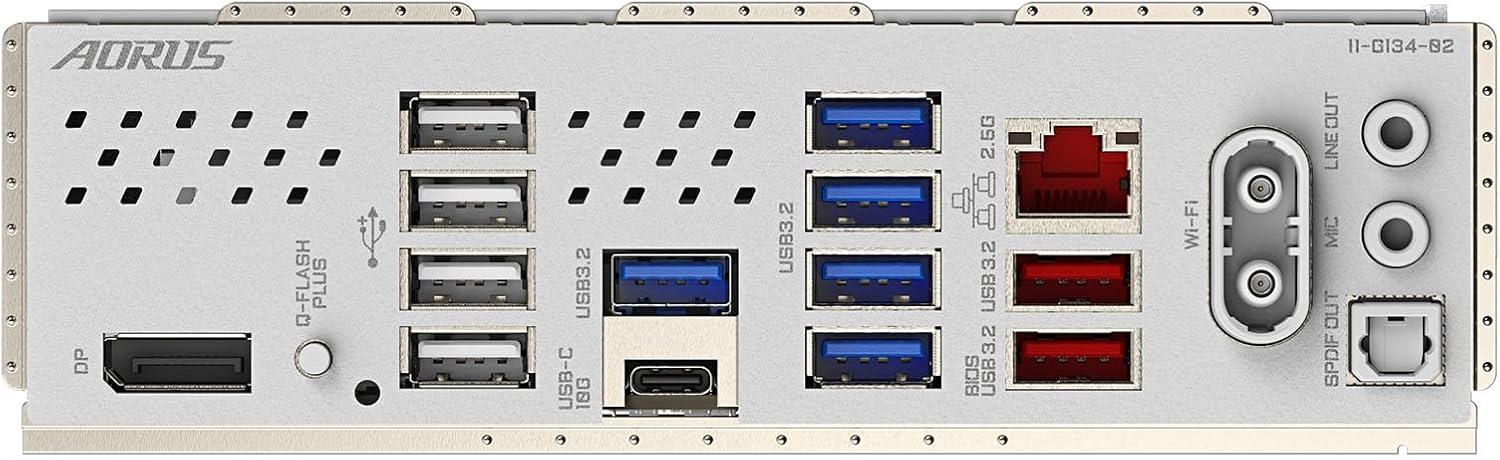

Back Panel I/O:
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
WiFi:
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
