ASUS Prime Z790-A WiFi 6E Specifications Review
ASUS Prime Z790-A WiFi 6E by ASUS is a Standard-ATX form factor motherboard based on the high-end Z790-A chipset and LGA 1700 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 192 GB, and an overclocking speed of up to 7200 MHz.
VRM Quality
The ASUS Prime Z790-A WiFi 6E has a mid-range VRM configuration, providing 60 A over 16 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.

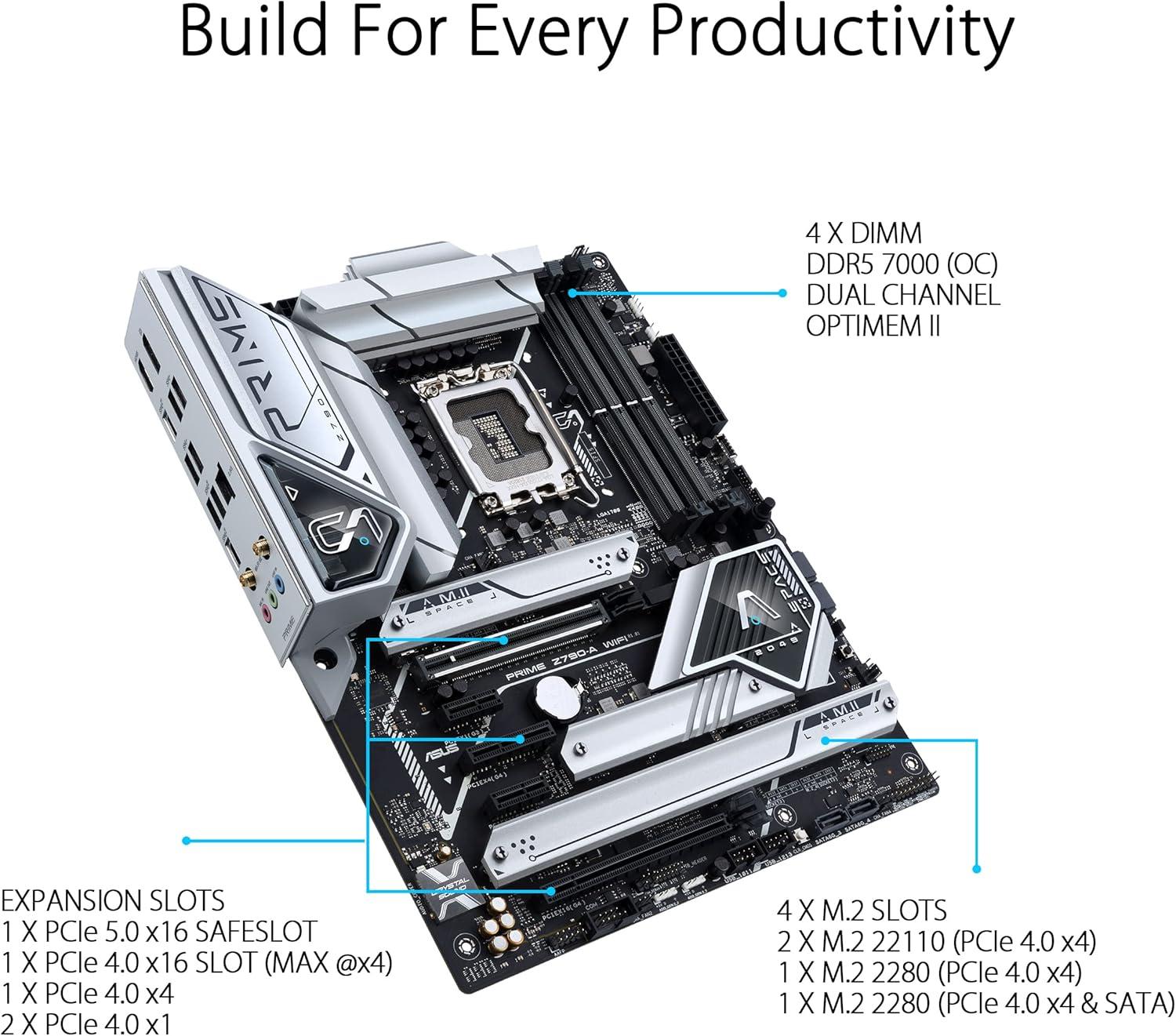

Expansion and Storage Overview
The ASUS Prime Z790-A WiFi 6E offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.

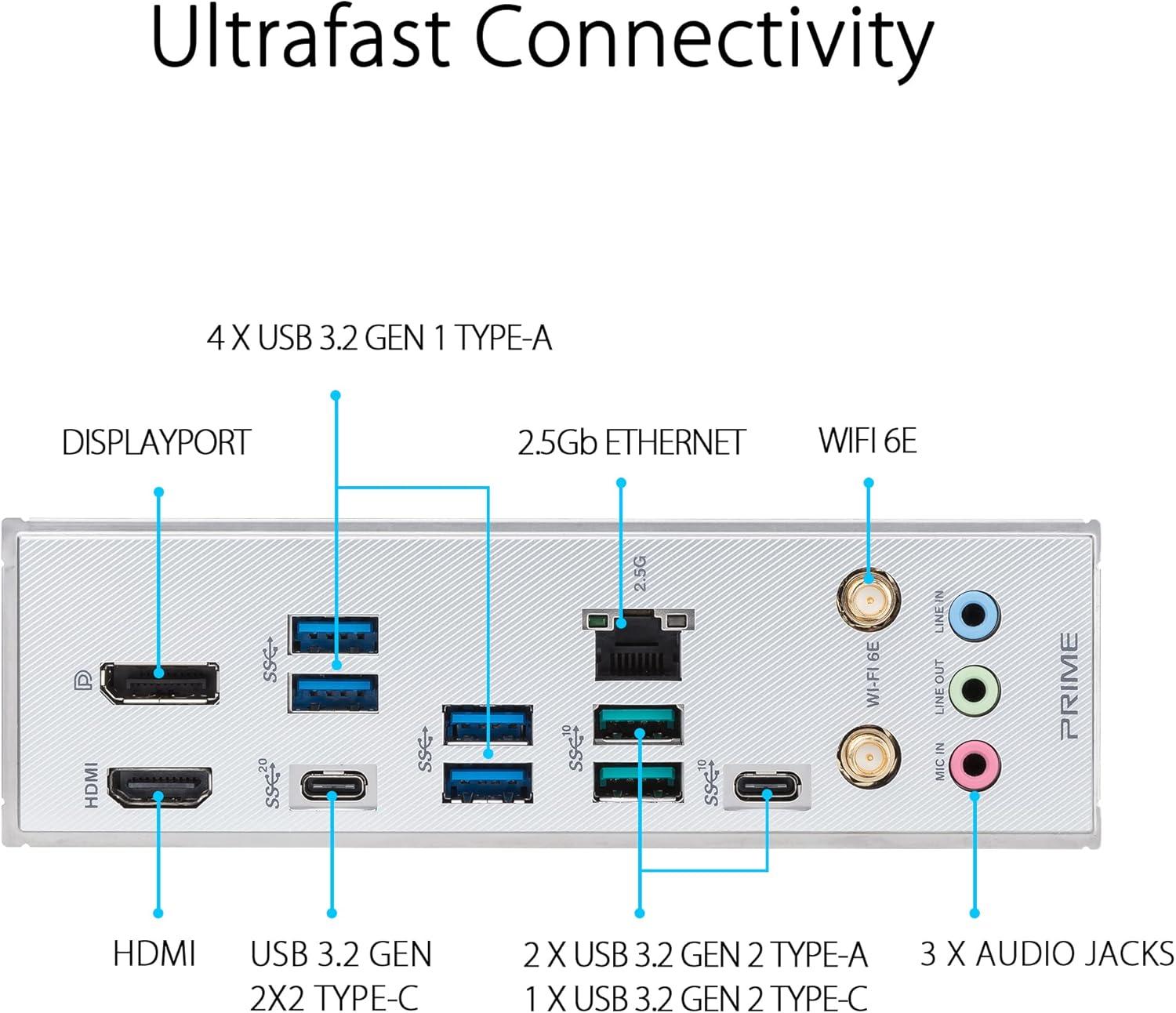

Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 6E standard, and wired 1 x Intel® 2.5Gb Ethernet ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.

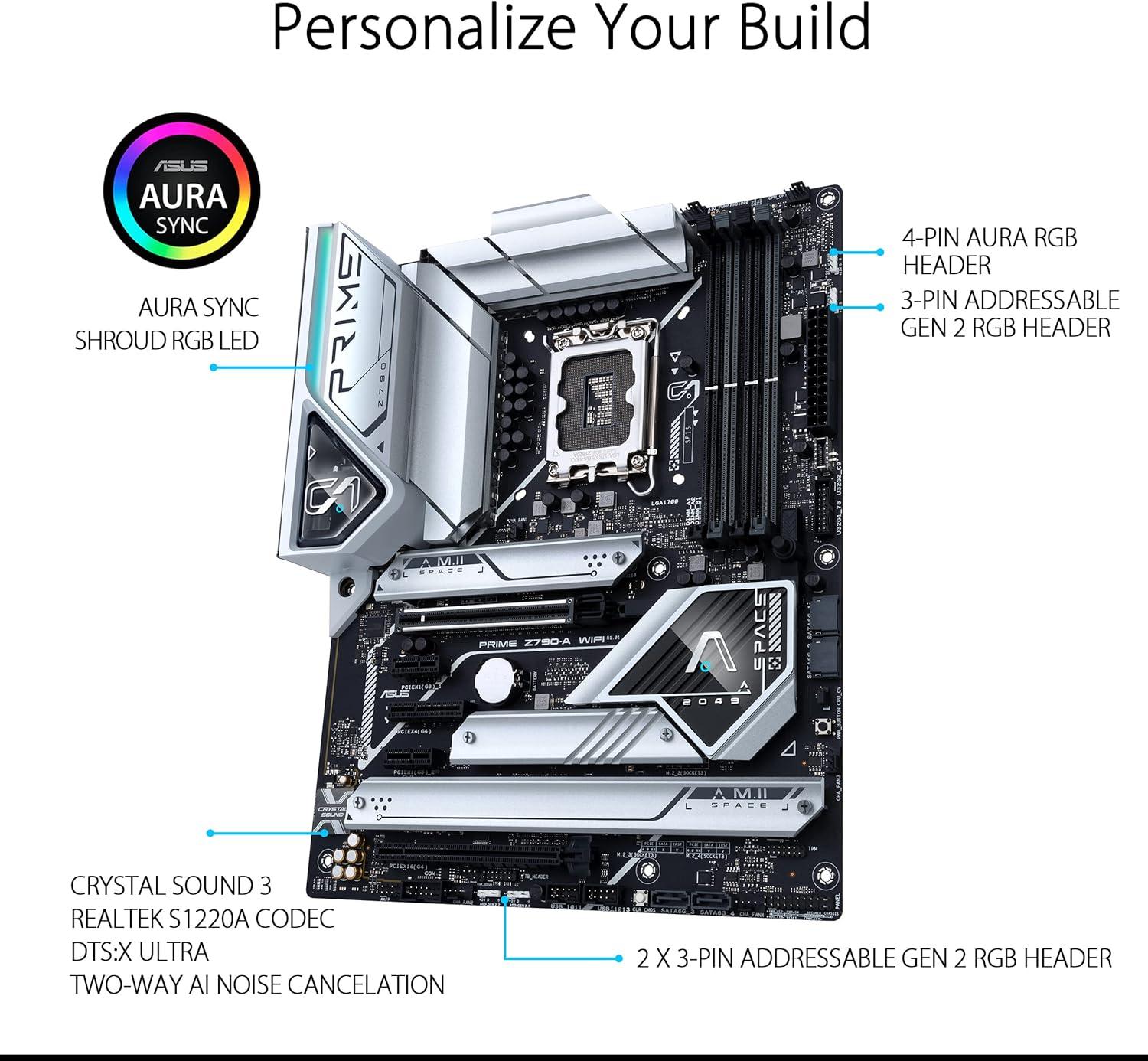

Audio Quality
Equipped with a high-end audio chipset — the Realtek S1220A — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality.
Overall Quality and Value
ASUS Prime Z790-A WiFi 6E delivers a strong overall quality score of 79.40. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard shows a 34.3% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS Prime Z790-A WiFi 6E |
| Current Price Amazon | $440 |
| Amazon Price Updated | 1 hour, 31 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z790-A / LGA 1700 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (60 A) |
|---|---|
| Power Design | 16+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 192 GB / 7200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 2 | 1 | 1 | 0 |
| x4 | 1 | 0 | 1 | 0 |
| x1 | 2 | 0 | 0 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek S1220A |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 2x2 Frequency Bands: 2.4/5/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Start Button |
|---|
Quality & Features
Additional Information
| RAM | Supports un-buffered memory. Features OptiMem II technology. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|---|
| Display | Graphics specifications may vary between CPU types. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion | The PCIe 4.0 x16 slot supports x4 mode. Please check the PCIe bifurcation table on the ASUS support site for more details. |
| Storage |
M.2 Slot Details:
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| Audio | Features 7.1 Surround Sound. Impedance sense for front and rear headphone outputs. Internal audio Amplifier. Supports Jack-detection, Multi-streaming, and Front Panel Jack-retasking. High quality 120 dB SNR stereo playback output and 113 dB SNR recording input. Supports up to 32-Bit/192 kHz playback. Includes Audio Shielding, Power pre-regulator, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, and a Unique de-pop circuit. Note: 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Networking | WiFi 6E 6GHz regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Buttons | The board includes an onboard Power button. It also has a Clear CMOS header. |

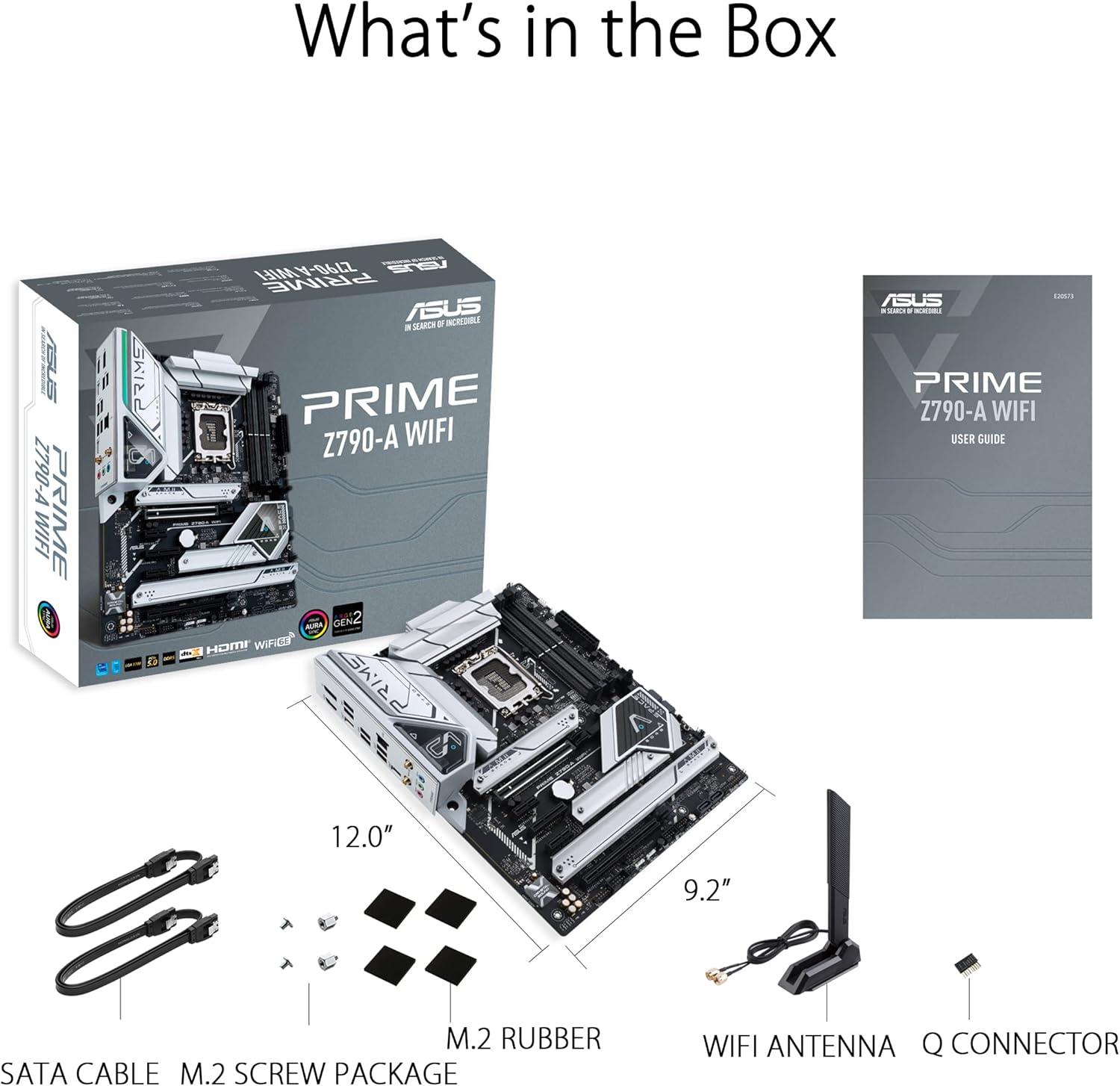

| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS Prime Z790-A WiFi 6E Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$554❗
|
↑
9.6%
|
86.8%
|
61.0%
|
100.0%
|
96.0%
|
89.0%
|
88.0%
|
29.8%
|
|
|
$356
|
0.0%
|
86.0%
|
71.0%
|
89.0%
|
99.0%
|
83.0%
|
88.0%
|
45.9%
|
|
|
$148
|
0.0%
|
85.8%
|
71.0%
|
99.0%
|
96.0%
|
75.0%
|
88.0%
|
109.8%
|
|
|
$224
|
↓
-0.5%
|
85.2%
|
70.0%
|
92.0%
|
103.0%
|
73.0%
|
88.0%
|
72.3%
|
|
|
$180
|
0.0%
|
85.0%
|
71.0%
|
99.0%
|
93.0%
|
77.0%
|
85.0%
|
89.7%
|
|
|
$275❗
|
↓
-2.3%
|
81.4%
|
55.0%
|
92.0%
|
99.0%
|
80.0%
|
81.0%
|
56.3%
|
|
|
$108
|
↑
2.7%
|
81.0%
|
63.0%
|
94.0%
|
93.0%
|
67.0%
|
88.0%
|
141.9%
|
|
|
$440
|
0.0%
|
79.4%
|
53.0%
|
92.0%
|
103.0%
|
67.0%
|
82.0%
|
34.3%
|
|
|
$190
|
0.0%
|
72.6%
|
56.0%
|
97.0%
|
99.0%
|
68.0%
|
43.0%
|
72.6%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$554❗
|
↑
9.6%
|
$356
|
0.0%
|
$148
|
0.0%
|
$224
|
↓
-0.5%
|
$180
|
0.0%
|
$275❗
|
↓
-2.3%
|
$108
|
↑
2.7%
|
$440
|
0.0%
|
$190
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | MSI | MSI | ASUS | MSI | GIGABYTE | MSI | ASUS | GIGABYTE | ||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790-A / LGA 1700 | Z790-A / LGA 1700 | Z790 / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (70 A) | 16 (90 A) | 16 (90 A) | 16 (80 A) | 16 (90 A) | 18 (60 A) | 16 (80 A) | 16 (60 A) | 16 (70 A) | ||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 16+1+1 | 16+1 | 16+1 | 16+1+2 | 18+1+2 | 16+1+1 | 16+1+1 | 16+1+2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 8000 MHz | 192 GB / 7200 MHz | 256 GB / 7200 MHz | 192 GB / 7200 MHz | 256 GB / 7800 MHz | 256 GB / 8266 MHz | 256 GB / 7800 MHz | 192 GB / 7200 MHz | 256 GB / 7600 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 5 | 5 | 4 | 4 | 5 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 8 | 7 | 4 | 8 | 4 | 6 | 4 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ALC4080 | Realtek® ALC4080 Codec | Realtek® ALC4080 Codec | Realtek S1220A | Realtek® ALC4080 Codec | Realtek® ALC1220-VB CODEC | Realtek® ALC4080 Codec | Realtek S1220A | Realtek® Audio CODEC | ||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (None) | ||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (None) | ||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Intel® 2.5Gb Ethernet (2 ports) | Intel® 2.5Gbps LAN (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Intel® 2.5Gbps LAN (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.3 | v5.3 | v5.4 | v5.3 | v5.4 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
❌ |
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$633
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$561
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | None | |
|
$640
|
↑
11.1%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$400
|
0.0%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | None | |
|
$379
|
0.0%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$290
|
↑
3.6%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | None | |
|
$400
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$399
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | None | |
|
$262❗
|
↑
5.6%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$250❗
|
↓
-1.0%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | None | |
|
$380❗
|
↓
-10.6%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | None | |
|
$696
|
0.0%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | None | |
|
$334
|
↓
-1.6%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$273
|
↑
1.8%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | None | |
|
$375
|
0.0%
|
50.5%
|
76.8%
|
65 W / 154 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 2.70 GHz / 5.20 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$280
|
0.0%
|
47.8%
|
75.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.60 GHz / 5.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$268
|
0.0%
|
47.7%
|
74.7%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.70 GHz / 5.00 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$405
|
↑
44.7%
|
45.6%
|
73.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.50 GHz / 4.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$448
|
↓
-0.3%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$327
|
↓
-2.7%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$191
|
↓
-5.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$203❗
|
↑
13.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$212
|
↓
-1.5%
|
36.1%
|
64.8%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$188
|
↓
-4.1%
|
36.1%
|
64.8%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$387
|
↑
0.8%
|
35.0%
|
64.0%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$234
|
0.0%
|
35.0%
|
64.0%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | None | |
|
$268
|
0.0%
|
33.9%
|
63.7%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.30 GHz / 4.80 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$210
|
0.0%
|
32.3%
|
62.5%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.00 GHz / 4.60 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$165
|
↓
-0.3%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | None | |
|
$248
|
↑
0.2%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | UHD Graphics 730 | |
|
$250
|
↑
38.9%
|
22.9%
|
57.1%
|
60 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$115❗
|
0.0%
|
22.9%
|
57.1%
|
58 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$135
|
0.0%
|
21.3%
|
53.0%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | None | |
|
$275
|
↑
63.6%
|
21.3%
|
53.0%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | UHD Graphics 730 |
Official Manufacturer Data
Memory:
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Expansion Slots:
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Back Panel I/O:
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
3 x Audio jacks
WiFi:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Special Features:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Add Comment on ASUS Prime Z790-A WiFi 6E
