Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold Review & Specifications

The Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold by Thermaltake (Model: PS-STP-0850FNFAGU-1) is a power supply unit that provides 850 watts of power output. This unit follows the 3.0 standard and comes in a SFX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 90%. It features a 92 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:

71 A on the 12V rail (1 rail(s))
22 A on the 5V rail
22 A on the 3.3V rail

Operating at 100-240 V input, it includes a 7-year warranty. Physical dimensions are 125mm(W)x63.5mm(H)x100mm(D).

Power Supply Performance

The Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.

This PSU achieves a high efficiency of 90% and carries a Gold certification. It balances cost and performance well and is a reliable choice for mainstream builds. The 7-year warranty reflects good long-term support.

This PSU delivers excellent value, with a competitive cost of only $118.9 per kilowatt. Despite its affordable pricing, it maintains respectable performance and efficiency, making it an ideal choice for budget-conscious PC builders who don't want to compromise on quality.

General Information

Manufacturer	Thermaltake
Power Supply Name	Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold
Part Number	PS-STP-0850FNFAGU-1
Current Price Amazon	$101❗N/A
Amazon Price Updated	2 months, 2 weeks ago.
Power Supply Available	False

Specification

Power Output	850 W
ATX Version / Form Factor	3.0 / SFX
Certifications	80 PLUS Gold
Efficiency Rating	Gold
Modular / Fanless	True / False
Fan Size / Fan Stop	92 mm / True
Dimensions	125mm(W)x63.5mm(H)x100mm(D)
Warranty	7 years

Performance

Input Voltage	100-240 V
Number of 12 V Rails	1
Output 12V / 5V / 3.3V	71 A / 22 A / 22 A
Maximum Efficiency	90%
Price per kW	118.9 USD/kW

Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold Compared to Similar Performance PSUs

Power Supply Price / Performance Table

Power_Supply (Desc)	Price (Desc)	Quality_&_Perf (Desc)	Q&P/Price (Desc)	USD/Kilowatt (Desc)
Thermaltake Toughpower SFX 850W 80Plus … Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	$170 Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 Current Amazon Price Click to view this PSU on Amazon. \| ↑ 3.5% Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 Price Change Price increased from the last update.	69.2%	40.7%	200.0 200.0
Thermaltake Toughpower SFX (ATX 3.0 Sta… Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	$101 Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Mod… Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PSU on Amazon. \| ↓ -6.6% Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Mod… Price Change Price decreased from the last update.	68.5%	67.8%	118.9 118.9
Corsair RM850e Corsair RM850e View detailed specs, charts, and comparison for this Power Supply.	$119 Corsair RM850e Current Amazon Price Click to view this PSU on Amazon. \| ↑ 8.2% Corsair RM850e Price Change Price increased from the last update.	68.5%	57.6%	140.0 140.0
Thermaltake Toughpower SFX 850W Full Mo… Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	$101 Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PSU on Amazon. \| ↓ -6.6% Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold Price Change Price decreased from the last update.	68.5%	67.8%	118.9 118.9
SEASONIC CORE V2 GX-850 SEASONIC CORE V2 GX-850 View detailed specs, charts, and comparison for this Power Supply.	$130 SEASONIC CORE V2 GX-850 Current Amazon Price Click to view this PSU on Amazon. \| 0.0% SEASONIC CORE V2 GX-850 Price Change No significant price change detected.	68.5%	52.7%	152.9 152.9
Thermaltake Toughpower SFX 750W 80Plus … Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	$160 Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 Current Amazon Price Click to view this PSU on Amazon. \| 0.0% Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 Price Change No significant price change detected.	67.2%	42.1%	213.1 213.1
Thermaltake Toughpower SFX (ATX 3.0 Sta… Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	$89 Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Mod… Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PSU on Amazon. \| ↑ 12.7% Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Mod… Price Change Price increased from the last update.	66.5%	74.7%	118.7 118.7
Corsair RM750e Corsair RM750e View detailed specs, charts, and comparison for this Power Supply.	$90 Corsair RM750e Current Amazon Price Click to view this PSU on Amazon. \| ↑ 1.2% Corsair RM750e Price Change Price increased from the last update.	66.5%	73.9%	120.0 120.0
SEASONIC CORE V2 GX-750 SEASONIC CORE V2 GX-750 View detailed specs, charts, and comparison for this Power Supply.	$100 SEASONIC CORE V2 GX-750 Current Amazon Price Click to view this PSU on Amazon. \| 0.0% SEASONIC CORE V2 GX-750 Price Change No significant price change detected.	66.5%	66.5%	133.3 133.3

PSU Comparison and Detail Specifications Table

Specification	Thermaltake Toughpower SFX 85… Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	Thermaltake Toughpower SFX (A… Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	Corsair RM850e Corsair RM850e View detailed specs, charts, and comparison for this Power Supply.	Thermaltake Toughpower SFX 85… Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	SEASONIC CORE V2 GX-850 SEASONIC CORE V2 GX-850 View detailed specs, charts, and comparison for this Power Supply.	Thermaltake Toughpower SFX 75… Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	Thermaltake Toughpower SFX (A… Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	Corsair RM750e Corsair RM750e View detailed specs, charts, and comparison for this Power Supply.	SEASONIC CORE V2 GX-750 SEASONIC CORE V2 GX-750 View detailed specs, charts, and comparison for this Power Supply.
Perf Chart
Price	$170 Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 Current Amazon Price Click to view this PSU on Amazon. ↑ 3.5% Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 Price Change Price increased from the last update.	$101❗ Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Mod… Price Not Available Last known price from Amazon. Currently unavailable. ↓ -6.6% Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Mod… Price Change Price decreased from the last update.	$119 Corsair RM850e Current Amazon Price Click to view this PSU on Amazon. ↑ 8.2% Corsair RM850e Price Change Price increased from the last update.	$101❗ Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold Price Not Available Last known price from Amazon. Currently unavailable. ↓ -6.6% Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold Price Change Price decreased from the last update.	$130 SEASONIC CORE V2 GX-850 Current Amazon Price Click to view this PSU on Amazon. 0.0% SEASONIC CORE V2 GX-850 Price Change No significant price change detected.	$160 Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 Current Amazon Price Click to view this PSU on Amazon. 0.0% Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 Price Change No significant price change detected.	$89❗ Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Mod… Price Not Available Last known price from Amazon. Currently unavailable. ↑ 12.7% Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Mod… Price Change Price increased from the last update.	$90 Corsair RM750e Current Amazon Price Click to view this PSU on Amazon. ↑ 1.2% Corsair RM750e Price Change Price increased from the last update.	$100 SEASONIC CORE V2 GX-750 Current Amazon Price Click to view this PSU on Amazon. 0.0% SEASONIC CORE V2 GX-750 Price Change No significant price change detected.
Price per kW	200.0 USD/kW	118.9 USD/kW	140.0 USD/kW	118.9 USD/kW	152.9 USD/kW	213.1 USD/kW	118.7 USD/kW	120.0 USD/kW	133.3 USD/kW
Manufacturer	Thermaltake	Thermaltake	Corsair	Thermaltake	SEASONIC	Thermaltake	Thermaltake	Corsair	SEASONIC
Wattage	850 W	850 W	850 W	850 W	850 W	750 W	750 W	750 W	750 W
Ver. / FF	3.1 / SFX	3.0 / SFX	3.1 / ATX	3.0 / SFX	3.1 / ATX	3.1 / SFX	3.0 / SFX	3.1 / ATX	3.1 / ATX
Efficiency	Platinum (92%)	Gold (90%)	Gold (90%)	Gold (90%)	Gold (90%)	Platinum (92%)	Gold (90%)	Gold (90%)	Gold (90%)
12V Rails	1 / 71 A	1 / 71 A	1 / 71 A	1 / 71 A	1 / 70 A	1 / 62 A	1 / 62 A	1 / 62 A	1 / 62 A
12V/5V/3.3V	71 A / 18 A / 18 A	71 A / 22 A / 22 A	71 A / 20 A / 20 A	71 A / 20 A / 20 A	70 A / 20 A / 20 A	62 A / 18 A / 18 A	62 A / 22 A / 22 A	62 A / 20 A / 20 A	62 A / 20 A / 20 A
Fan Size	90 mm	92 mm	140 mm	92 mm	120 mm	90 mm	92 mm	140 mm	120 mm
Modular	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️
Fan Stop	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️	✔️
Fanless	❌	❌	❌	❌	❌	❌	❌	❌	❌
Dimensions	125mm(W)x63.5mm(H)x103.8mm(D)	125mm(W)x63.5mm(H)x100mm(D)	140x150x86	125mm(W)x63.5mm(H)x100mm(D)	140 × 150 × 86 mm	125mm(W)x63.5mm(H)x103.8mm(D)	125mm(W)x63.5mm(H)x100mm(D)	140x150x86	140 × 150 × 86 mm
Warranty	7 years	7 years	7 years	7 years	7 years	7 years	7 years	7 years	7 years

Power Supply Specification Table

Power_Supply (Desc)	Wattage (Desc)	ATX Ver / FF / Modular	Efficiency	12V Rails / Amp	Output 12V/5V/3.3V	Warranty
Thermaltake Toughpower SFX 850W 80Plus … Thermaltake Toughpower SFX 850W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	850 W	3.1 / SFX / True	Platinum, 92%	1 / 71.00 A	71 A / 18 A / 18 A	7 years
Thermaltake Toughpower SFX (ATX 3.0 Sta… Thermaltake Toughpower SFX (ATX 3.0 Standard) 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	850 W	3.0 / SFX / True	Gold, 90%	1 / 71.00 A	71 A / 22 A / 22 A	7 years
Corsair RM850e Corsair RM850e View detailed specs, charts, and comparison for this Power Supply.	850 W	3.1 / ATX / True	Gold, 90%	1 / 71.00 A	71 A / 20 A / 20 A	7 years
Thermaltake Toughpower SFX 850W Full Mo… Thermaltake Toughpower SFX 850W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	850 W	3.0 / SFX / True	Gold, 90%	1 / 71.00 A	71 A / 20 A / 20 A	7 years
SEASONIC CORE V2 GX-850 SEASONIC CORE V2 GX-850 View detailed specs, charts, and comparison for this Power Supply.	850 W	3.1 / ATX / True	Gold, 90%	1 / 70.00 A	70 A / 20 A / 20 A	7 years

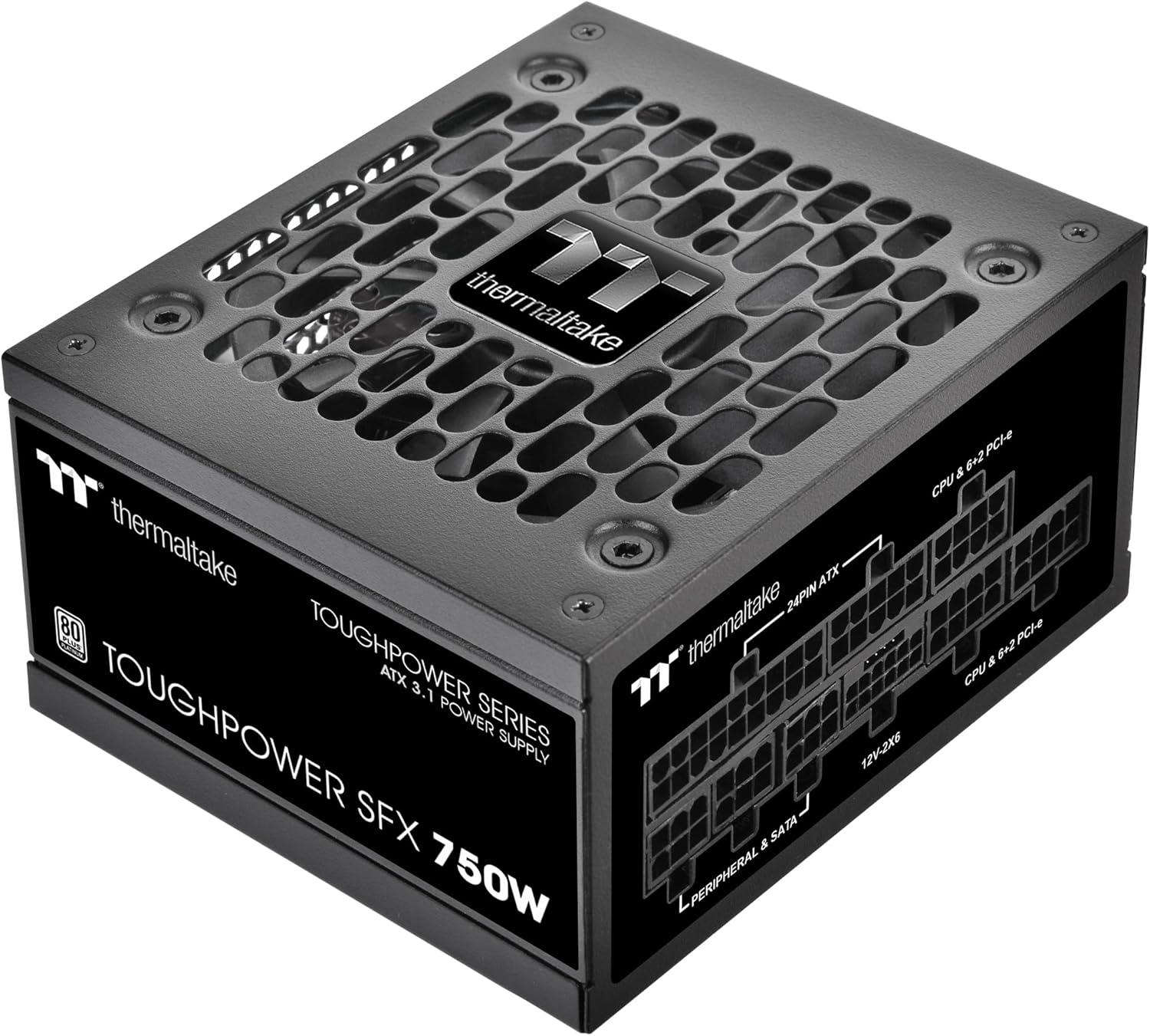

Thermaltake Toughpower SFX 750W 80Plus … Thermaltake Toughpower SFX 750W 80Plus Platinum ATX 3.1 View detailed specs, charts, and comparison for this Power Supply.	750 W	3.1 / SFX / True	Platinum, 92%	1 / 62.00 A	62 A / 18 A / 18 A	7 years

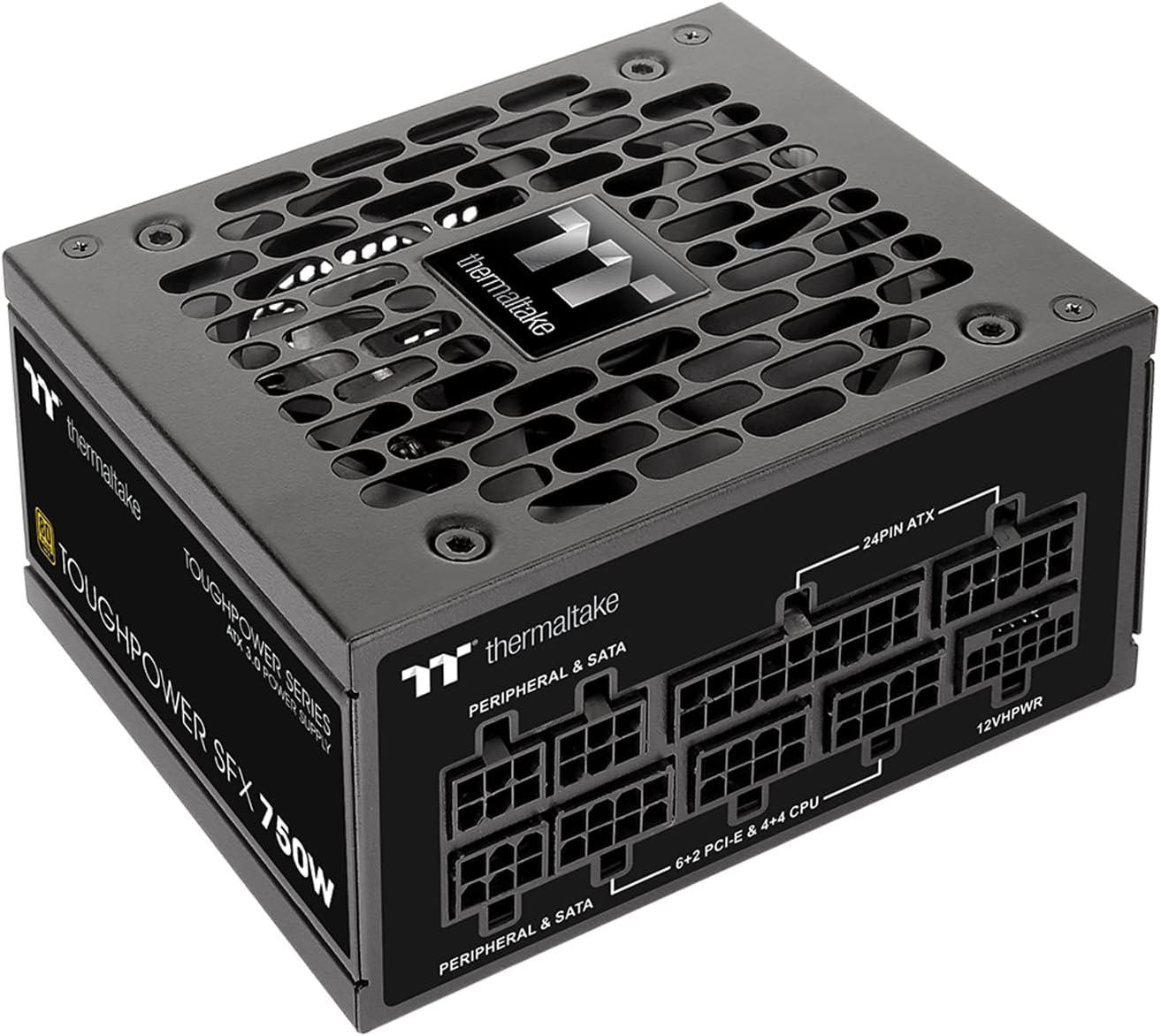

Thermaltake Toughpower SFX (ATX 3.0 Sta… Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold View detailed specs, charts, and comparison for this Power Supply.	750 W	3.0 / SFX / True	Gold, 90%	1 / 62.00 A	62 A / 22 A / 22 A	7 years

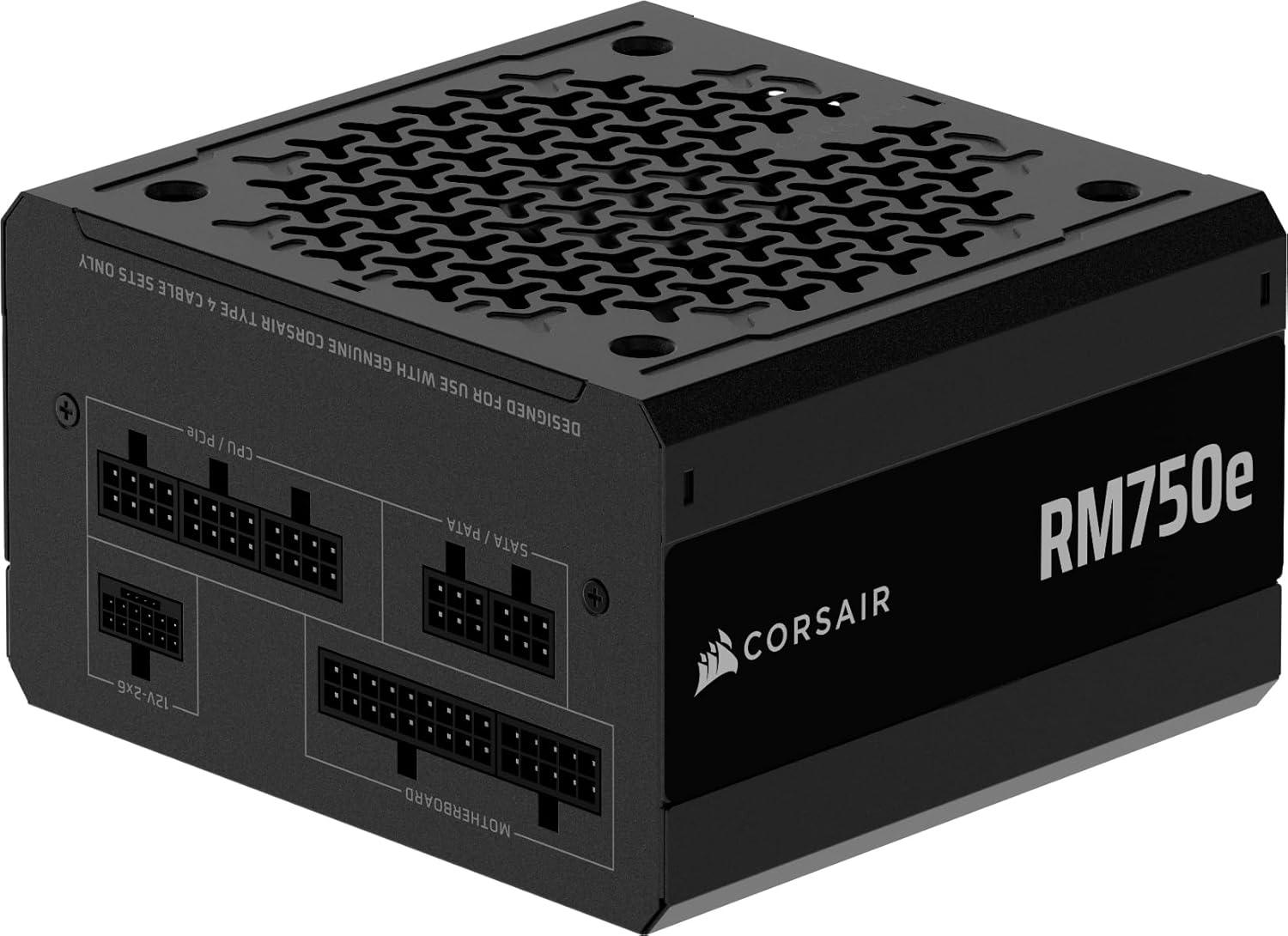

Corsair RM750e Corsair RM750e View detailed specs, charts, and comparison for this Power Supply.	750 W	3.1 / ATX / True	Gold, 90%	1 / 62.00 A	62 A / 20 A / 20 A	7 years
SEASONIC CORE V2 GX-750 SEASONIC CORE V2 GX-750 View detailed specs, charts, and comparison for this Power Supply.	750 W	3.1 / ATX / True	Gold, 90%	1 / 62.00 A	62 A / 20 A / 20 A	7 years
